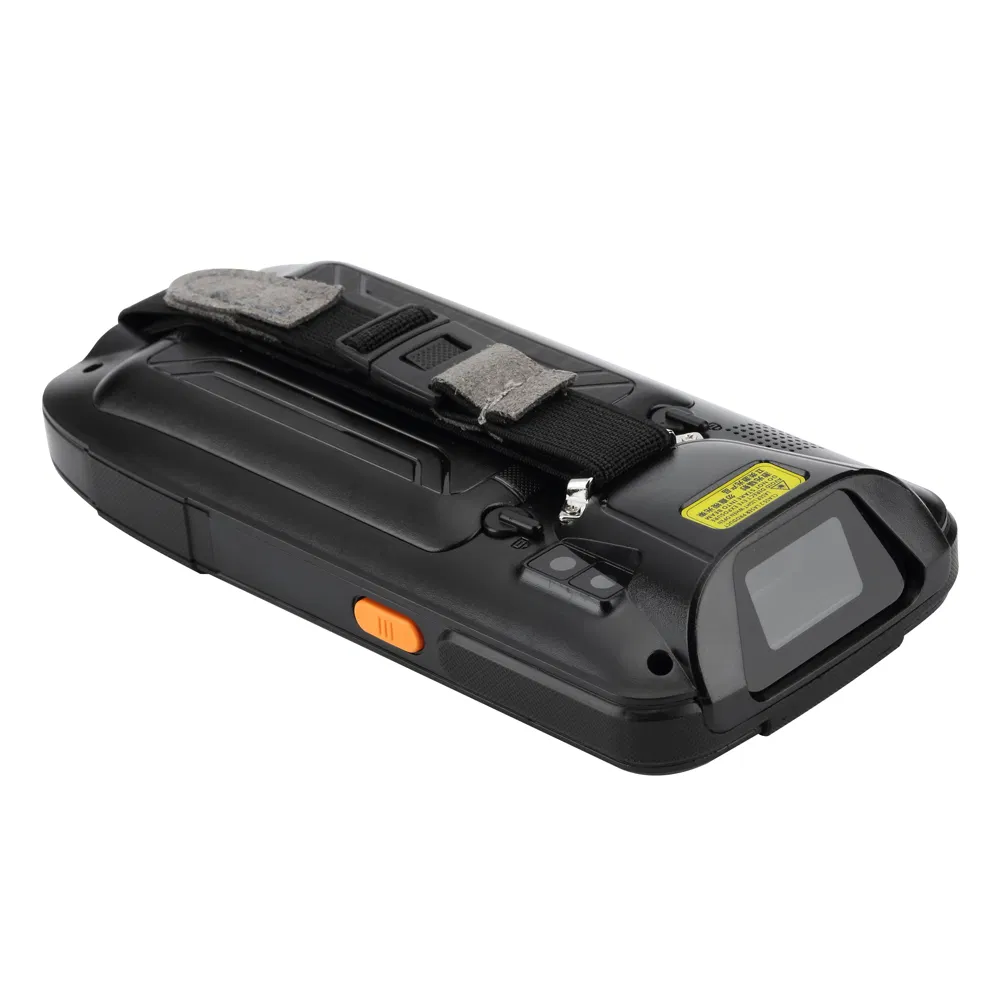

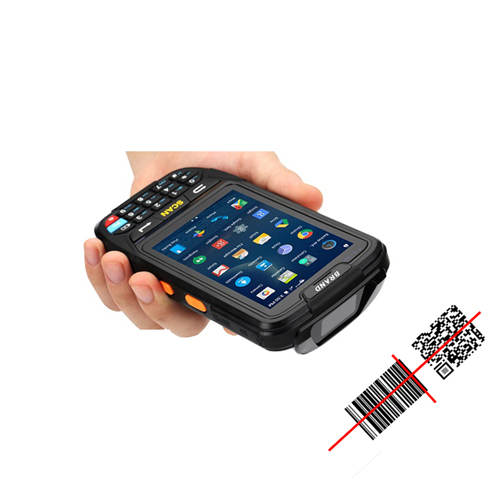

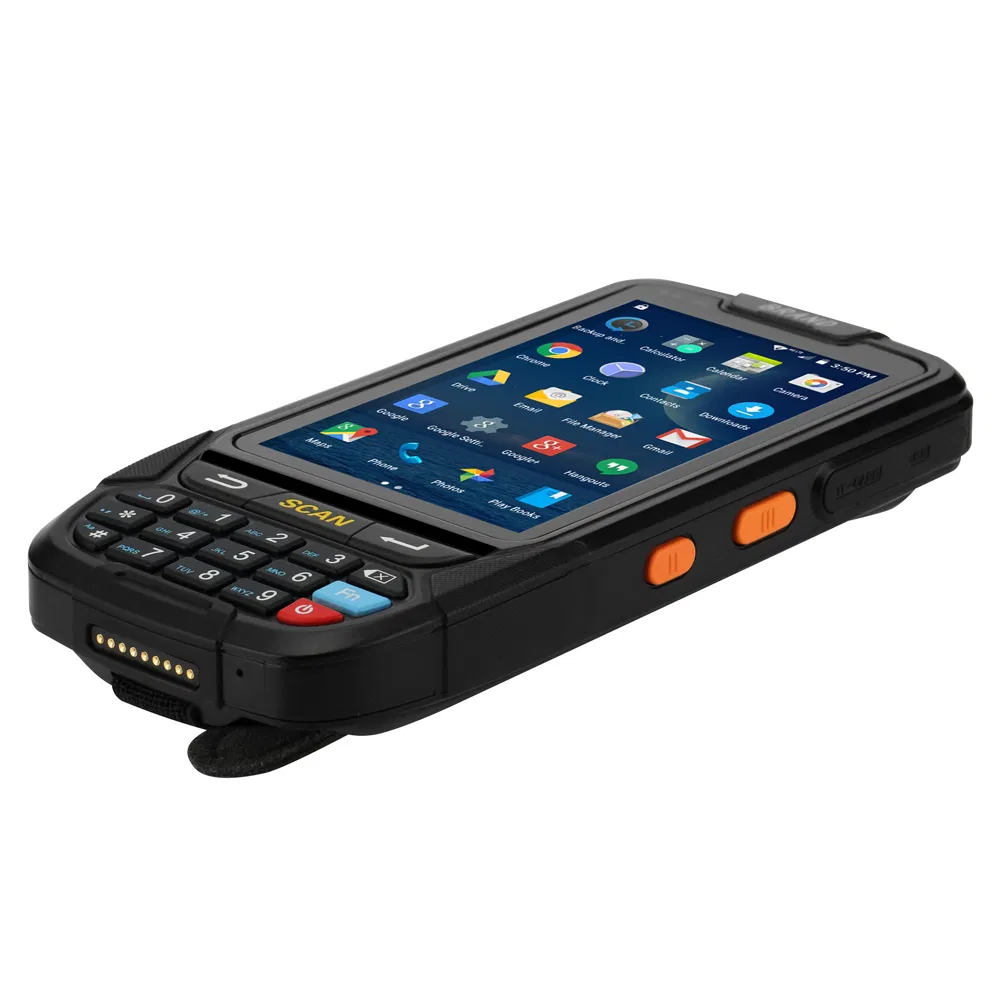

Mobile Android Data Collection Handy Rugged 1d/ 2D Medical Barcode Scanner

1 / 5

Mobile Android Data Collection Handy Rugged 1d/ 2D Medical Barcode Scanner

Customization:	Available
Network Scanning:	Support Network
Type:	Handheld

Send Inquiry

Product Description

Basic Specifications

Model NO.

U8000 PDA

Interface Type

USB

Scan Speed

300 scans/sec

Scan Element

CMOS

Android 7.0 (Safedroid)

Battery

4000mAh Li-ion

Display

4.0 Inch IPS 800*480

Camera

Rear 8.0M Pixels

Memory

2GB RAM + 16GB ROM

Communication

4G LTE/WiFi/BT/GPS

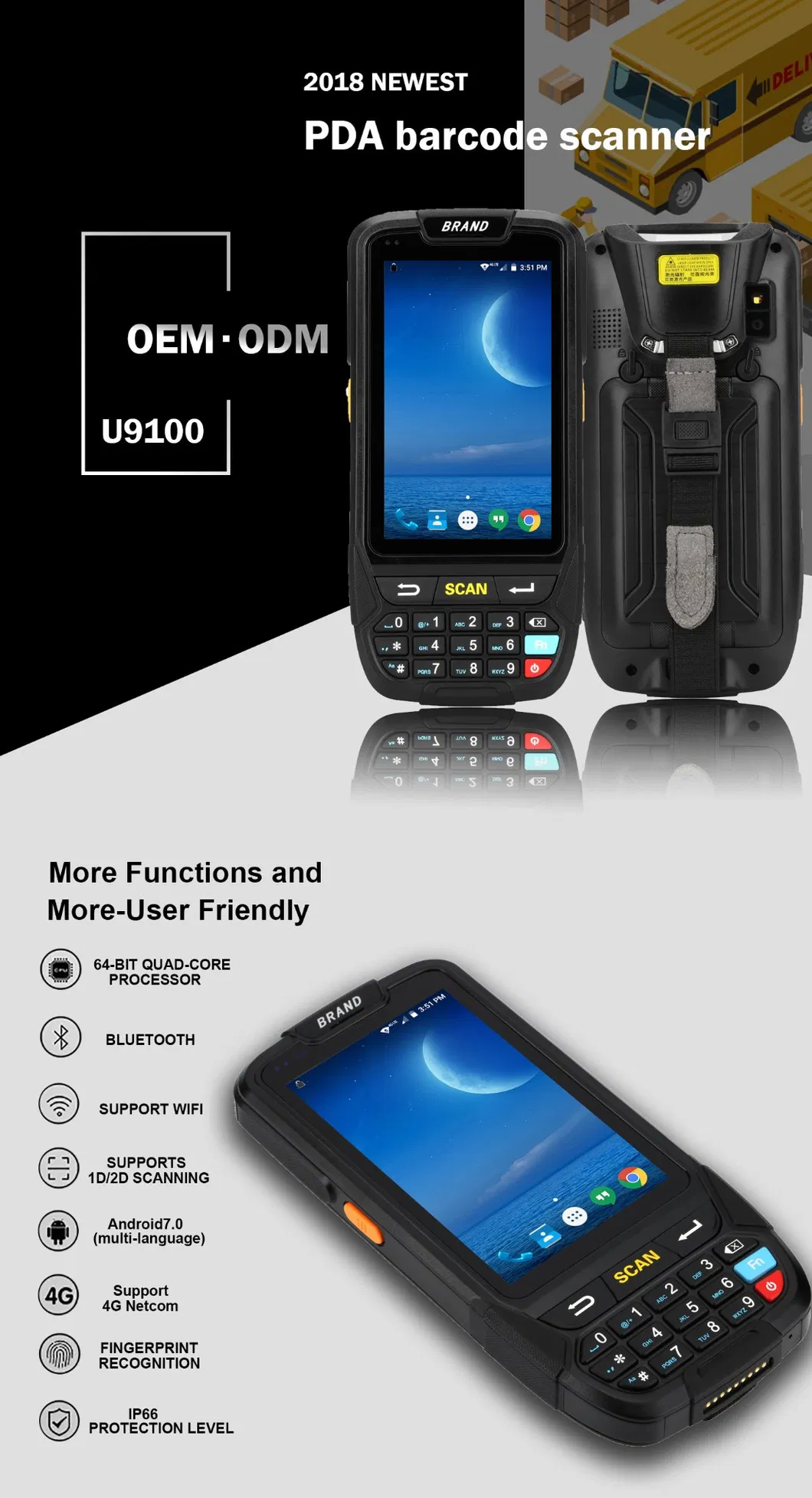

Core Selling Points

Compact & Portable: Ergonomic design with wrist strap for easy handling.

Safedroid OS: Highly optimized Android 7.0 operating system.

High Capacity: 4000mAh large battery for critical industrial requirements.

Industrial Rugged: IP65/IP66 protection grade, water-proof and dust-proof.

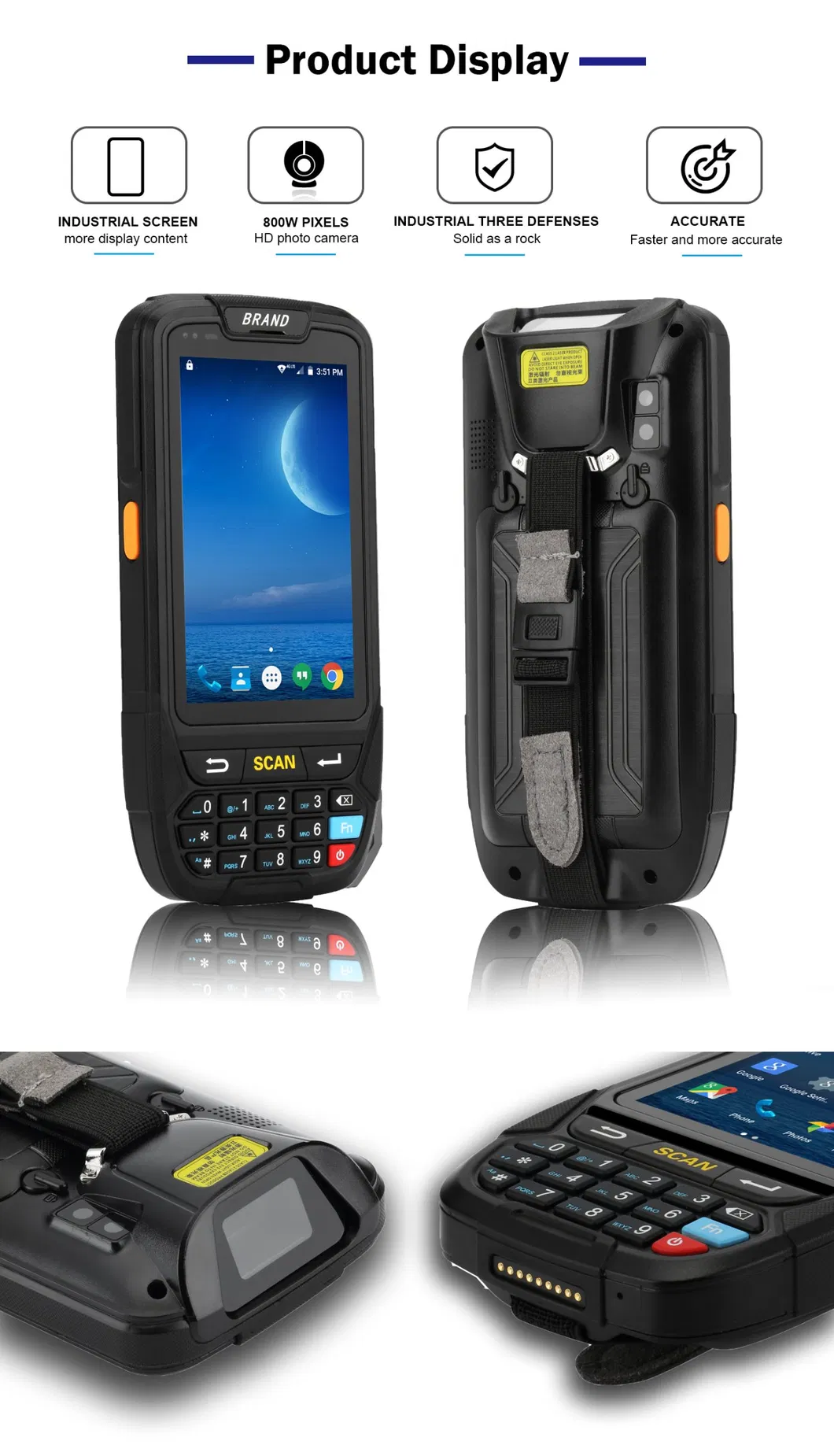

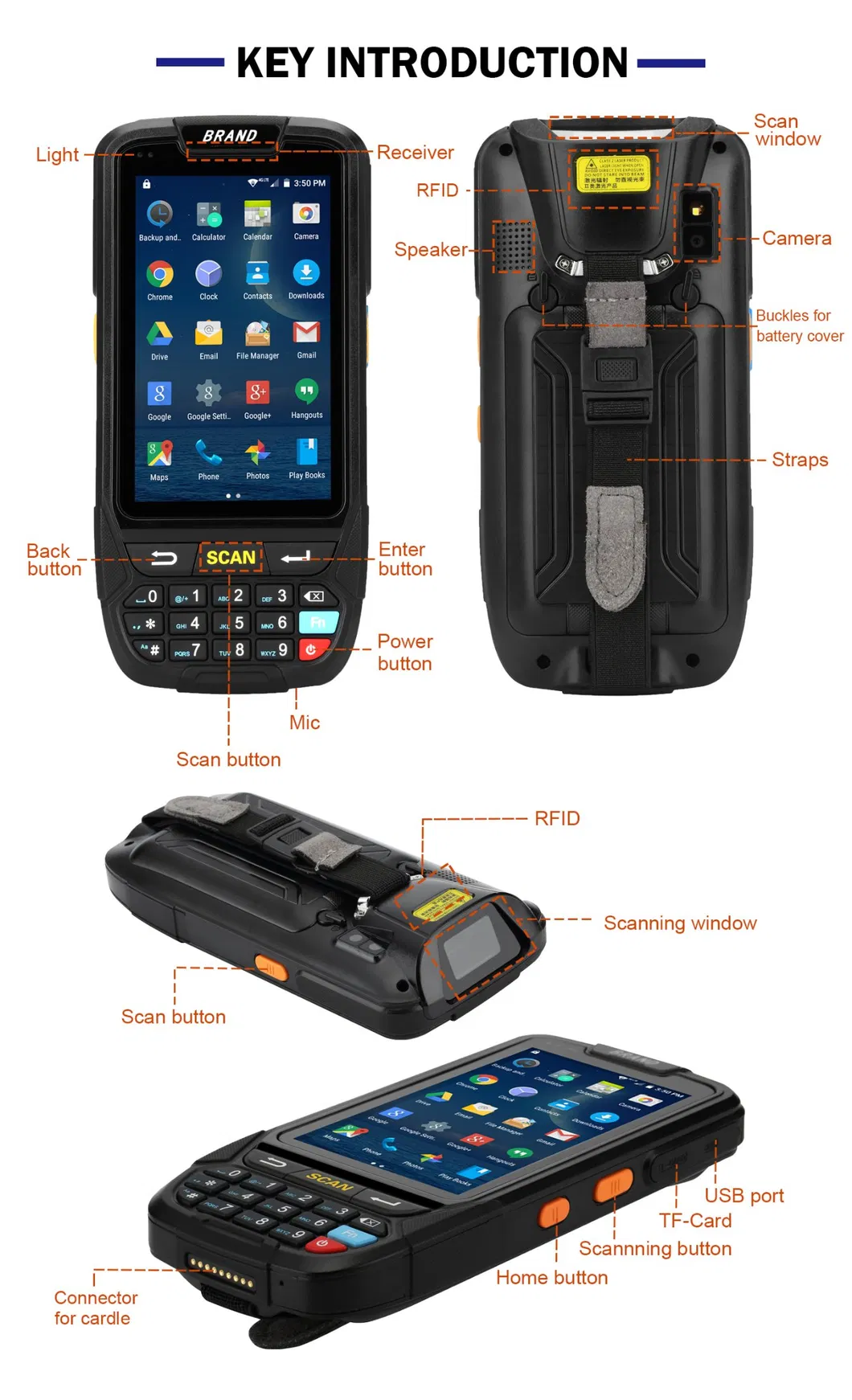

Product Presentation

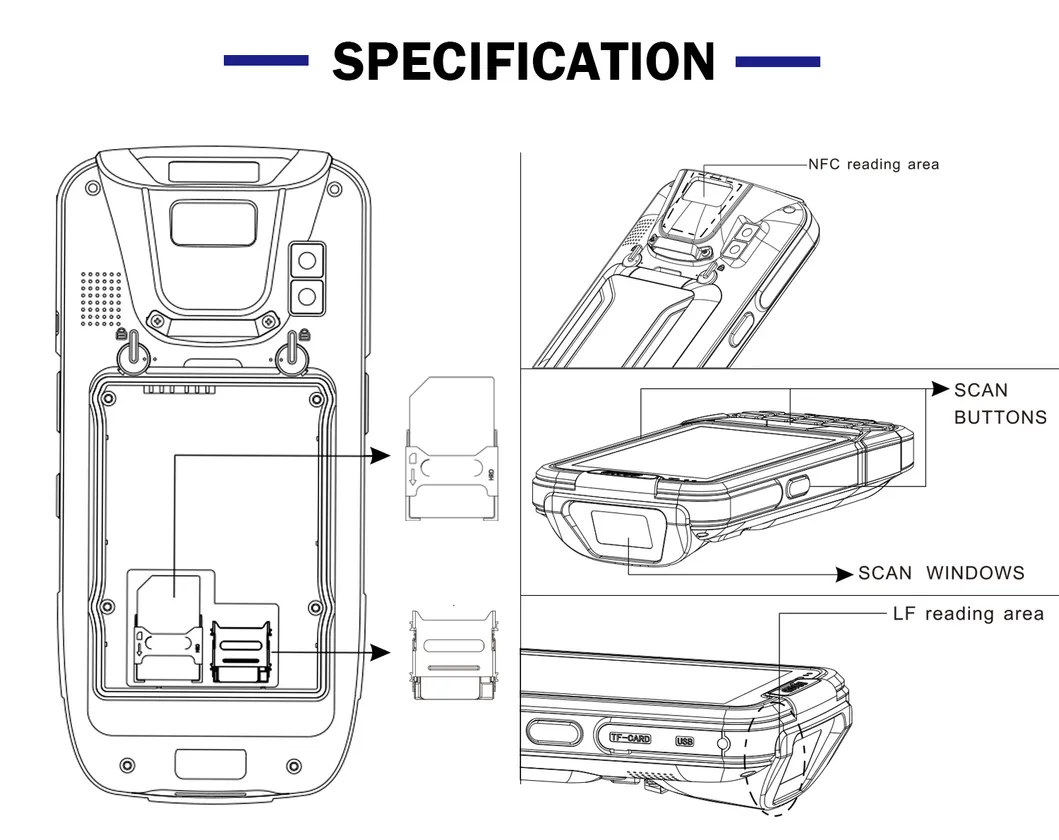

Technical Parameters

Structural Parameters
Dimensions	156mm(L) X 76mm(W) X 26mm(D)
Weight	<500g
Display Screen	4 inch IPS 480*800 px Multi-point Touch
Battery Capacity	Rechargeable Li-polymer 3.7V 4000mAh
Performance Parameters
CPU	ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM/ROM	2G RAM + 16G NAND Flash
OS	Android 7.0
Data Communication
WI-FI	IEEE802.11 a/b/g/n
4G LTE	TDD-LTE (B38, B39, B40, B41), FDD-LTE (B1, B3)
Bluetooth	BT 4.1 + HS (5-10m distance)
Data Capture (Optional)
1D Laser	Symbol 955, Honeywell N4313
2D CMOS	Honeywell N6603, NewLand 3096
RFID/NFC	LF (125kHz), HF/NFC (13.56MHz), UHF (Optional)

Product Performance

High-speed Operation Performance

Utilizing Android 7.0 OS and a 64-bit quad-core 1.3GHz processor, this device offers perfect compatibility and computing capability for strict application requirements.

Excellent Identification Ability

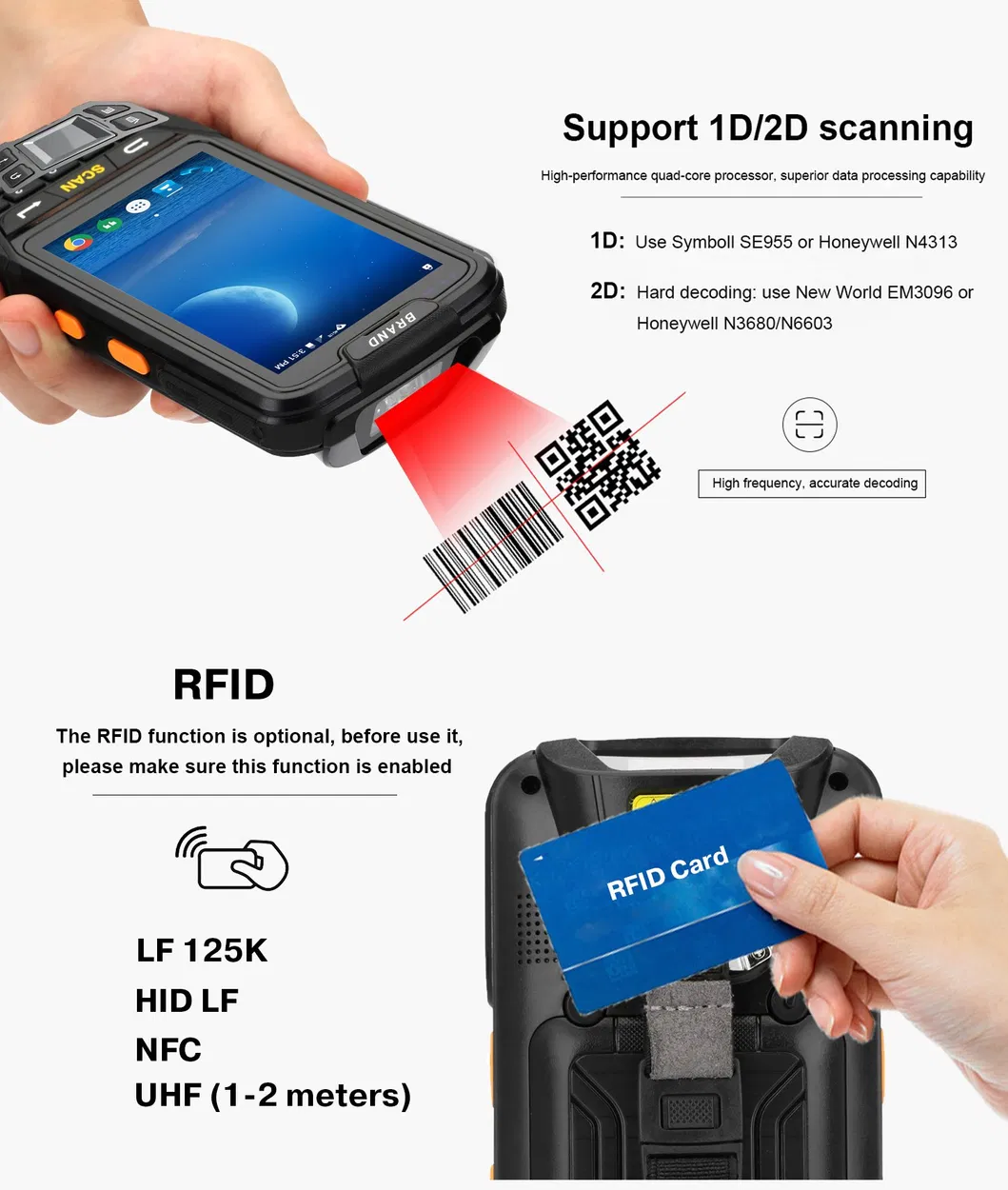

Fully supports 1D and 2D barcode scanning and optional NFC, ensuring efficient data collection in various enterprise fields.

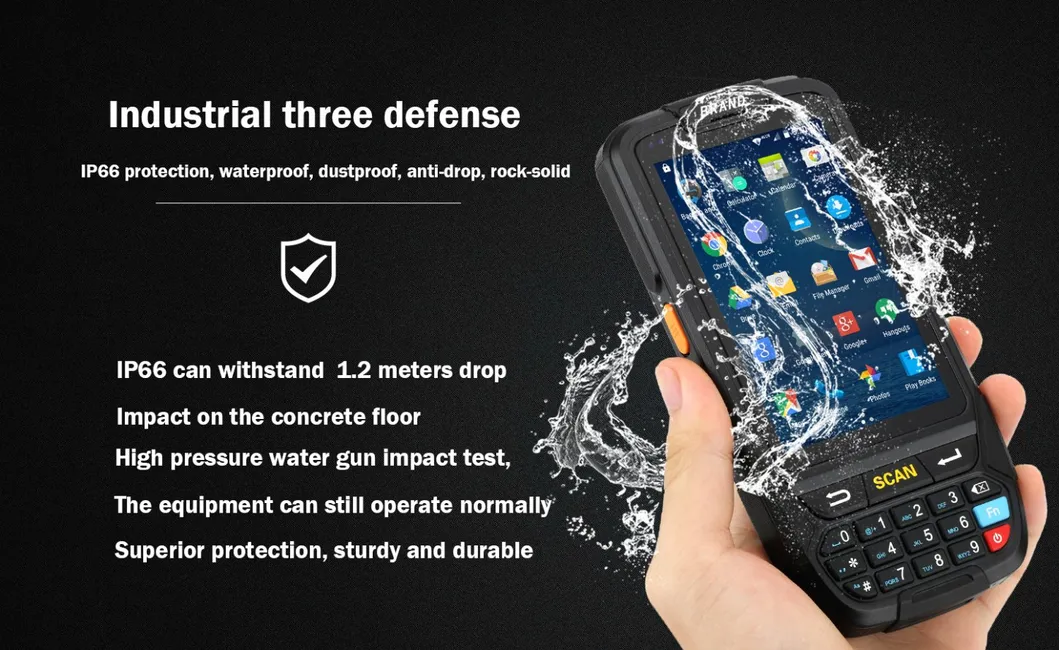

Industrial Grade Durability

IP66 rated solid body can withstand 1.2m drops and 1000 tumbles from 0.5m. Waterproof and dustproof design ensures long-term use without fatigue.

Frequently Asked Questions

1. What is the standard configuration of the device? The default configuration includes Quad-core 1.5G, 2G RAM, 16G ROM, 1D Scanner, WiFi, BT4.1, GPS, 4G LTE, 8M Camera, and support for Google Play Store.

2. Does the device support OEM/ODM services? Yes, we have our own factory and a strong R&D team to support full OEM and ODM customization.

3. What is the warranty period for this PDA? We provide a 15-month warranty from the shipment date for all products (excluding consumable parts), assuming no man-made damage.

4. How long is the delivery time for samples? Samples are typically shipped within 3 to 5 days after payment receipt. Mass production orders take between 20-40 days.

5. What industrial protection standards does it meet? The device meets IP65/IP66 industrial grade standards, making it waterproof, dustproof, and capable of bearing impact from 1.5m drops to cement floors.

6. Can I use my own shipping agent for delivery? Yes, buyers are welcome to use their own couriers or shipping agents to handle the logistics.
