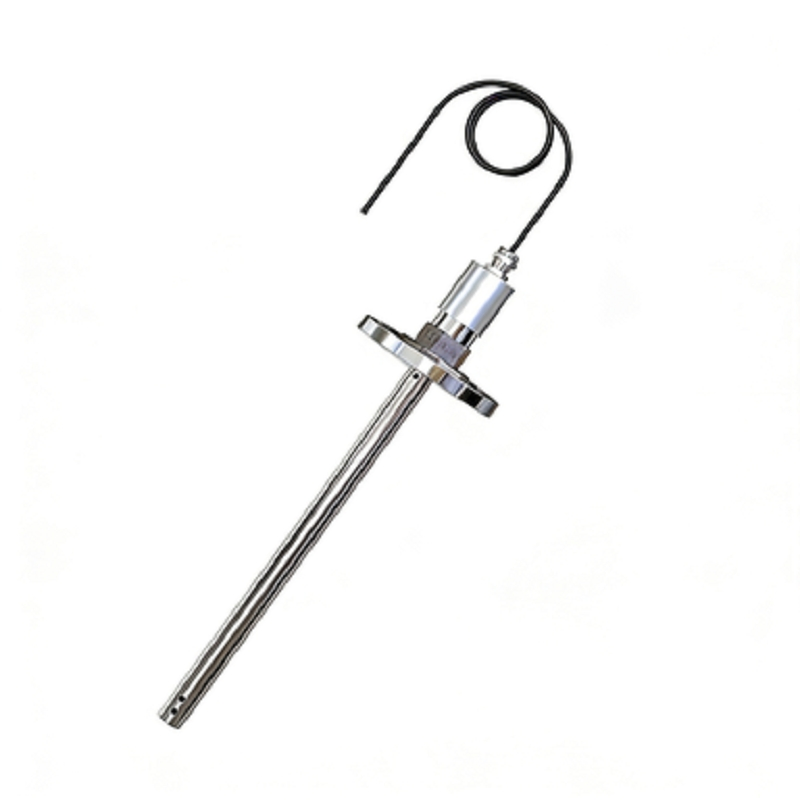

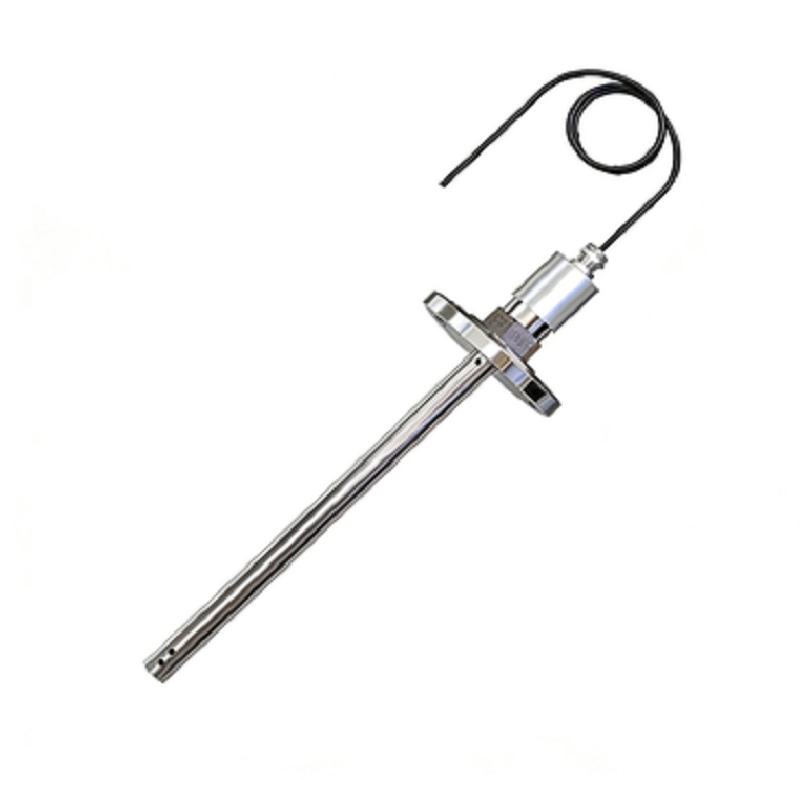

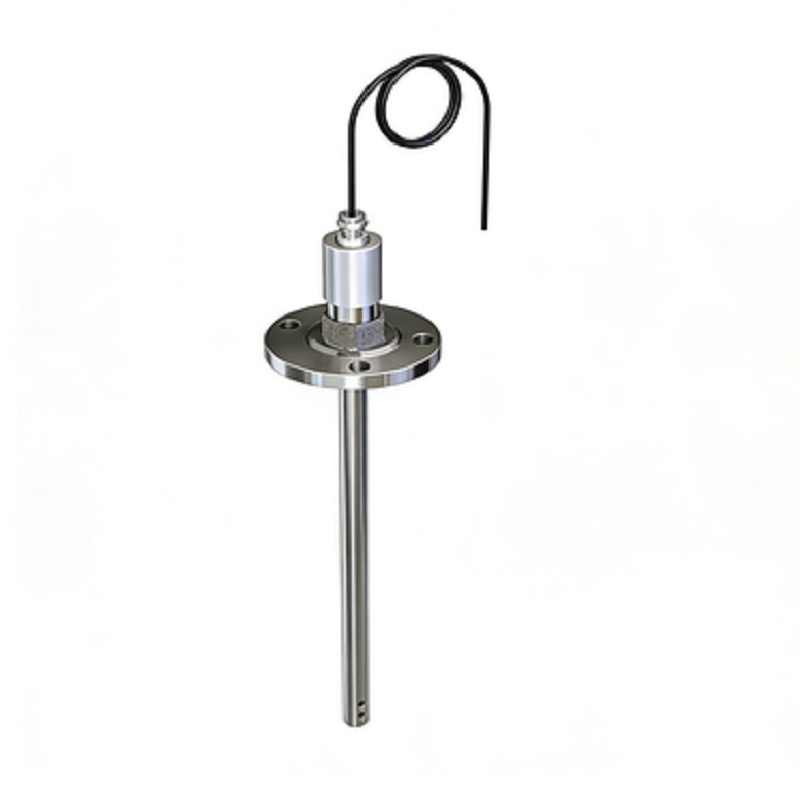

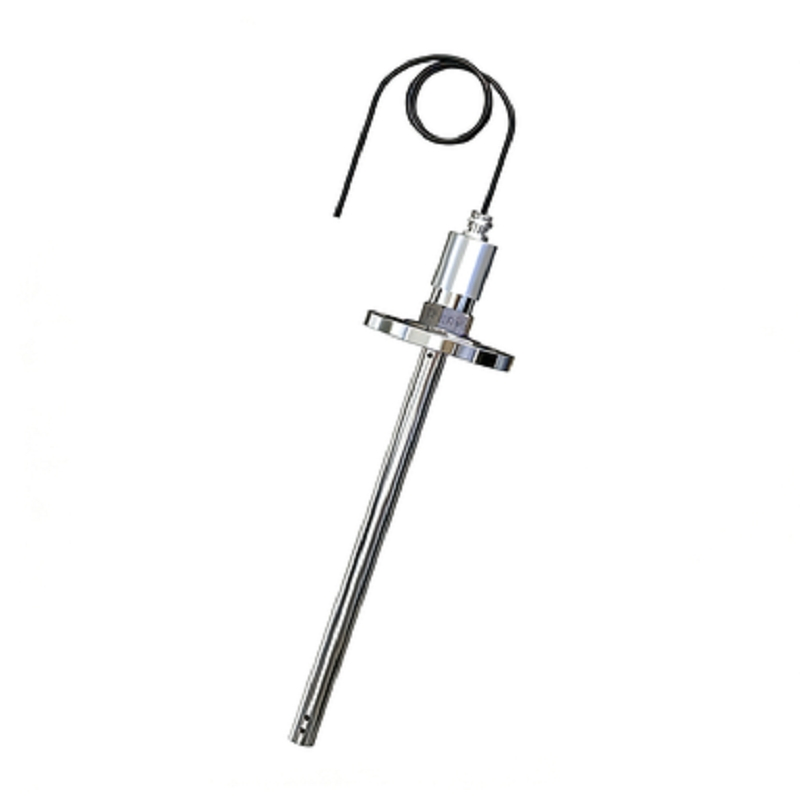

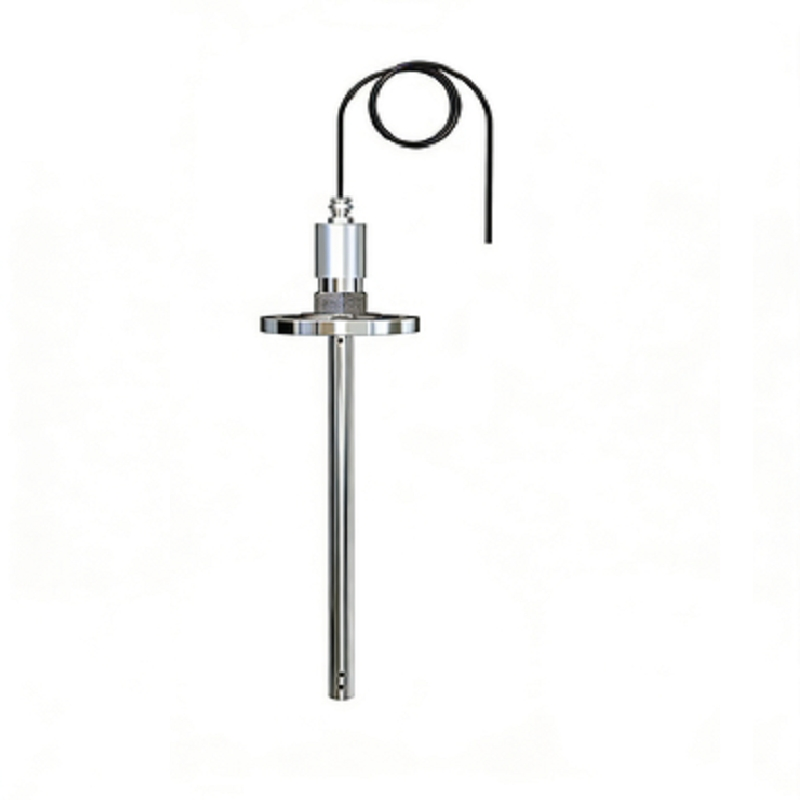

Oil Water Level Device 7-30V DC Power Supply Capacitive Fluid Level Sensor

📊

Basic Specifications

Model NO.

RS-CYW-N01-1-EX

Output Signal

RS485

Feature

Corrosion Resistant

Material

Metal

IP Rating

IP68

Certification

CE

Power Supply

DC7-30V

Pressure Range

-0.1 to 16 MPa

📝

Product Overview

This capacitive level sensor, based on the radio frequency admittance principle, is designed for real-time liquid level monitoring in storage tanks. It provides accurate data transmission to operators for precise liquid level control strategies. Constructed entirely of high-grade stainless steel with an IP68 waterproof rating, this device offers exceptional corrosion resistance and anti-interference capabilities, ensuring reliable performance in harsh industrial environments year-round.

⚙️

Technical Parameters

Power Supply	DC7-30V
Maximum Power Consumption	0.6W
Measuring Range	0.3m (Customizable)
Accuracy	Class I
Working Temperature	-40°C~+80°C
Humidity Resistance	0%~95% RH (Non-condensing)
Temperature Drift	≤0.02% FS/°C
Long-term Stability	0.1% FS/year

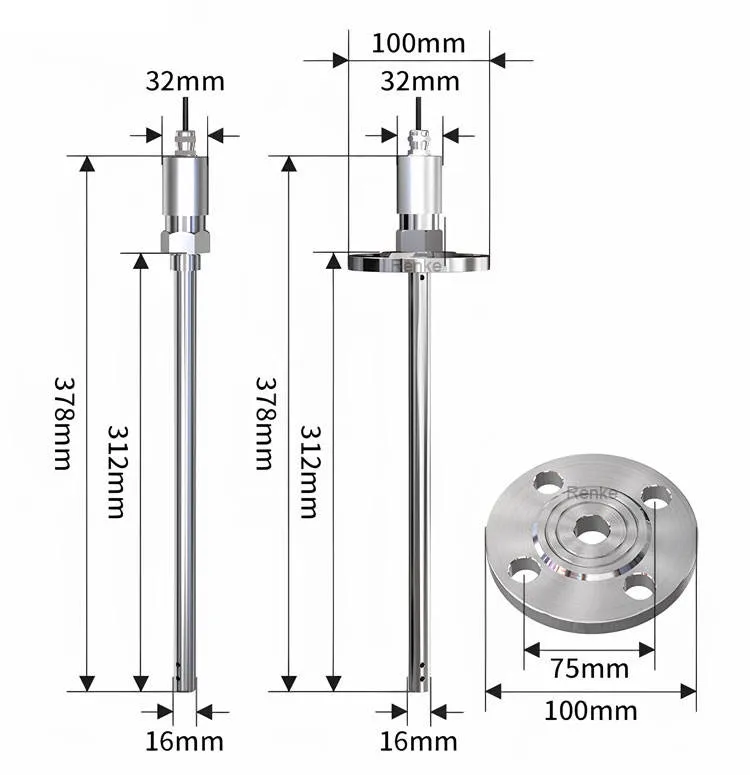

Mounting Method	M20*1.5 Threaded or Flange Mount

💡

Key Features

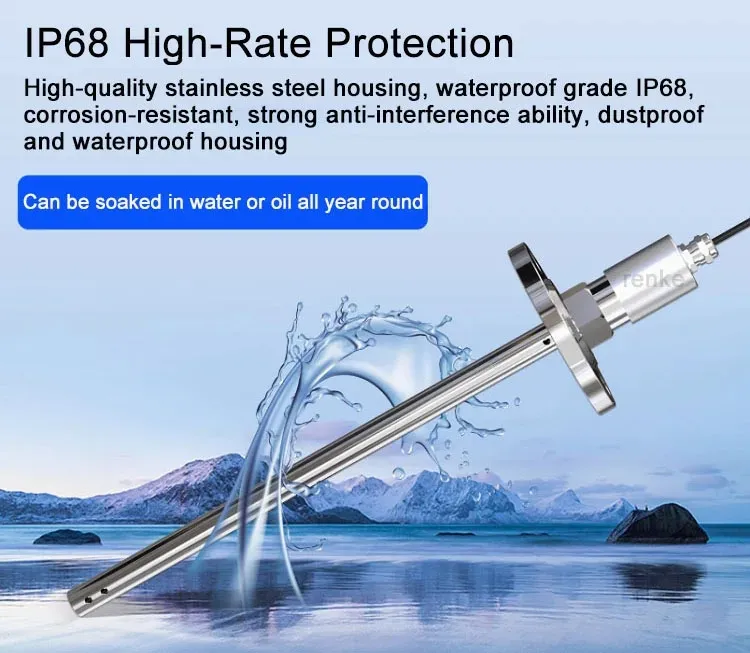

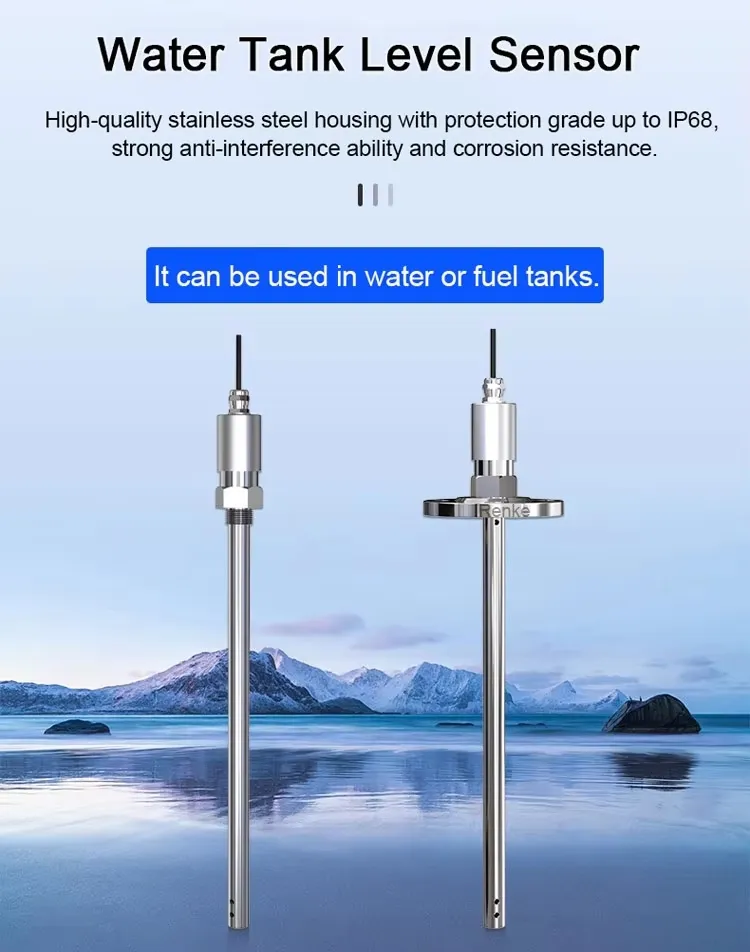

✔ High-quality stainless steel housing, resistant to long-term immersion in water or oil.
✔ Parameters can be quickly configured via mobile phone or computer.
✔ Simple structure with high reliability and low maintenance requirements.
✔ Fast and straightforward calibration process for ease of use.

🏗️

Manufacturing Excellence

❓

Frequently Asked Questions

Q: What is the measuring principle of this sensor? A: It is based on the radio frequency (RF) admittance principle, which is highly effective for monitoring liquid levels in various storage tanks.

Q: Is this sensor suitable for corrosive liquids? A: Yes, the sensor is constructed from high-quality stainless steel and is specifically designed to be corrosion-resistant.

Q: What is the protection rating for harsh environments? A: The device features an IP68 waterproof rating, making it dust-proof and capable of continuous immersion in water or oil.

Q: How can I configure the sensor parameters? A: Parameters can be conveniently adjusted and configured through a connected mobile phone or computer interface.

Q: What output signals does the sensor support? A: This specific model provides an RS485 output signal for easy integration with industrial control systems.

Q: What is the standard power supply for the device? A: The sensor operates on a wide DC power range from 7V to 30V.
