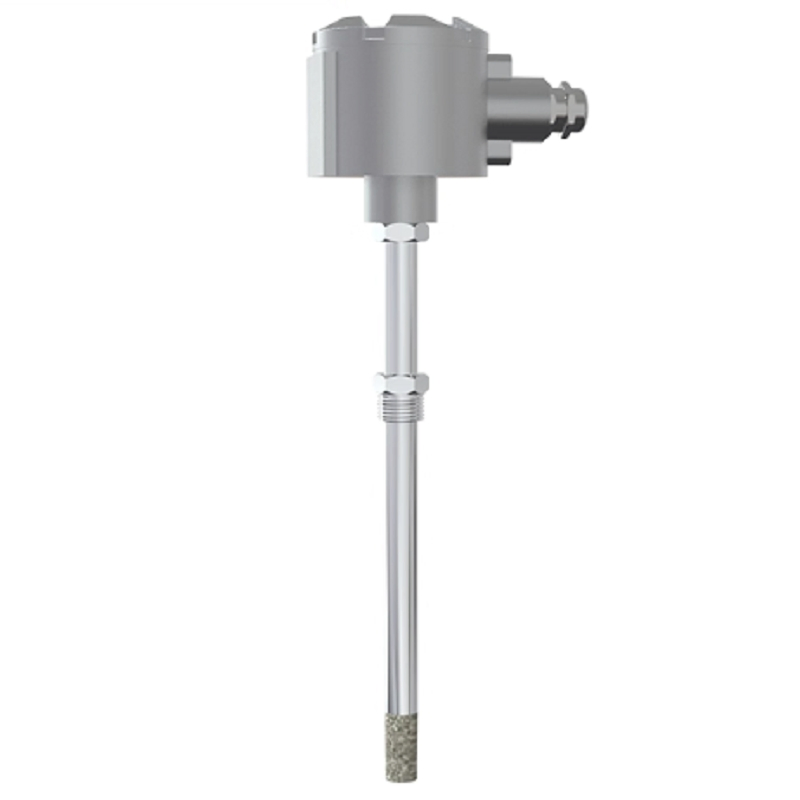

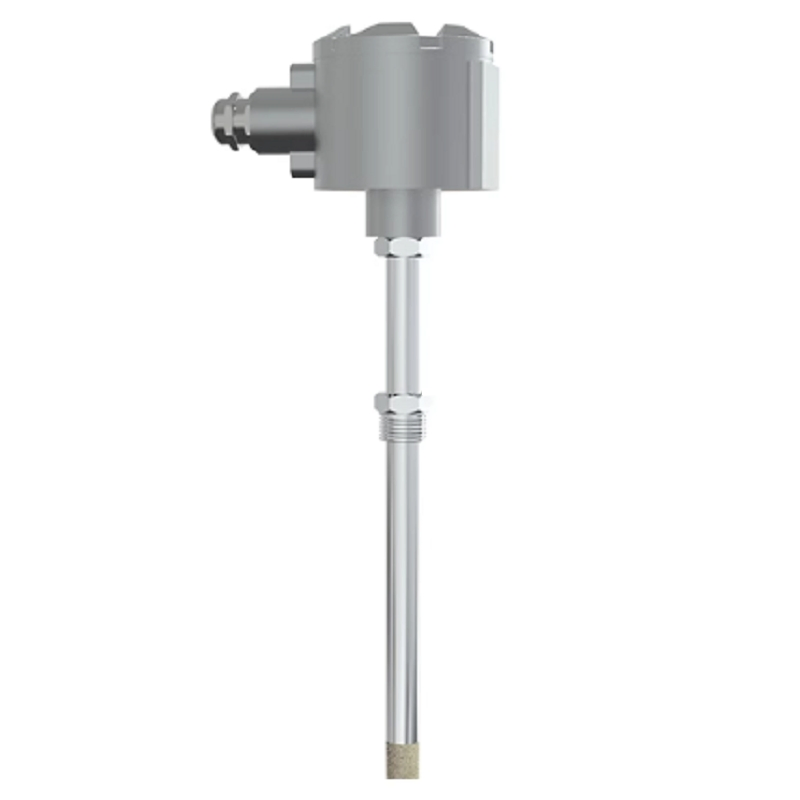

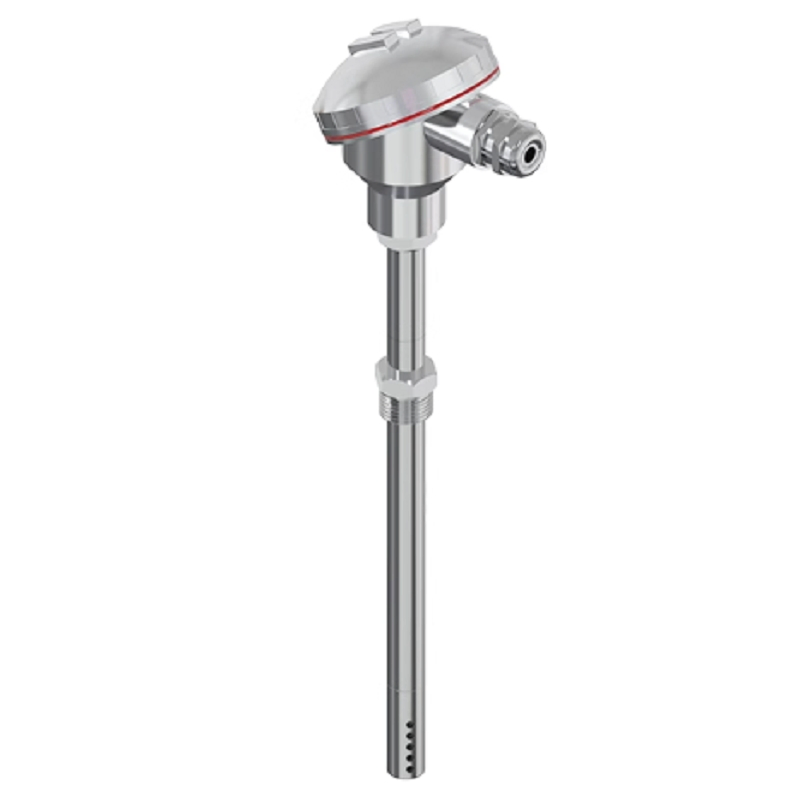

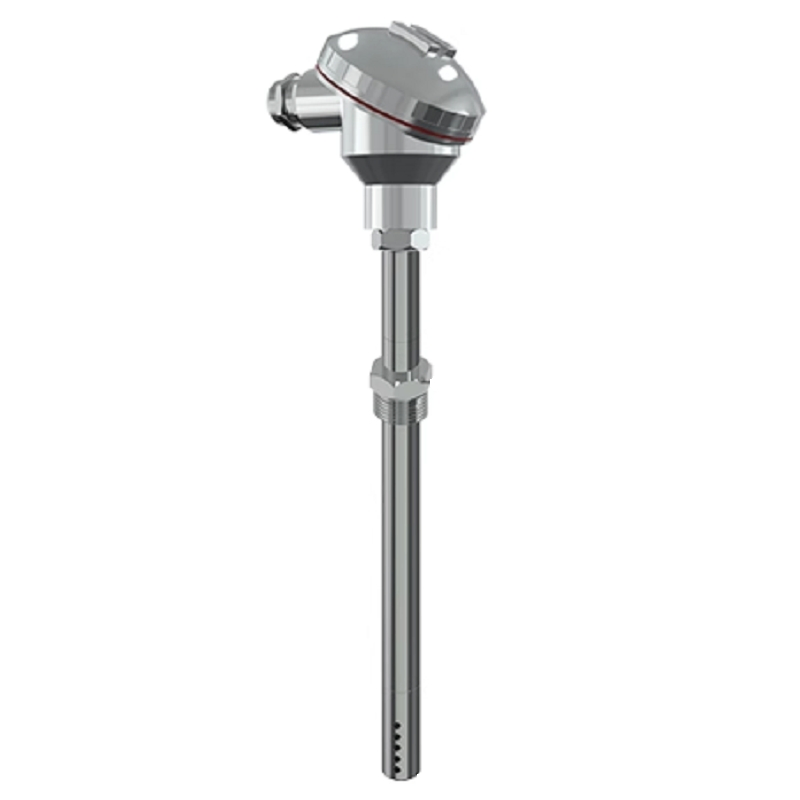

Renke Pipe Temperature Humidity Device RS485 4 20mA Temperature Transmitters

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Technical Specifications

Model NO.RS-WS-*-ATH/BTH-*-EX
Output Signal TypeRS485/4-20mA/0-5V/0-10V
Production ProcessIntegration
MaterialMetal
Measuring MediumTemperature & Humidity
IP RatingIP65
CertificationCE
Working Environment-40℃~+60℃, 0%Rh~95%Rh (Non-Condensing)
Temperature Range-40℃~+80℃, (-40℃~+120℃ Optional)
Humidity Range0%Rh~100%Rh
Resolution0.1℃ / 0.1rh%
Accuracy±0.5℃ / ±3%Rh
💡

Product Description

This temperature sensor is used in the measurement of temperature and humidity in pipelines. It adopts imported temperature and humidity measurement unit, which has high accuracy and strong anti-interference ability. The measuring part adopts particle sintered probe sheath with protection grade IP65, which can be used in various industrial environments.

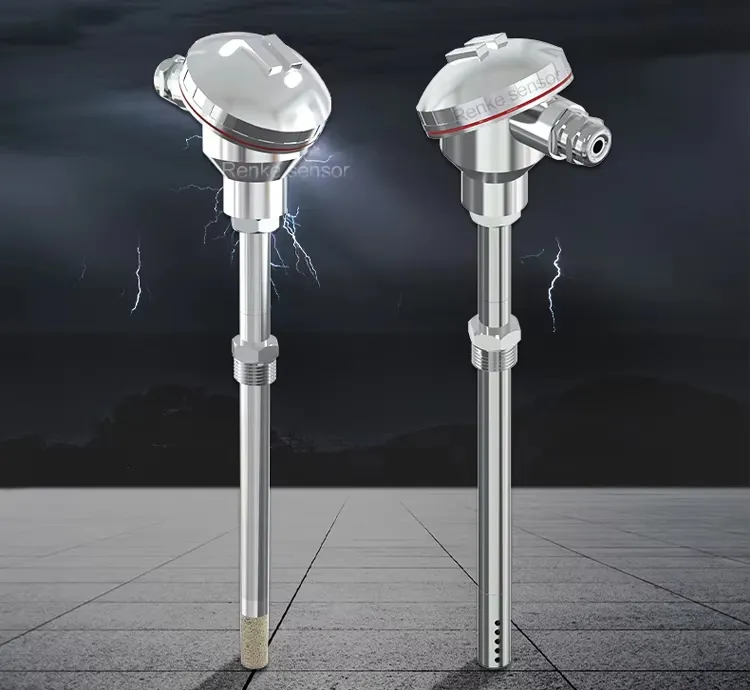

Temperature Humidity Device
🔍

Product Details

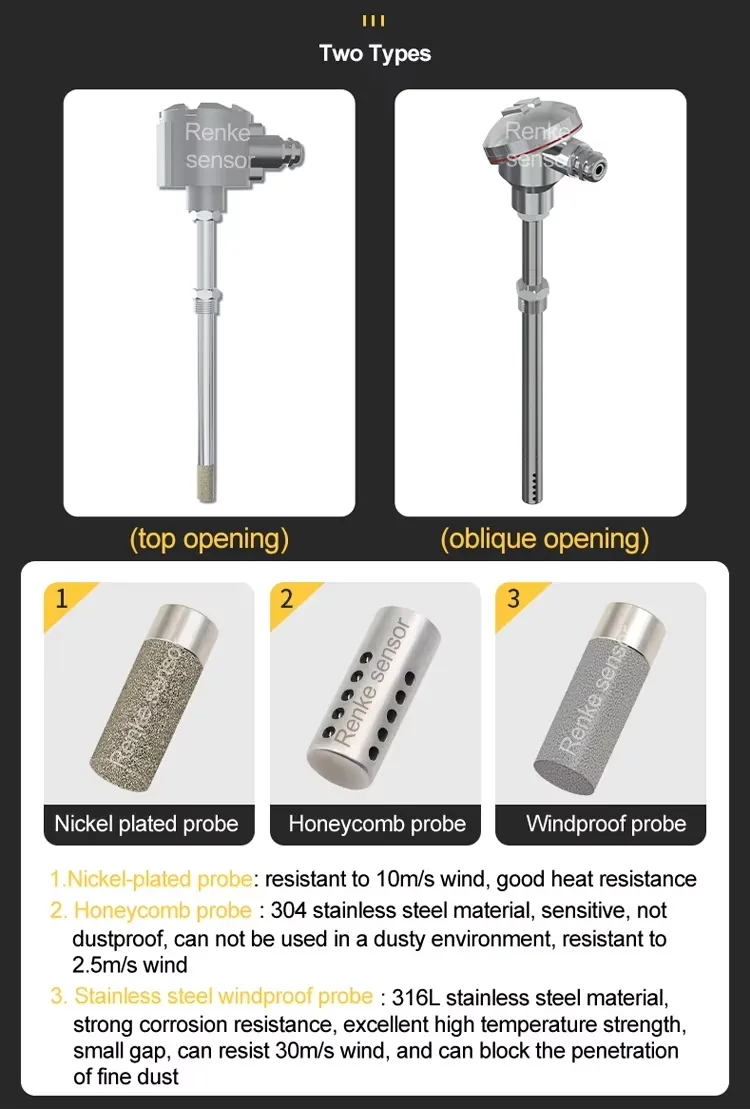

Measurement Details

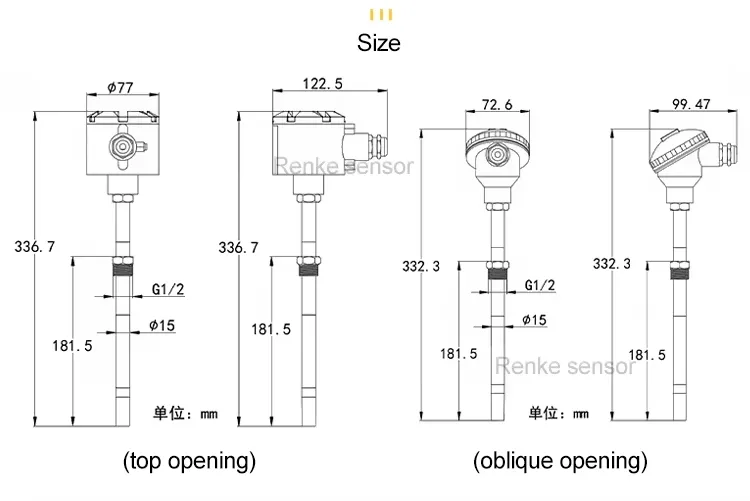

Device Components
Duct Temperature Sensor Features:
Imported measurement unit with high accuracy and anti-interference ability.
Standard ModBus-RTU protocol, communication distance up to 2000 meters.
Wide-voltage DC power supply (7~30V) for various environments.
G1/2 threaded mounting, easy installation with IP65 protection.
🛠️

Installation & Data View

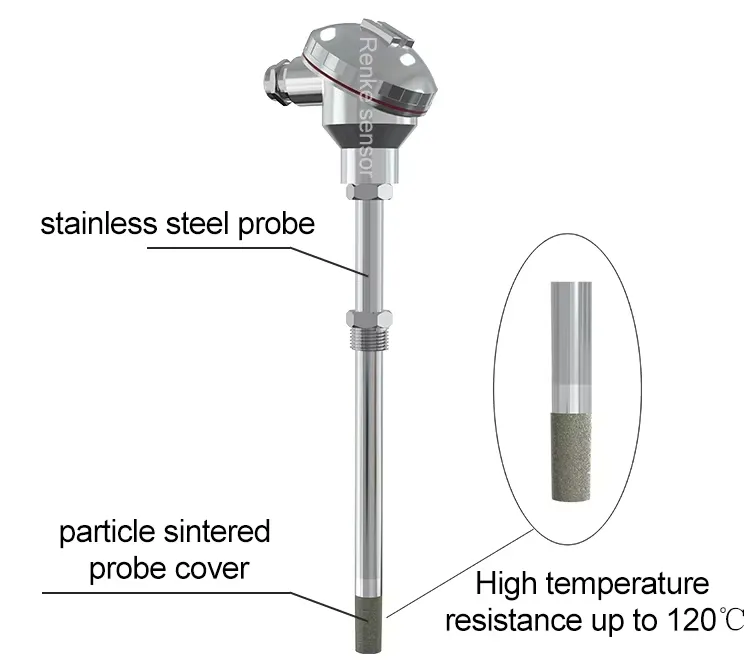

Installation Diagram

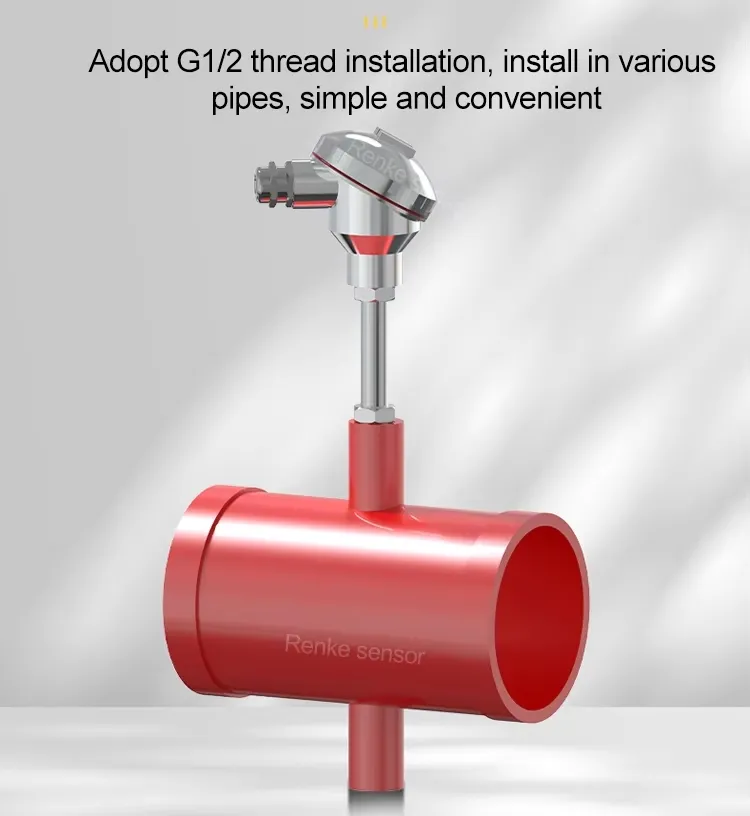

Mounting Guide

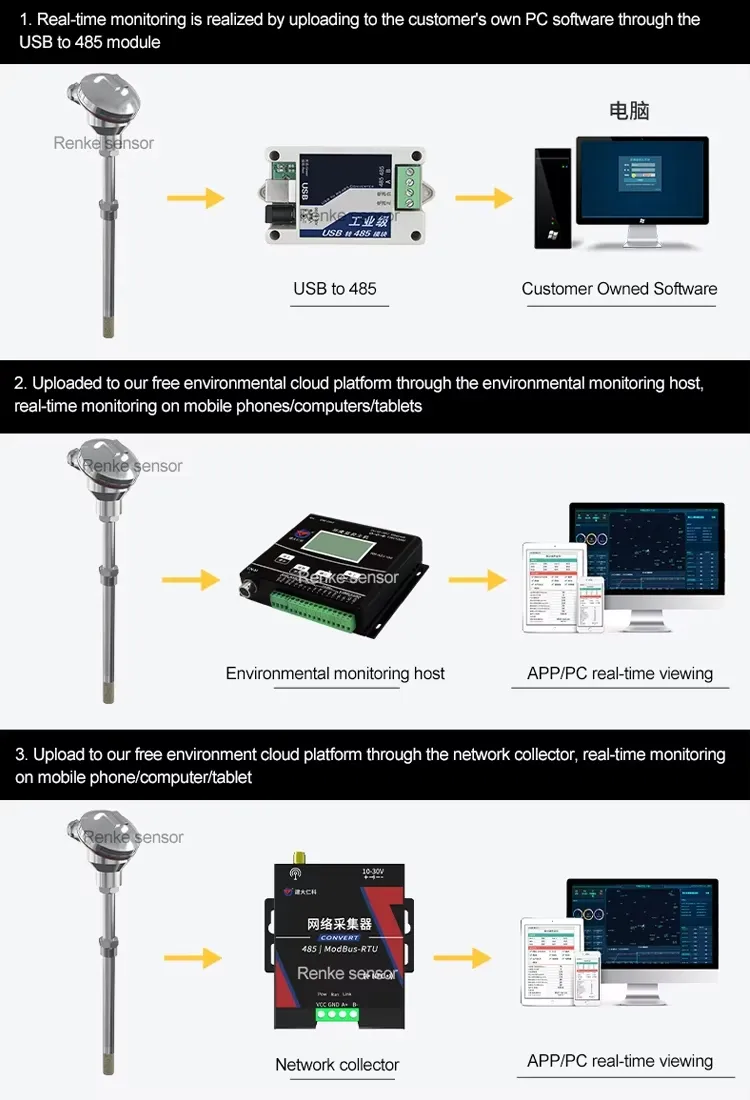

Data View Interface
🏢

Capability & Quality

We are a leading environmental monitoring high technology enterprise engaged in industrial sensors, communication gateways, and industrial data platforms. We insist on the policy of "technology first, exquisite design, customer satisfied," focusing on every detail from drawing to production.
Manufacturing
Testing Center

Frequently Asked Questions

Q: Are you the final manufacturer? A: Yes, we are a leading sensor manufacturer and exporter with 15+ years of experience.
Q: Do you offer OEM services? A: Yes, we can provide OEM services and design custom logo marking for your requirements.
Q: What payment methods do you accept? A: We accept payments via T/T, PayPal, and various online payment platforms.
Q: What is the typical delivery time? A: Orders are typically processed within 24 hours of payment confirmation. Larger quantities (100+ pcs) may require an additional 2-3 working days.
Q: How do you handle shipping? A: Goods are shipped via major couriers including DHL, FEDEX, UPS, EMS, and TNT, or through your designated forwarder.
Q: What is your quality assurance policy? A: We offer a free exchange service within one month and a 12-month quality guarantee on our products.
