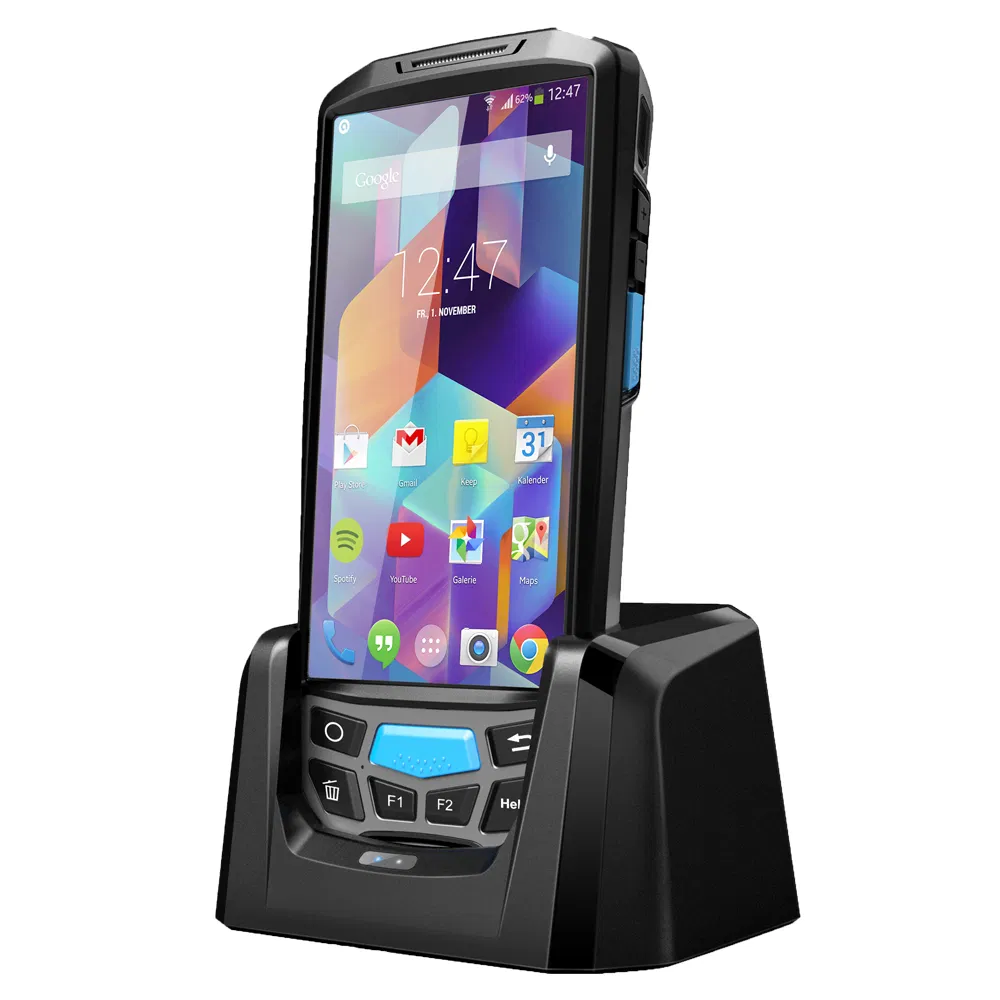

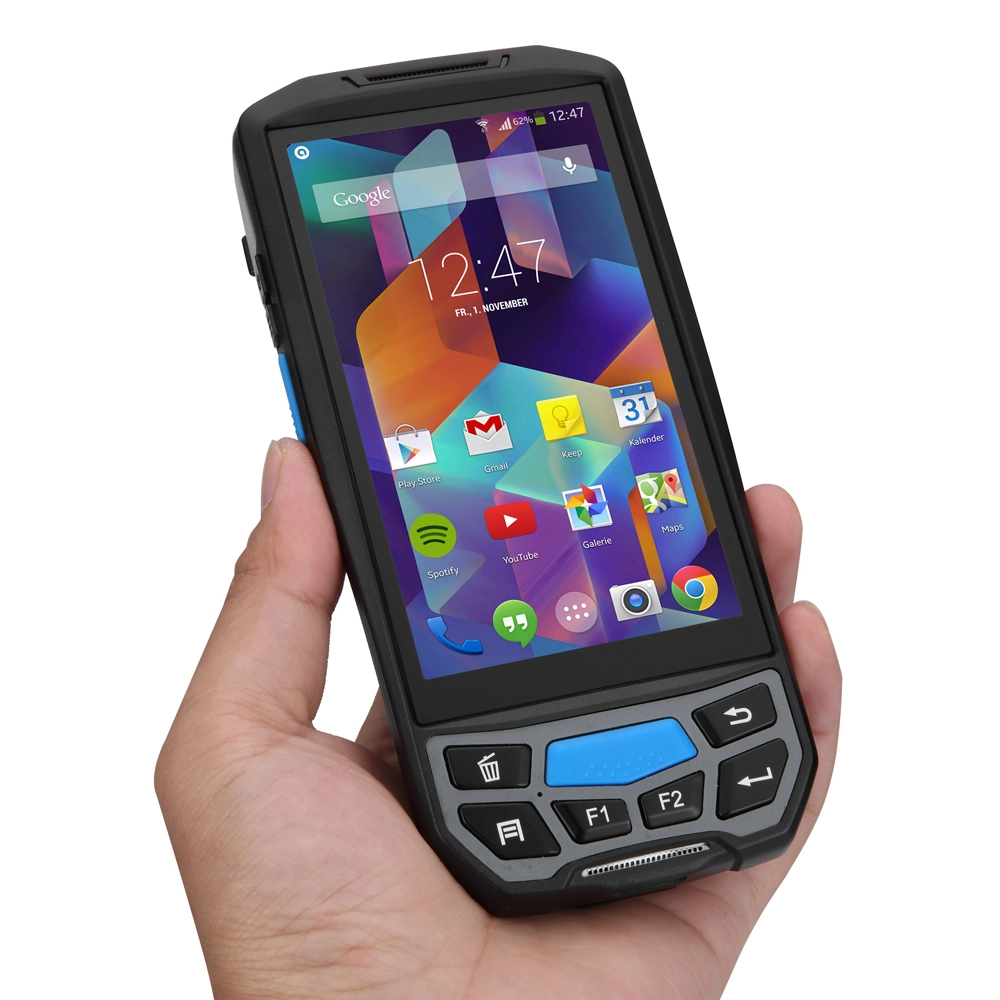

Latest Rugged Handheld PDA Terminal with Android 9.0 OS U9000

Send Inquiry

Product Description

Model NO.U9000

Operating SystemAndroid

CPU TypeARM 64bit Quad-Core 1.3G

Memory2GB RAM + 16GB ROM

Display Size5 inch (800*1280)

Scanner1D/2D Honeywell Scanner

Battery3.7V 4800mAh

RFID OptionsUHF, NFC, LF

Protection GradeIP66 Industrial Rugged

Connectivity4G LTE, Wi-Fi, BT, GPS

Default Configuration: Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Play Store
Optional Modules: 1D, 2D Barcode Scanner, UHF/NFC RFID (13.56mhz), Fingerprint recognition, and Thermal Printer.
Optimized OS: Powered by Safedroid OS (Android 7.0) for high-efficiency enterprise performance.
Industrial Durability: IP66 water-proof and dust-proof rating, capable of withstanding 1.5m drops to concrete.
High Capacity Power: Equipped with a 4800mAh large capacity battery to support critical long-shift requirements.

Structural & Performance Parameters
Hardware

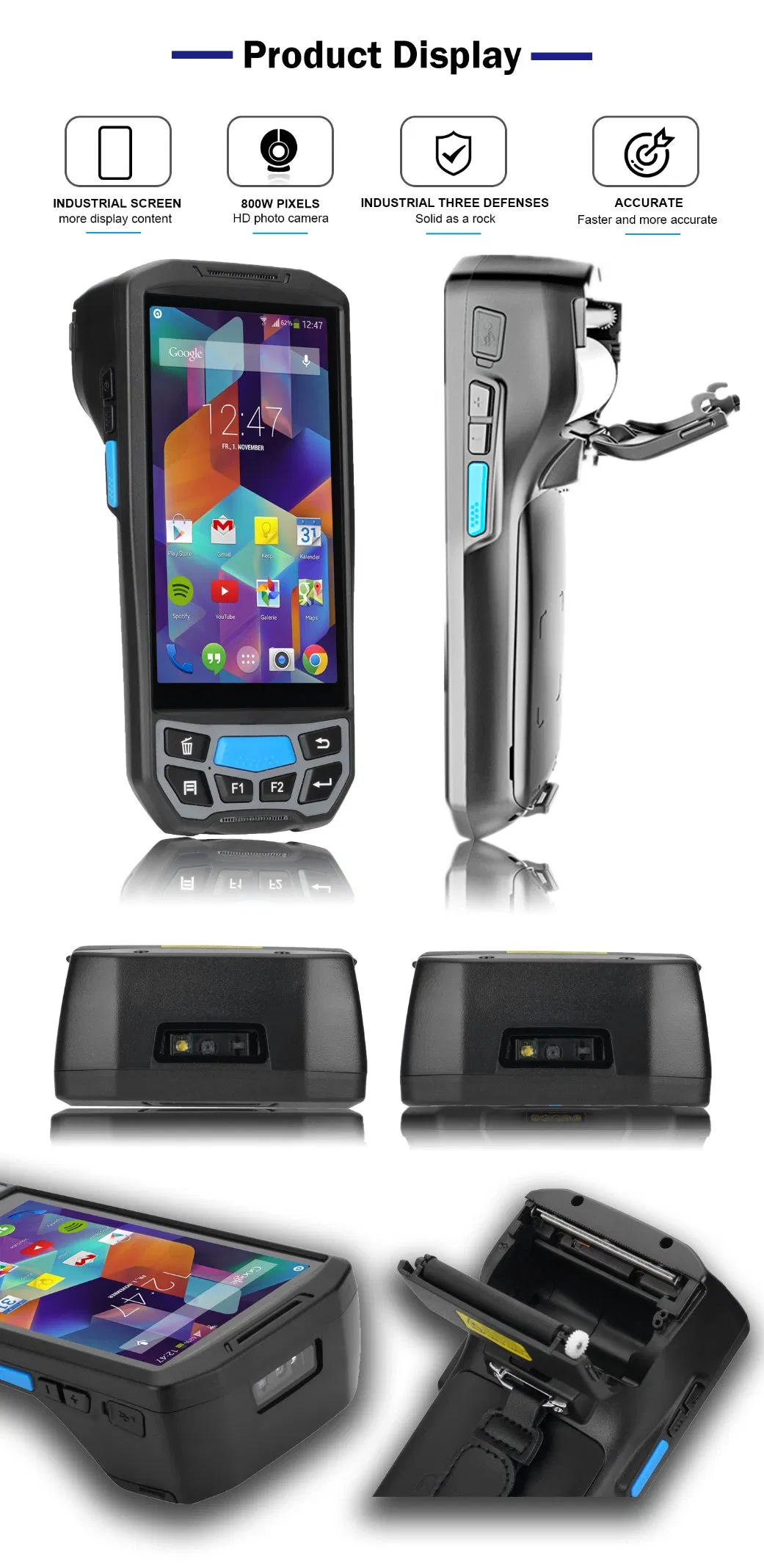

Dimensions	172mm(L) X 80mm(W) X 27mm(D)

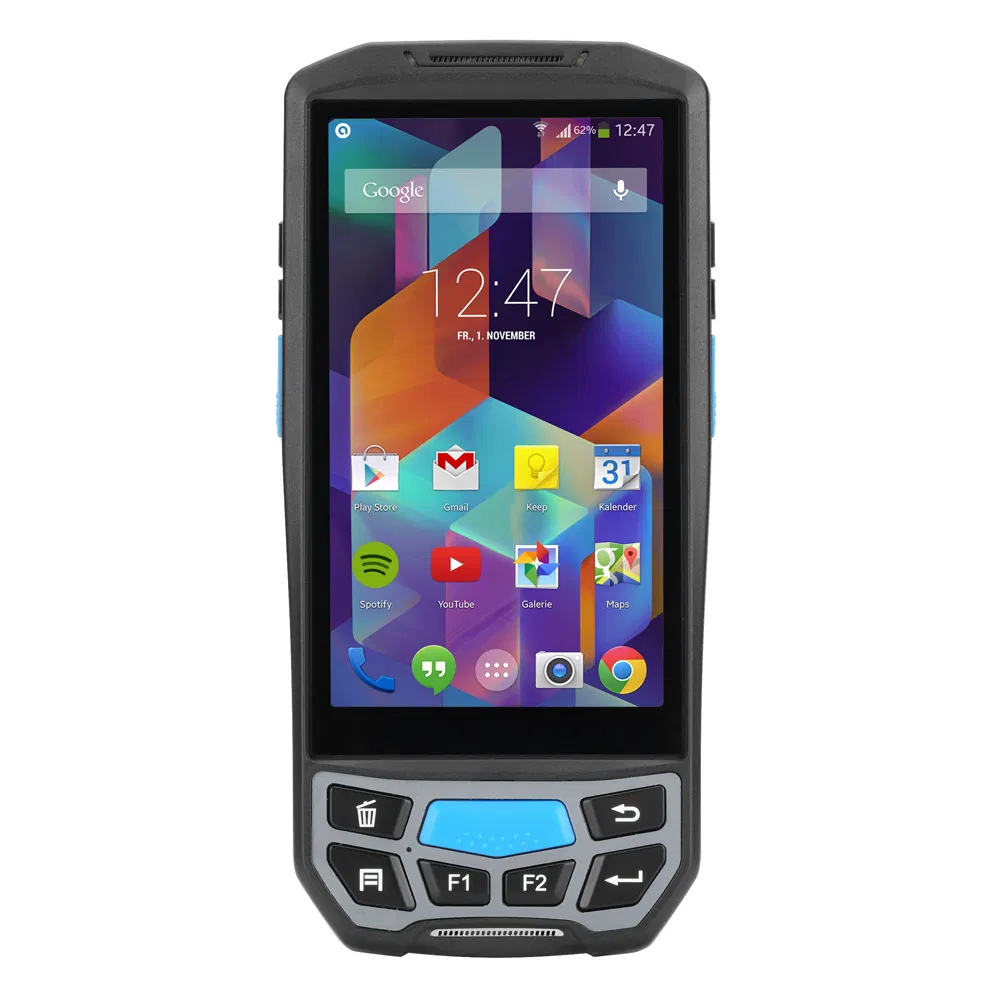

Display	5.0 inch IPS 720 * 1280 px, Multi-point capacitive touch
CPU	ARM CORTEX-A53 64bit Quad-Core 1.3G
RAM/ROM	2GB RAM / 16GB NAND Flash (Expandable up to 32G)
Data Communication
WI-FI	IEEE802.11 a/b/g/n
4G LTE	TDD-LTE (B38,B39,B40,B41), FDD-LTE (B1,B3)
Bluetooth	BT 2.0+EDR/3.0+HS/4.1+HS (5-10m)
Environment
Operating Temp	-20°C to 50°C
Drop Spec	1.5m drop to cement (6 sides)
Sealing	IP65 / IP66 Certified
Optional Data Capture

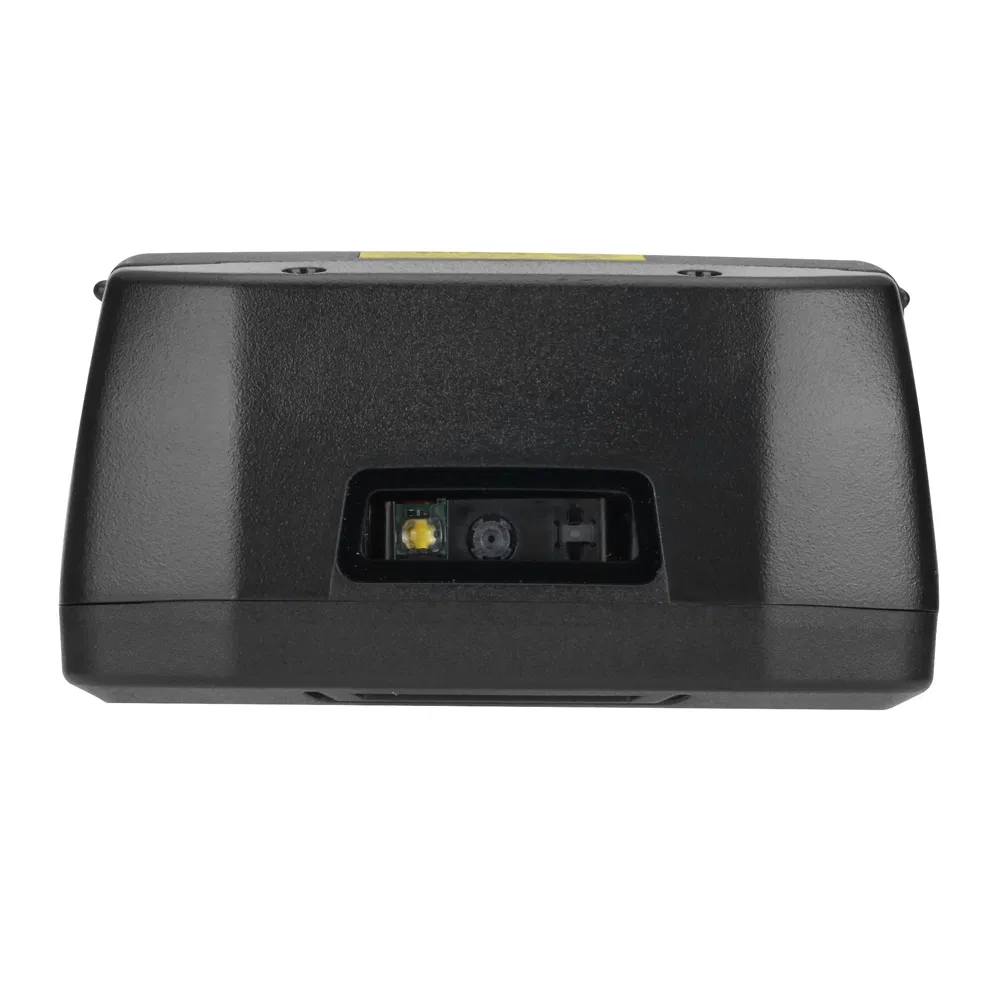

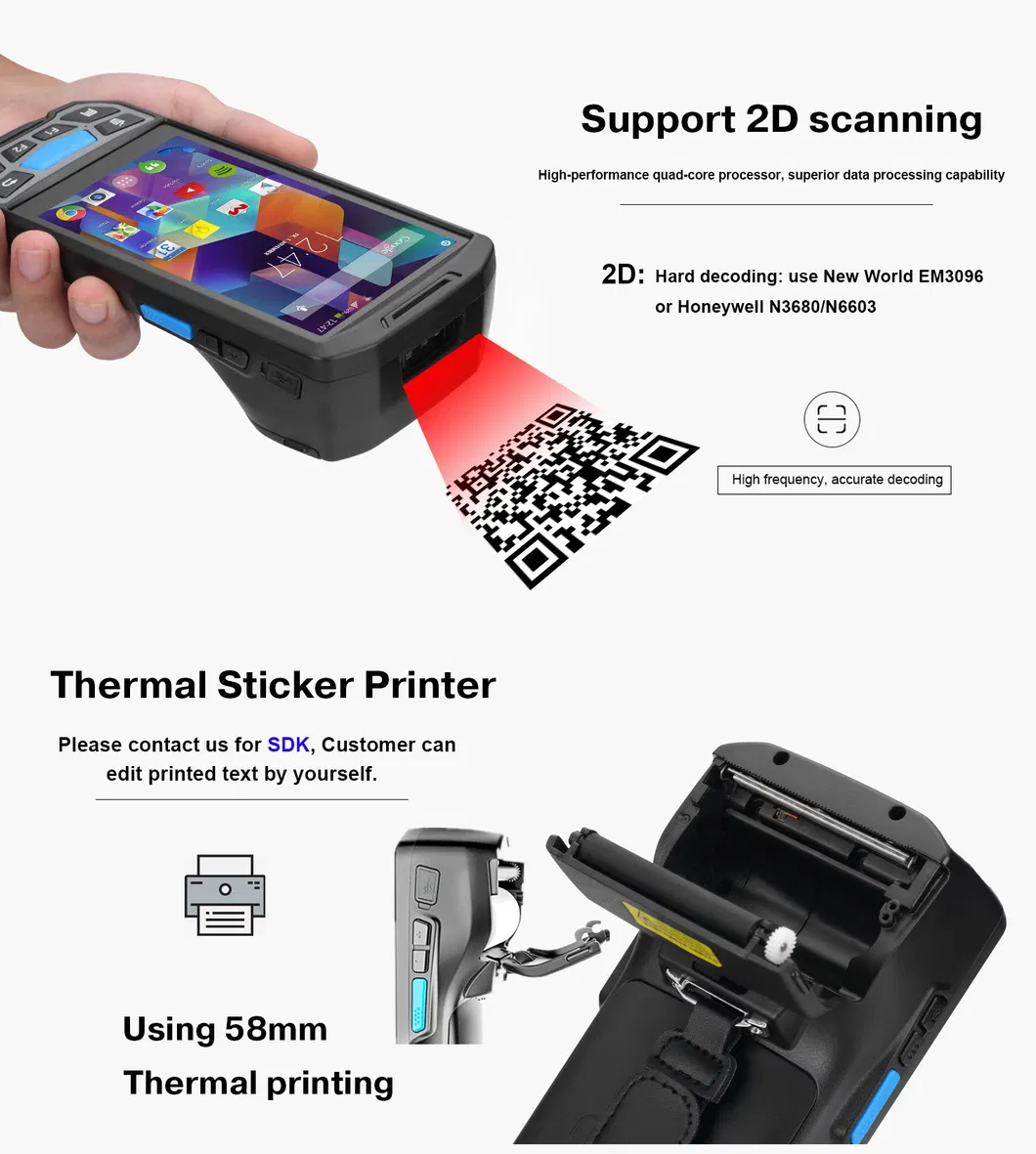

1D/2D Scanner	Honeywell N6603 / N4313 Options
UHF RFID	EPC C1 GEN2 / ISO18000-6C, Range >1.5m

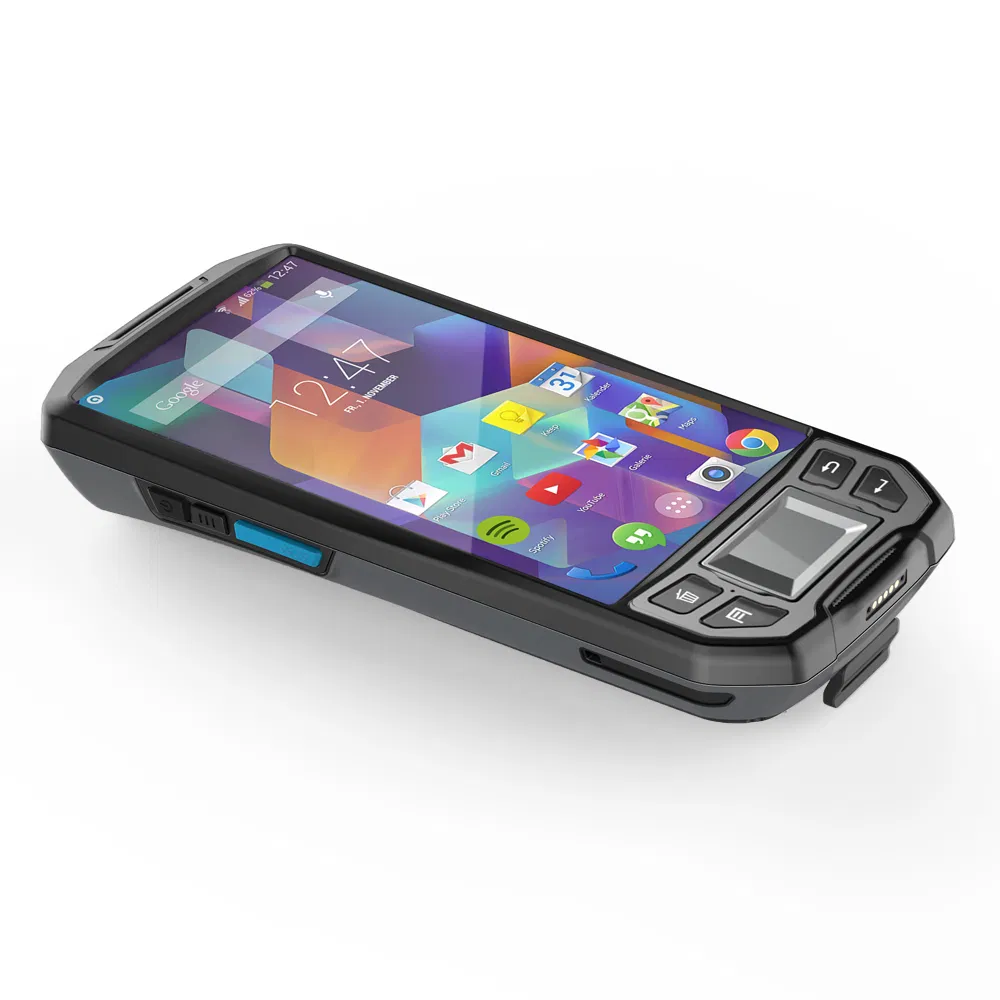

Fingerprint	Capacitive Sensor, 508DPI
