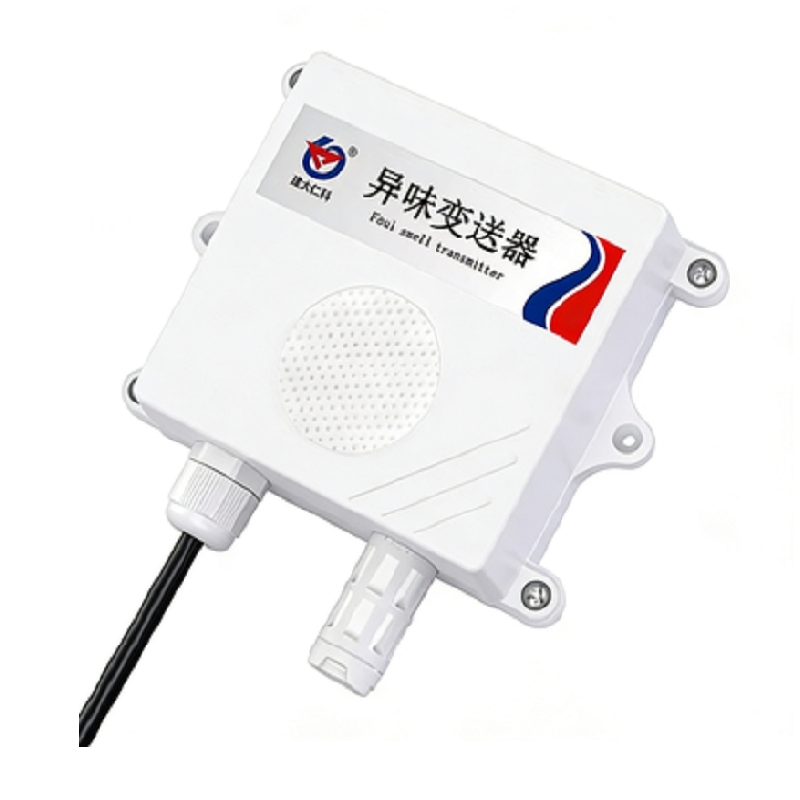

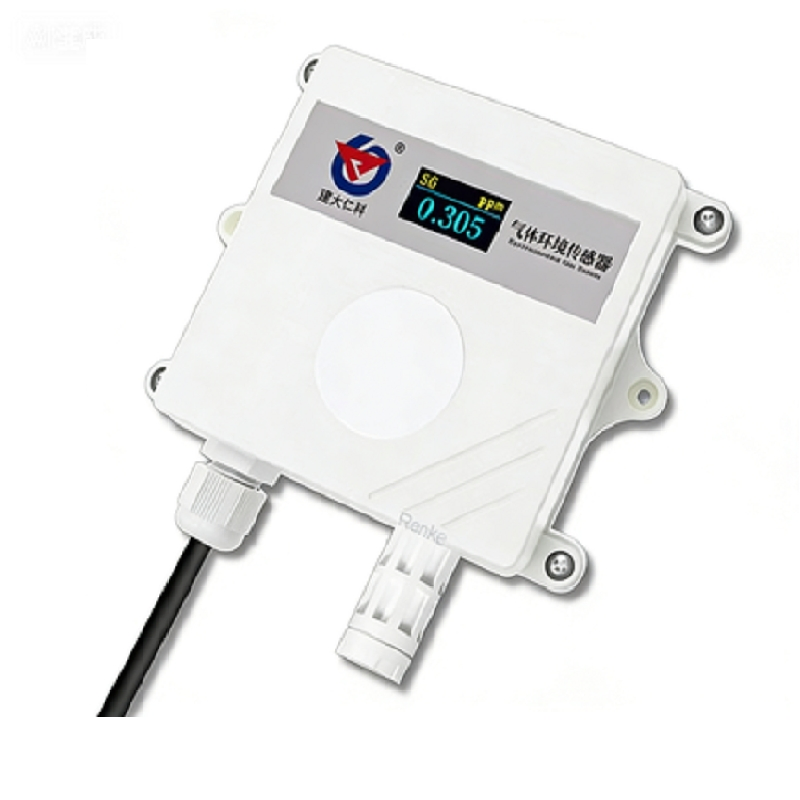

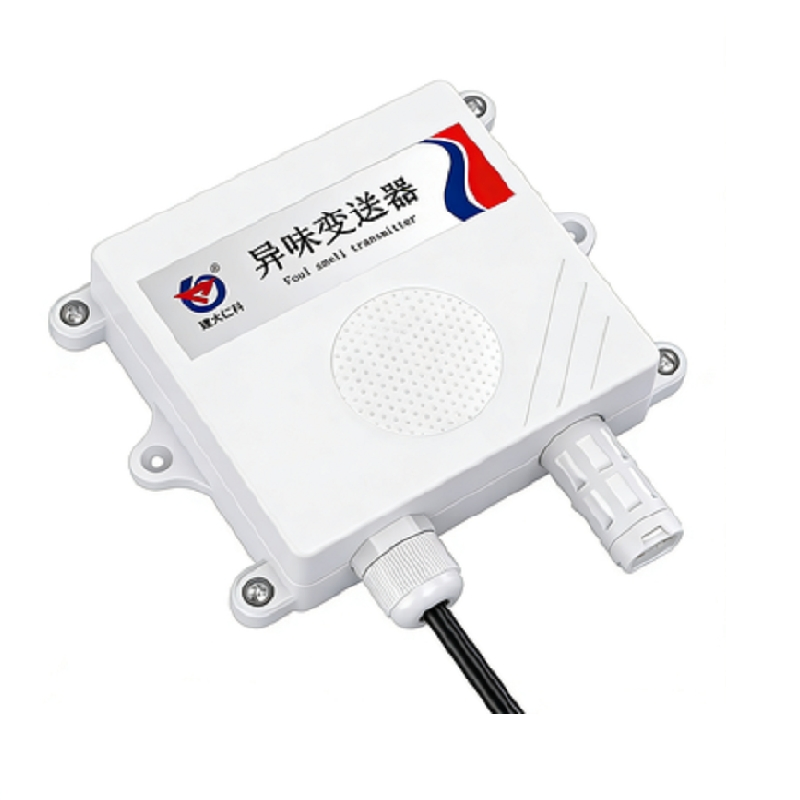

Small Size Gas Odor Detector Fixed Odor Measuring Device for Sewage Treatment

Customization: Available
Type: SemiConductor Gas Sensor
Conductivity Type: Non-conductivity Type

Product Description

Basic Info
Model NO.
RS-SG-*-2/OLED-*-EX
Output Signal
RS485/4-20mA/0-5V/0-10V
Production Process
SemiConductor Integrated
Material
Plastic
IP Rating
IP65
Sensitivity
High
Certification
CE
Power Supply
10~30V DC
Operating Temp
-20~50℃
HS Code
9027100010
Product Description

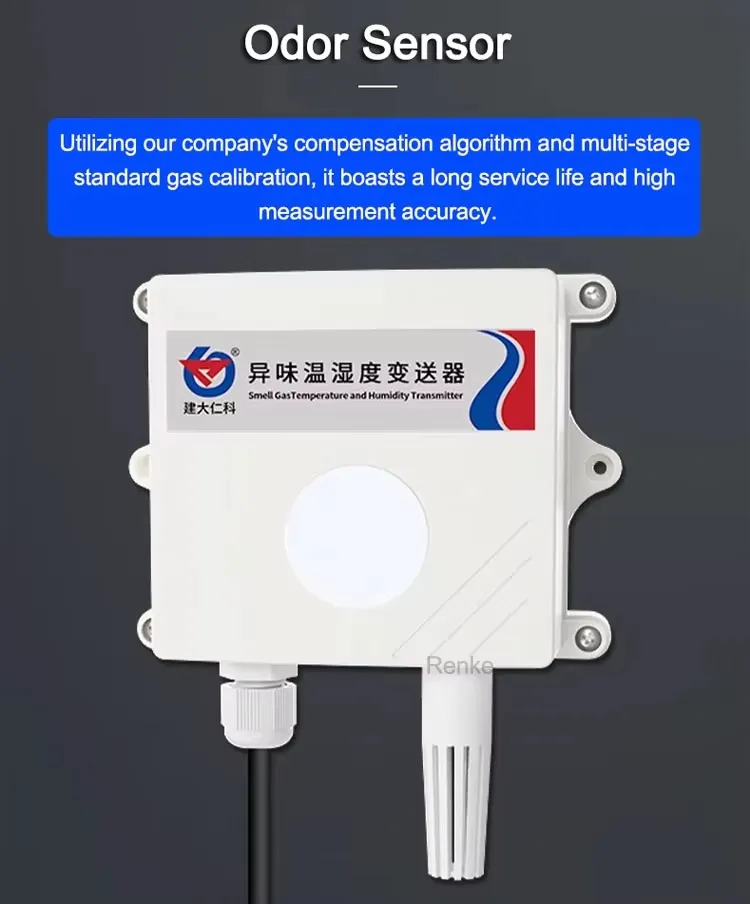

Our odor transmitters utilize imported electrochemical and semiconductor odor sensors to measure unpleasant odors such as food rot and animal feces in the environment. They feature rapid response, high sensitivity, and strong anti-interference capabilities. Through proprietary compensation algorithms and multi-segment standard gas calibration, they boast long lifespan, high accuracy, high repeatability, and high stability. They are suitable for applications such as waste treatment plants and public restrooms where odor concentration monitoring is required.
Technical Specifications
Power Supply10~30V DC
Power Consumption0.18W
Output Signals4~20mA, 0~5V, 0~10V, RS485
Temp Range-40℃~+80℃ (±0.5℃)
Humidity Range0~100%RH (±3%RH)
Resolution0.001ppm

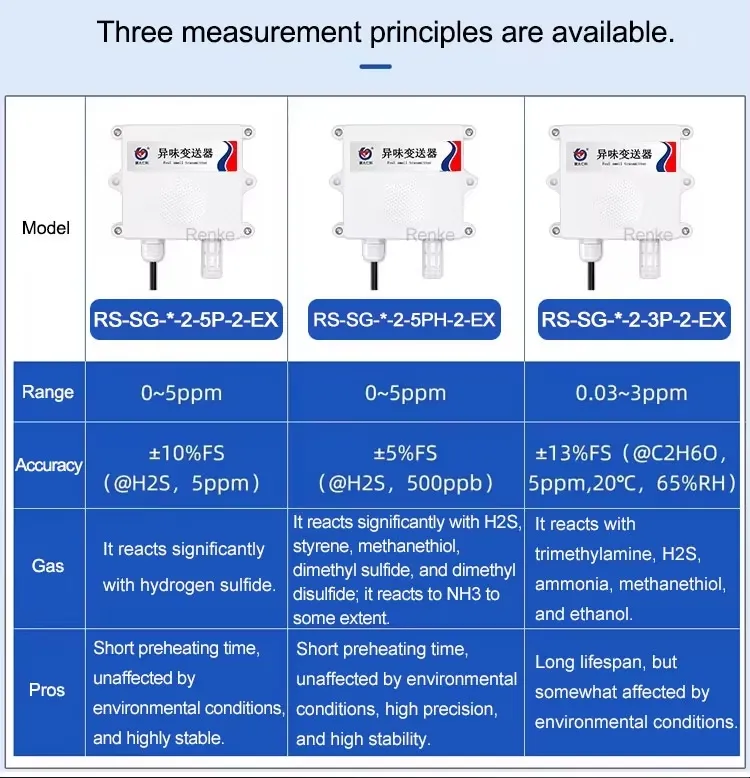

Odor Accuracy±5%FS (High Accuracy Type); ±10%FS (Electrochemical); ±13%FS (Semiconductor)
Zero Drift±0.5ppm
Operating Environment-20~50℃, 15~90%RH (Non-condensing)
Repeatability≤2%
Details & Features
  • Employing imported electrochemical and semiconductor sensors for stability and durability.
  • Selectable ranges: 0-5ppm (electrochemical) and 0.03~3ppm (semiconductor).

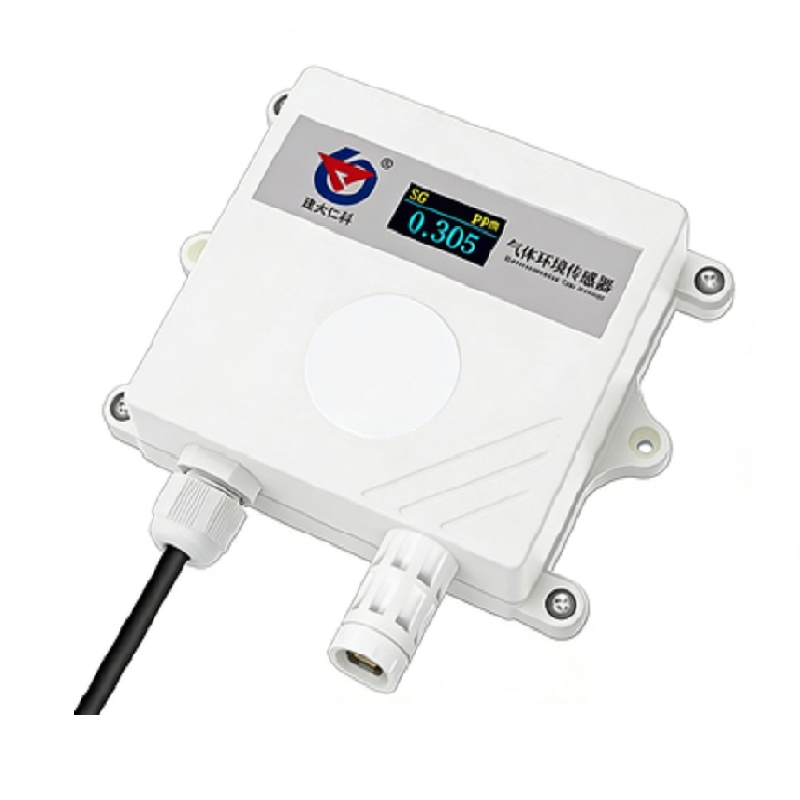

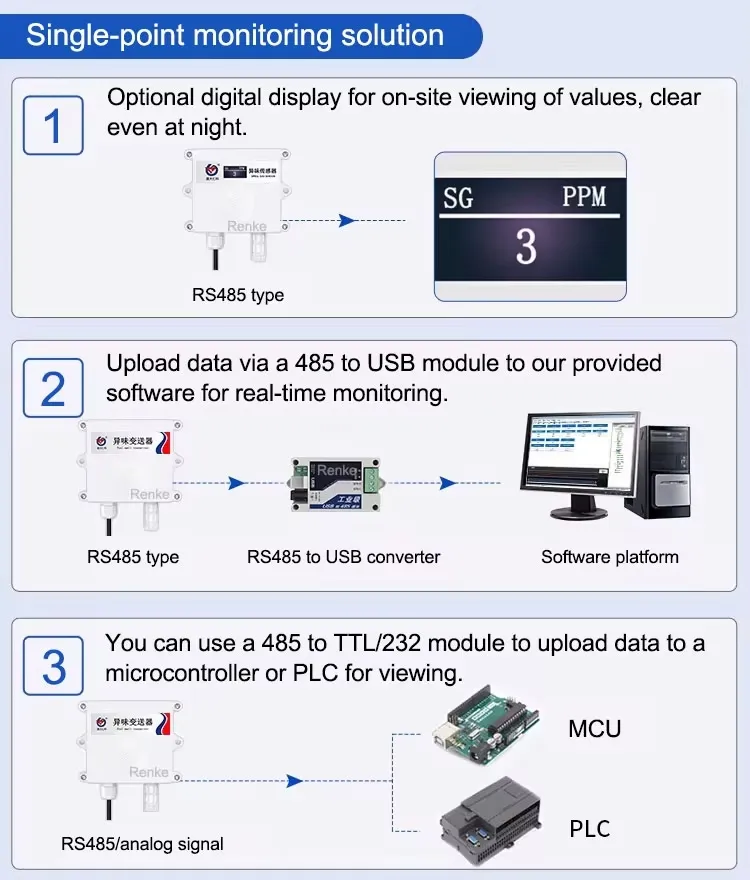

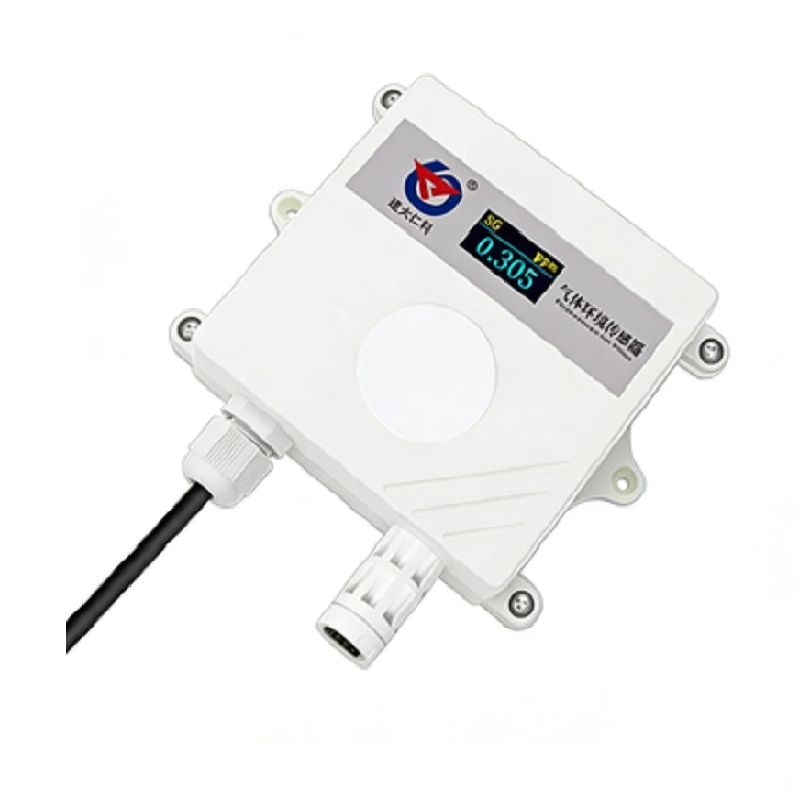

  • Optional high-quality OLED display for direct on-site readings and night visibility.
  • Wide 10~30V DC power supply, adaptable to various power sources.

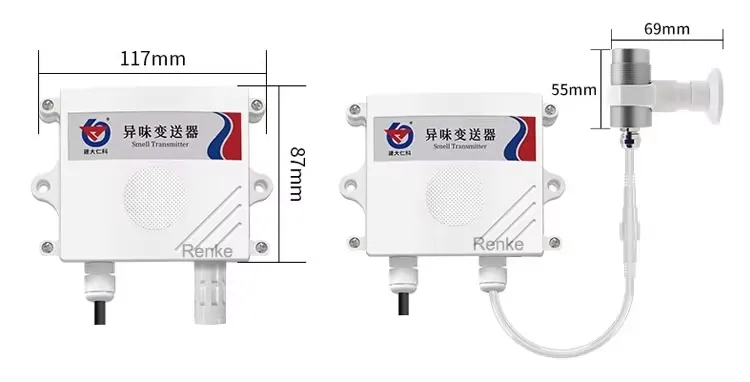

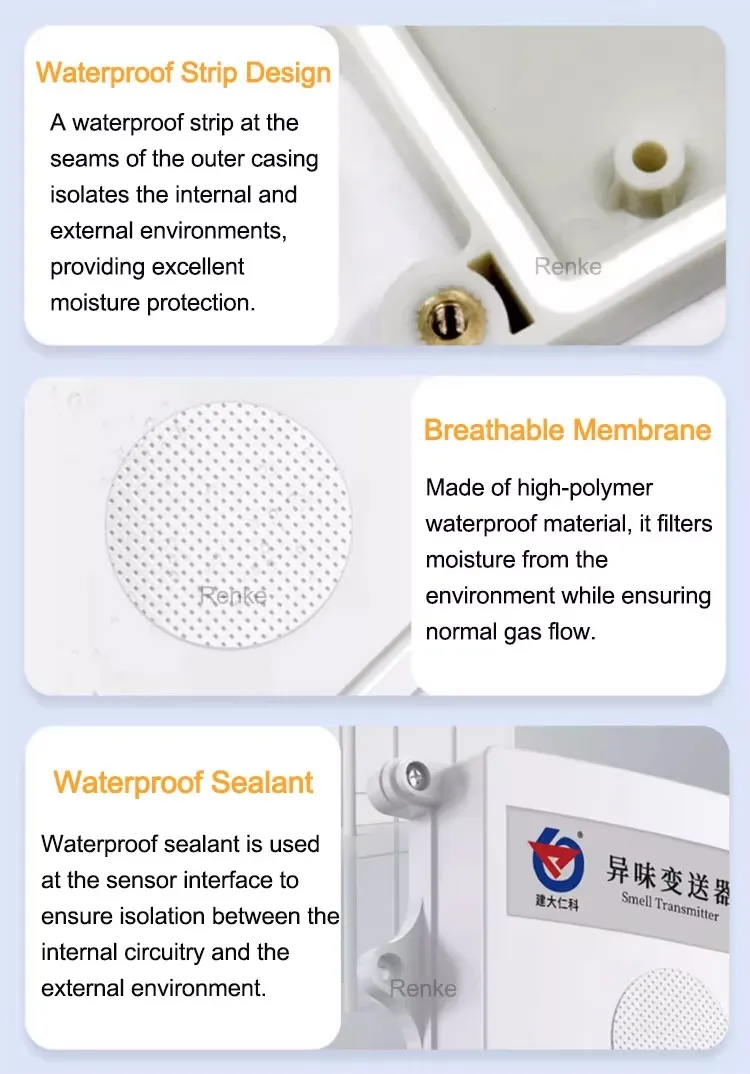

  • Wall-mounted waterproof housing (IP65) for easy installation in harsh environments.
Enterprise Strength

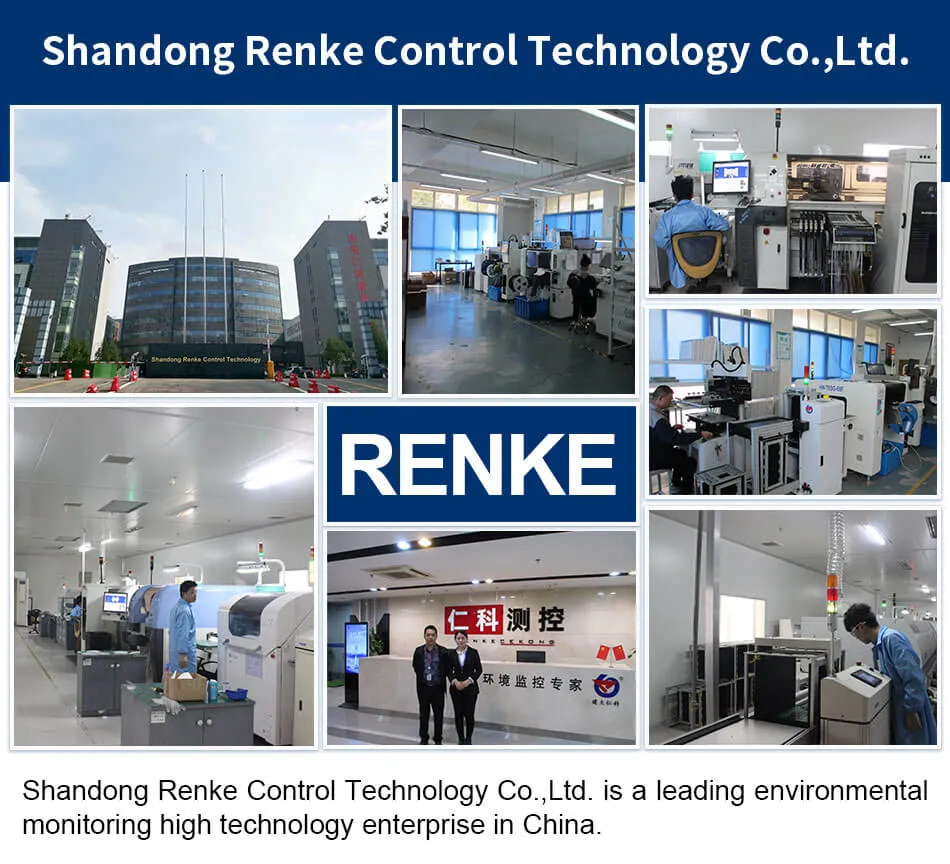

We are a leading environmental monitoring high technology enterprise. We are engaged in industrial sensors, communication gateways, industrial data platforms, and measurement control technology solutions. We have won a good reputation for high quality products and sincere service. Our policy is "technology first, exquisite design, customer satisfied," and we are careful with every detail of our designs and products.
Frequently Asked Questions
Are you the final manufacturer?
Yes, we are the leading sensor manufacturer and exporter with 15+ years of experience in the industry.
Do you offer OEM service?
Yes, we can offer OEM service and design customized logo marking for your specific requirements.
What payment methods do you accept?
We accept payments via T/T, PayPal, and various online payment platforms for your convenience.
What is the typical delivery time?
Standard orders are typically processed within 24 hours after payment confirmation. For bulk orders over 100pcs, an additional 2-3 working days may be required.
How is your quality assurance service?
We provide a free exchange service within one month and a comprehensive 12-month quality guarantee on our products.
What are your standard delivery methods?
Goods are typically dispatched via international couriers such as DHL, FEDEX, UPS, EMS, or TNT.

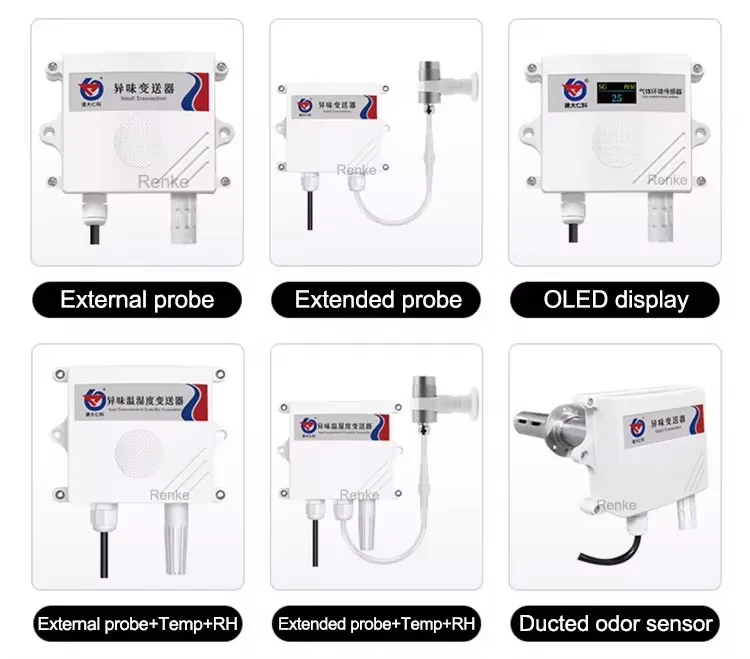

Related Products
