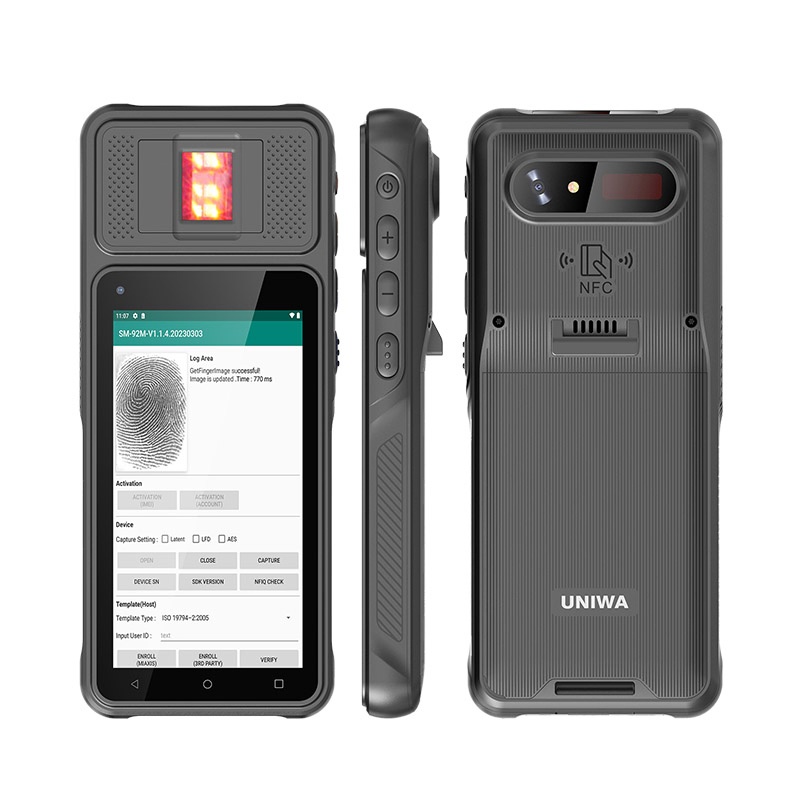

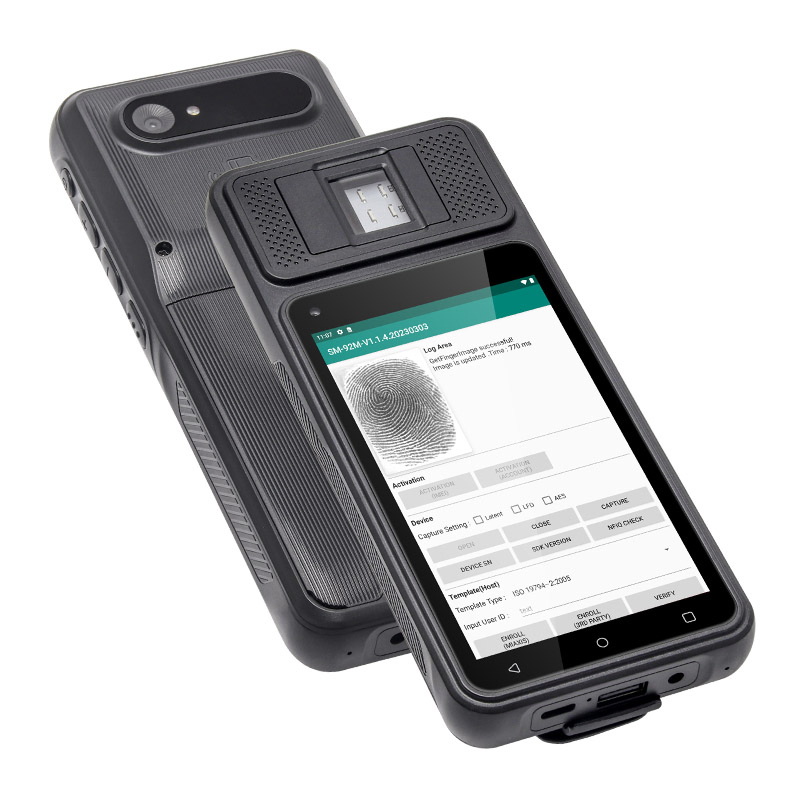

Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
1 / 5
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader

Uniwa F501 Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Overview
Model NO.
F501
Interface Type
USB
Material
Plastic
RAM/ROM
2GB+32GB
Camera
5.0MP Front, 13MP Rear
Battery
5000mAh Li-Po
NFC
13.56MHz, Support Type A/B
Package Size
20.00cm * 10.00cm * 5.00cm
🚀 Product Description
Android PDA Rugged 2D Barcode Scanner Handheld Terminal with Biometric Fingerprint Reader
✔
FAP10/FAP20/FAP30 Optical Biometric Fingerprint Reader
✔
Support NFC Technology
✔
Type-A and Type-C Double USB Ports
✔
MT6762 Octa Core Processor
✔
Android 12 Operating System
✔
1D/2D Barcode Scanning Optional
✔
2GB/32GB or 4GB/64GB Memory Options
✔
Removable 5000mAh High-Capacity Battery
📷 Detailed Photos
Handheld Terminal View 1
Handheld Terminal View 2
Handheld Terminal View 3

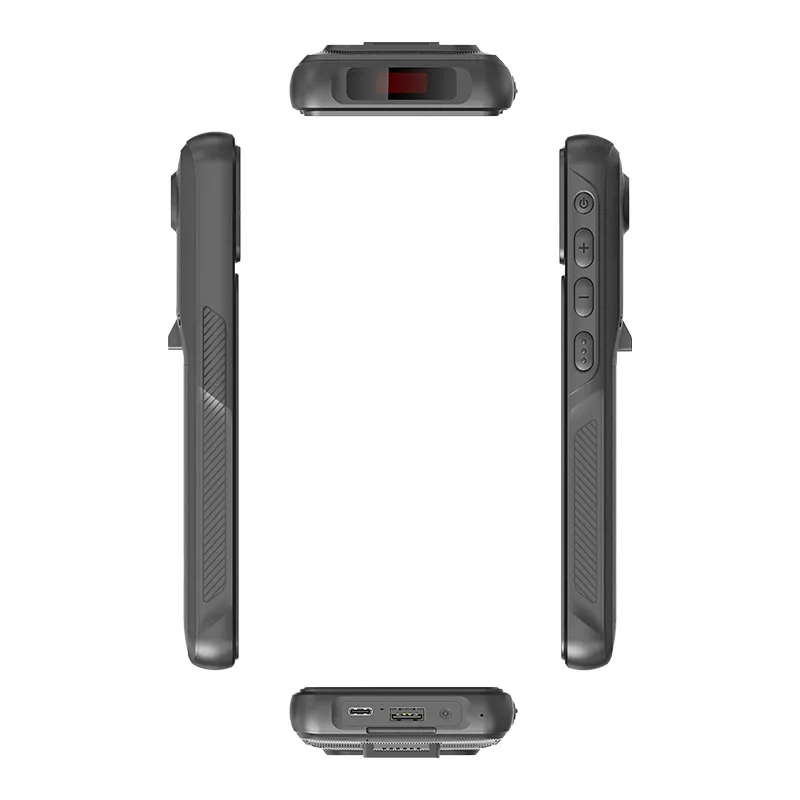

Handheld Terminal View 4

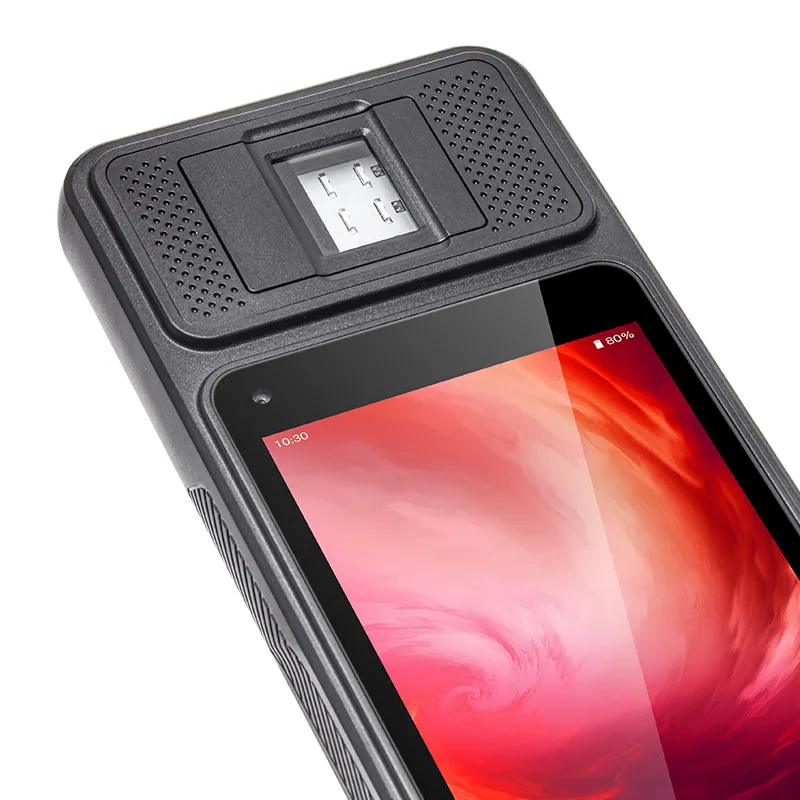

Handheld Terminal View 5

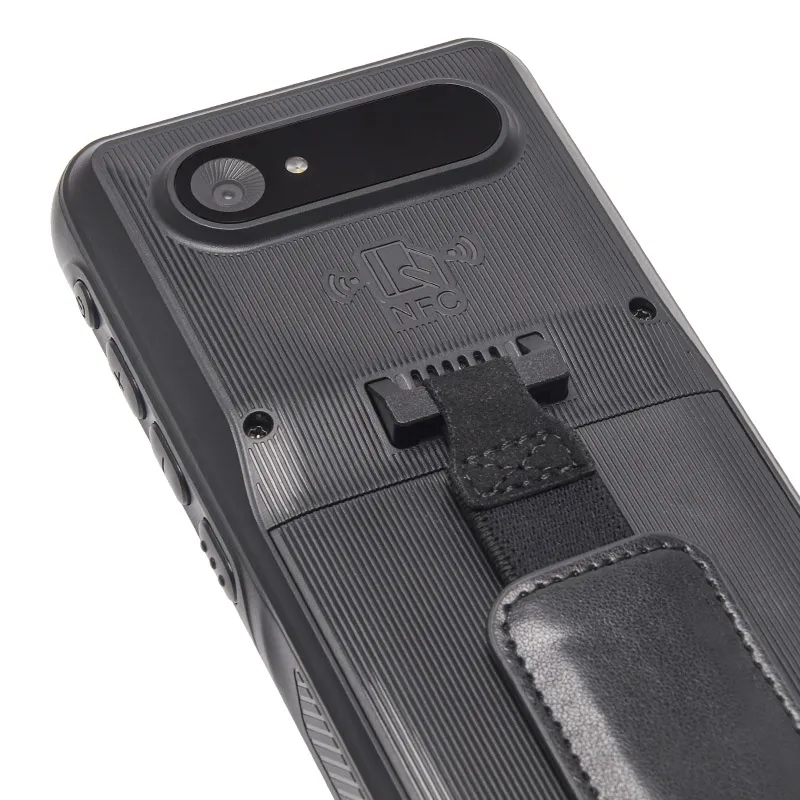

Handheld Terminal View 6

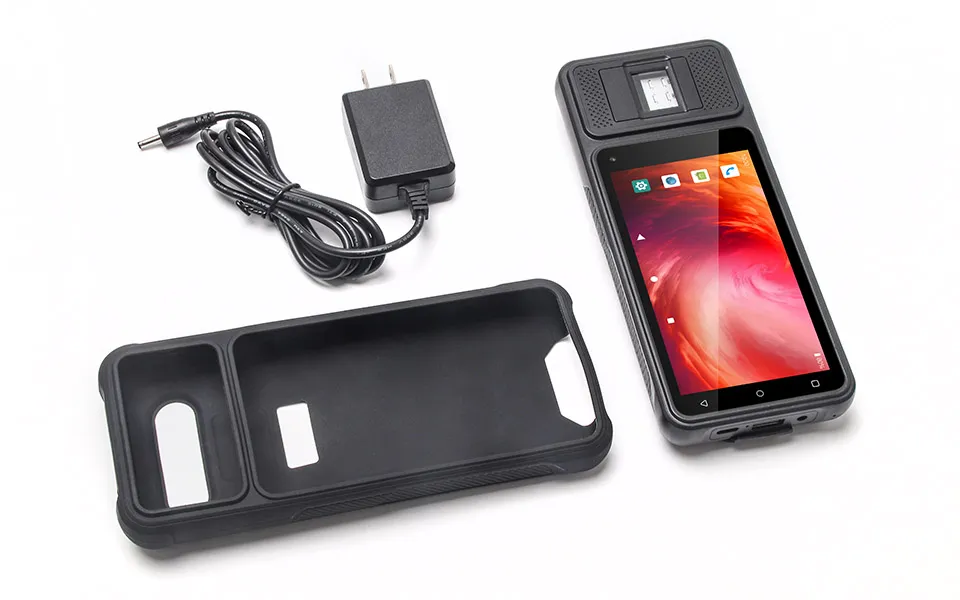

Feature Graphic 1

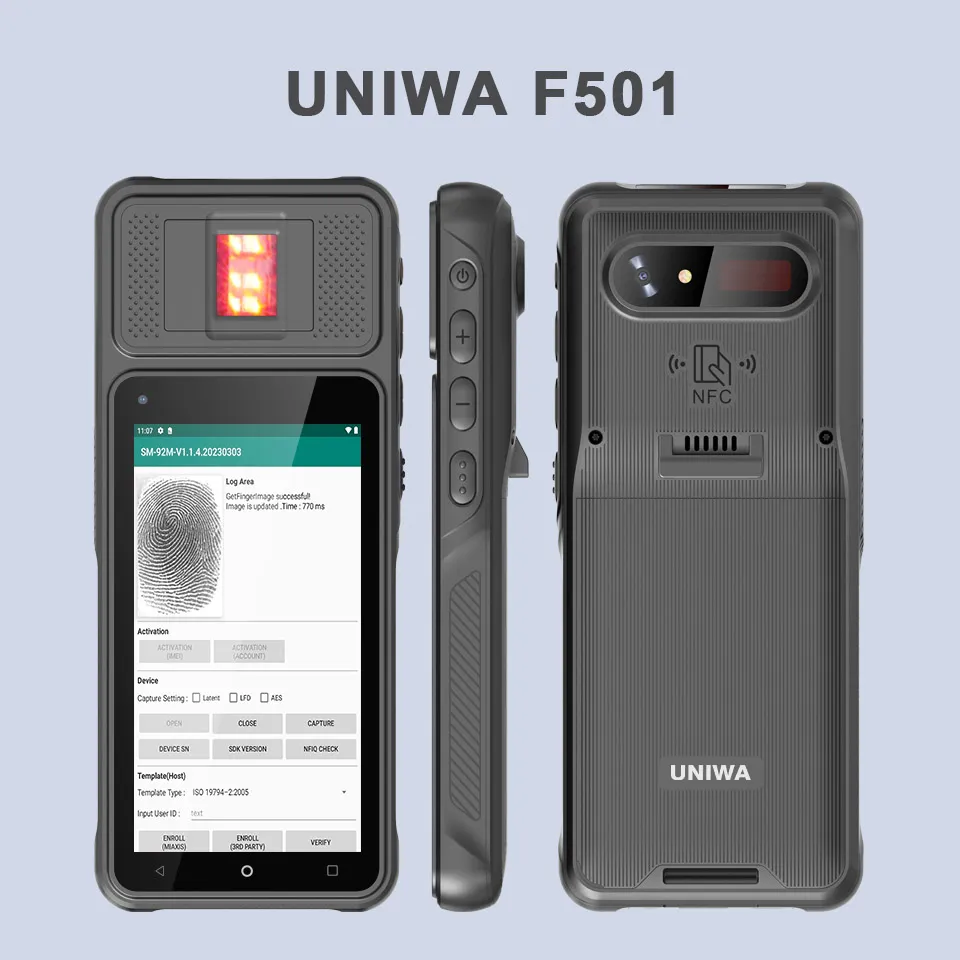

Feature Graphic 2

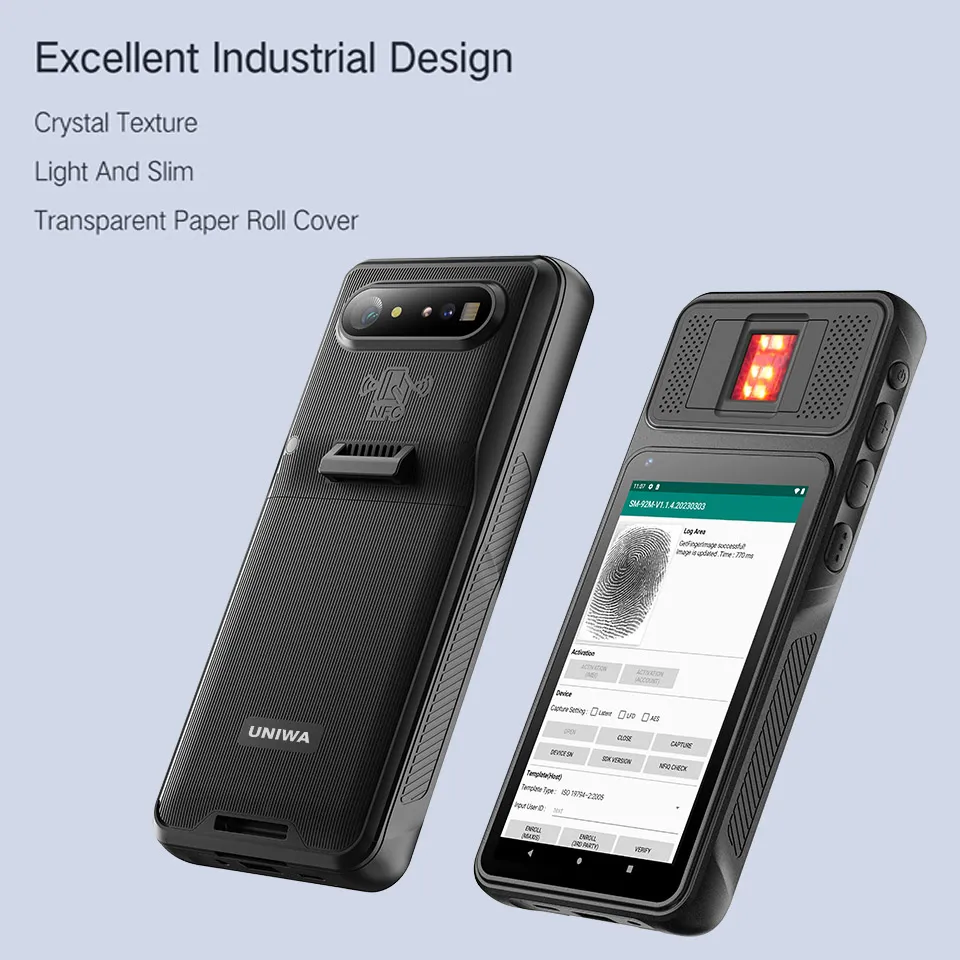

Feature Graphic 3
📊 Product Parameters
Basic Info
Model No.F501
Operating SystemAndroid 12
Dimension191*80*21.3mm
Weight310g
MaterialPlastic
Hardware
Display5.0 inches G+F IPS capacitive touch screen, 1280*720px
ProcessorMediatek MT6762 Cortex A53 octa core, 2.0GHz
RAM2GB RAM (4GB optional)
ROM32GB ROM (64GB optional), support TF card up to 128GB
Camera5.0MP front, 13MP rear camera with flashlight
BatteryRemovable 3.8V/5000mAh Li-Po battery
Connectivity
4G BandsFDD-LTE B1/B2/B3/B5/B7/B8/B20, TDD-LTE B38/B39/B40/B41
Wi-Fi2.4GHz/5GHz dual-band Wi-Fi
NFC13.56MHz, support Type A/B, Mifare, ISO14443
GNSSGPS/GLONASS/Beidou
Features & Reliability
FingerprintOptional FAP10/FAP20/FAP30 optical sensor
Barcode1D/2D Scanning Optional
WaterproofIP54 Rating
🏢 Factory & Quality
Company Overview
Production Line
❓ Frequently Asked Questions
What version of Android does the F501 use?
The device runs on the Android 12 operating system, ensuring compatibility with modern applications and improved security.
Is the battery removable?
Yes, the device features a removable 5000mAh Li-Po battery, allowing for easy replacement during long shifts.
What types of fingerprint sensors are supported?
It supports optional FAP10, FAP20, or FAP30 optical biometric fingerprint readers, which are STQC certified for high-level security.
Does it support barcode scanning?
Yes, 1D and 2D barcode scanning modules are available as an optional feature for warehouse and logistics tasks.
How rugged is the device?
The F501 is rated IP54 for water and dust resistance, making it suitable for industrial environments.
What are the charging options?
The device includes both a dedicated DC-IN port and a USB Type-C port for flexible charging and data transfer.
