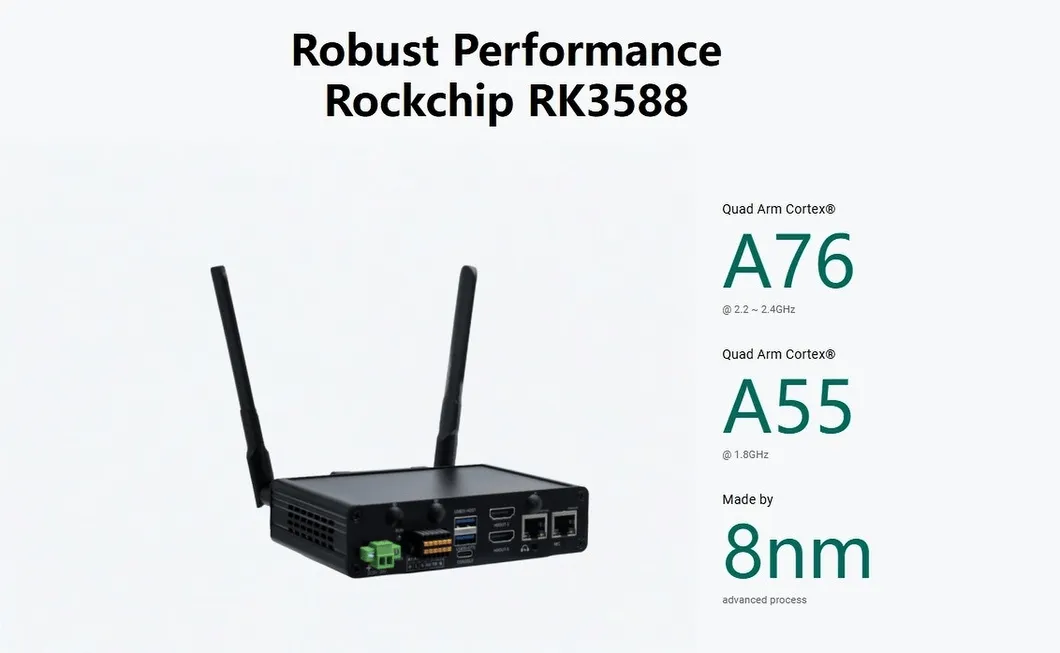

RK3588 Quad-Core Cortex-A76 & Quad-Core Cortex-A55, Up to 2.2GHz
DDR
8GB/32GB dual-channel LPDDR5, Up to 4800Mbps
Storage
64GB eMMC, HS400 Mode Support
NPU
6 Tops INT8 Computing Power
Serial Ports
Isolated 2 x RS485
CAN Bus
Isolated 1 x CAN2.0B
IO
Isolated 2 x GPIO (Configurable as I2C or UART)
Ethernet
2 x Gigabit Ethernet interfaces
USB
1 x USB 2.0 HOST, 1 x USB 3.0 OTG
WIFI/BT
Supports M.2-2230 (PCIe+USB2.0) module (Optional)

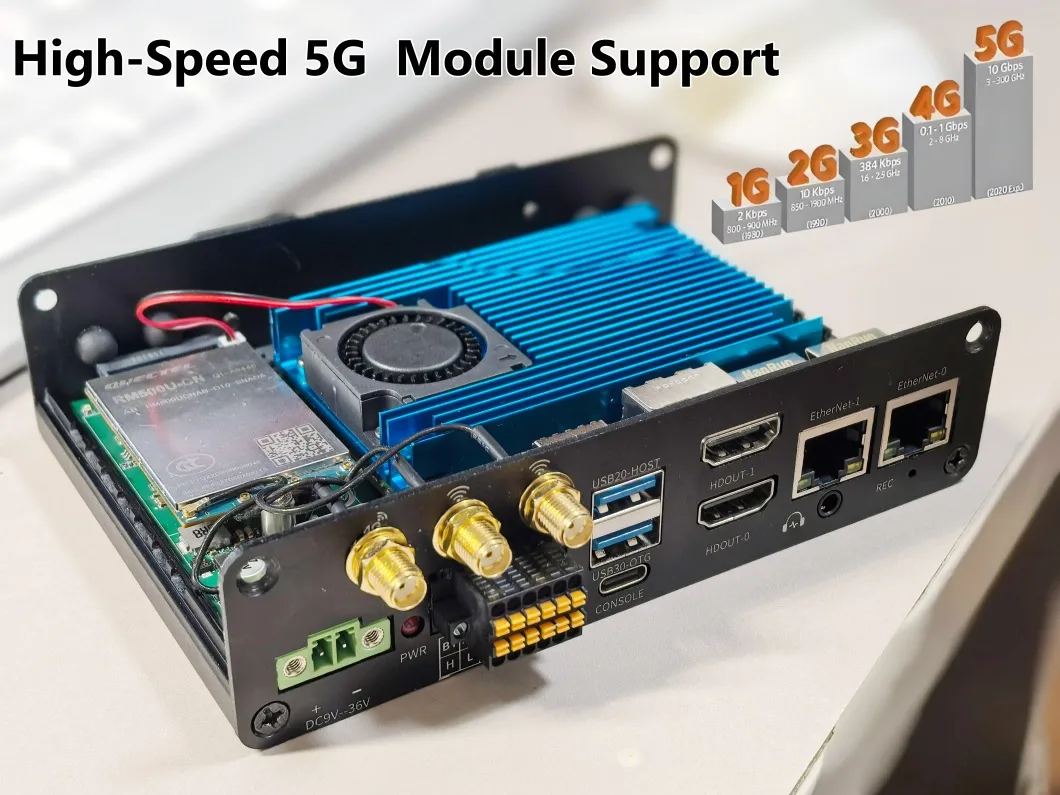

Cellular
Supports M.2 4G/5G module, 1 x Nano SIM (Optional)
Antenna
7 x SMA Connectors
Video
2 x HDMI 2.1 Port (Max 8KP60)
OS
Ubuntu 24.04 LTS Desktop
Power
9 ~ 30V VDC
Product Details

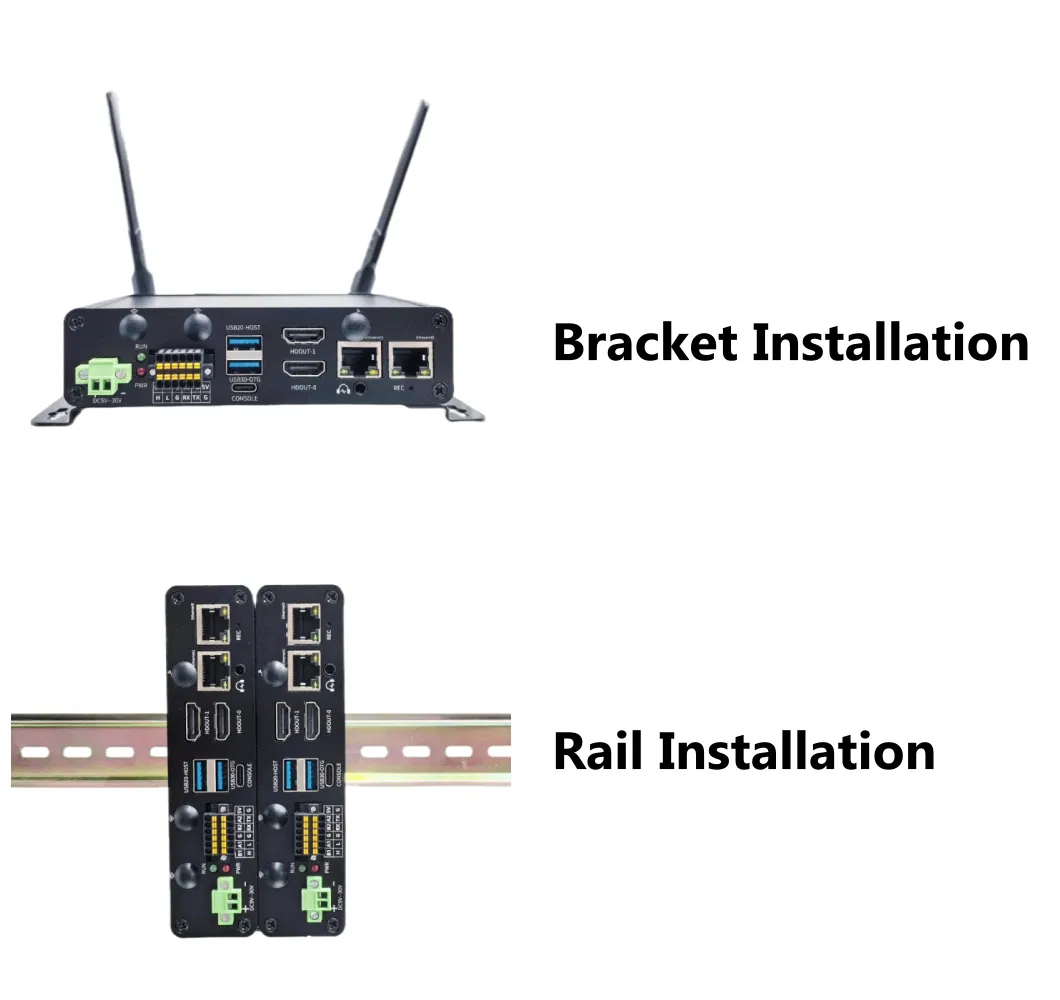

Installation & Packing List
Packing Item
Quantity
Gateway Host
1
Mounting Bracket
2

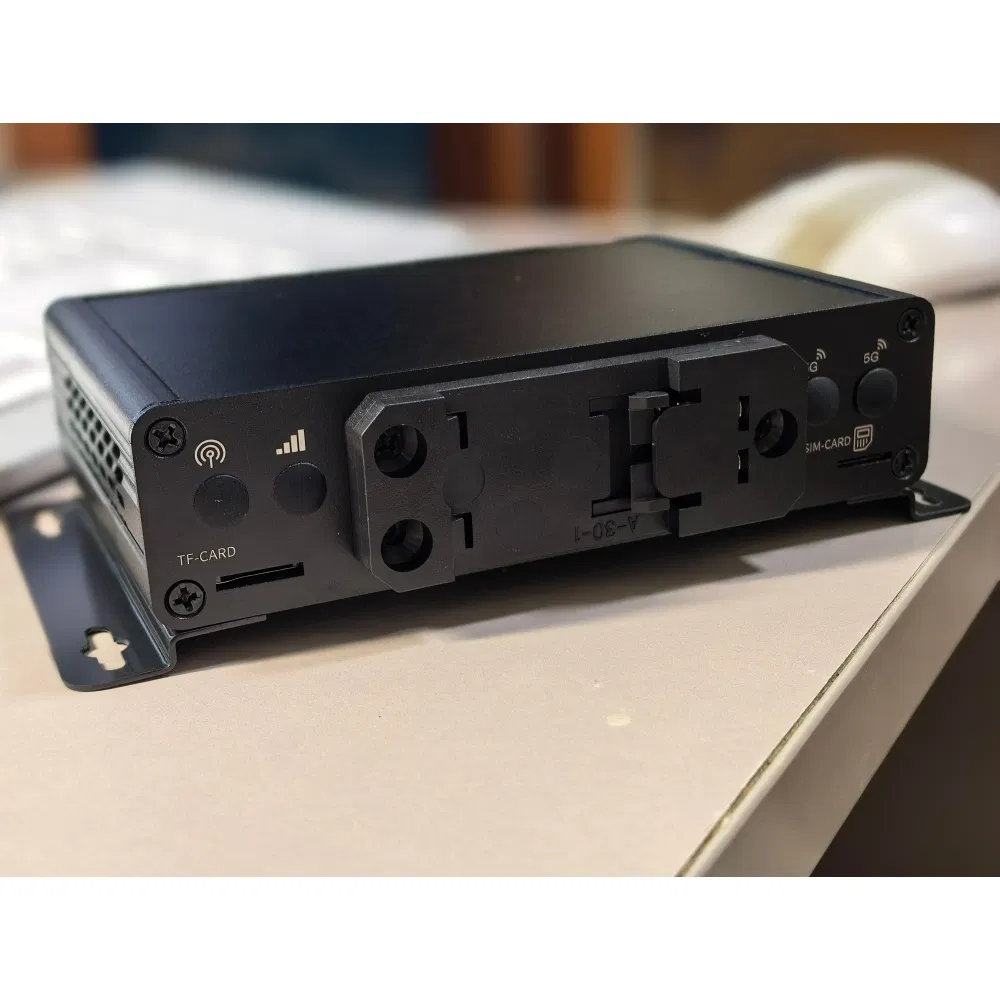

35mm Rail Buckle
1
Power Connector
1
IO Connector
1

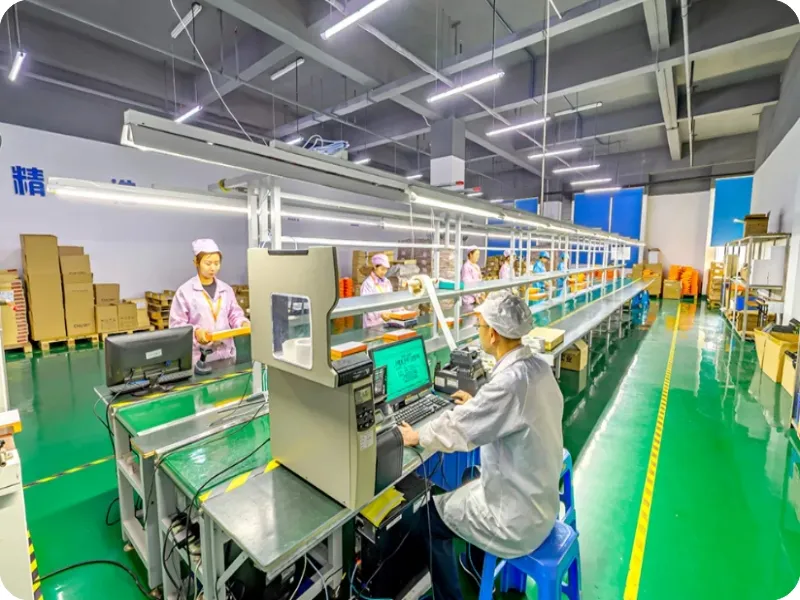

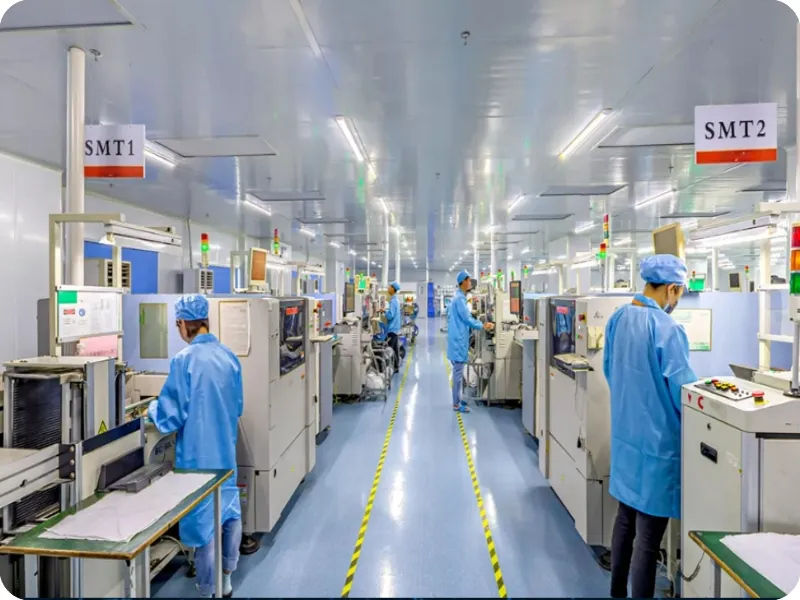

Production Environment
Frequently Asked Questions
Q1: Are you a factory or a manufacturer?
Absolutely! We are a full-scale company that excels in design and production. Every product is crafted with unique designs and manufactured independently.
Q2: Can I customize the hardware with my company logo?
Yes, certainly! The device chassis supports laser engraving for your company logo and custom branding requirements.
Q3: Which operating systems are supported by this gateway?
The gateway comes pre-installed with Ubuntu 24.04 LTS Desktop, providing a stable and modern environment for edge computing applications.
Q4: What are the available payment and shipping options?
We offer multiple secure payment options including T/T (Bank Transfer) and PayPal. For shipping, we use standard export cartons with secure internal padding.
Q5: What is your after-sales service and warranty policy?
We provide a 12-month standard warranty along with a commitment to lifetime technical maintenance and support for all our hardware products.
Q6: Can the AI computing power be expanded?

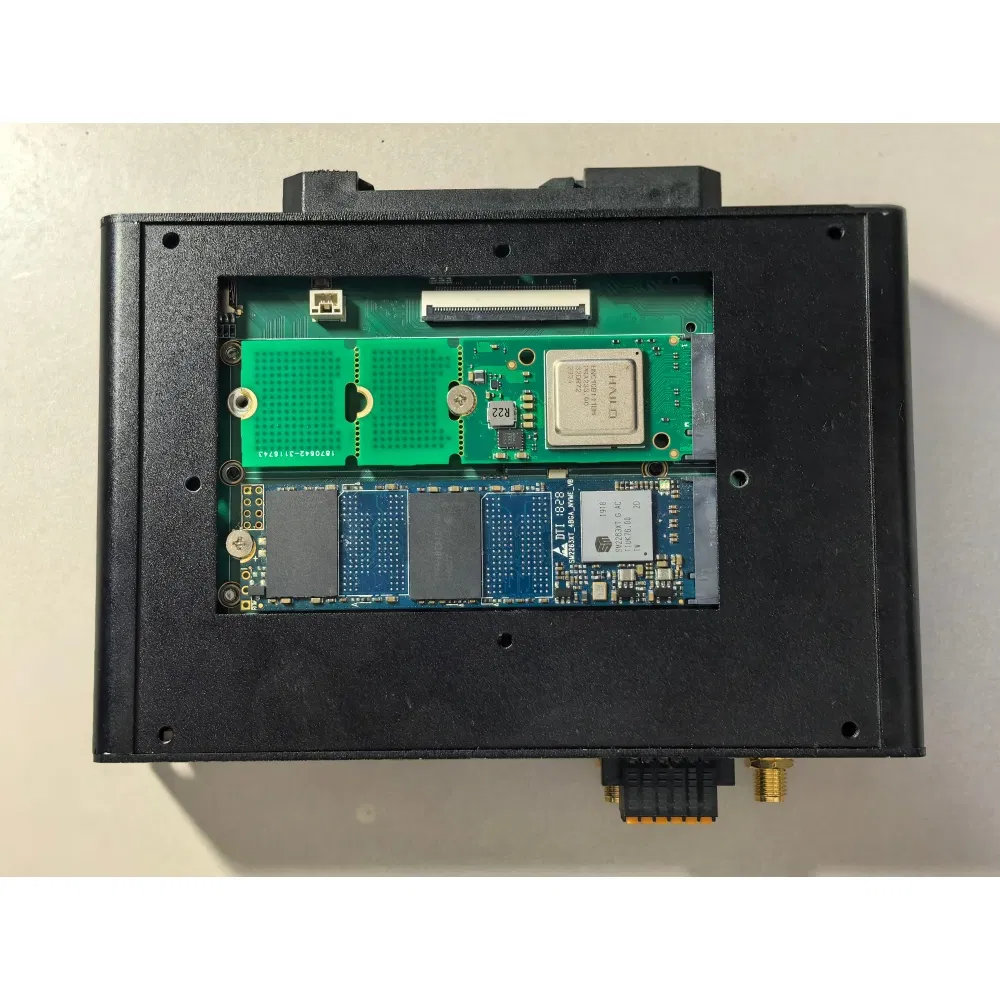

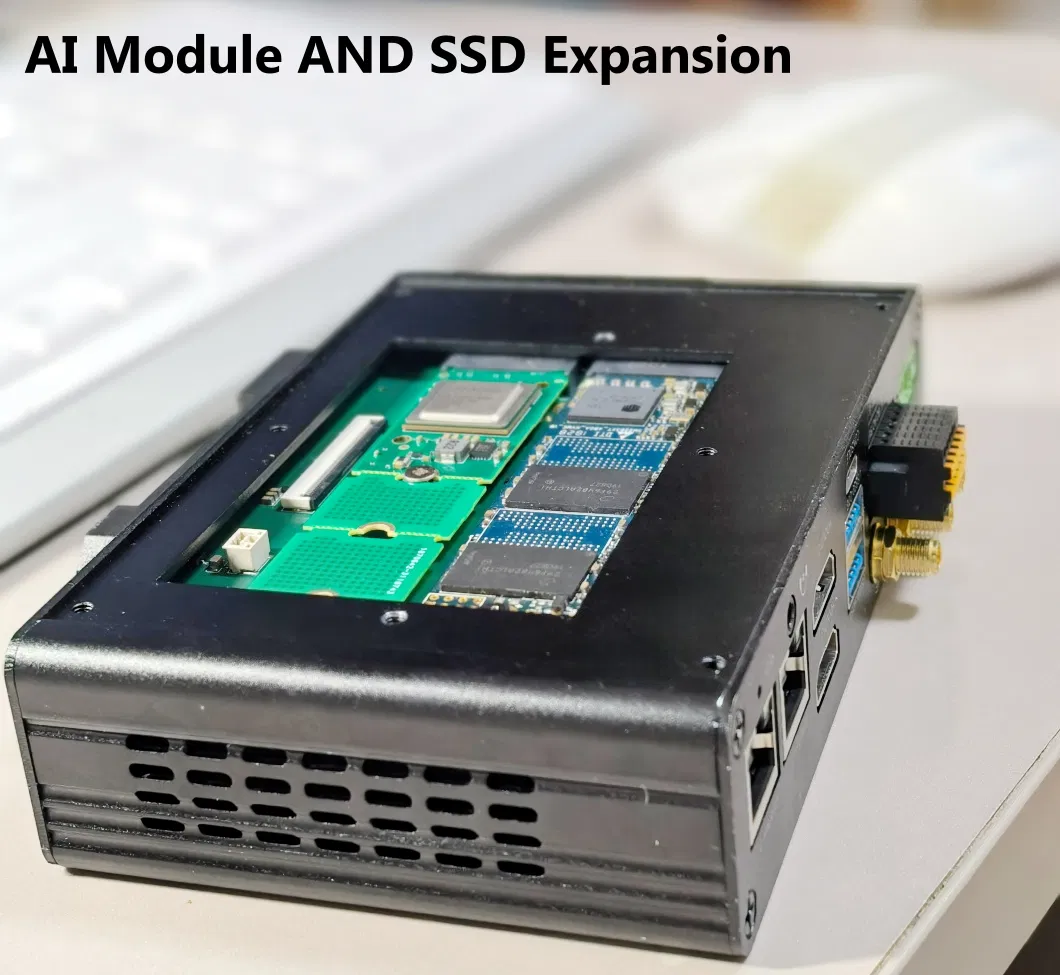

Yes, the gateway features a PCIe 3.0 x4 slot that can support high-performance AI modules like the Hailo 8, delivering up to 26 TOPS of AI processing capability.
