| Category | Feature | Specification |
|---|---|---|

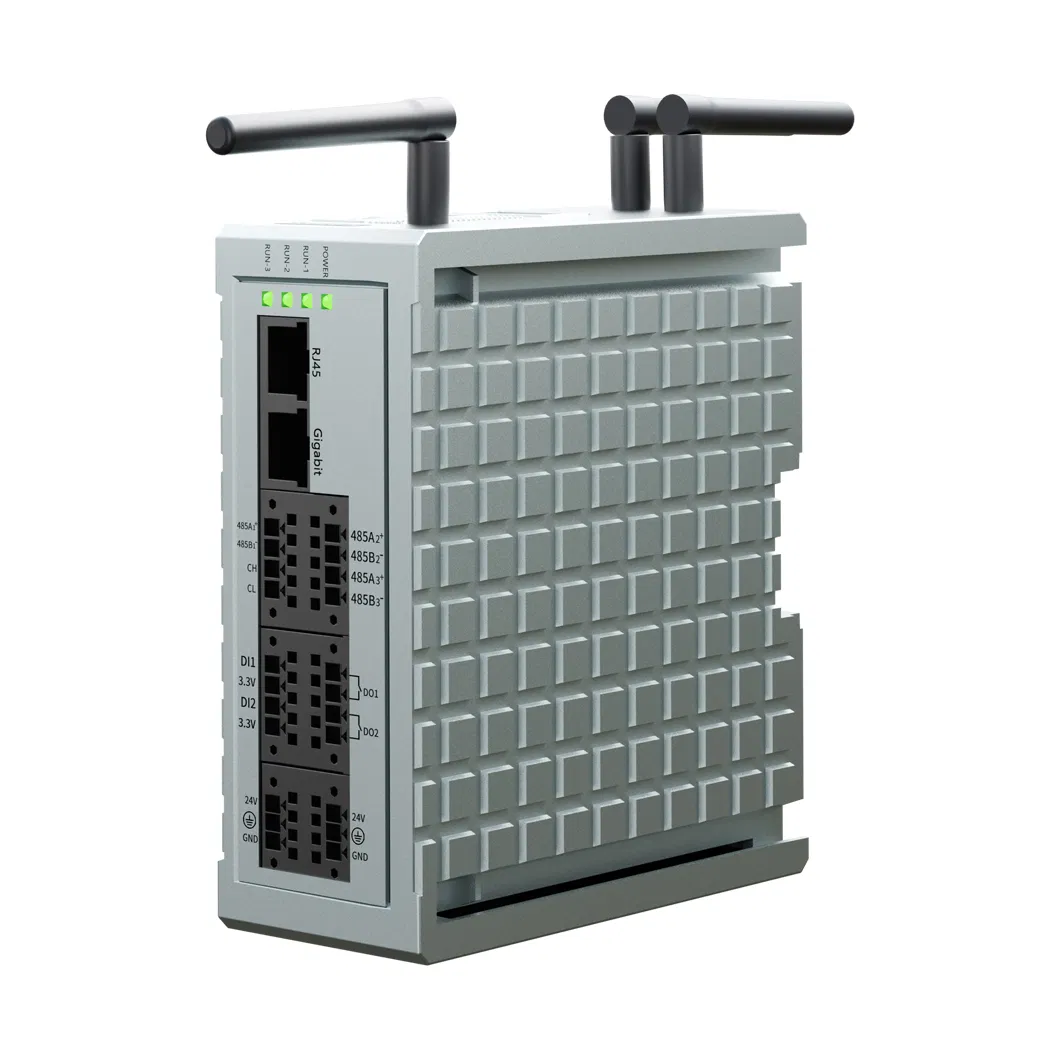

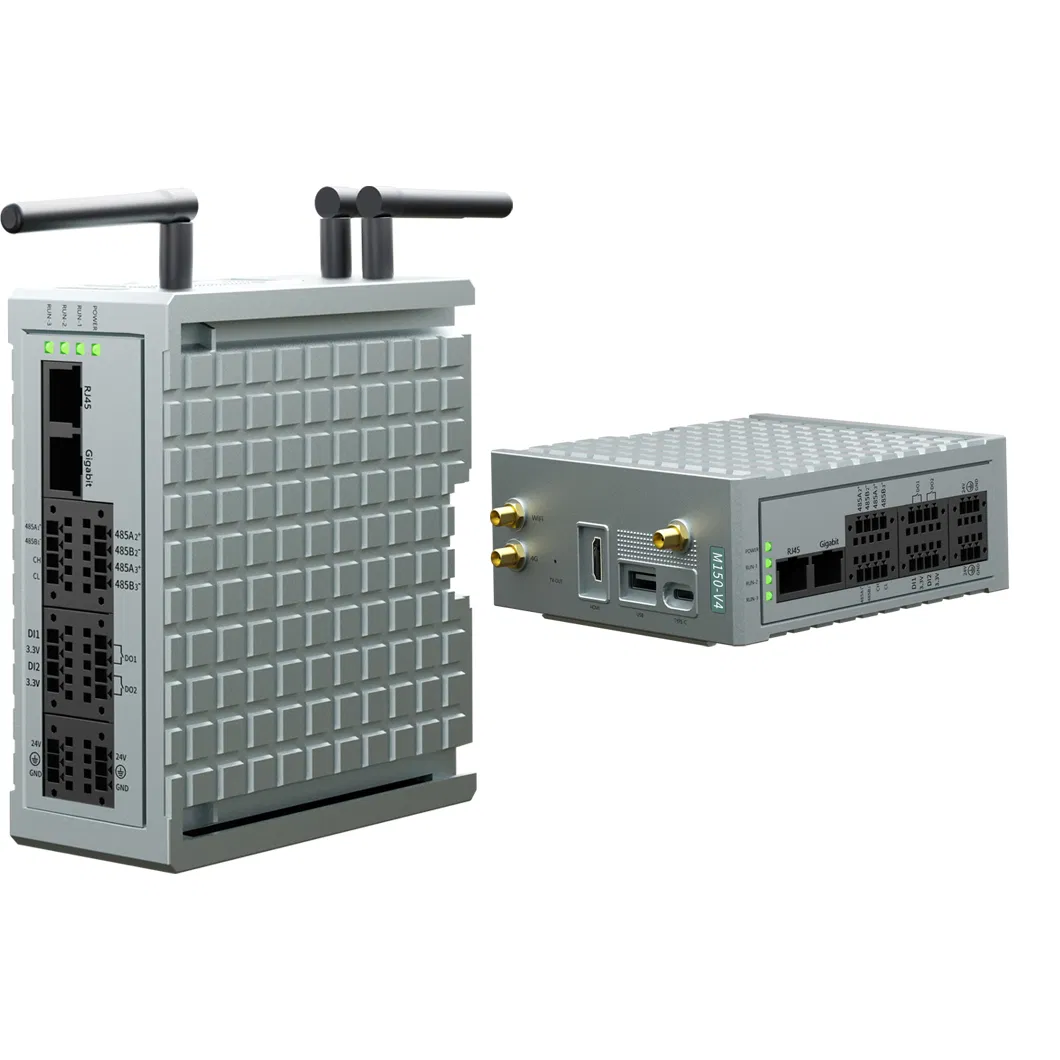

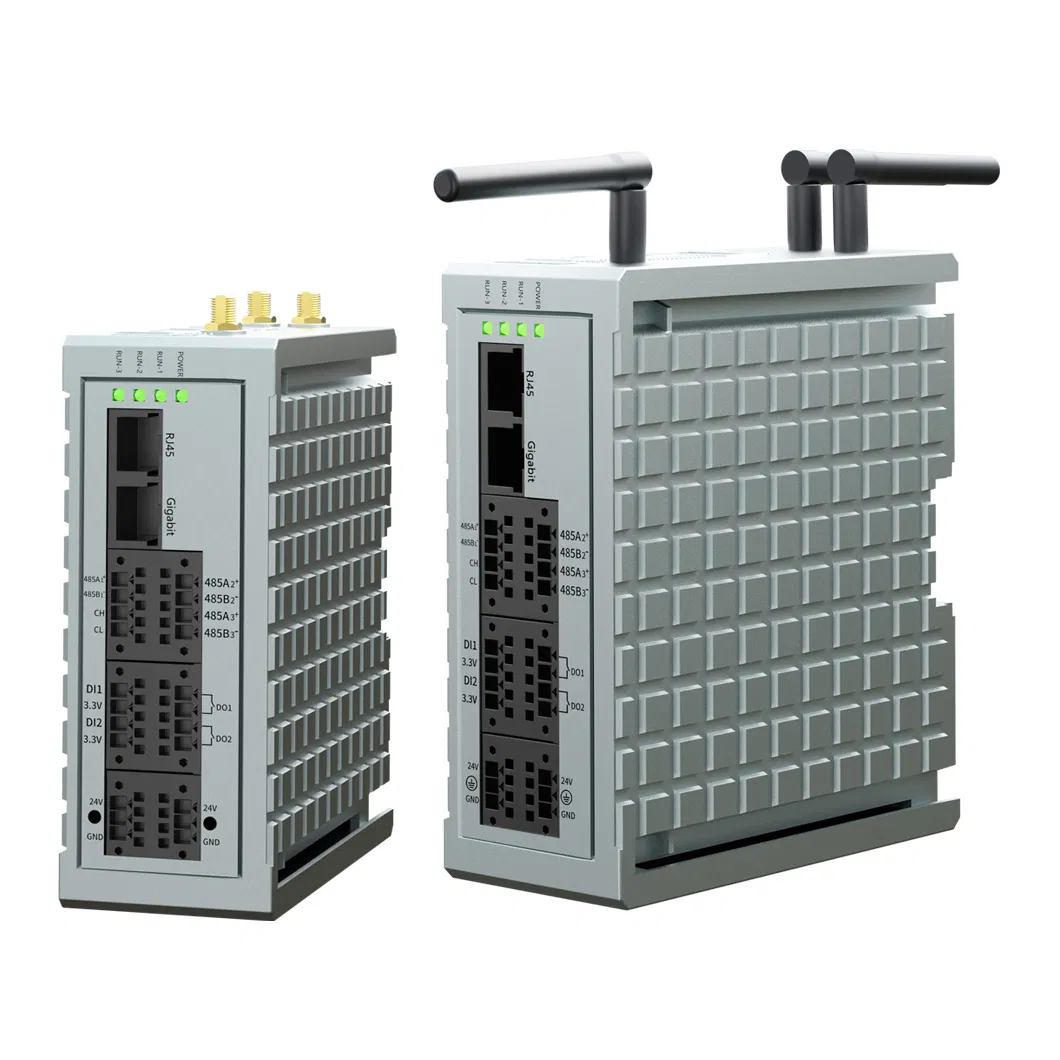

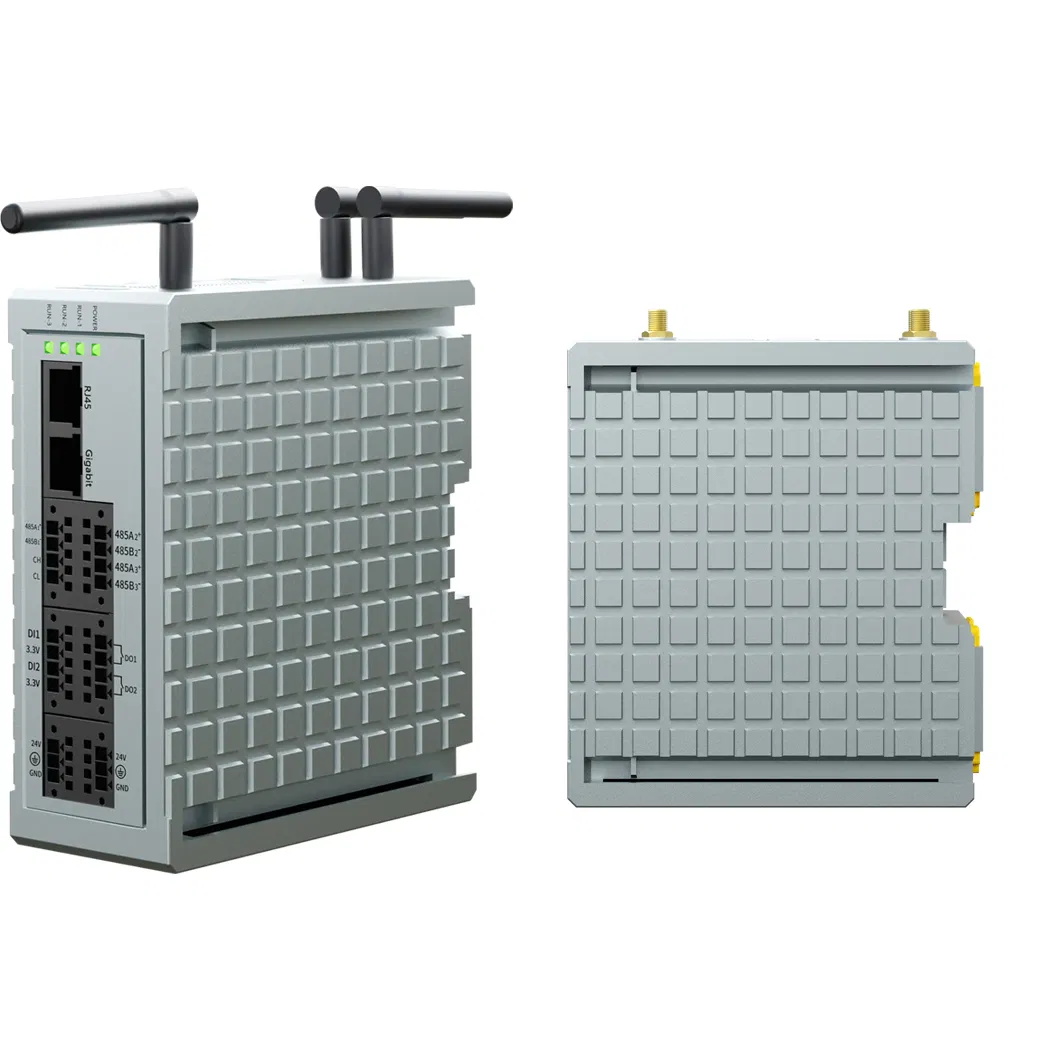

| Name | Product Name | Edge computing IIot gateway |
| Processor | CPU | Quadura core main frequency 1.5GHz |
| Memory (RAM) | LPDDR4 2GB | |
| I/O Interface | Storage | 8G eMMC, supports TF card |
| USB Host | 2 channel high speed (Type A and Type-C) | |

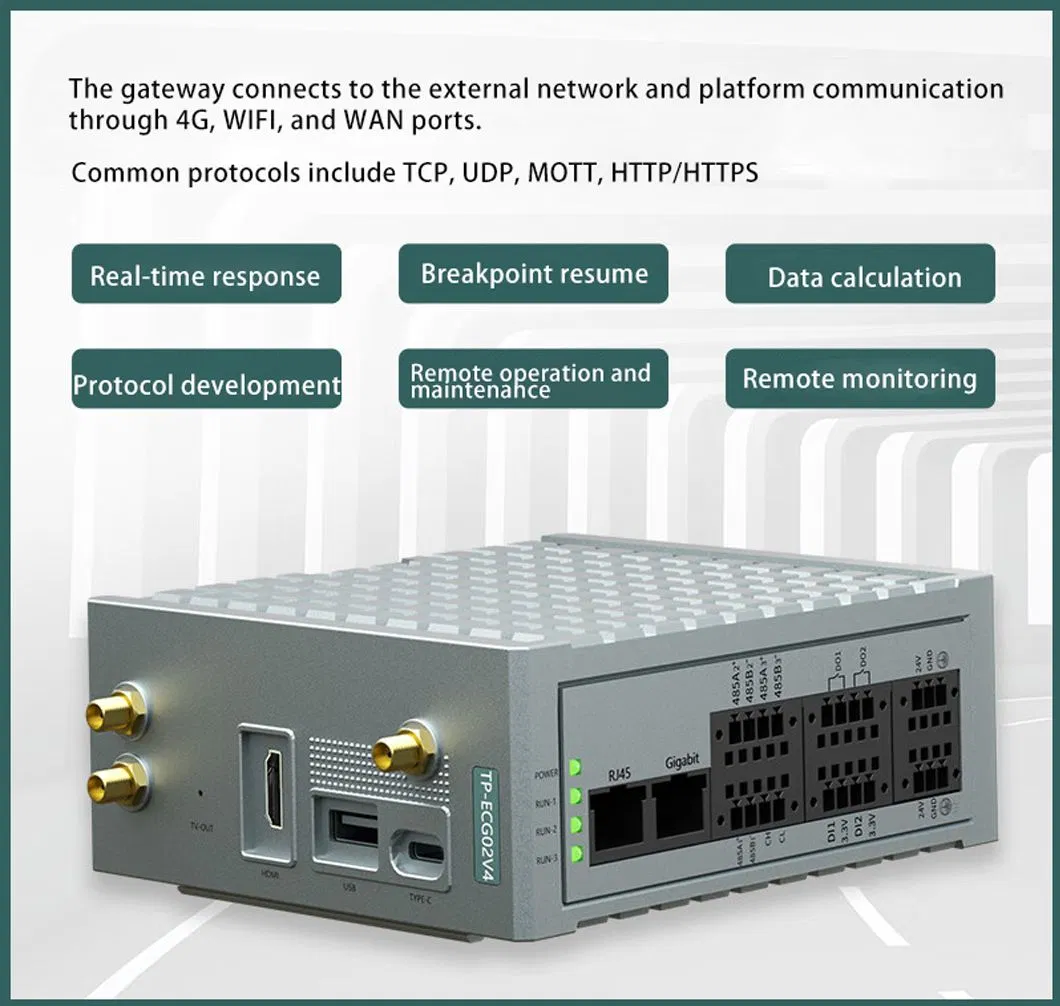

| Ethernet | 2 channel WLAN (10/100/1000Mbps self-adaptive) | |
| WIFI | IEEE 802.11b/g/n | |
| 4G | LTE Cat1 | |

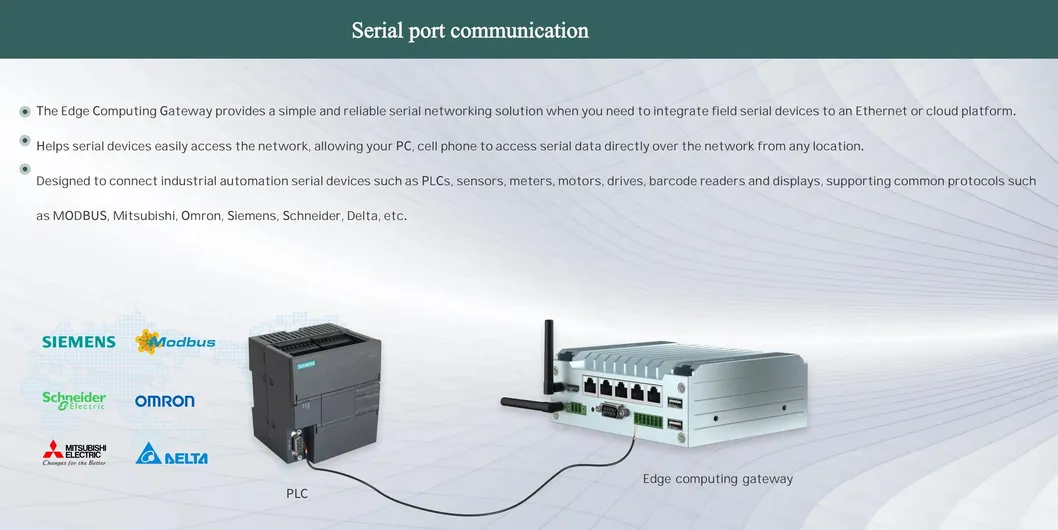

| Serial | 1 channel RS232, 3 channel RS485 | |
| CAN Bus | 1 channel | |

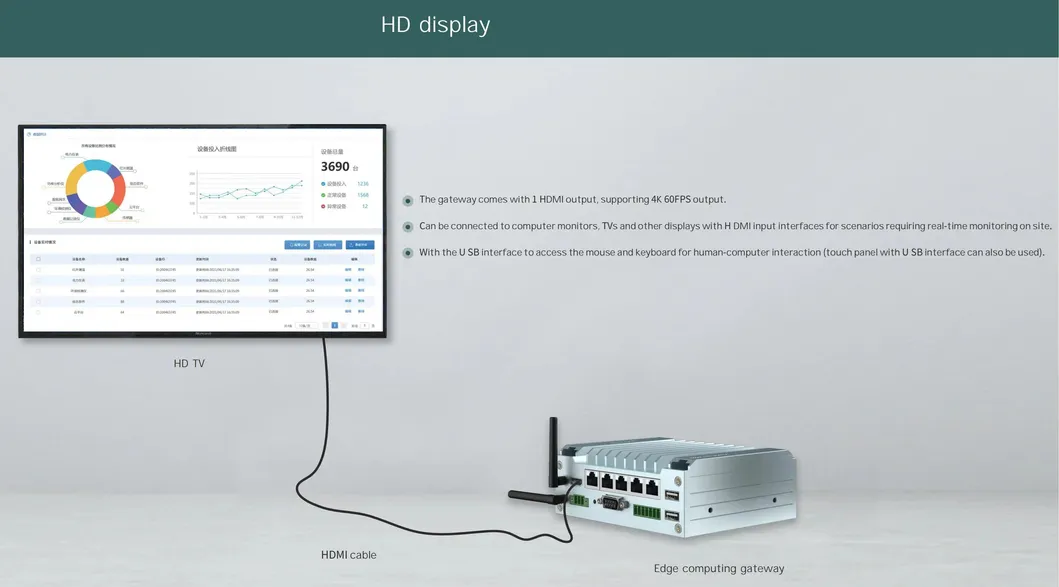

| HDMI | 1 channel output, supports 4K 60fps | |
| PLC | RTC | Time storage HYM8563 |
| Electrical | Power Supply | DC 10.5V ~ 28V |
| Protection | Reverse protection, wrong wire protection | |
| Consumption | < 5W | |
| Isolation | 500VAC (1 min), Resistance over 500Ω | |
| Vibration | -10~25Hz (X,Y,Z direction 2G /30 min) | |
| Environment | Temperature | Work: -20~60ºC | Storage: -30~70ºC |
| Humidity | 10-90%RH (non-condensing) | |
| Cooling | Natural wind cooling | |
| Structure | Material | ABS (Fireproof Class V0) |

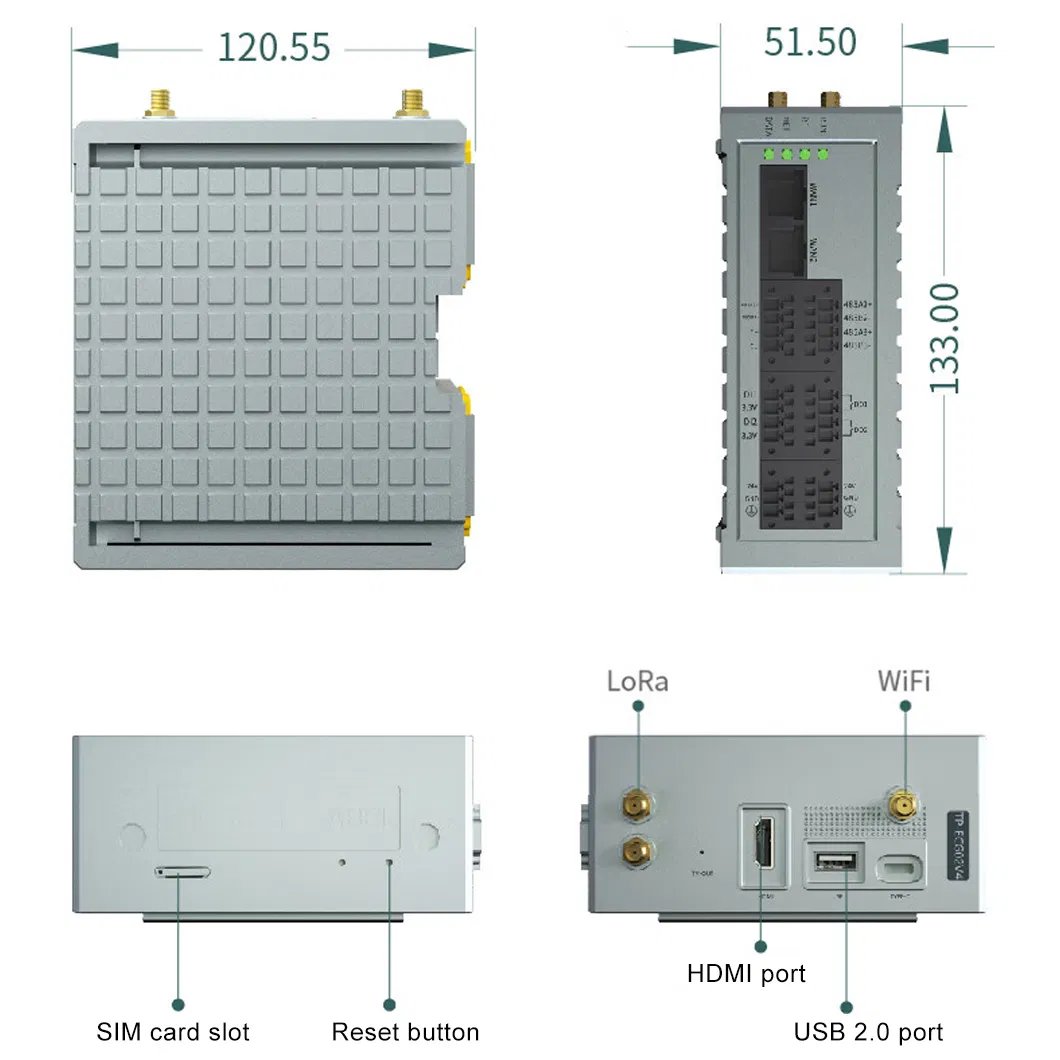

| Dimension | 120.55*133*51.5mm | |

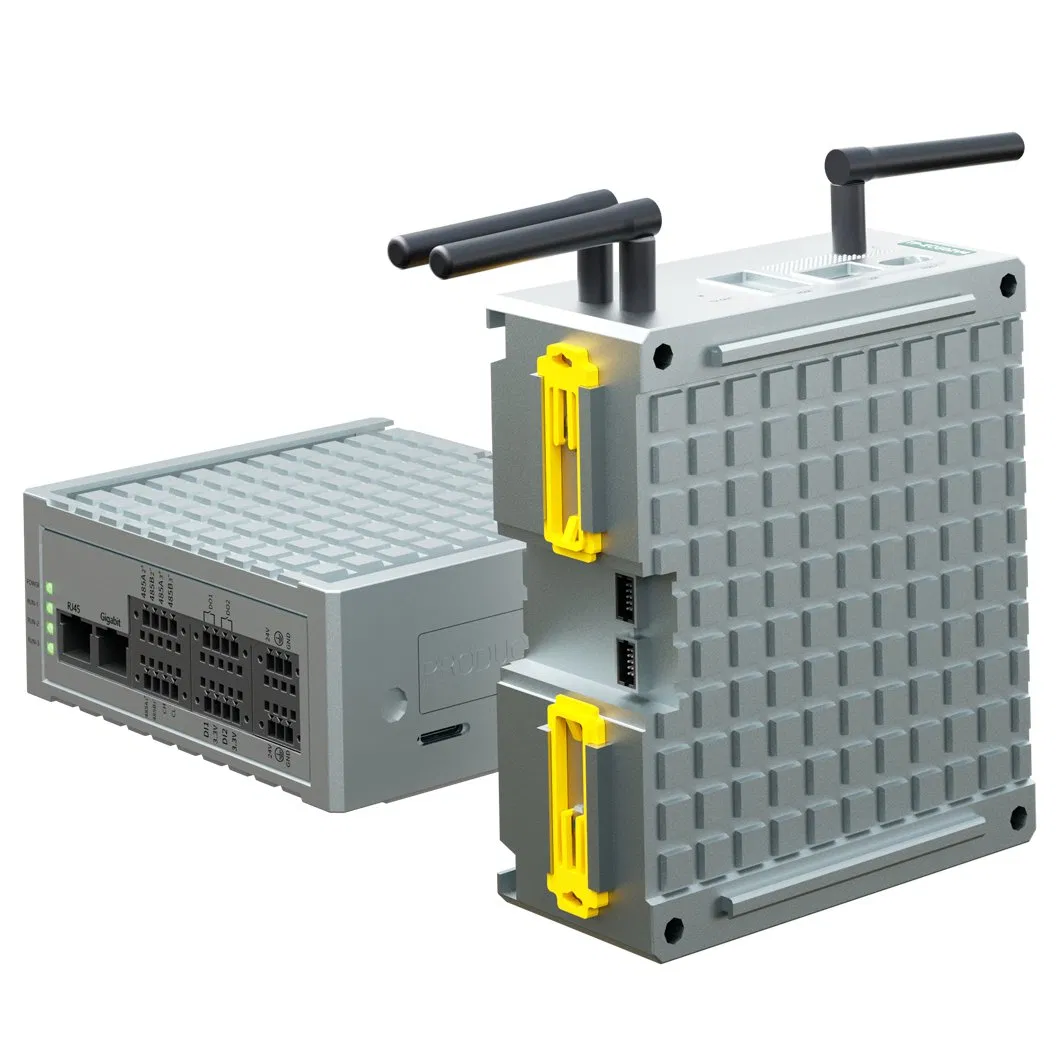

| Installation | GB C45 din rail | |
| Protection | IP20 / Weight: 500g | |
| System | OS | Ubuntu 20.04 LTS |
| Software | Interface | WinIF 4.6 |

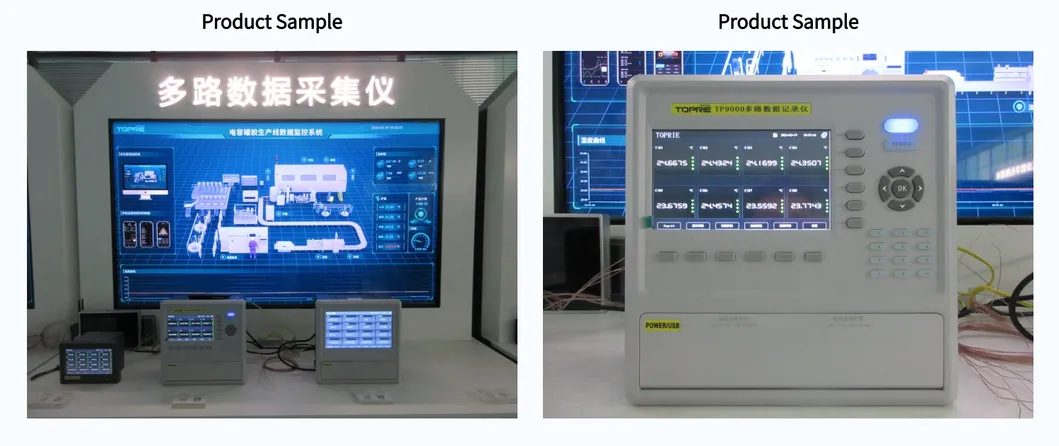

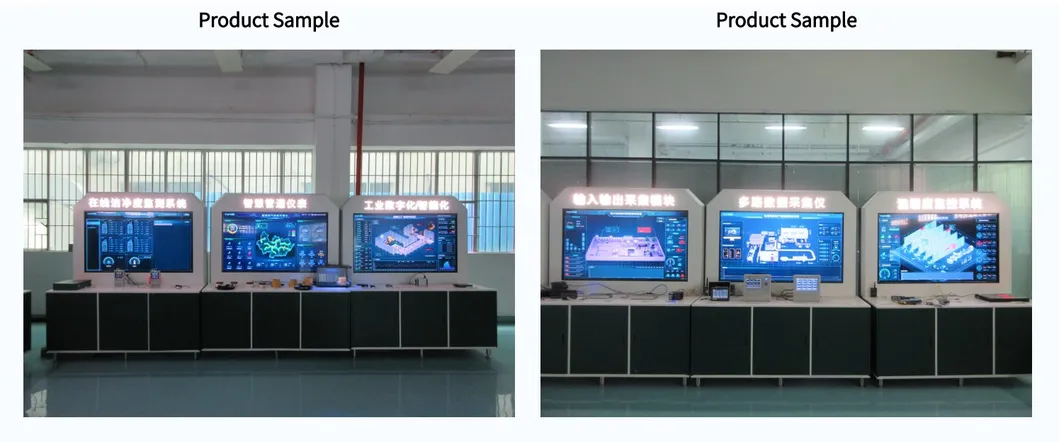

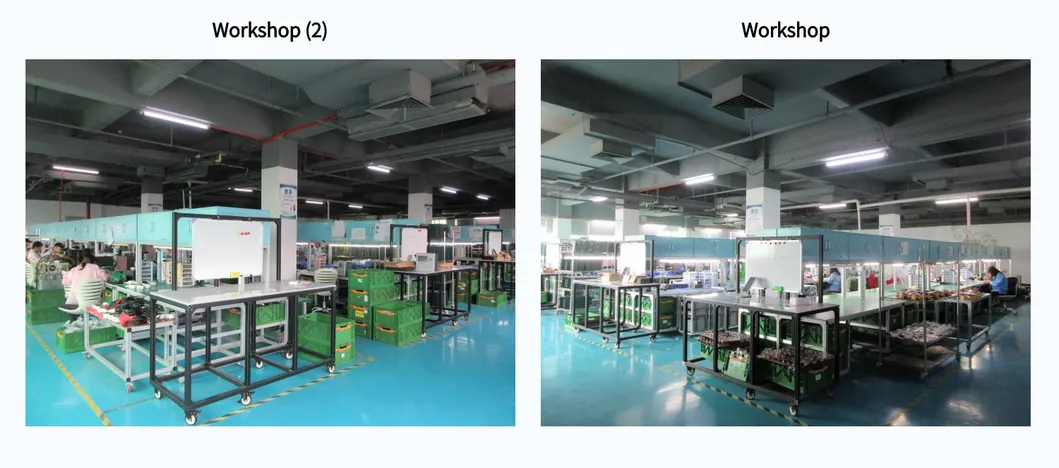

We specialize in the development and manufacturing of professional environmental monitoring and data acquisition solutions. Operating a state-of-the-art 3,000 square meter facility, we focus on research, design, and precision manufacturing.
Comprehensive Portfolio:
Customization: We offer OEM and ODM services, providing tailored solutions including personalized branding to meet specific industrial requirements.
