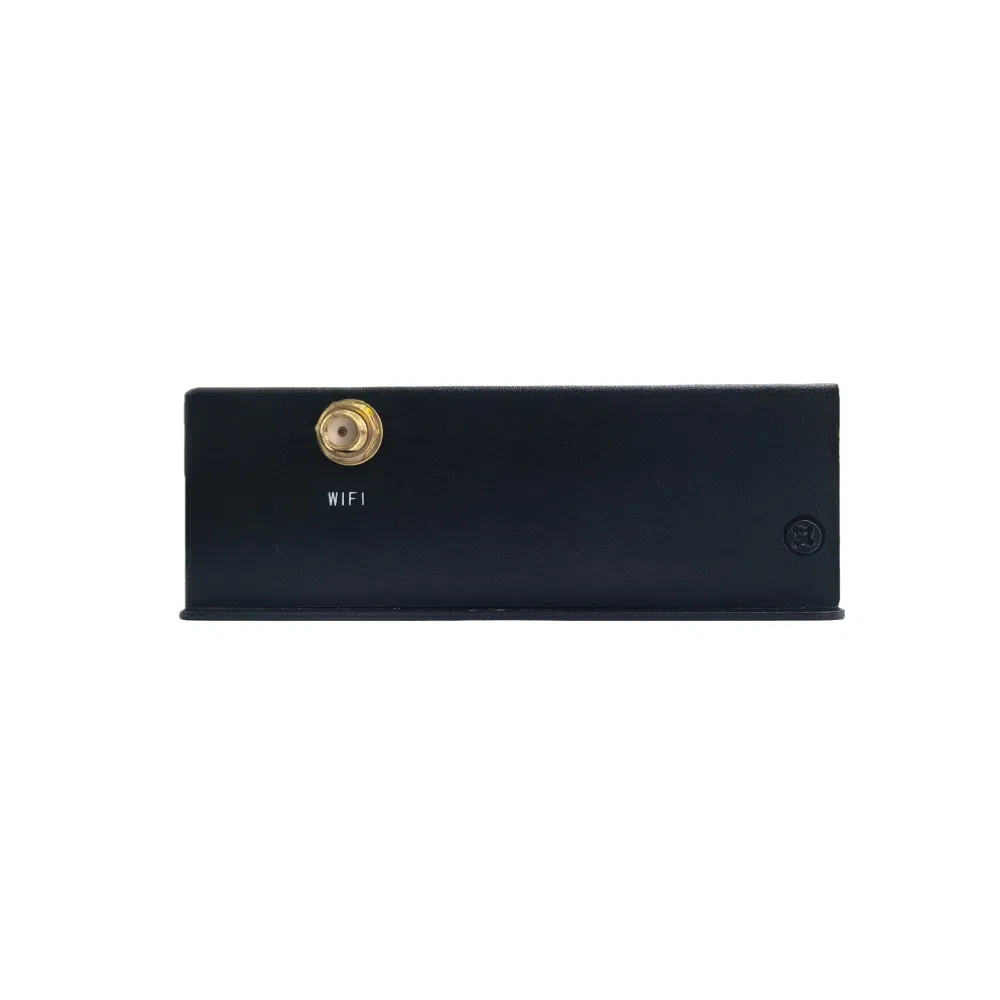

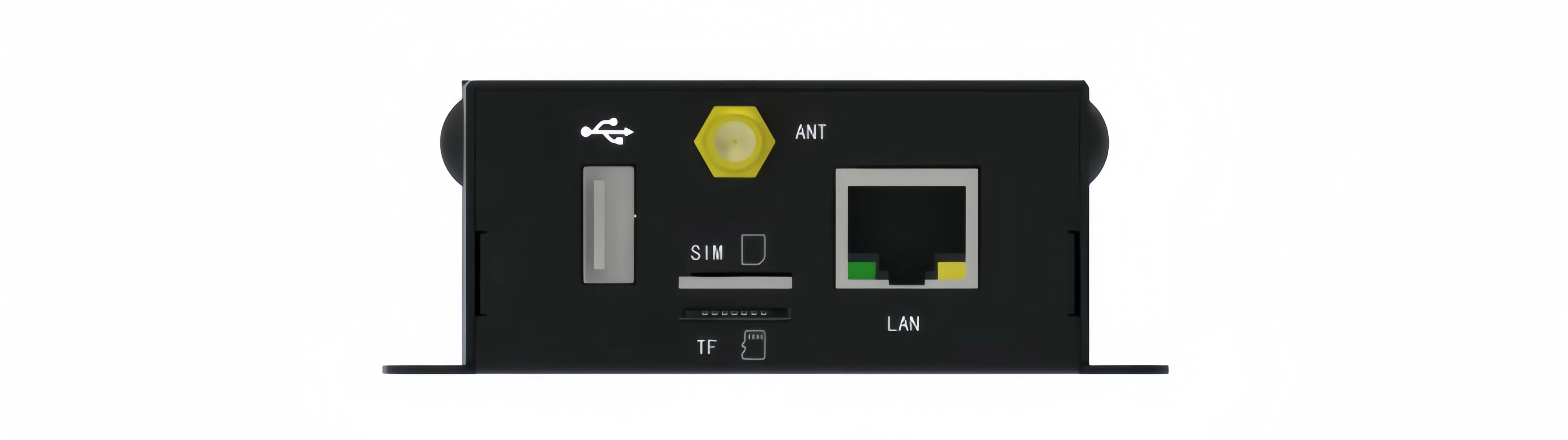

Advanced Kloizon Edge Computing Gateway with Ubuntu and Lora Features

Still deciding? Get samples of $ !
Request Sample

Product Description

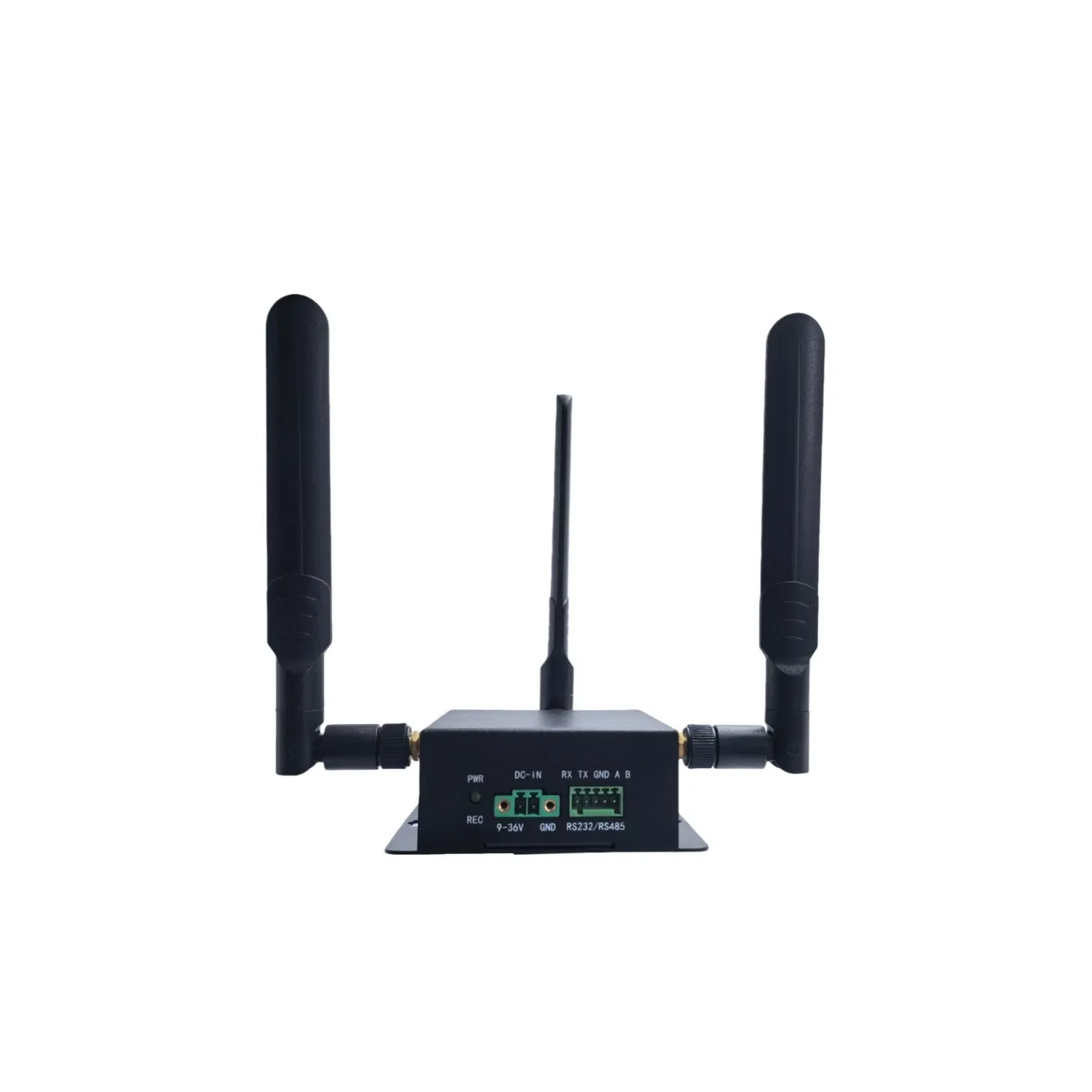

Edge Computing Gateway Overview
📊 Basic Information
Model NO.
TM-CP1B
Support Network
Ethernet
Information Content
Data
Condition
New
Package
Carton
Capacity
100,000 pieces/Year
⚙️ Technical Specifications
Attribute Parameter
CPUARM Cortex-A7, Up to 1.6GHz
DDR256M DDR3L memory, Up to 924Mbps
Storage8GB eMMC
Serial PortsIsolation 1 x RS485 / 1 x RS232
Ethernet1 x 100M Ethernet interfaces
USB1 x USB 2.0 OTG interface
WIFI/BT (Optional)Supports USB2.0 WIFI/BT module
4G/GPS (Optional)Supports MINI-PCIE module, 1 x Micro SIM
Lora (Optional)Supports 36mmX21mm(E22-*T22D) module
Input Voltage9 ~ 36V VDC
TF Card1 x High-speed TF card interface
OSUbuntu 24.04-LTS Server
Dimensions94mm × 70mm × 33mm
Installation35mm DIN-rail / Bracket mounting
Weight260g
🔍 Product Details

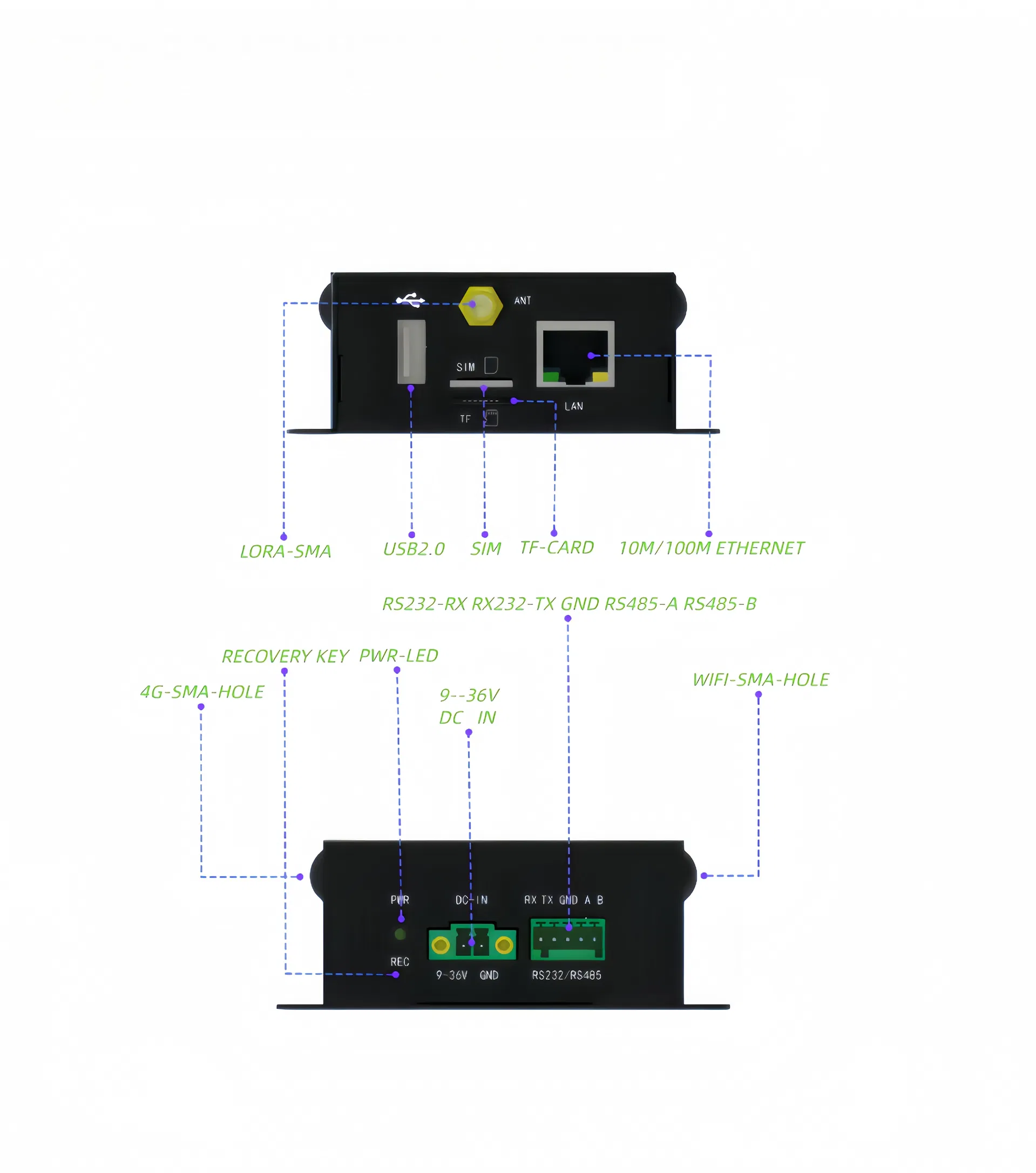

Product Detail View 1

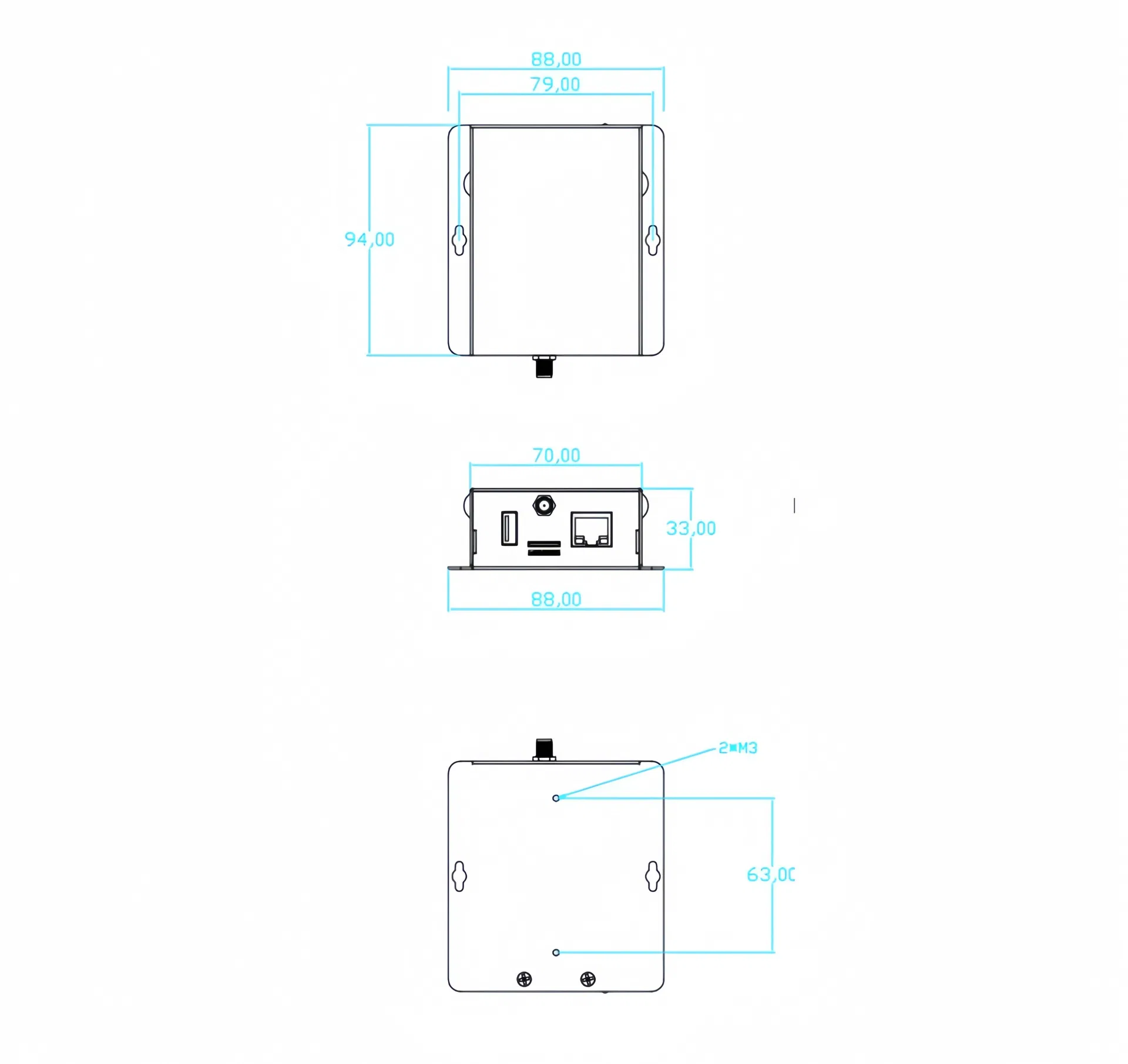

Product Detail View 2

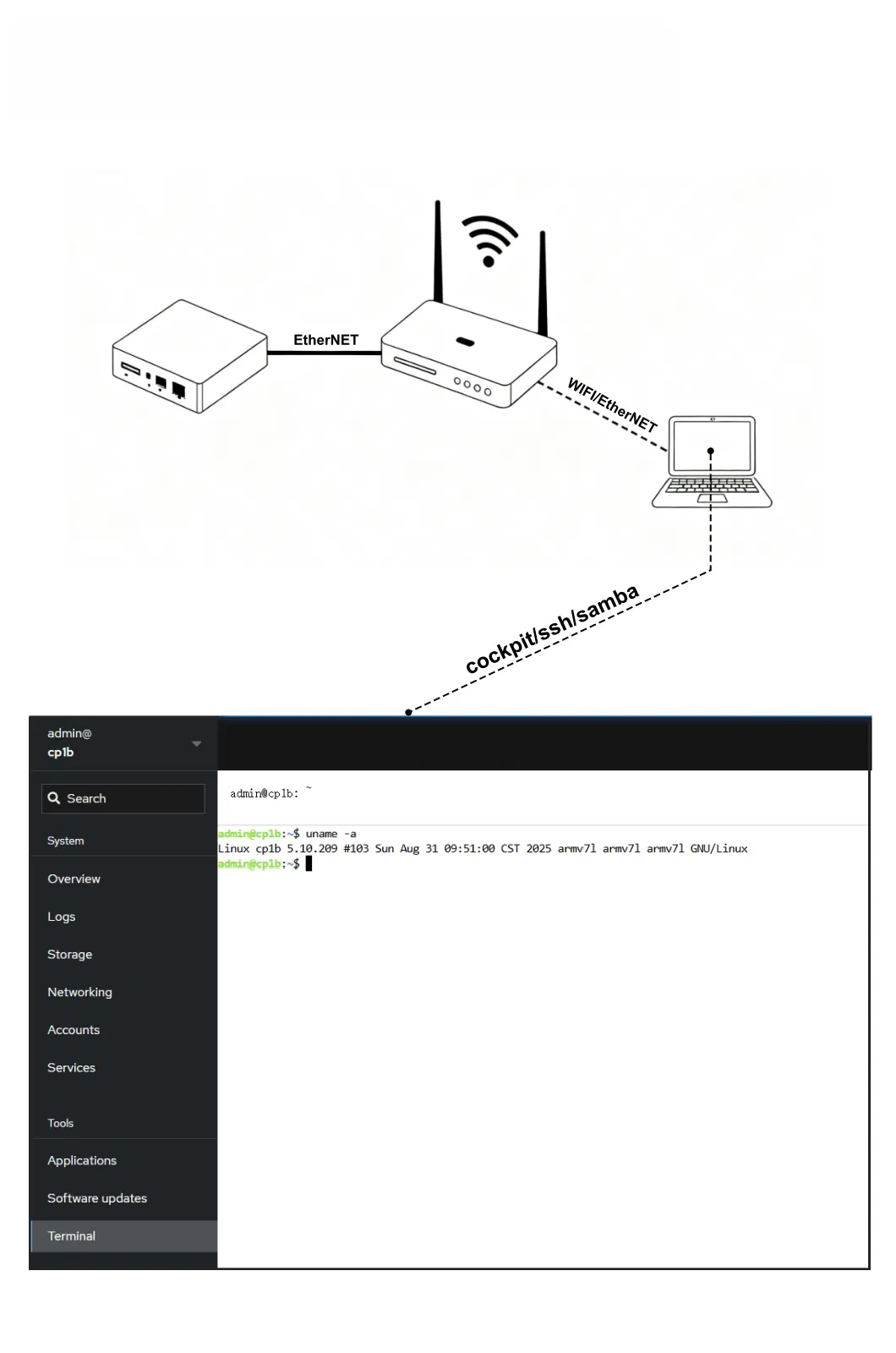

Product Detail View 3
📦 Packing List
Name Quantity
cp1b-host1
35mm Rail buckle1
Power Connector1
IO Connector1

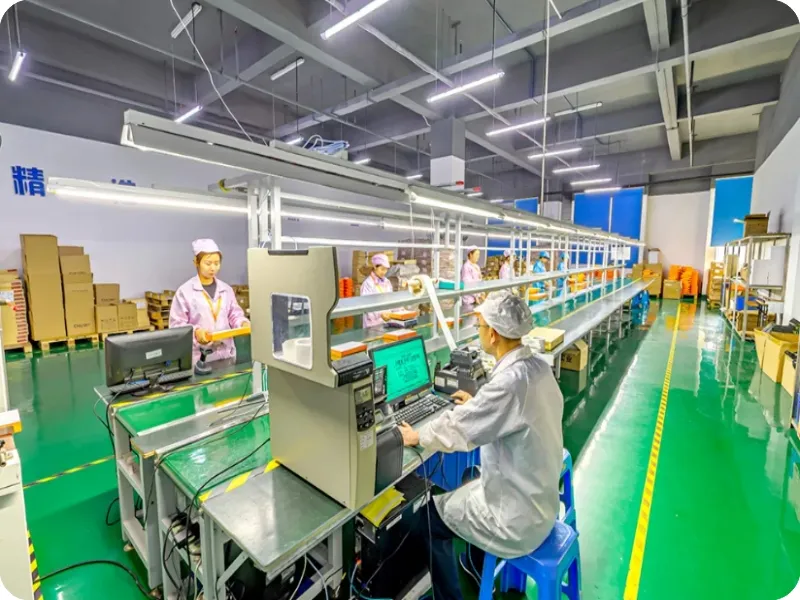

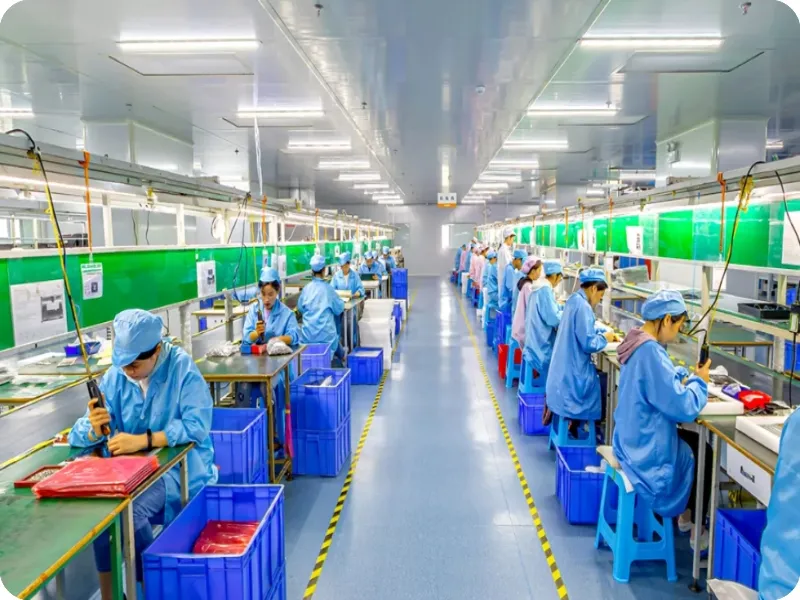

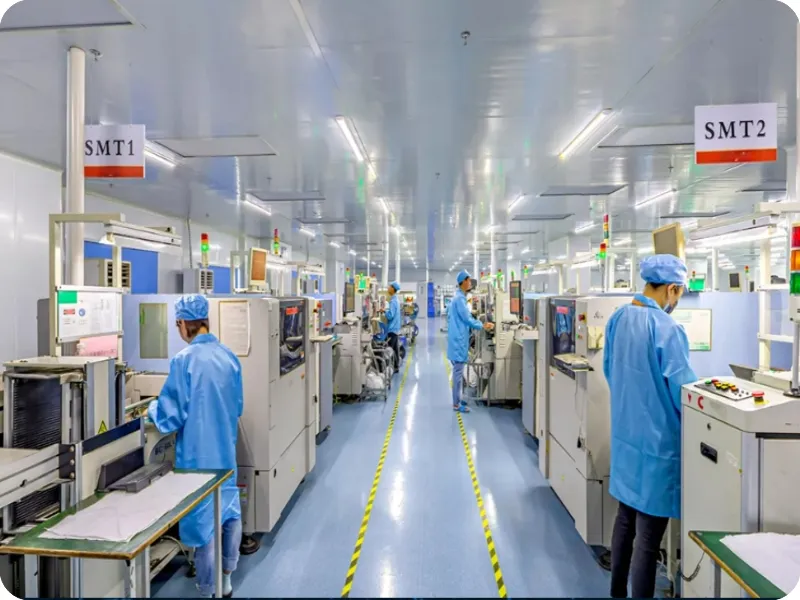

🏭 Production Environment
Frequently Asked Questions
Q1: Are you a factory/manufacturer?
A: Yes, we are a comprehensive company that integrates design and production. All products are independently designed and crafted by our team.
Q2: Can I customize my logo on the devices?
A: Certainly, we can laser engrave your company logo directly onto the machine hardware.
Q3: What is the typical lead time?
A: Standard products are in stock and usually ship within 48 hours post-payment. Custom products depend on the specific quantity and customization requirements.
Q4: What payment methods are accepted?
A: We accept multiple payment options including T/T (bank transfer), PayPal, and other standard international methods.
Q5: How is the product packaged for shipping?
A: Each machine is securely packaged in high-strength cardboard boxes with protective foam lining. We offer express delivery via air or sea based on your needs.
Q6: What is the after-sales and warranty policy?
A: We provide a 12-month standard warranty and offer lifetime technical maintenance for all our equipment.
