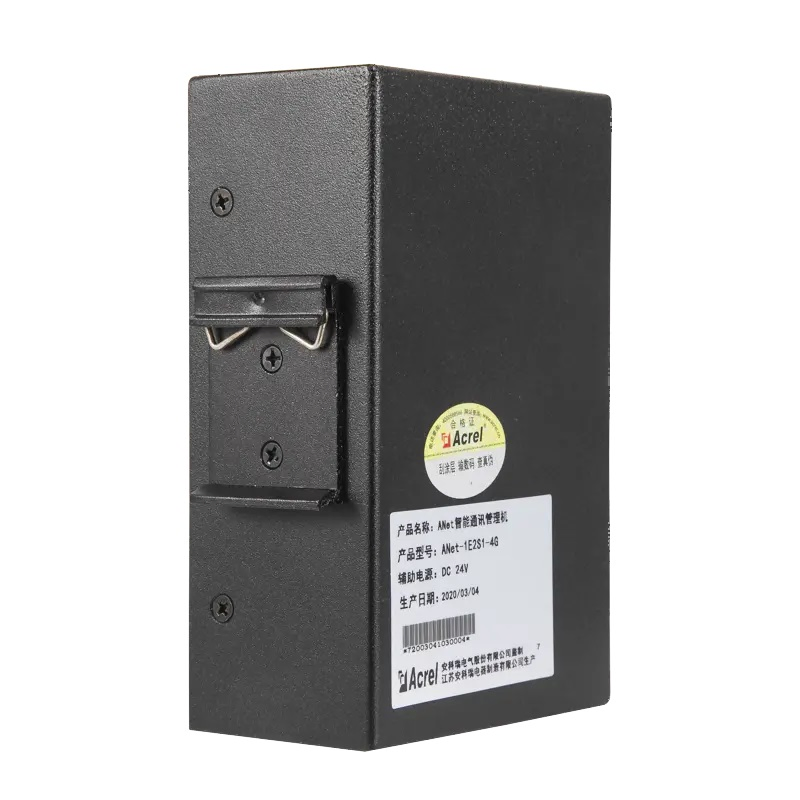

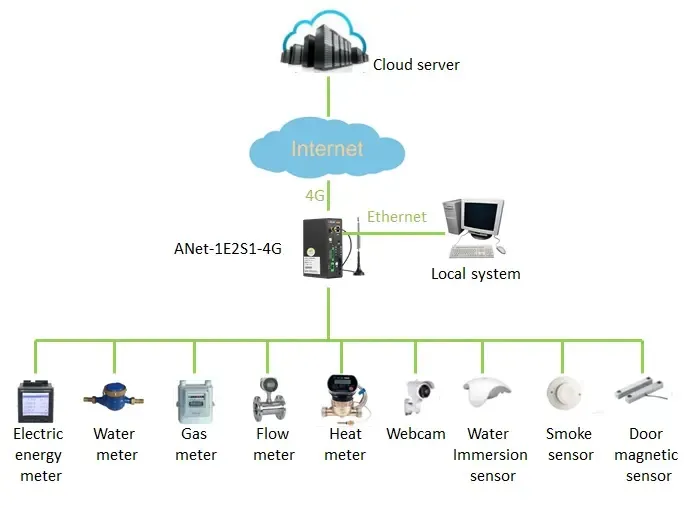

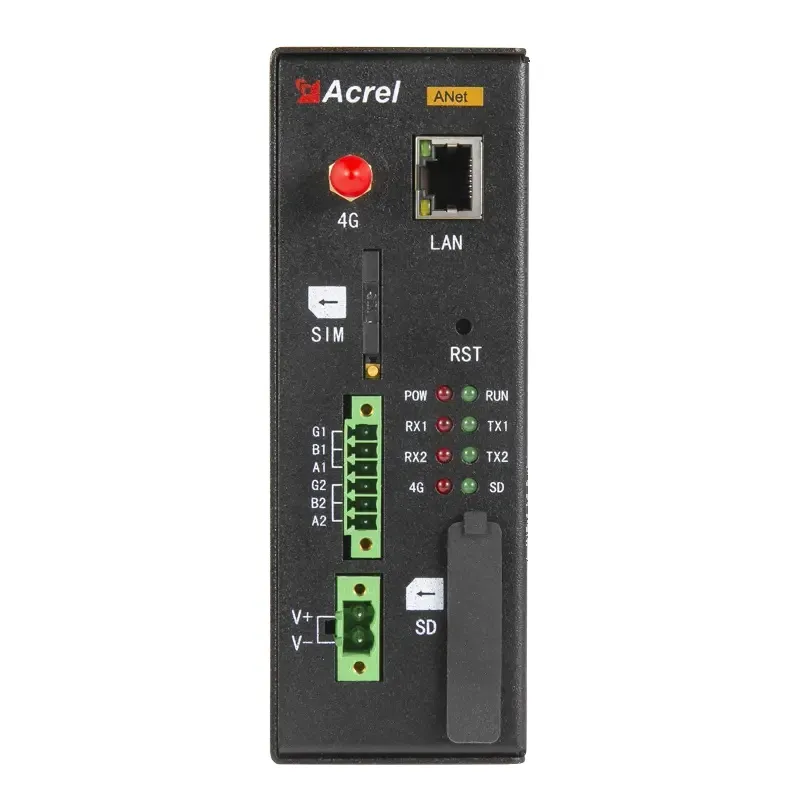

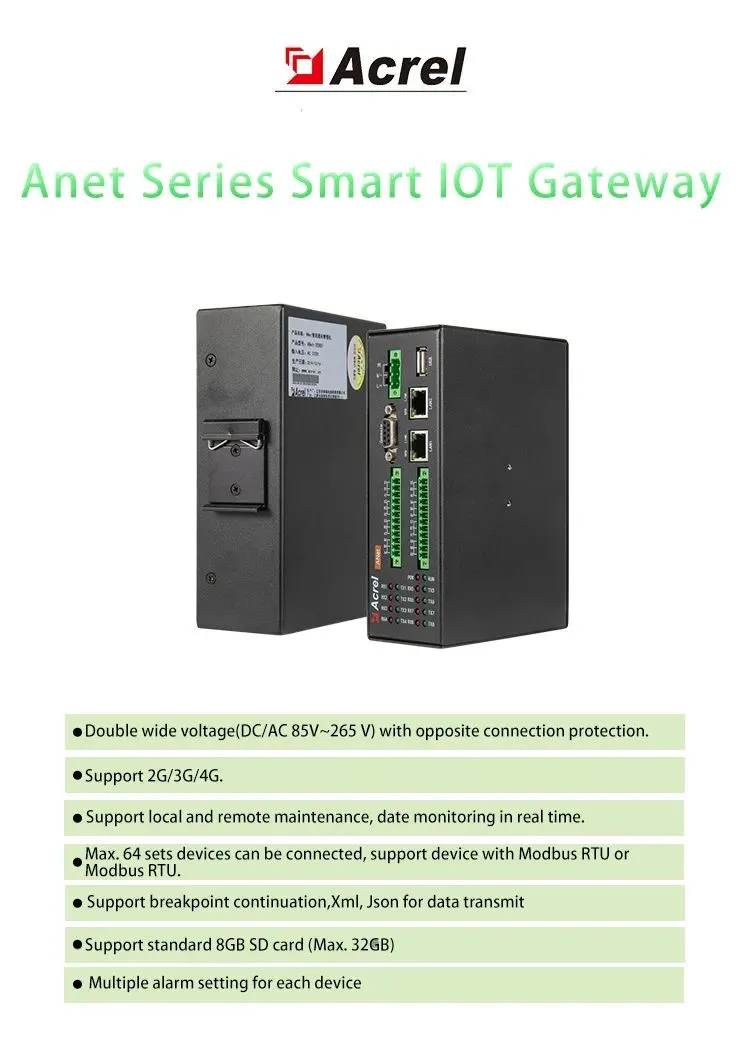

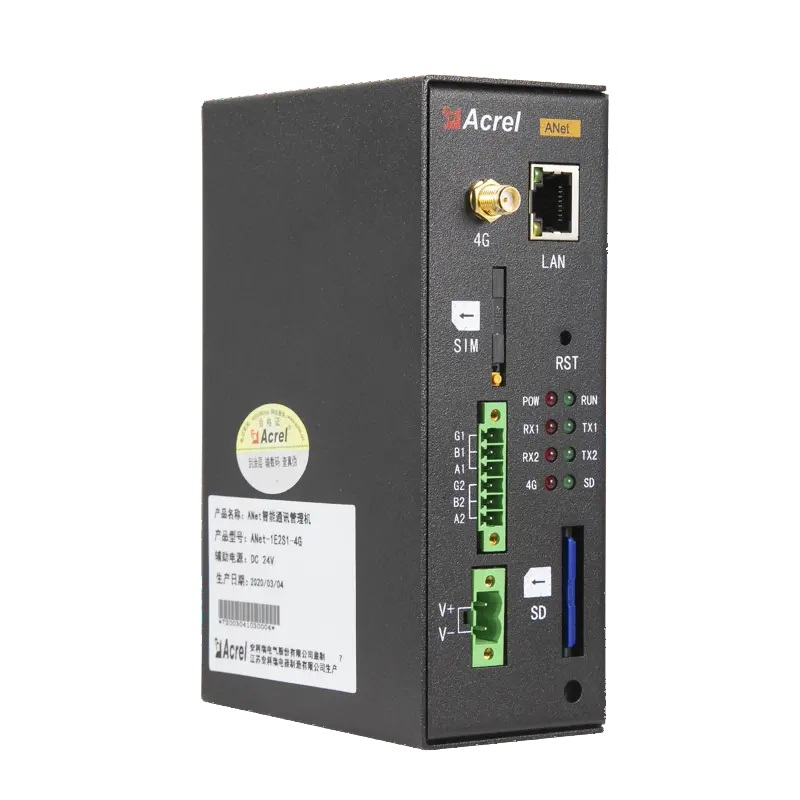

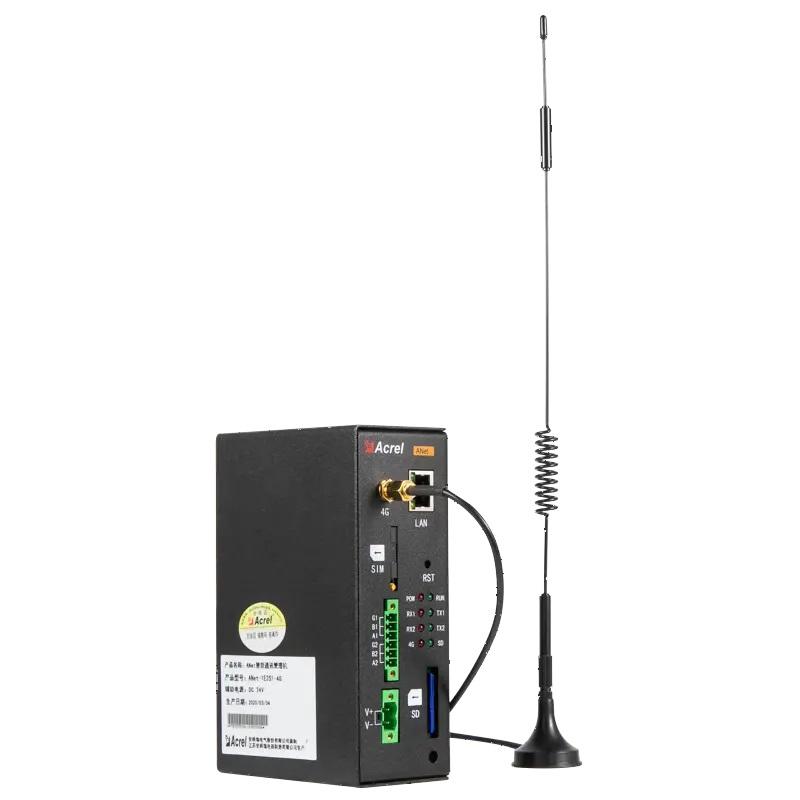

The ANet-1E1S1/1E2S1 is a general intelligent communication management gateway based on an embedded Linux platform, specifically designed for Internet of Things (IoT) applications. It fulfills the requirements for metering data collection across water, electricity, gas, oil, heating, and energy consumption systems.
Featuring a highly integrated ARM chip, this product offers high performance, low power consumption, real-time data acquisition, and real-time monitoring. It is widely applied in building energy consumption systems, power monitoring, demand-side management, and integrated energy grids.

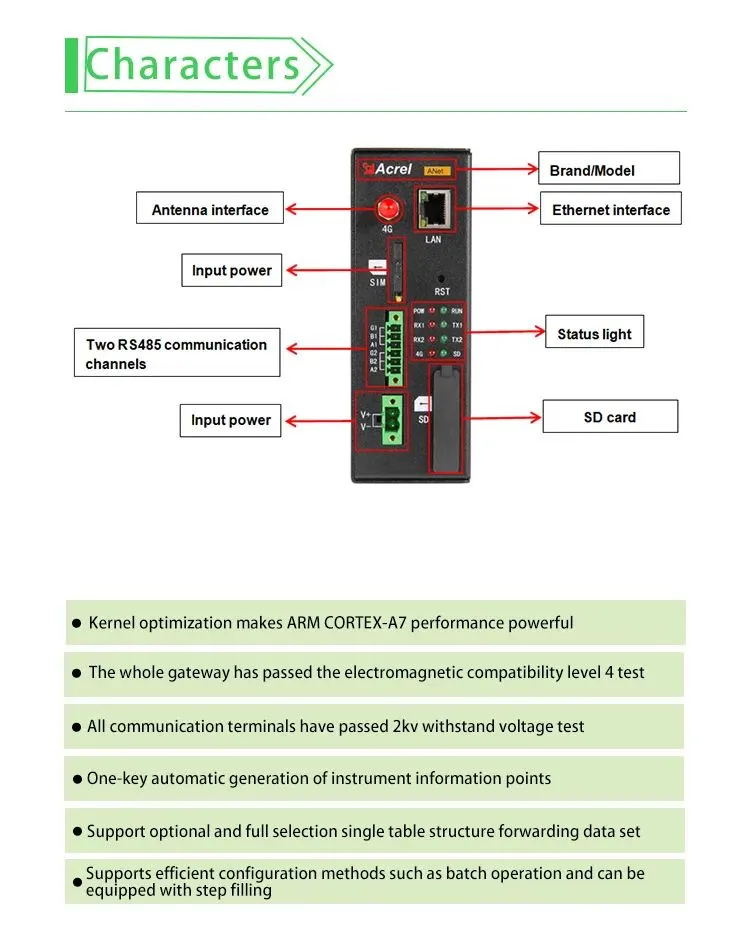

| Feature | ANet-1E1S1 Series | ANet-1E2S1 Series | ANet-2E4S1 | ANet-2E8S1 |
|---|---|---|---|---|
| Uplink | CE / CE, 4G | CE / CE, 4G | CE | CE |

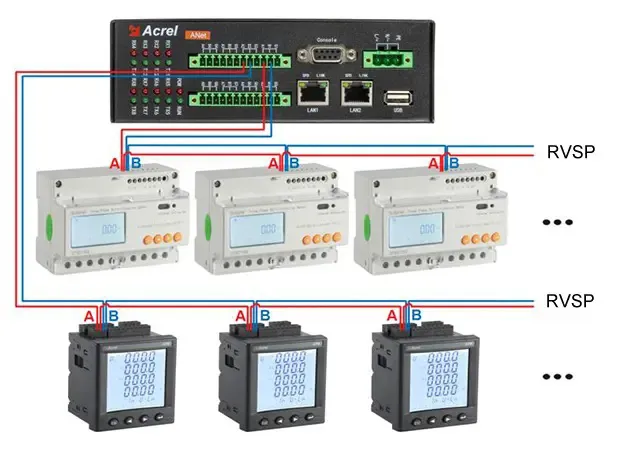

| Downlink | RS485 / RS485, LORA | RS485 / RS485, LORA | RS485 | RS485 |
| Ethernet Port | 1 | 1 | 2 | 2 |
| Serial Port | 1 | 2 | 4 | 8 |

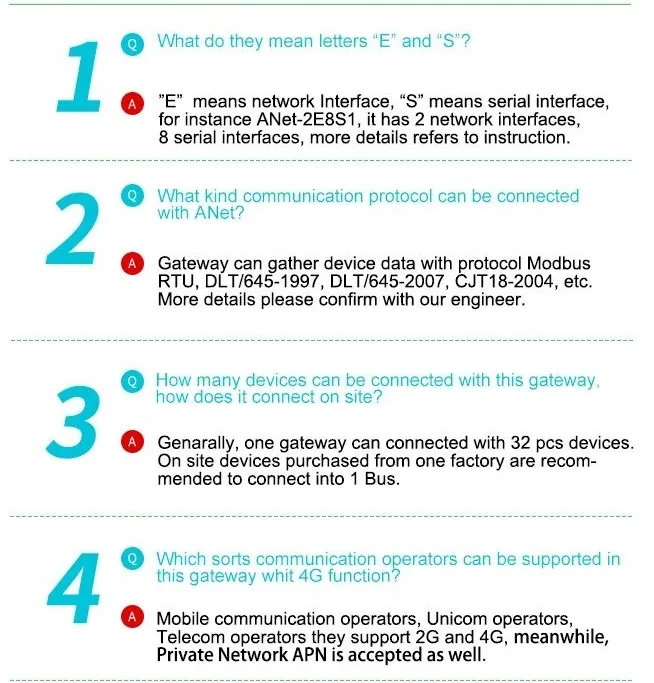

Note: E: COM, Ethernet; S: Serial. Lora frequency: 410MHz~525MHz.
| Power Voltage | AC 85 V ~ 265 V |
| Power Consumption | ≤10W |
| Processing Element | ARM32 digit ARM9 i.MX2xx 454MHz |
| Internal Memory | 64MB DDR2 + 128MB NAND Flash + 8G SD Card |
| Operating Temperature | -20ºC ~ +55ºC |
| EMC Testing | IEC61000-4-2/4/5 Class 4, IEC61000-4-6 Class 3 |

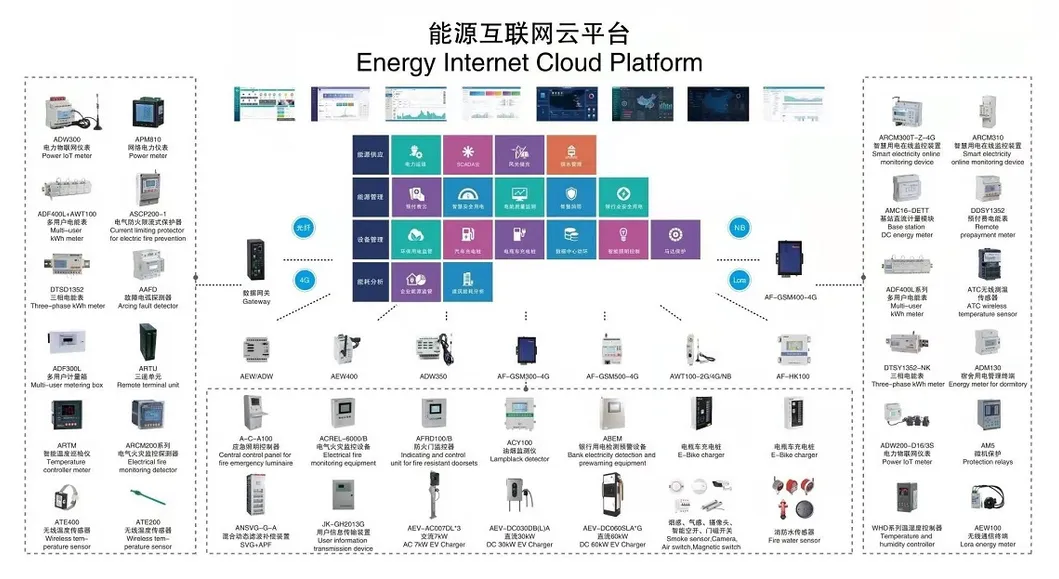

The company is a high-tech enterprise integrating R&D, production, and service, committed to providing energy efficiency management and power security solutions. The product line spans from cloud platform software to smart sensors.
