TM-Cp1b Ubuntu24.04 4G/WiFi/Lora Smart Edge Computing Gateway

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
TM-CP1B
Support Network
Ethernet
Information Content
Data
Condition
New
Transport Package
Carton
Production Capacity
100,000 pieces/Year

Packaging & Delivery

Package Size
19.00cm * 10.00cm * 4.00cm
Gross Weight
0.360kg
Lead Time
2 days (1 - 10 Pieces)
30 days (11 - 100 Pieces)
45 days (101 - 1000 Pieces)
Negotiable (> 1000 Pieces)

Technical Specifications

Attribute Parameter
CPUARM Cortex-A7, Up to 1.6GHz
DDR256M DDR3L memory, Up to 924Mbps
Storage8GB eMMC
Serial PortsIsolation 1 x RS485
Serial PortsIsolation 1 x RS232
Ethernet1 x 100M Ethernet interfaces
USB1 x USB 2.0 OTG interface
WIFI/BT (Optional)Supports USB2.0 WIFI/BT module
4G/GPS (Optional)Supports MINI-PCIE module, 1 x Micro SIM (15mm*12mm)
Lora (Optional)Supports 36mmX21mm(E22-*T22D) module, UART interface
Antenna Connector3 x SMA
Input Voltage9 ~ 36V VDC
TF Card1 x High-speed TF card interface
OSUbuntu 24.04-LTS Server
Dimensions94mm×70mm×33mm (L×W×H)
Installation35mm DIN-rail / Bracket mounting
Weight260g

Product Display

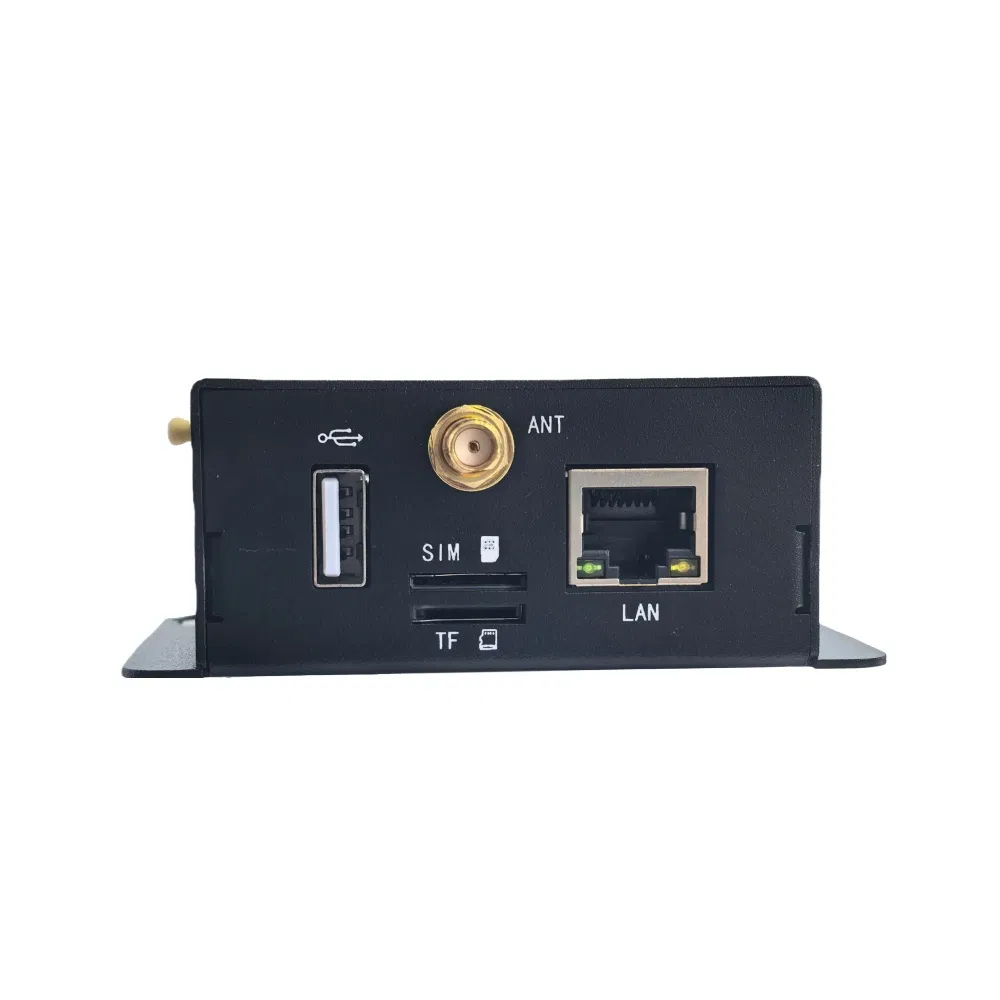

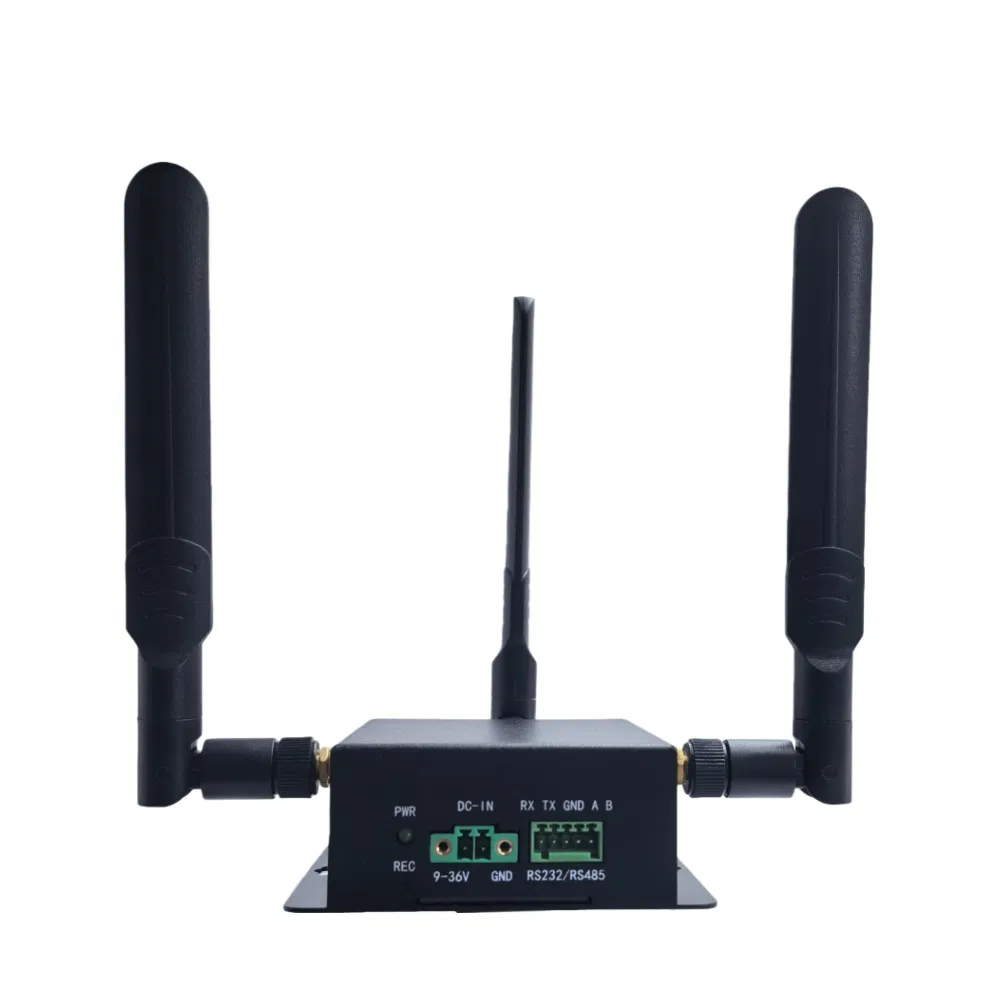

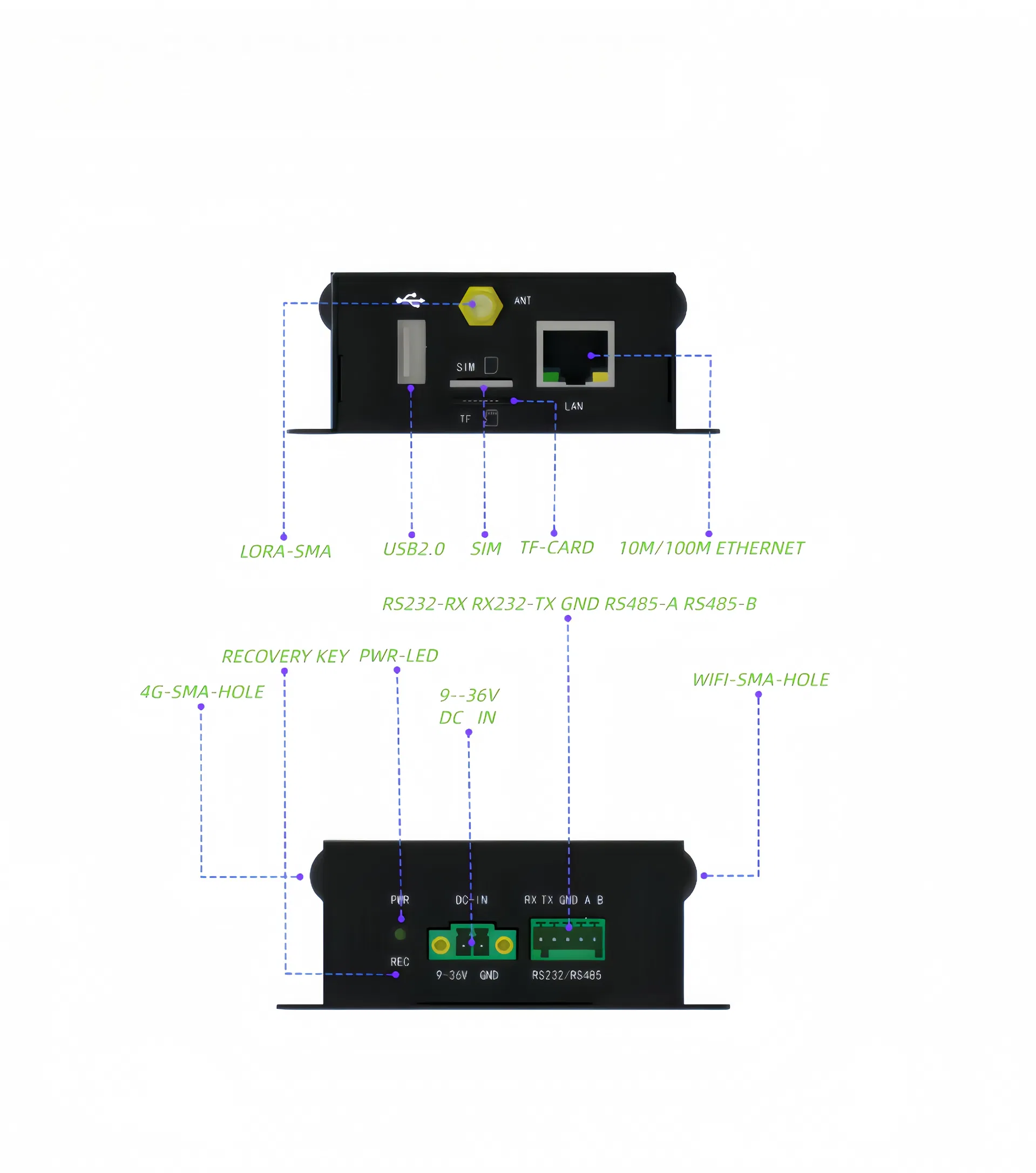

Smart Edge Computing Gateway Main View

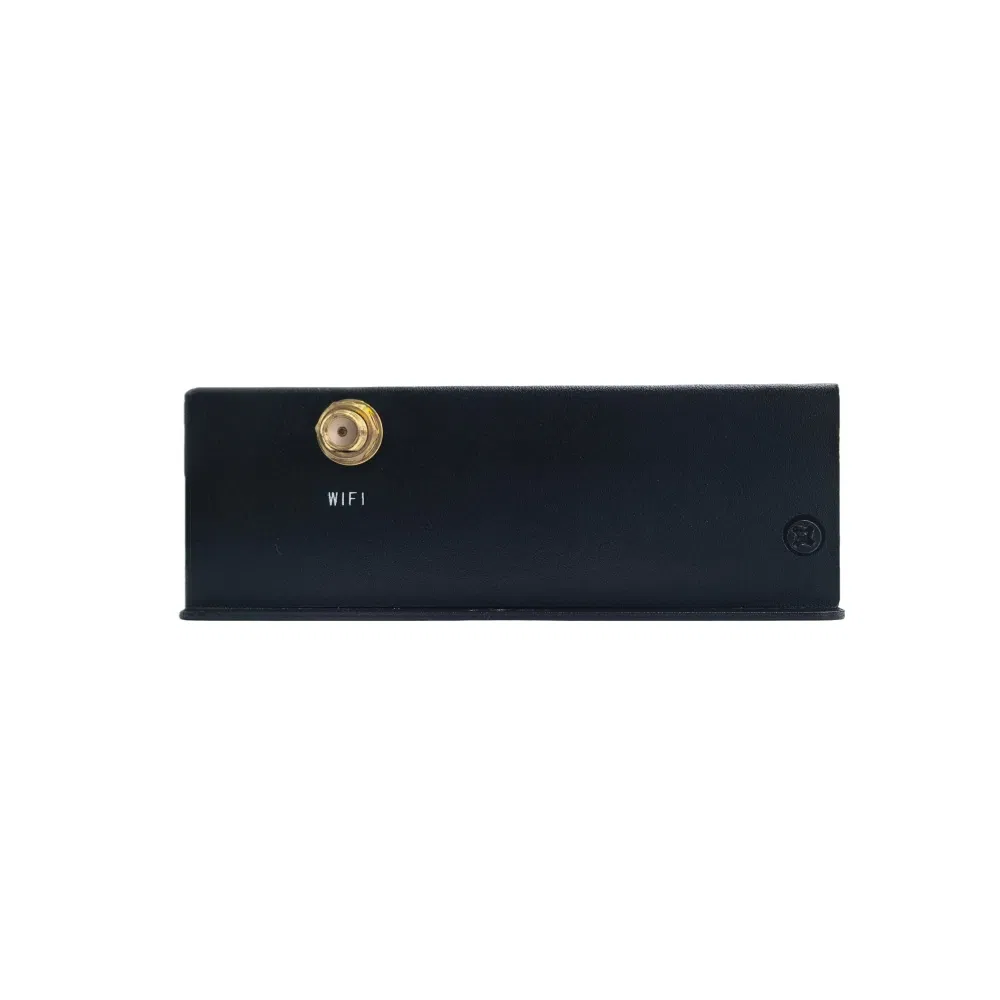

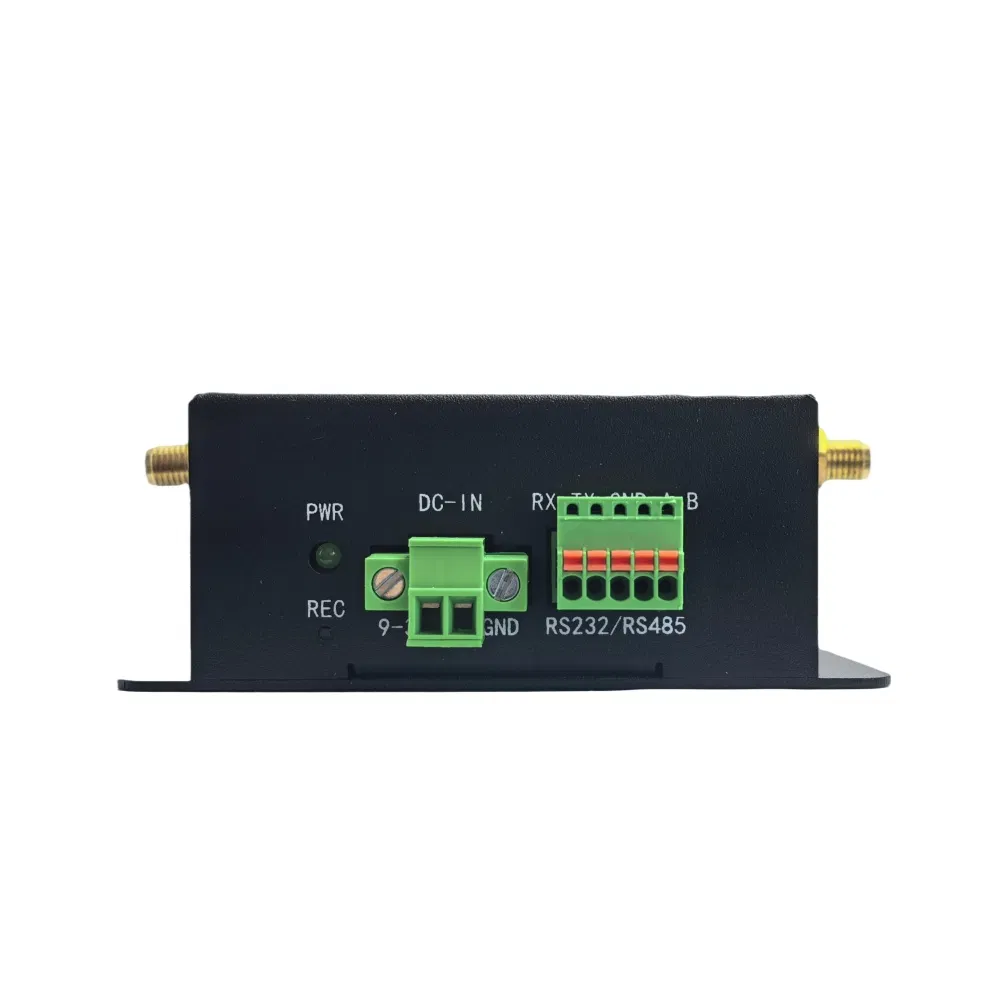

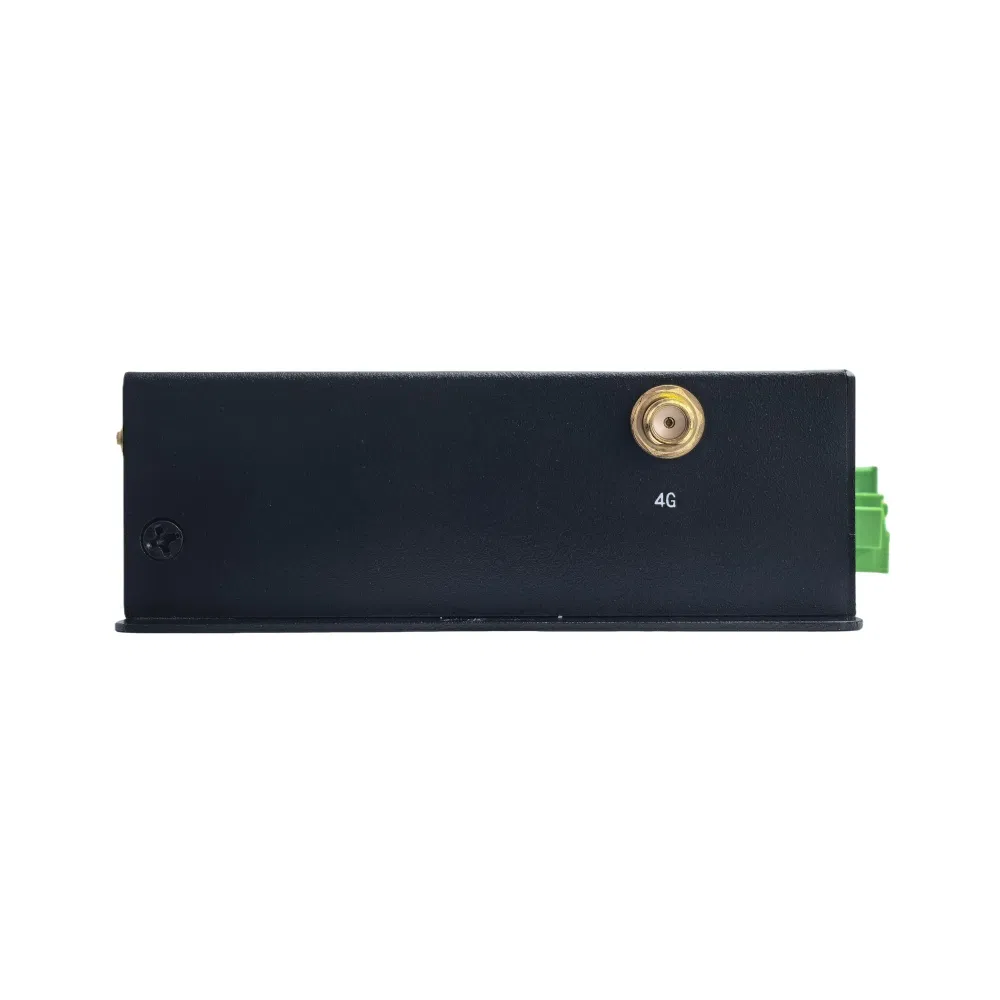

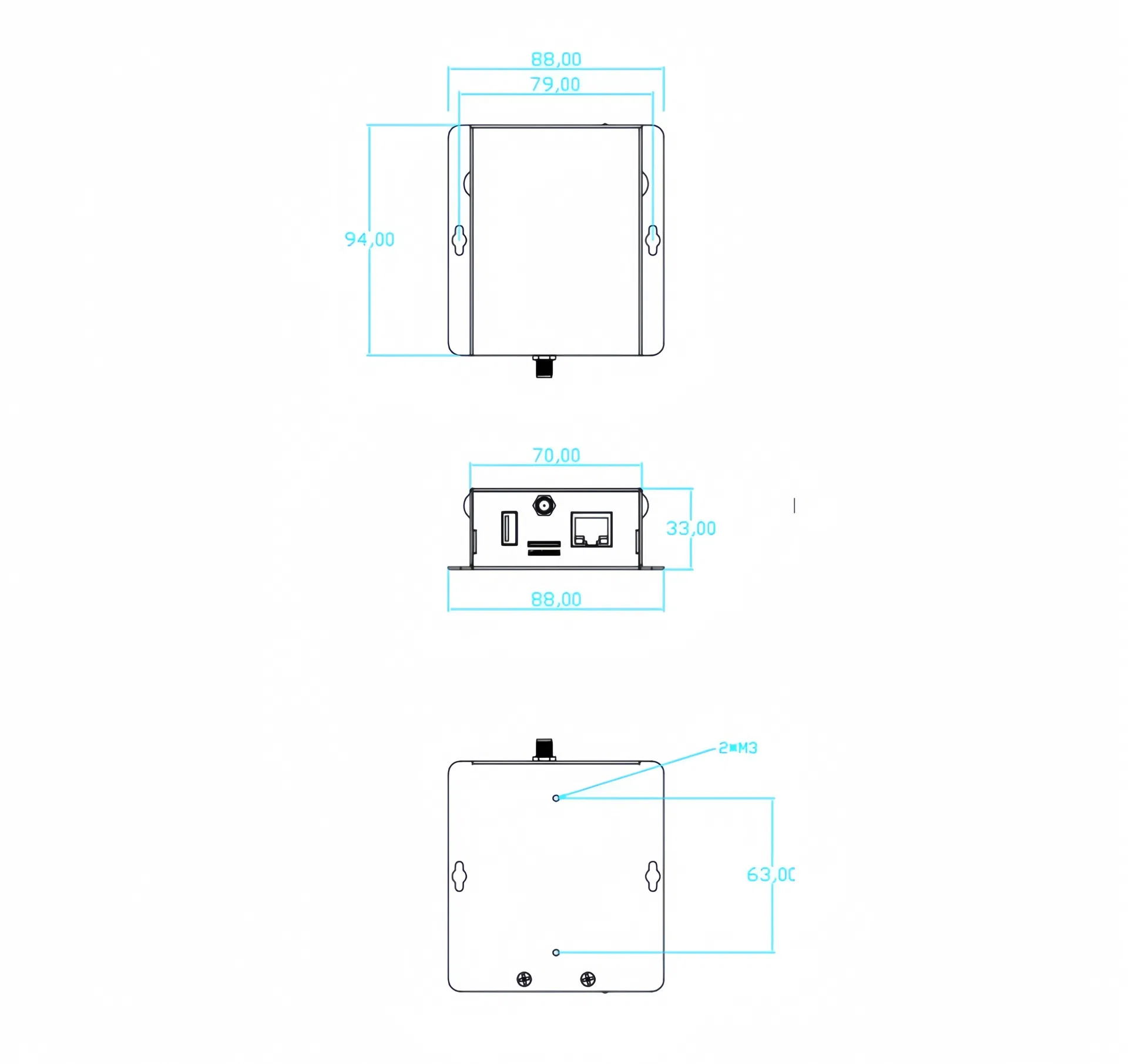

Smart Edge Computing Gateway Interface Detail

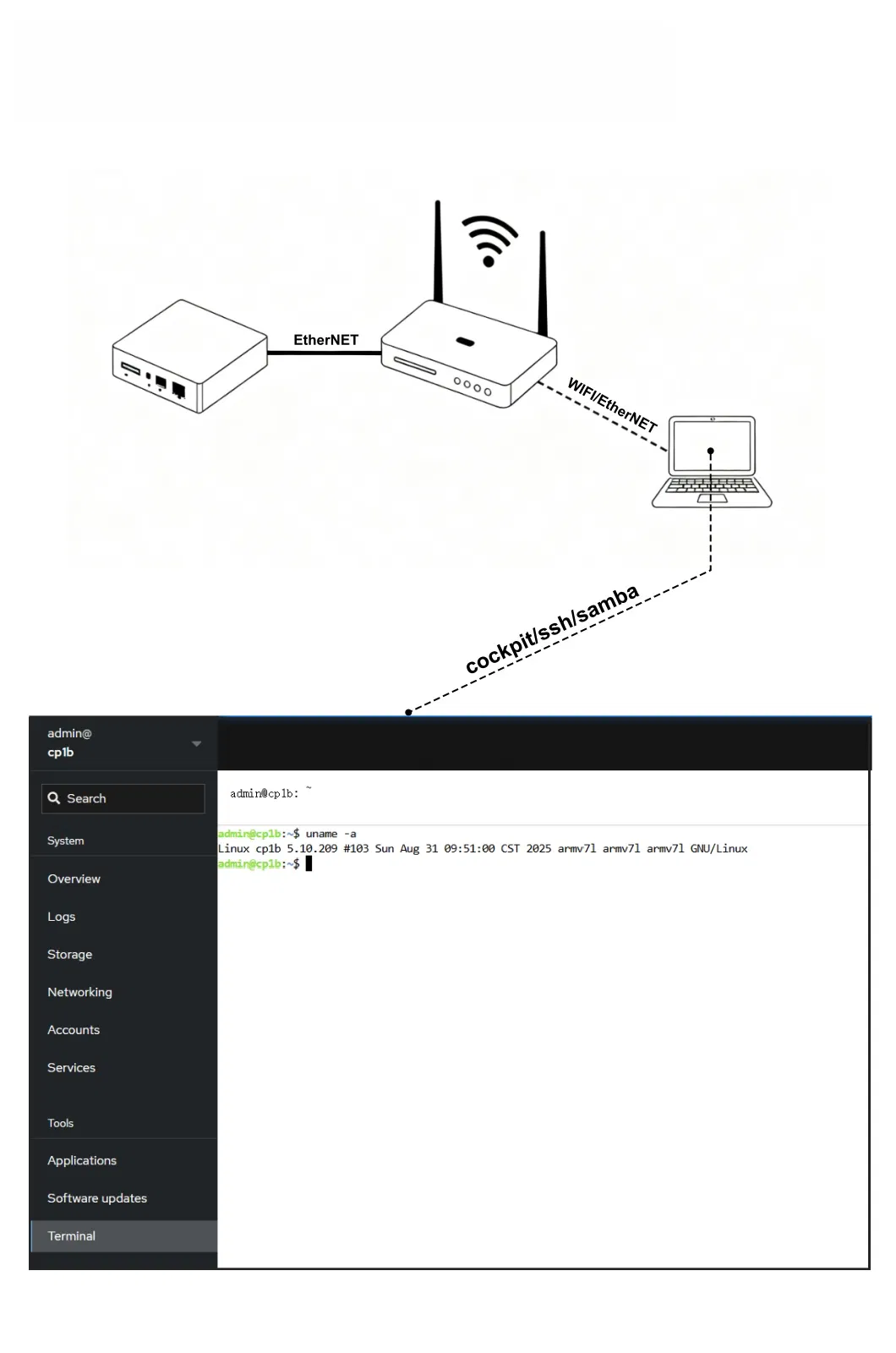

Smart Edge Computing Gateway Technical View

Packing List

Item Name Quantity
CP1B Host1
35mm Rail Buckle1
Power Connector1
IO Connector1

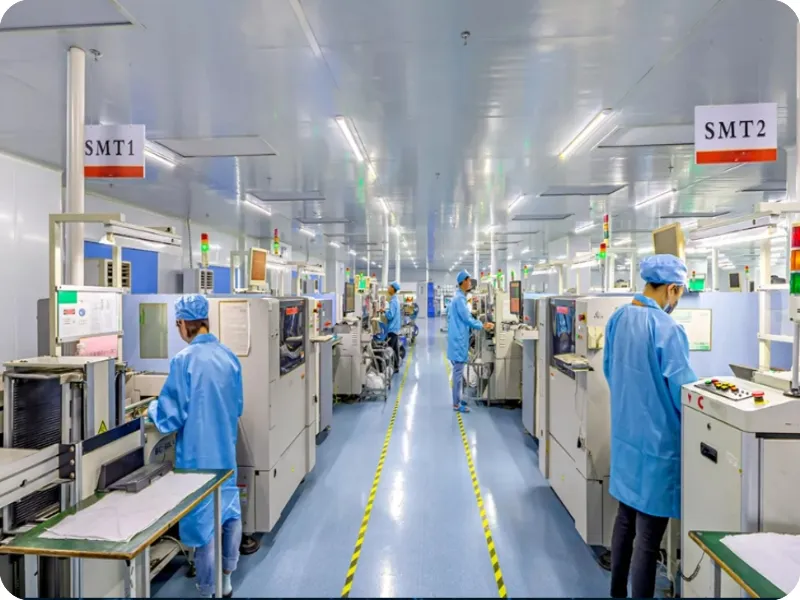

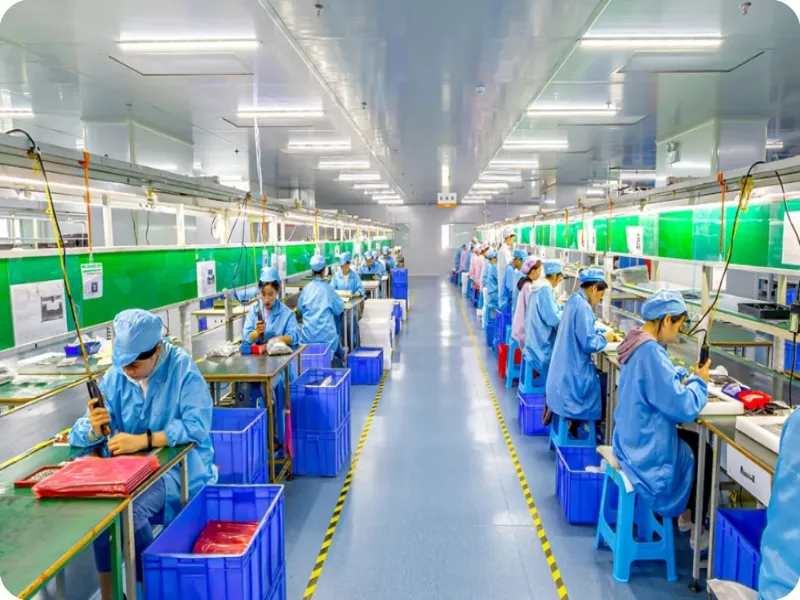

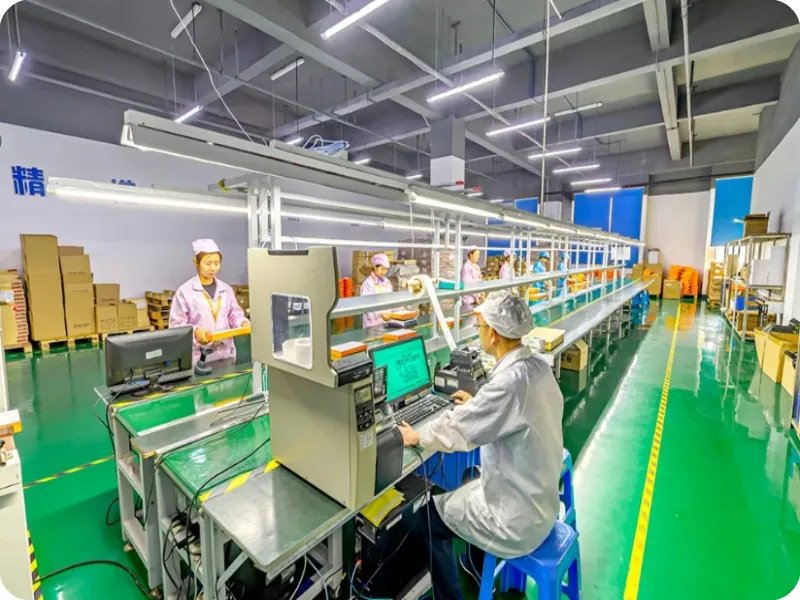

Production Environment

Frequently Asked Questions

Q1: Are you a factory or manufacturer?
Yes, we are a comprehensive company integrating design and production. All listed products are independently designed and manufactured in-house.
Q2: Can I customize my logo and communication protocols?
Yes, we offer laser engraving for company logos and can accommodate specific communication method customizations based on requirements.
Q3: What is the typical lead time for orders?
Standard products are typically in stock and shipped within 48 hours. Lead times for customized orders depend on the specific quantity and requirements.
Q4: What payment methods do you accept for international orders?
We accept various payment methods including T/T (Bank Transfer), PayPal, and other major secure payment platforms.
Q5: How are the products packaged for shipping?
Each unit is individually packaged in high-strength cardboard boxes with protective foam lining. Shipping can be arranged via air or sea express according to your preference.
Q6: What is your after-sales service and warranty policy?
We provide a 12-month standard warranty along with lifetime technical maintenance and support for all our gateway products.
