| Attribute | Parameter |
|---|---|
| CPU | RK3566 Quad-Core Cortex-A55, Up to 1.8GHz |
| DDR | 2GB LPDDR4X memory, Up to 3120Mbps |
| Storage | 32GB eMMC, Support HS400 Mode |
| NPU | 1 Tops INT8 Computing Power |
| Serial Ports | Isolation 3 x RS485 |
| Serial Ports | Isolation 1 x RS232 |
| CAN Bus | Isolation 1 x CAN2.0B |
| IO | Isolation 2 x GPIO, Can be configured as I2C or UART |
| Ethernet | 1 x 1000Mbps and 1 x 100Mbps Ethernet interfaces |
| USB | 1 x USB 2.0 HOST interface and 1 x USB 2.0 OTG interface |
| WIFI/BT (Optional) | Supports USB wifi/bt module |
| 4G/GPS (Optional) | Supports MINI-PCIE module, 1 x Micro SIM (15mm*12mm) |
| I/O module expansion | SPI interface |
| SSD (Optional) | 1 x M.2-2242/2280 SSD(SATA) interface |
| Cellular Antenna Connector | 2 x SMA |
| Video interface | 1 x HDMI2.0 Port, MAX output 4KP60 |
| Console Port | TYPEC USB to UART DEBUG Port (115200bps) |
| Input Voltage | 9 ~ 36V VDC |
| TF Card | 1 x High-speed TF card interface |
| OS | Ubuntu24.04-LTS Desktop/Server/RTlinux |

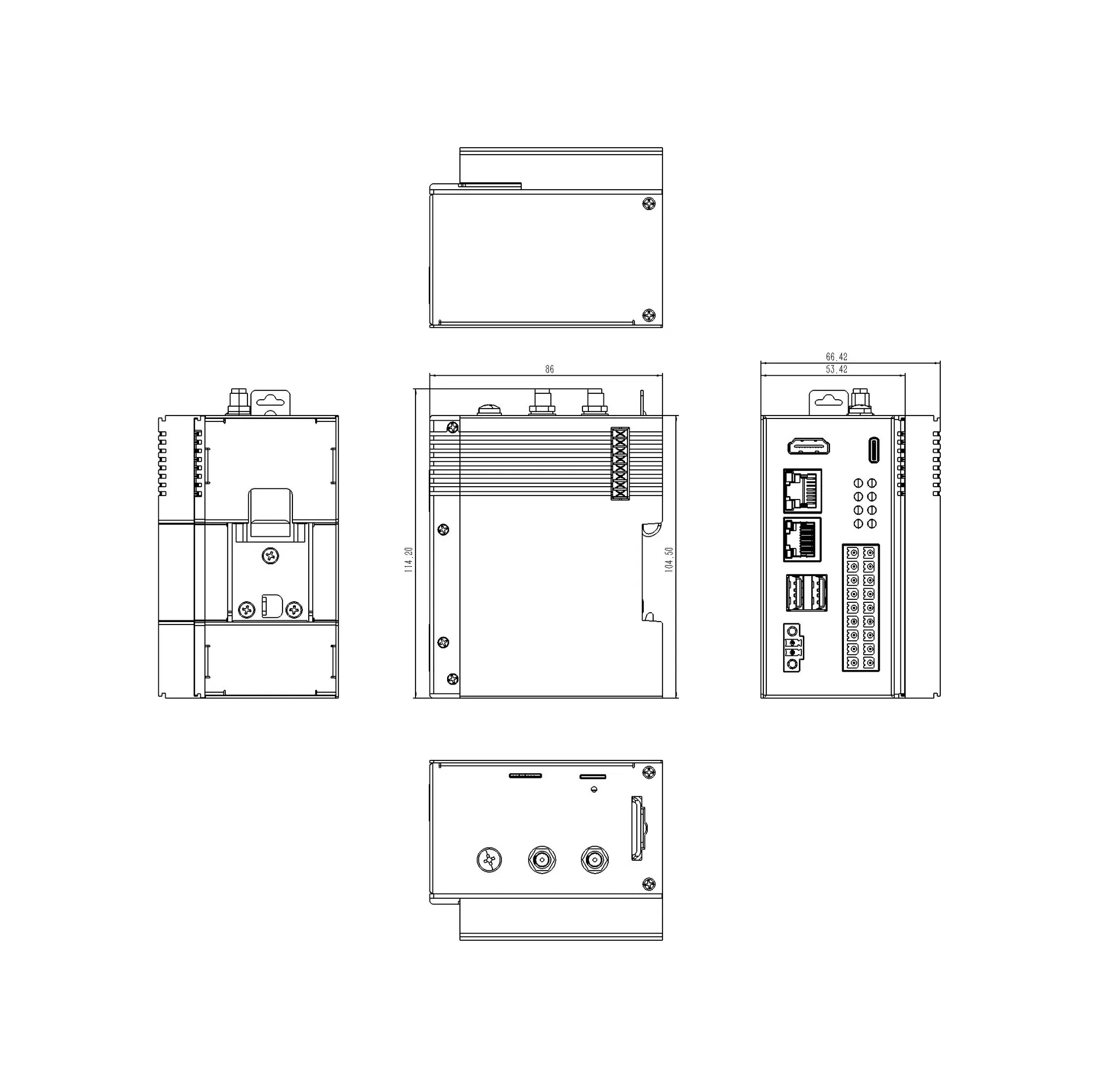

| Dimensions | 103mm×85mm×30mm (L×W×H) |

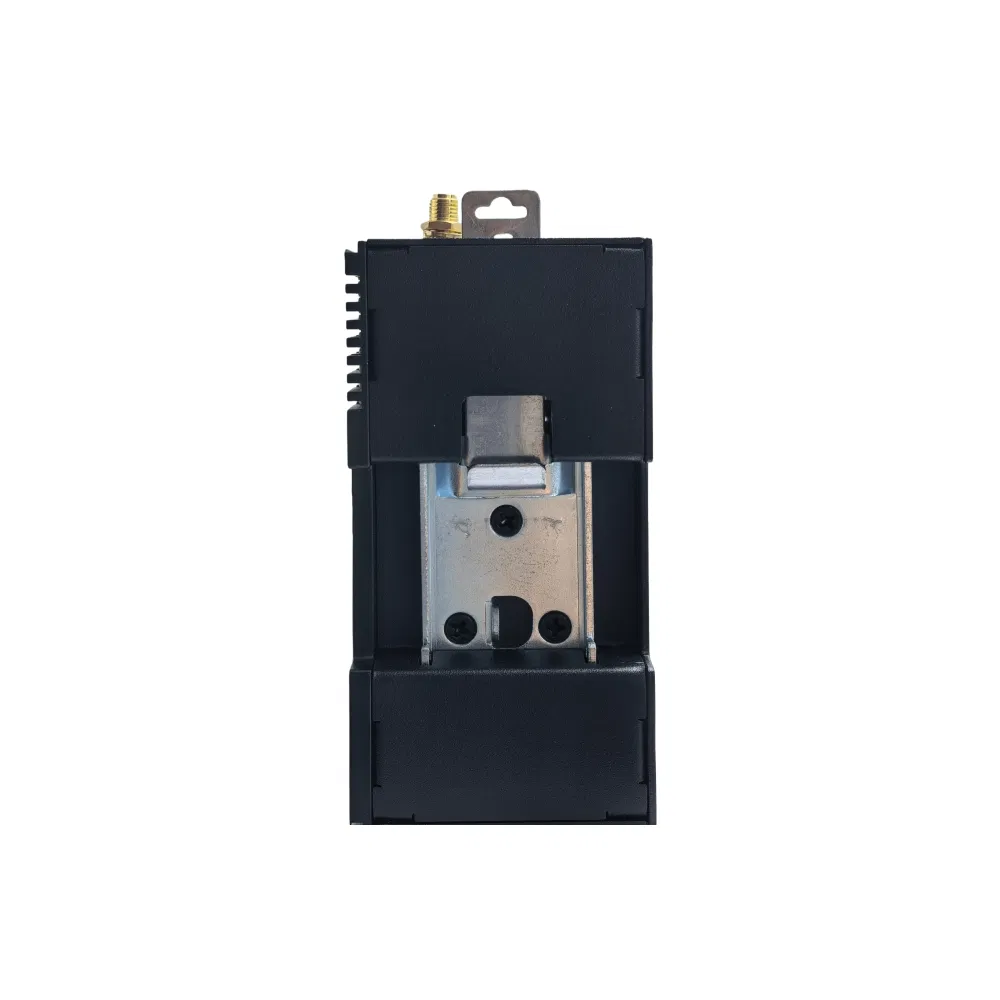

| Installation | 35mm DIN-rail / Bracket mounting |
