Industrial Edge Computing Gateway

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model NO. TP001
CPU 4 Cores 1.6g
System Linux
Storage Memory 2GB Memory, Built-in 8GB Emmc
Package Size 25.00cm * 20.00cm * 20.00cm
Gross Weight 1.000kg

Product Parameters

Processor Product name Edge IIOT Gateway
CPU Allwinner T507 Quad core main frequency 1.5GHz
RAM LPDDR4 2GB
I/O Interface Storage 8G eMMC
USB Host 2 channel high speed USB HOST
Ethernet 1 channel WAN, 4 channel LAN (10/100/1000Mbps)
Wireless WIFI IEEE 802.11b/g/n, 4G LTE Cat1
CAN Bus 1 channel
HDMI 1 channel output support 4K 60fps
Electrical Power Supply DC 10.5V ~ 28V
Protection Reverse protection, wrong wire protection
Consumption < 5W
Structure Material Aluminum alloy
Dimension 140*110*50mm

Product Description

Industrial Edge Computing Gateway Detail 1
Industrial Edge Computing Gateway Detail 2

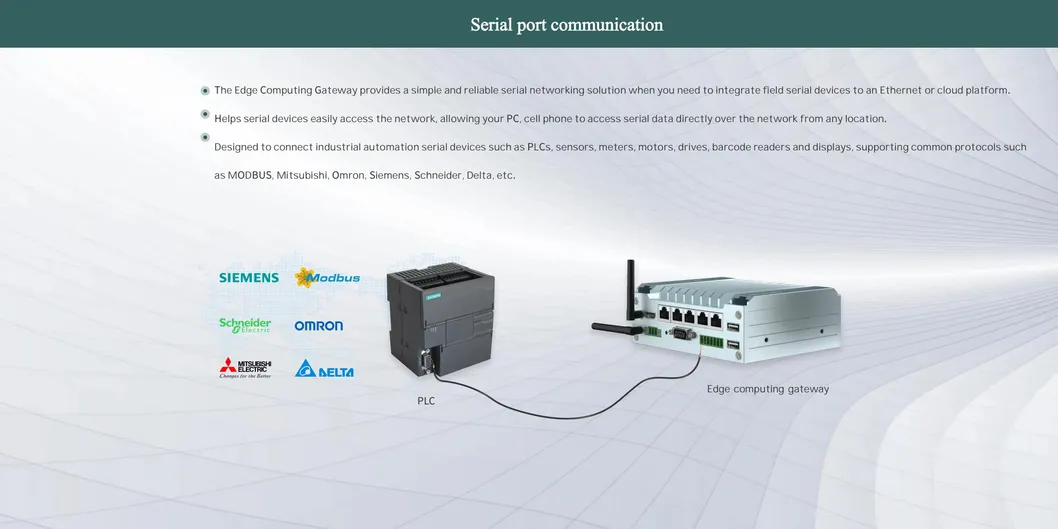

Industrial Edge Computing Gateway Detail 3

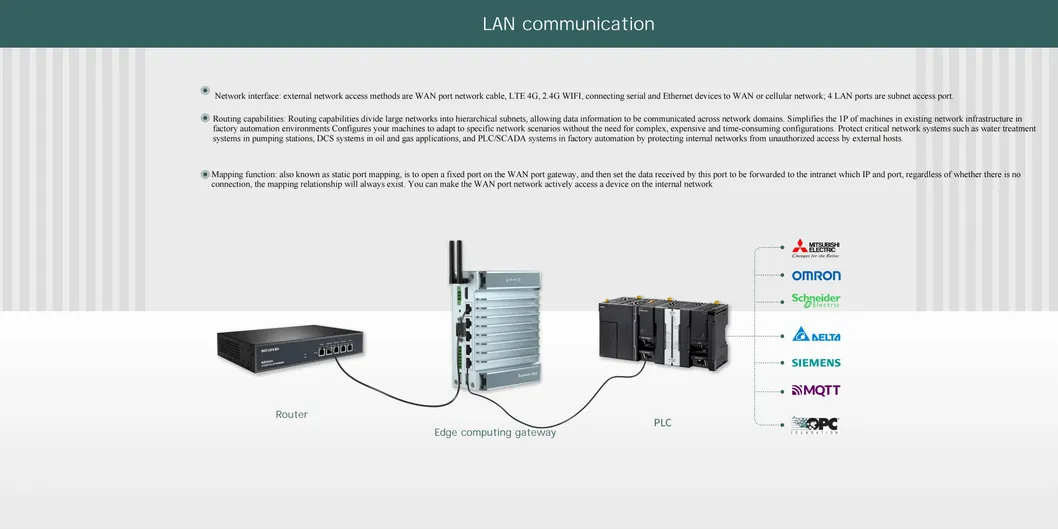

Industrial Edge Computing Gateway Detail 4
Industrial Edge Computing Gateway Detail 5

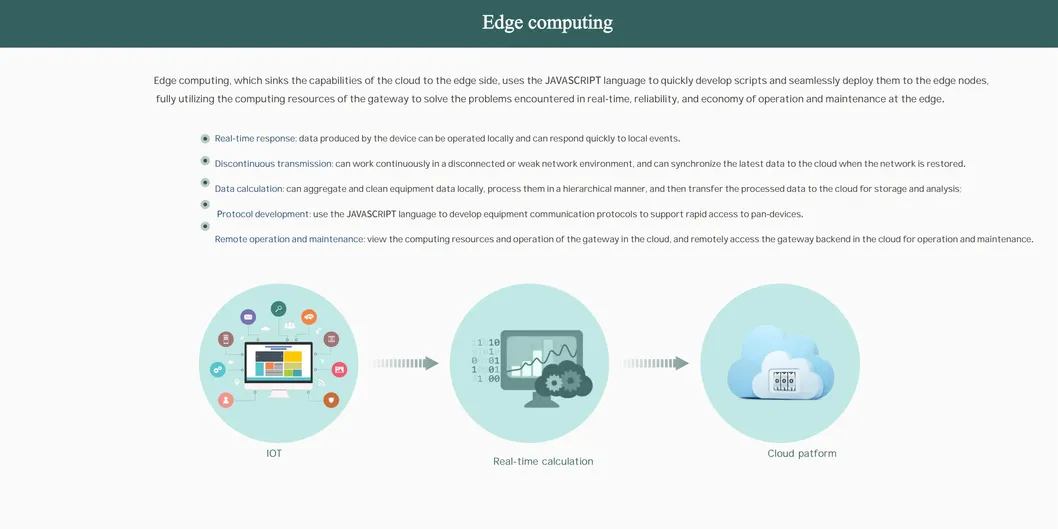

Industrial Edge Computing Gateway Detail 6

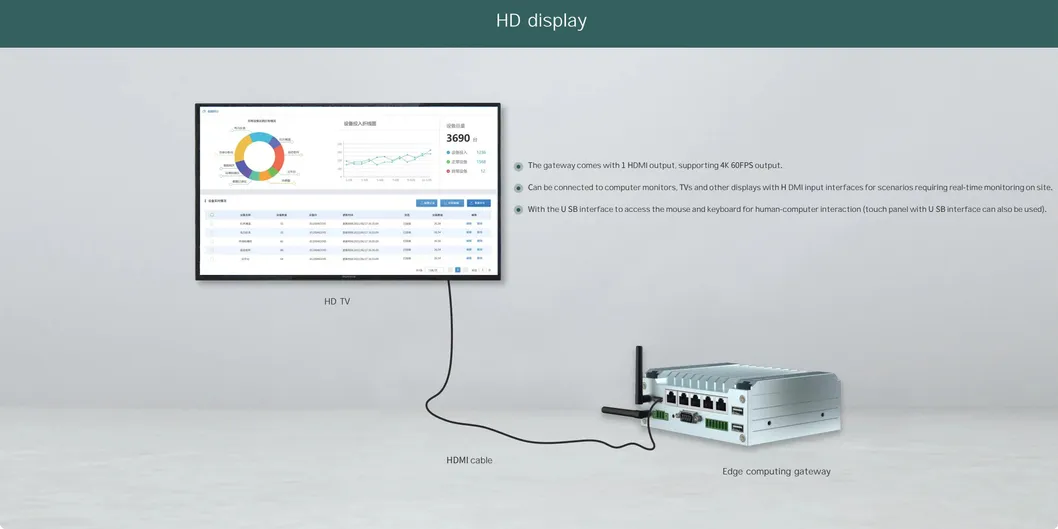

Industrial Edge Computing Gateway Detail 7

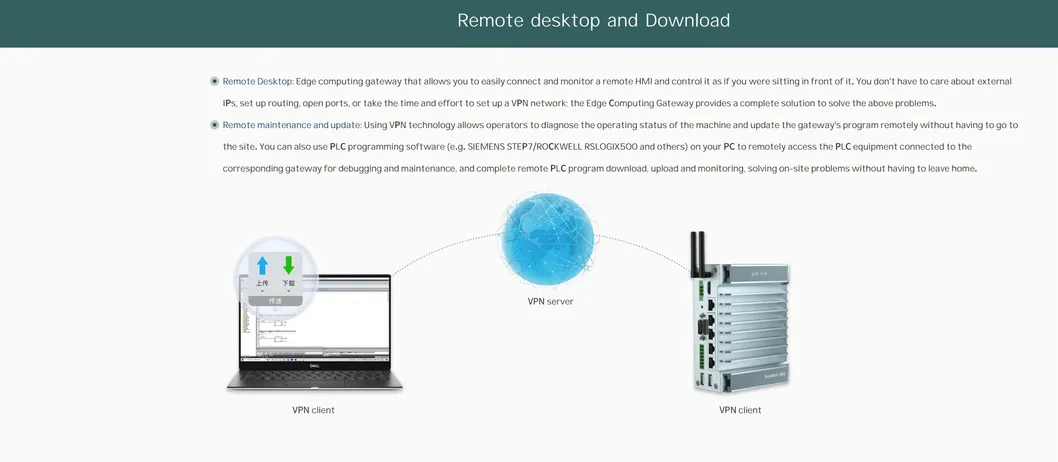

Industrial Edge Computing Gateway Detail 8

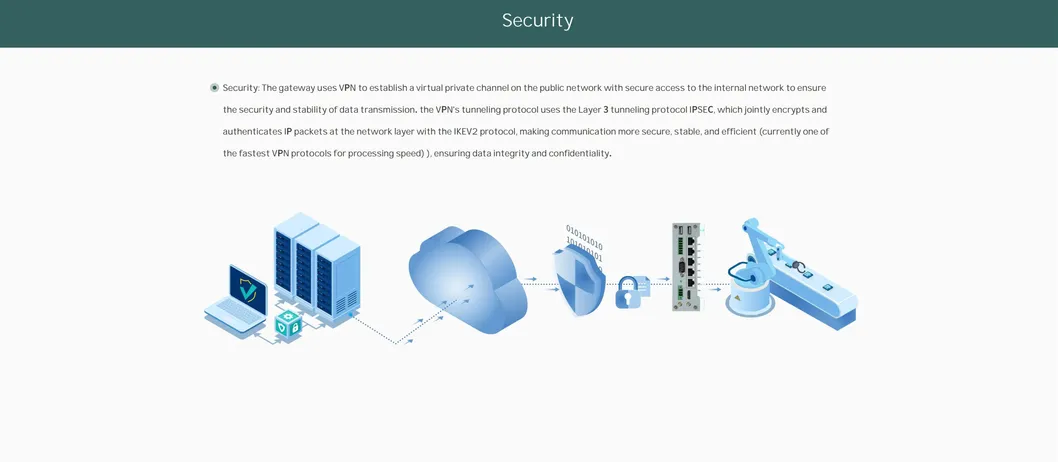

Industrial Edge Computing Gateway Detail 9

About Us

Our company is a high technology enterprise engaged in manufacturing of environmental monitoring and data acquisition fields. Covering an area of over 3000 square meters, we maintain 6 production lines and a dedicated team focused on research, technical design, quality control, and production excellence.
Business Scope: Our core expertise includes data loggers, humidity & temperature sensors, gas detectors, pressure sensors, water level meters, liquid level transmitters, data acquisition modules, IoT gateways, thermal imaging cameras, and power quality analyzers.
With over 15 years of ODM and OEM experience, we utilize advanced examination equipment and a perfect quality protection system to meet personalized brand requirements for global clients. We prioritize a sincere and down-to-earth approach to provide excellent service.

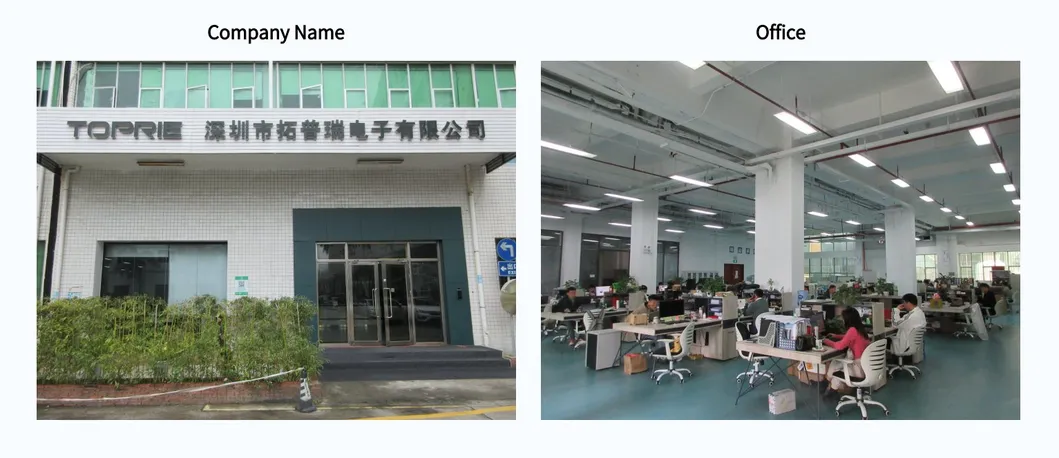

Factory Facility 1

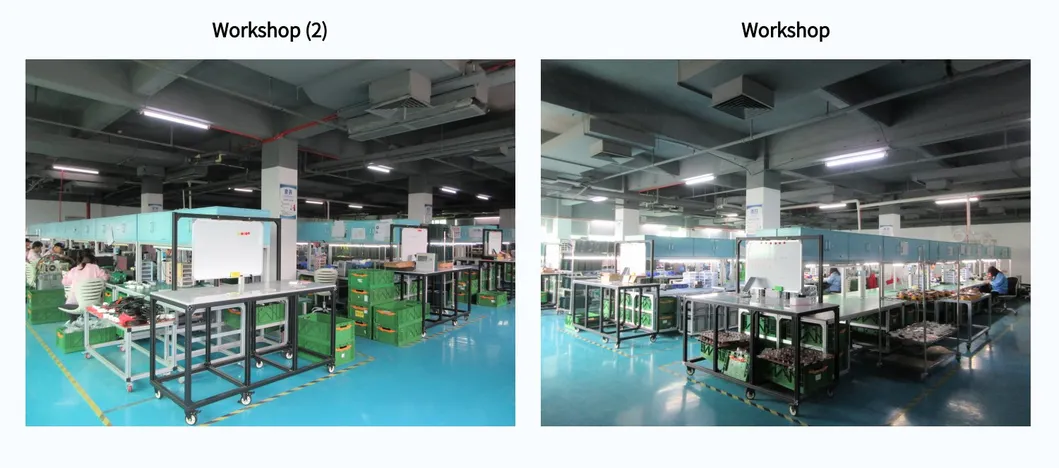

Factory Facility 2

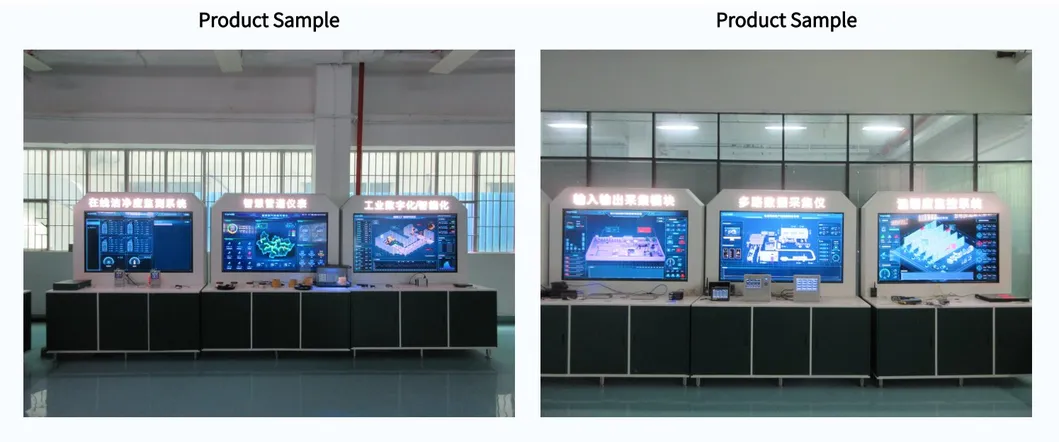

Workshop 1

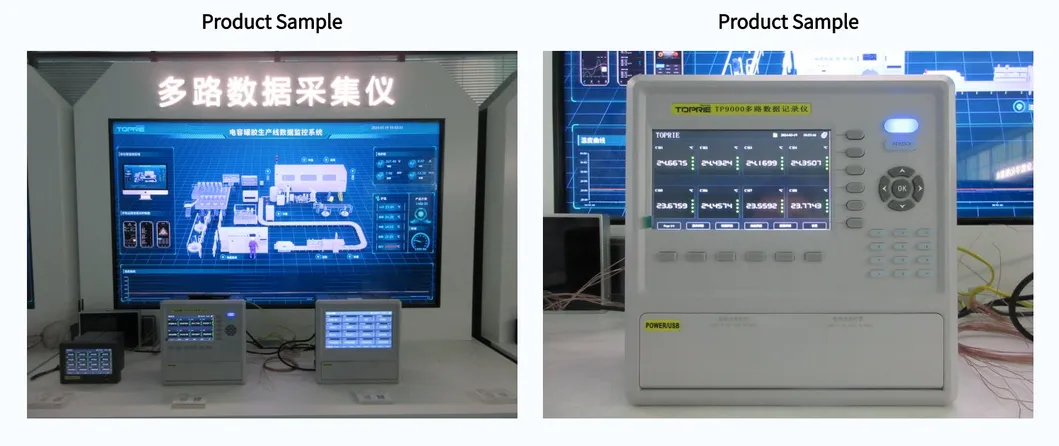

Workshop 2
?

Frequently Asked Questions

Are you a factory or manufacturer?
Yes, we are a professional factory and manufacturer specializing in data acquisition and IoT monitoring equipment, including IoT gateways, sensors, and data loggers.
Can I customize my logo and communication methods?
Yes, we support customized logos with a small MOQ. Communication methods such as GPRS, 4G, WIFI, LORA, and LORAWAN can also be customized based on your requirements.
How long is the typical lead time?
Standard products can usually be shipped within 3-5 days after payment. For customized instruments, the lead time depends on the specific order quantity and requirements.
What payment and shipping methods do you accept?
We accept T/T (Bank Transfer), Western Union, and PayPal. For shipping, we offer express courier (door-to-door), air freight, and sea freight options.
What is your after-sales service policy?
We provide a 12-month warranty and lifetime maintenance. Our technical team is available to respond within 24 hours to resolve any technical issues.
Quality Assurance and Certifications
