Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

G4-G00M06C240

Customized

Non-Customized

Certification

CE

Chip Architecture

Arma55 Dual-Core Architecture

Selling Units

Single Item

CPU Frequency

Single Core Performance: 2.0GHz

Storage

64GB Emmc5.0

RAM

2GB Lpddr4

Package Size

20.00cm * 15.00cm * 3.00cm

Gross Weight

2.000kg

⚙️

Technical Parameters

Edge Computing Gateway

Hardware Core
Chip Architecture	ARM A55 Dual Core Architecture
CPU Frequency	Single Core Performance: 2.0GHz
RAM	2GB LPDDR4
Storage	64GB EMMC5.0
Communication Interface

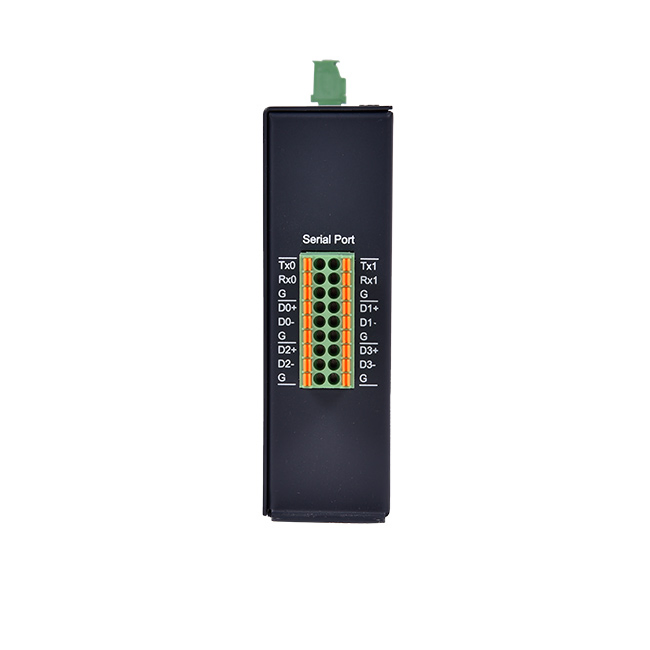

Serial Port	6 ports (2x RS232, 4x RS485)
Ethernet	5-port 100Mbps adaptive + 1-port configuration port
Industrial Protection & Power
EMC	4.5KV (Power, Coupling)
Operating Temp	-20 ~ 85℃
Power Supply	24 VDC
Power Dissipation	10W (Passive Cooling)

Software System
Software Platform	Finger GateWay Link IDE
Data Capacity	20,000 Points
Operating System	Debian 11
Forwarding Library	3 Expandable Options

📊

Model Comparison

Model	G1-G00M02C240	G2-G00M02C240	G3-G00M06C240	G4-G00M06C240
Storage	8GB EMMC	64GB EMMC	8GB EMMC	64GB EMMC
Ethernet	1-port Adaptive	1-port Adaptive	5-port Adaptive	5-port Adaptive

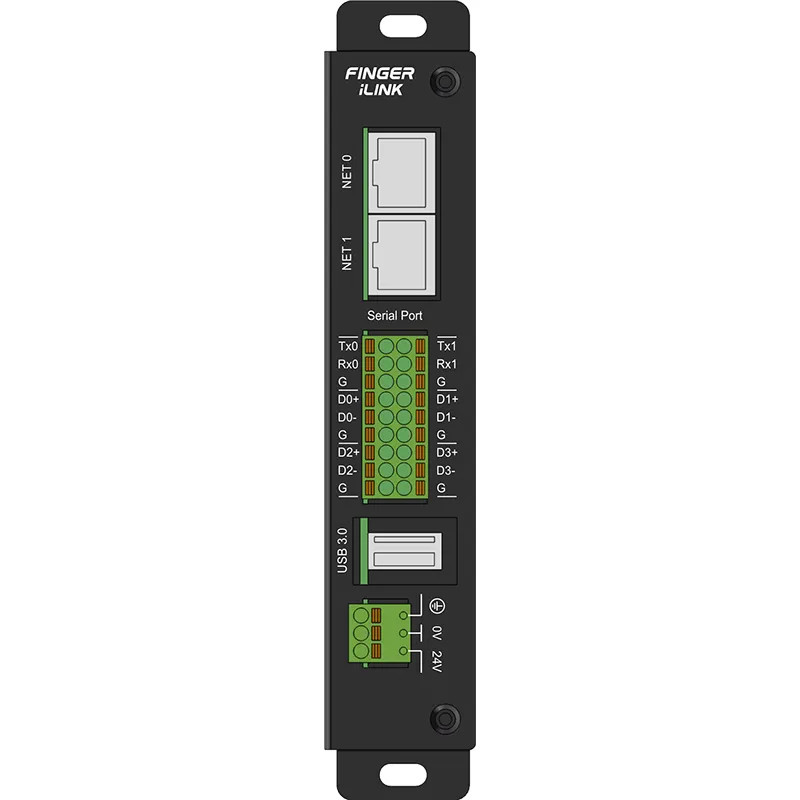

Model G1/G2

G1/G2 Series

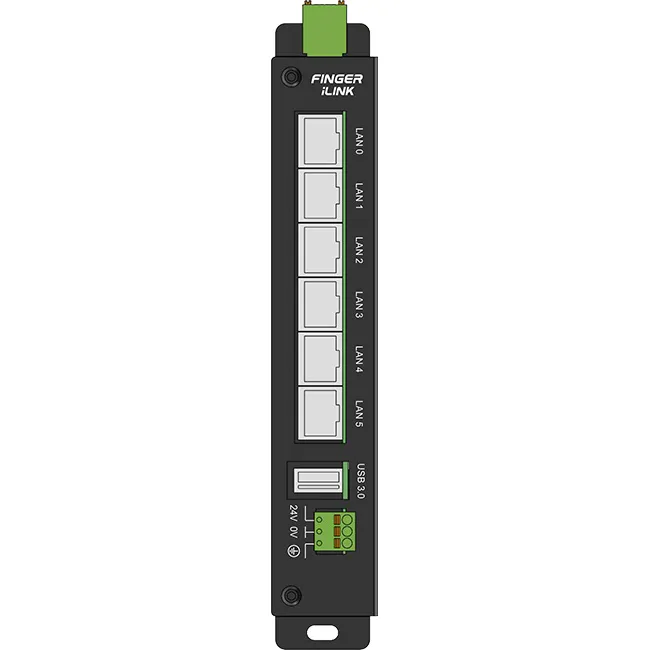

Model G3/G4

G3/G4 Series

🖼️

Product Introduction

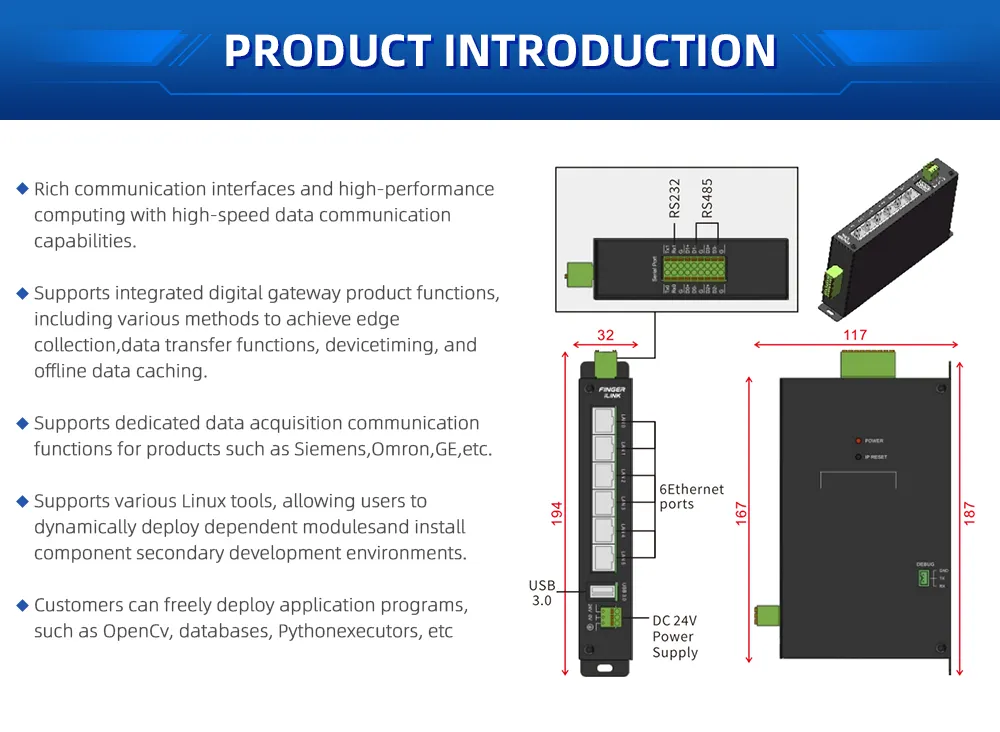

Feature 1

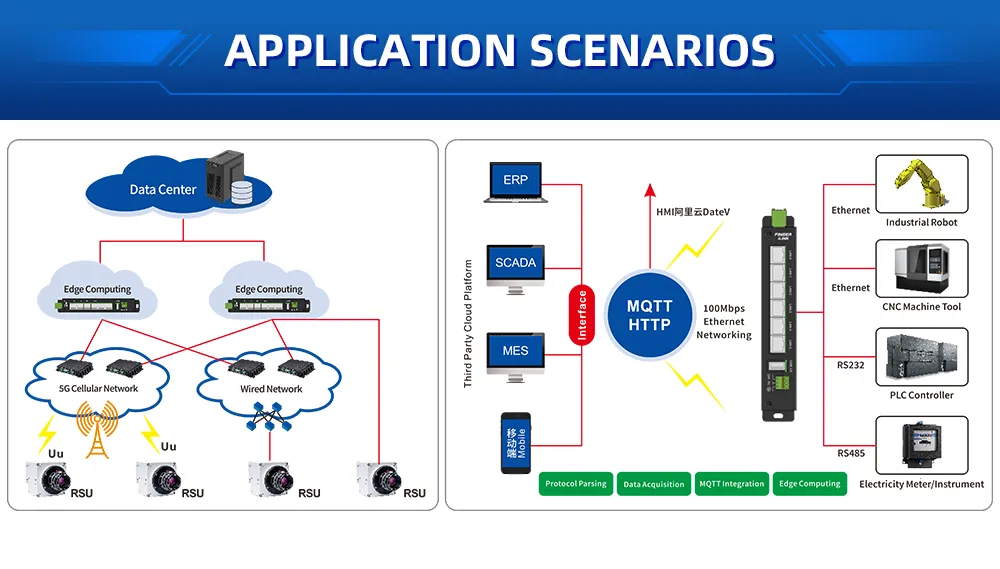

Feature 2

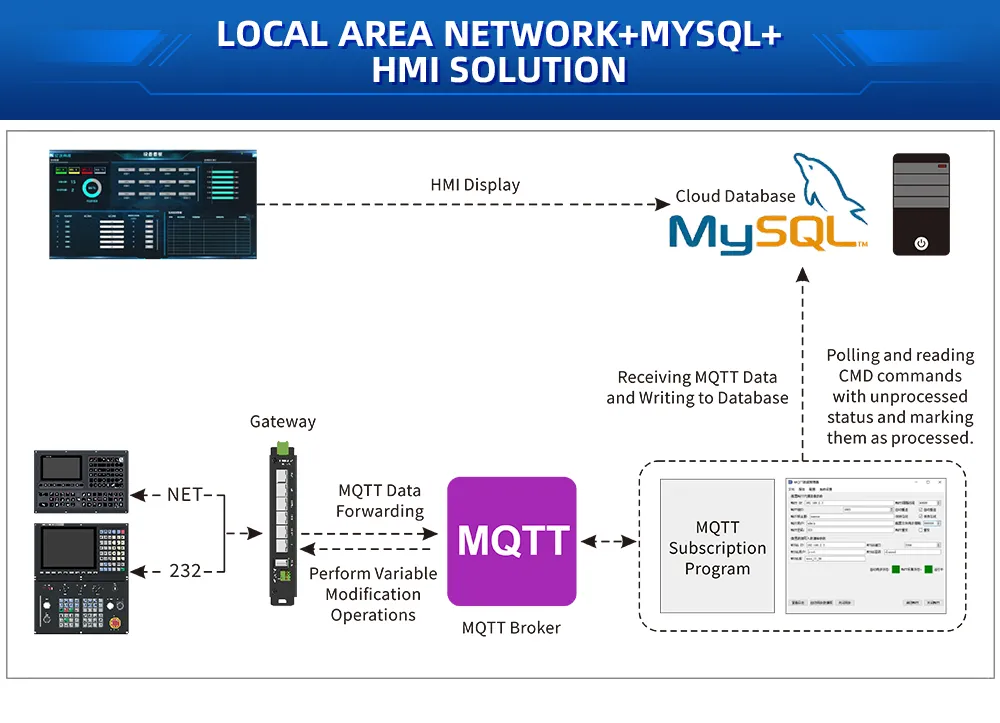

Feature 3

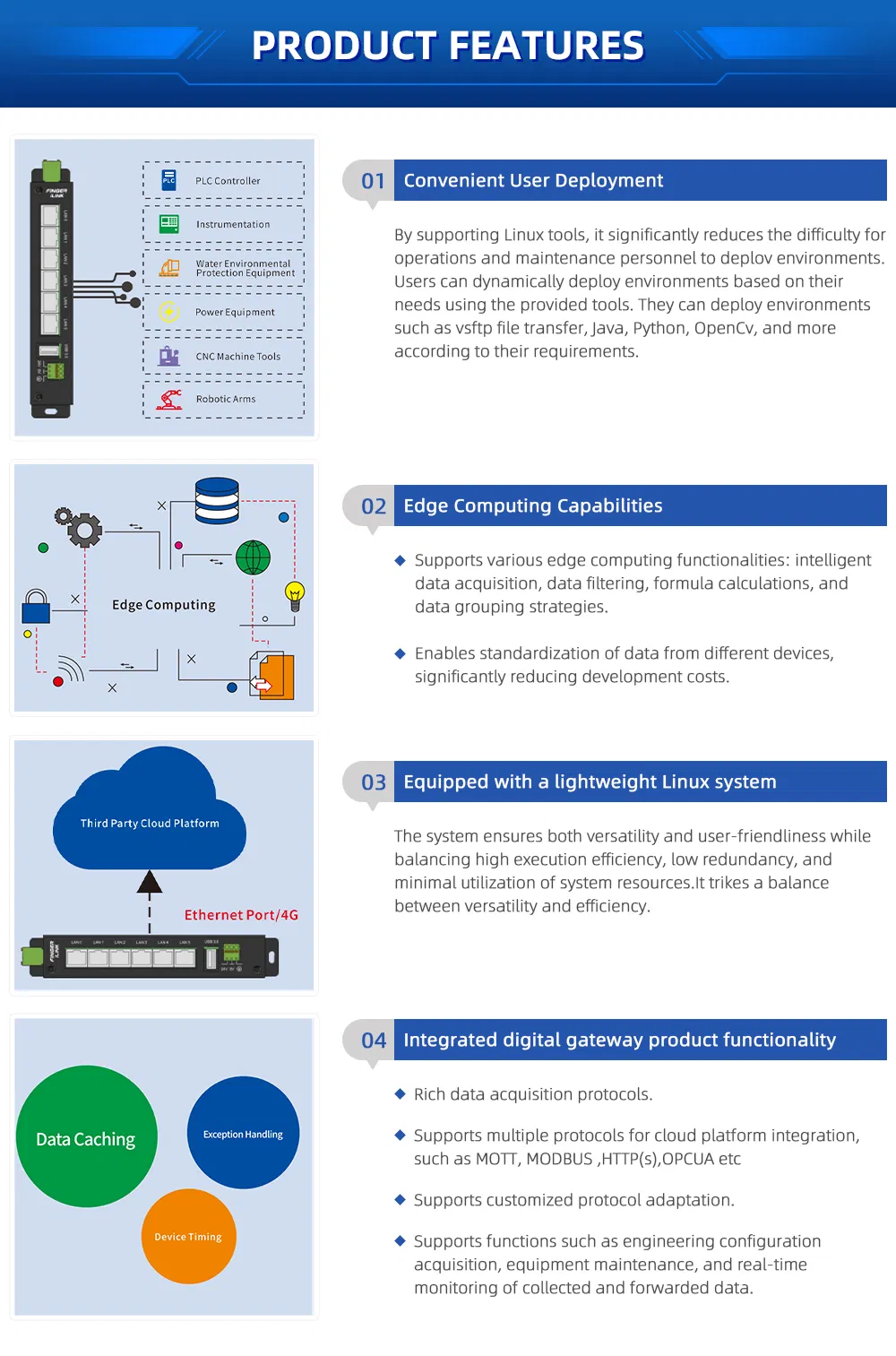

Detailed Diagram

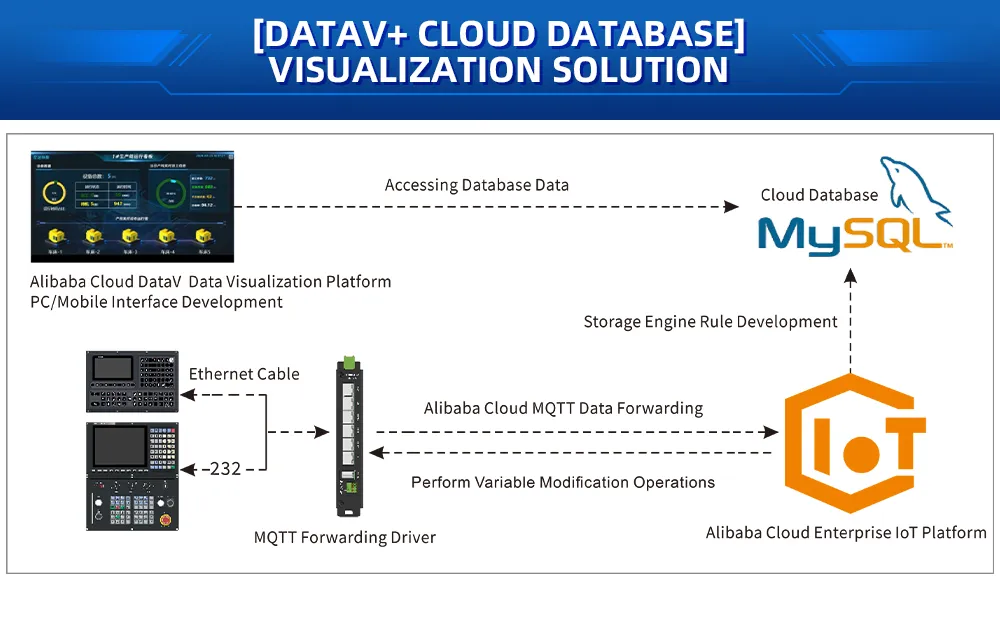

Application

Interface

System Overview

📦

Packaging & Shipping

Packaging Details

❓

Frequently Asked Questions

What is the data-handling capacity of this gateway?

The gateway supports a high data-handling capacity of up to 20,000 points, making it suitable for complex industrial edge computing tasks.

Which operating system does the device run on?

This industrial gateway runs on the stable Debian 11 operating system, providing a robust environment for industrial applications.

What are the power requirements for installation?

The device requires a 24 VDC power supply and has a low power dissipation of approximately 10W with passive cooling.

Does the gateway support industrial-grade protection?

Yes, it features EMC protection of 4.5KV (Power, Coupling) and is designed to operate in temperatures ranging from -20℃ to 85℃.

How many communication interfaces are available?

The G4 model includes 6 serial ports (2x RS232 and 4x RS485) and a 5-port 100Mbps adaptive network interface plus a configuration port.

What software is used for configuration?

Configuration and management are performed using the Finger GateWay Link IDE platform.
