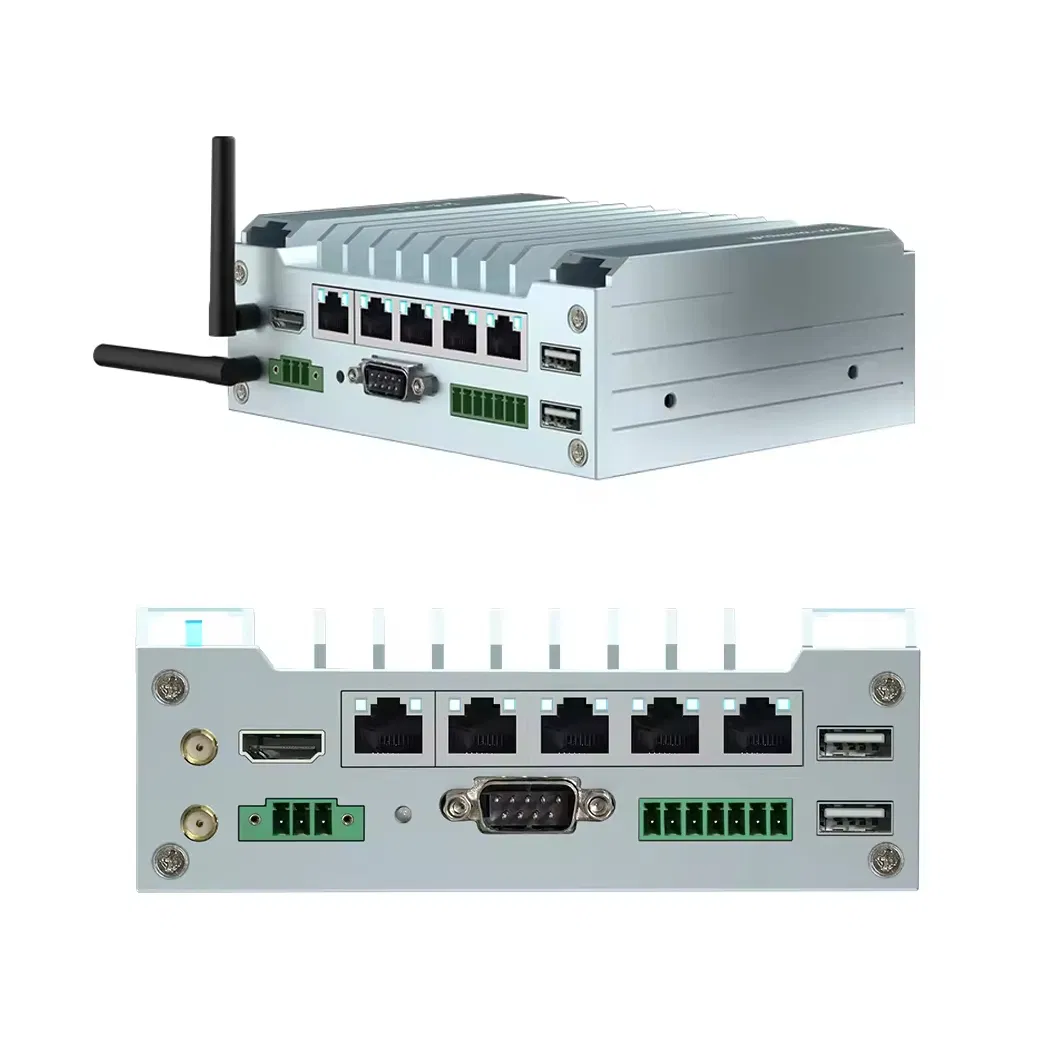

Industrial Control Intelligent IoT 4G Modbus 485 Edge Computing Gateway

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Overview & Basic Info

Model NO.
TP001
CPU
4 Cores 1.6g
System
Linux
Storage Memory
2GB Memory, Built-in 8GB Emmc
Package Size
25.00cm * 20.00cm * 20.00cm
Capacity
1000 units/month
⚙️

Technical Parameters

Category Specification Details
Processor CPU Allwinner T507 Quad core main frequency 1.5GHz
Memory LPDDR4 2GB
I/O Interface Storage 8G eMMC
USB Host 2 channel high speed USB HOST
Ethernet 1 channel WAN, 4 channel LAN (10/100/1000Mbps)
WIFI IEEE 802.11b/g/n
4G LTE Cat1
CAN Bus 1 channel

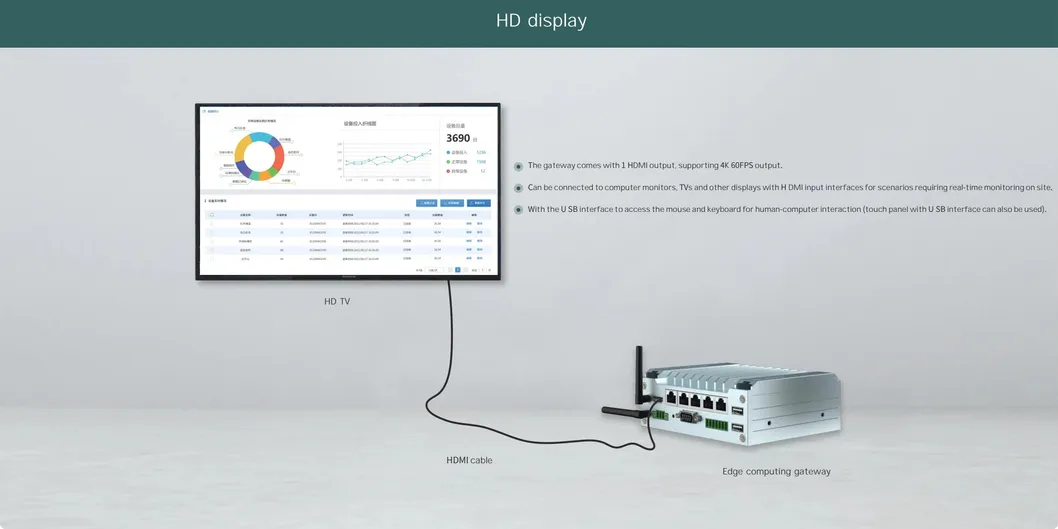

HDMI 1 channel HDMI output support 4K 60fps
Electrical Power Supply DC 10.5V ~ 28V
Protection Reverse protection, wrong wire protection
Consumption < 5W
Structure Material Aluminum alloy
Dimension 140*110*50mm
Installation GB C45 din rail
🖼️

Product Gallery

Edge Computing Gateway
Industrial IoT Gateway

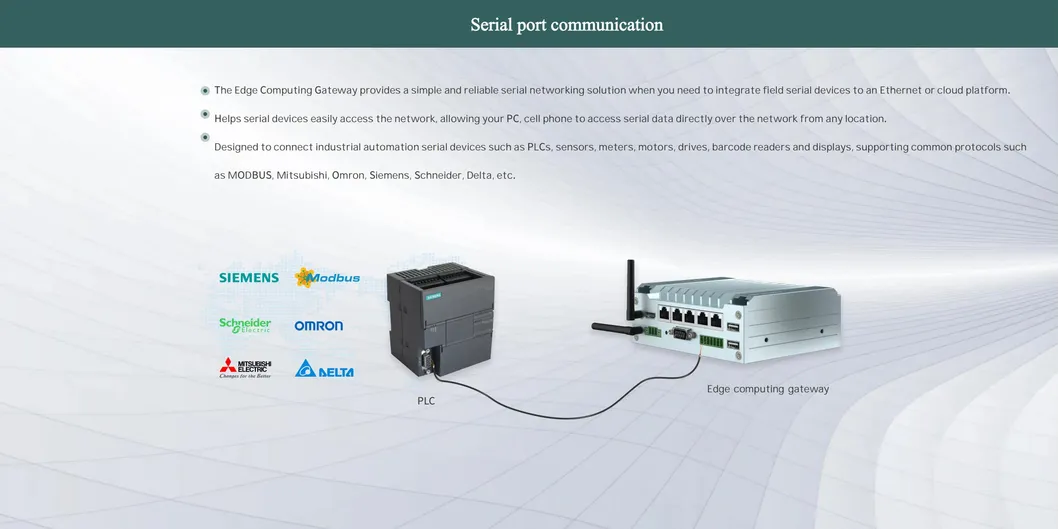

4G Modbus Gateway

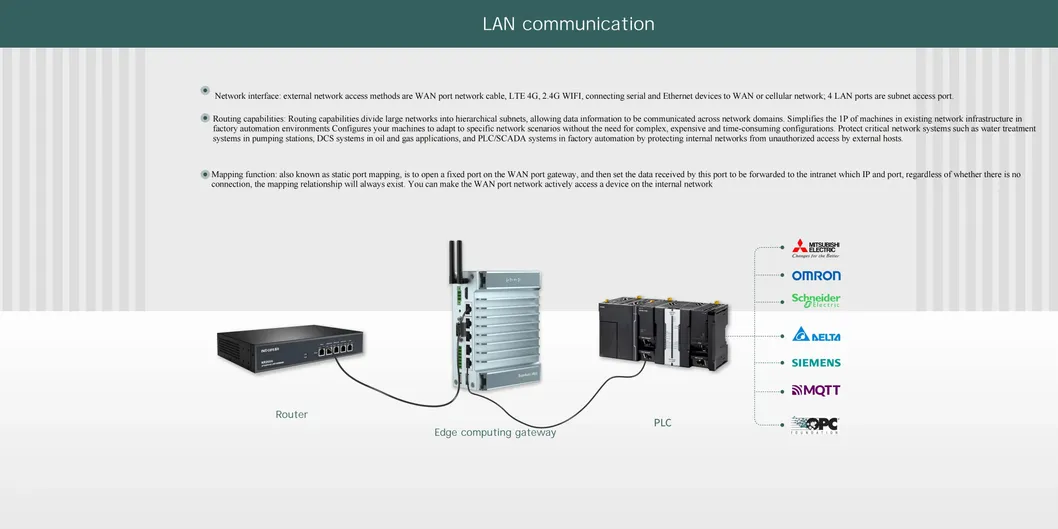

Industrial Control Gateway

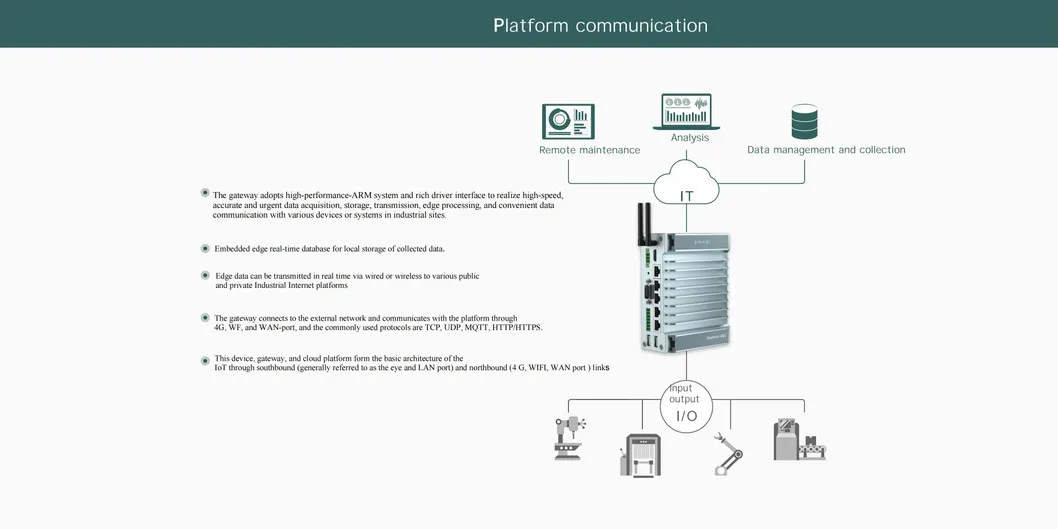

Smart IoT Device
Edge Computing Unit
Industrial Router
Communication Gateway

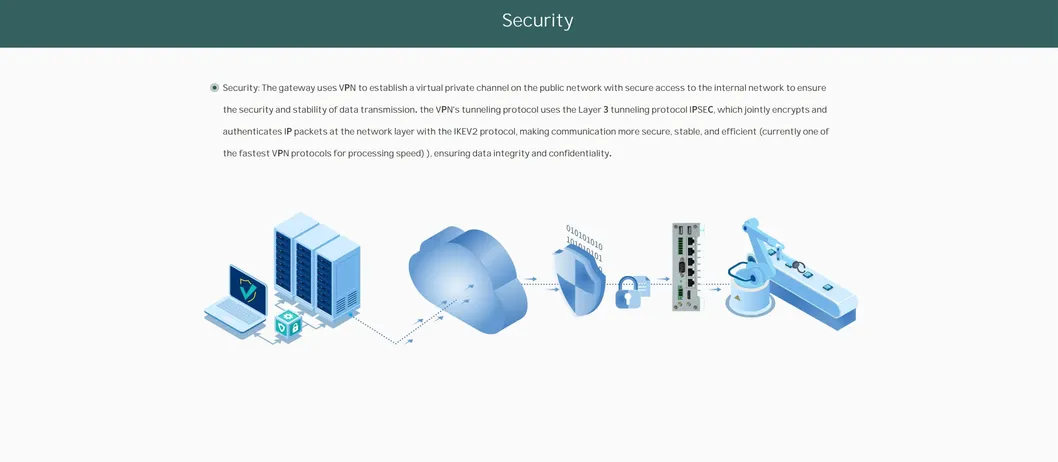

Smart Connectivity
🏢

Company Profile

Our company is a high technology enterprise engaged in the manufacturing of environmental monitoring and data acquisition solutions. Established in 2009, we cover an area of over 3,000 square meters with 6 production lines and a dedicated team for research, design, and quality control.

Business Scope: Our expertise includes data loggers, humidity & temperature sensors, gas detectors, pressure sensors, water level meters, IoT gateways, thermal imaging cameras, and power energy meters.

We possess advanced examination equipment and a perfect quality protection system. With over 15 years of ODM and OEM experience, we provide personalized branding and technical solutions tailored to client demands. We follow a "Sincerity and Down-to-earth" approach to ensure excellent service and reliable partnerships.

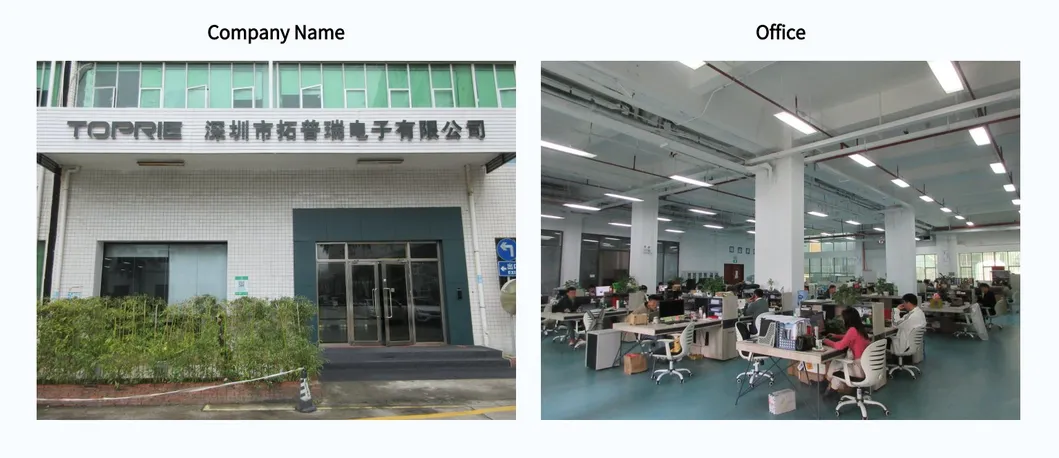

Factory Environment

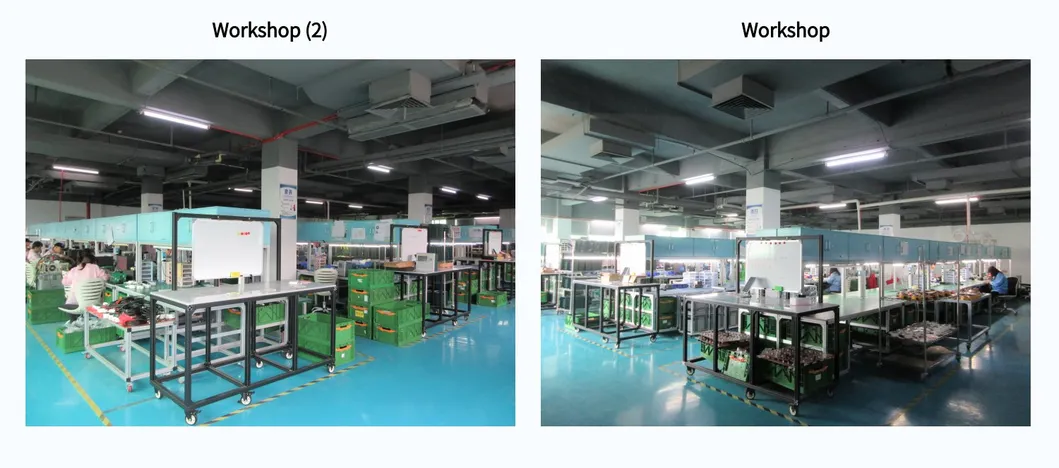

Production Line

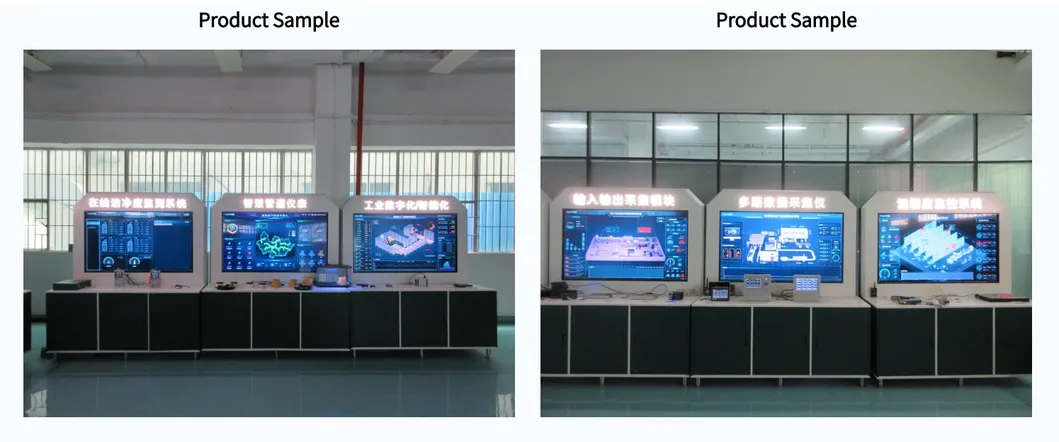

Testing Lab

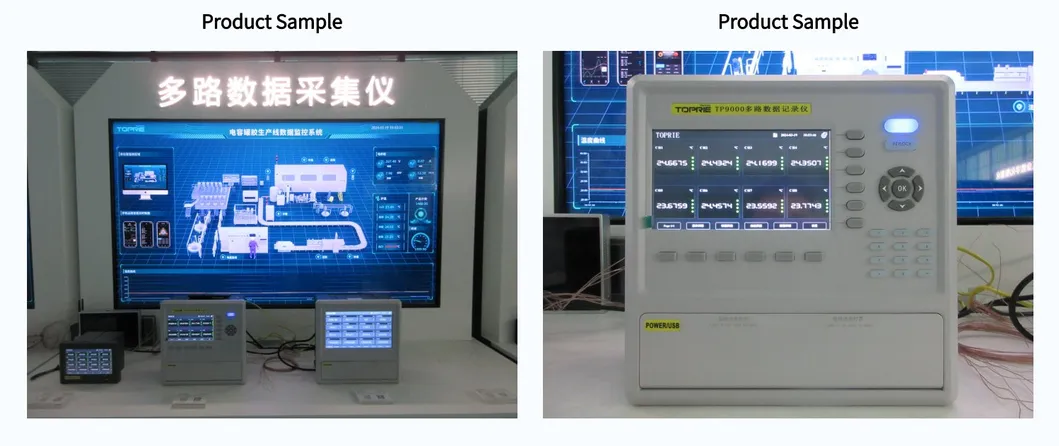

Warehouse

Frequently Asked Questions

Are you a factory/manufacturer?
Yes, we are a professional factory and manufacturer specializing in data loggers, IoT gateways, gas detectors, and various industrial sensors.
Can I customize my logo and communication methods?
Yes, logo customization is available with a small MOQ. We also support multiple communication methods including GPRS, 4G, WIFI, LORA, and LORAWAN.
How long is your lead time for orders?
Standard orders typically ship within 3-5 days after payment. Customized devices depend on the specific requirements and order quantity.
What payment and shipping methods do you accept?
We accept T/T (Bank Transfer), PayPal, and Western Union. Shipping is handled via express couriers (DHL/FedEx/UPS), air freight, or sea freight.
What is your after-sales service policy?
We provide a 12-month warranty and lifetime maintenance. Our technical team responds within 24 hours to resolve any hardware or software issues.
What standard packaging is used?
All products are packed in standard industrial carton boxes to ensure safety during international transport.
