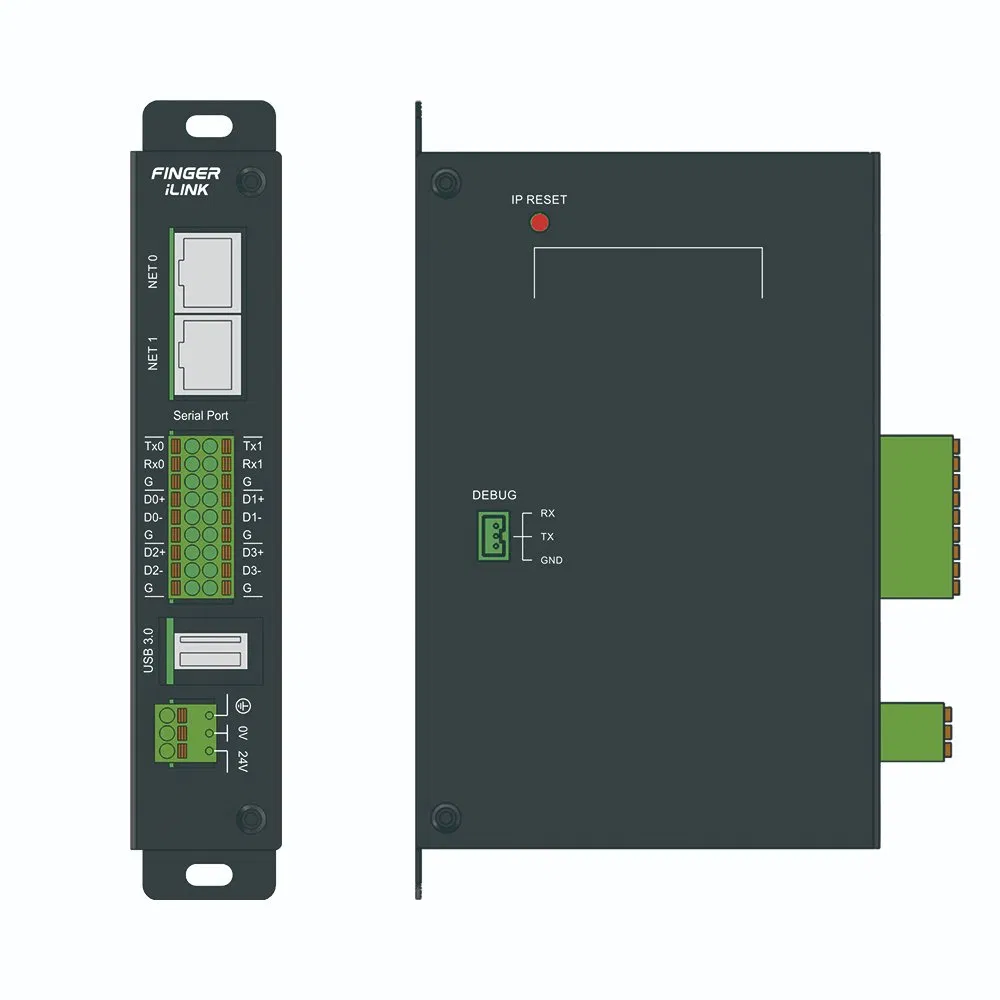

Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
1 / 5
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites
Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites

Electrical Equipment Edge Computing Device Mqtt IoT Gateway Industrial Products IoT Gateway for Construction Sites

Customization: Available
Warranty: 3 Years
Logo Printing: with Logo Printing
Send Inquiry

Product Description

📋 Basic Information
Model NO.
G2-G00M02C240
Certification
CE
Chip Architecture
Arma55 Dual-Core Architecture
CPU Frequency
2.0GHz
RAM
2GB LPDDR4
Storage
64GB EMMC 5.0
Customized
Non-Customized
Cooling Method
Passive Cooling
Edge Computing Device Gateway
⚙ Technical Specifications
Specifications Header
Hardware Performance
Serial Port6 Serial communication ports (2x RS232, 4x RS485)
Ethernet1-port 100Mbps adaptive + 1-port configuration port
EMC Protection4.5KV (Power, Coupling)
Vibration7mm@2~9Hz; 2g@10~500Hz
Operating Temp-20 ~ 85℃
Power Supply24 VDC / 10W
Dimensions158*108*30 mm
Weight0.6 KG
Software System
Software PlatformGateWay Link IDE
Operating SystemDebian 11
Data Capacity20,000 Points
📊 Model Comparison
Model G1-G00M02C240 G2-G00M02C240 G3-G00M06C240 G4-G00M06C240
Storage 8GB EMMC 64GB EMMC 8GB EMMC 64GB EMMC
Ethernet 1+1 Ports 1+1 Ports 5+1 Ports 5+1 Ports

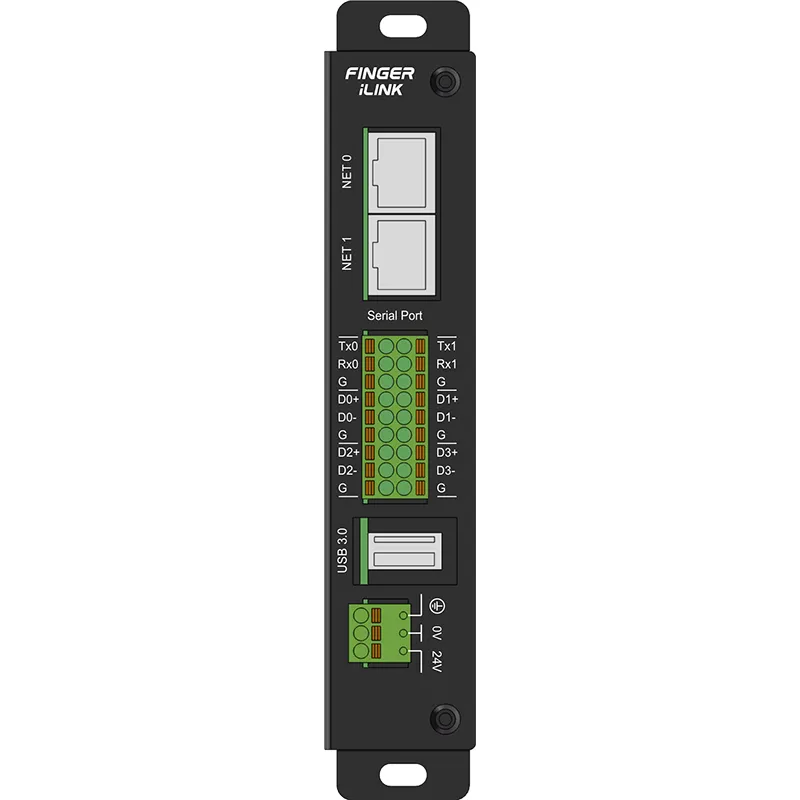

Model G1 G2

G1 / G2 Series

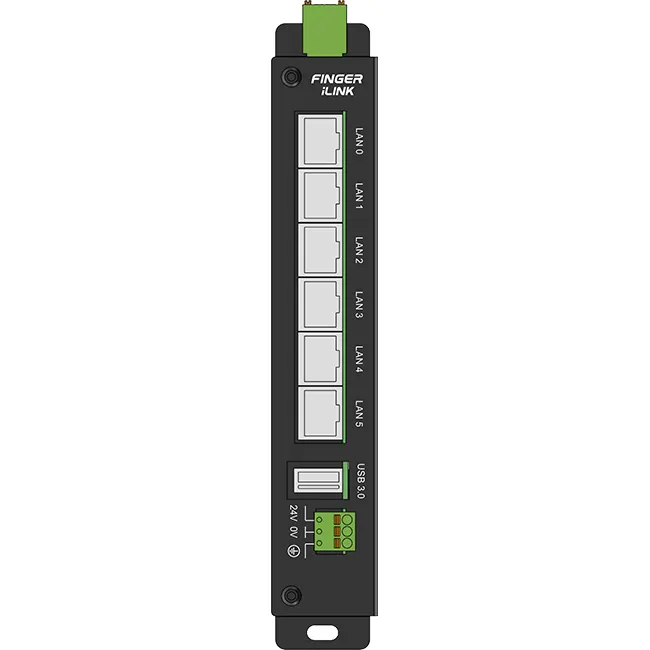

Model G3 G4

G3 / G4 Series

🔍 Product Features & Details

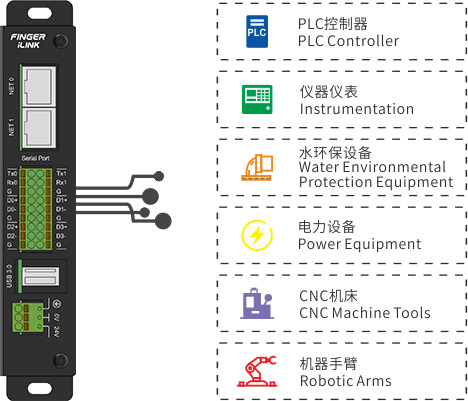

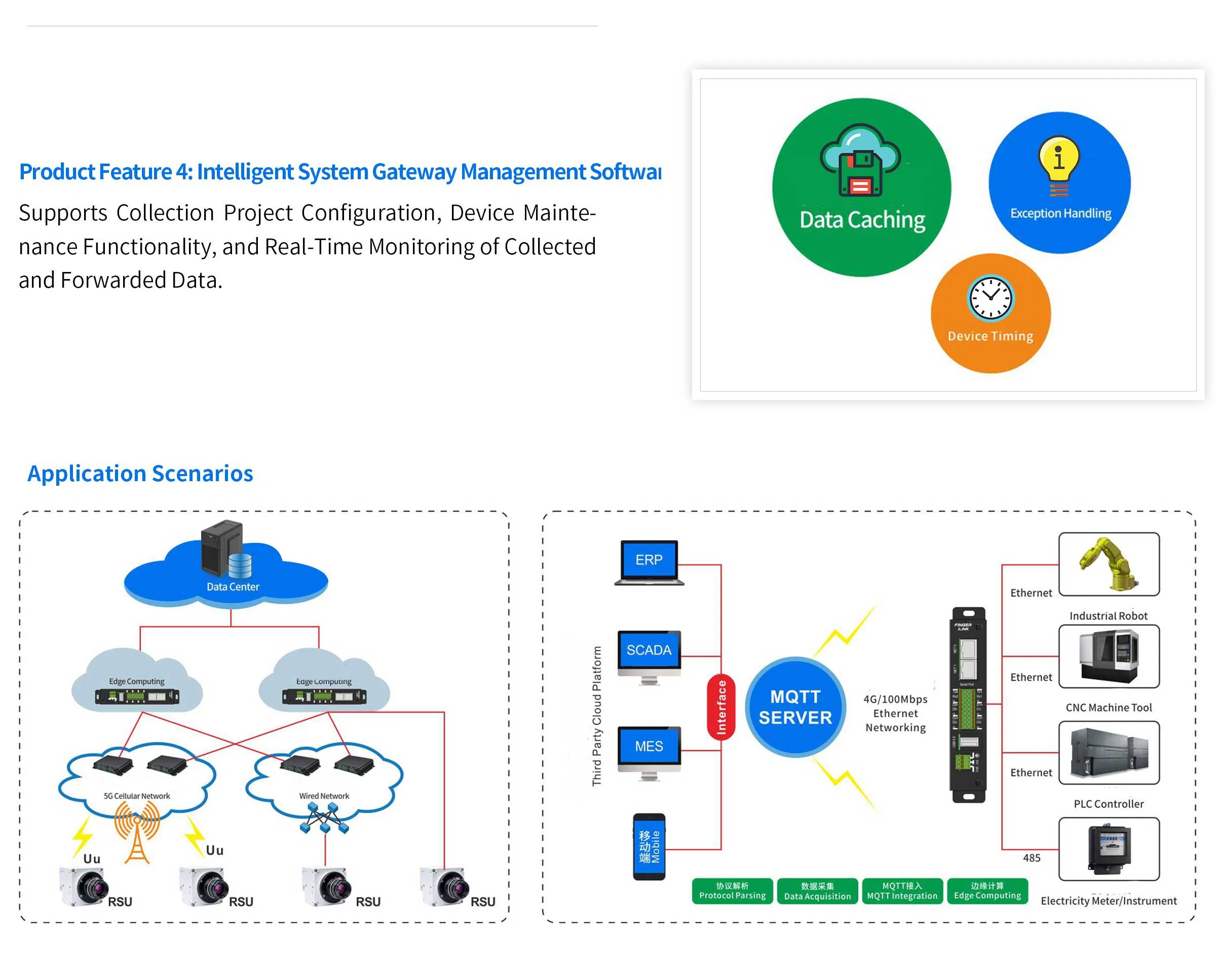

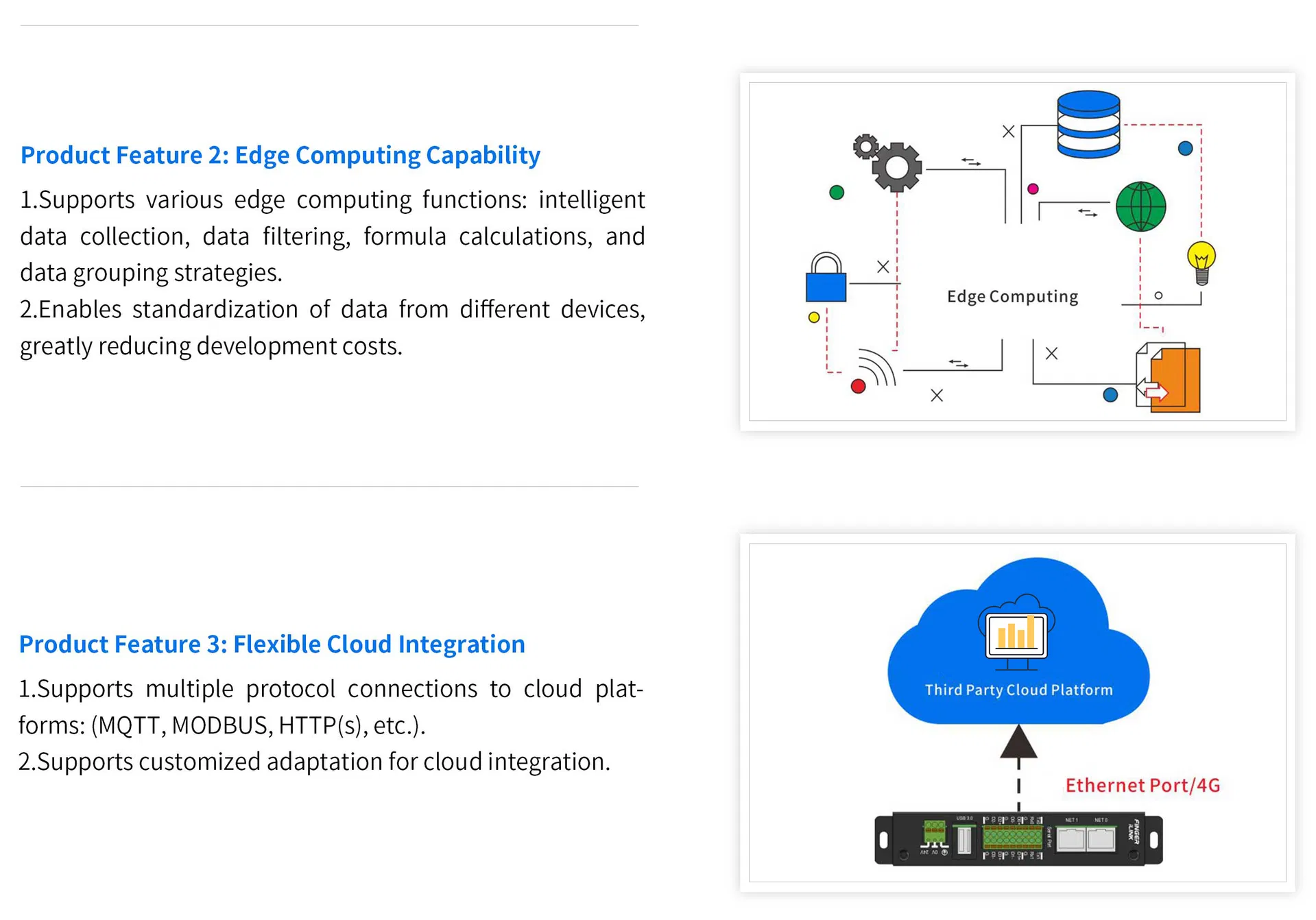

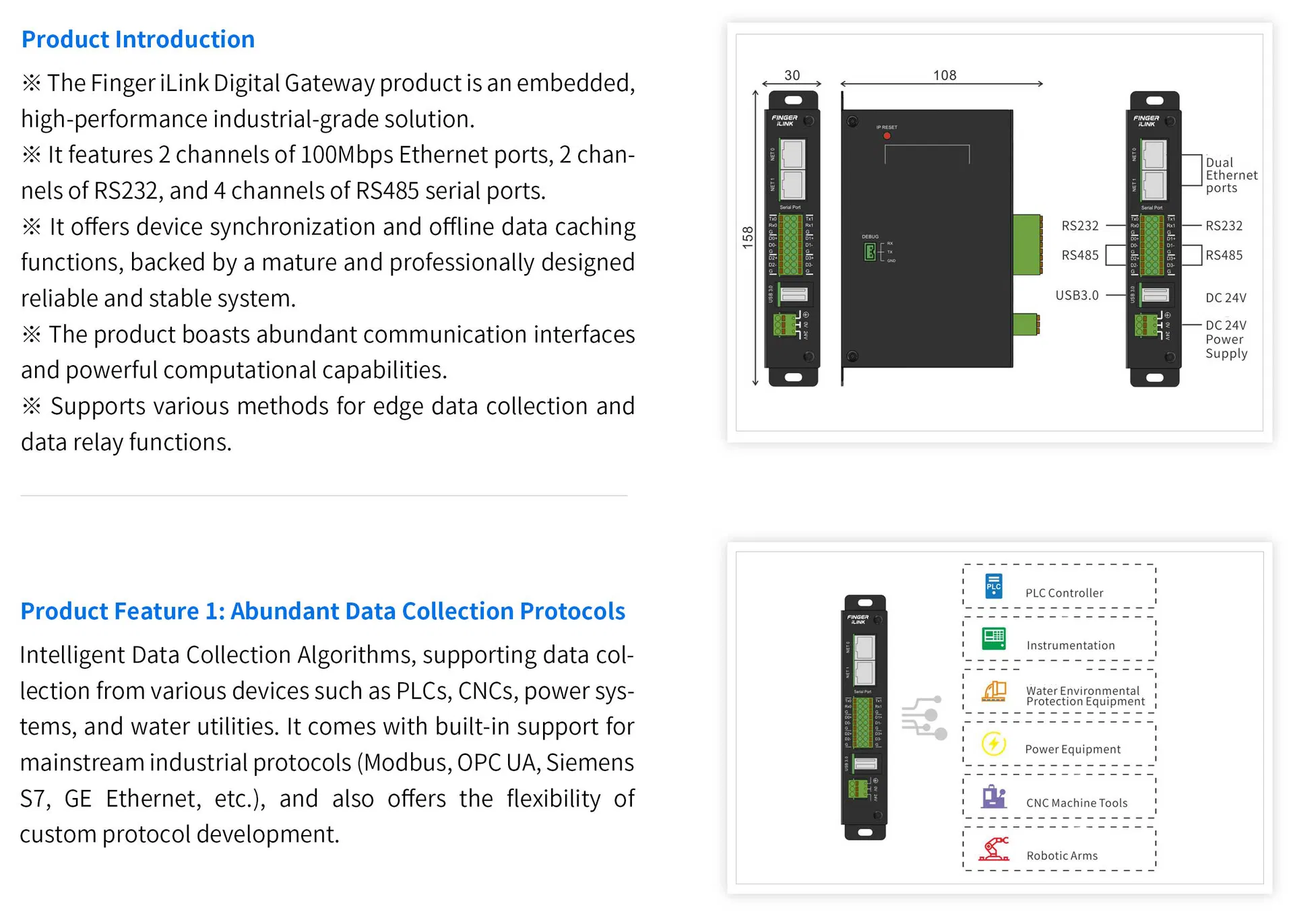

Feature 1 Feature 2 Feature 3 Dimensions Detail Interface Layout Application Scenario
📦 Packaging & Shipping
Package Size
20.00cm * 15.00cm * 3.00cm
Gross Weight
2.000kg
Packaging Detail
❓ Frequently Asked Questions
What is the core processor of this IoT gateway?
The device is powered by an Arm a55 Dual-Core architecture, providing high-efficiency performance for edge computing tasks with a 2.0GHz frequency.
How many communication interfaces are available?
It features 6 serial communication ports, specifically 2 RS232 interfaces and 4 RS485 interfaces, along with adaptive Ethernet ports.
What is the operating temperature range for industrial use?
This gateway is designed for industrial environments with an operating and storage temperature range of -20 to 85℃.
Which operating system does the device run on?
The device runs on the stable Debian 11 operating system and supports the GateWay Link IDE software platform.
What are the power requirements?
The device operates on a 24 VDC power supply with a low power dissipation of approximately 10W using passive cooling.
Is the storage expandable or fixed?
The G2 model comes with a built-in 64GB EMMC 5.0 high-speed storage. Other models in the series offer different configurations such as 8GB EMMC.
