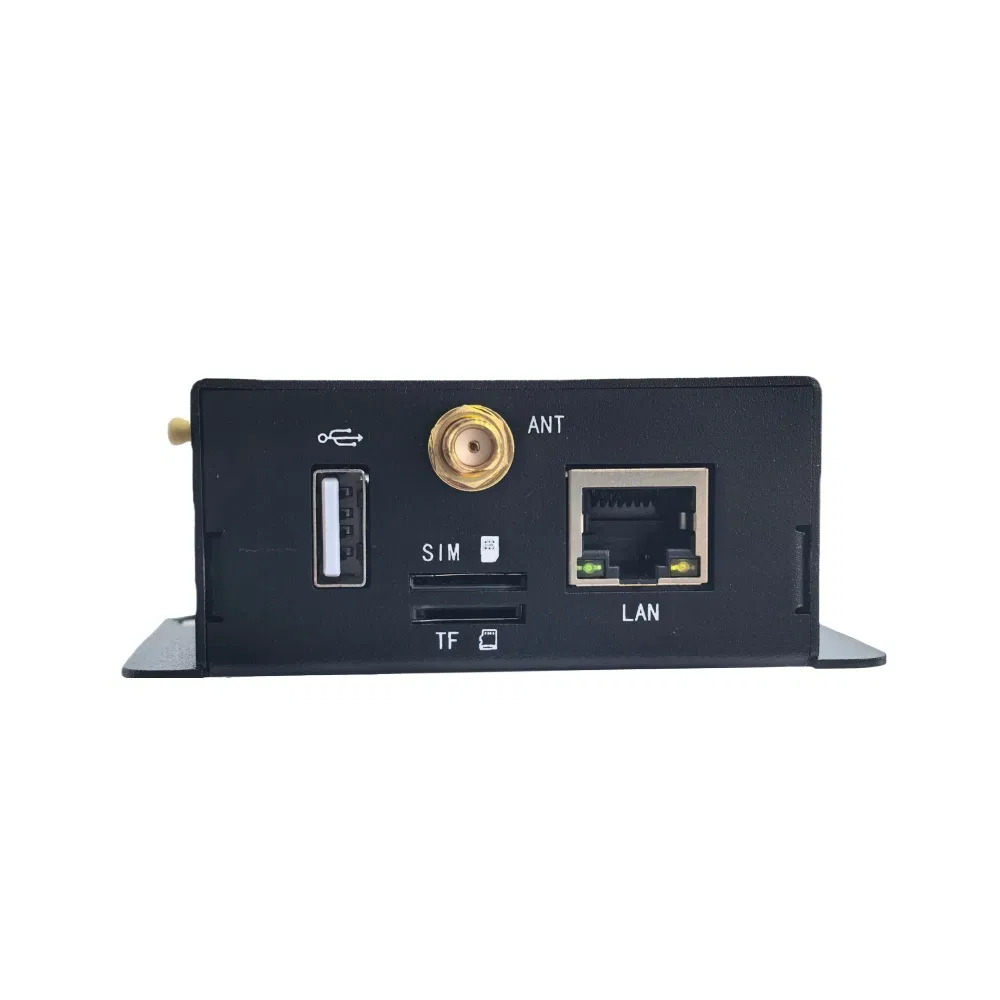

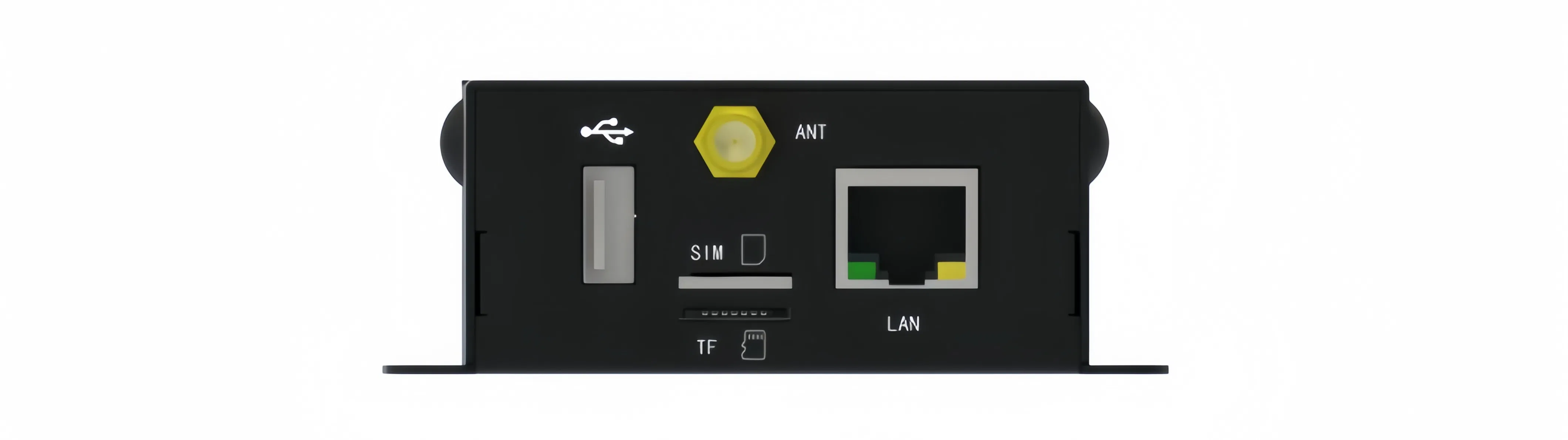

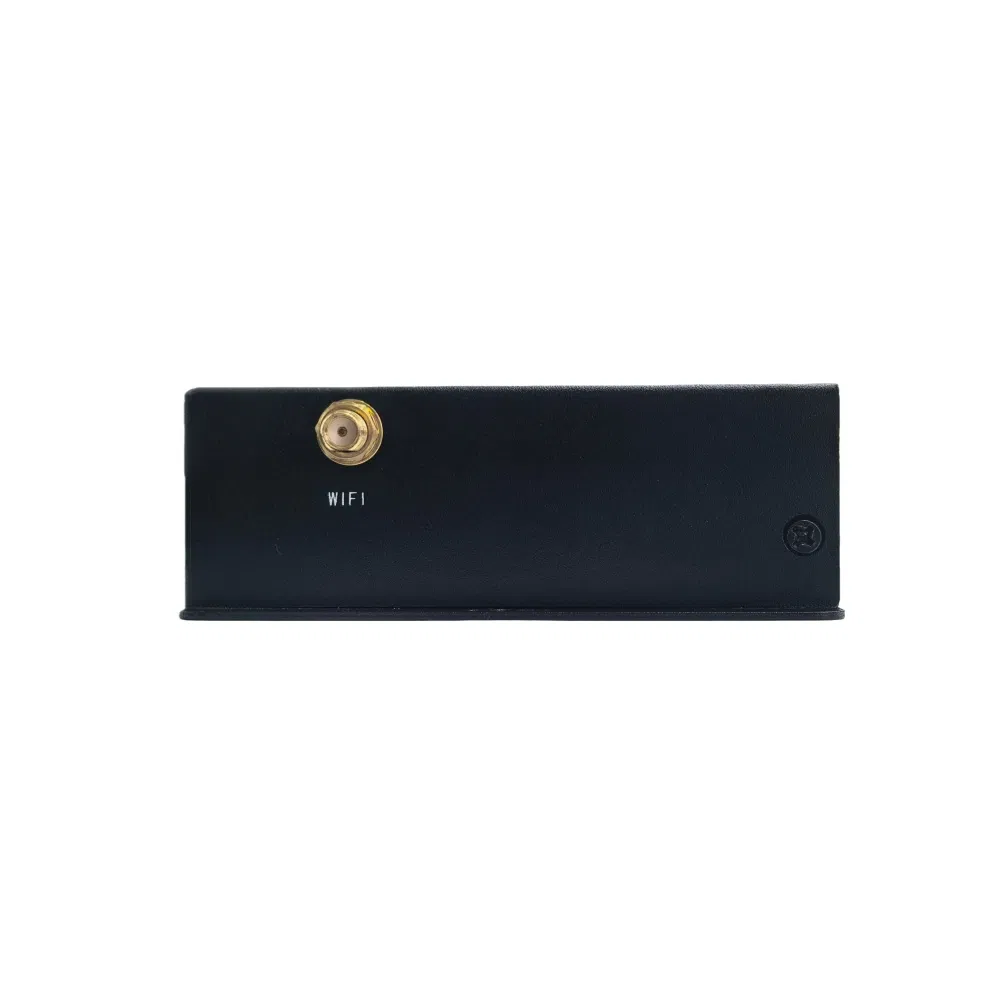

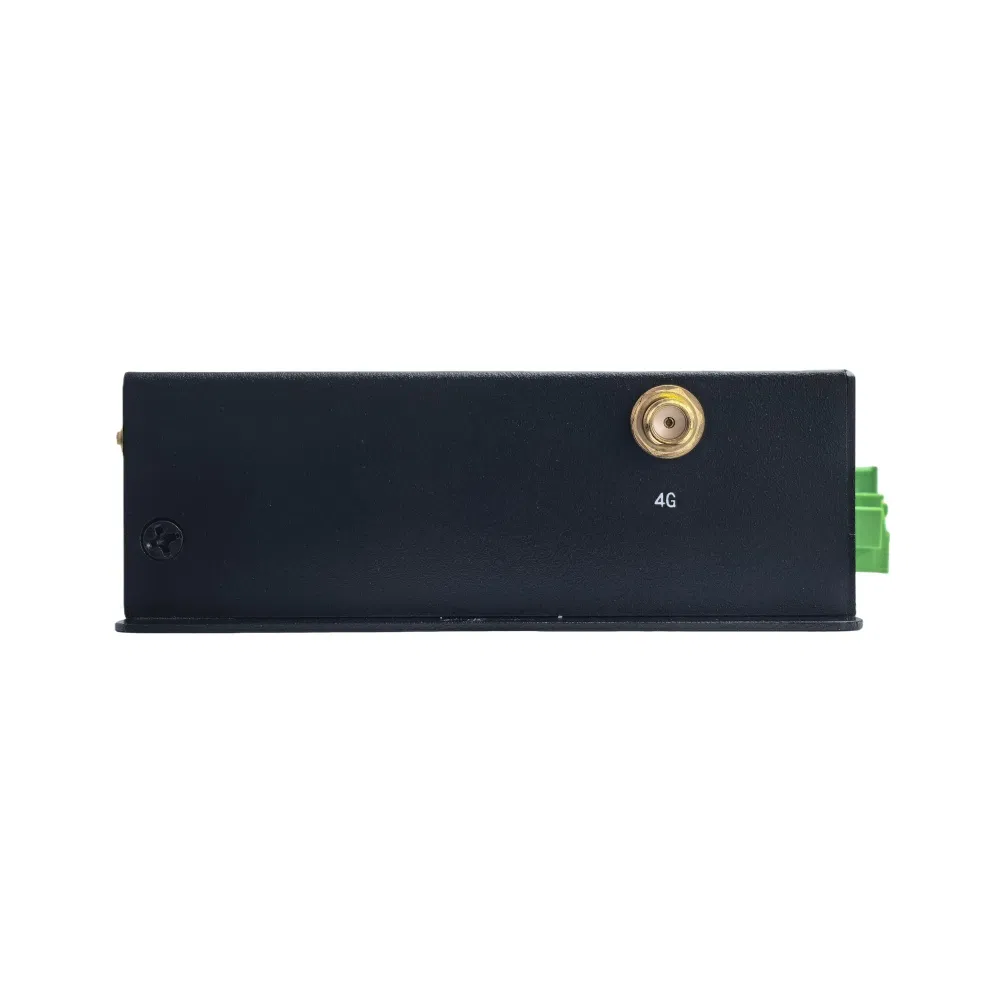

Kloizon Linux-Based Gateway with Smart Edge Computing and Lora

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview

Model NO.
TM-CP1B
Support Network
Ethernet
Information content
Data
Condition
New
Transport Package
Carton
Production Capacity
100000pieces/Year

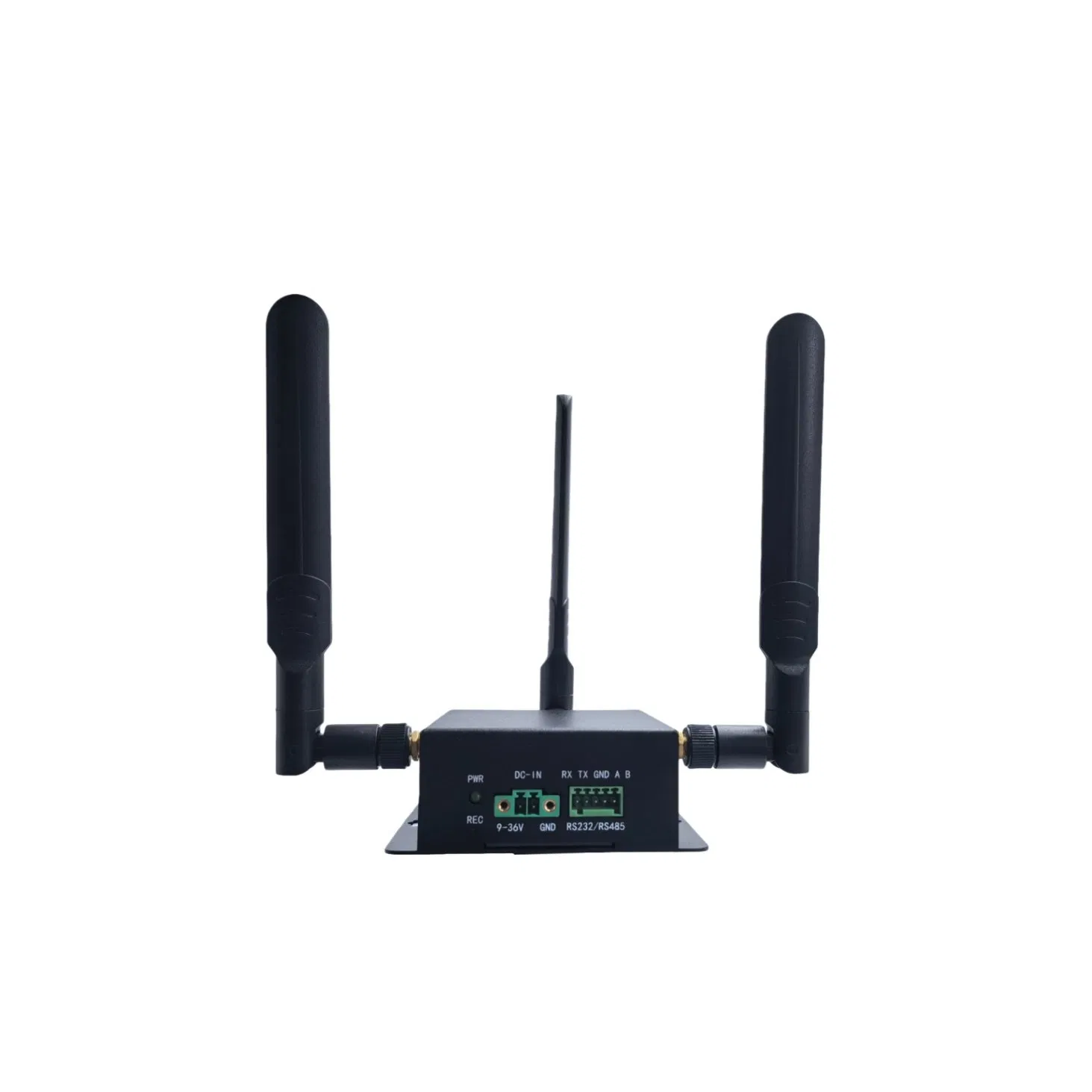

Linux-Based Gateway

Specification

Attribute Parameter
CPUARM Cortex-A7, Up to 1.6GHz
DDR256M DDR3L memory, Up to 924Mbps
Storage8GB eMMC
Serial PortsIsolation 1 x RS485 / 1 x RS232
Ethernet1 x 100M Ethernet interfaces
USB1 x USB 2.0 OTG interface
WIFI/BT (Optional)Supports USB2.0 WIFI/BT module
4G/GPS (Optional)Supports MINI-PCIE module, 1 x Micro SIM
Lora (Optional)Supports 36mmX21mm(E22-*T22D) module
Input Voltage9 ~ 36V VDC
OSUbuntu24.04-LTS Server
Dimensions94mm×70mm×33mm

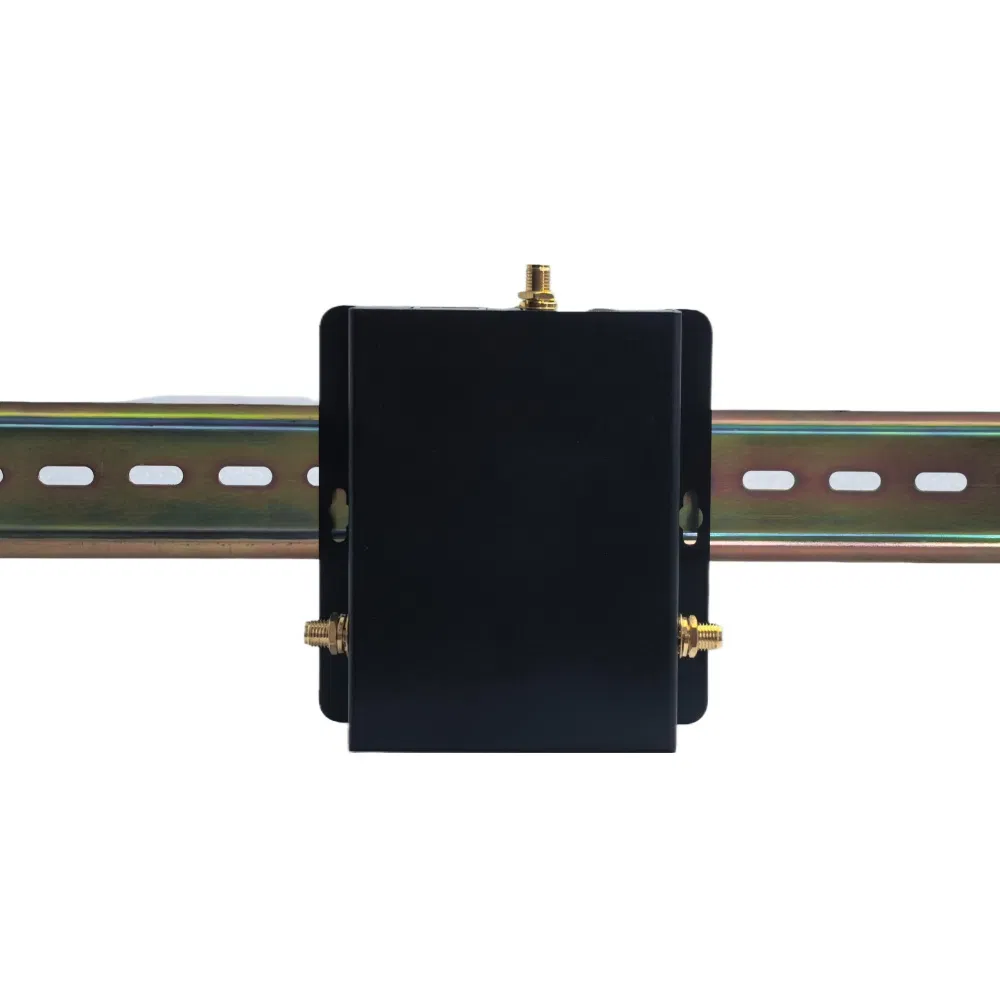

Installation35mm DIN-rail / Bracket mounting
Weight260g

Product Details

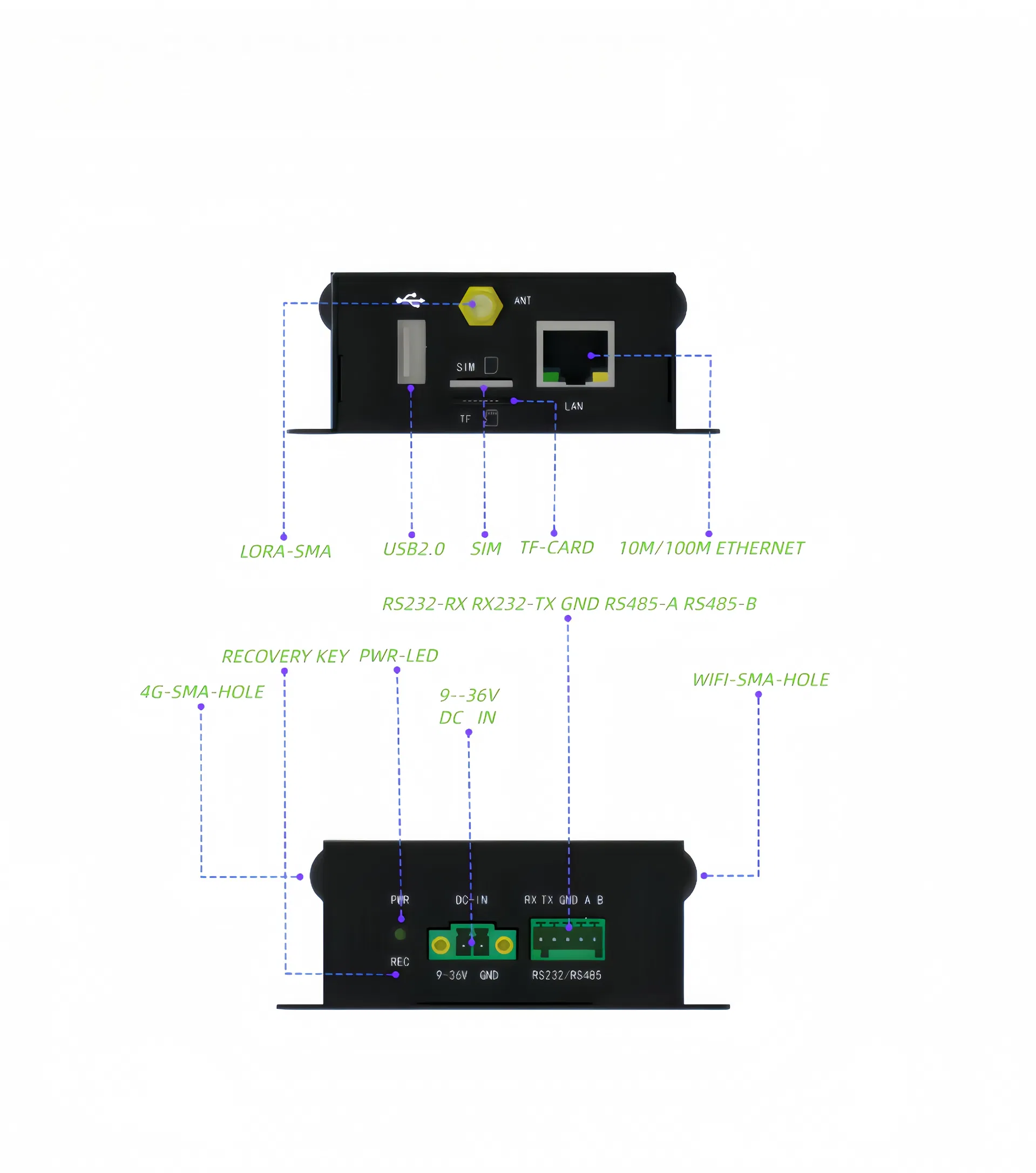

Gateway Detail 1

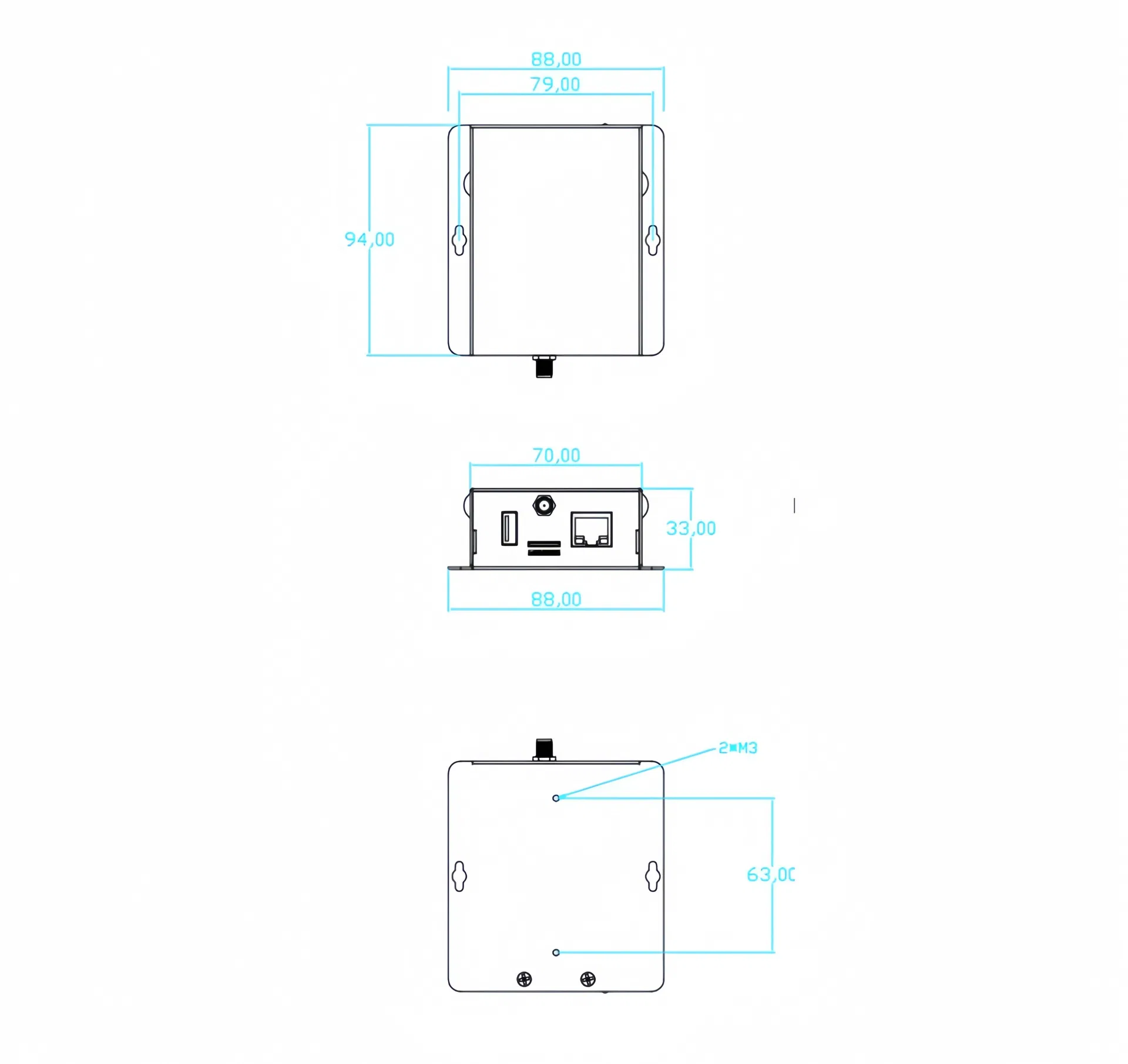

Gateway Detail 2

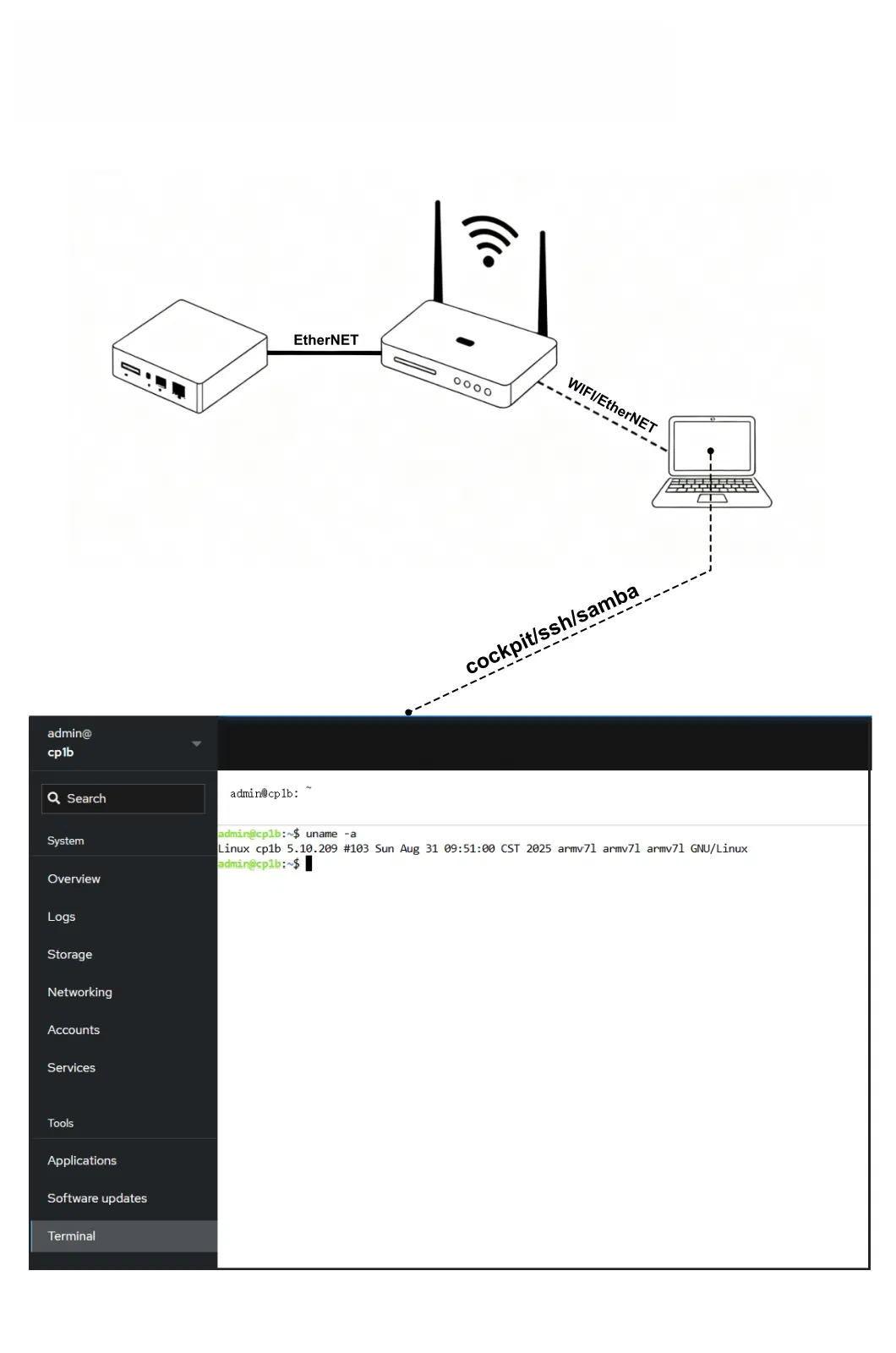

Gateway Detail 3

Packing List

Name Quantity
cp1b-host1
35mm Rail buckle1
Power Connector1
IO Connector1

Production Display

Production 1
Production 2
Production 3

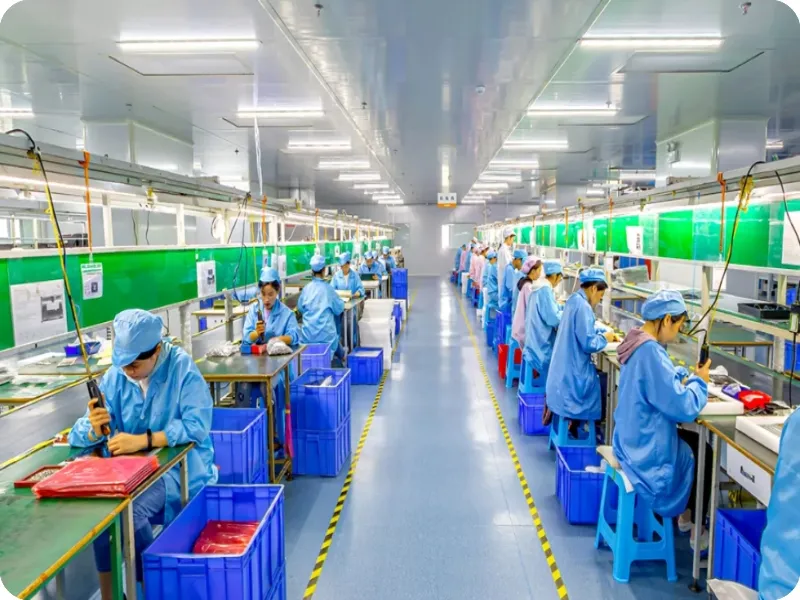

Production 4

FAQ

Are you a factory/manufacturer?
Indeed, we are an all-encompassing company excelling in design and production. Every product boasts independent design and production.
Can I customize my logo?
Absolutely, the machine can precisely laser engrave your company logo.
What is your lead time?
Standard products are typically shipped within 48 hours post-payment. Customizations vary with quantity and specific requirements.
What payment methods do you accept?
We welcome T/T (bank transfer), PayPal, and other standard payment methods.
What packaging and shipping methods do you use?
Each machine is securely packed in high-strength boxes with foam lining. Air or sea express delivery options are available.
What is your after-sales service policy?
We offer a 12-month warranty along with lifetime maintenance support for all our products.
