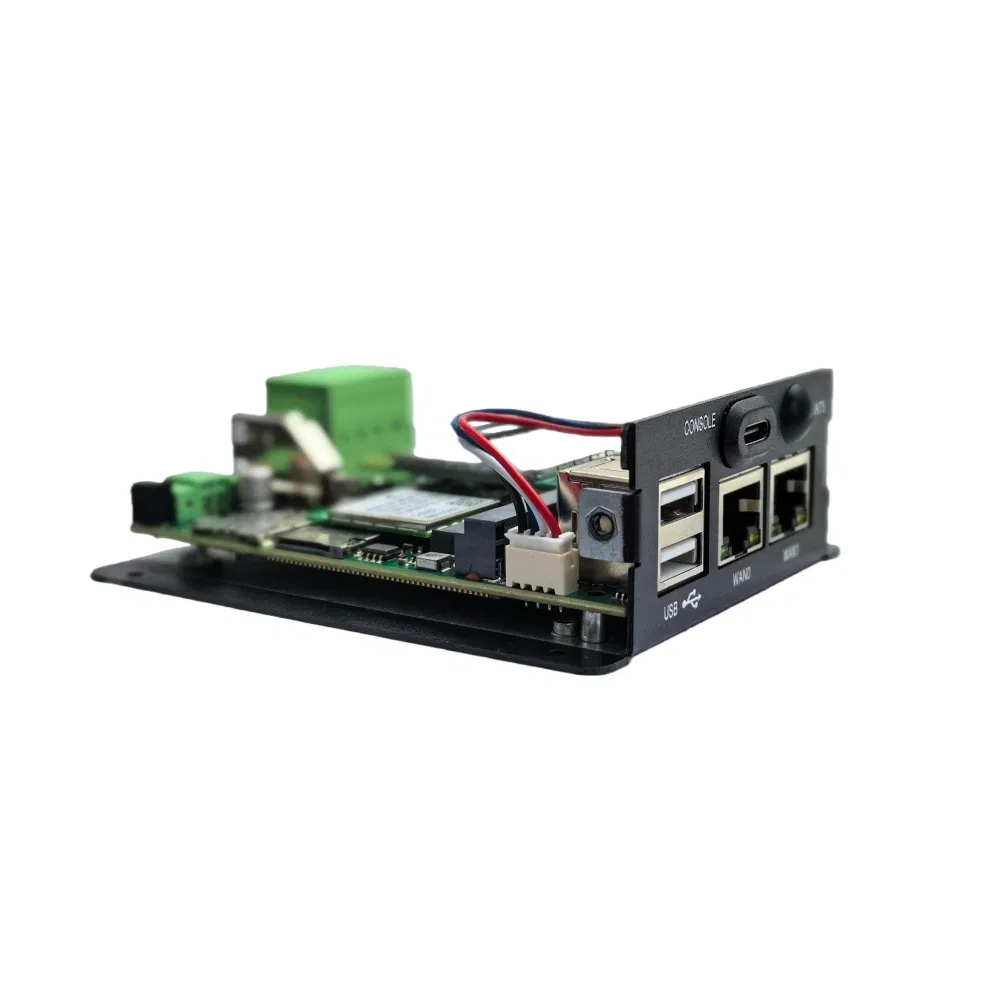

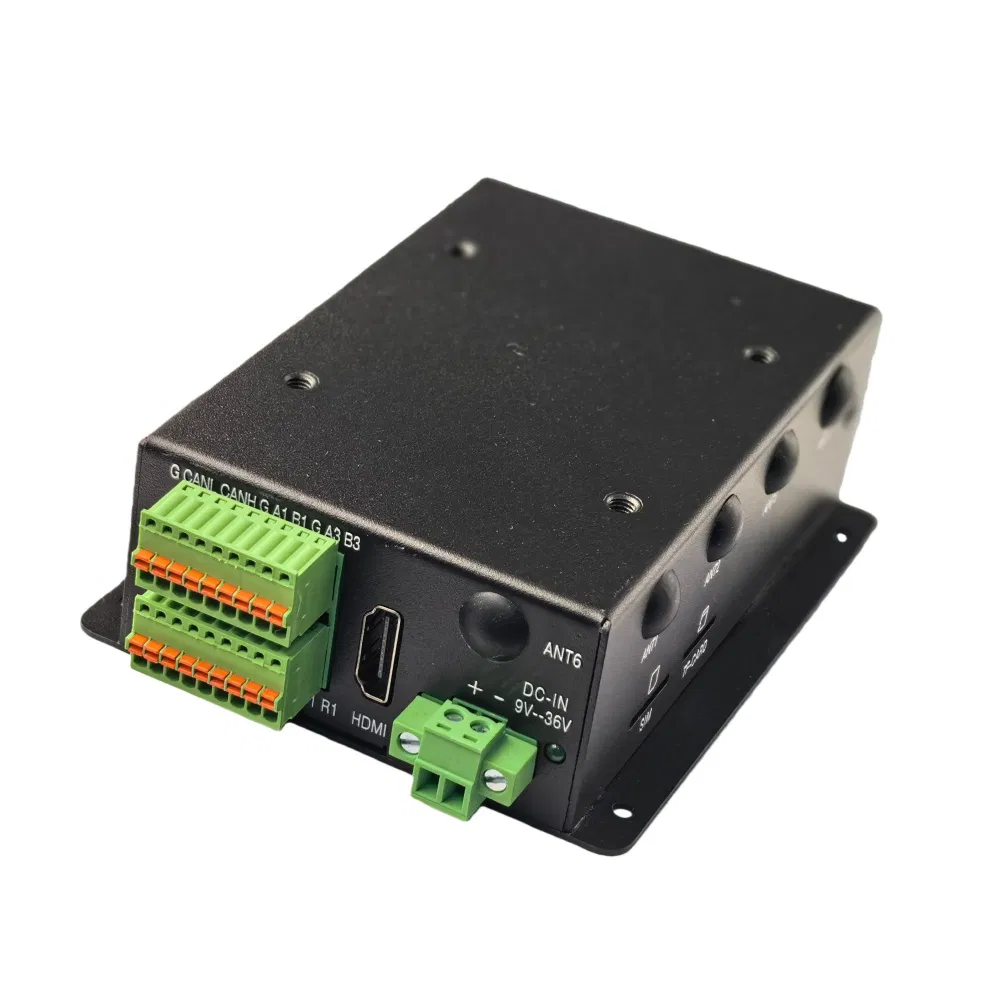

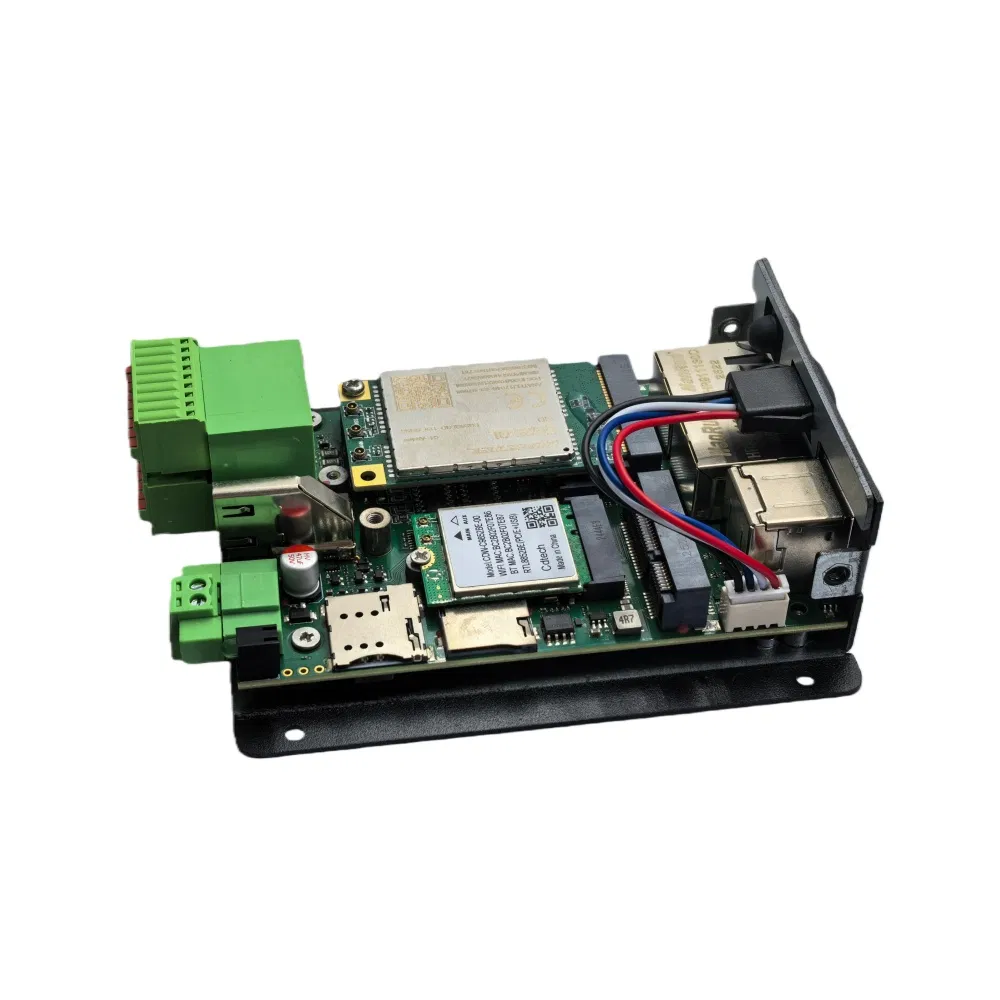

Kloizon Smart Edge Computing Gateway with Lora-Wan and Ubuntu

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
TM-CP3B
Support Network
Ethernet
Content
Data
Condition
New
Package
Carton
Capacity
100,000 pieces/Year
Packaging & Delivery
Package Size
19.00cm * 10.00cm * 4.00cm
Gross Weight
0.600kg
Lead Time
2 days (1 - 10 Pieces)
30 days (11 - 100 Pieces)
45 days (101 - 1000 Pieces)
To be negotiated (> 1000 Pieces)
Product Description

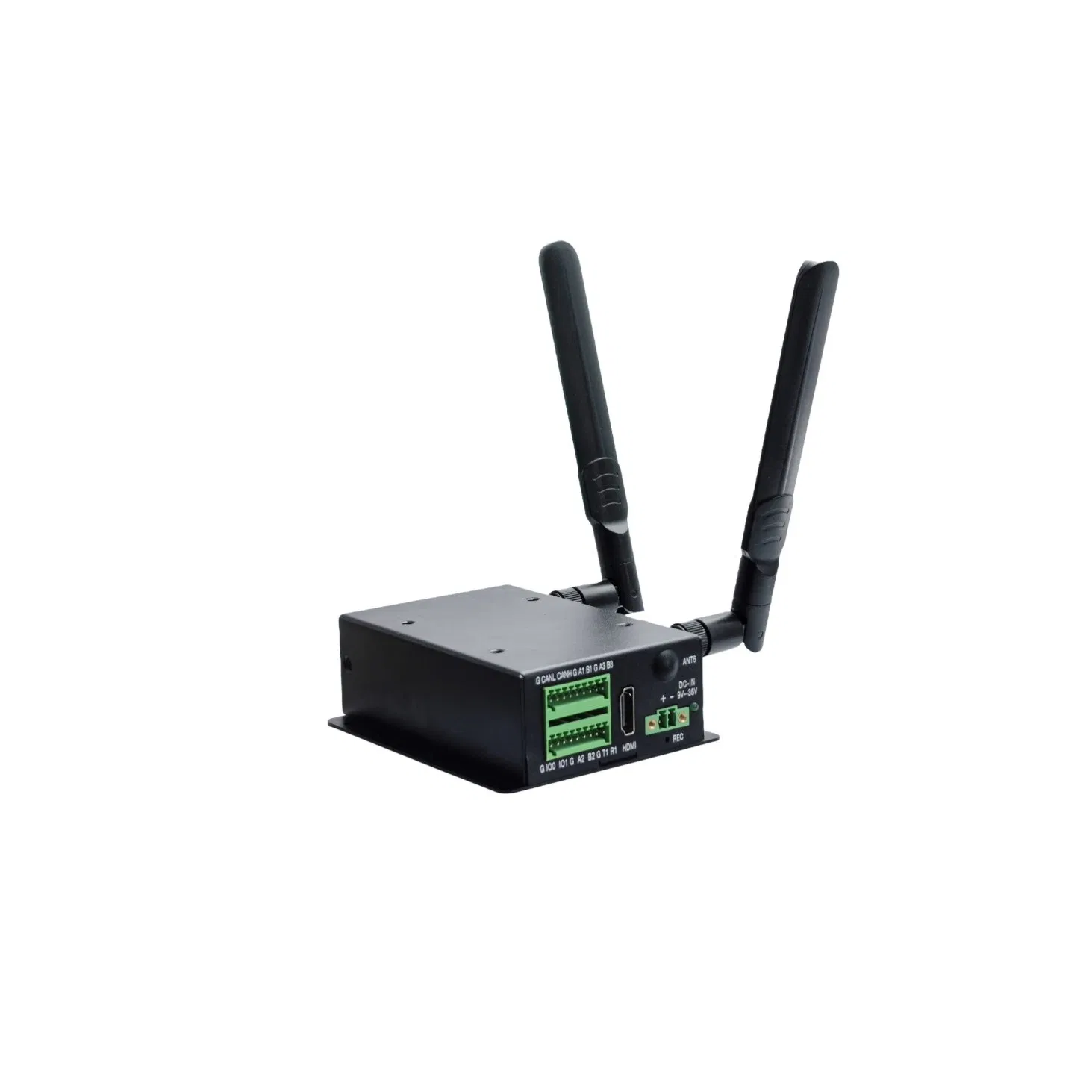

Smart Edge Computing Gateway
Attribute Parameter
CPURK3566 Quad-Core Cortex-A55, Up to 1.8GHz
DDR2GB/4GB/8GB LPDDR4X memory, Up to 3120Mbps
Storage32GB eMMC, Support HS400 Mode
NPU1 Tops INT8 Computing Power
Serial PortsIsolation 3 x RS485 + 1 x RS232
CAN BusIsolation 1 x CAN2.0B
IOIsolation 2 x GPIO (Configurable as I2C or UART)
Ethernet1 x 1000Mbps and 1 x 100Mbps interfaces
USB1 x USB 2.0 HOST and 1 x USB 2.0 OTG
WIFI/BT (Optional)Supports M.2-2230 module
4G/GPS (Optional)Supports MINI-PCIE module, 1 x Micro SIM
Lora-WAN (Optional)Supports MINI-PCIE module, SPI interface
SSD (Optional)1 x M.2-2242 SSD SATA interface
OSUbuntu24.04-LTS Desktop/Server/RTlinux
Dimensions103mm × 85mm × 30mm
Installation35mm DIN-rail / Bracket mounting

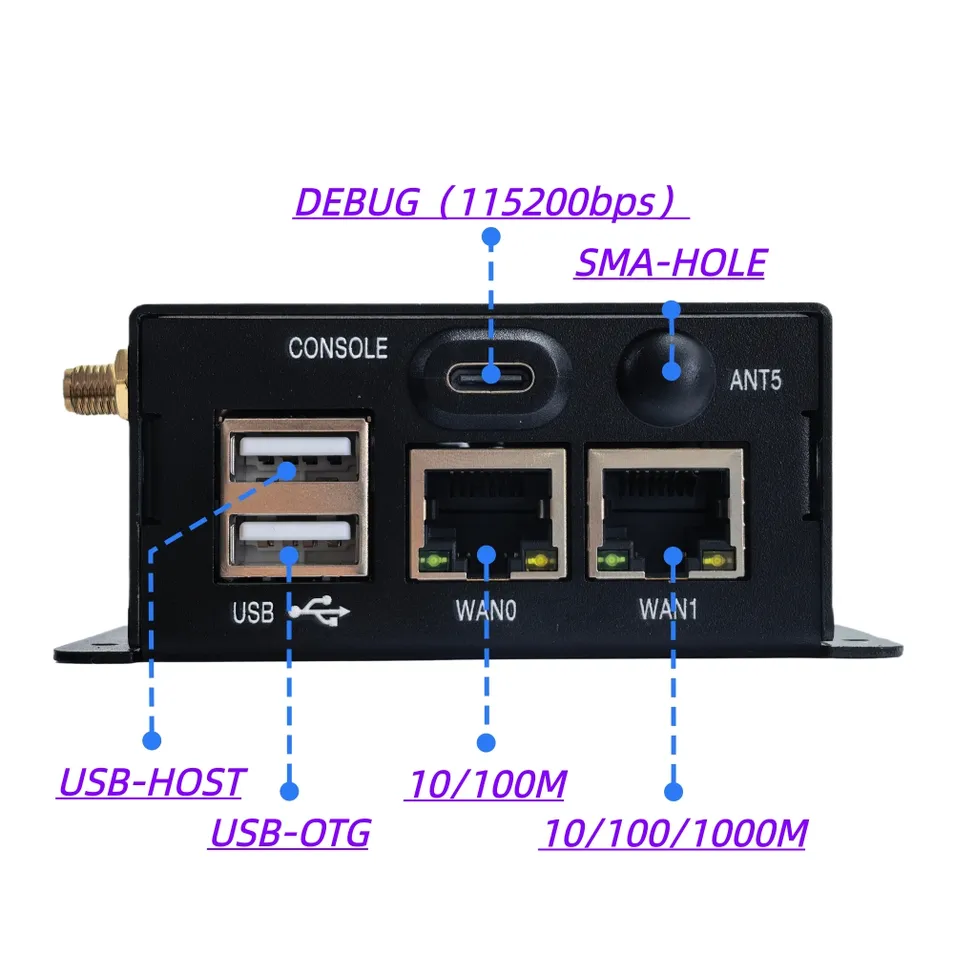

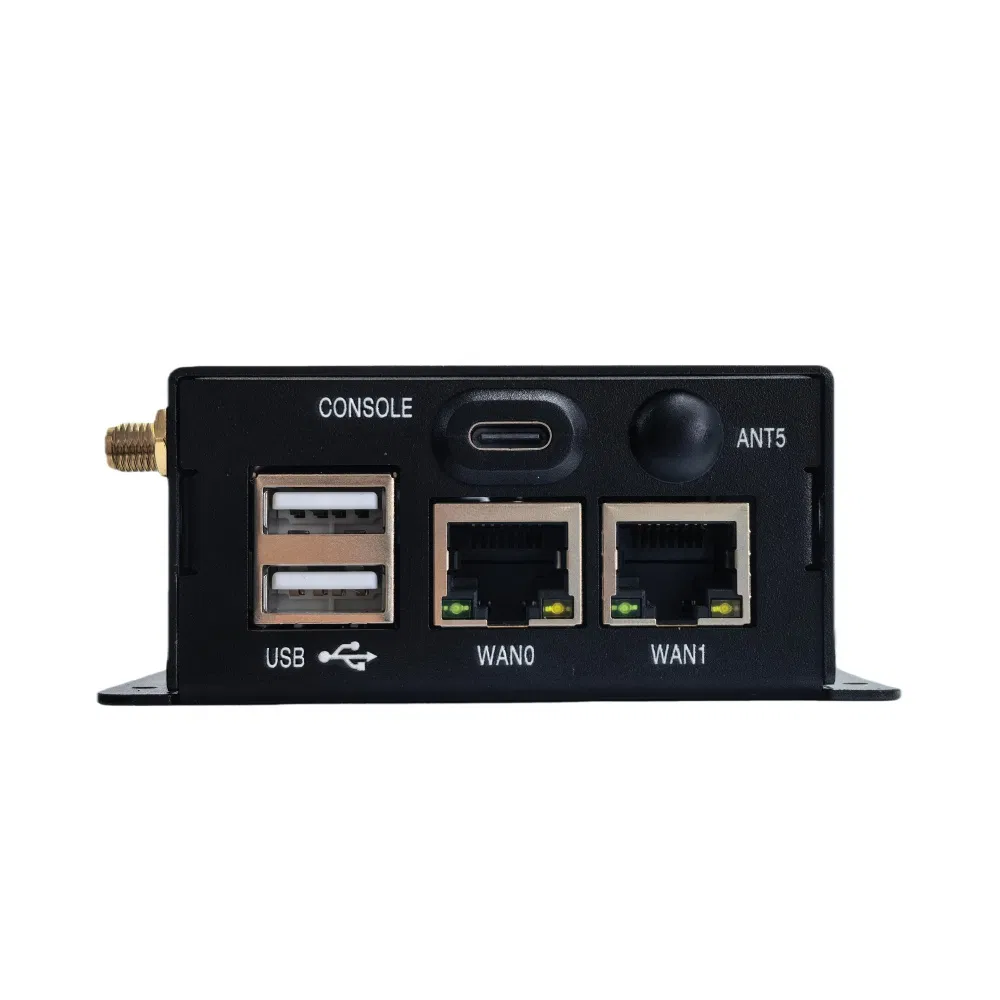

Gateway Front

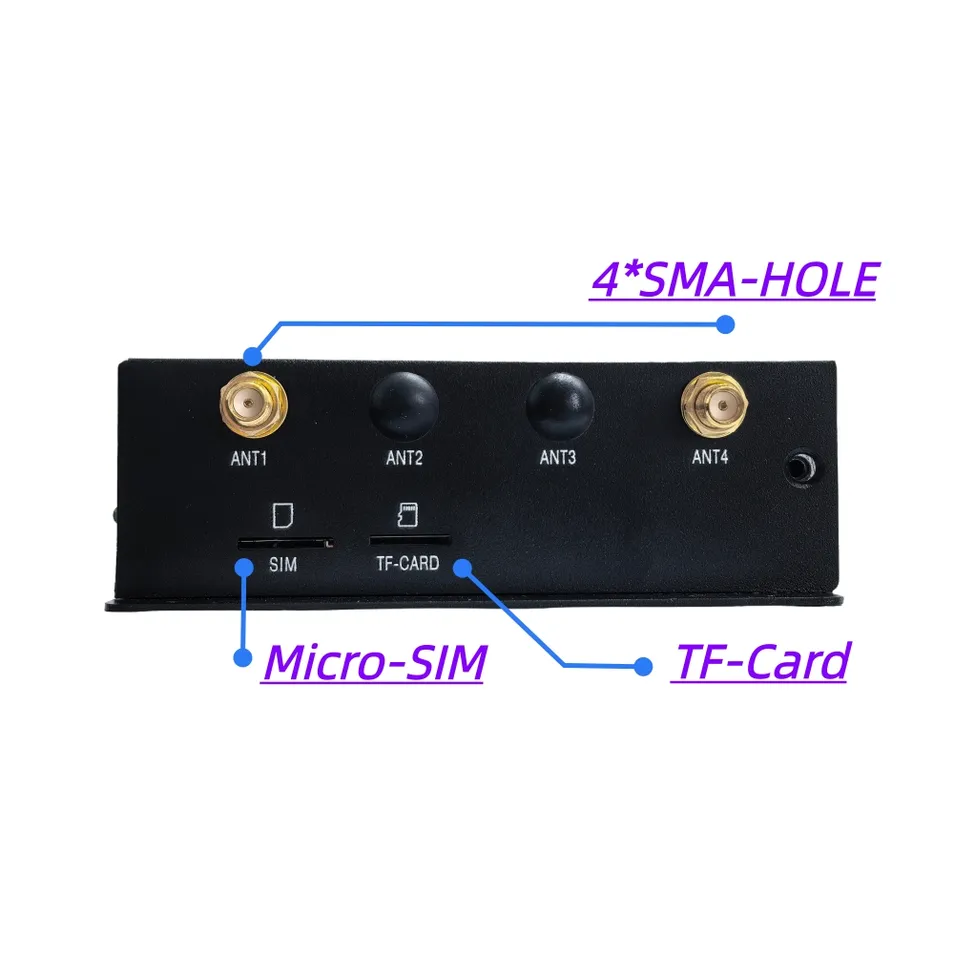

Gateway Back
Technical Details

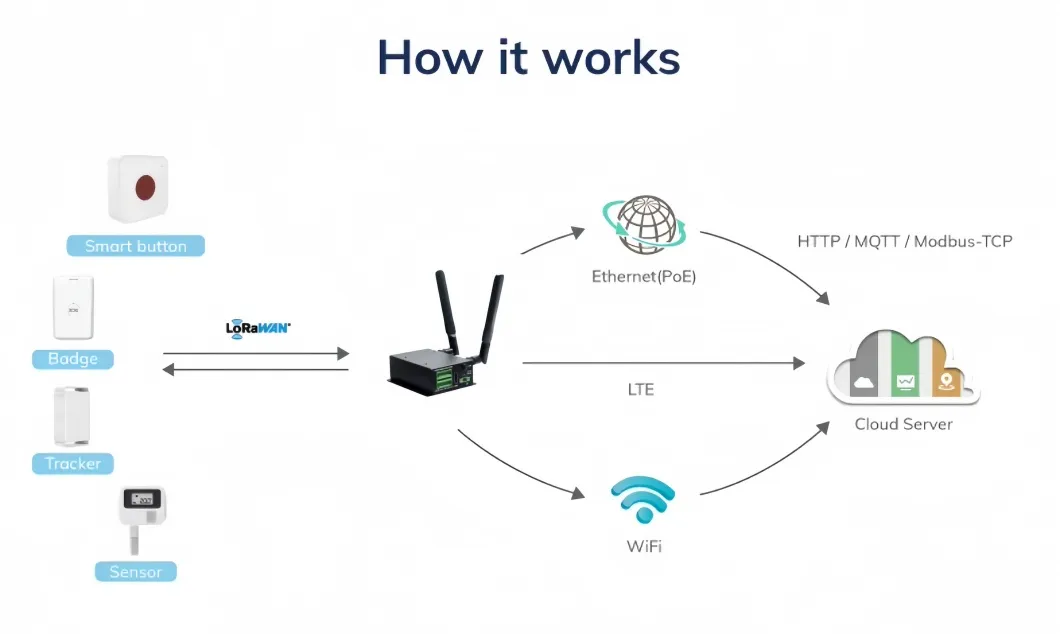

Application Scenario
Packing List
Name Quantity
Gateway Host1
35mm Rail buckle1
Power Connector1
IO Connector2
Facility Overview
Workshop 1

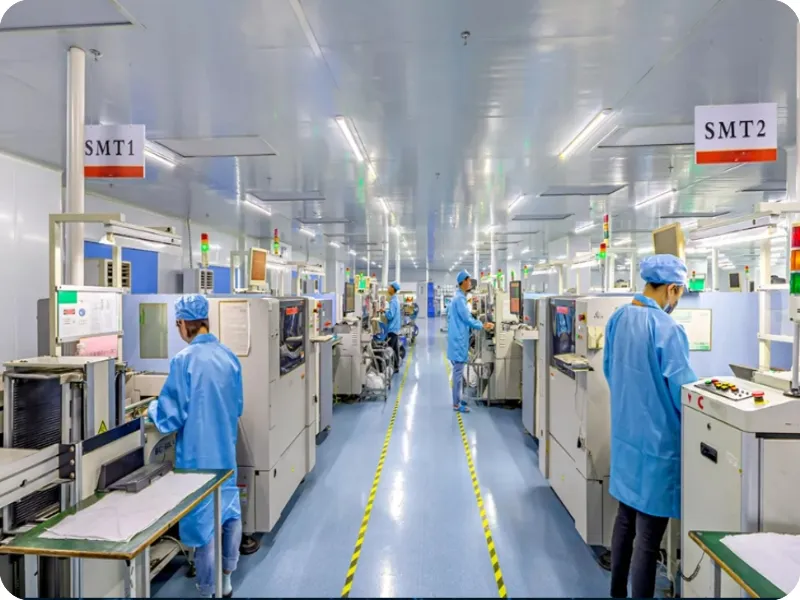

Workshop 2

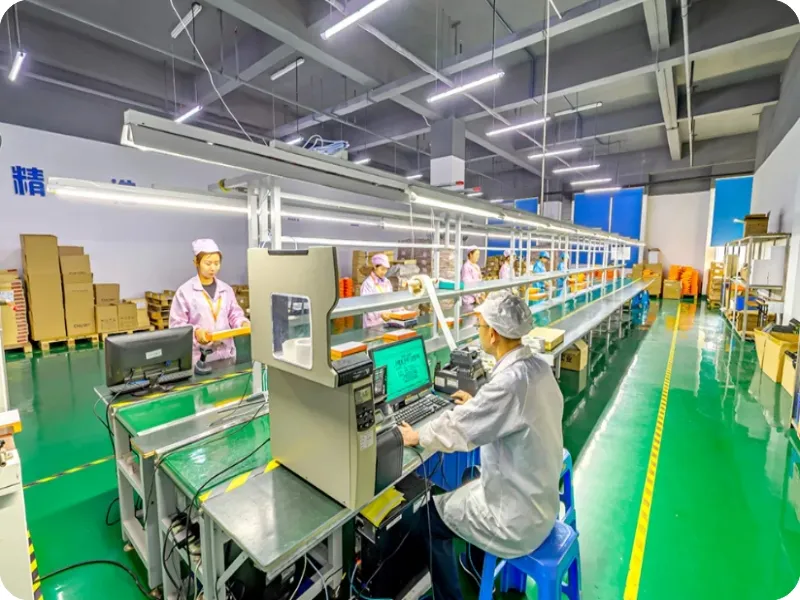

QC Area
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a comprehensive firm specializing in design and production. All items are crafted and designed independently.
Can I customize my logo on the devices?
Certainly, we offer laser engraving for your company logo on the machines.
What is the typical lead time?
Standard items are in stock and usually ship within 48 hours. Custom orders vary based on quantity and specifications.
What payment methods are supported?
We accept T/T (bank transfer), PayPal, and other standard international payment methods.
How is the product packaged for shipping?
Each unit is securely packaged in a high-strength cardboard box with protective foam lining. Shipping is available via air or sea.
What is the warranty policy?
We provide a 12-month warranty along with lifetime maintenance support for our products.
