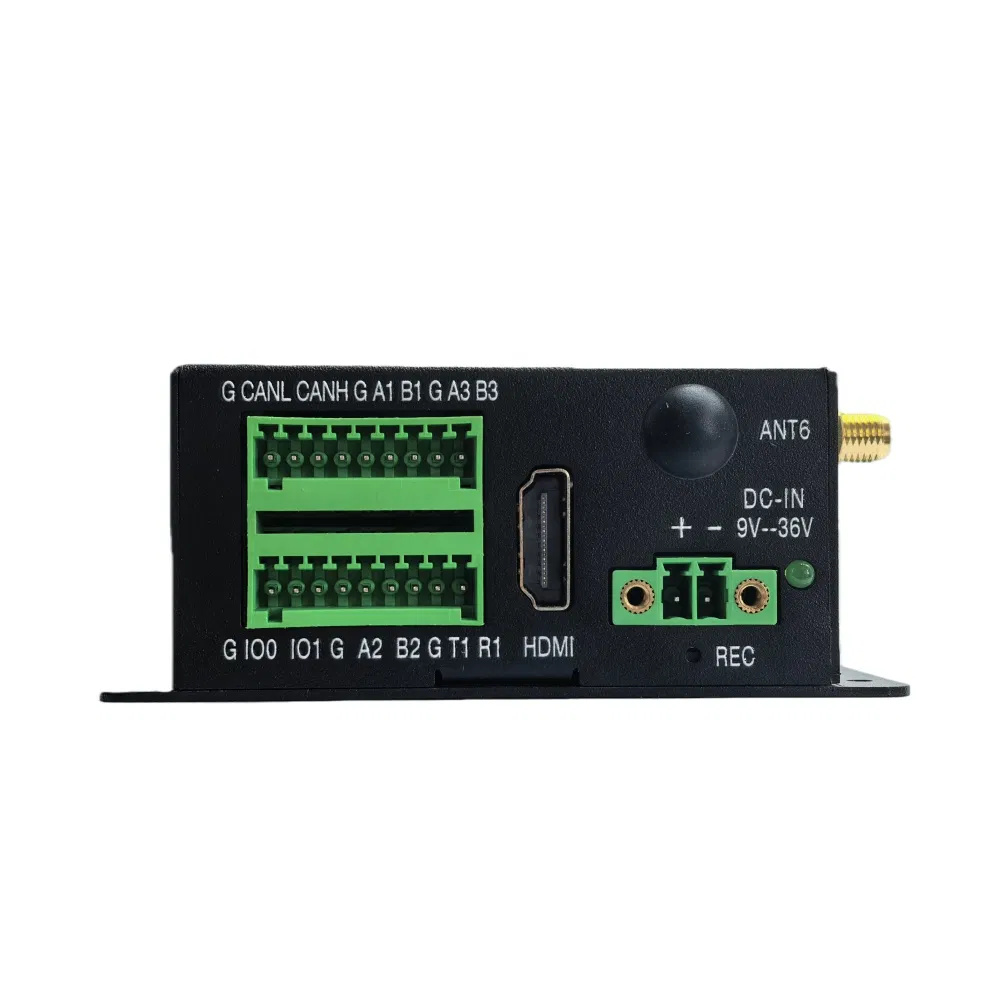

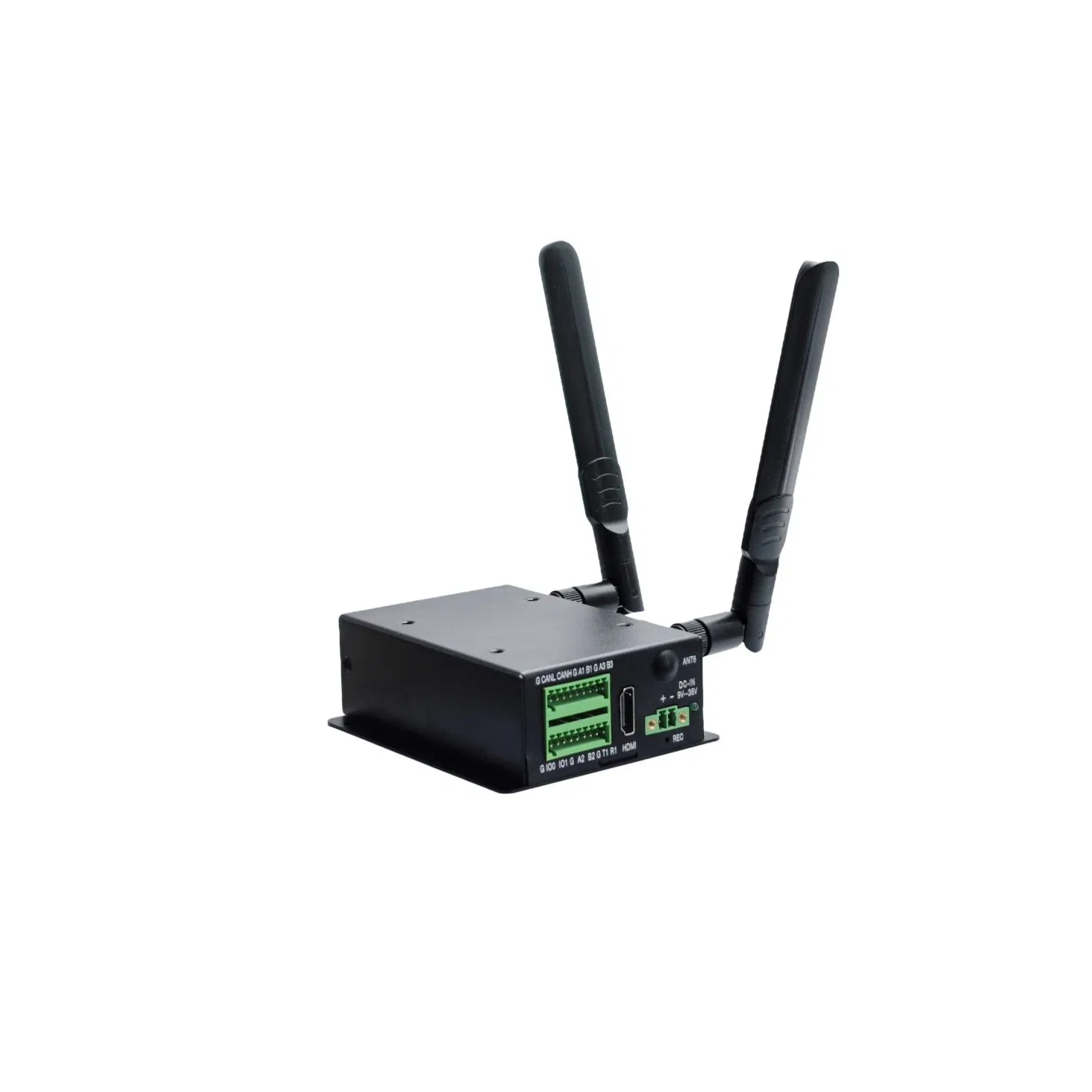

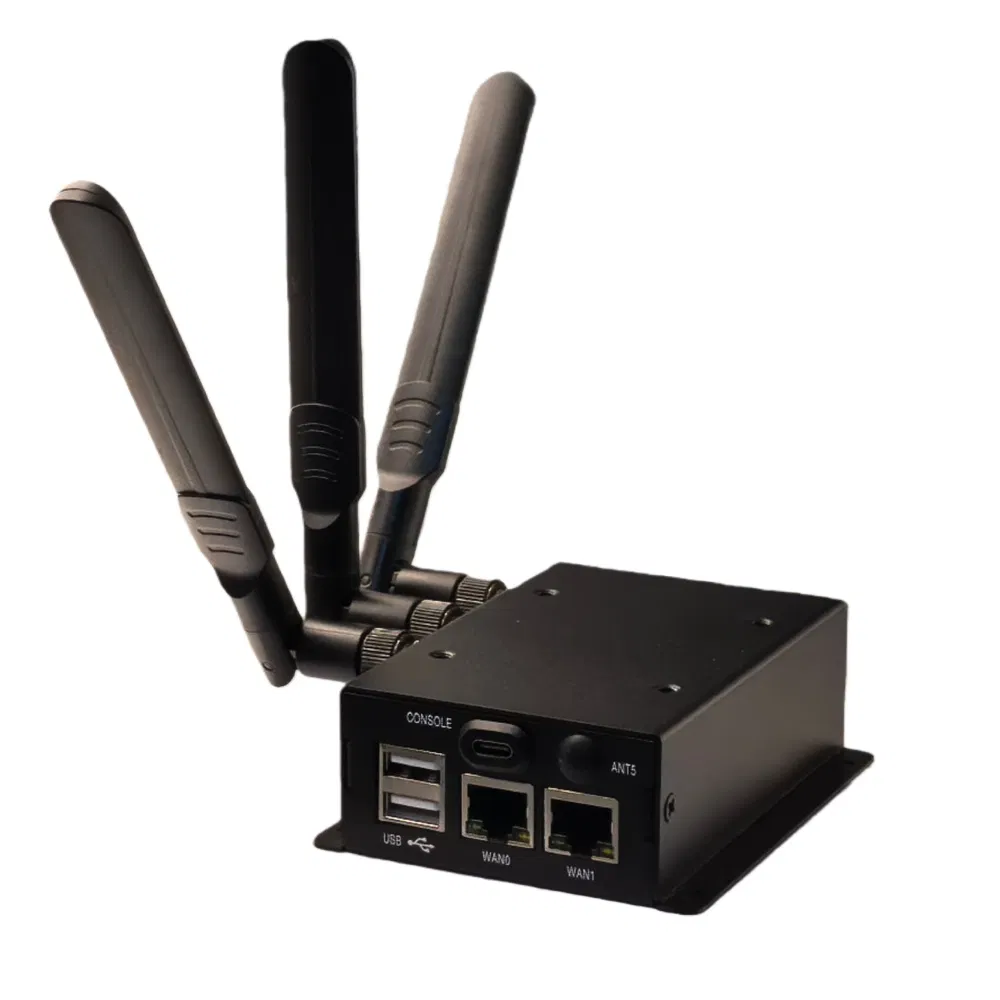

Kloizon Ubuntu 24 04 Linux Gateway for Smart Edge Computing

📋 Basic Info.

Model NO.

TM-CP3B

Support Network

Ethernet

Information content

Data

Condition

New

Transport Package

Carton

Production Capacity

100000 pieces/Year

📦 Packaging & Delivery

Package Size

19.00cm * 10.00cm * 4.00cm

Package Gross Weight

0.600kg

Lead Time

2 days (1 - 10 Pieces)
30 days (11 - 100 Pieces)
45 days (101 - 1000 Pieces)
To be negotiated ( > 1000 Pieces)

⚙️ Specification

Attribute	Parameter
CPU	RK3566 Quad-Core Cortex-A55, Up to 1.8GHz
DDR	2GB/4GB/8GB LPDDR4X memory, Up to 3120Mbps
Storage	32GB eMMC, Support HS400 Mode
NPU	1 Tops INT8 Computing Power

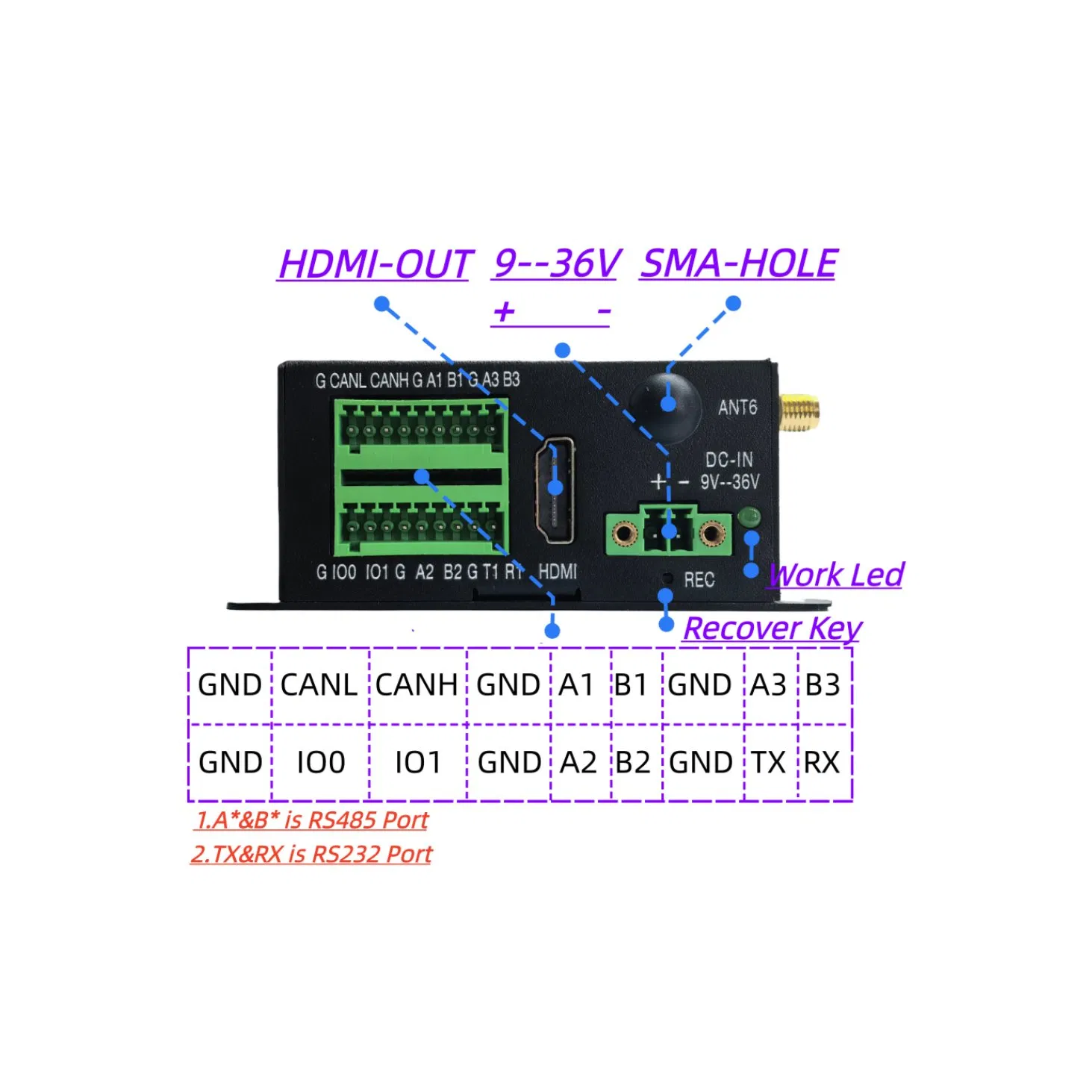

Serial Ports	Isolation 3 x RS485 / 1 x RS232
CAN Bus	Isolation 1 x CAN2.0B
IO	Isolation 2 x GPIO, Configurable as I2C or UART

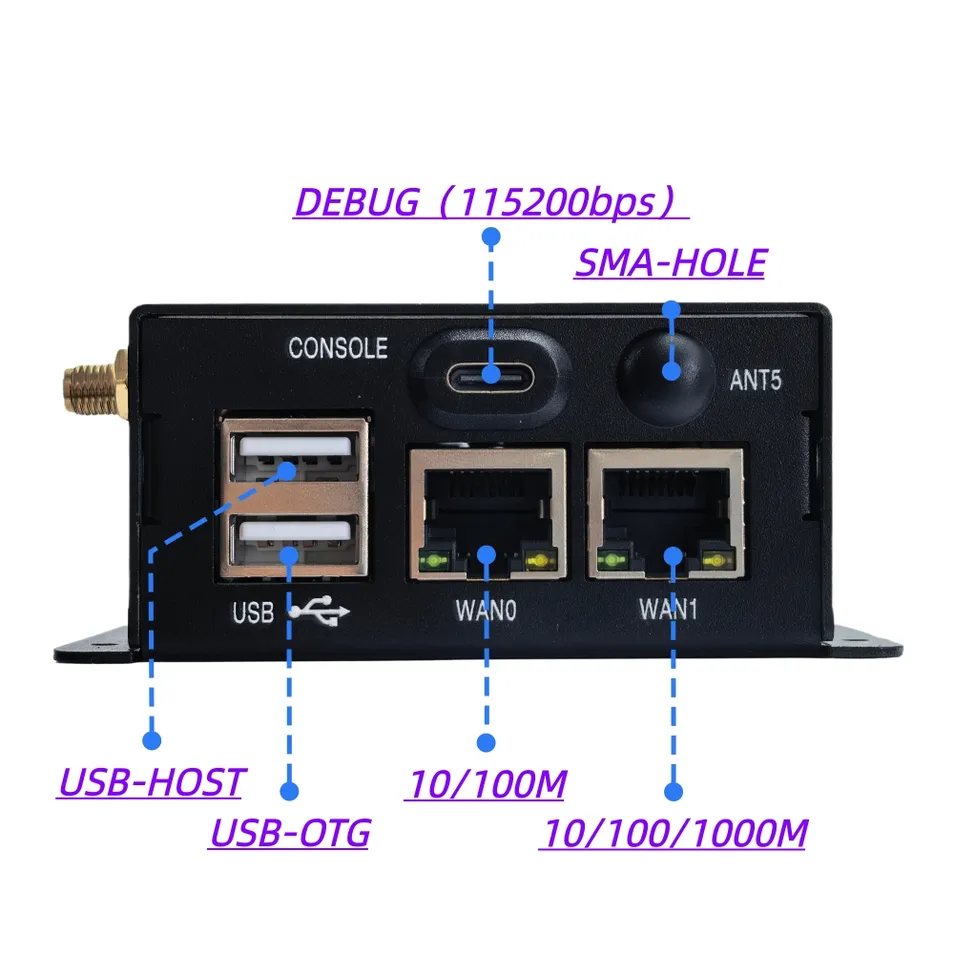

Ethernet	1 x 1000Mbps and 1 x 100Mbps Ethernet interfaces
USB	1 x USB 2.0 HOST and 1 x USB 2.0 OTG
WIFI/BT (Optional)	Supports M.2-2230 (PCIE+USB2.0) module

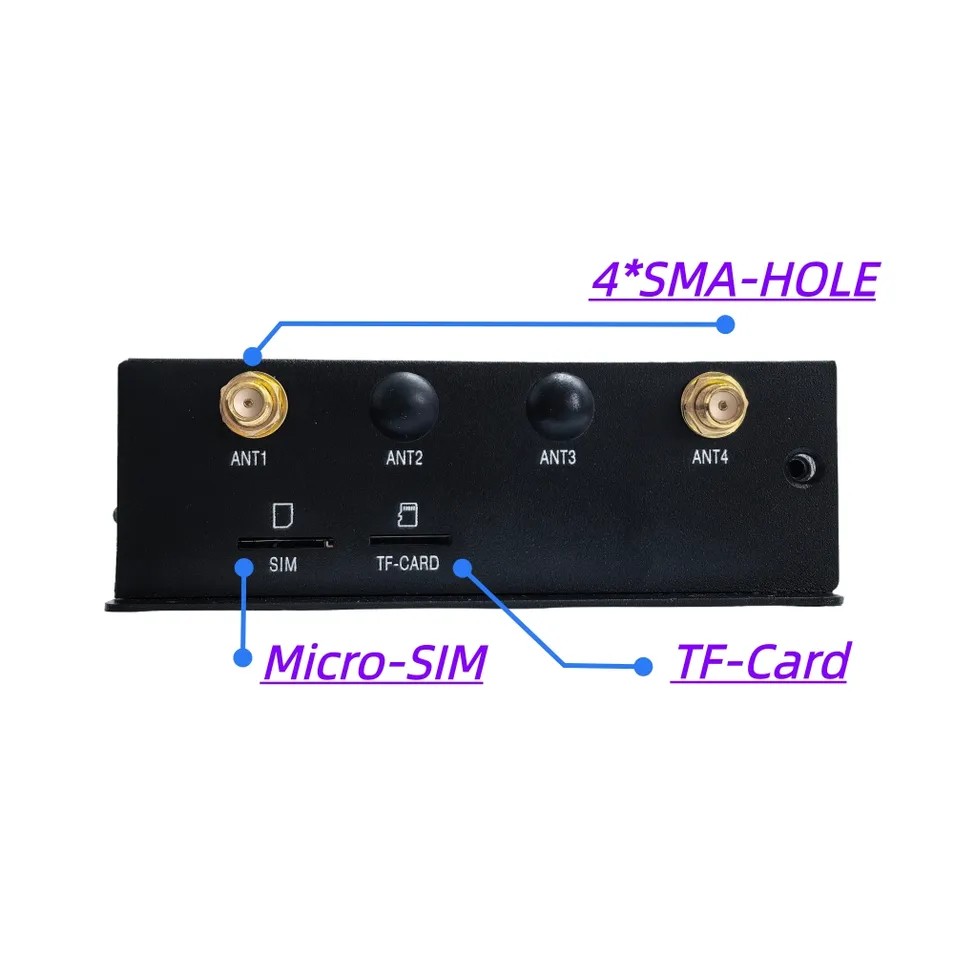

4G/GPS (Optional)	Supports MINI-PCIE module, 1 x Micro SIM
SSD (Optional)	1 x M.2-2242 SSD SATA interface
Video interface	1 x HDMI2.0 Port, MAX output 4KP60
Input Voltage	9 ~ 36V VDC
OS	Ubuntu24.04-LTS Desktop/Server/RTlinux
Dimensions	103mm×85mm×30mm (L×W×H)
Weight	310g

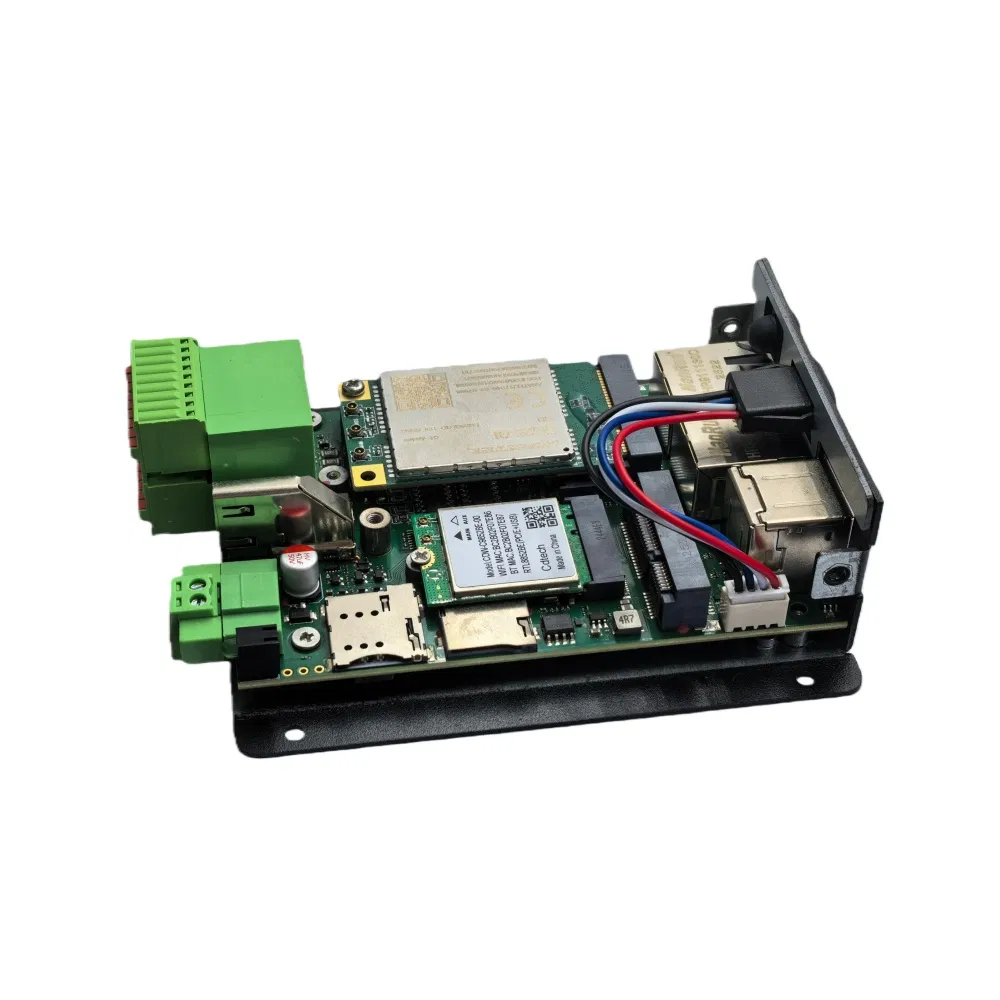

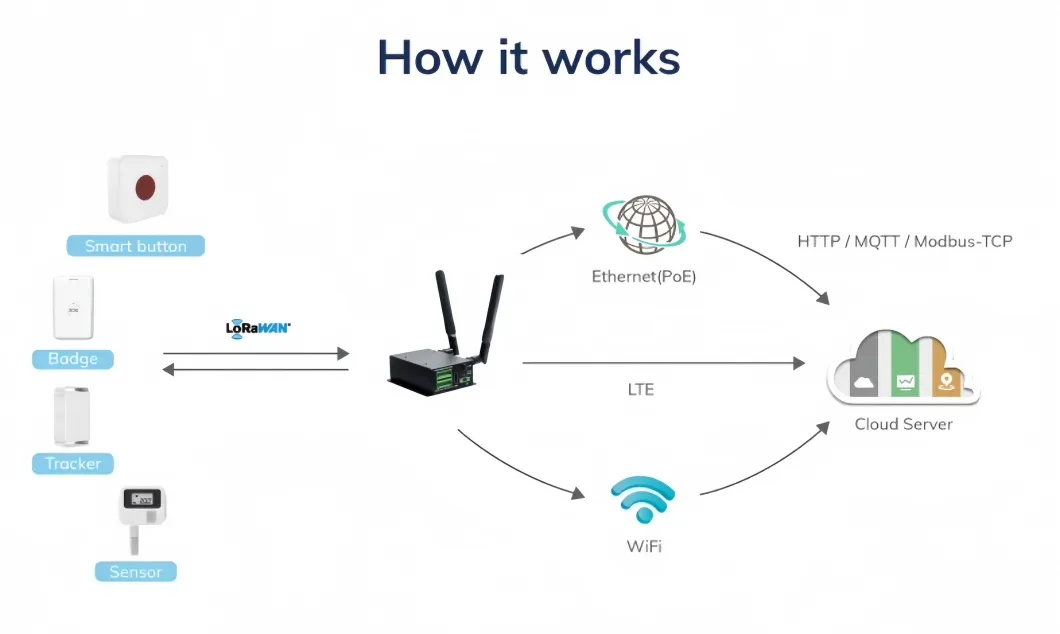

🔍 Product Description

📝 Packing List

Name	Quantity
Gateway Host	1
35mm Rail buckle	1
Power Connector	1
IO Connector	2

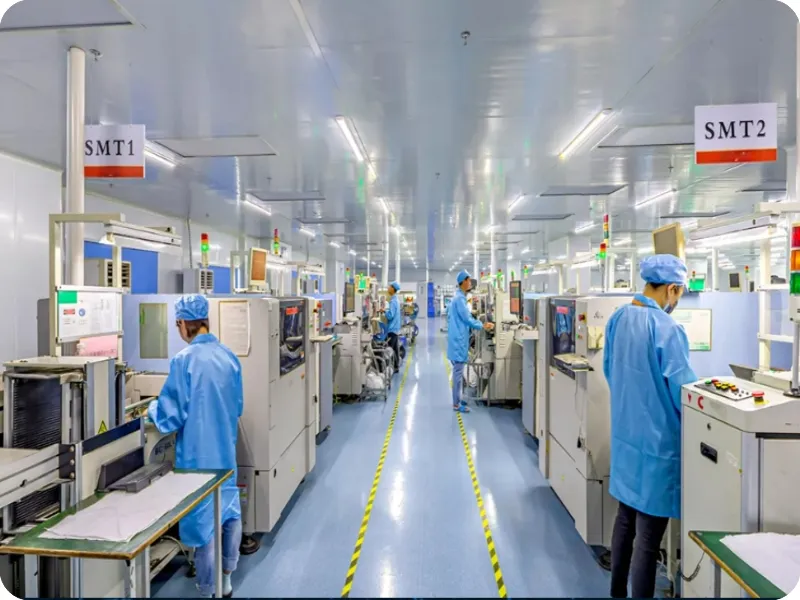

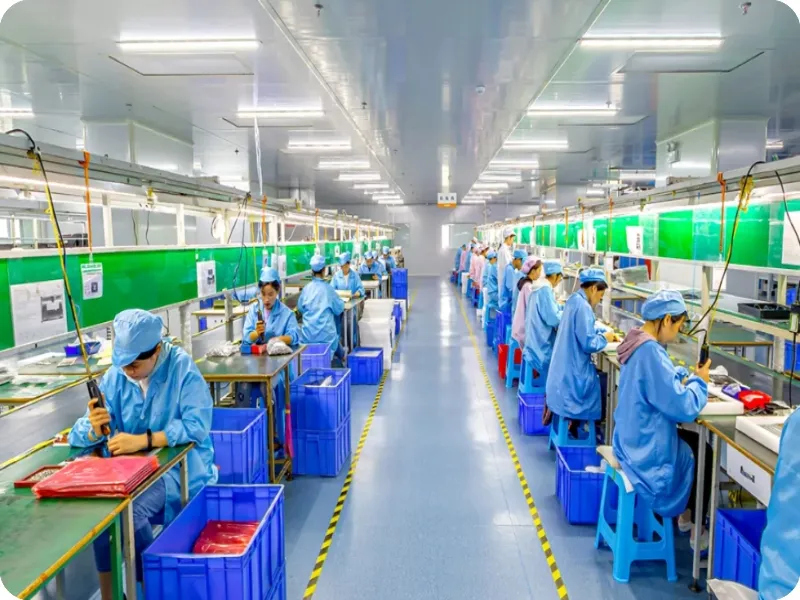

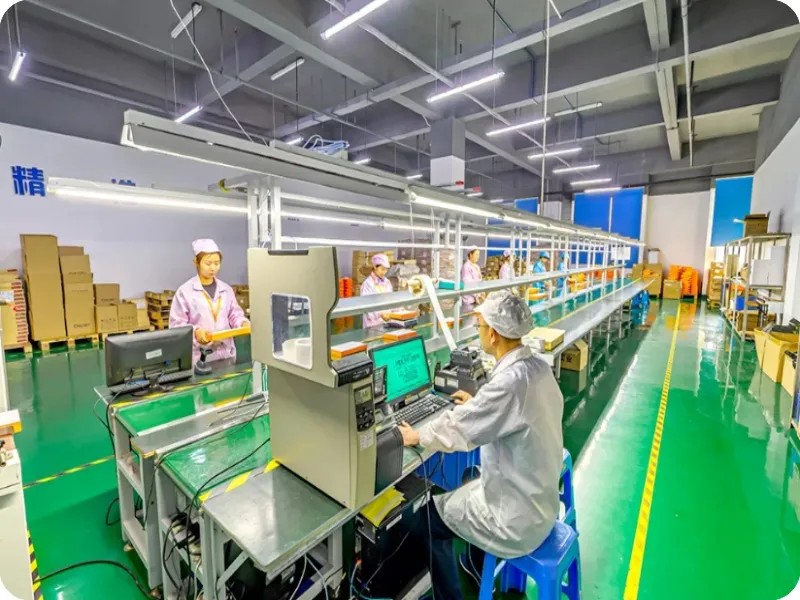

🏢 Overview & Quality Control

❓ FAQ

Q1: Are you a factory/manufacturer?

Yes, we are a comprehensive company, integrating design and production. All products are independently designed and crafted.

Q2: Can I customize my logo and communication methods?

Absolutely, the machine can laser engrave your customized company logo.

Q3: What is your lead time? How long for custom instruments?

Standard products are in stock, typically shipped within 48 hours post-payment. Custom items depend on specific quantity and technical specifications.

Q4: What payment methods do you accept?

We accept T/T (bank transfer), PayPal, and other major payment methods.

Q5: What packaging and shipping methods do you use?

Each machine is packaged in high-strength cardboard with protective foam lining. We offer air or sea delivery options to suit your requirements.

Q6: What is your after-sales service policy?

We provide a 12-month warranty and lifetime maintenance support for our products.
