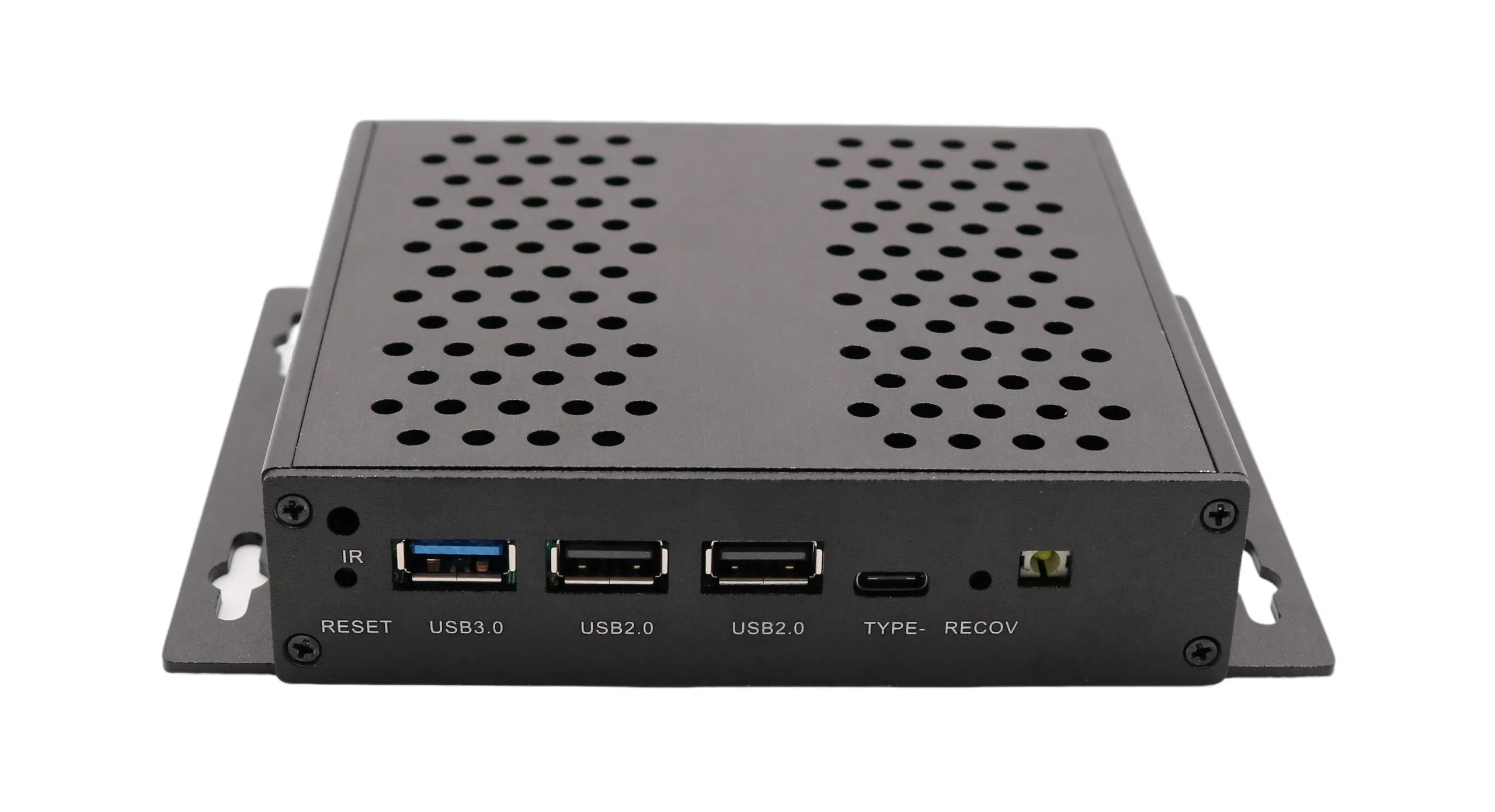

Mekotronics 8+64G Rockchip Rk3588 Edge Computing Device Iot Gateway Android 12 OS Linux Debian, Buildroot

1 / 5

Mekotronics 8+64G Rockchip Rk3588 Edge Computing Device Iot Gateway Android 12 OS Linux Debian, Buildroot

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

R58 mni PC-52

Type

Embedded SBC

OS Support

Android 12, Debian 11

CPU

8 Cores (4x A76 @2.4GHz + 4x A55 @1.8GHz)

GPU

Mali-G610

NPU

6 TOPS

DDR

LPDDR4X

HDMI Output

HDMI 2.1 (7680*4320 @60Hz)

HDMI Input

4K 60Hz

WiFi

WiFi 6 (802.11 ax MIMO)

Package Size

28.00cm * 20.00cm * 10.00cm

Gross Weight

1.500kg

Product Description

The R58 Mini PC utilizes the high-performance Rockchip RK3588 chipset, featuring an 8nm process and an 8-core CPU architecture (4 cores Cortex A76 and 4 cores Cortex A55).

Advanced Visual Capabilities: With its HDMI 2.1 output, the device supports ultra-high-definition video resolutions up to 8K @ 60Hz (7680*4320).

The integrated 6.0 TOPS NPU is designed to handle demanding edge computing tasks for various terminal applications. Furthermore, the R58 supports diverse interfaces capable of driving up to four independent displays simultaneously (e.g., 8K + 4K + 2K + 1K or triple 4K + 1K).

Equipped with Gigabit network ports and 4*16 bit channel DDR, the system supports up to 32GB of memory for seamless multitasking.

CPU	Rockchip RK3588, Octa-core (4x Cortex A76 & 4x Cortex A55)
CPU Frequency	Cortex A76 @2.4Ghz / Cortex A55 @1.8Ghz
GPU	Mali-G610 GPU, OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2; 2D acceleration; 8K 10-bit decoder/encoder
NPU	6.0 TOPS
Memory (DDR)	LPDDR4X (4G, 8G, 16G optional)
Operating Systems	Android 12, Buildroot, Debian 11, Ubuntu 20.04
Internal Storage	eMMC 5.1, SDIO 3.0 (32GB, 64GB, 128GB optional)
Display Output	HDMI 2.1 (8K 60Hz), DP 1.4 (8K 30Hz), HDCP 2.3
HDMI Input	Max 4K 60Hz
Networking	Gigabit Ethernet (1000Mbps), WiFi 6 (MIMO)
USB & Storage	USB 3.0, USB 2.0, Type-C, SATA 3.0 (7-pin)
Industrial I/O	Serial Port, GPIO, RTC Clock
Power Supply	12V 3A (DC Port 5.5x2.0)

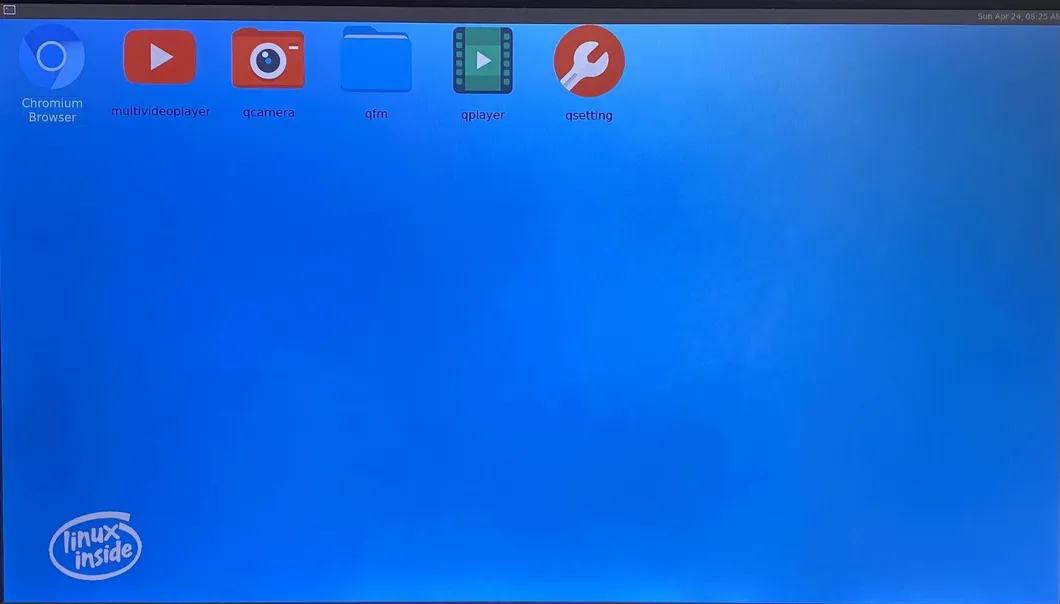

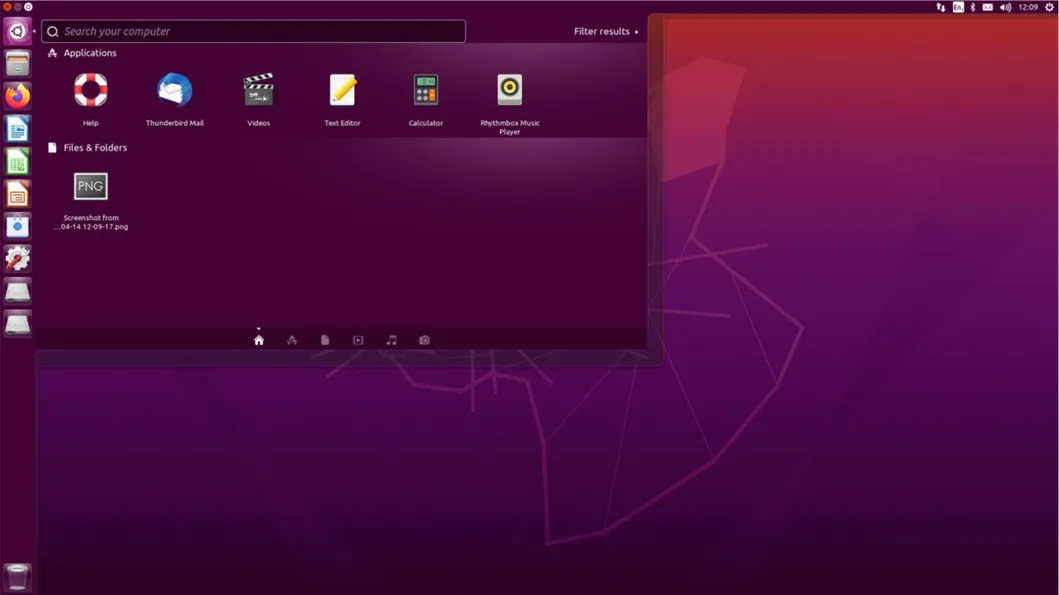

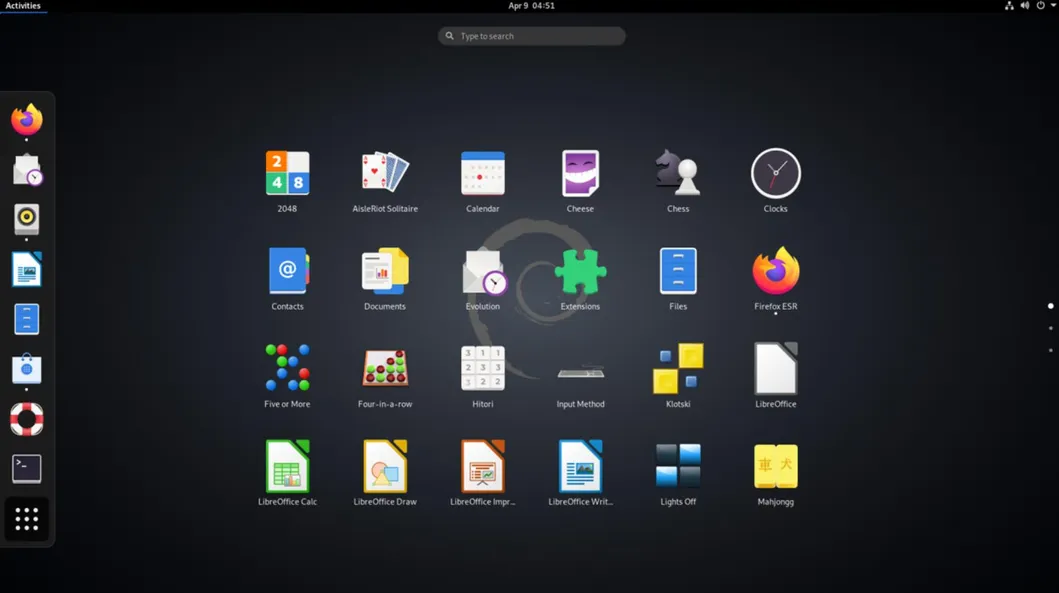

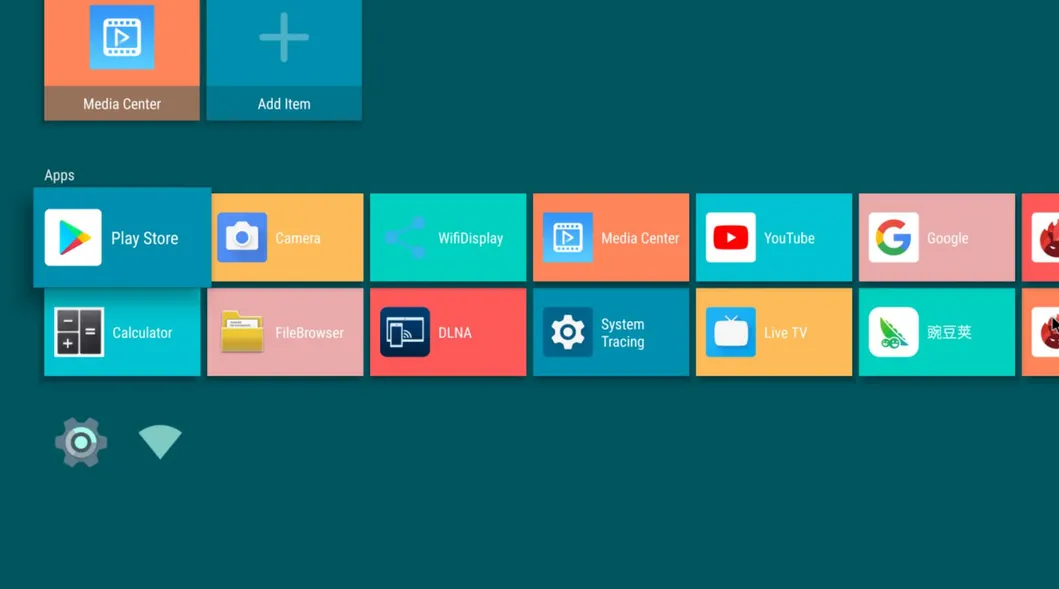

Operating System Versatility

The device supports four distinct operating systems to meet diverse development needs: Debian 11, Android 12, Ubuntu 20.04, and Buildroot.

Frequently Asked Questions

What is the maximum resolution supported by the HDMI output?

The R58 Mini PC supports HDMI 2.1, which allows for a maximum video output resolution of 8K at 60Hz (7680*4320).

How many displays can I connect at once?

The device features diverse interfaces that support up to 4-screen simultaneous display, including configurations like one 8K, one 4K, one 2K, and one 1K screen.

What kind of AI performance can I expect?

It comes with an internally integrated 6.0 TOPS NPU, which is powerful enough to handle most edge computing and terminal AI application needs.

Does the device support high-speed wireless internet?

Yes, it supports WiFi 6 (IEEE 802.11 a/b/g/n/ac/ax MIMO) and includes a Gigabit Ethernet port (1000Mbps) for fast, stable networking.

Can I expand the internal storage or connect external drives?

Yes, the device supports eMMC 5.1 and SDIO 3.0. It also includes a SATA 3.0 (7-pin) interface and multiple USB 3.0/2.0 ports for external storage expansion.

Which operating systems are compatible?

The R58 Mini PC is highly versatile, supporting Android 12, Debian 11, Ubuntu 20.04, and Buildroot environments.
