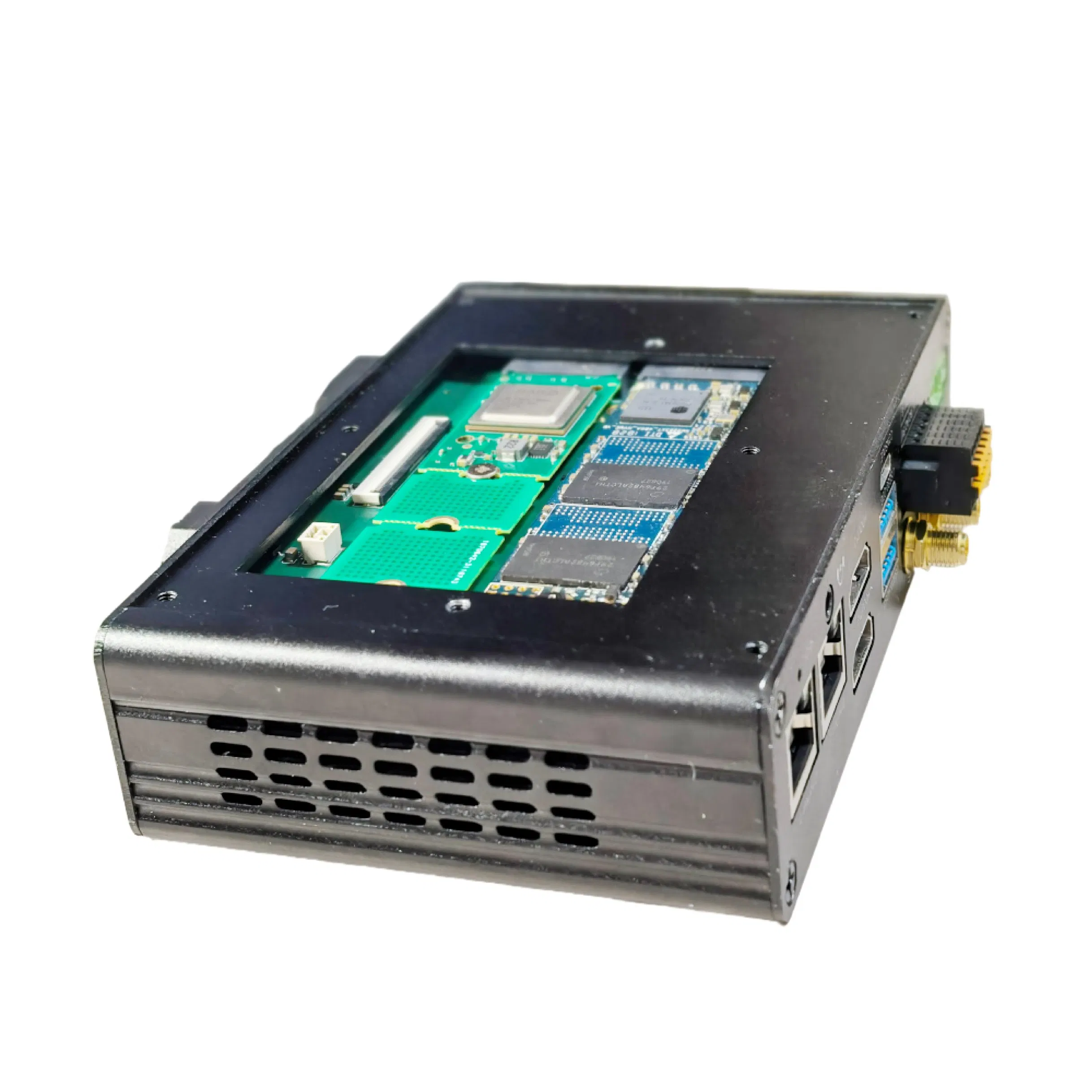

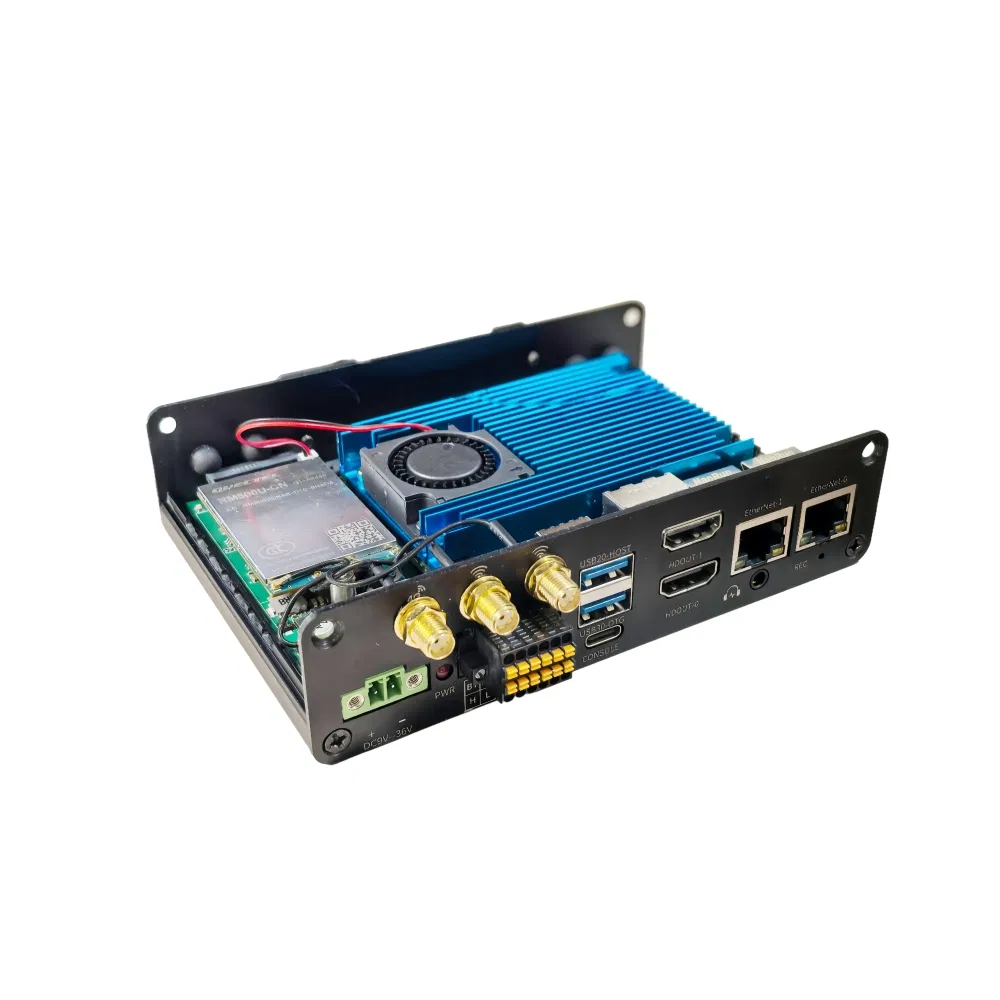

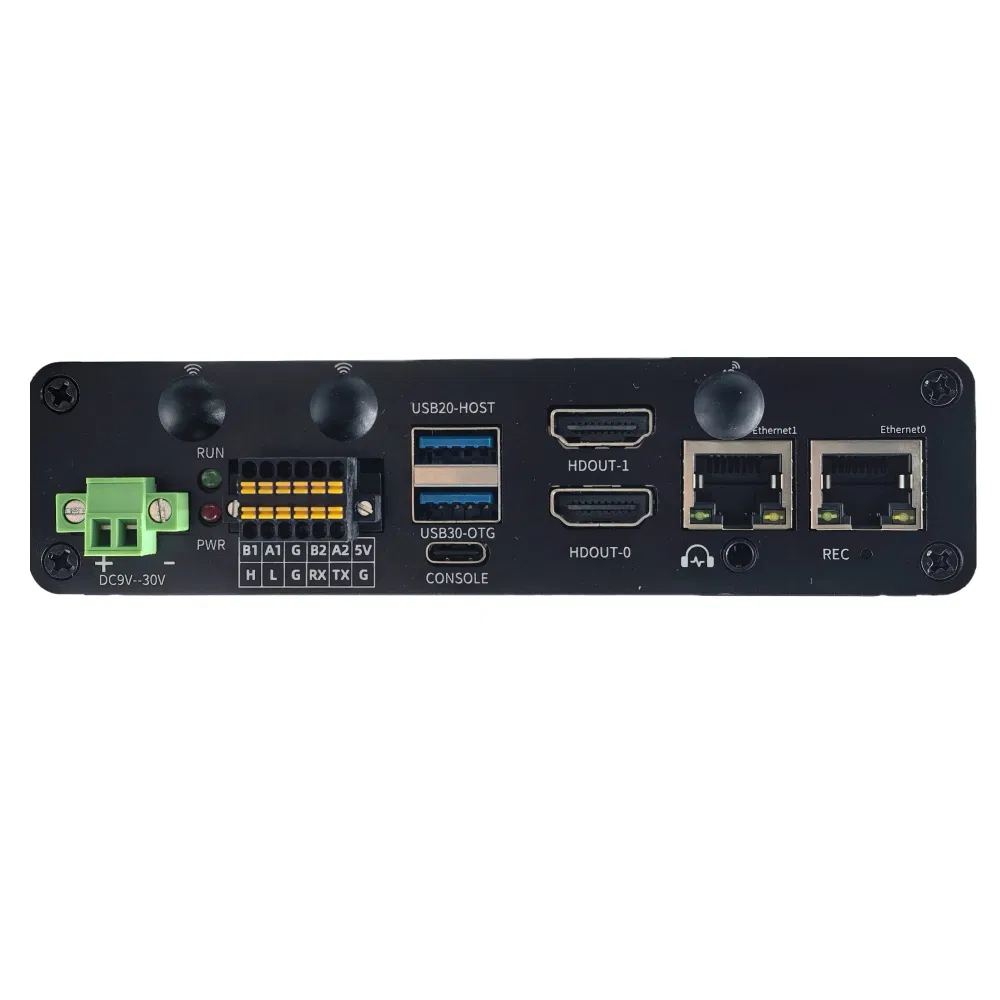

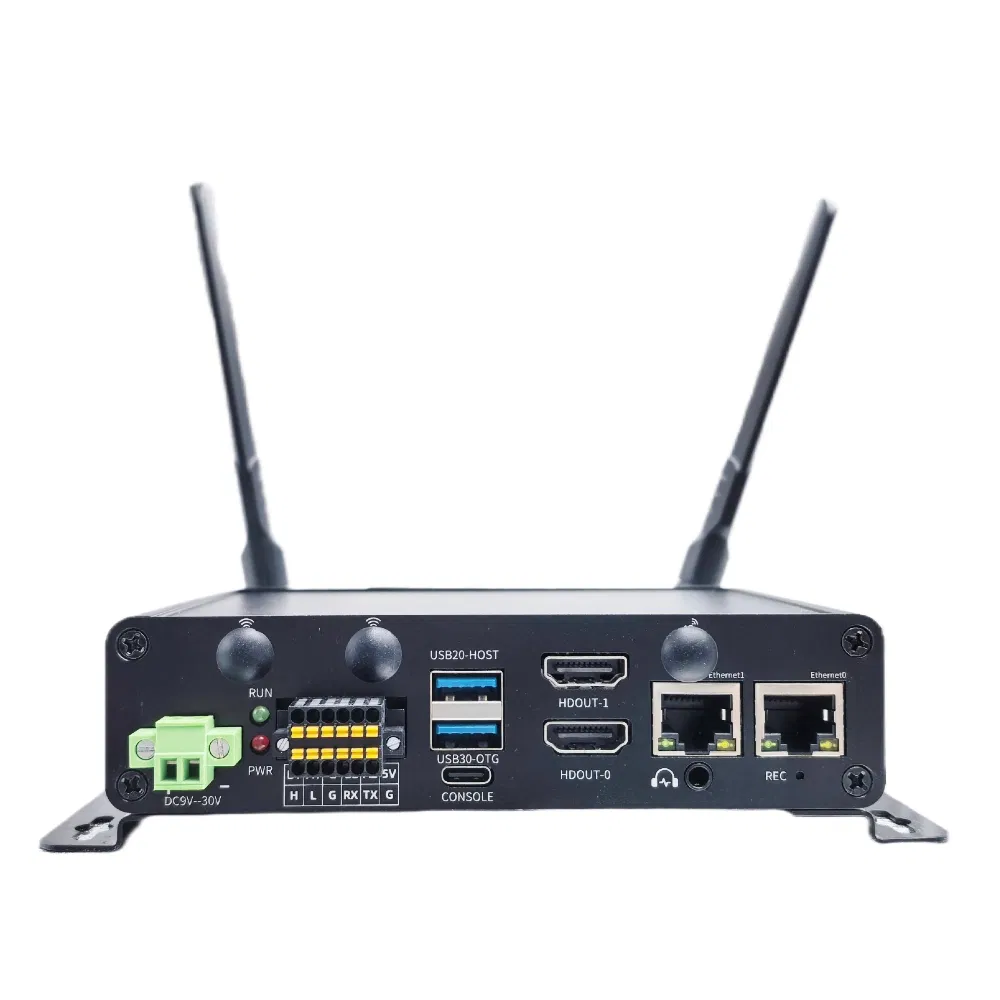

Rk3588 Open Source Ubuntu24.04 4G/5g/WiFi6 Smart Edge Computing Gateway

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
TM-CP5B
Support Network
Ethernet
Information Content
Data
Condition
New
DC Input
9V - 36V
Isolation
RS485 RS232 Can Ttl
WiFi/BT
M.2 Pcie+USB
Ethernet
2X1000m
SSD Support
Nvme/SATA 2242/2280

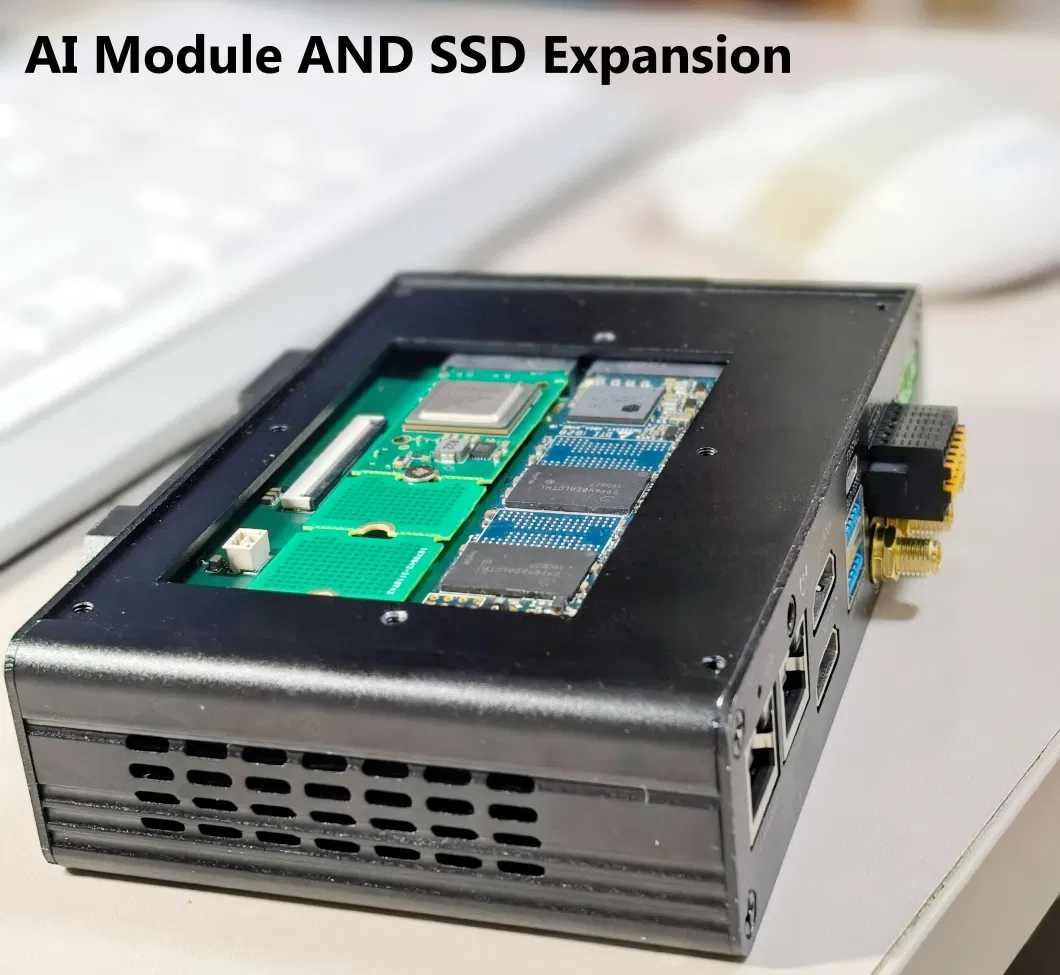

AI Module
Hailo 8 (Pcie3.0X4)
Dimensions
140mm×93mm×35mm
Production Capacity
100,000 pieces/Year

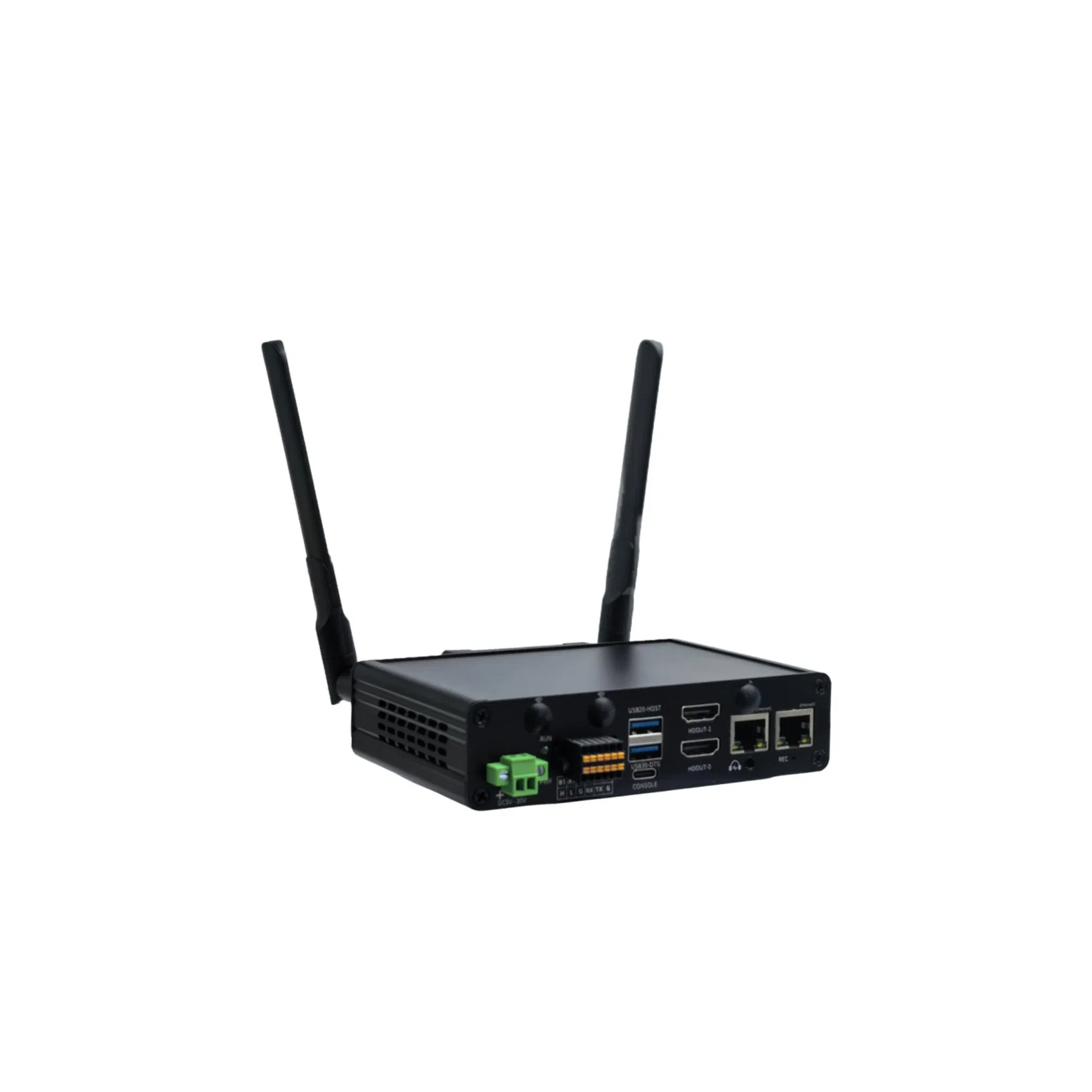

Smart Edge Computing Gateway
S

Technical Specifications

Attribute Parameter
CPURK3588 Quad-Core Cortex-A76 and Quad-Core Cortex-A55, Up to 2.2GHz
DDR8GB/32GB dual-channel LPDDR5 memory, Up to 4800Mbps
Storage64GB eMMC, Support HS400 Mode
NPU6 Tops INT8 Computing Power
Serial PortsIsolation 2 x RS485
CAN BusIsolation 1 x CAN2.0B
IOIsolation 2 x GPIO, Configurable as I2C or UART
Ethernet2 x Gigabit Ethernet interfaces
USB1 x USB 2.0 HOST and 1 x USB 3.0 OTG
WIFI/BT (Optional)Supports M.2-2230 (PCIE+USB2.0) module
4G/5G/GPS (Optional)Supports M.2 4G/5G module, 1 x Nano SIM
Antenna Connector7 x SMA
Video Interface2 x HDMI2.1 Port, Max output 8KP60
Audio Interface3.5mm Earphones, Support Mic input
Console PortTYPEC USB to UART DEBUG Port (115200bps)
Input Voltage9 ~ 30V VDC
PCIE Extension1 x PCIE3.0X4 and 1 x PCIE2.0X1
TF Card1 x High-speed TF card interface
SSDNVME/SATA Support M.2-2242/2280
OSUbuntu 24.04-LTS Desktop
Dimensions140mm×93mm×35mm (L×W×H)
Installation35mm DIN-rail / Bracket mounting
Weight495g
P

Product Gallery

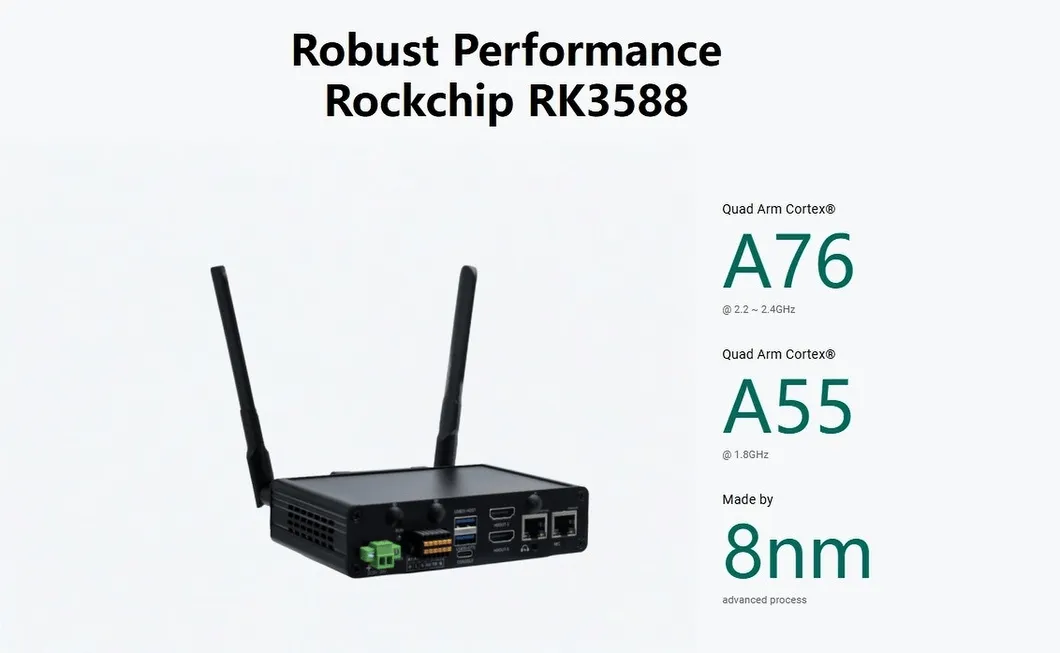

Gateway Interface Product Architecture Hardware Details
Internal Structure

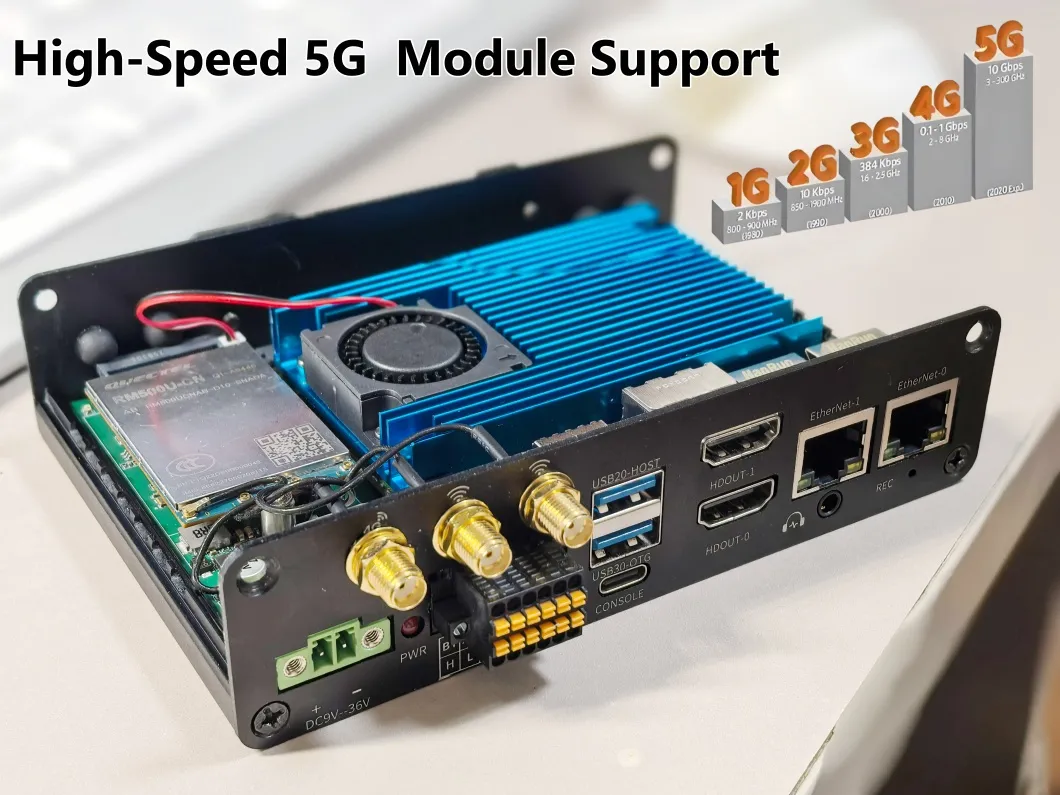

Connectivity Layout
Mounting Options
M

Fixation Method & Packing

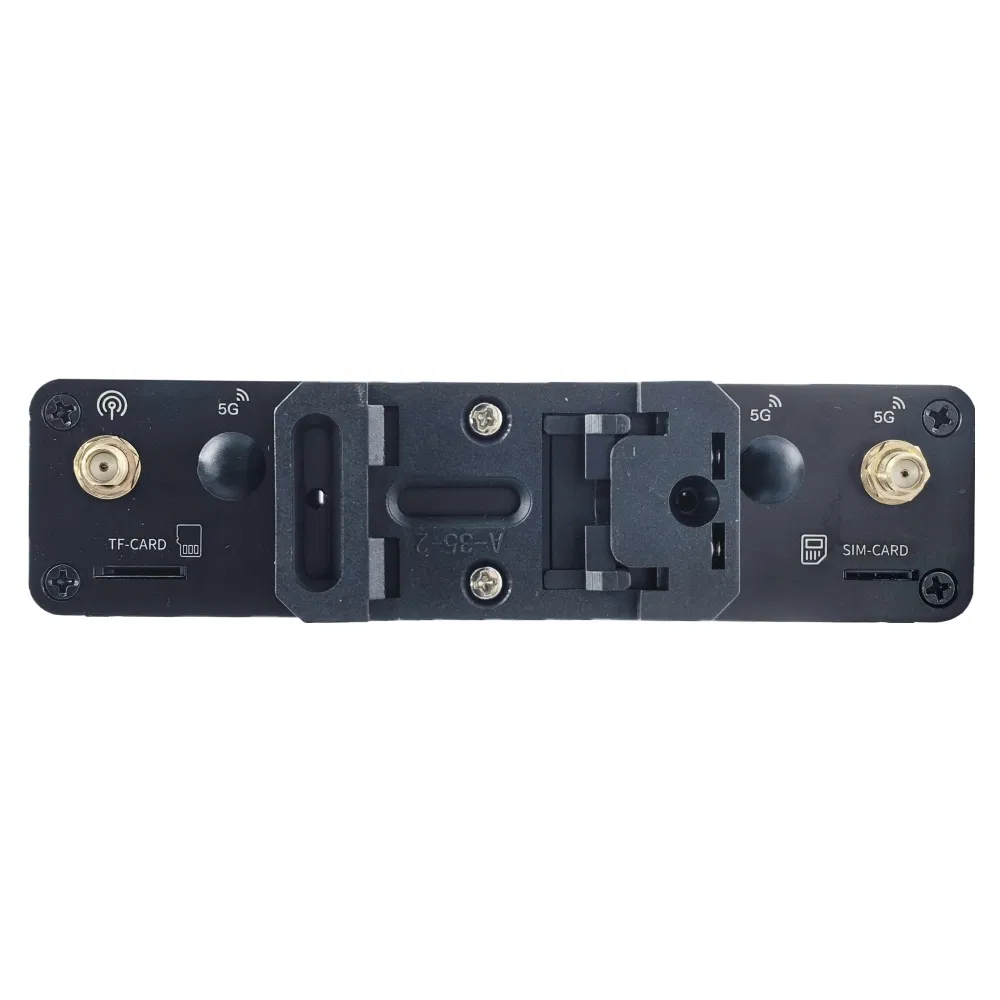

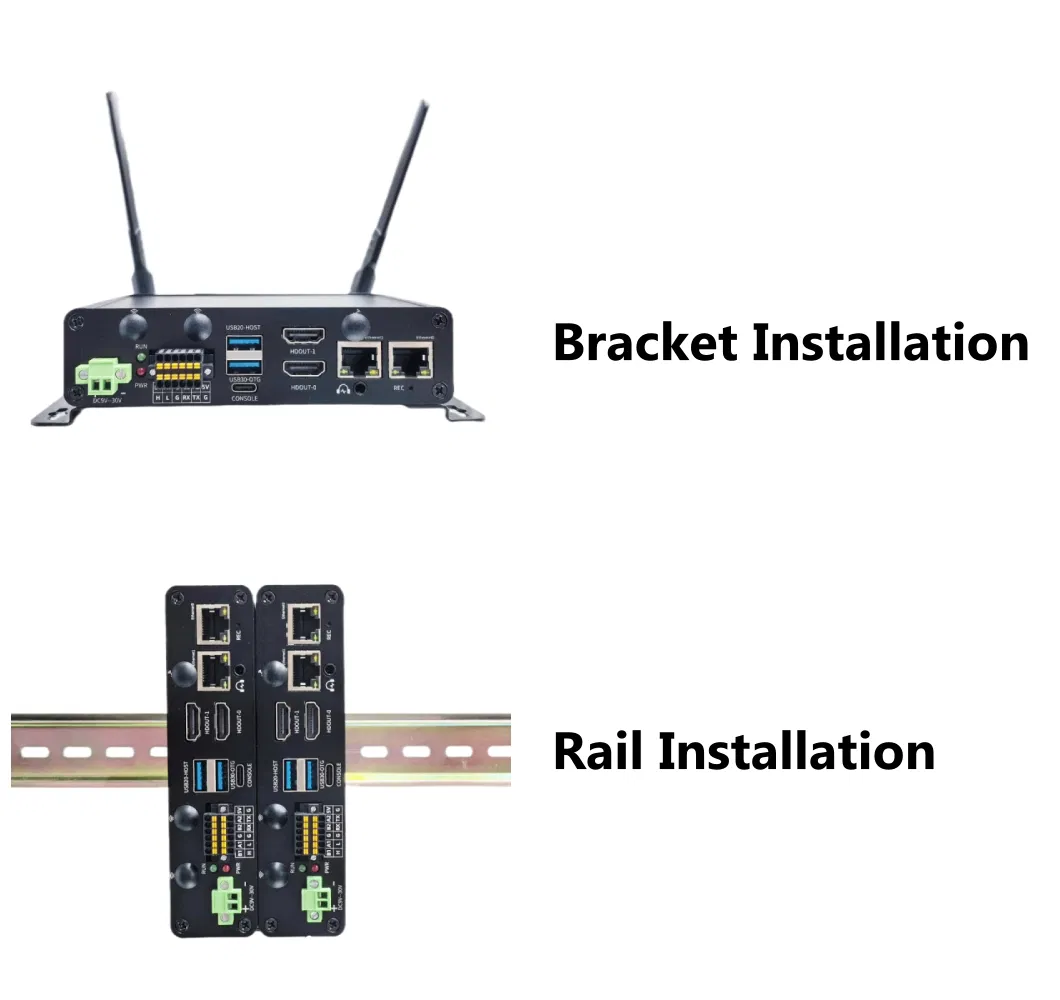

DIN-rail Mounting
Packing List
NameQuantity
Gateway Host1
Bracket2
35mm Rail Buckle1
Power Connector1
IO Connector1
C

Professional Environment

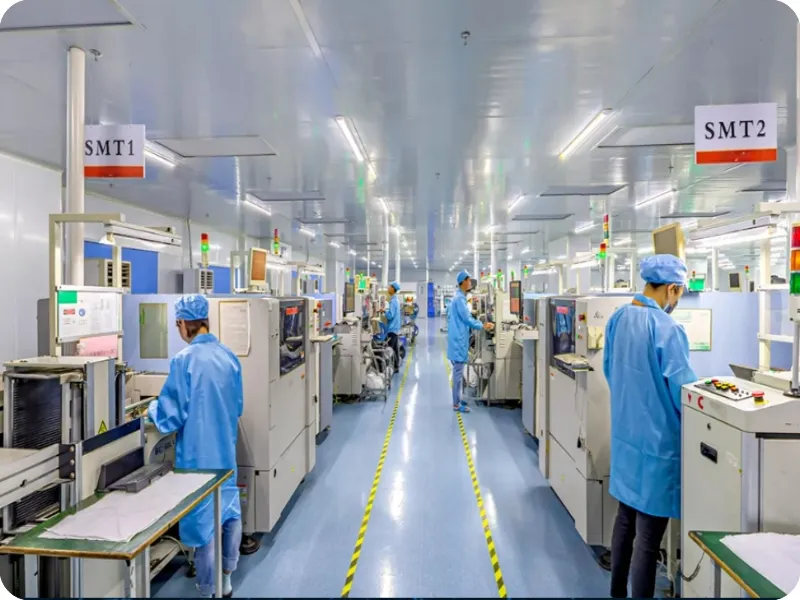

Manufacturing Facility
Testing Lab

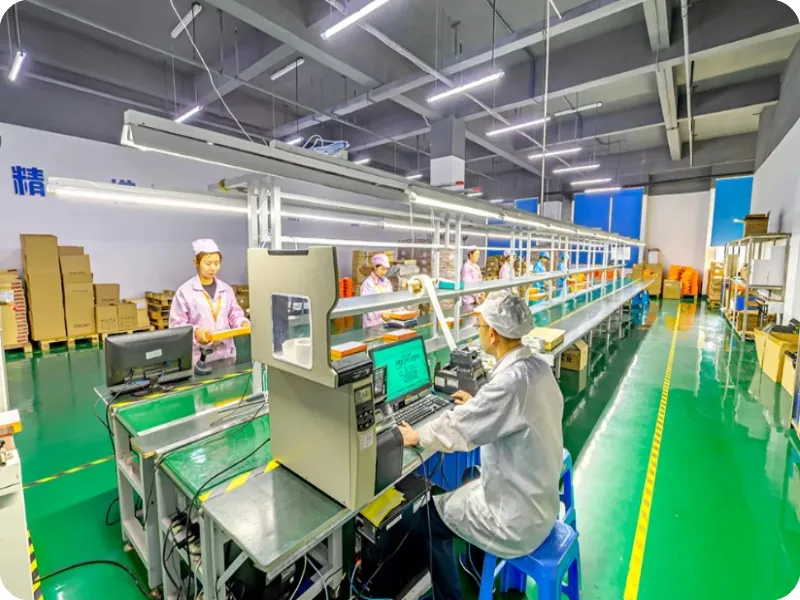

Inventory Management

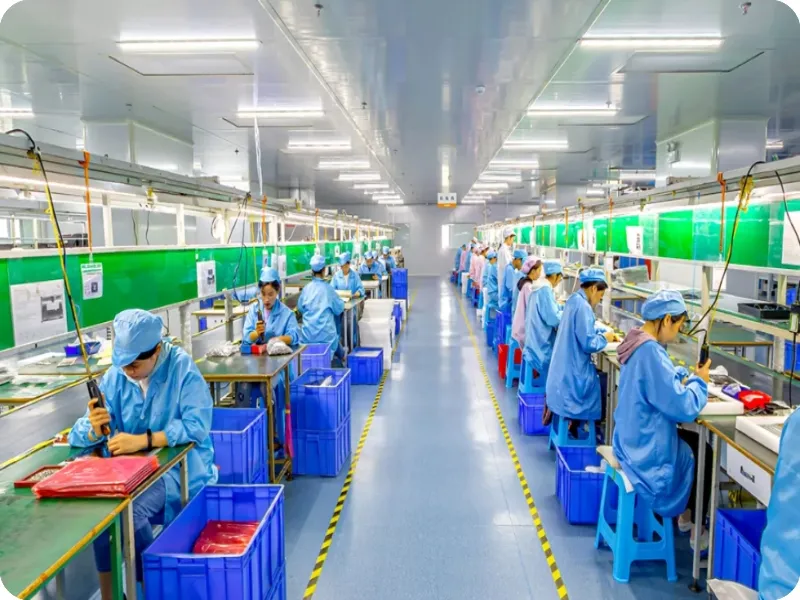

Production Line
?

Frequently Asked Questions

Q1: Are you a factory/manufacturer?
A: Yes, we are a comprehensive company integrating design and production. All products are independently designed and manufactured in-house.
Q2: Can I customize my logo on the devices?
A: Yes, we support customization. The machine can laser engrave your company logo according to your requirements.
Q3: What payment methods do you accept?
A: We accept multiple payment methods including T/T (bank transfer), PayPal, and other standard international options.
Q4: What are the available shipping methods?
A: We use professional carton packaging and support various shipping methods including express, air, and sea freight to ensure safe delivery.
Q5: What is your after-sales service policy?
A: We provide a comprehensive 12-month warranty on all hardware products.
Q6: Do you provide long-term technical support?
A: Yes, we offer lifetime technical maintenance and support for all our smart edge computing gateways.
