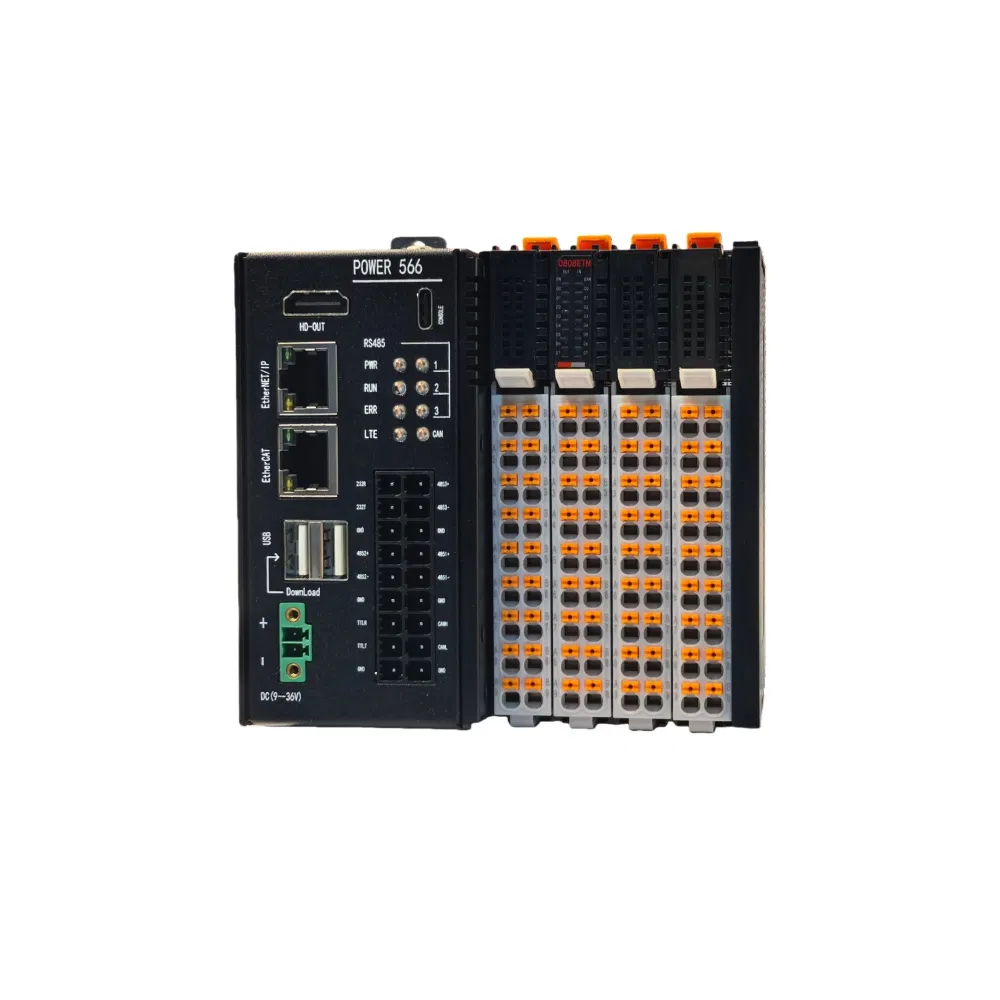

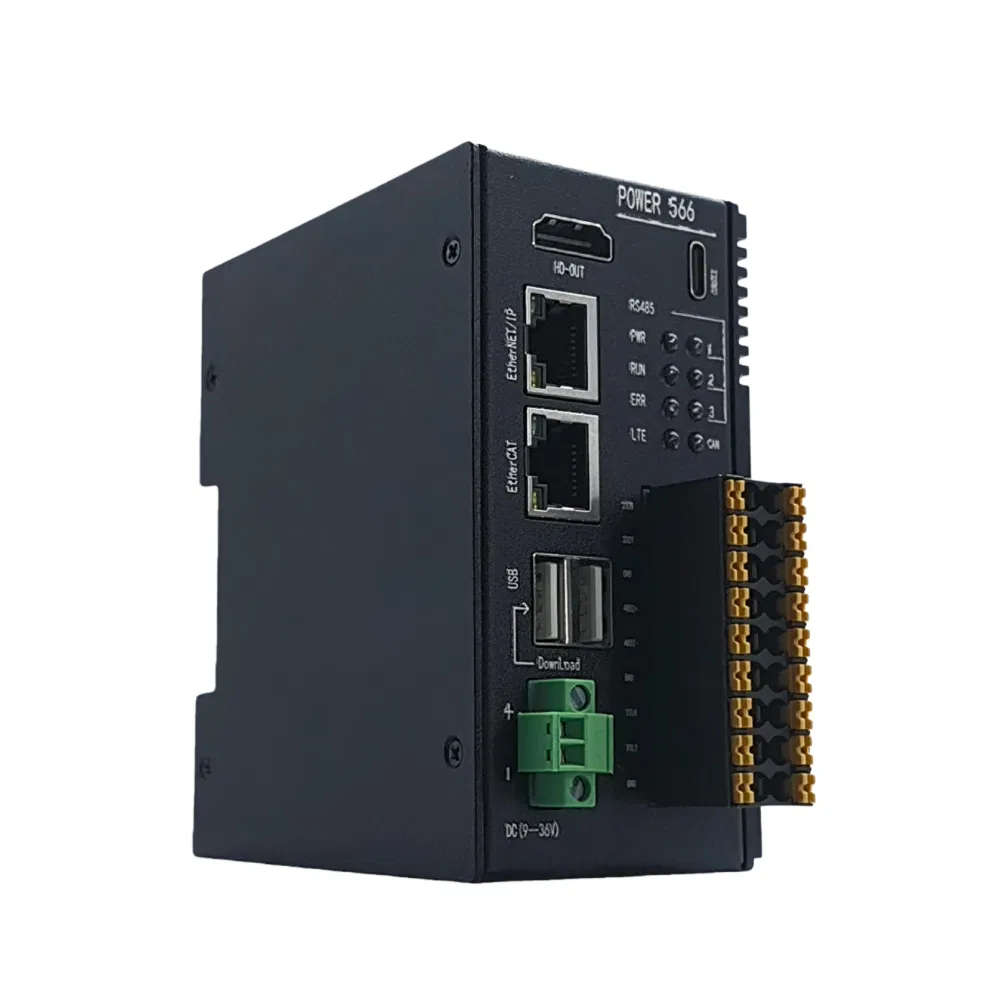

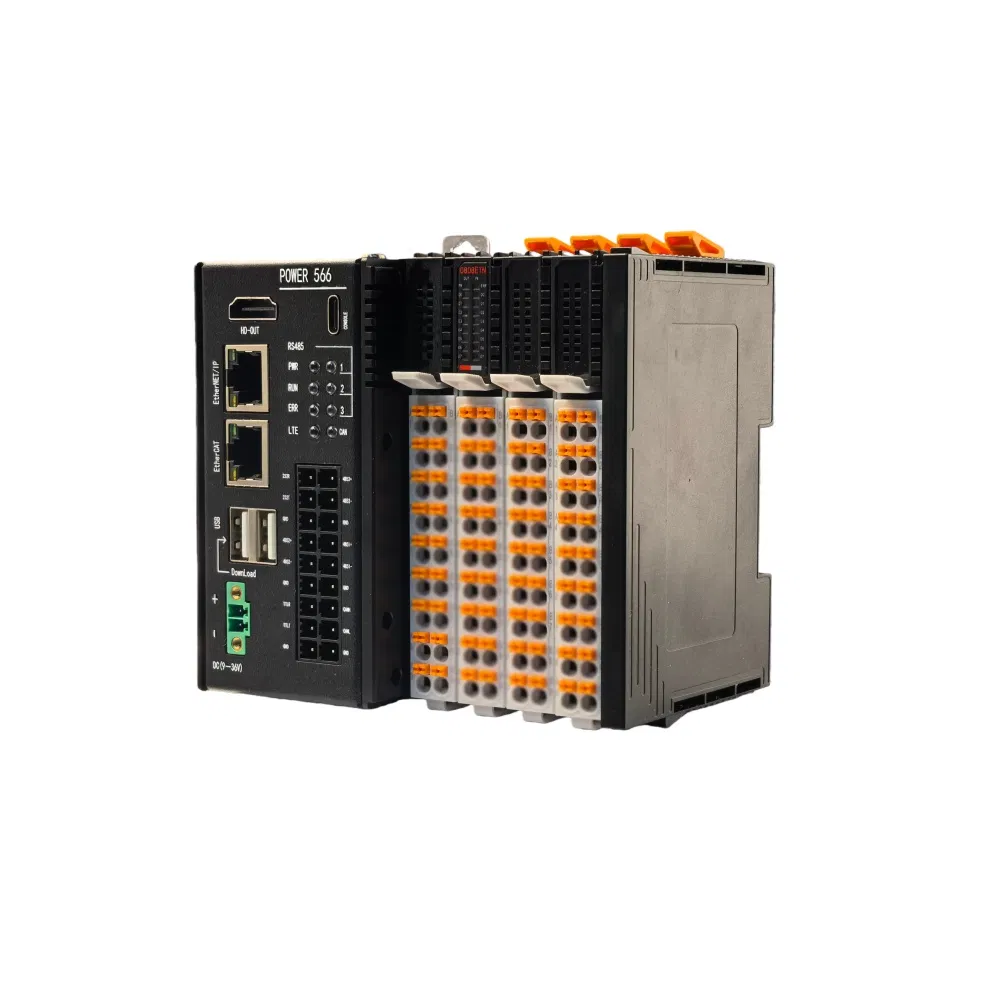

Ubuntu 24 04 Edge Computing Gateway with Ai and Di/Do Features

1 / 5

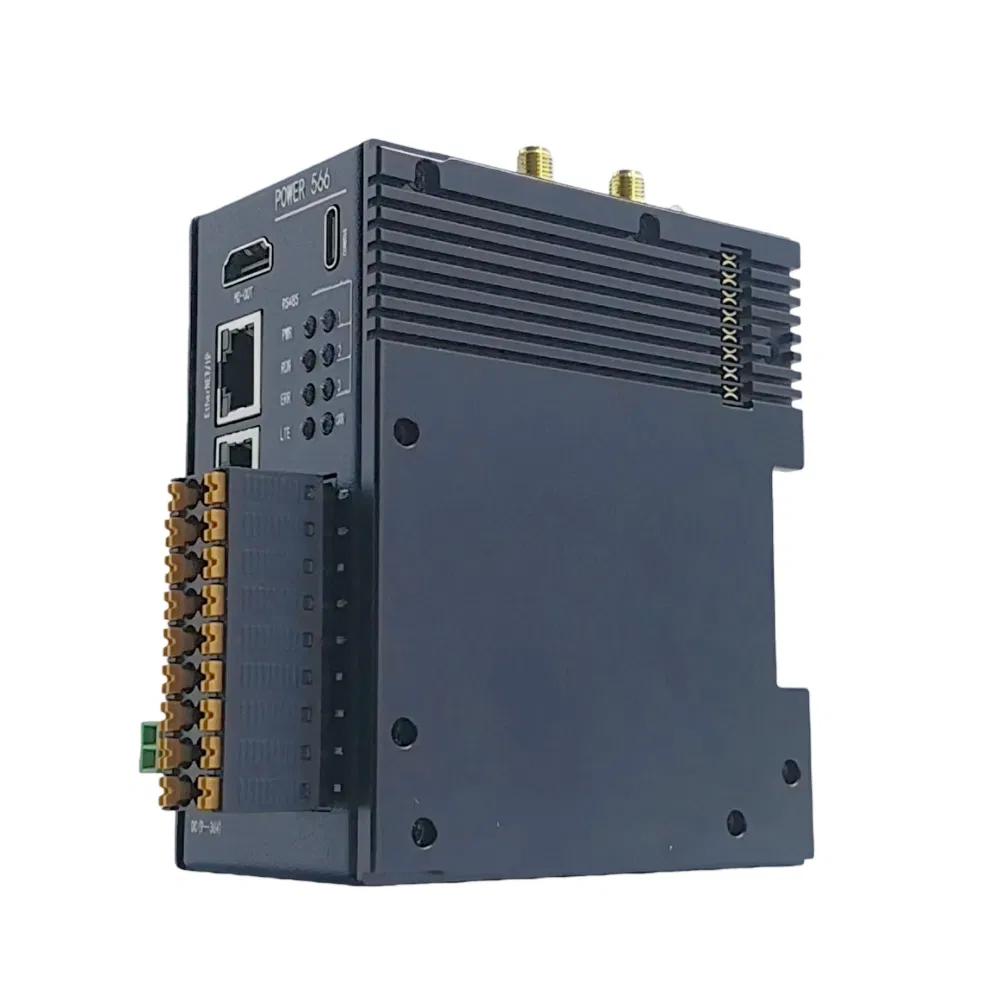

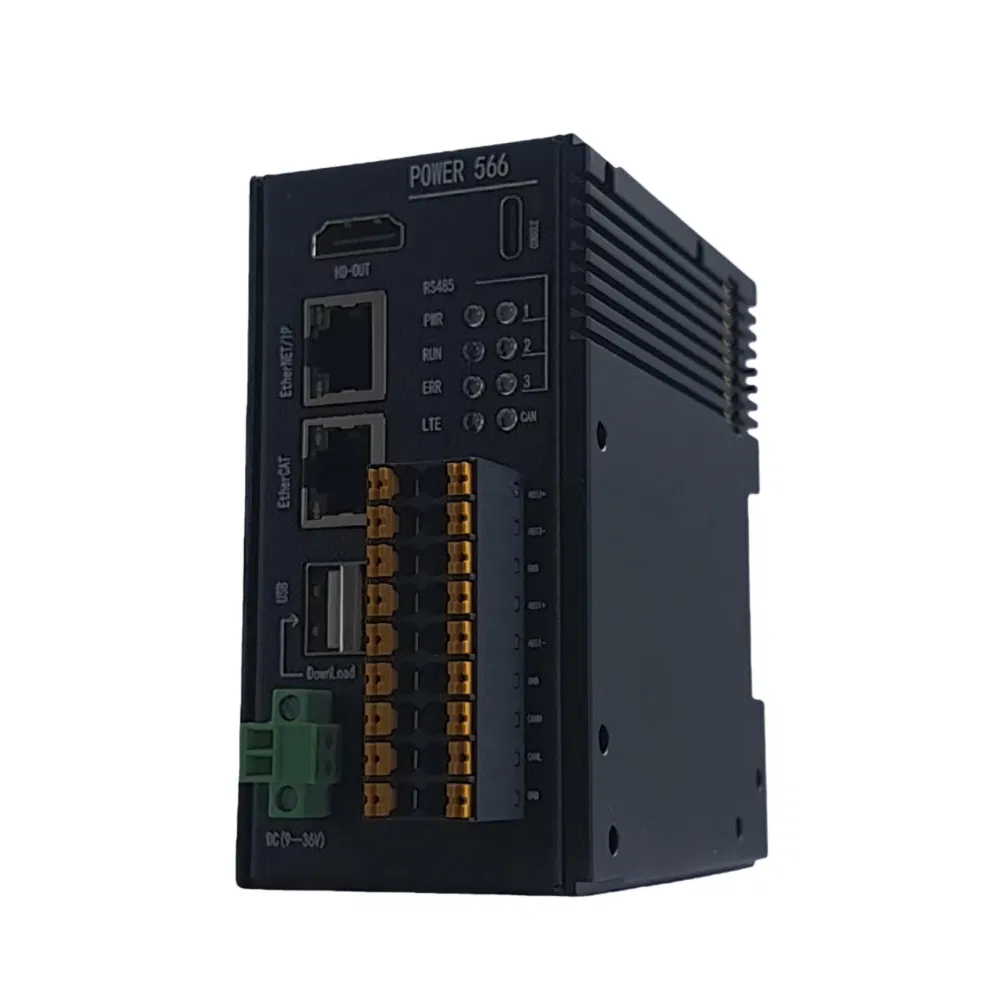

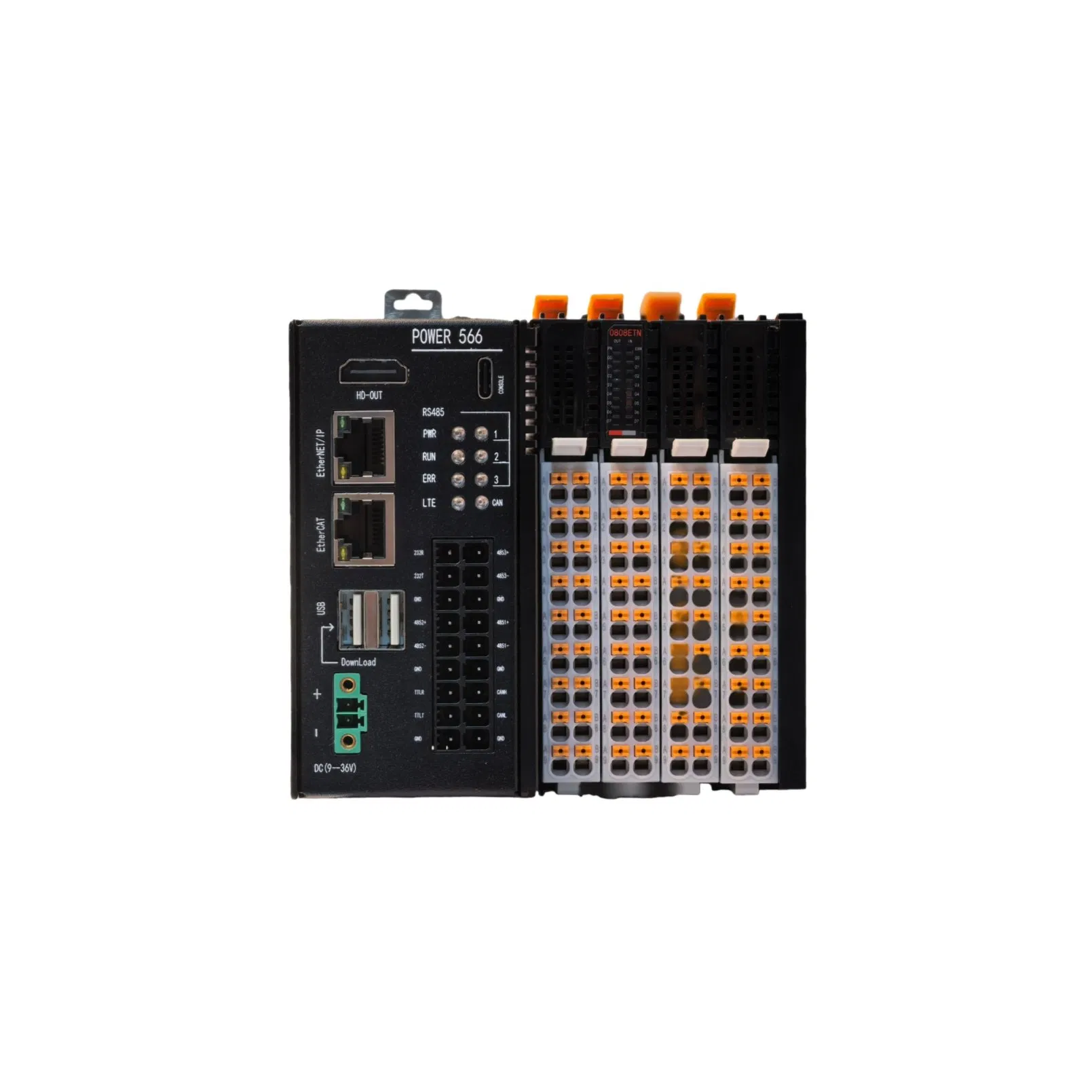

Ubuntu 24 04 Edge Computing Gateway with Ai and Di/Do Features

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

TM-CP3B-P

Support Network

Ethernet

Information Content

Data

Condition

New

Transport Package

Carton

Production Capacity

100,000 pieces/Year

Technical Specification

Attribute	Parameter
CPU	RK3566 Quad-Core Cortex-A55, Up to 1.8GHz
DDR	2GB LPDDR4X memory, Up to 3120Mbps
Storage	32GB eMMC, Support HS400 Mode
NPU	1 Tops INT8 Computing Power
Serial Ports	Isolation 3 x RS485 / 1 x RS232
CAN Bus	Isolation 1 x CAN2.0B
IO	Isolation 2 x GPIO, Configurable as I2C or UART
Ethernet	1 x 1000Mbps and 1 x 100Mbps interfaces
USB	1 x USB 2.0 HOST and 1 x USB 2.0 OTG
WIFI/BT (Optional)	Supports USB wifi/bt module
4G/GPS (Optional)	Supports MINI-PCIE module, 1 x Micro SIM
SSD (Optional)	1 x M.2-2242/2280 SSD (SATA) interface
Video interface	1 x HDMI2.0 Port, MAX output 4KP60
Input Voltage	9 ~ 36V VDC
OS	Ubuntu 24.04-LTS Desktop/Server/RTlinux

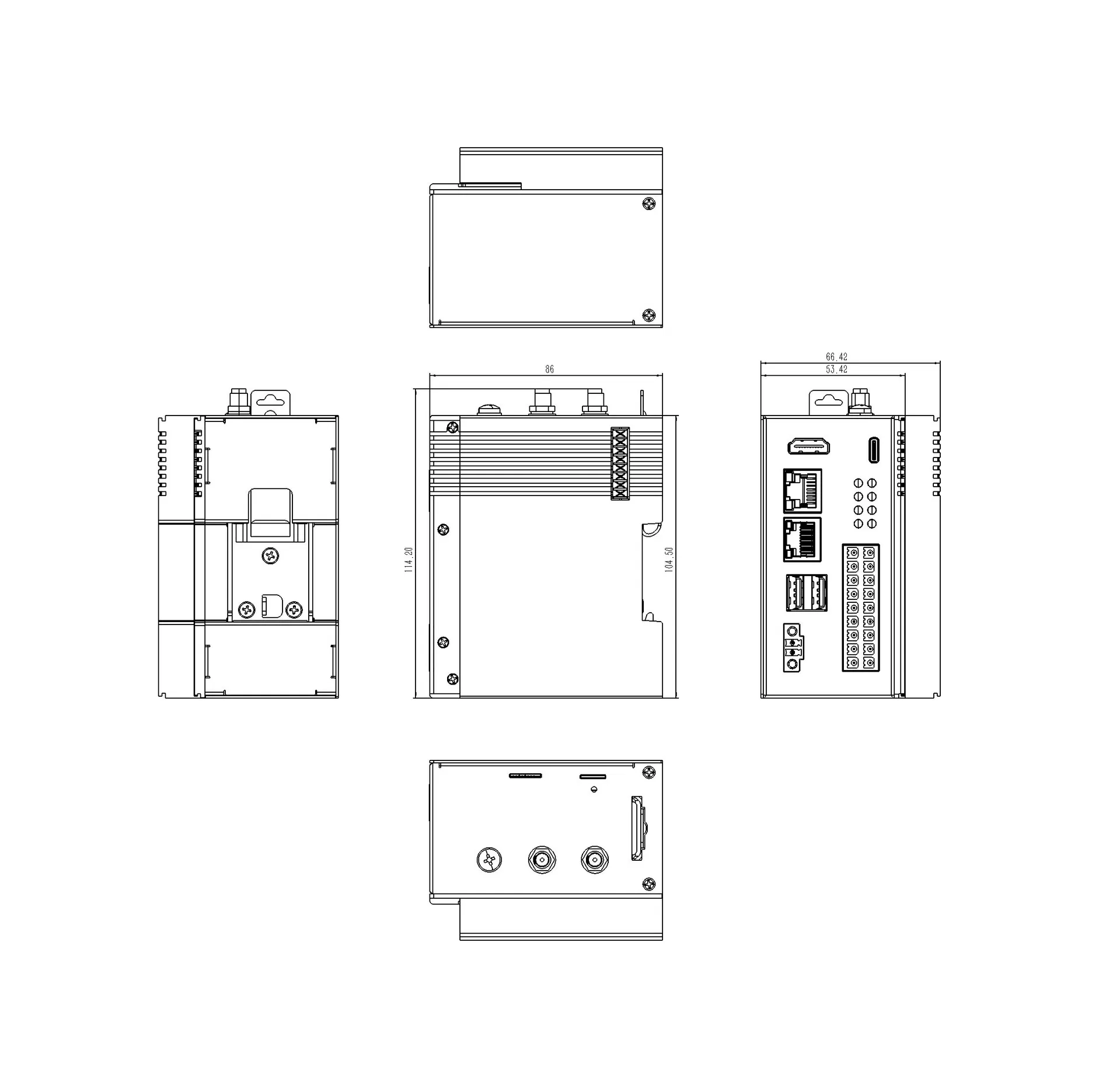

Dimensions	103mm × 85mm × 30mm (L×W×H)
Installation	35mm DIN-rail / Bracket mounting

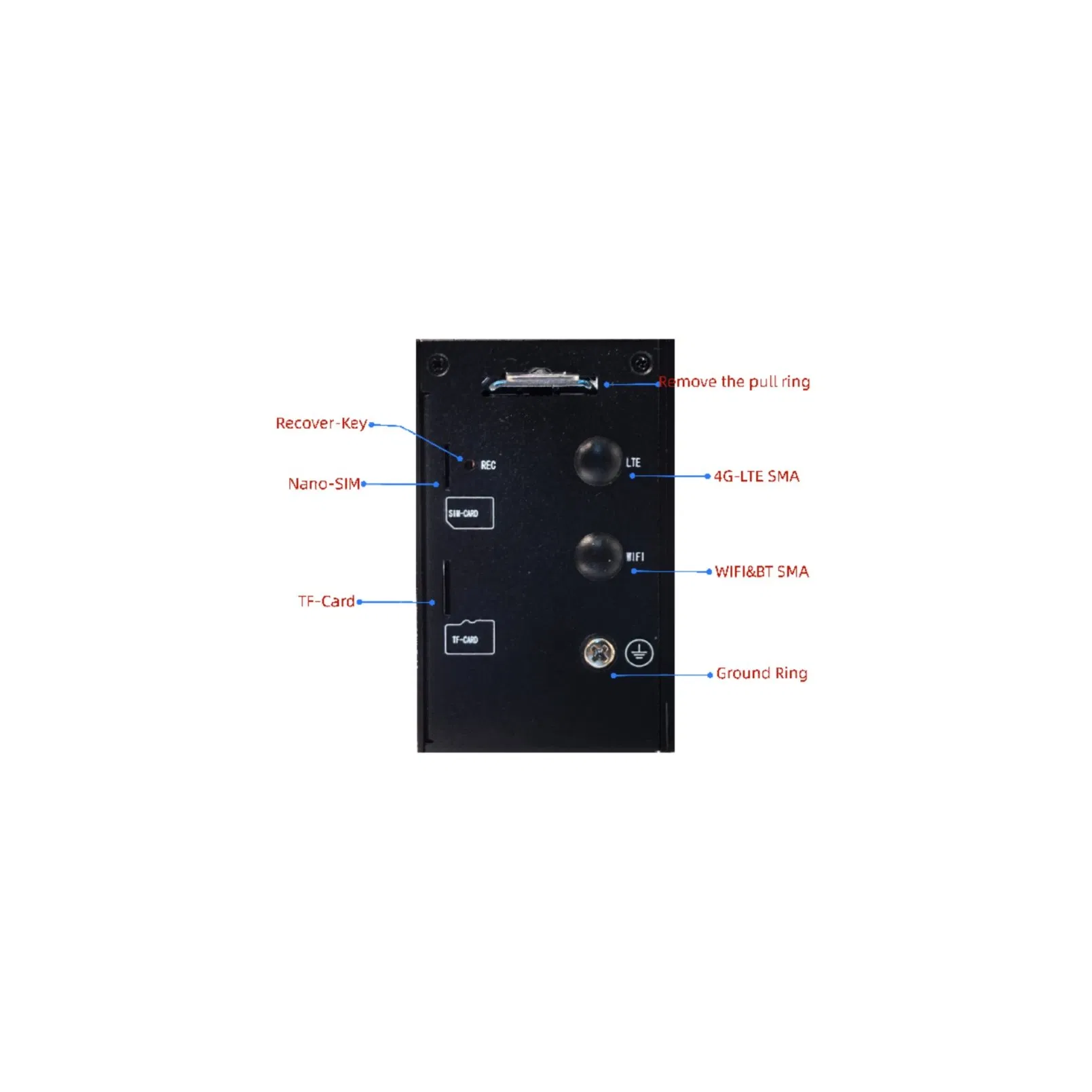

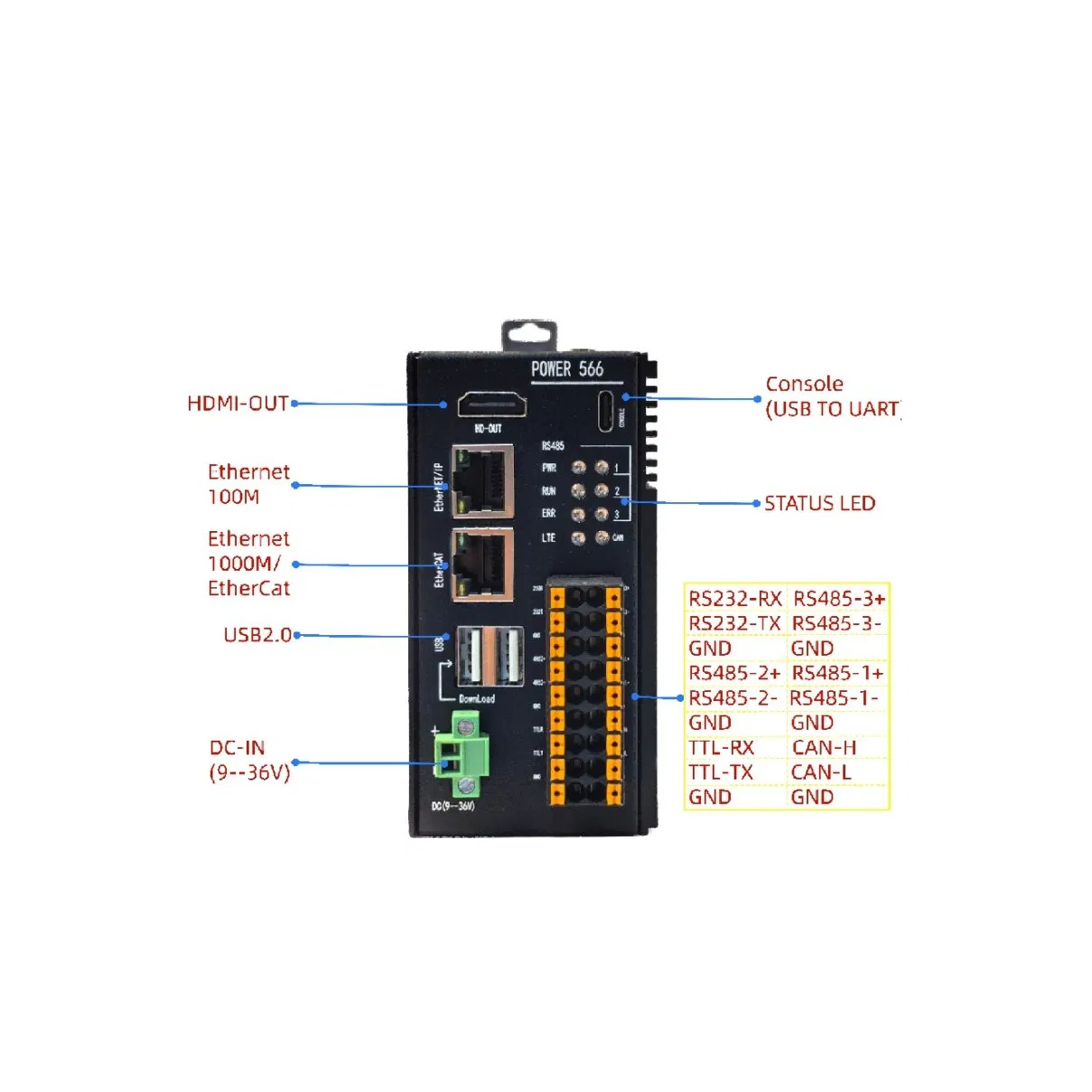

Interface Details

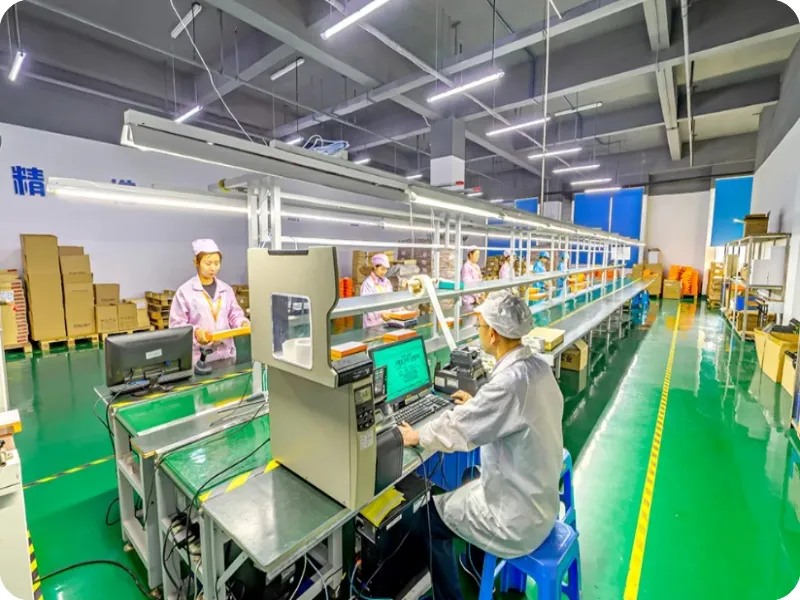

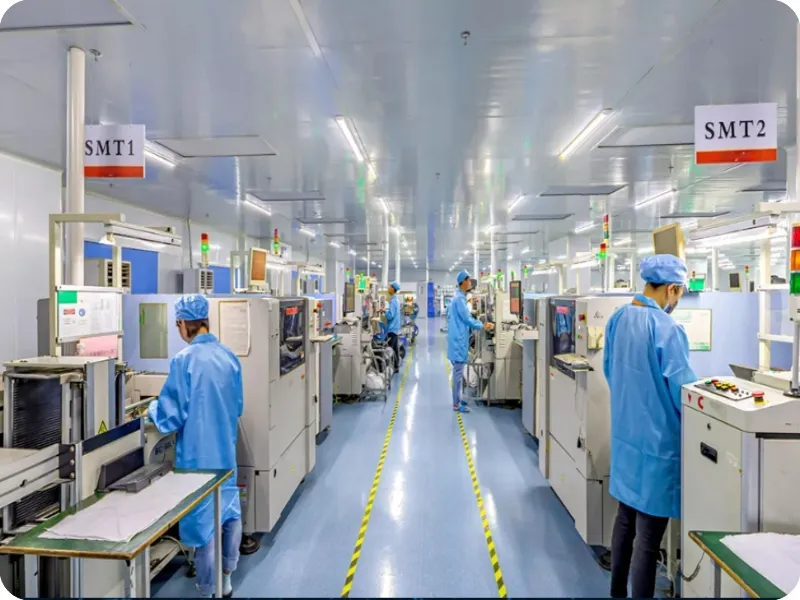

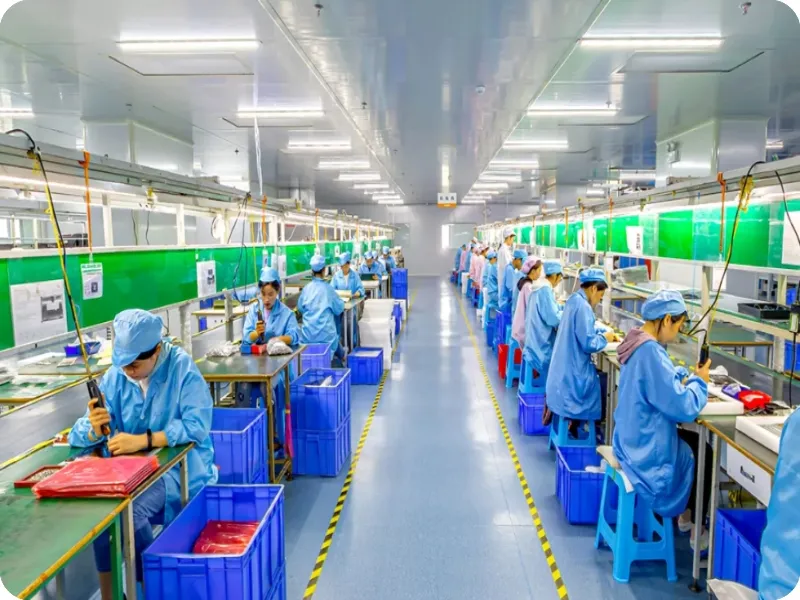

Production Environment

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a comprehensive enterprise integrating professional design and production. All listed products are independently developed and manufactured in-house.

Do you support product customization and OEM branding?

Absolutely. We offer laser engraving for company logos and support customized communication configurations to meet specific project needs.

What is the typical lead time for orders?

Standard products are kept in stock and usually ship within 48 hours. Lead times for customized instruments vary based on technical specifications and volume.

What secure payment methods do you accept?

We accept various payment methods including T/T (Bank Transfer), PayPal, and other standard international payment platforms.

How are the products packaged for international shipping?

Each unit is securely packed in high-strength cardboard boxes with protective foam lining. We provide both air and sea express delivery options for global shipping.

What is your warranty and after-sales policy?

We provide a comprehensive 12-month warranty along with lifetime maintenance support for all our computing gateways.
