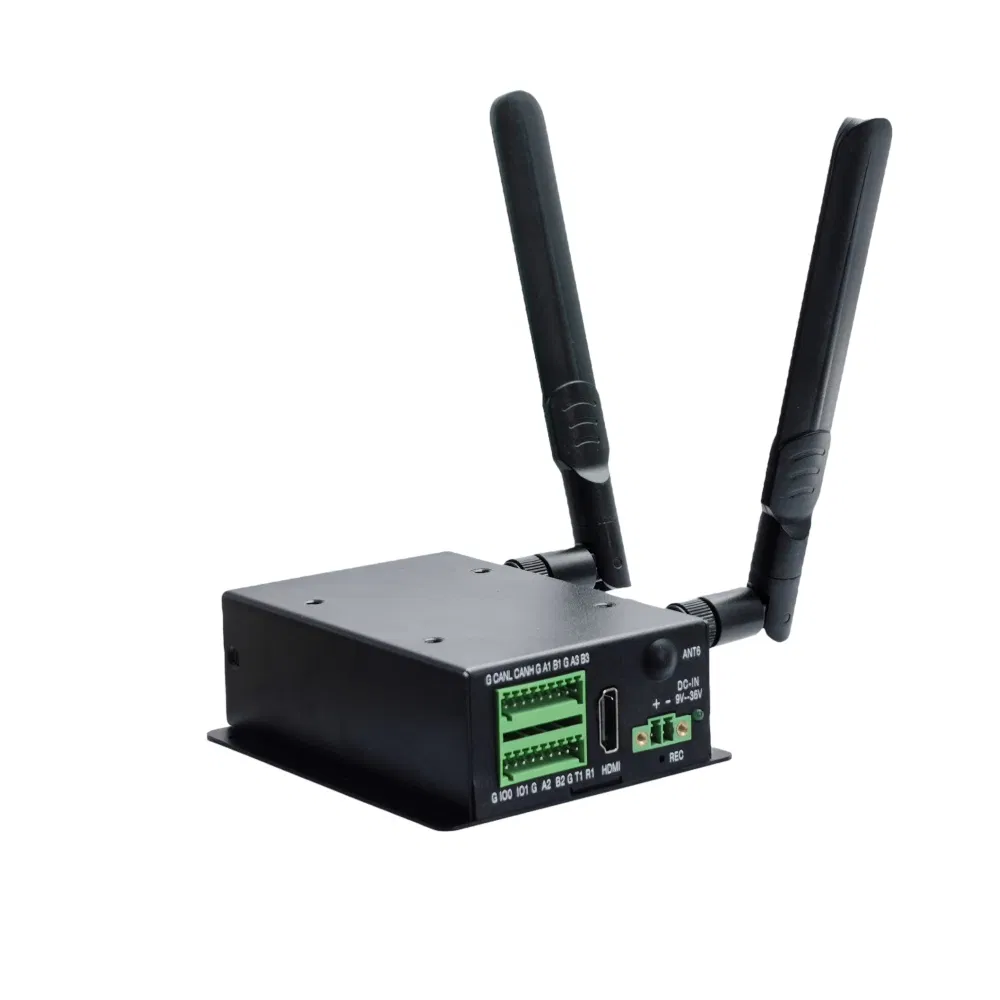

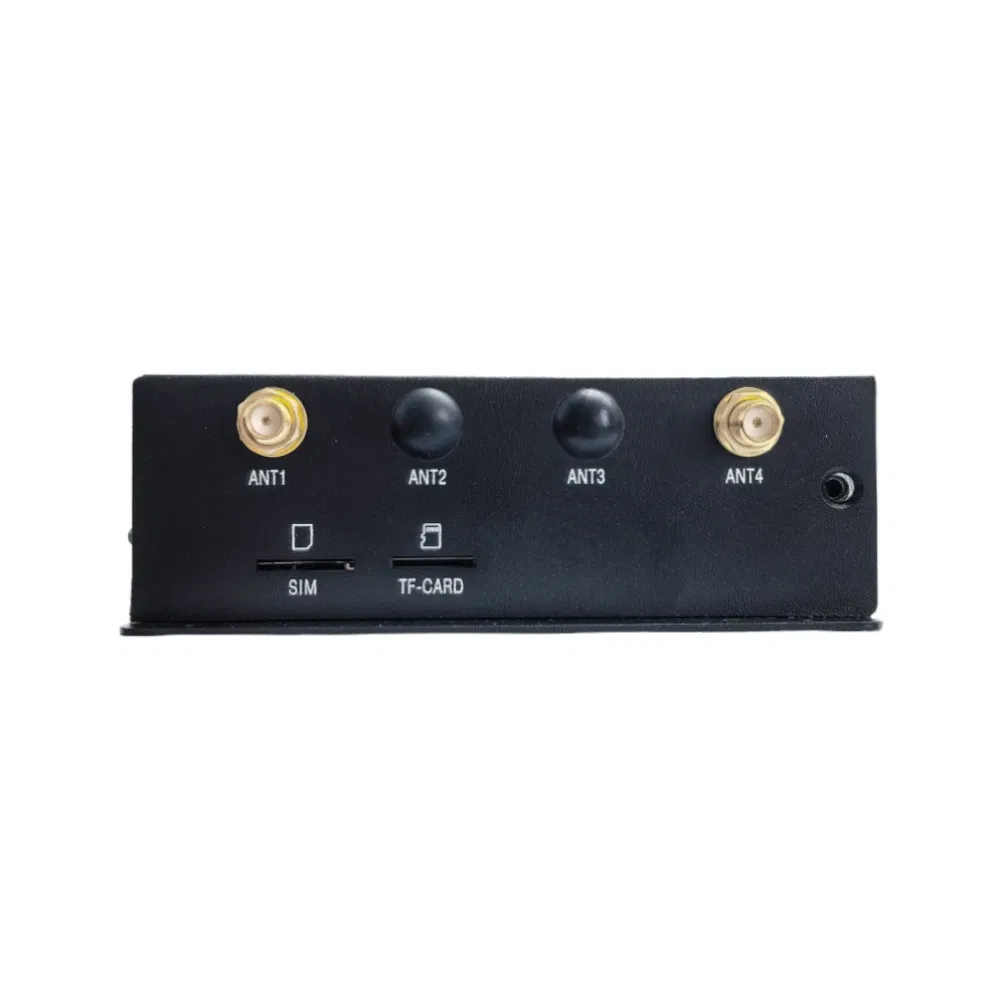

Ubuntu24.04 4G/WiFi6/Lora-Wan Smart Edge Computing Gateway

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
TM-CP3B
Support Network
Ethernet
Information Content
Data
Condition
New
Transport Package
Carton
Production Capacity
100,000 pieces/Year

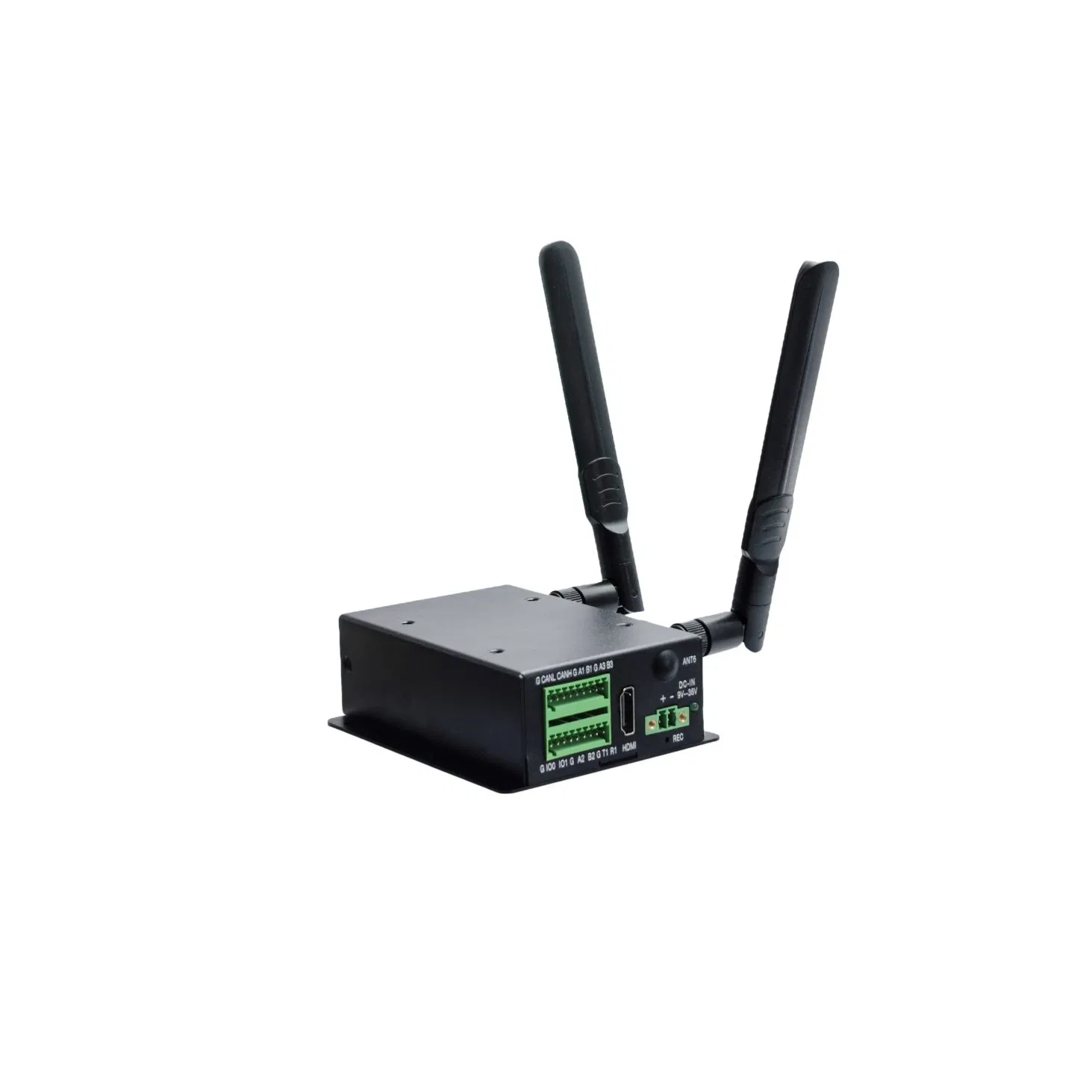

Smart Edge Computing Gateway
Technical Specification
Attribute Parameter
CPURK3566 Quad-Core Cortex-A55, Up to 1.8GHz
DDR2GB/4GB/8GB LPDDR4X memory, Up to 3120Mbps
Storage32GB eMMC, Support HS400 Mode
NPU1 Tops INT8 Computing Power
Serial PortsIsolation 3 x RS485 / 1 x RS232
CAN BusIsolation 1 x CAN2.0B
IOIsolation 2 x GPIO (I2C/UART configurable)
Ethernet1 x 1000Mbps and 1 x 100Mbps interfaces
USB1 x USB 2.0 HOST and 1 x USB 2.0 OTG
WIFI/BT (Optional)Supports M.2-2230 (PCIE+USB2.0) module
4G/GPS (Optional)Supports MINI-PCIE module, 1 x Micro SIM
Lora-WAN (Optional)Supports MINI-PCIE module, SPI interface
SSD (Optional)1 x M.2-2242 SSD SATA interface
Video interface1 x HDMI2.0 Port, MAX output 4KP60
Input Voltage9 ~ 36V VDC
OSUbuntu24.04-LTS Desktop/Server/RTlinux
Dimensions103mm × 85mm × 30mm (L×W×H)
Product Visuals

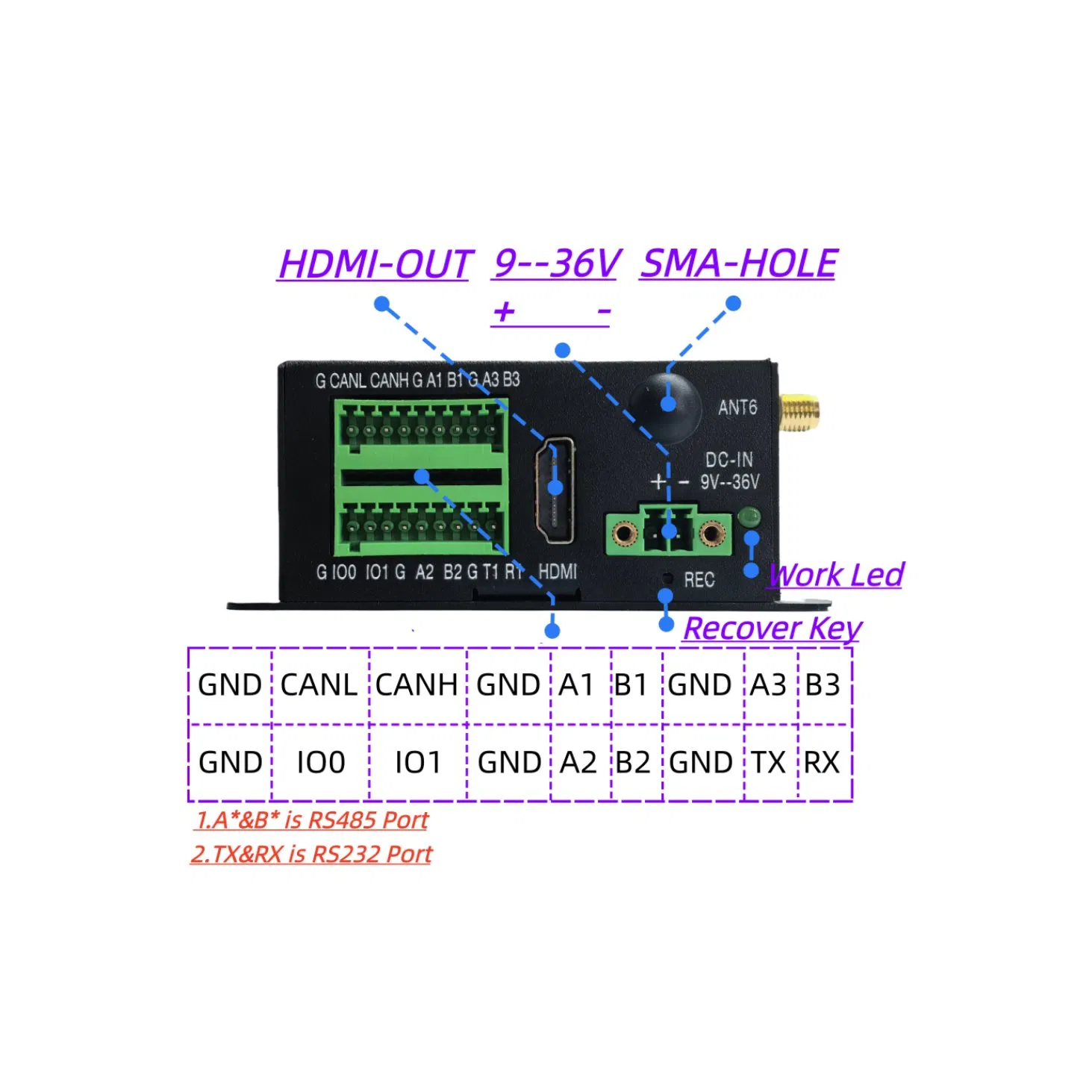

Technical Layout

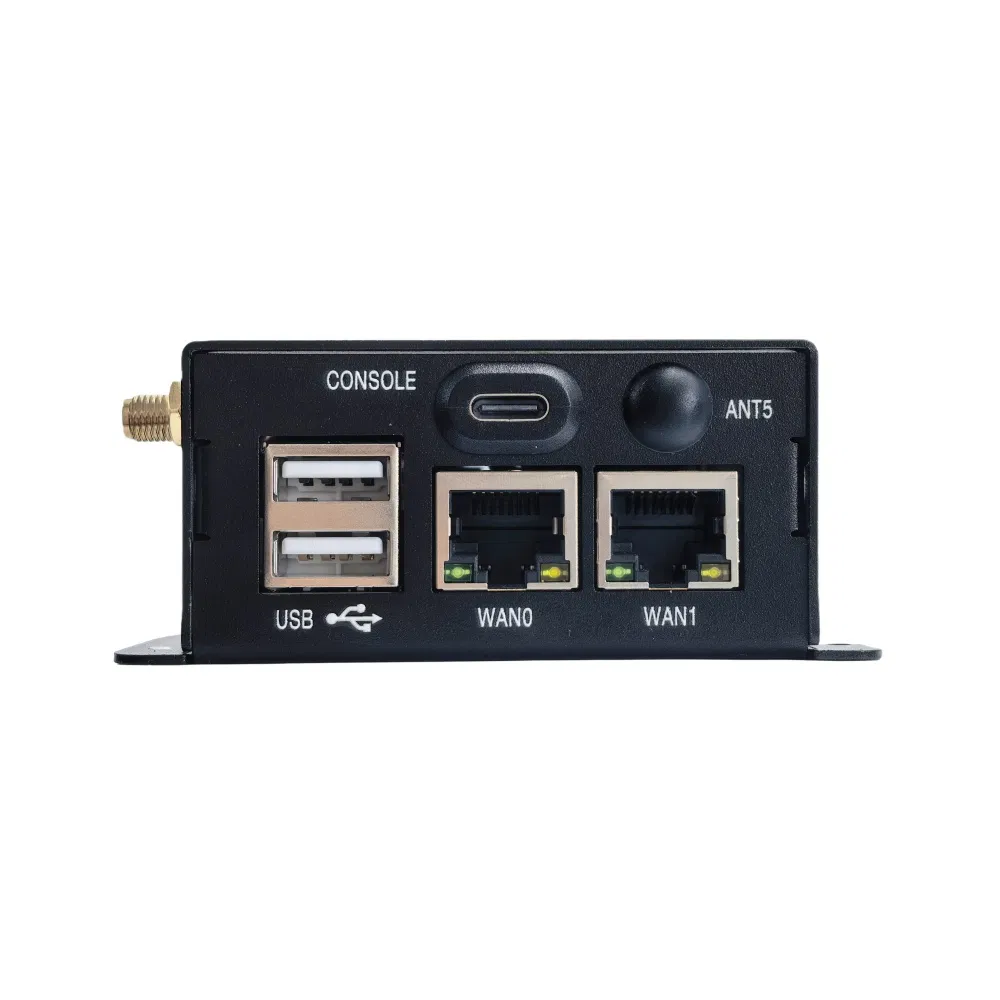

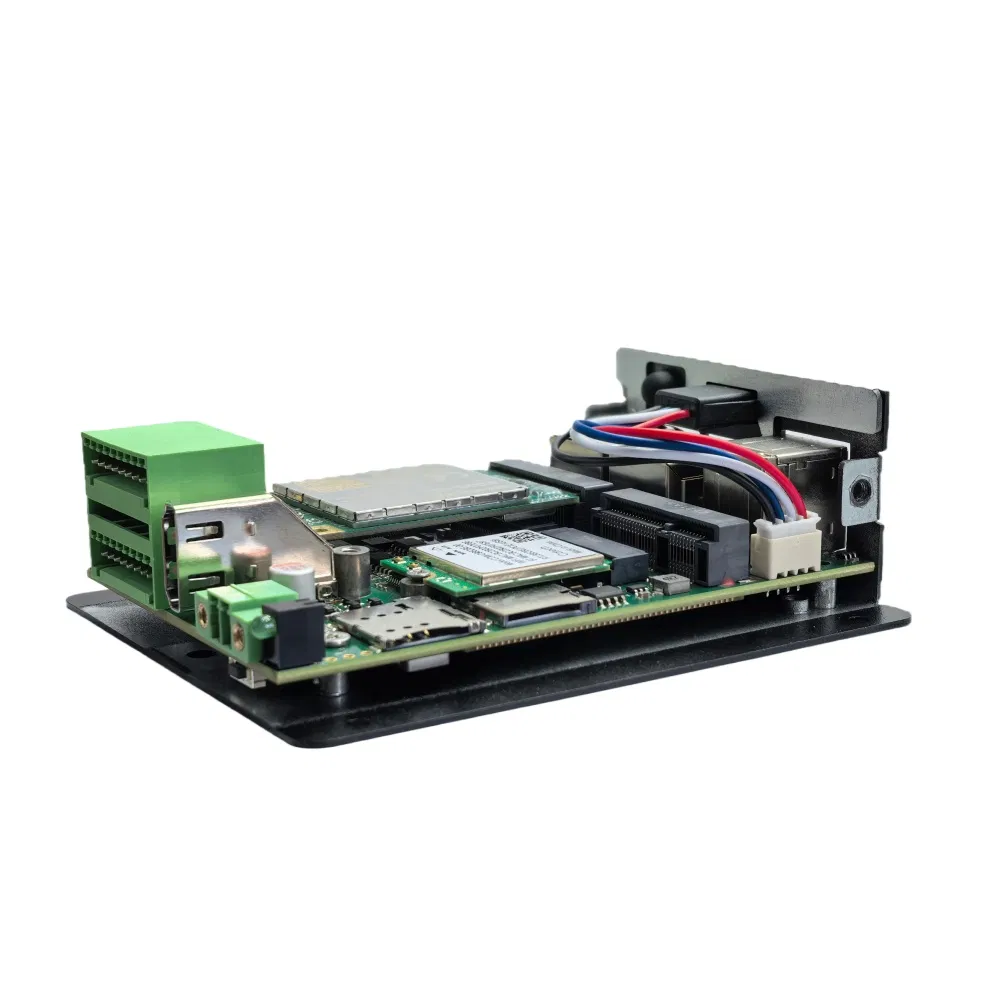

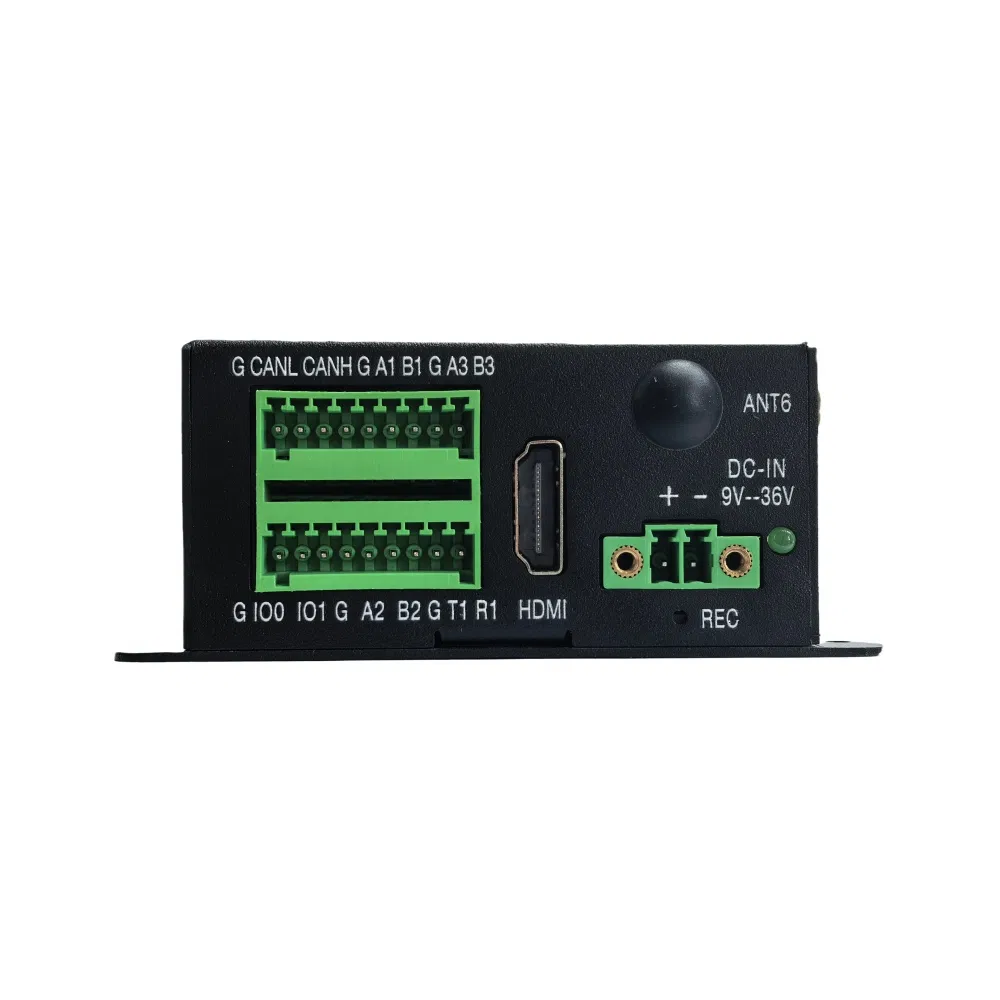

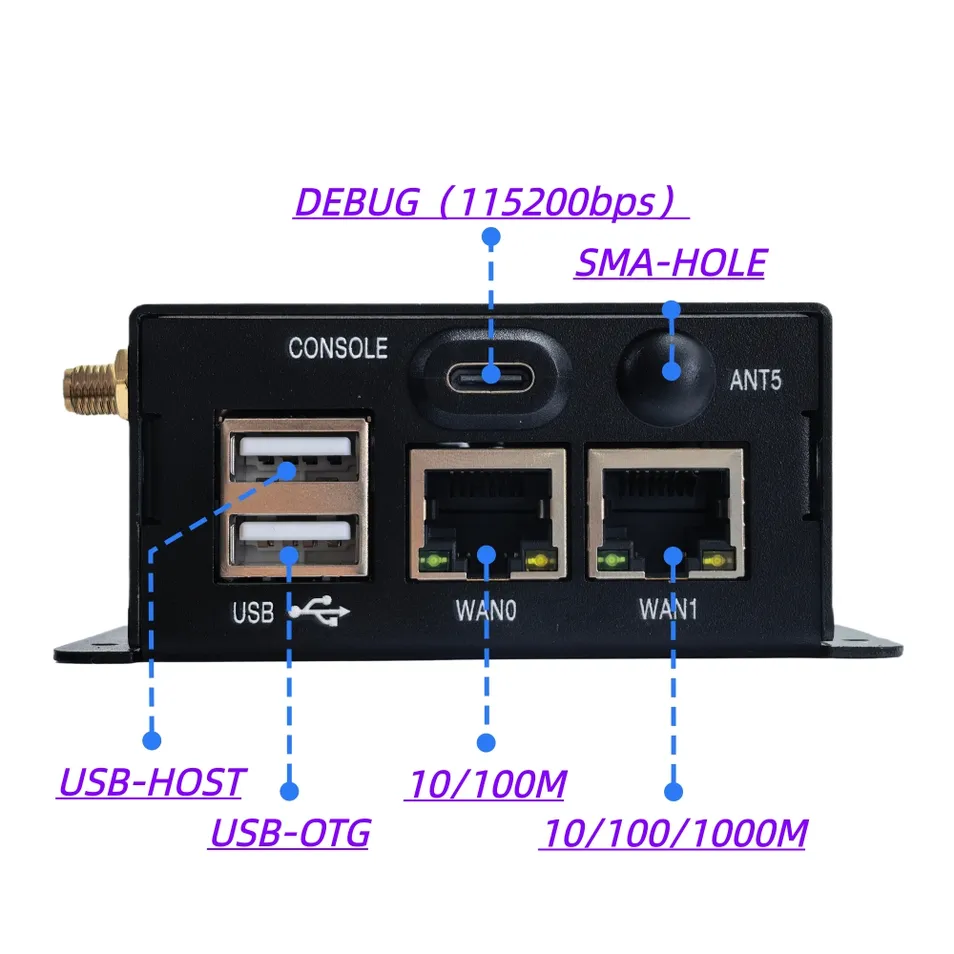

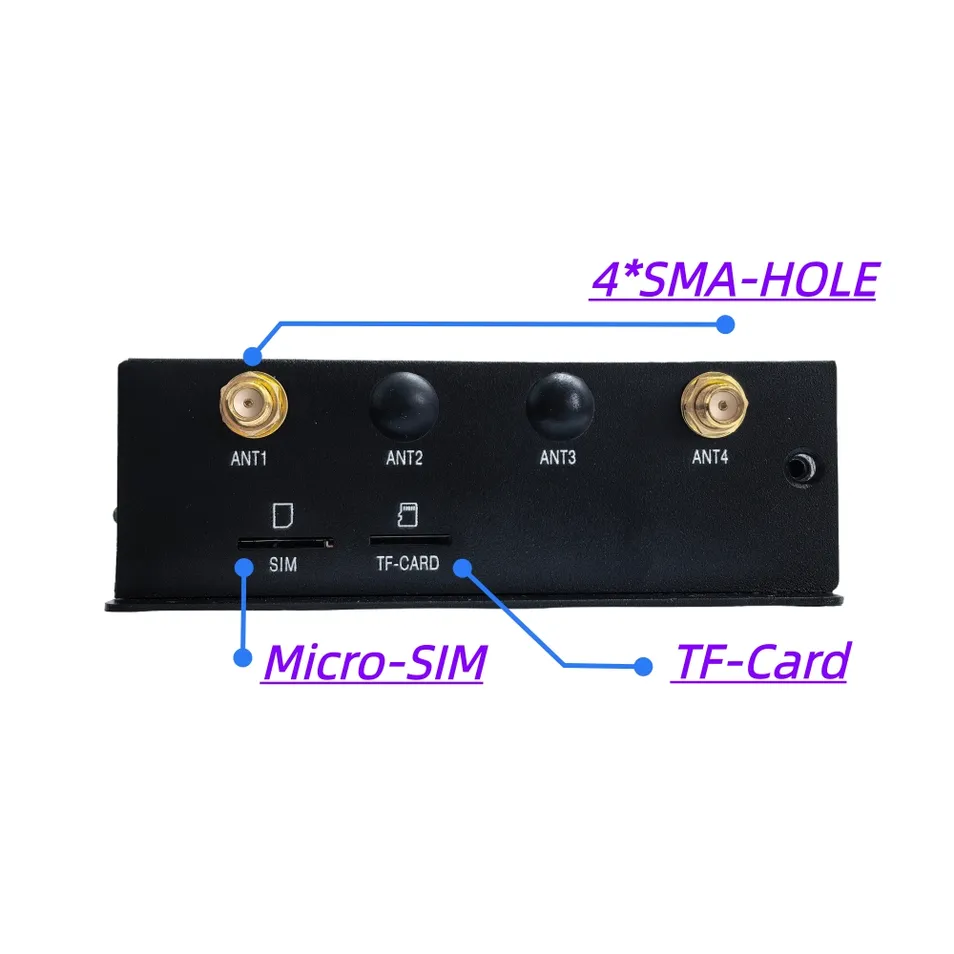

Hardware Details
Packing List
Item Name Quantity
Gateway Host1
35mm Rail buckle1
Power Connector1
IO Connector2

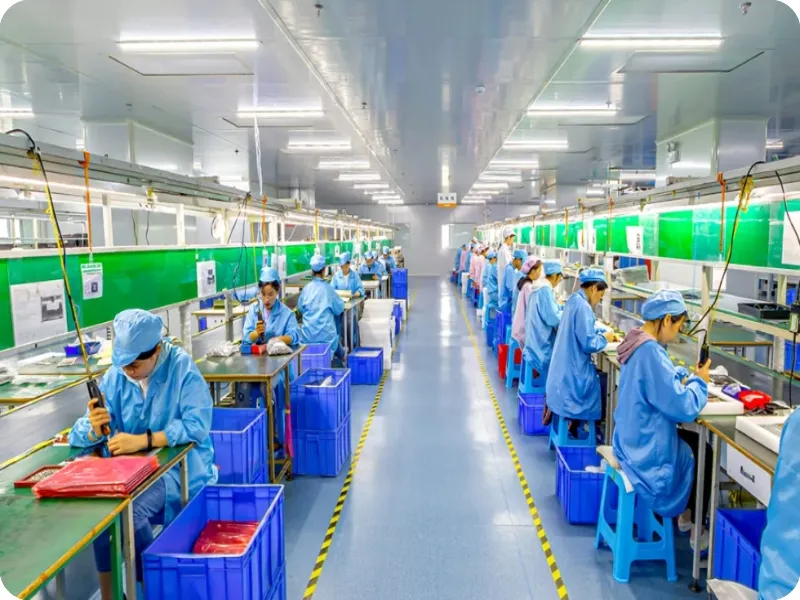

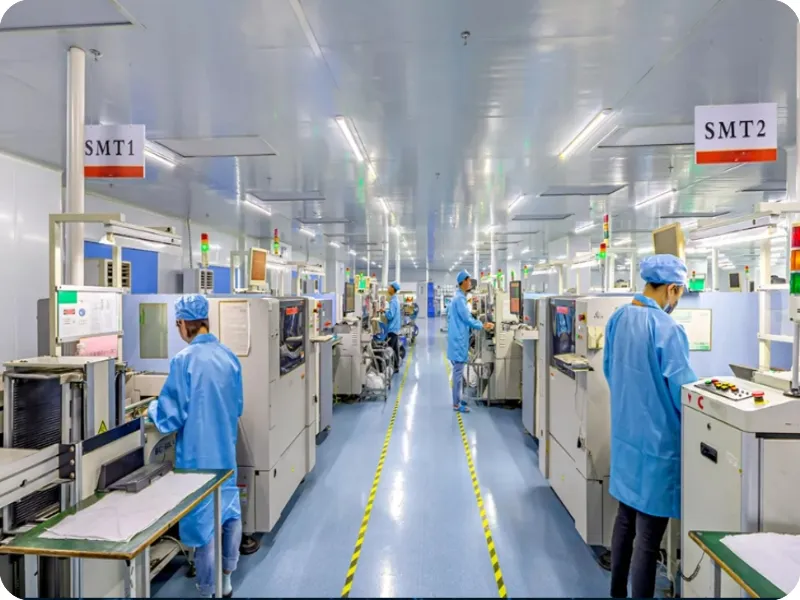

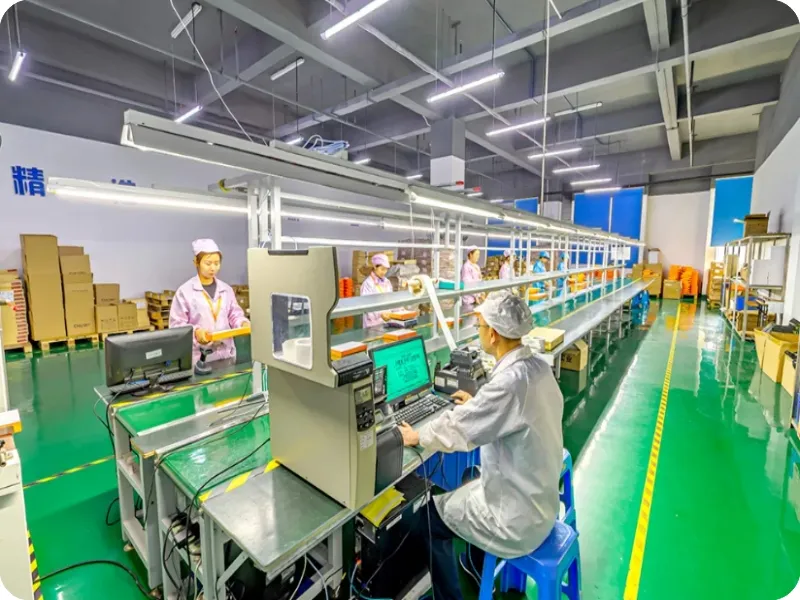

Production Environment
Frequently Asked Questions
Are you a factory or manufacturer?
Yes, we are a comprehensive company integrating design and production. All products are independently developed and manufactured to ensure high quality and consistency.
Can I customize the logo and communication interfaces?
Yes, we support customization. The hardware can be laser engraved with your branding, and communication methods can be adjusted based on project requirements.
What is the standard lead time for orders?
Standard products are typically in stock and ship within 48 hours. Customized orders depend on the specific requirements and quantity.
What payment methods are supported?
We accept various payment methods including T/T (Bank Transfer), PayPal, and other standard international payment options.
How is the product packaged for shipping?
Each unit is individually packed in high-strength cardboard boxes with protective foam lining. Shipping can be arranged via air or sea express according to your needs.
What is your warranty and after-sales policy?
We provide a 12-month standard warranty along with lifetime technical maintenance and support for all our gateway products.
