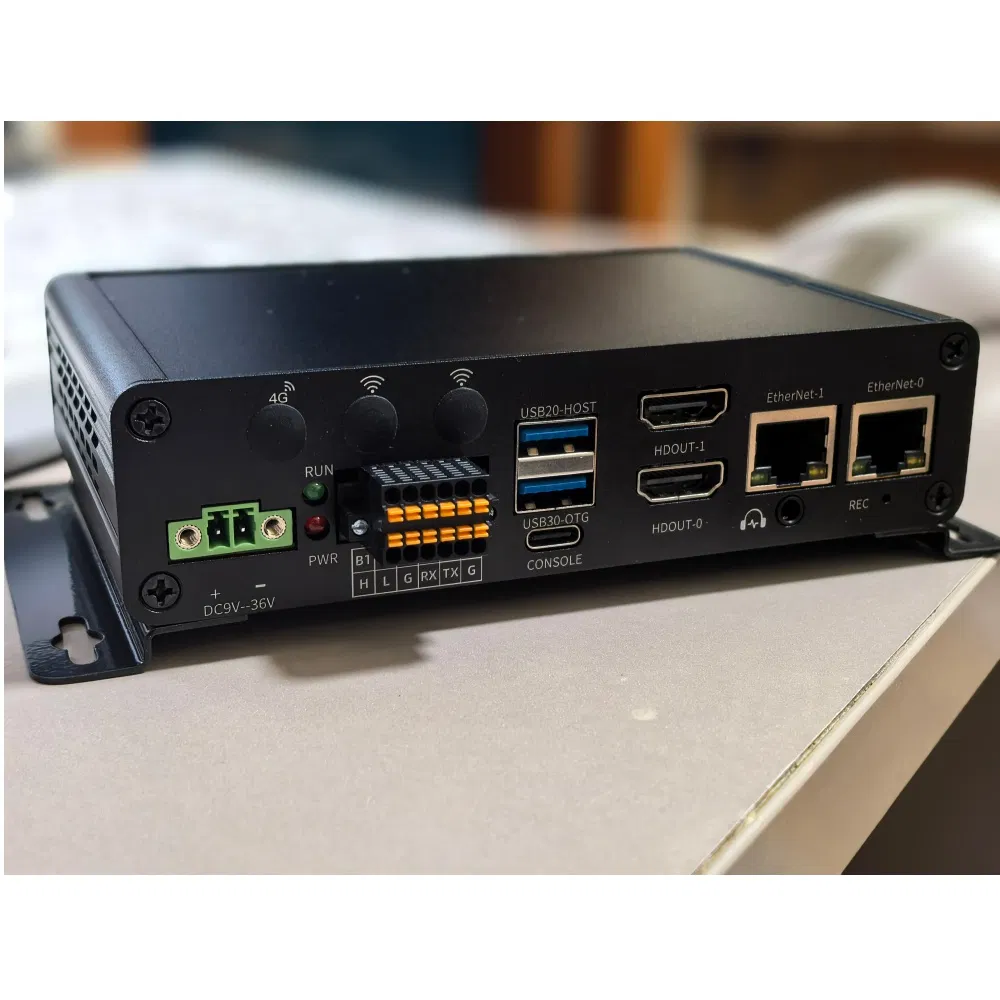

Versatile Edge Computing Gateway with Ubuntu24 04 and M 2 Pcie Support

Still deciding? Get samples of $ !
Request Sample

Product Description

ℹ️

Basic Specifications

Model NO.
TM-CP5B
Support Network
Ethernet
Condition
New
Input Voltage
DC 9V--36V
Isolation
RS485 RS232 Can Ttl
WiFi/BT
M.2 Pcie+USB
Ethernet
2X1000m
SSD Support
Nvme/SATA 2242/2280
Ai Module
Hailo 8(Pcie3.0X4)
Dimensions
140mm×93mm×35mm

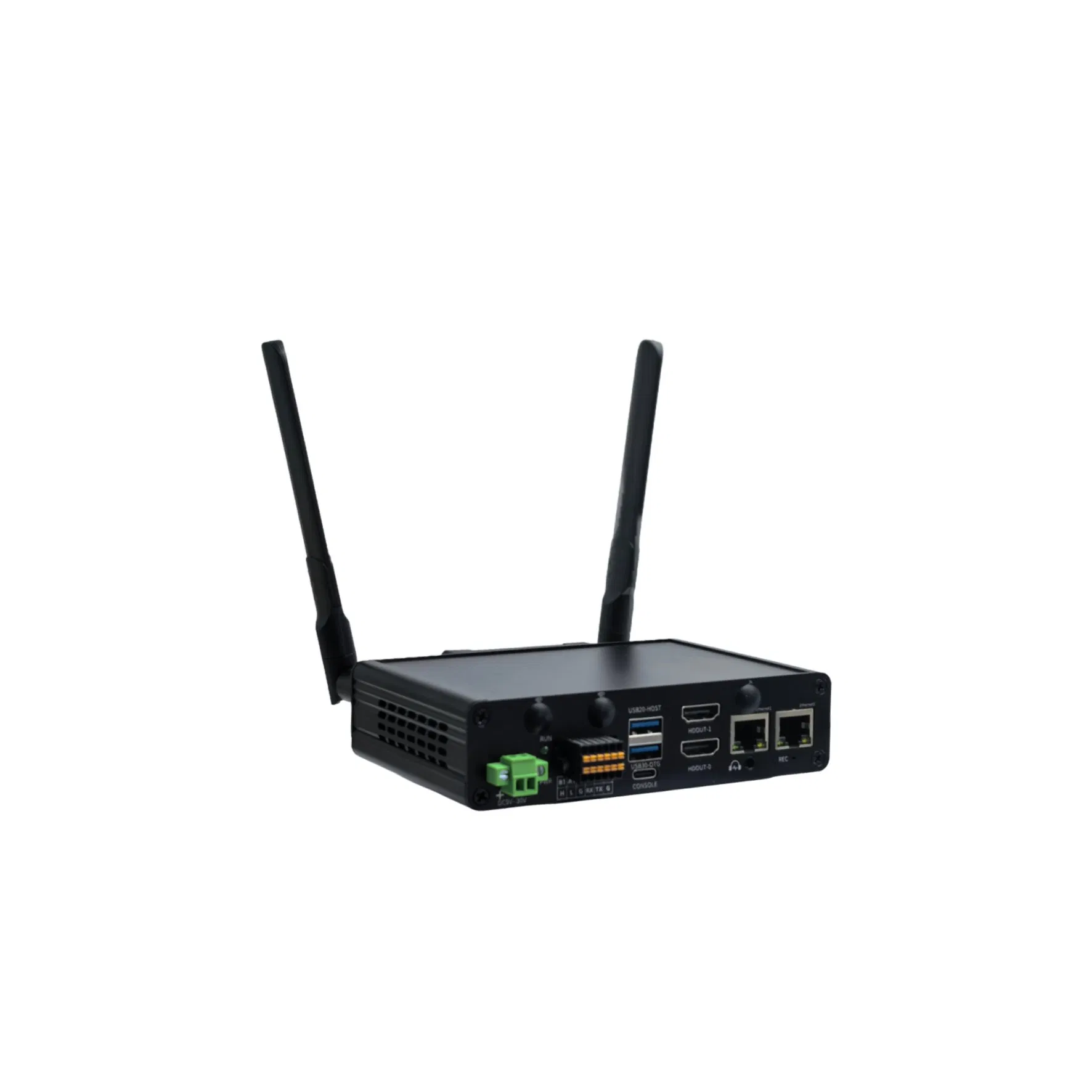

Edge Computing Gateway
📋

Technical Parameters

Attribute Parameter
CPURK3588 Quad-Core Cortex-A76 and Quad-Core Cortex-A55, Up to 2.2GHz
DDR8GB/32GB dual-channel LPDDR5 memory, Up to 4800Mbps
Storage64GB eMMC, Support HS400 Mode
NPU6 Tops INT8 Computing Power
Serial PortsIsolation 2 x RS485
CAN BusIsolation 1 x CAN2.0B
Ethernet2 x Gigabit Ethernet interfaces
USB1 x USB 2.0 HOST and 1 x USB 3.0 OTG
WIFI/BTSupports M.2-2230 (PCIE+USB2.0) module
OSUbuntu 24.04-LTS Desktop

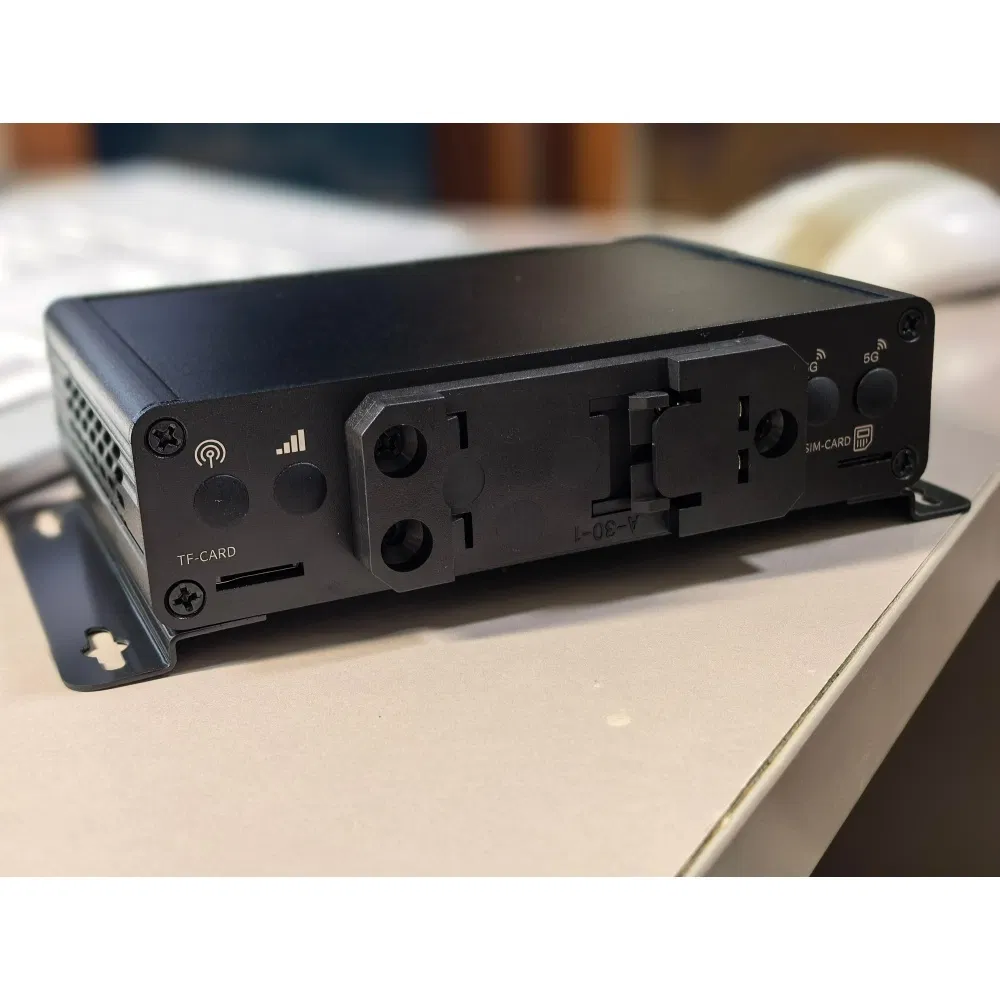

Installation35mm DIN-rail / Bracket mounting
Weight495g
🔍

Product Details

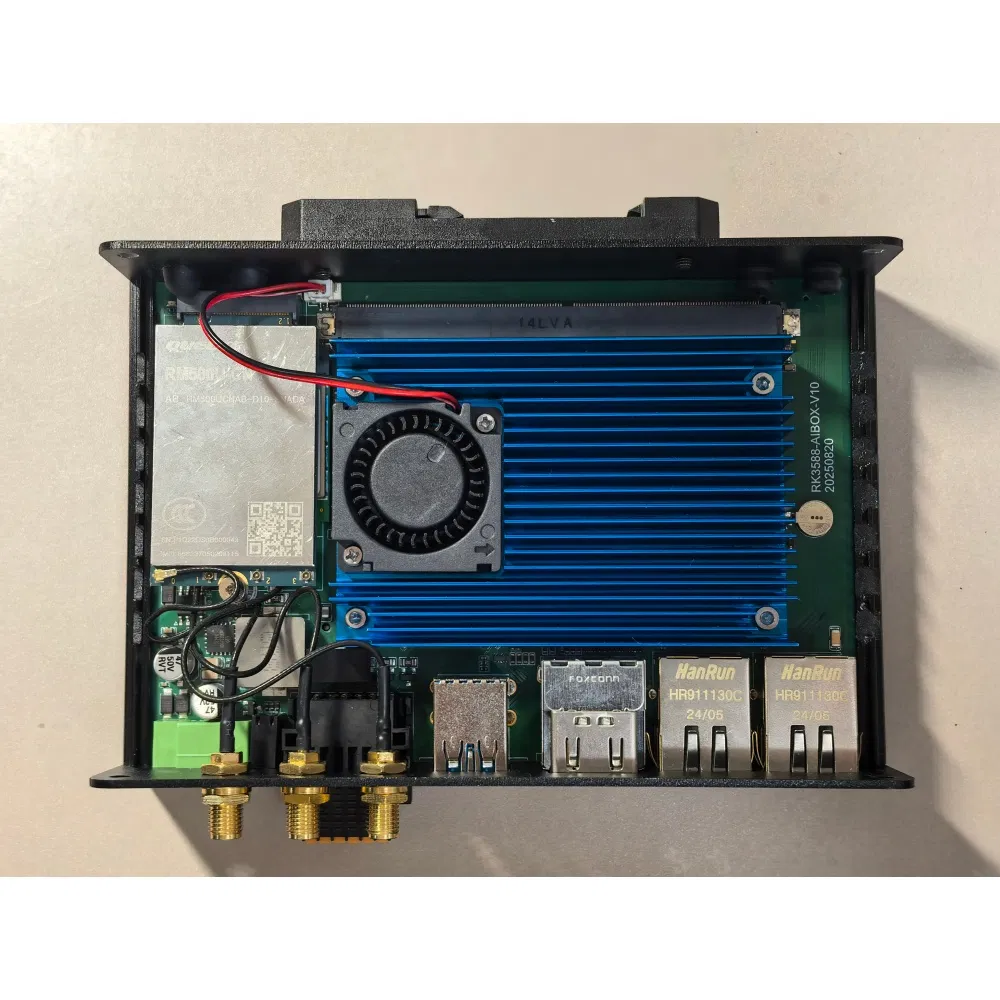

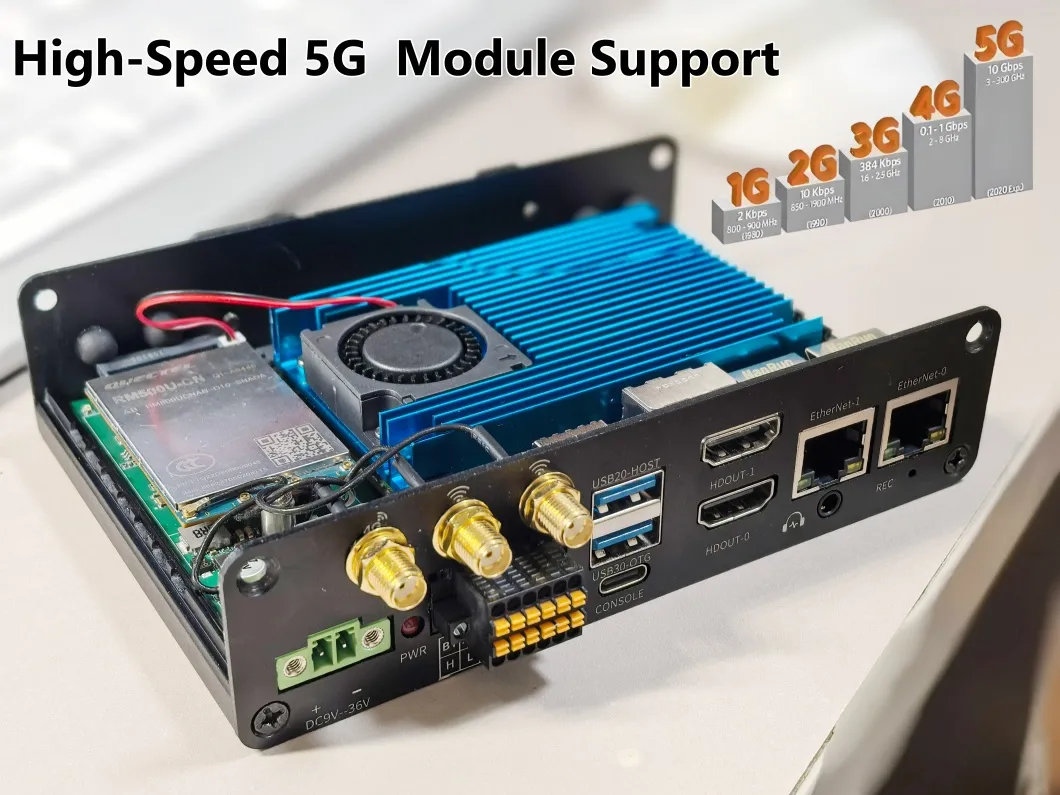

Internal View

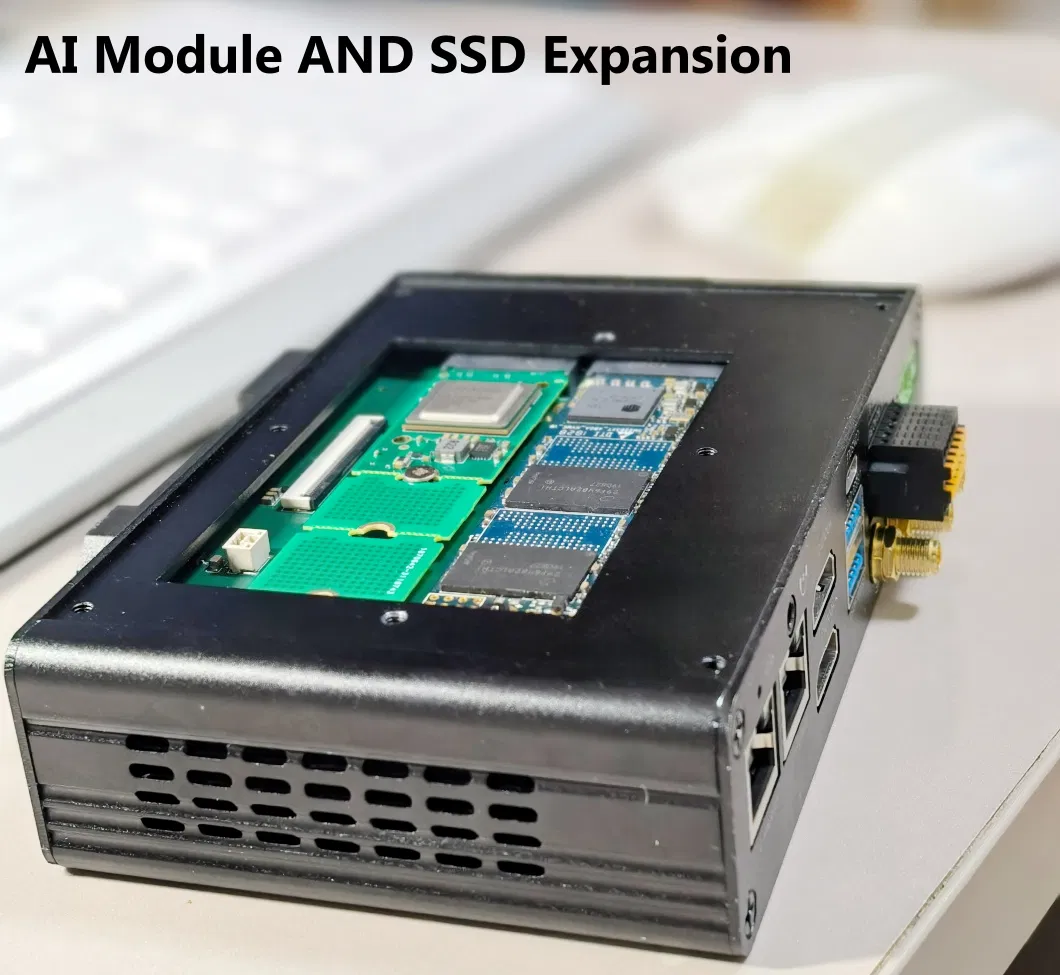

I/O Layout
🛠️

Installation & Packing

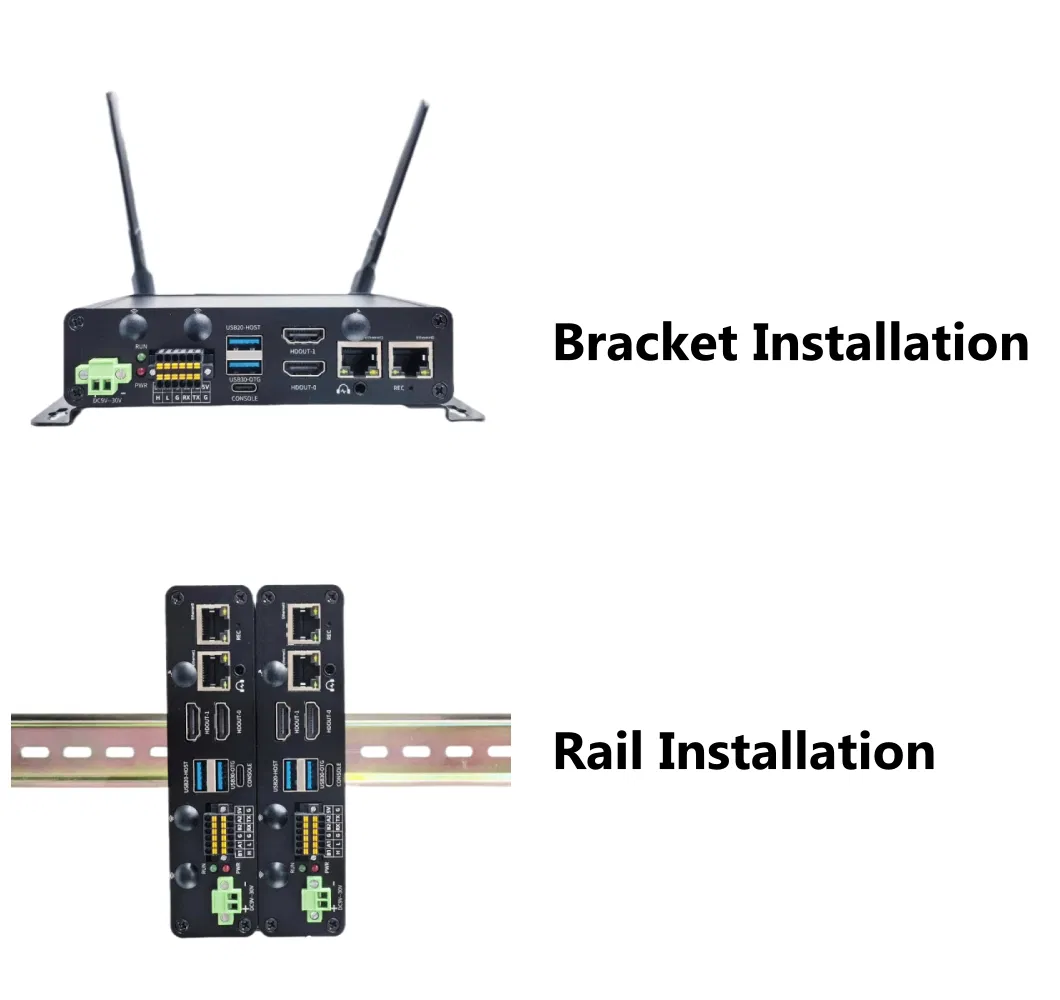

Fixation Method
Packing List
NameQuantity
Gateway Host1
Bracket2
35mm Rail buckle1
Power Connector1
IO Connector1
🏢

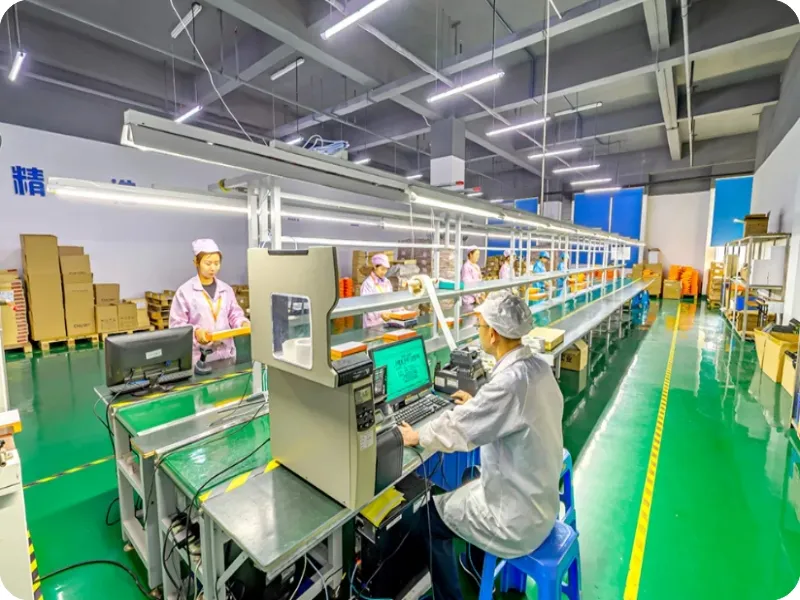

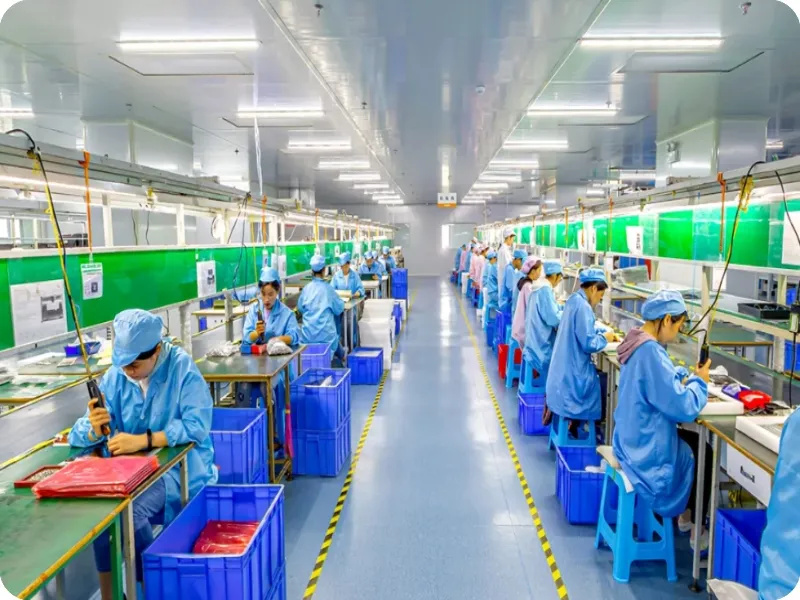

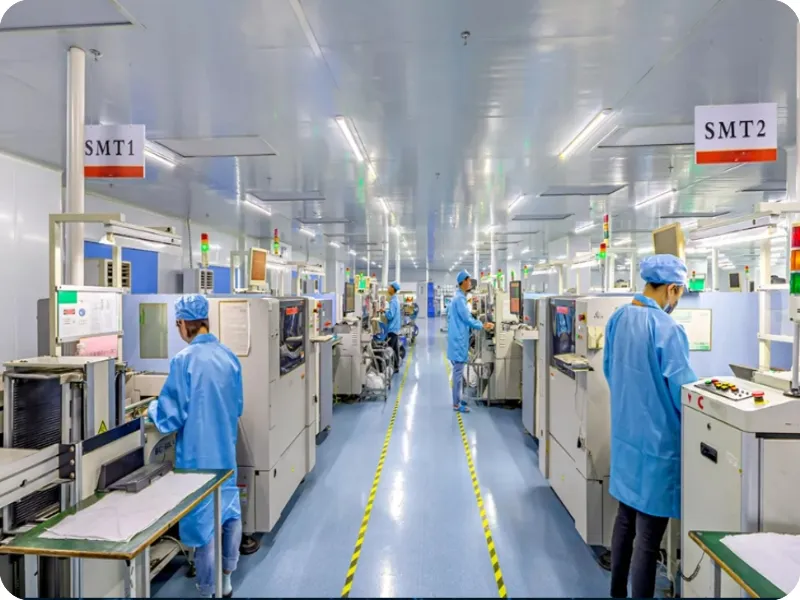

Factory Display

Frequently Asked Questions

Are you a factory/manufacturer?
Yes, we are a comprehensive company, integrating design and production. Each product is independently crafted and produced.
Can I customize my logo?
Absolutely! Our equipment supports laser engraving for your custom company logo.
What payment methods do you accept?
We accept T/T (bank transfer), PayPal, and other standard international payment methods.
What is your after-sales service policy?
We provide a 12-month warranty and lifelong technical maintenance services for all our hardware.
What operating systems are supported?
The device comes pre-installed with Ubuntu 24.04-LTS Desktop, providing a stable and versatile environment for edge computing.
What are the shipping options?
We use secure carton packaging and offer various international shipping methods to ensure safe and timely delivery.
