Customization: Available
After-sales Service: Remote Support
Warranty: 2 Year
Send Inquiry

Product Description

Basic Information
Model NO.
AN-9000CTL
Portable
Non Portable
Form
Flatbed
Application
Security Check
Type
High-definition X-ray Detector
Certification
CE, ISO
Scanning Mode
Spiral Tomography
Ray Energy
260kv
Penetration
45mm Steel Plate
Radiation Protection
6mm Lead Plate
Production Capacity
2000 pieces/Year
Origin
China
Product Introduction

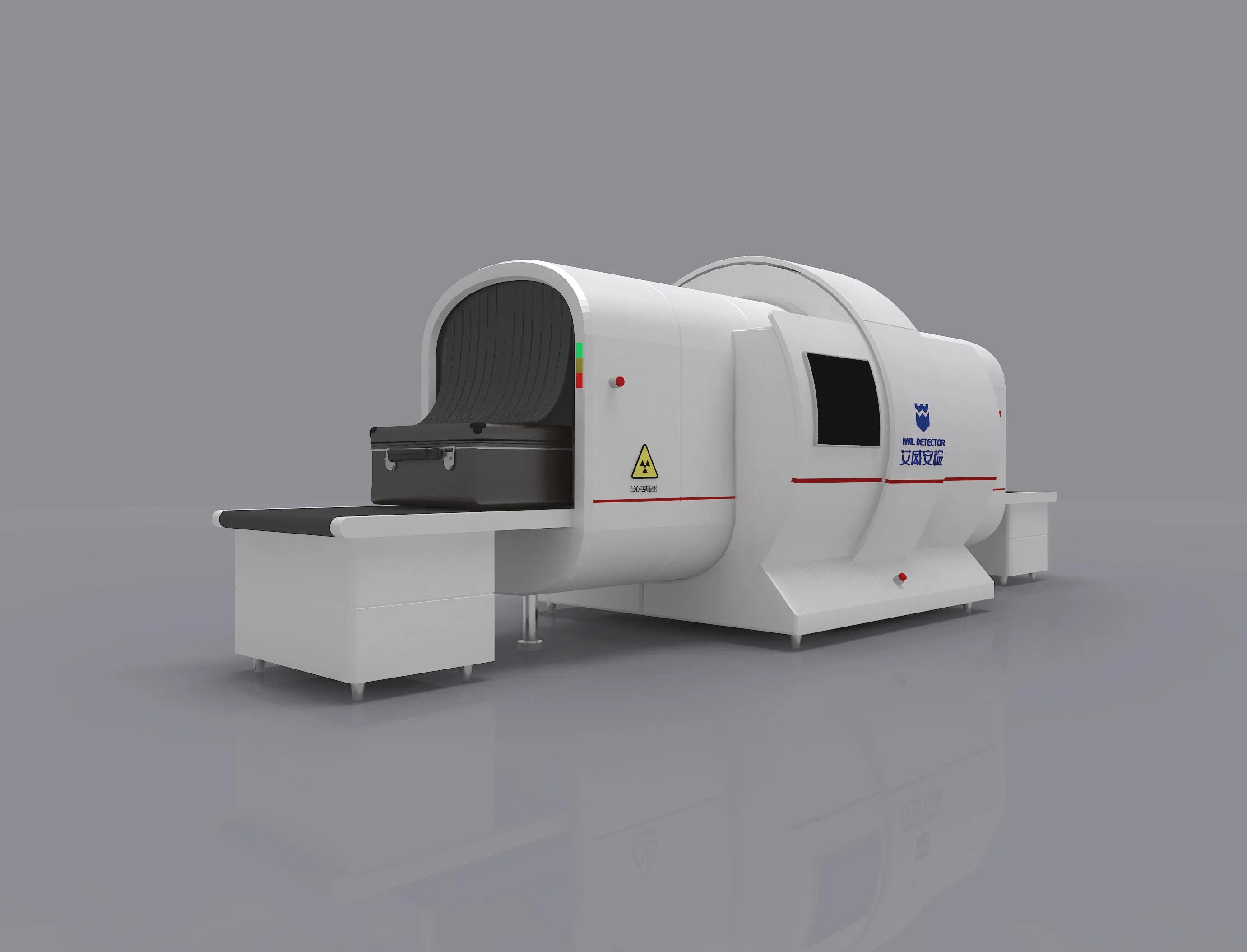

The AN-9000CTL Spiral Tomography CT Security Inspection Machine is an advanced security system featuring 360-degree three-dimensional data acquisition. By utilizing circular spiral CT technology, the system collects comprehensive image data in 3ms per rotation. This data is processed to generate detailed 3D reconstructions and slice images of all faults within the inspected luggage.

Equipped with both high-speed and low-speed scanning modes, the system is designed for high-security environments. It provides multiple viewpoints including top, bottom, side, and tomography diagrams for multi-angle analysis of luggage contents.

This system is ideal for customs, ports, high-speed railway stations, subways, and military bases. It utilizes X-ray fluoroscopy to analyze material volume, density, and quantity, effectively identifying threats such as dangerous chemicals and contraband.

Security Inspection System 1
Security Inspection System 2
Security Inspection System 3
Security Inspection System 4
Technical Parameters
Ray Device System
Ray Energy: 260kv
Penetrating Power: 45mm thick steel plate
Cooling Mode: Oil immersed
X-ray Leakage Rate: 0.5 μsv/h (at 5cm distance)
Collimator: Ultra narrow seam conical beam
Detection & Appearance
Structure: C-shaped detection frame
Dimensions: 3800mm (L) x 1400mm (W) x 1700mm (H)
Channel Size: 650mm (W) x 500mm (H)
Equipment Weight: 2000kg
Conveyor Speed: 0.2m/s
Image Processing Software
Algorithms: 3D reconstruction, CNN neural network identification, energy spectrum imaging
Display: 24-inch 20000:1 LED IPS high gray highlight display
Intelligence: ID card comparison, automatic alarm for explosives/drugs/hazardous chemicals
Data Storage: 500,000 images standard capacity
Frequently Asked Questions
Q1: What is the maximum scanning throughput of the system?
In high-speed scanning mode, the AN-9000CTL can inspect up to 1200 luggage bags per hour. In low-speed mode, it maintains a throughput of up to 300 bags per hour.
Q2: How effective is the material penetration?
The system utilizes a 260kv ray source, allowing it to penetrate steel plates up to 45mm thick, ensuring high visibility through dense materials.
Q3: Does the system support automatic threat identification?
Yes, it uses CNN neural network algorithms to automatically identify and mark contraband such as explosives, drugs, and nitrobenzene with on-screen alerts.
Q4: What are the environmental operating limits?
The equipment is IP45 rated and can operate in temperatures ranging from -20°C to +53°C, with a relative humidity tolerance of up to 95%.
Q5: Is the system compliant with international safety standards?
Yes, it meets GB 19517-2009, GBZ127-2002, and GB18871-2002 standards, and complies with World Health Organization and ICRP 103-2007 regulations.
Q6: What visualization options are available to operators?

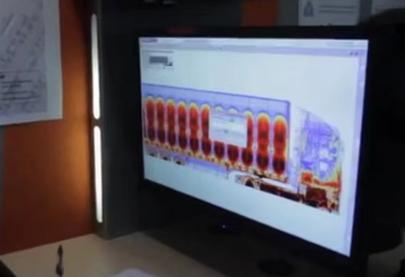

Operators can view 3D reconstructions, tomography slices, and rotate internal images arbitrarily to analyze objects from any angle.
