Application:
Security Check
Type:
Industrial High-Definition X-ray Detector
Channel Size:
2.8m (W) X 4.8m (H)
Ray Protection:
10 mm Thick Lead Tank

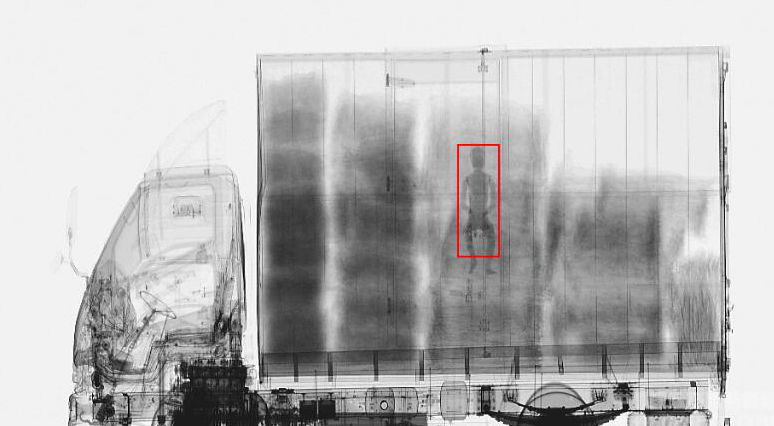

The AN-48002800P large vehicle inspection X-ray security inspection system is designed for high-security environments to carry out large-scale vehicle safety inspections. Utilizing X-ray perspective scanning digital imaging technology, it effectively identifies threats such as explosives, drugs, hidden personnel, and contraband. This system significantly reduces manual labor intensity while enhancing detection accuracy.
Equipped with license plate recognition and image classification capabilities, it ensures a smooth and safe flow of traffic. The subsystem for vehicle bottom inspection provides a comprehensive view, locating prohibited articles hidden underneath vehicles with high speed and precision.
X-Ray Source
- ●Ray energy: 420kv; Side illumination type.
- ●Steel penetration: Maximum thickness of 100 mm.
- ●Cooling: Air conditioning ventilation and oil immersed type.
- ●Protection: 10 mm thick lead shielding.
Detection System
- ●Structural Design: Modular and removable for easy handling.
- ●External Dimensions: 2.4m (L) x 5.5m (W) x 5.1m (H).
- ●Detector: CdWO4 crystal with CMOS photoelectric conversion.
- ●Pixel Arrangement: L-shaped line array (1536 pixels).
Image Processing & Performance
- ●Software Functions: Edge enhancement, image inversion, organic/inorganic matter removal, and real-time video.
- ●Throughput: Scans up to 60 vehicles per hour.
- ●Scanning Speed: 5km/h (up to 10km/h in fast detection mode).
- ●Operating Temp: -20 °C to +43 °C; Waterproof grade: IP45.
Frequently Asked Questions
Q1: What is the maximum size of vehicles that can be inspected?
The system can accommodate large vehicles up to 18m in length, 2.5m in width, and 4.6m in height.
Q2: How does the system ensure the safety of the driver during scanning?
The system features a mode that avoids scanning the front of the vehicle. Drivers and passengers typically drive off the vehicle before the security scanning begins.
Q3: What level of penetration can the X-ray achieve?
The 420kv energy source allows for a penetration force of up to 100mm through steel plates.
Q4: How many vehicles can be processed in an hour?
In standard scanning mode, the system can process approximately 60 large vehicles per hour.
Q5: Can the detection frame be customized for specific site requirements?
Yes, the width and height of the detection frame can be customized to meet the specific environmental or operational requirements of the user.
Q6: What are the image storage and format capabilities?
Images are stored in JPG format, named by scanning time. The standard storage capacity is 10,000 images, which can be archived via DVD or exported.
