High and Low Voltage Switchgear Comprehensive Test System

1 / 5

High and Low Voltage Switchgear Comprehensive Test System

Customization:	Available
After-sales Service:	Onsite and Video Call Remote Guidance
Warranty:	2 Years Free Warranty Long Life Service

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SXGK

Max Diameter

<500mm

Mass Scope

<900kg

Type

Strength Testing Machine

Max Capacity

>1000KN

Accuracy Grade

0.5

Load Way

Electronic Load

Display

Digital

Power Source

AC220V

Production Capacity

100 Units/Month

🔍 Product Description

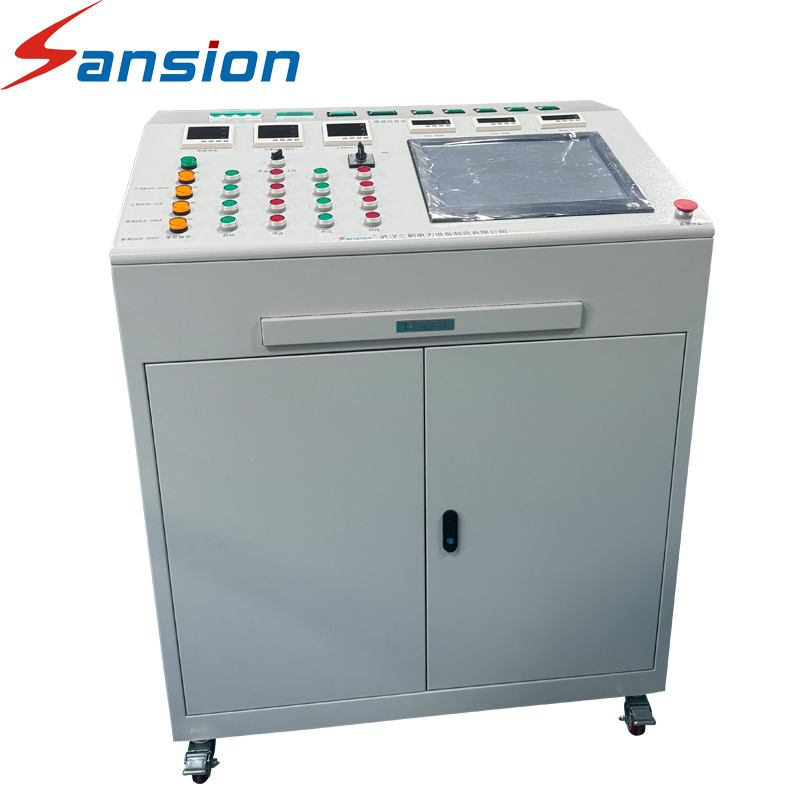

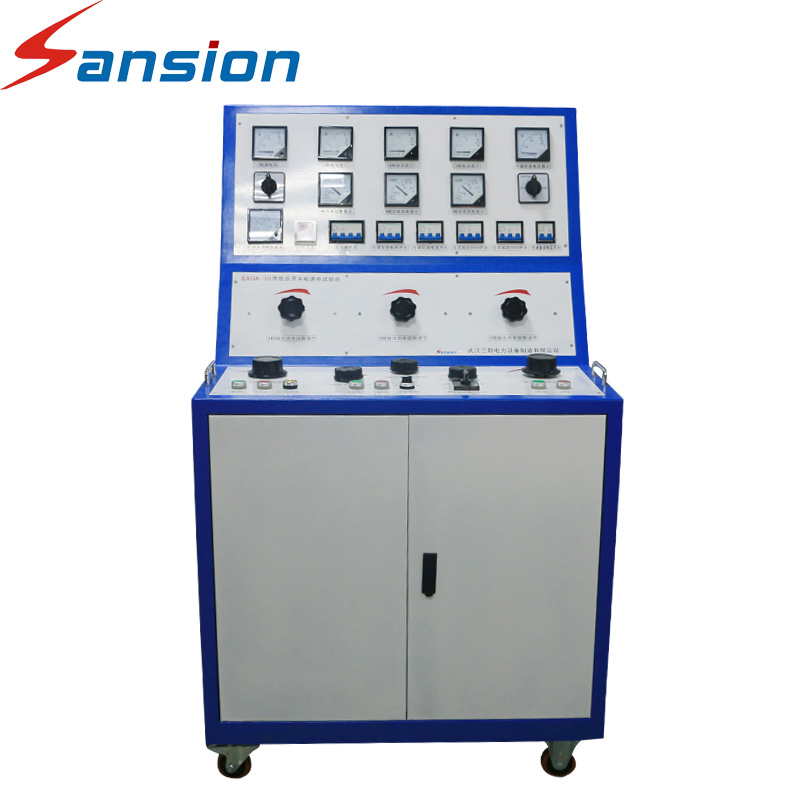

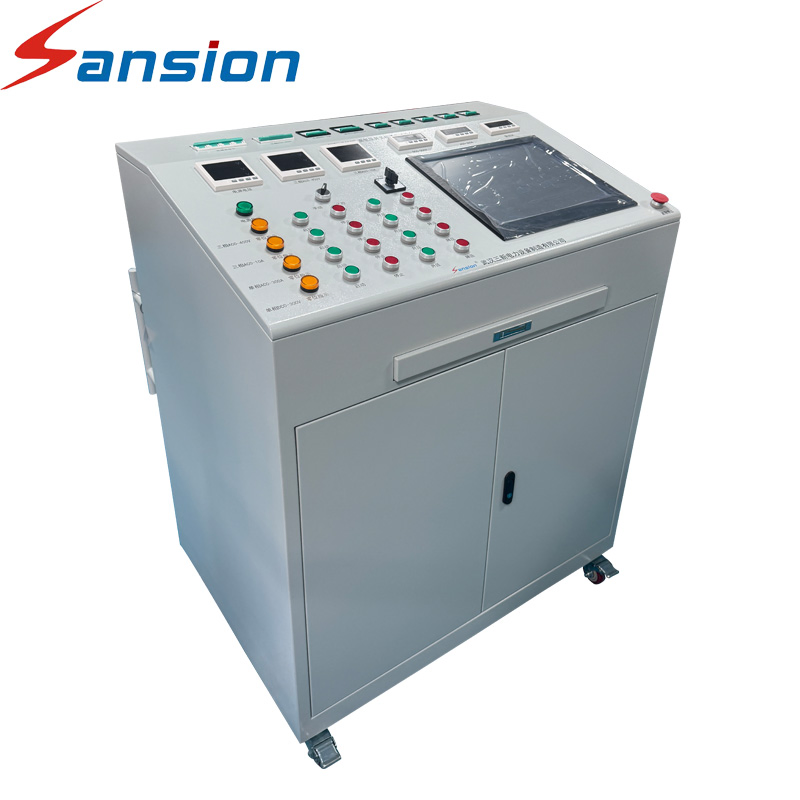

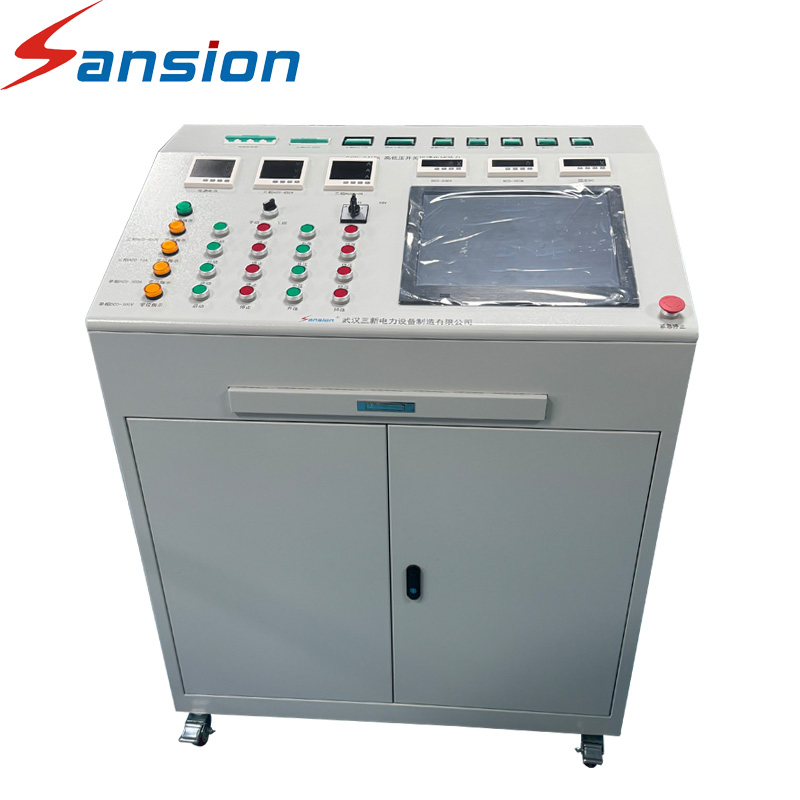

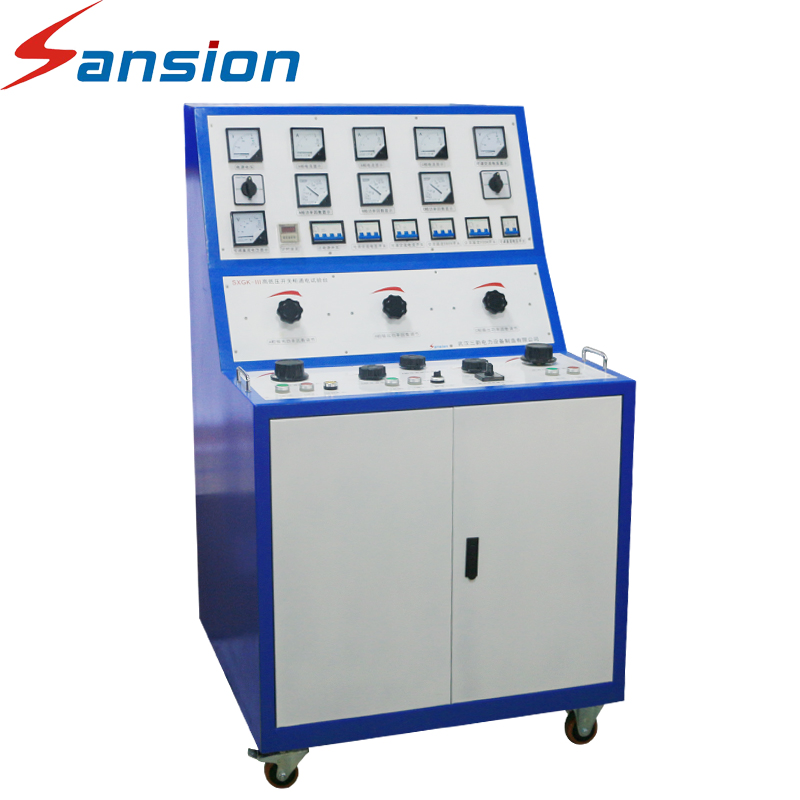

High and Low Voltage Switchgear Comprehensive Test System

SXGK Series HV/LV Switch Cabinet Test Bench is designed for measuring circuit resistance, insulation resistance, and conducting AC withstand voltage tests. It evaluates the operating characteristics of circuit breakers and performs various power-on tests for switchgear systems, ensuring comprehensive quality control.

⭐ Key Features

✓
Direct Reading: Digital meters display current, voltage, and power factor values clearly.
✓
High Accuracy: Precision engineering ensures reliable and accurate test data.
✓
Full Protections: Each circuit is equipped with air switch protection for maximum safety.
✓
Portable Design: Compact size and light weight allow for easy mobility in various industrial settings.

⚙ Technical Specifications

• Input: 3 Phase 4 Line AC 380V
• Output current: 3 Phase AC 0-50A (adjustable)
• DC output: 0-300V adjustable operating voltage
• Frequency: 50Hz/60Hz optional
• Packaging: Industrial-grade Plywood Case

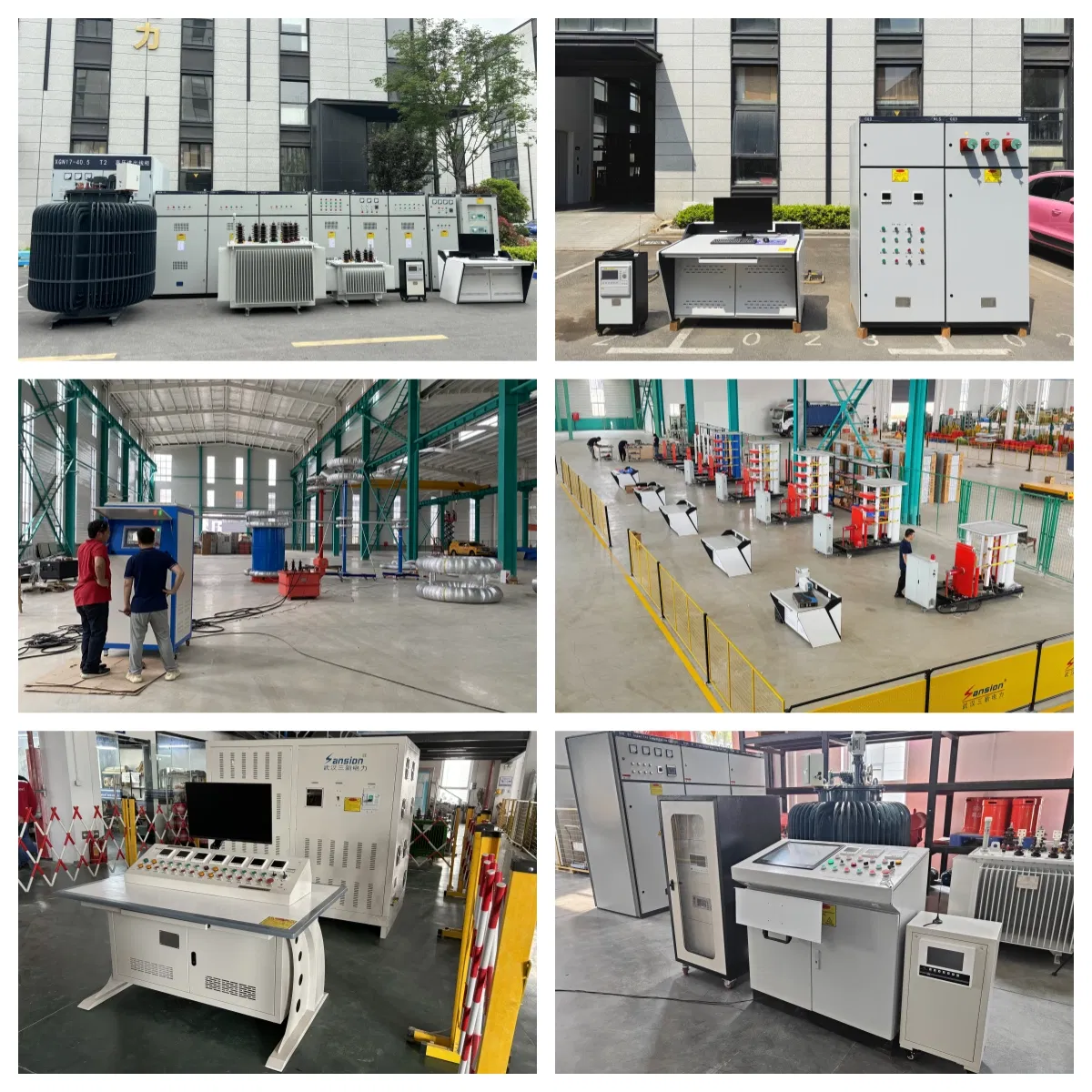

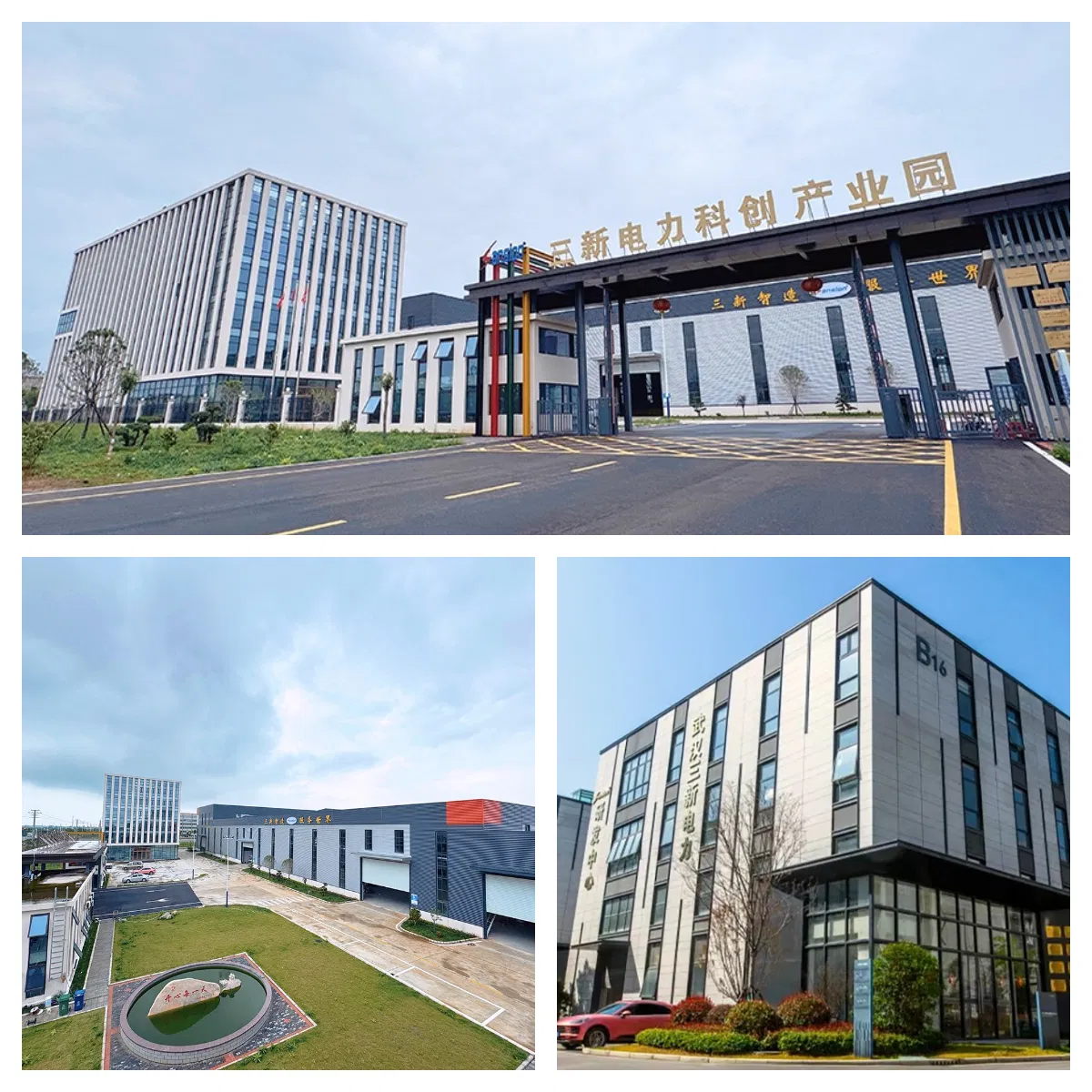

🏭 Professional Capability

Our facility was established in 2005, backed by over 20 years of expertise in R&D and manufacturing of power electrical testing products. We serve diverse sectors including railroad, energy, water conservancy, and aerospace. All operations strictly adhere to ISO9001 quality system certification and international IEC standards.

📜 Certifications

📦 Packing & Customer Visit

❓ Frequently Asked Questions

Q1: Is your company a manufacturer?

A: Yes, we are an industrial and trade enterprise with our own factory. Founded in 2005, we have twenty years of production experience with reliable production lines and R&D centers.

Q2: Can the products be customized?

A: Yes, products can be made to order according to special customer requirements using the latest technology. Delivery is usually within 10 working days.

Q3: How do you guarantee product quality?

A: We use high-quality imported components. Each unit undergoes three stages of quality inspection before being packed in non-fumigation wooden boxes for export.

Q4: What are your after-sales terms?

A: We offer a one-year warranty and free consulting services. We provide support via email, video calls, and on-site technical assistance to solve issues promptly.

Q5: Which countries do you export to?

A: Our products are exported globally, including the United States, France, Brazil, Australia, Russia, Saudi Arabia, Indonesia, and many other regions.

Q6: What standards do your products conform to?

A: All products strictly conform to international IEC standards and local state standards, supported by ISO9001 quality system certification.
