Advanced X-ray Systems for Aluminium and Magnesium Wheel Inspection

1 / 5

Advanced X-ray Systems for Aluminium and Magnesium Wheel Inspection

Customization:	Available
After-sales Service:	Along Lifetime Services
Warranty:	12months

Send Inquiry

Product Description

Basic Information

Model NO.

ADR

Form

Stationary Type

Application

Security Check, Industrial, Casting/Welding Defects

Certification

CE, ISO

Accuracy Rate

Better Than 90%

Software

Automatic Defect Recognition (ADR)

Wheel Size

13-26 inch

Material

Aluminium or Magnesium Alloy

Product Description

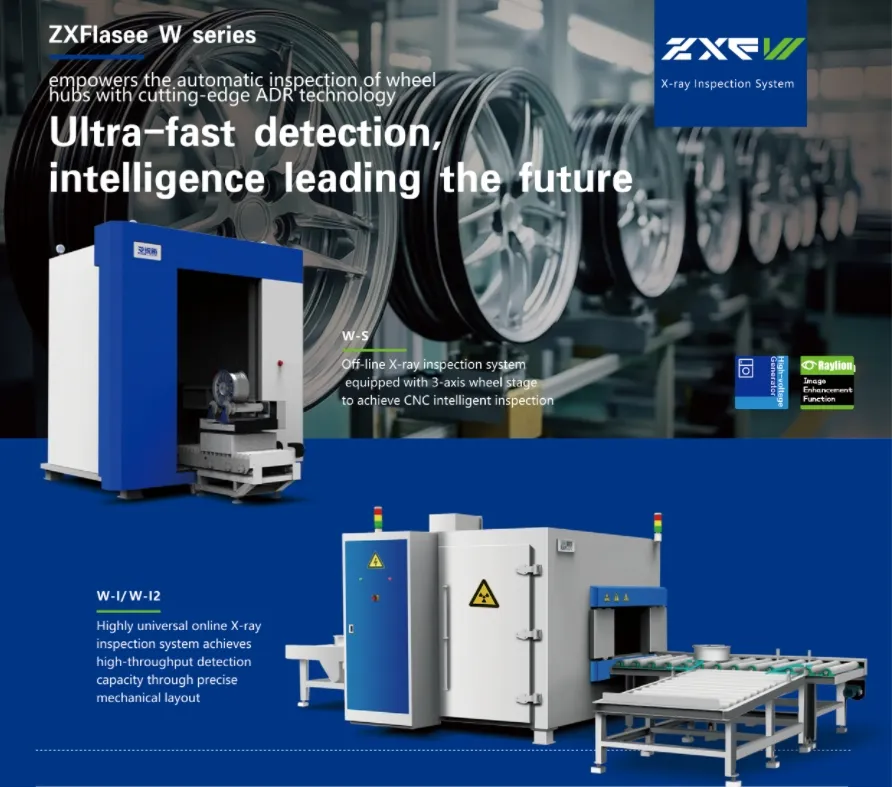

High-precision X-ray Vertical Radiography Flat Panel Detector Inspection System

The ZXF W-I Series is an online X-ray inspection solution developed based on high-resolution and high-frame-ratio speed digital imaging capabilities. It is specifically designed for batch quality control of automobile wheels (aluminum alloy, magnesium alloy, steel, etc.) across various specifications and hub sizes.

Key Features

Flexible System Configuration: Core components including X-ray sources, HV generators, and detectors are matched for high-performance NDT & NDE solutions.
Highly Integrated Design: Innovative use of space creates cost-effective, intelligent inspection systems tailored to environmental requirements.
Proven Performance: Systems are widely used in aviation, aerospace, and defense fields with over 15 years of project experience.

Technical Specifications

Parameter	W-S (Offline)	W-I (Online)	W-I2 (Online)
Test Object Size	12-26 inch	13-26 inch	13-27 inch
X-ray Energy	160/225kV	160/225kV	160/225kV
Focus (IEC336)	0.4mm (EN12543 d=0.4mm/1.0mm)
Detector Imaging Area	236.5 x 236.5mm	236.5 x 236.5mm	236.5 x 236.5mm
Penetration (160kV)	Al100/Fe20mm	Al100/Fe20mm	Al100/Fe20mm
Maximum Load	50kg	80kg	80kg

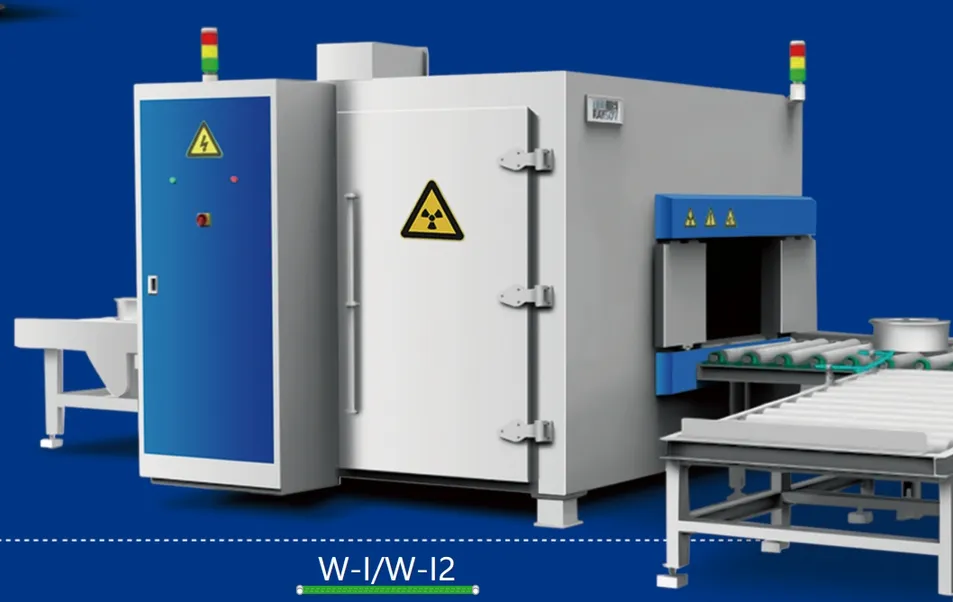

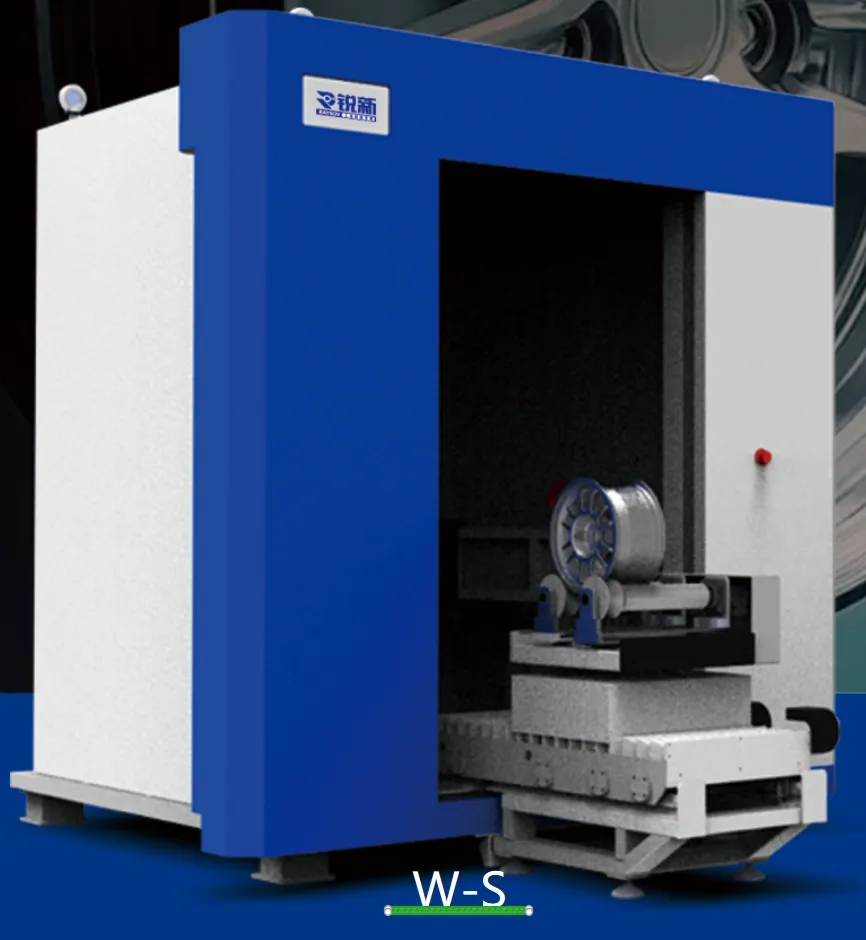

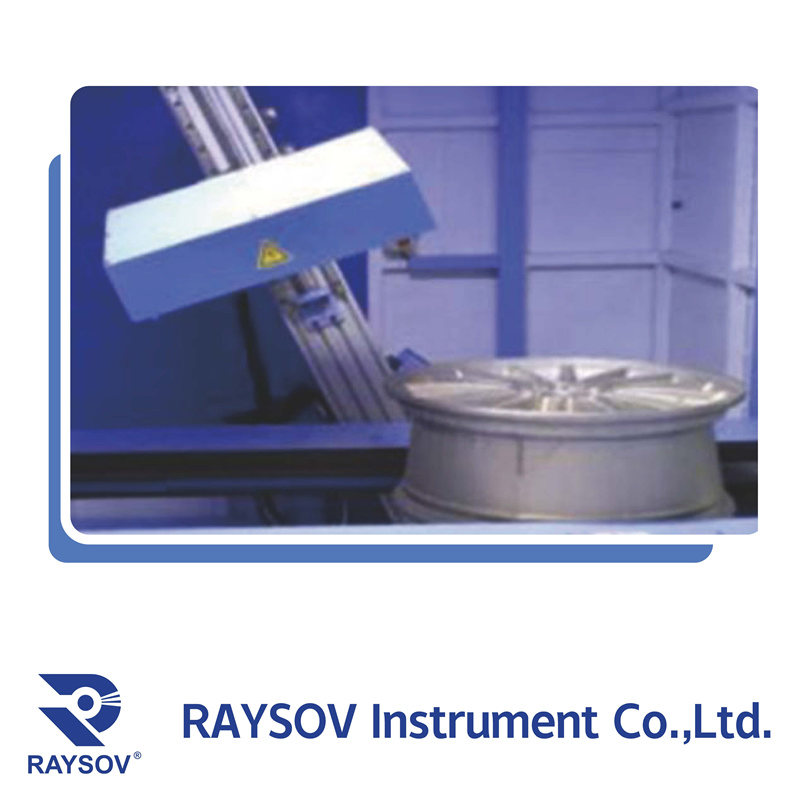

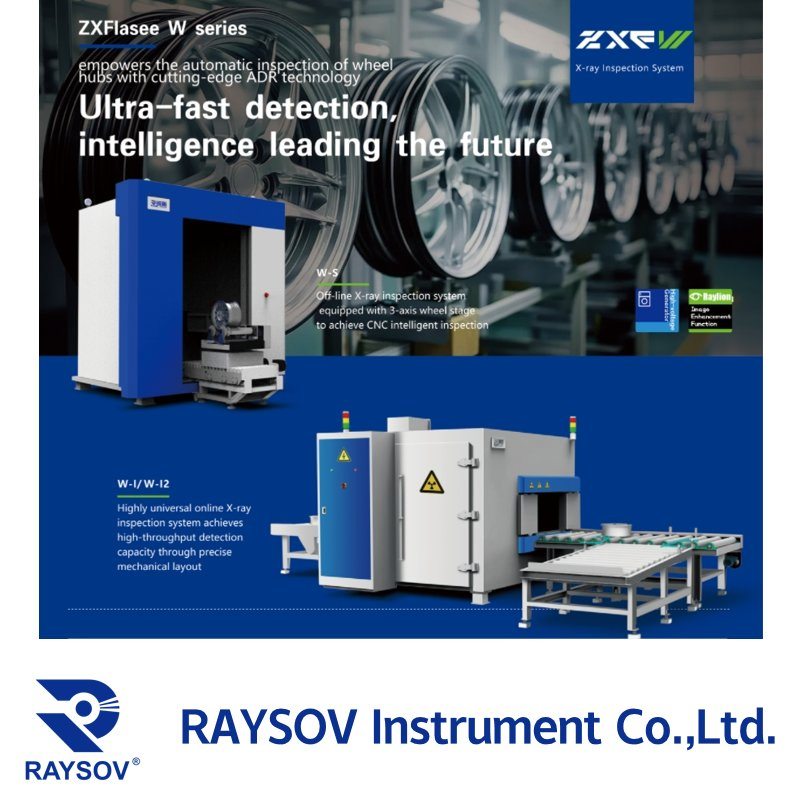

Mechanism	C-arm + 3 axis stage	Automated roller conveyor + inclination C-arm

Service & Support

Warranty

12 Months

Support

24/7 Technical assistance and spare parts supply

Training

On-site or remote operation and maintenance training

Capabilities

OEM/ODM, Turnkey projects, Customs clearance support

Certifications & Capabilities

Our solutions hold international certifications such as ISO9001, ISO14001, ISO45001, and ISO27001. We maintain strict quality controls and independent intellectual property rights with numerous national invention patents.

Applications & Related Products

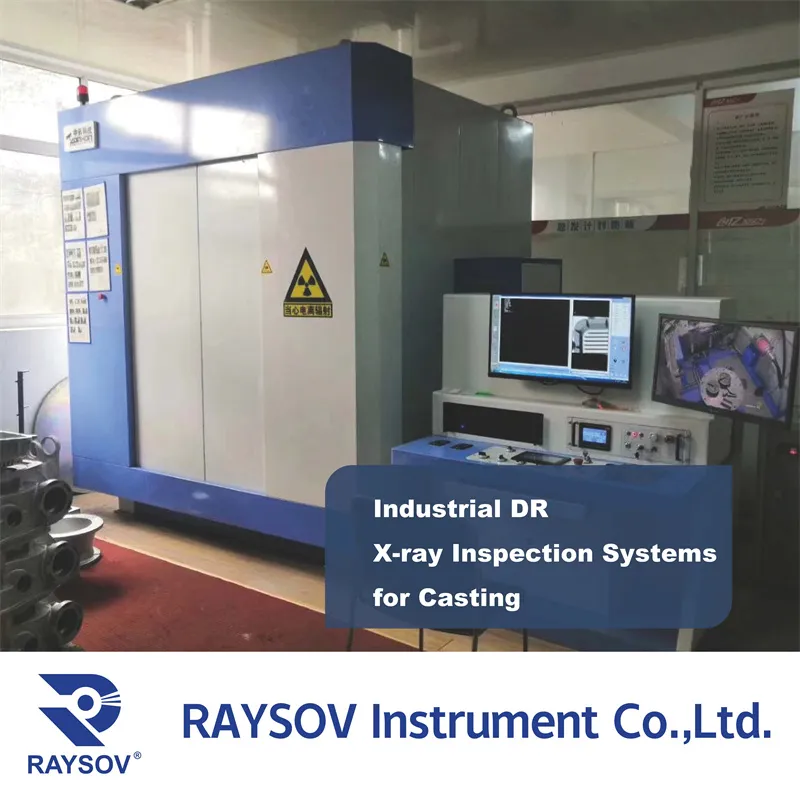

Industrial CT/DR for forge and casting wheels
X-ray 2D/3D inspection systems for alloy hub NDT&NDE
X-ray tubes, HV generators, and LINAC/Betatron systems

Frequently Asked Questions

Q1: What is the lead time for orders?

A: Standard models typically ship within 3 months, while customized units require approximately 6 months for engineering and production.

Q2: Do you provide international on-site service?

A: Yes, we provide global support including onsite installation, maintenance, and training through partnered service centers in key regions.

Q3: Can the system be customized for specific wheel sizes?

A: Absolutely. We offer tailored attachments and mechanical configurations to accommodate various specifications from 12 up to 27 inches.

Q4: What types of defects can the ADR software identify?

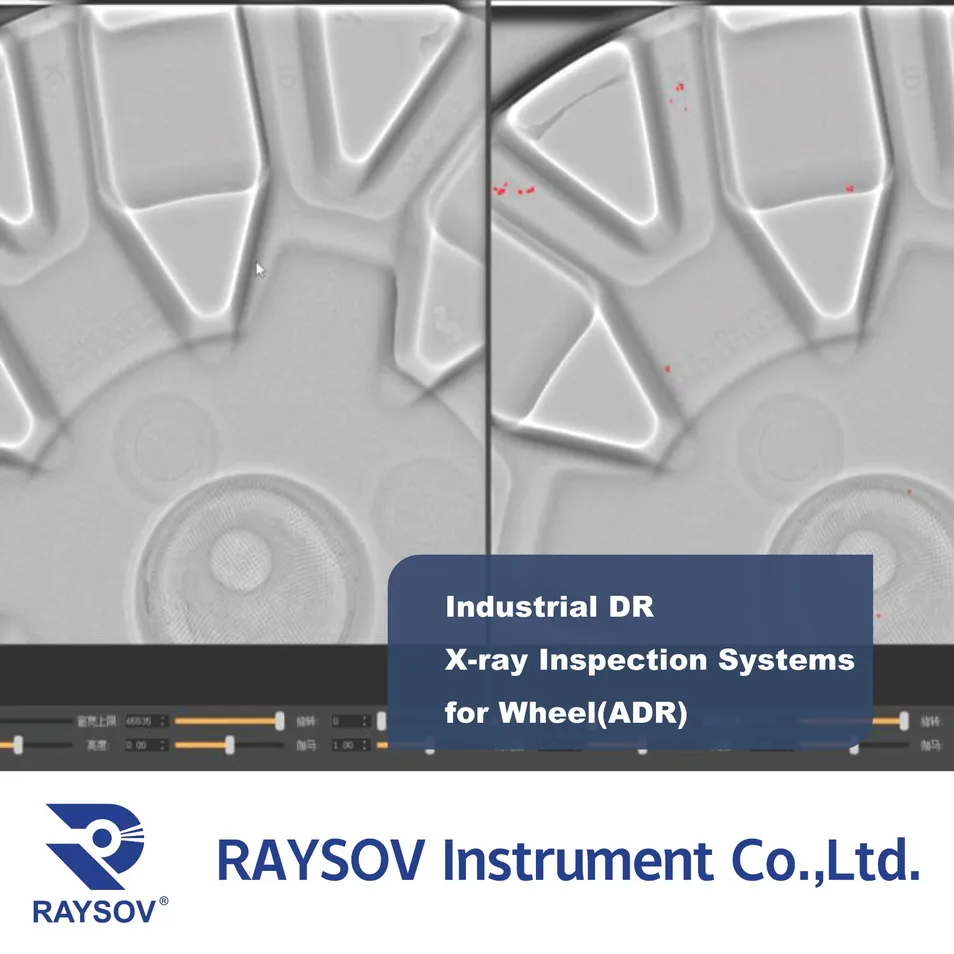

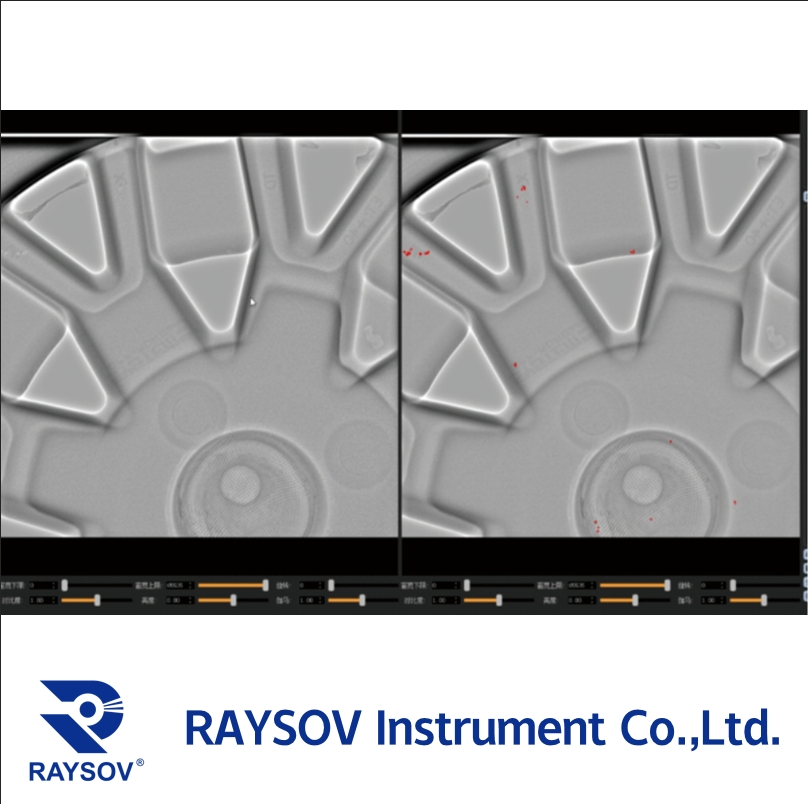

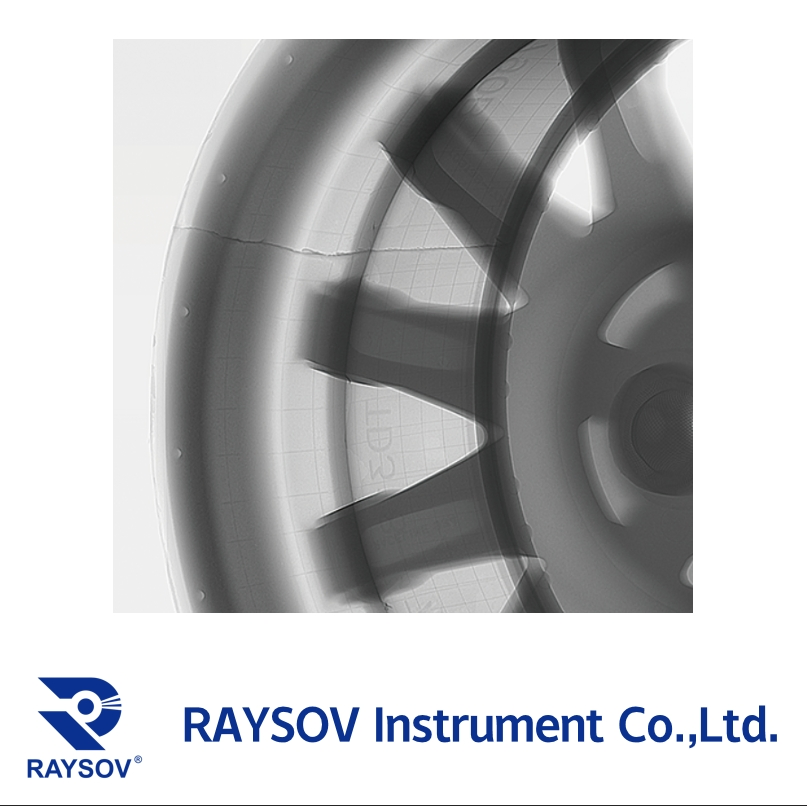

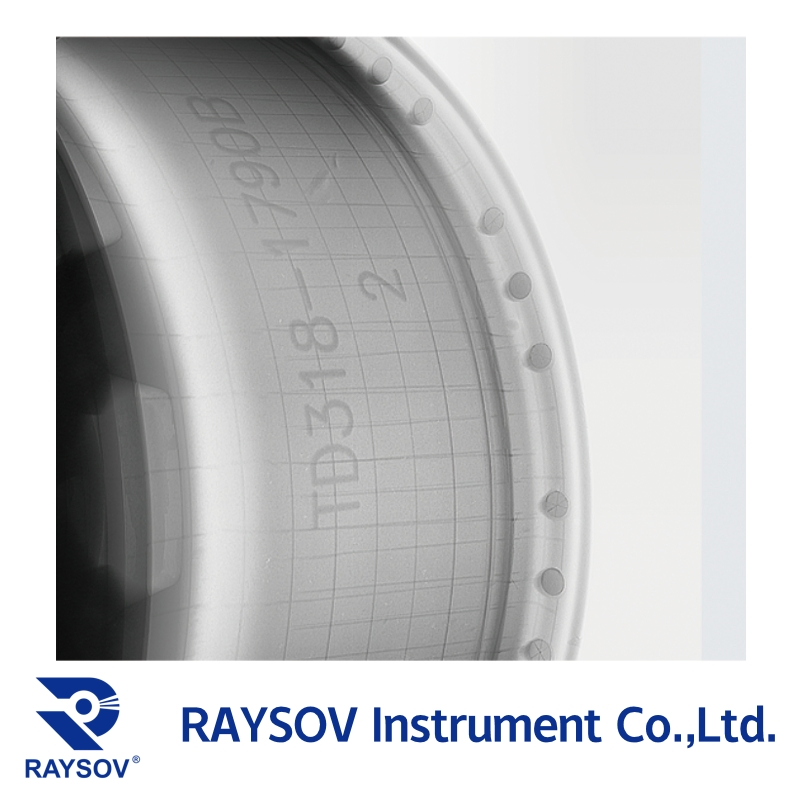

A: The Automatic Defect Recognition software is designed to detect pores, slag inclusion, porosity, cracks, shrinkage, and deformation in alloy wheels.

Q5: Is the system compatible with existing production lines?

A: Yes, we offer both in-line and off-line models. Online versions feature automated roller conveyors for seamless integration into your production workflow.

Q6: What certifications do your X-ray systems hold?

A: Our systems are fully compliant with CE and ISO standards, including ISO9001 and ISO14001, ensuring high quality and safety.

Product Detail

Advanced X-ray Systems for Aluminium and Magnesium Wheel Inspection

Product Description
