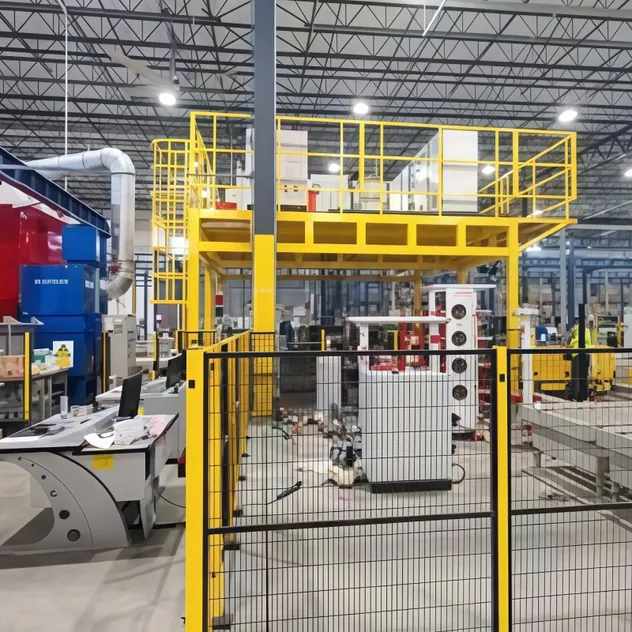

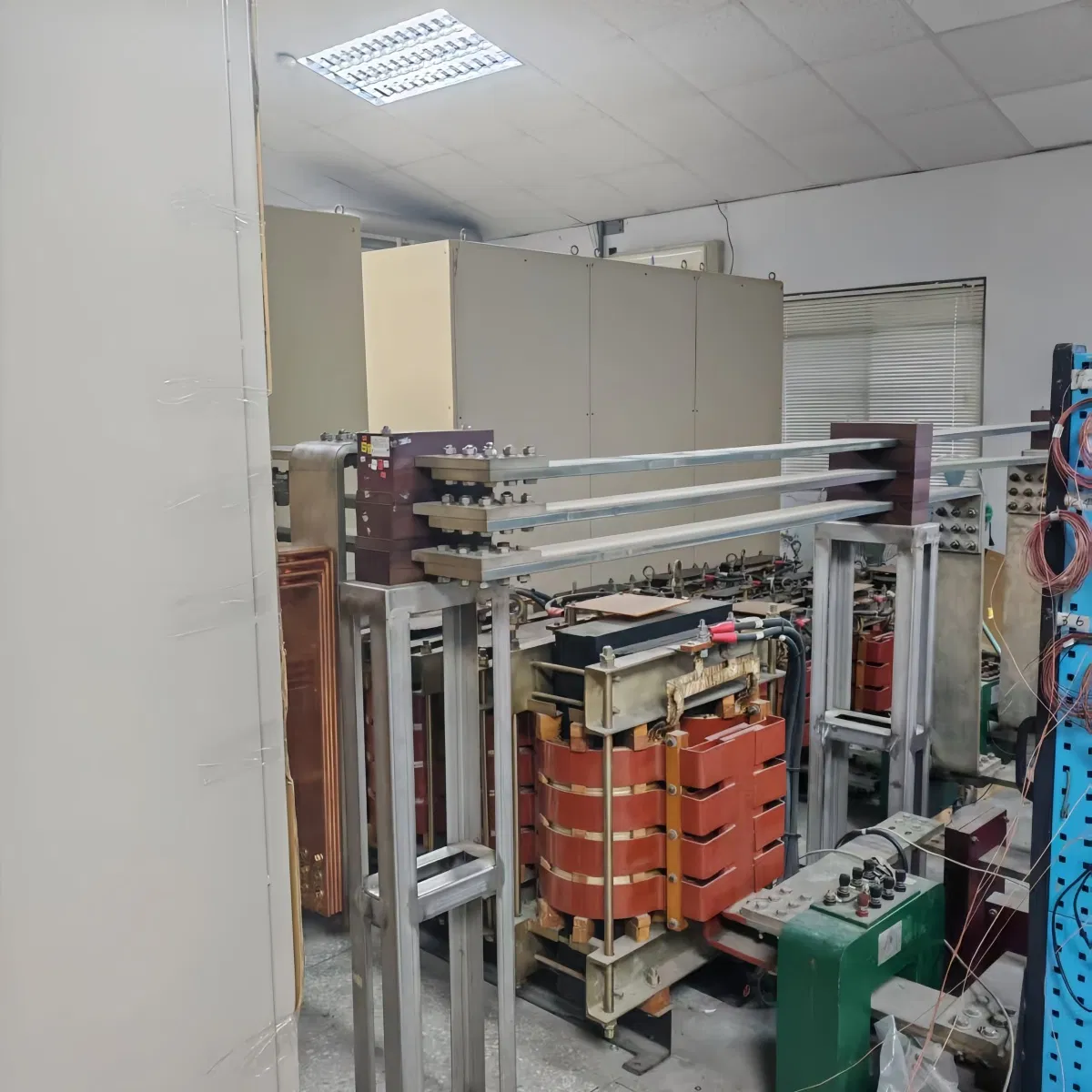

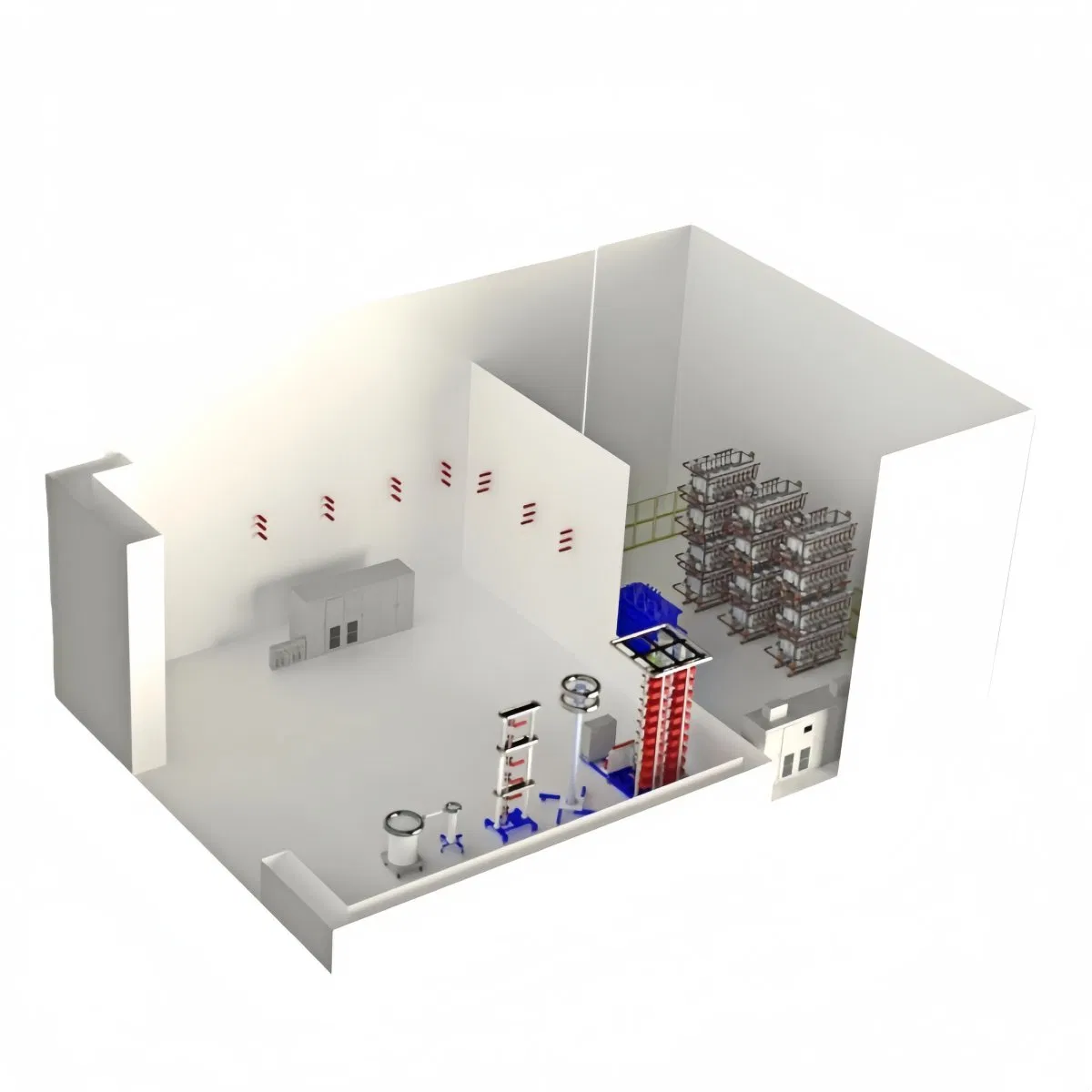

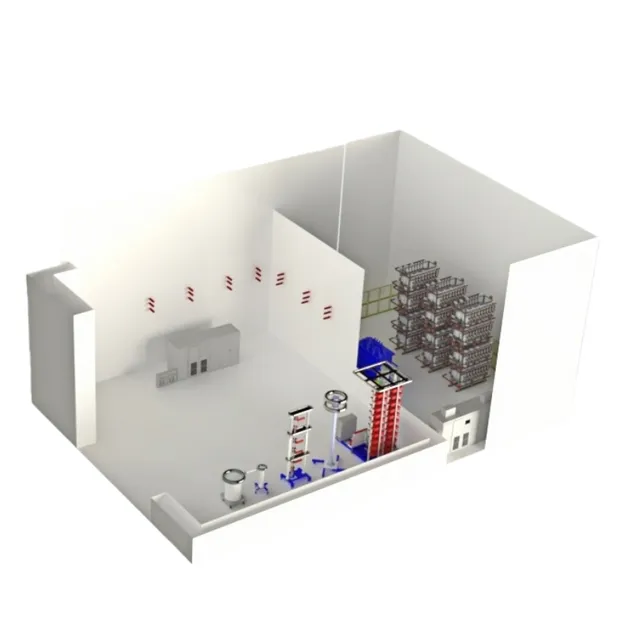

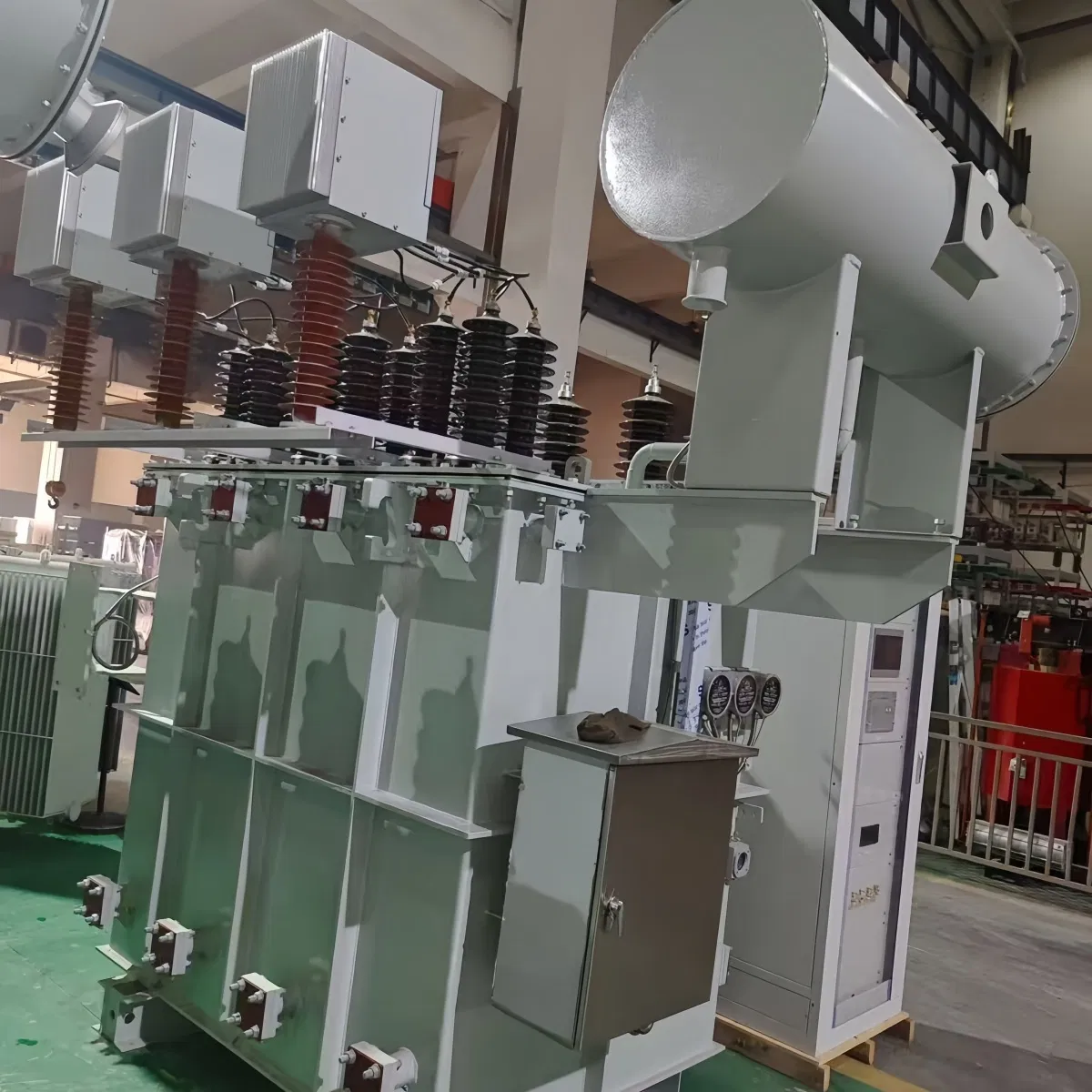

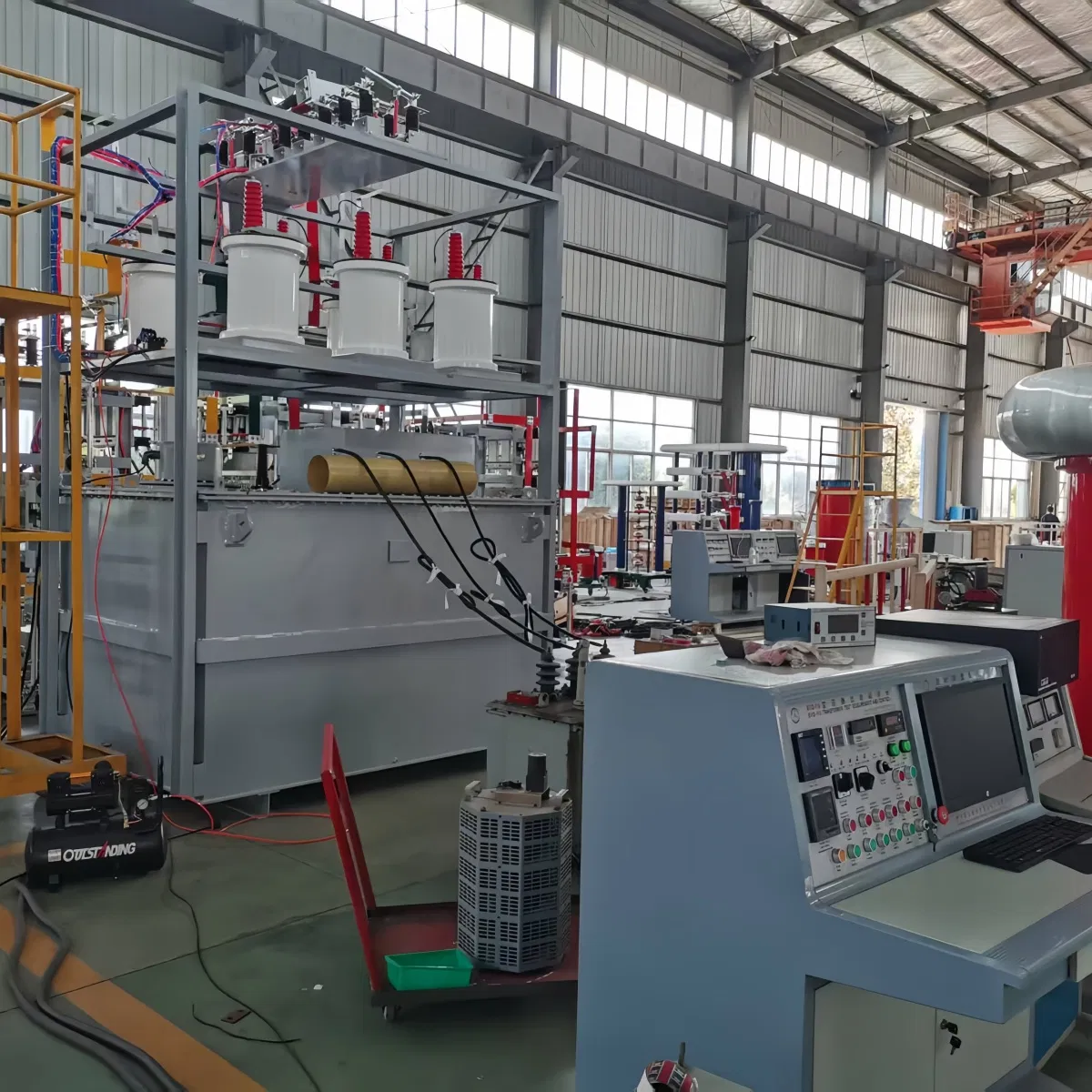

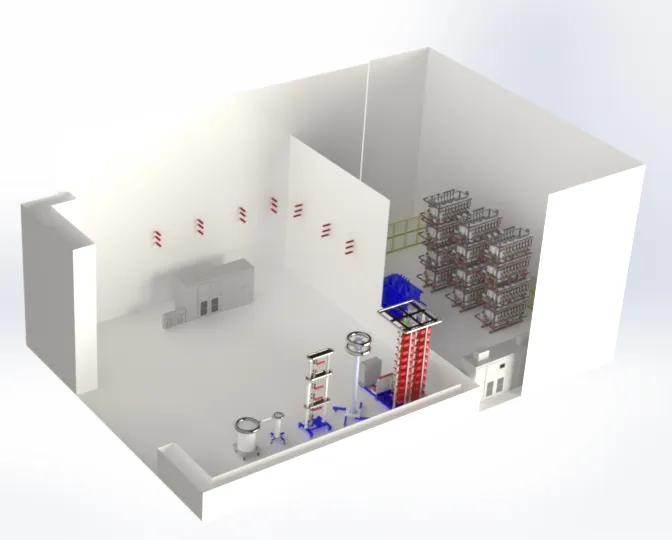

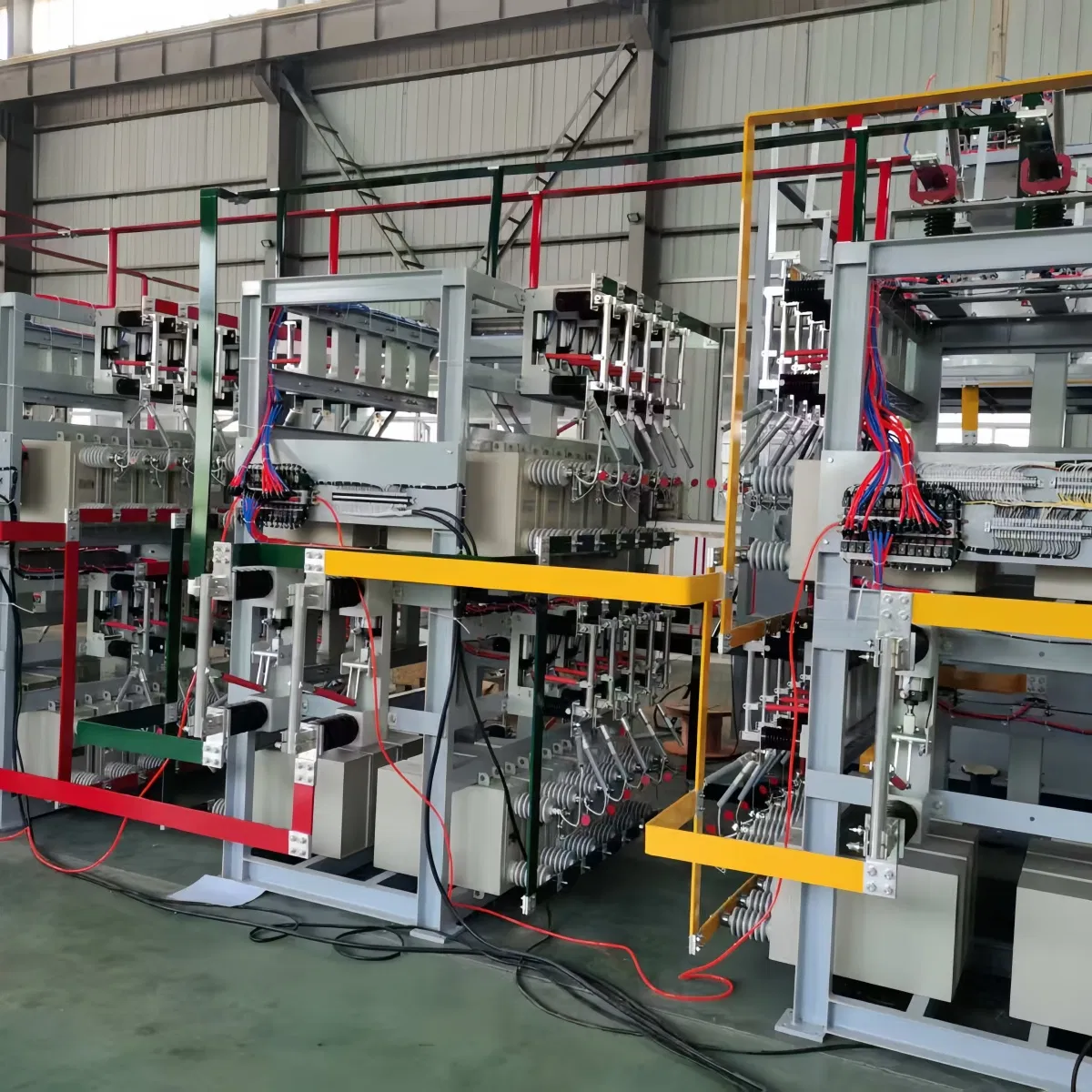

The transformer production line test system is a high-end integrated testing platform integrating automated logistics, intelligent control, data management and standards compliance. Following the assembly-line operation concept, it divides the transformer testing process into multiple specialized test stations. Via automated switching devices and digital management control, it achieves unmanned or minimally manned testing, significantly improving testing efficiency, data accuracy and operational safety.
| Test Item | Standard Compliance | ||||
|---|---|---|---|---|---|
| No-Load/Load Test | IEC60076-1 | ||||
| Induced Voltage Test | IEC60076-3 / IEC60270 | ||||
| Temperature Rising Test | IEC60076-2 | ||||
| Applied Voltage Test | IEC60076-3 | ||||

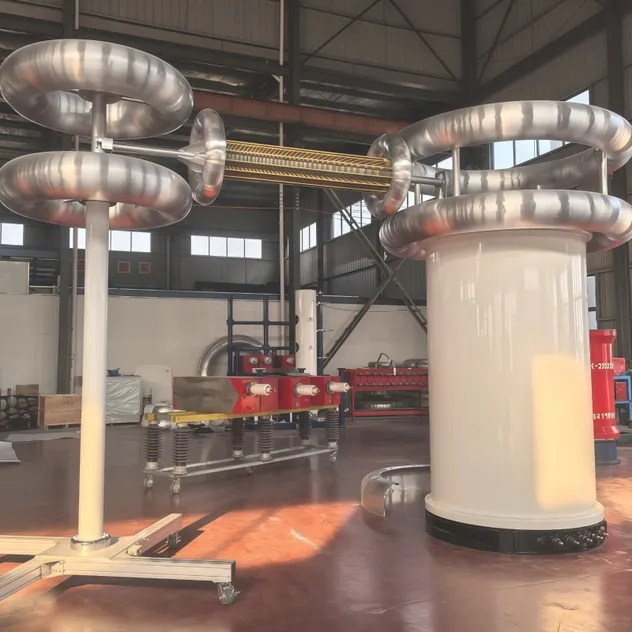

| Impulse Voltage Test | IEC60076-4 | ||||
| Transformer Class | 66kV | 110kV | 220kV | 500kV | |
| Power Source | 500kVA | 1000kVA | 1500kVA | 1800kVA | |
| Impulse Generator | 600kV / 60kJ | 800kV / 80kJ | 1600kV / 160kJ | 2400kV / 240kJ | |
Starting with a vision to transform the industry through innovation and engineering excellence, we have grown into a trusted solutions partner for the power sector. Our journey is defined by precision, reliability, and a deep commitment to quality—delivering systems that meet the evolving demands of modern energy infrastructure.
Trained technicians deliver precise diagnostics, swift repairs, and dependable system recovery for GIS and transformer systems.
Equipped with precision tools like SF6 handling kits, vacuum pumps, and detectors to guarantee secure servicing.
Handling all aspects including erection, dismantling, testing, and retrofits with high efficiency and expertise.
