High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
1 / 5
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench
High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench

High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench

Customization: Available
After-sales Service: Onsite and Video Call Remote Guidance
Warranty: 2 Years Free Warranty Long Life Service
Send Inquiry

Product Description

i

Basic Information

Model NO.SXGK
TypeStrength Testing Machine
Max Capacity>1000KN
Accuracy Grade0.5
Load WayElectronic Load
DisplayDigital
Power SourceAC220V
OriginChina
Production Capacity100 Units/Month
Transport PackagePlywood Case
P

Product Description

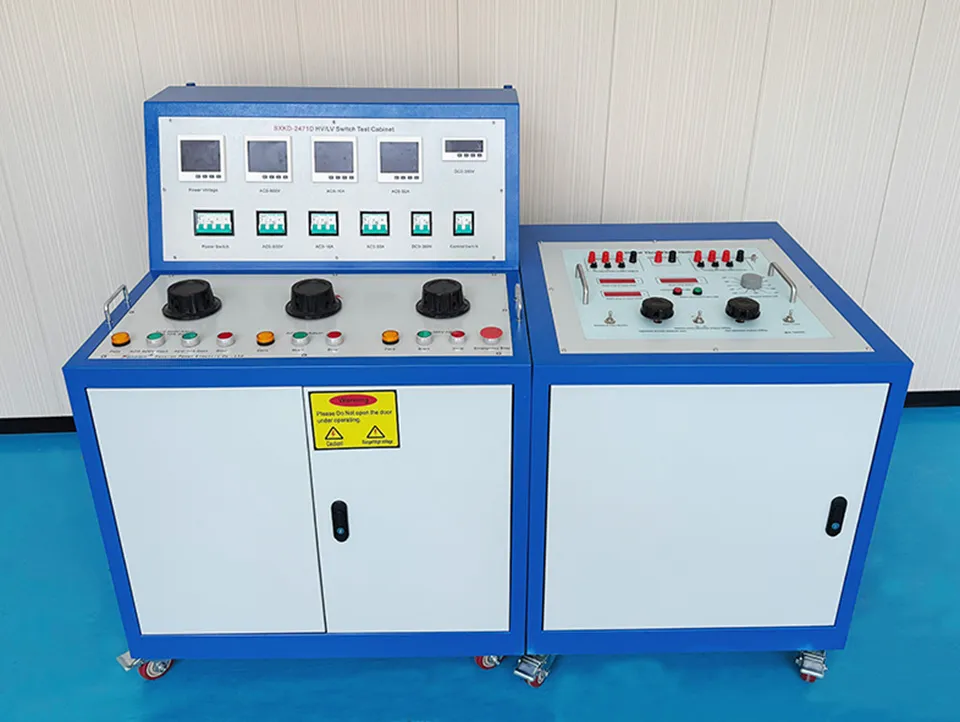

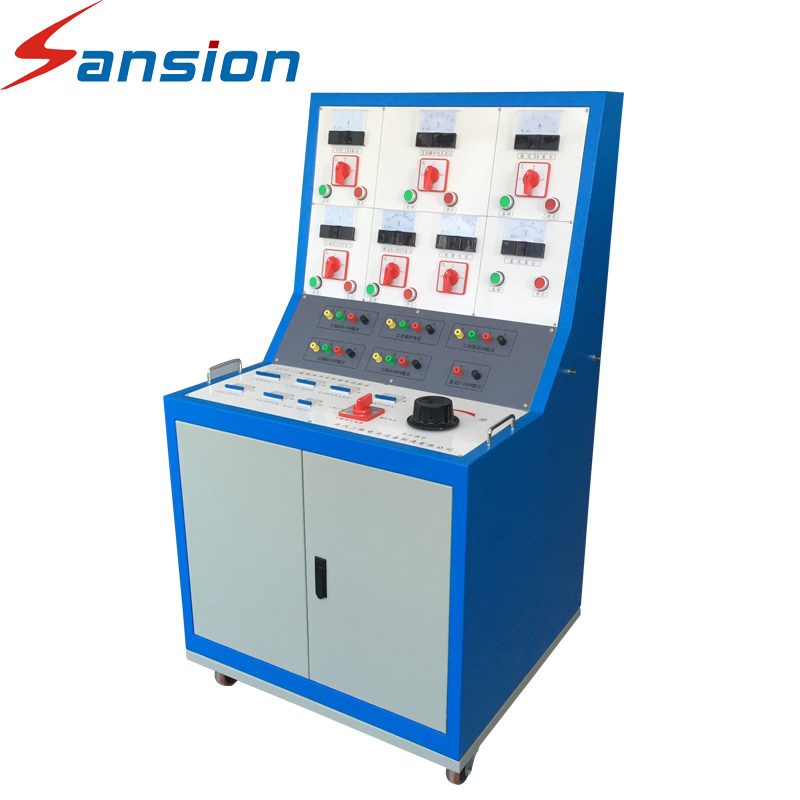

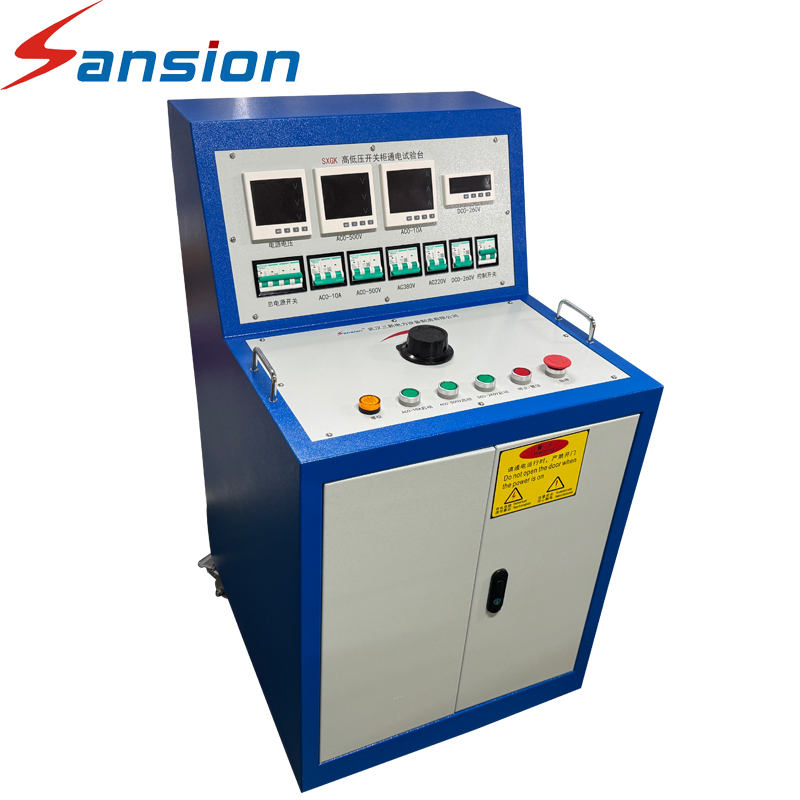

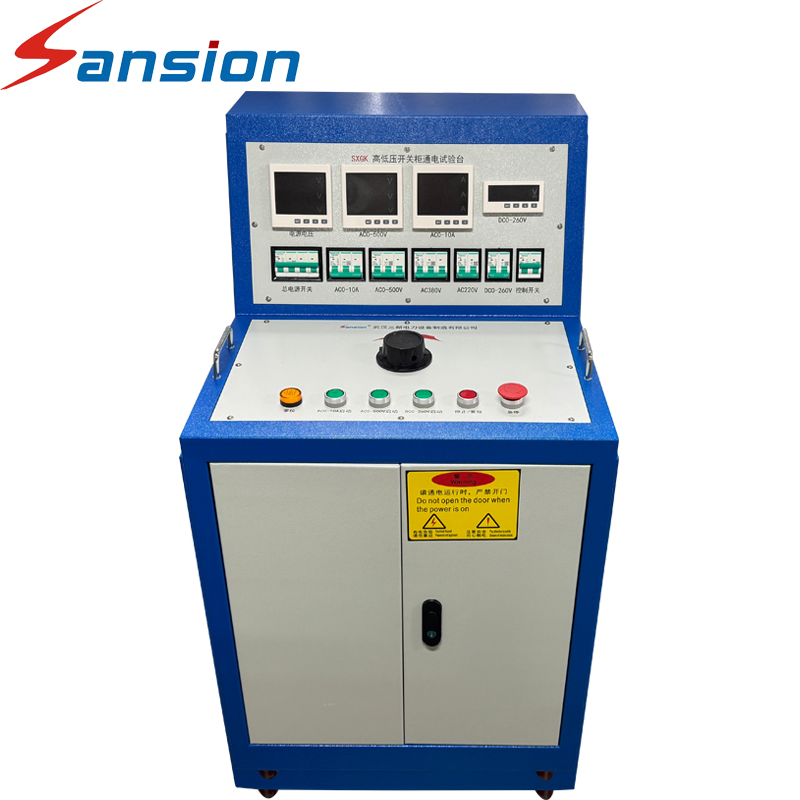

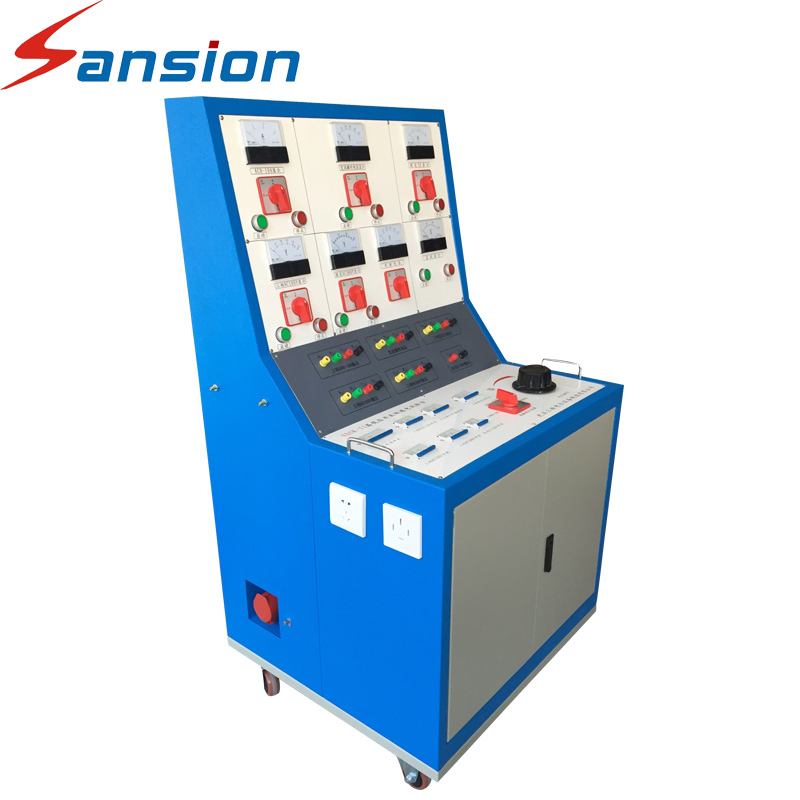

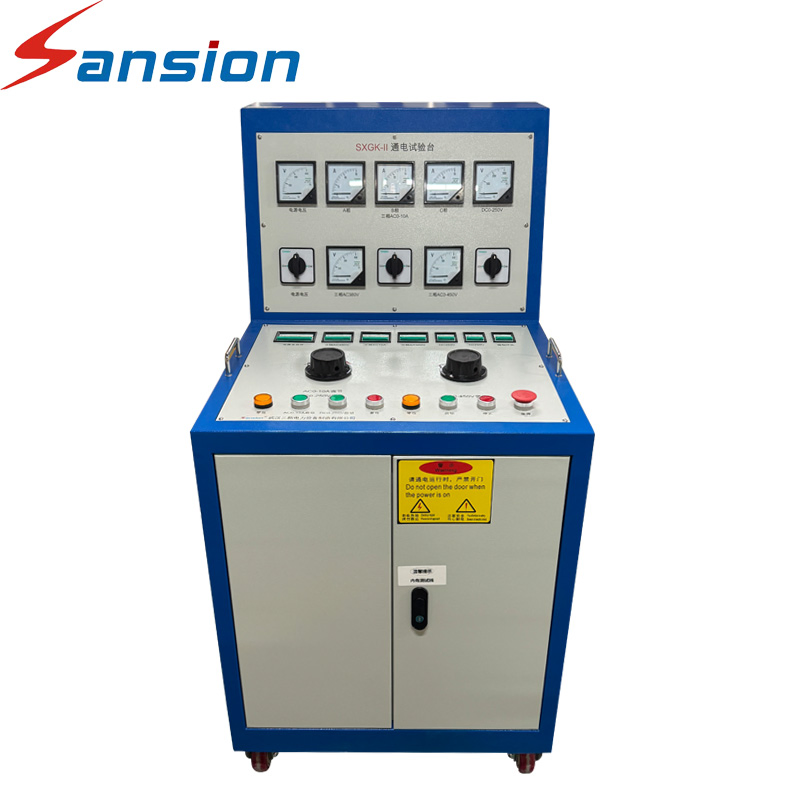

High and Low Voltage Switchgear Test System Power Switch Cabinet Test Bench

High and Low Voltage Switchgear Test System

General Information:
The SXGK Series HV/LV Switch Cabinet Test Bench is engineered for measuring circuit resistance, insulation resistance, and conducting AC withstand voltage tests. It facilitates comprehensive testing of circuit breaker operating characteristics and power-on tests for high and low voltage switchgear. The system provides multiple AC and DC power sources, ensuring a centralized control environment for all testing projects.

Key Features:

  • Direct Reading: Digital meters display current, voltage, and power factor values instantly.
  • High Precision: Optimized data acquisition for accurate test results.
  • Full Protection: Each circuit is equipped with independent air switch protection.
  • Portable Design: Compact size and light weight for easy relocation.
  • Stable Operation: Designed for industrial-grade anti-interference performance.
T

Technical Specifications

Input Power3 Phase 4 Line AC 380V
AC Output 13 Phase AC 0-50A (10V, Adjustable)
AC Output 23 Phase AC 100V (Fixed)
Operating VoltageAC 0-380V / 220V Adjustable
DC OutputDC 0-300V Adjustable
Auxiliary OutputSingle Phase AC 220V (2 groups)
Frequency50Hz / 60Hz Optional

Test Capabilities:

  • Insulation resistance measurement (500~2500V)
  • Voltage withstand tests (0.4kV, 10kV, 35kV)
  • Circuit resistance measurement (0~20mΩ)
  • Short-time withstand current testing (0~2000A)
  • Circuit breaker speed and characteristic testing
C

Manufacturer Profile

Established in 2005, the manufacturer possesses over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. These solutions are widely applied in power electric, railroad, energy conservation, water conservancy, and aerospace industries. With ISO9001 certification, all products strictly conform to international IEC and state standards.

Workshop

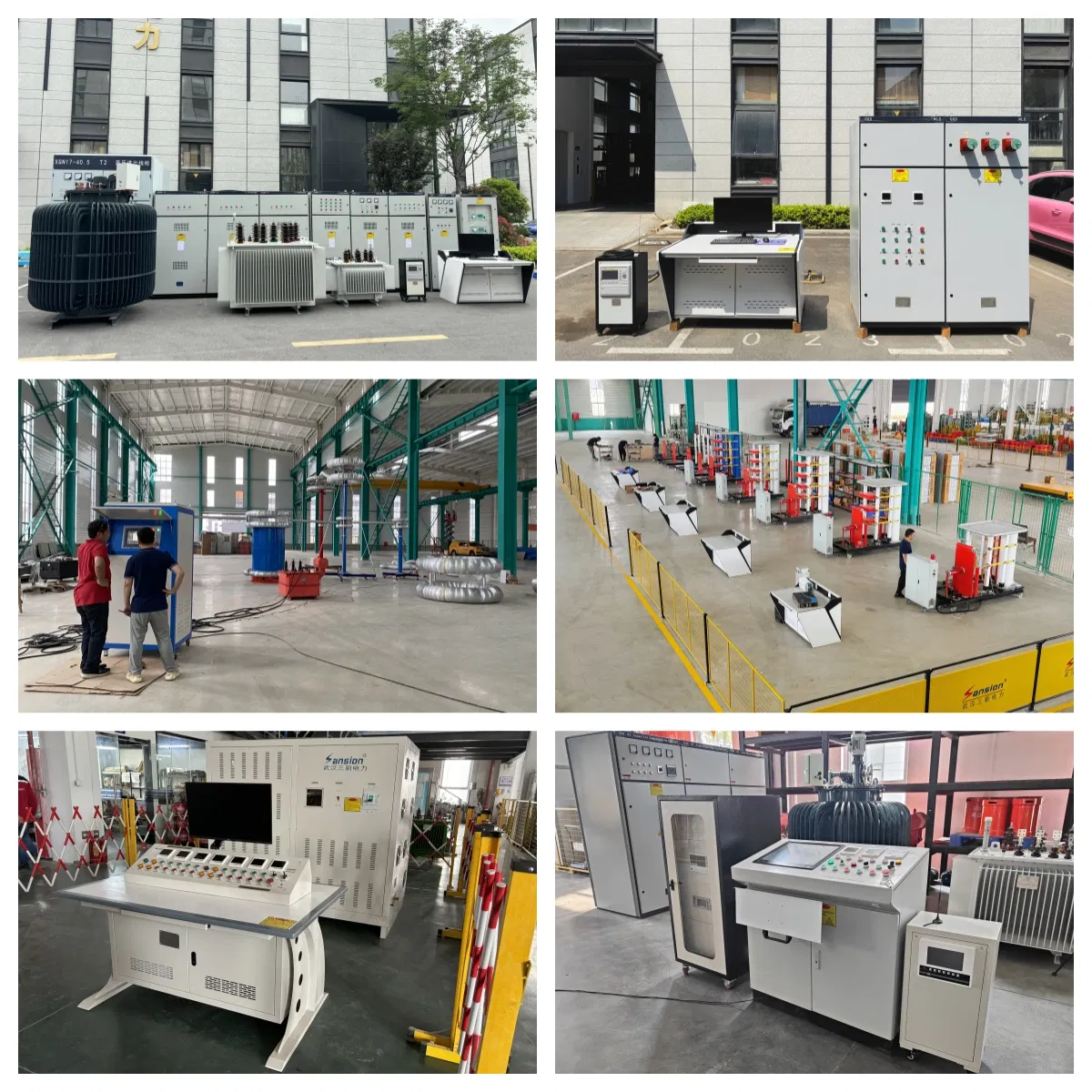

Equipment Lab
L

Logistics & Quality

Certificates
Packing
Customer Visit
?

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?
We are an industrial and trade enterprise with our own factory, founded in 2005. We have 20 years of production experience with dedicated production lines and R&D centers.
Q2: Can the test bench be customized?
Yes, all goods can be customized according to specific customer requirements using the latest technology.
Q3: What is the typical delivery time?
The typical delivery time is within 10 working days after the order is finalized, depending on specific customization needs.
Q4: How do you guarantee product quality?
We utilize high-quality imported components and conduct three rounds of quality inspections before shipping. All exports are packed in non-fumigation wooden boxes.
Q5: What after-sales services do you provide?
We offer a one-year warranty and free consulting services via email, video calls, or on-site technical support to resolve issues promptly.
Q6: Which regions do you export to?
Our products are exported globally, including the United States, Brazil, Australia, Spain, Russia, Indonesia, Saudi Arabia, and many other countries.
