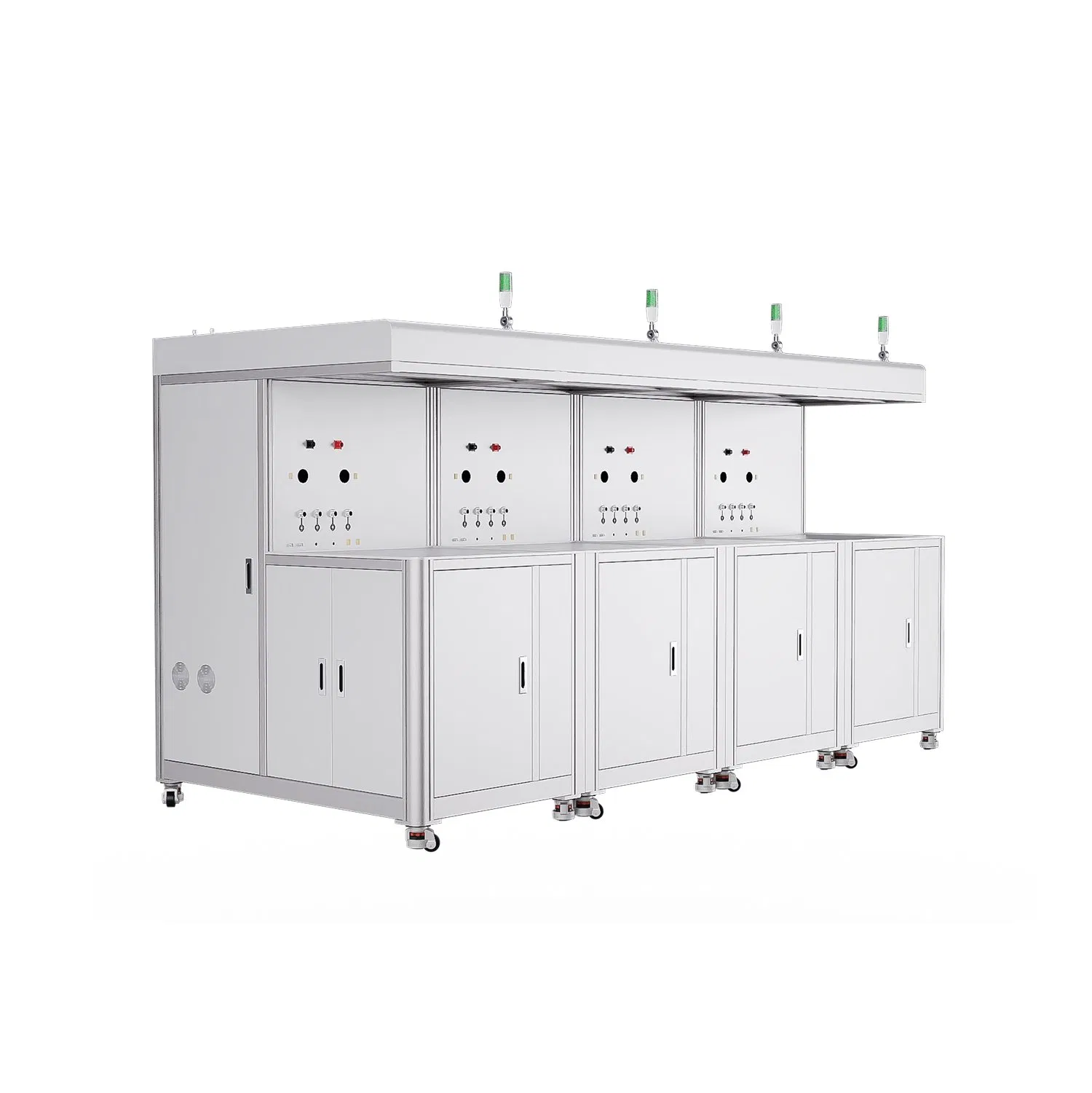

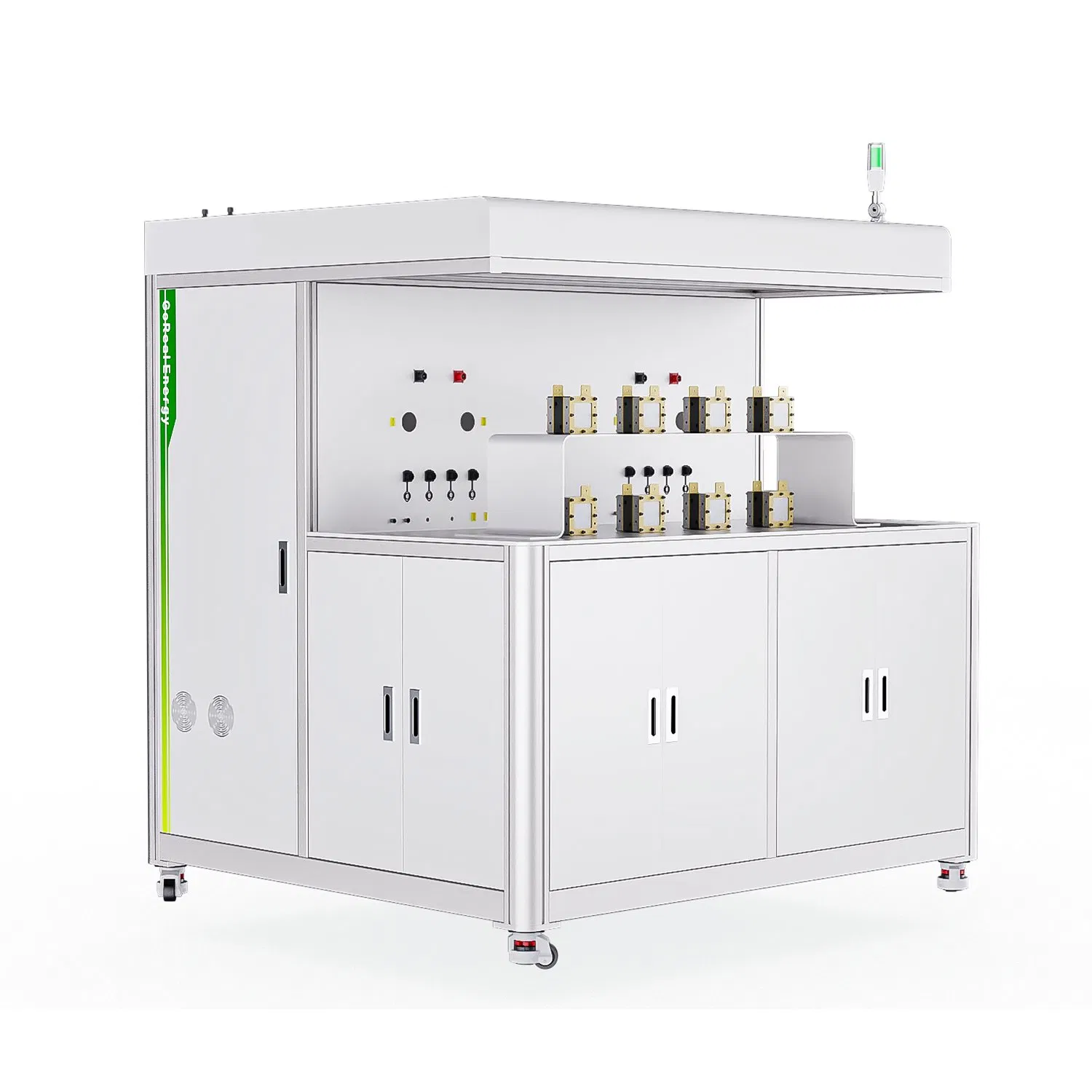

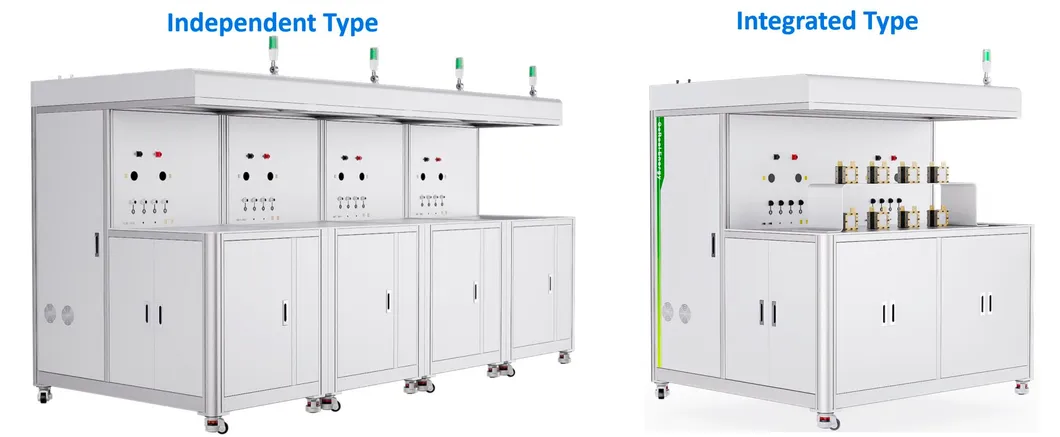

Multi-channel Fuel Cell/Electrolyzer Test System
The developed multi-channel fuel cell/electrolyzer test system is divided into independent and integrated types, which can realize independent and synchronous control of the test conditions of each channel, to compare and analyze the electrochemical performance.

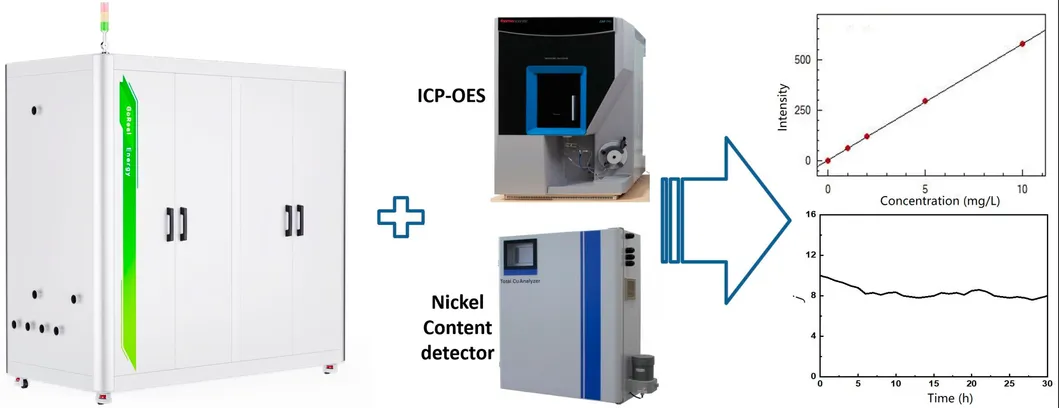

Integrate Electrolyte Element Content Detection
The electrolytic cell test system can integrate ICP-OES (inductively coupled plasma emission spectrometer) or nickel content detector to detect the catalytic metal content in the electrolyte, so can realize the diagnosis of electrode attenuation degree of electrolytic cell.

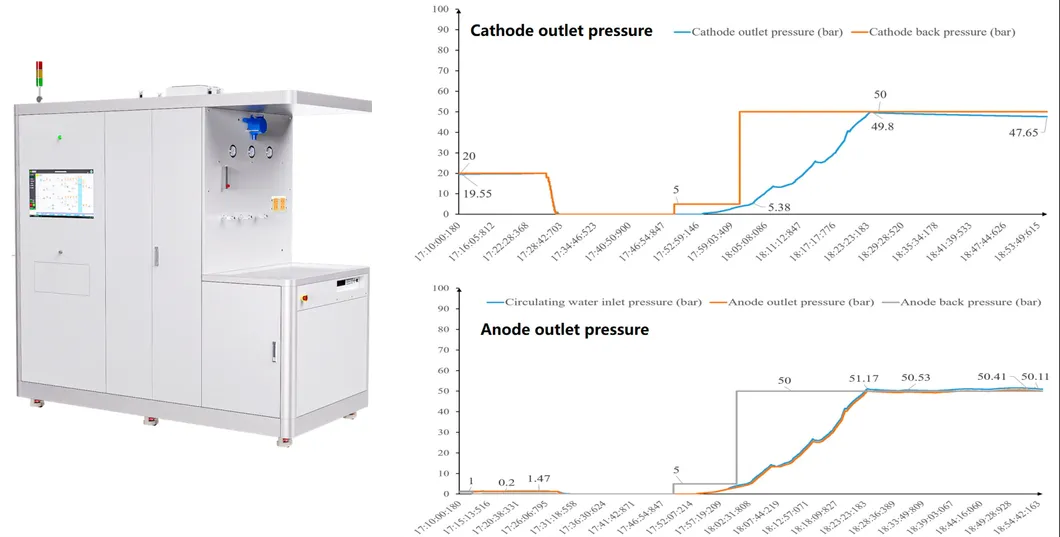

Double-sided 5 MPa High-pressure PEM Electrolyzer Test System
PEM electrolyzer test system is capable of double-sided 5 MPa high-pressure testing.

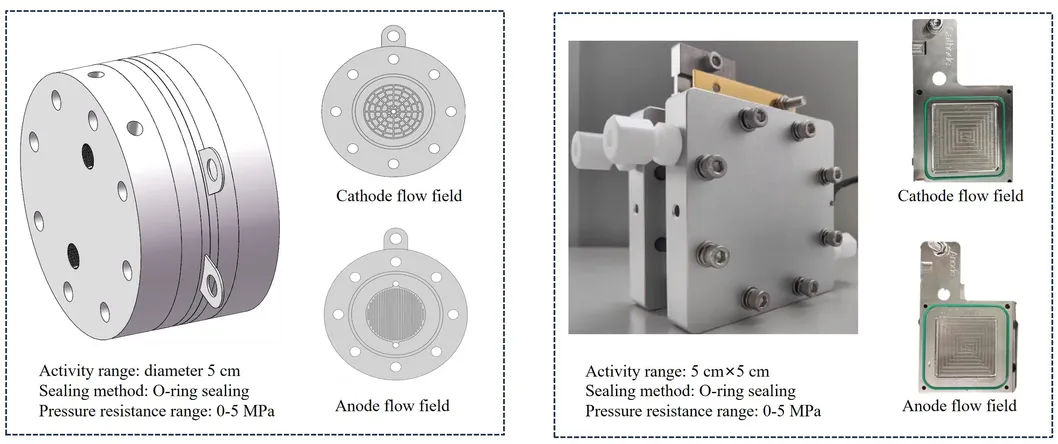

Double-sided 5 MPa High-pressure PEM Electrolyzer Fixture
Two high-pressure electrolyzers are available for selection, with activity ranges of 5 cm in diameter and 5 cm×5 cm respectively. They are sealed with O-ring seals and have a high-pressure resistance range of 0-5 Mpa.

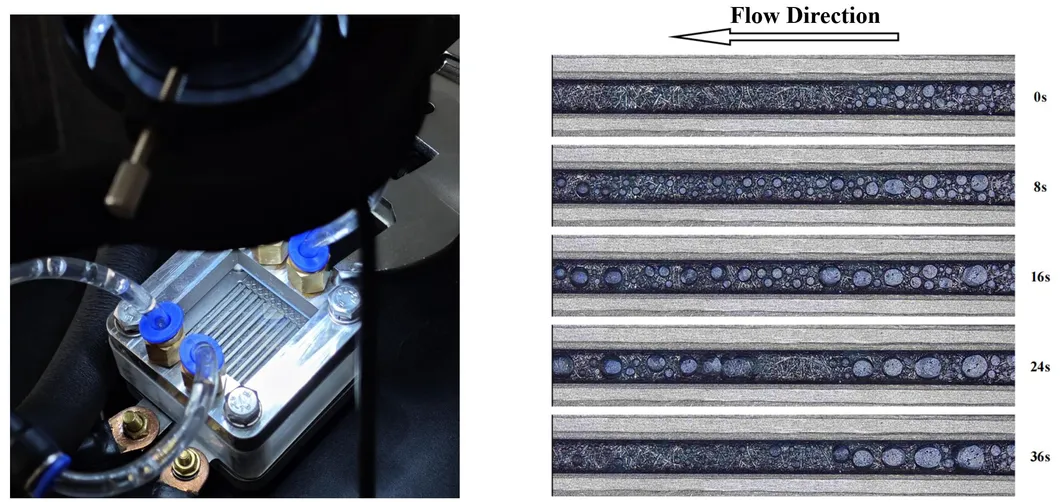

Transparent Electrolyzer
The transparent electrolyzer can realize the observation of bubble formation process and gas-liquid two-phase transport process in the cell.

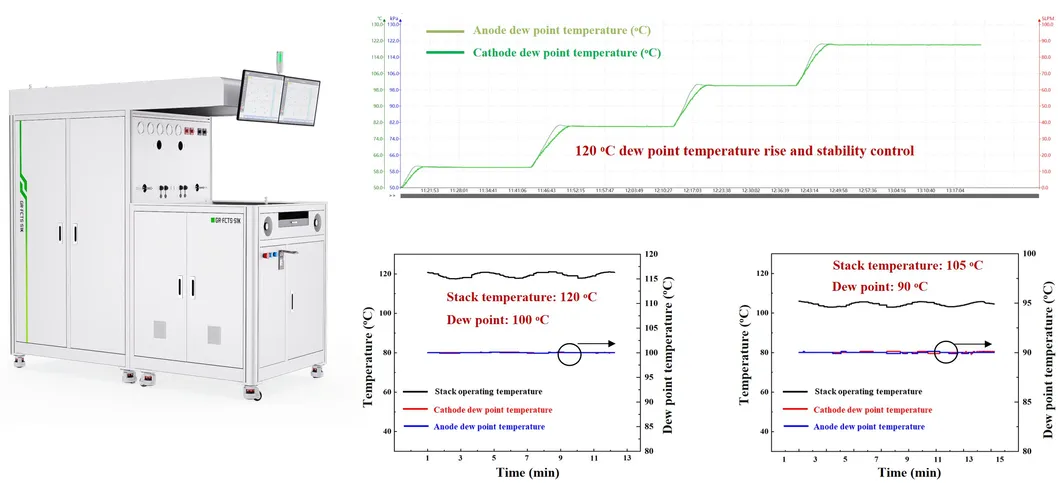

High Temperature & High Humidity PEM Fuel Cell Test System
PEM fuel cell test system with high temperature and high humidity test capability.
| Attribute | Details |
|---|---|
| System Capacity | 5kW, 10kW, 100kW, 200kW |
| Fuel Cell Type | Proton Exchange Membrane (PEM) |
| Application | Performance, durability, and system validation |
| Key Parameters Monitored | Voltage, current, pressure, temperature |
| Gas Flow Control | Precise anode and cathode flow control |
| Software Integration | Data acquisition, trend analysis, real-time monitoring |
| Safety Features | Overpressure protection, emergency shutdown |
| Target Users | Laboratories, R&D facilities, industrial testing |
