| Model NO. | OM-SLBCS | Accuracy | Accuracy ±0.5% |
|---|---|---|---|
| Main Application | New Energy Ternary Precursor, Pharmaceutical Dosing | Size | Customized |
| Sensor | PLC, Multiple Sensor Integration | Application | Process Control, Data Acquisition |
| Type | Integrated | Measuring Media | Liquid |
| Measuring Principle | Multiple Principle Integration | Measurement Object | Flow, Temperature, Pressure, etc. |
| Certification | ISO9001, Explosion-Proof, ATEX | Protection | IP65 |
| Temperature | -40℃~70℃ | Pressure Rating | 0.6-4.0MPa |
| Main Materials | Carbon Steel, 304/316ss, Rubber/PTFE Liner | Origin | China |

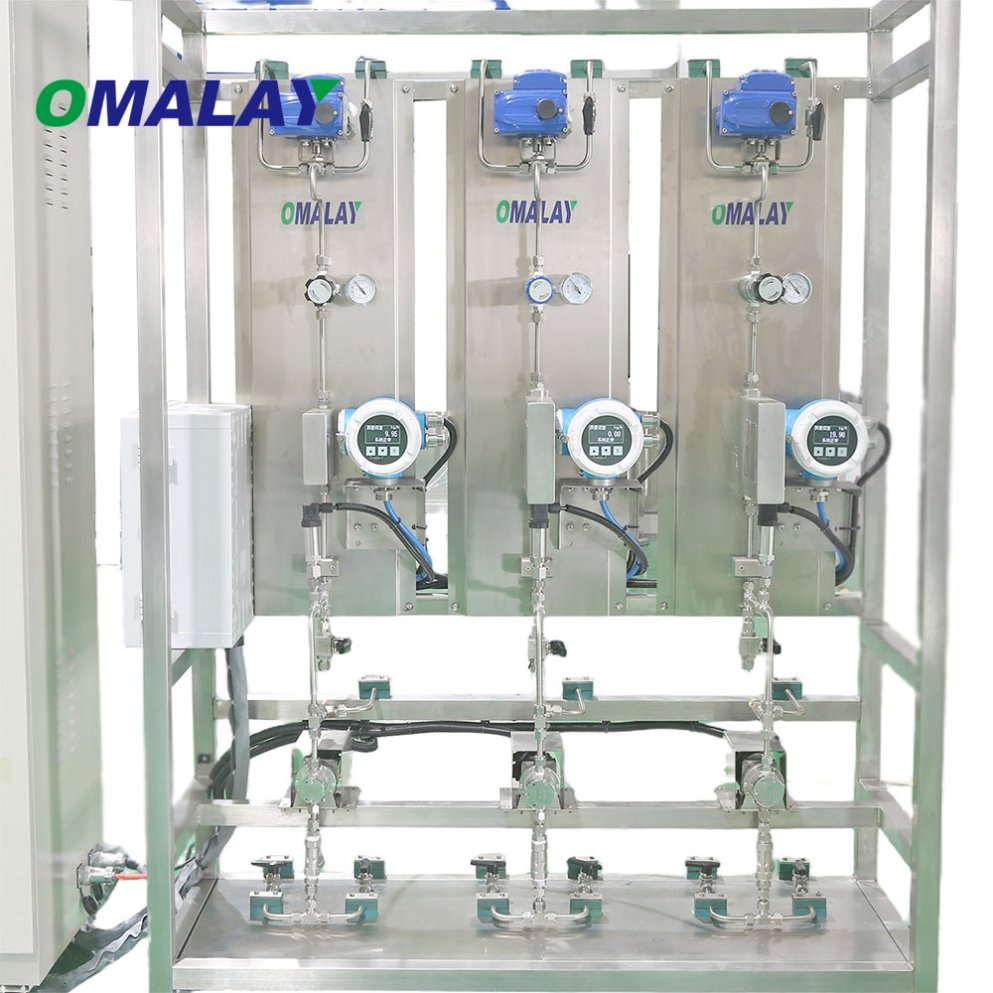

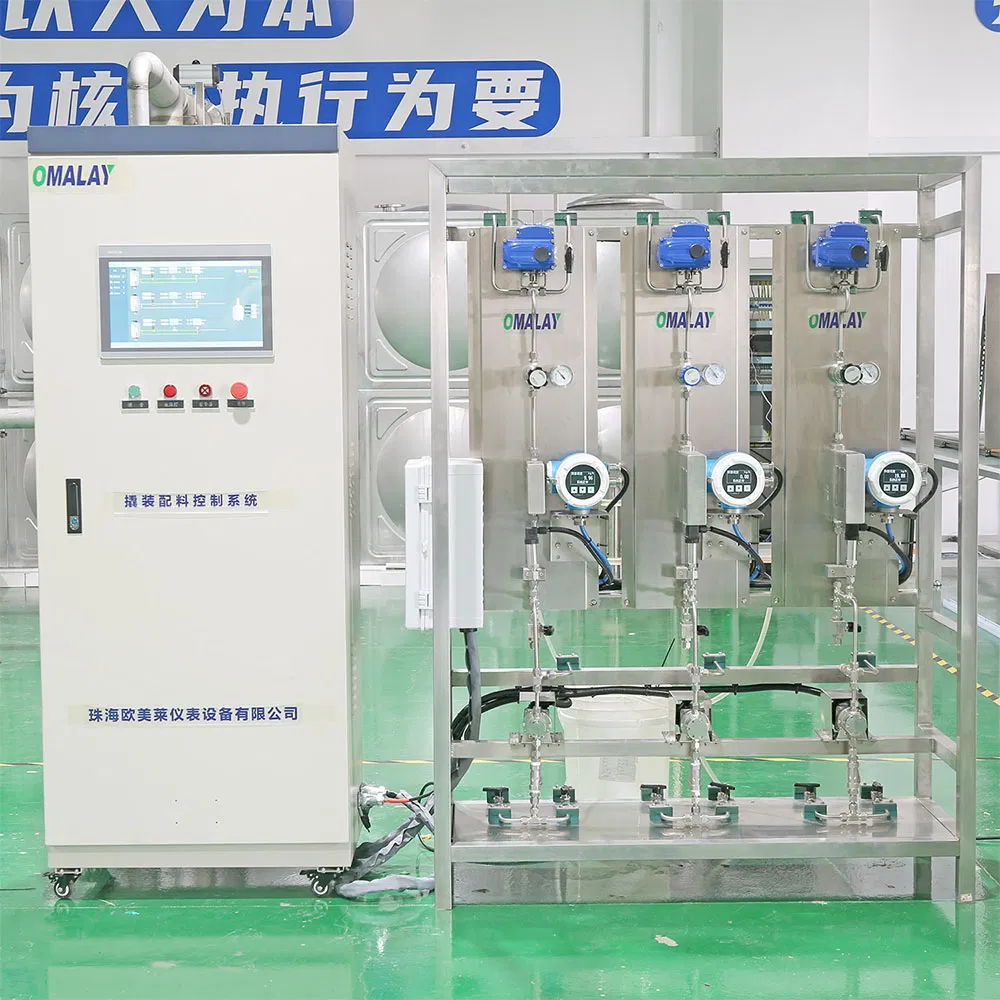

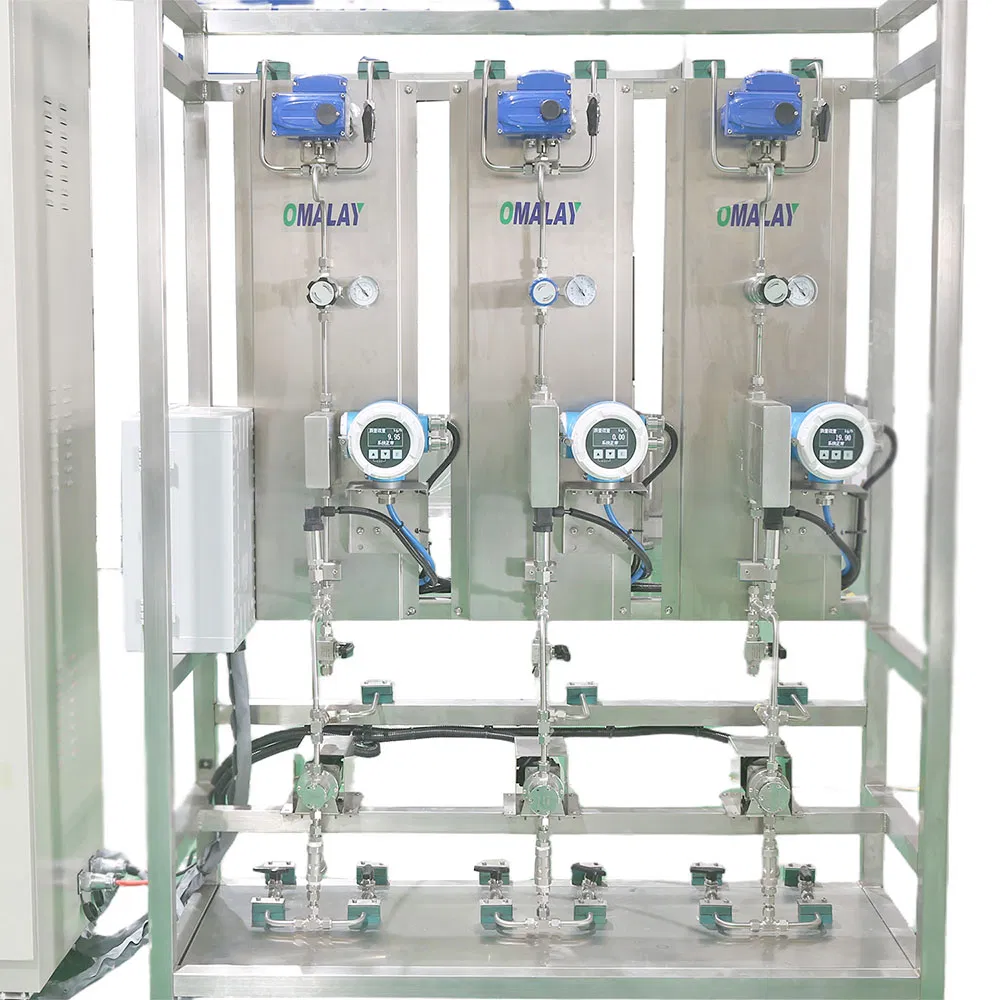

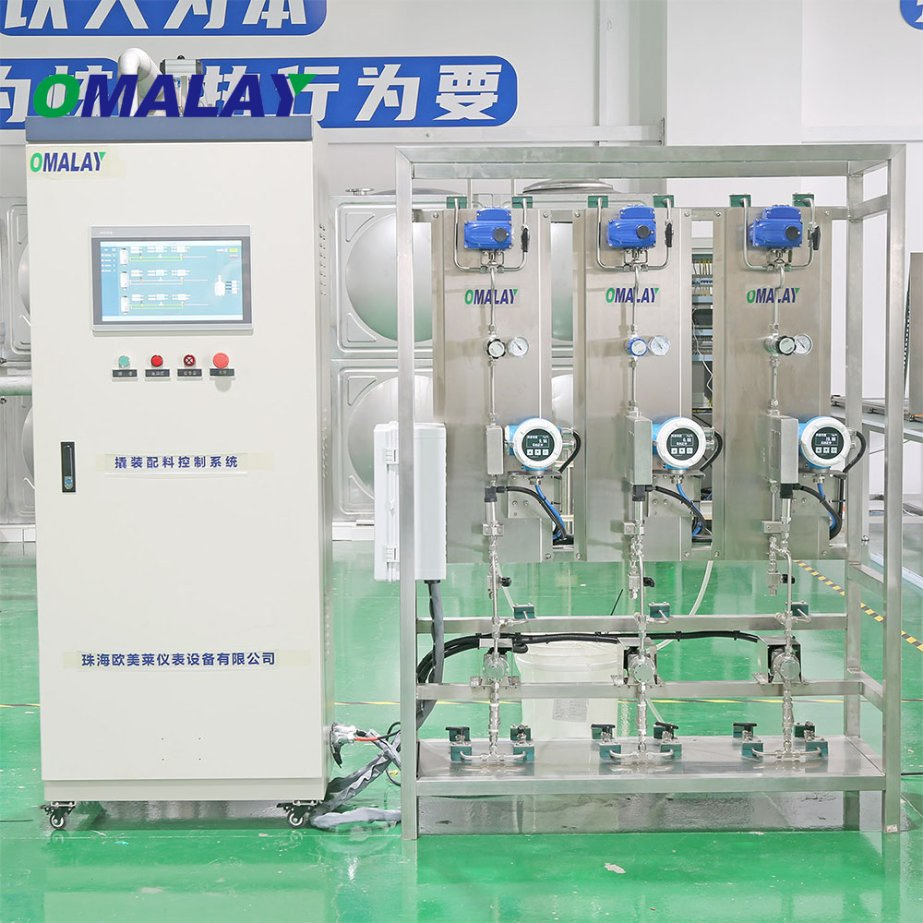

Adopts modular design concept, highly integrates flowmeters, temperature transmitters, pressure transmitters, control valves, PLC and other equipment on unified skid platform, achieving complete measurement and control functions.

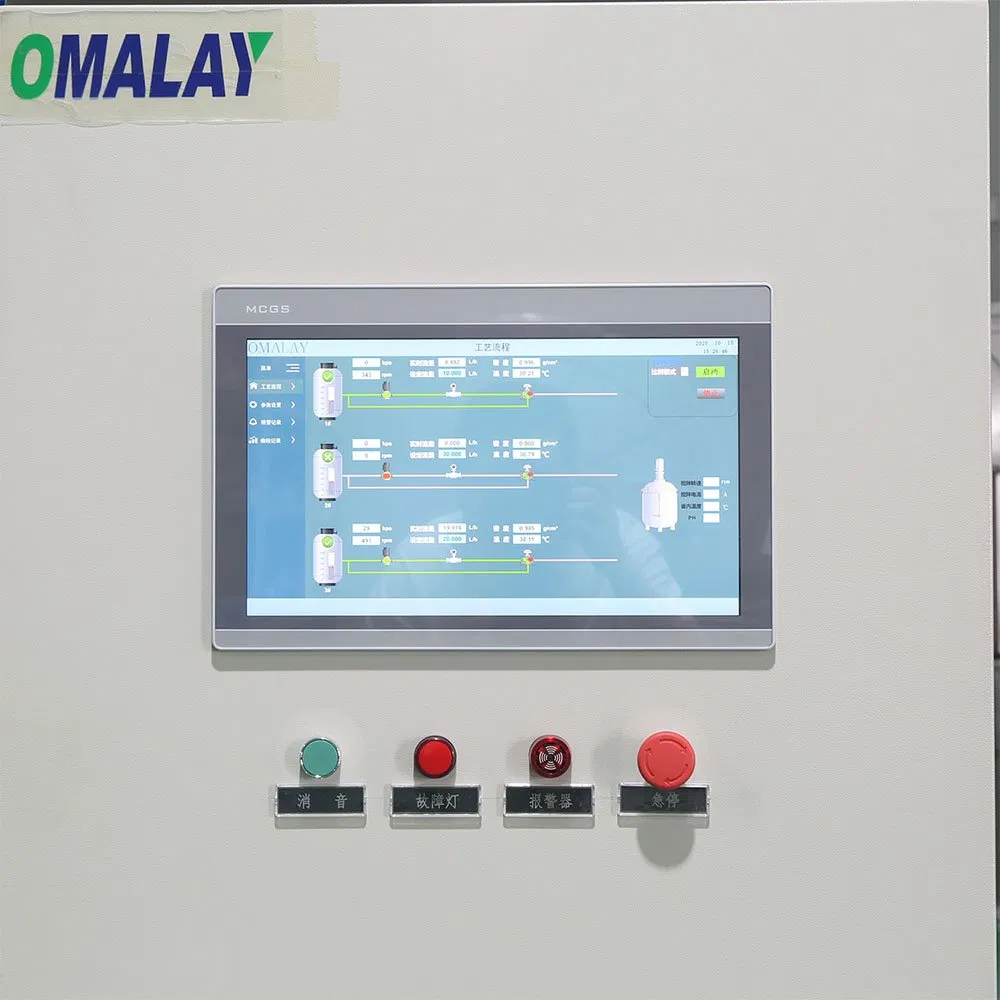

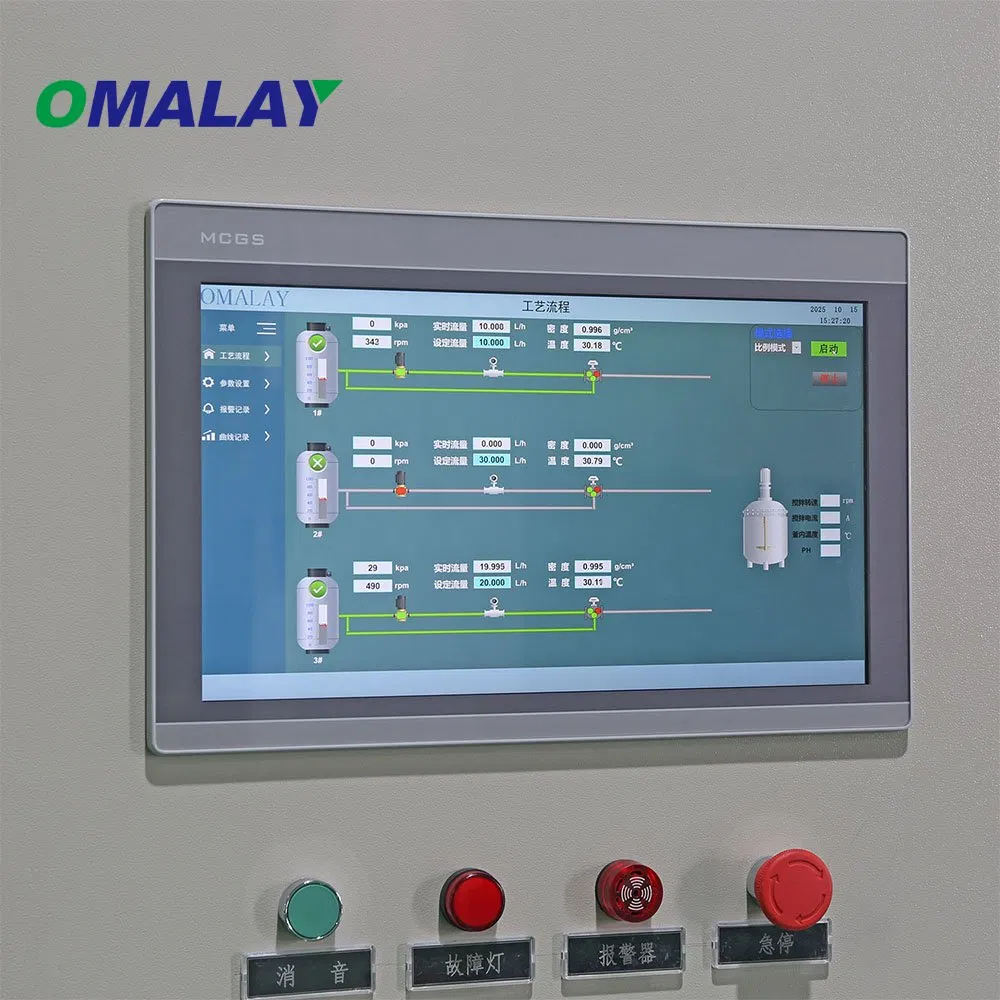

Selects high-end brand PLCs, equipped with industrial touch screens, supports multiple communication protocols (MODBUS, PROFIBUS, Ethernet, etc.). Software platform features data acquisition, alarm management, report generation functions.
Skid uses carbon steel or stainless steel construction with multiple anti-corrosion surface treatments. Control system protection grade IP54/IP65, suitable for outdoor installation. Equipped with UPS and lightning protection.
| Category | Technical Specification | Compliance Standard |
|---|---|---|
| System Architecture | Modular skid design, Protection: IP54/IP65, Customized size | GB/T 13384, ASME B31.3 |
| Control Core | PLC: High-speed Processing, Redundant RTU, Sampling: ≤100ms | IEC 61131, GB/T 15969 |
| Metering Accuracy | Flow: ±0.5%~±1.0%, Pressure: ±0.075%, Temp: ±0.5℃ | GB/T 18603, API MPMS |
| Communication | Ethernet (10/100/1000M), RS485/RS232, 4G/5G/LoRa Wireless | IEEE 802.3, GB/T 19582 |
| Safety | Explosion-proof: ExdⅡBT4, Temp Range: -40℃~70℃ | GB 3836, IEC 60079 |

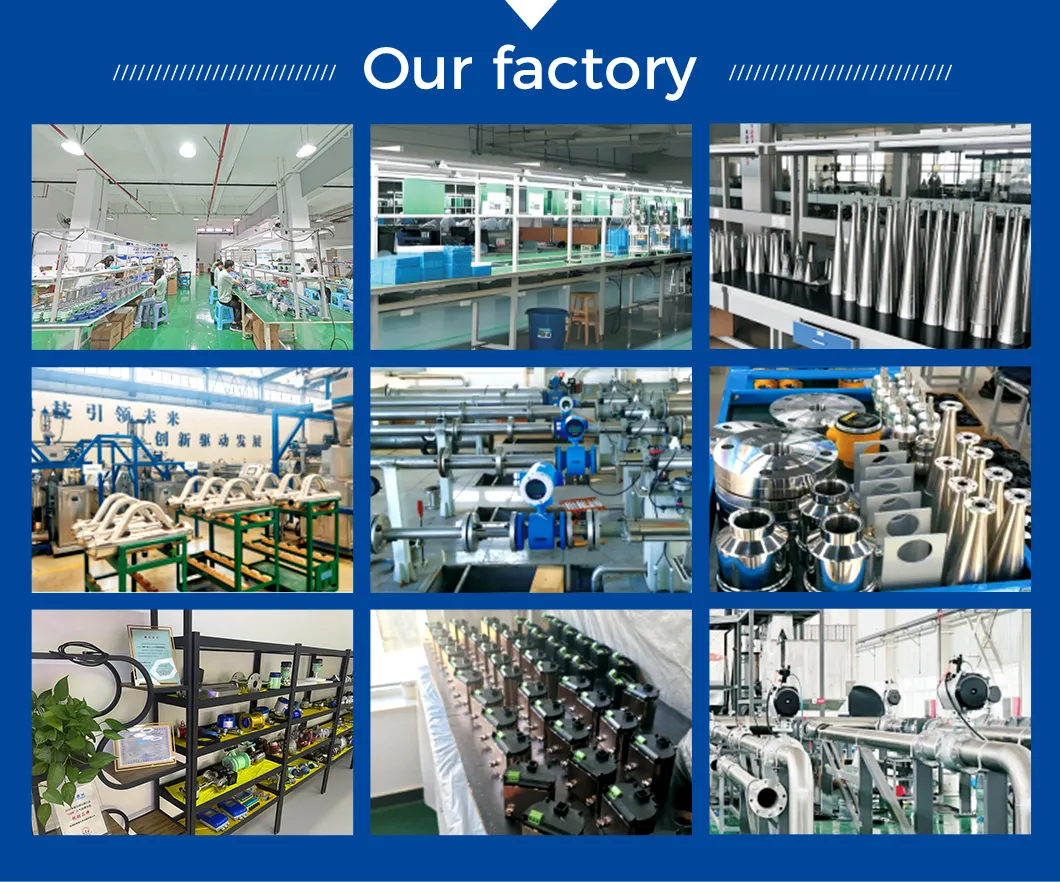

With 20 years of experience in the automation industry, we are dedicated to industrial process measurement and control. Our production facilities cover 8,000 square meters, integrating design, R&D, and production into a complete industrial chain. This enables vertical integration from core sensor development to customized industry-specific solutions.
A: The system provides high-precision measurement with flow accuracy ranging from ±0.5% to ±1.0%, and pressure accuracy of ±0.075%.
A: Yes, our systems are designed for safety with Explosion-proof ratings of ExdⅡBT4 and ATEX certification, suitable for potentially explosive atmospheres.
A: The system supports a wide range of protocols including MODBUS, PROFIBUS, Ethernet, and serial communications like RS485/RS232, as well as wireless 4G/5G options.
A: We use high-quality Carbon Steel or Stainless Steel (304/316) for the frame, with optional Rubber or PTFE liners for chemical resistance.
A: We use professional inner foam packing and outer cartons with waterproof stretch wrap. For heavy skid systems, reinforced wooden crate packing is utilized to ensure safety.
A: While standard instruments take 15-30 days, fully customized skid-mounted systems typically require a lead time of 30-60 days depending on the complexity of the design.
