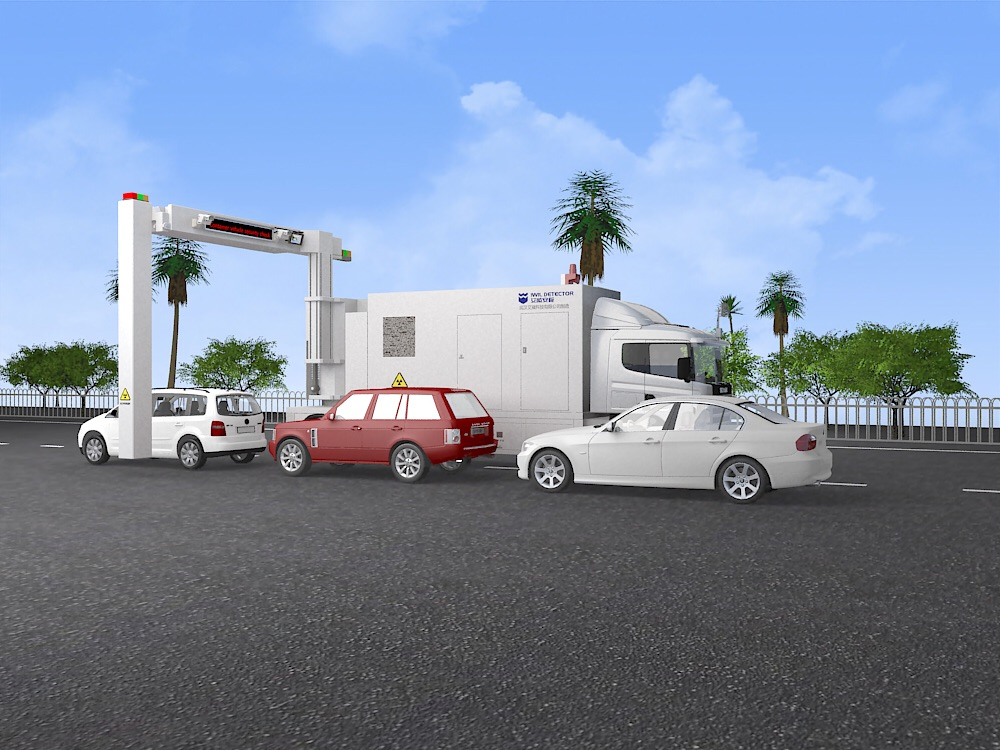

The AN-48002800HMS X-ray Security Inspection System is specifically designed for the high-energy security inspection of container vehicles at customs, ports, and border crossings. It eliminates the need for time-consuming and laborious manual inspections of trucks and containers. Through advanced X-ray fluoroscopy scanning, it generates high-resolution images of the materials, volume, and quantity of goods to verify consistency with manifestos and detect threats such as weapons of mass destruction (WMDs), contraband, and dangerous chemicals.
Utilizing an adjustable electron accelerator from 4MeV to 7.5MeV, the system achieves a penetration force of up to 350mm of steel. It can process up to 30 vehicles per hour in mobile scanning mode and up to 100 vehicles per hour in through-scan mode.
The system features a high-speed data acquisition circuit (up to 0.8m/s). Images are processed via proprietary software to display different densities and shapes of cargo layer-by-layer using pseudo-color gray levels. Operators analyze these images on high-resolution IPS LCD screens for rapid threat detection.

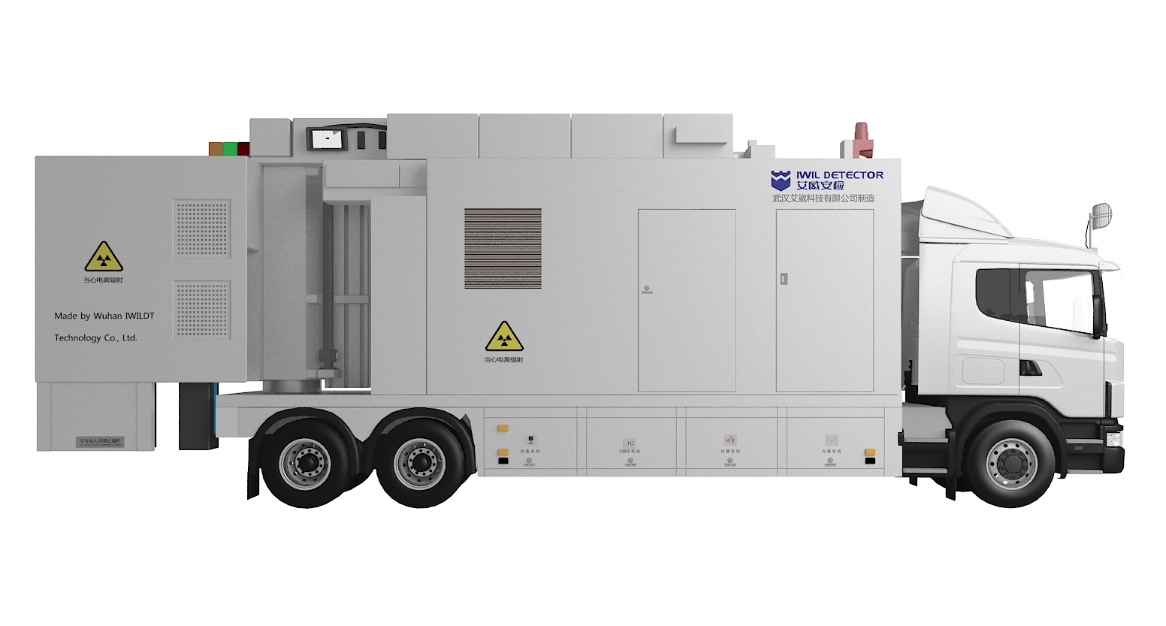

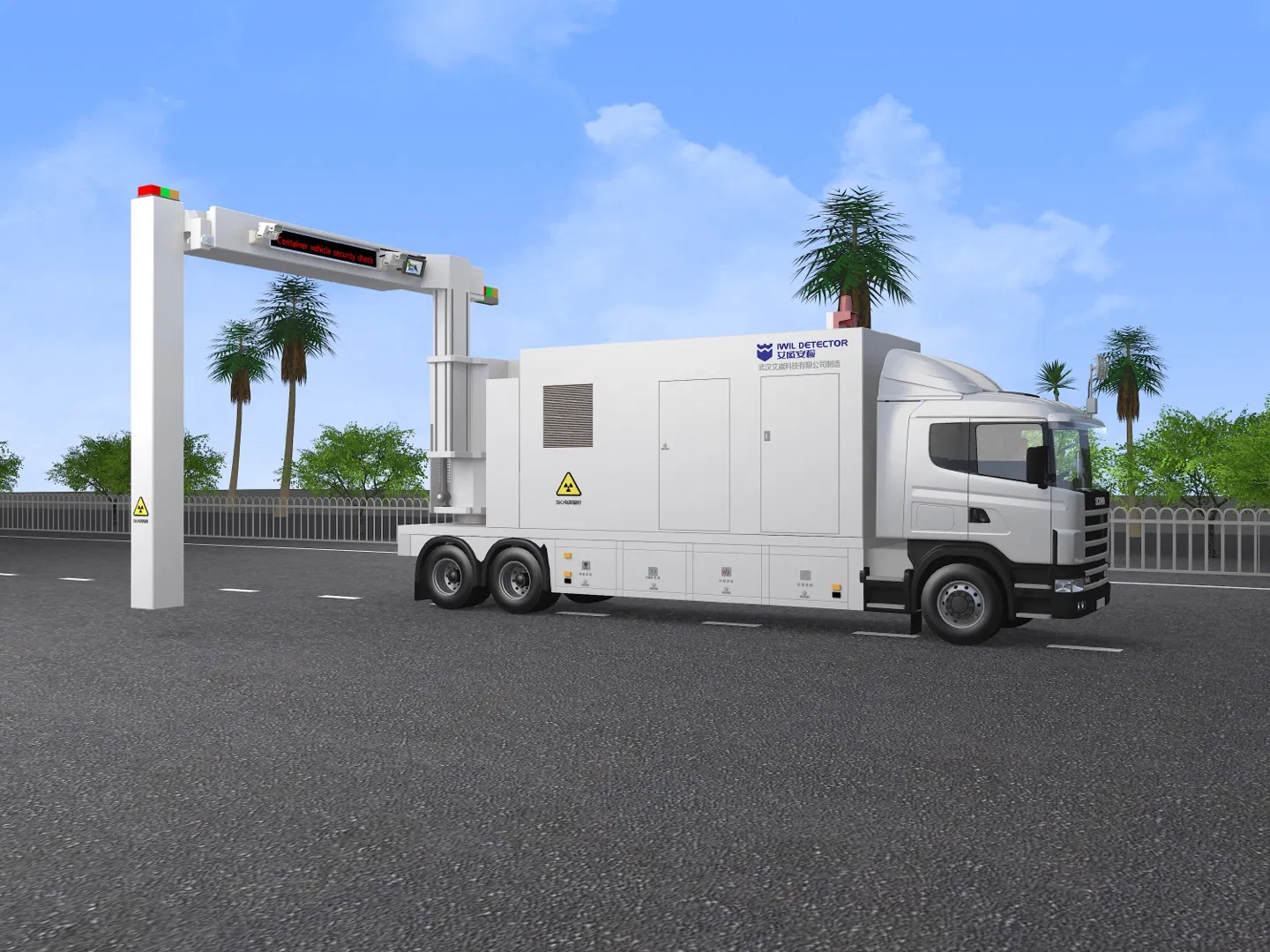

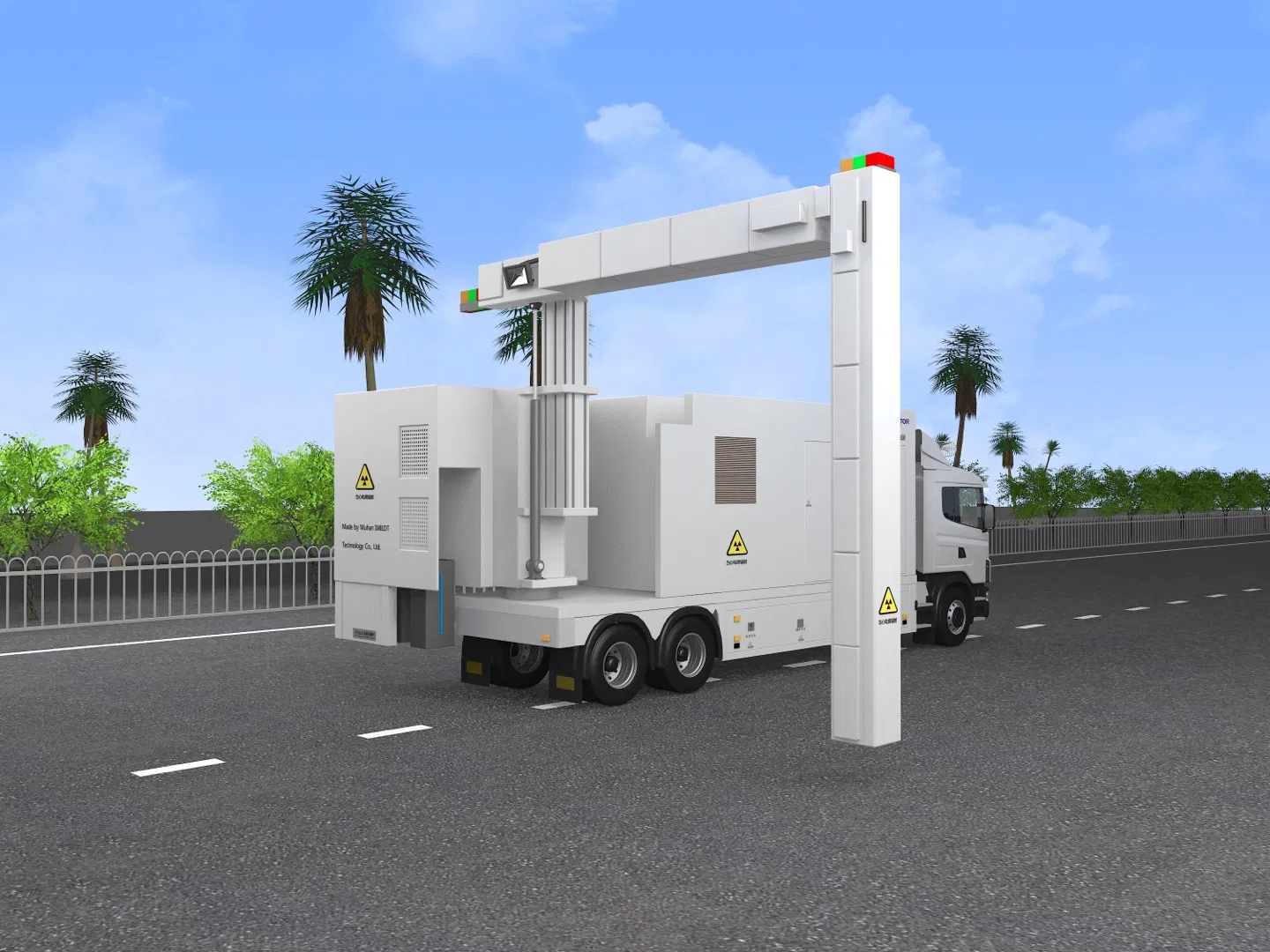

The system is built on a Dongfeng Tianlong three-axis chassis, featuring a rotating support folding arm structure. It allows for automatic deployment and self-propelled movement to conduct inspections without unpacking containers.
