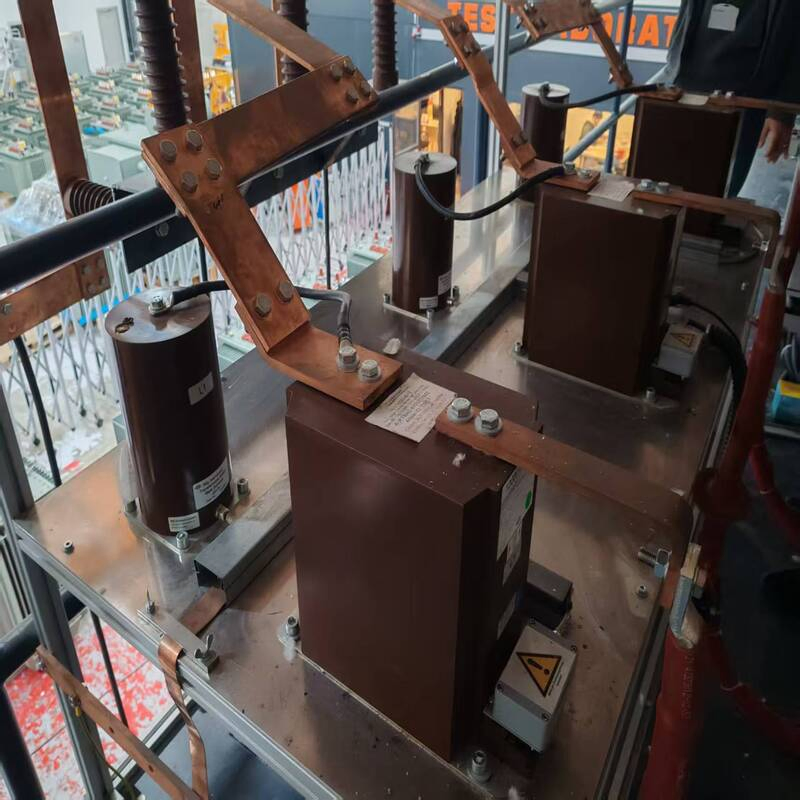

High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
1 / 5
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard
High Voltage Power Transformer Test System with IEC60076 Compliance Standard

High Voltage Power Transformer Test System with IEC60076 Compliance Standard

After-sales Service: All Series
Warranty: 1 Year
Max Diameter of Workpiece: Na
Send Inquiry

Product Description

Overview
📊 Basic Info.
Model NO.
PTTS
Mass of Workpiece
>20000kg
Type
Power Transformer Test System
Accuracy Grade
1
Display
PC Software Display
Control
Computer Control
Power Source
AC380V
Standards
IEC 60076 / IEC 61439 / IEC 60947
Specification
2500x1060x1500mm
Origin
China
📦 Packaging & Delivery
Package Size
800.00cm * 800.00cm * 300.00cm
Package Gross Weight
2000.000kg
Product Description
Power Transformer Test System
PTTS - POWER TRANSFORMER TEST SYSTEM
The transformer production line test system is a high-end integrated testing platform integrating automated logistics, intelligent control, data management and standards compliance. Following the assembly-line operation concept, it divides the transformer testing process into multiple specialized test stations. Via automated switching devices and digital management control, it achieves unmanned or minimally manned testing, significantly improving testing efficiency, data accuracy and operational safety.
Specification
Test Item Standard
Transformer No-Load/Load TestIEC60076-1
Transformer Induced Voltage TestIEC60076-3 / EC60270
Transformer Temperature Rising TestIEC60076-2
Applied Voltage TestIEC60076-3
Impulse Voltage TestIEC60076-4
Transformer Class66kV110kV220kV500kV
Power Source500kVA1000kVA1500kVA1800kVA
Step-up transformer1000kVA2000kVA3000kVA4000kVA
Capacitor Bank10MVar40MVar100MVar180MVar
Impulse Generator600kV / 60kJ800kV / 80kJ1600kV / 160kJ2400kV / 240kJ
Technical Specifications Diagram
Test Type
⚙ Routine Tests
  • Measurement of D.C. winding resistance
  • Measurement of voltage ratio
  • Check of voltage vector relationship
  • Measurement of No-load loss & harmonics analysis
  • Measurement of load loss & short-circuit impedance
  • Tap changer operation
  • Measurement of insulation resistance
  • Induced AC voltage test with partial discharge
🔬 Type & Special Tests
  • Temperature rise test
  • Lightning & switching impulse test
  • Sound level test
  • Sweep frequency response analysis (SFRA)
  • Partial discharge tests
  • Dissolved Gas Analysis (DGA)
⭐ Key Features
  • Integrated platform for routine & type tests of power transformers
  • Modular configuration, easy to expand and customize
  • Automatic switching & sequencing to streamline workflow
  • PLC-based centralized control with data recording & report output
  • High accuracy measurement and stable test performance
  • Multi-level safety interlocks for safe high-voltage operation

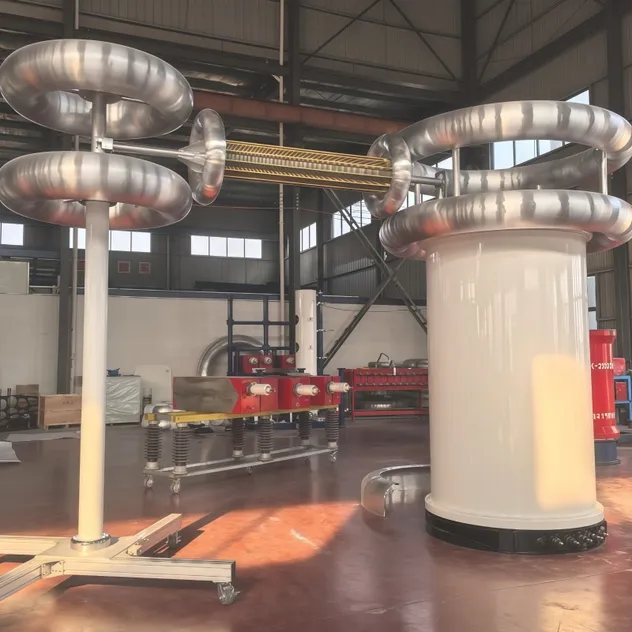

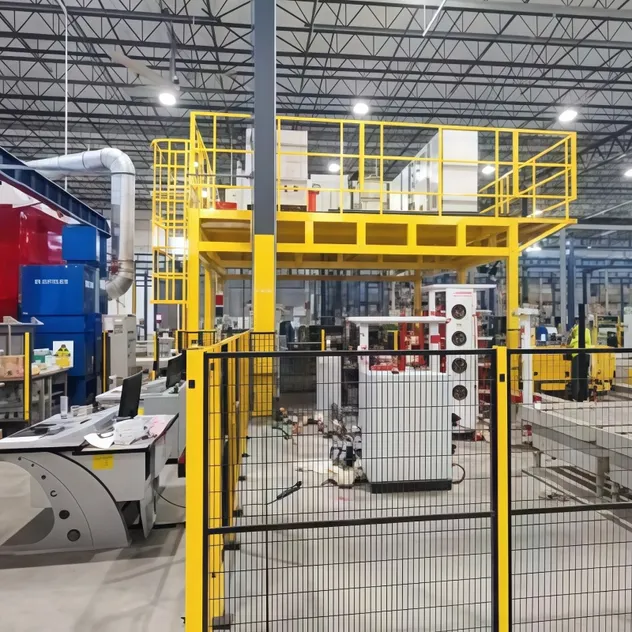

Test Station 1

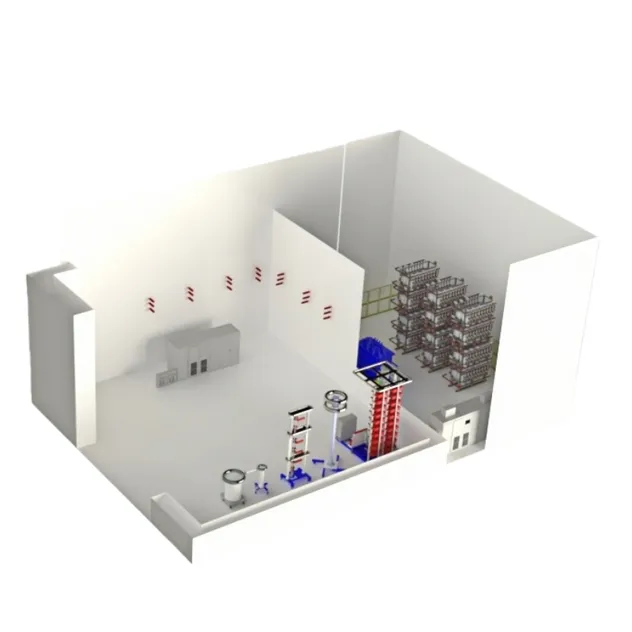

Test Station 2
Test Station 3

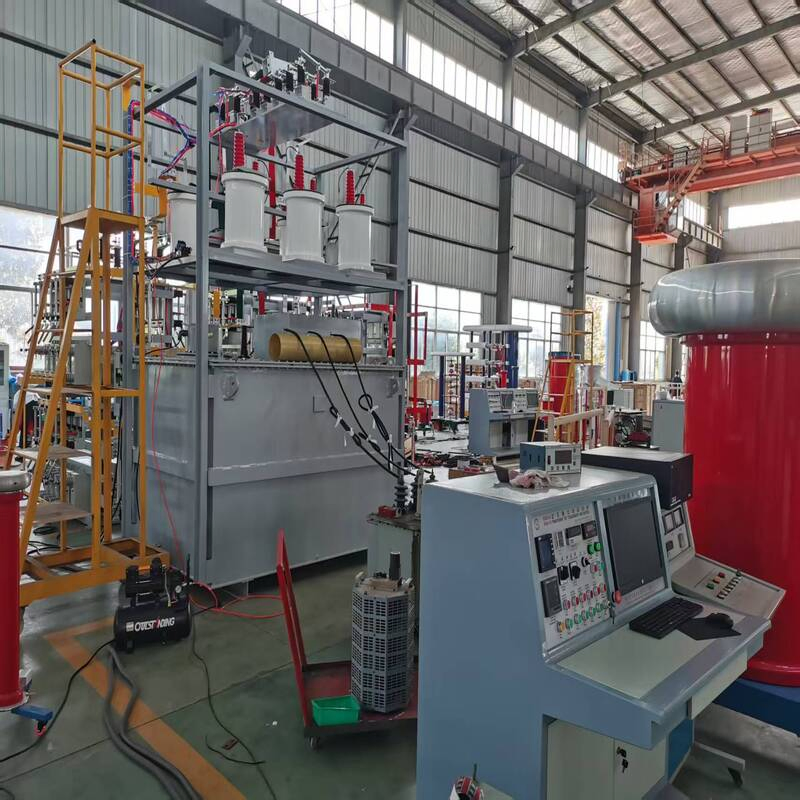

System Setup & Application

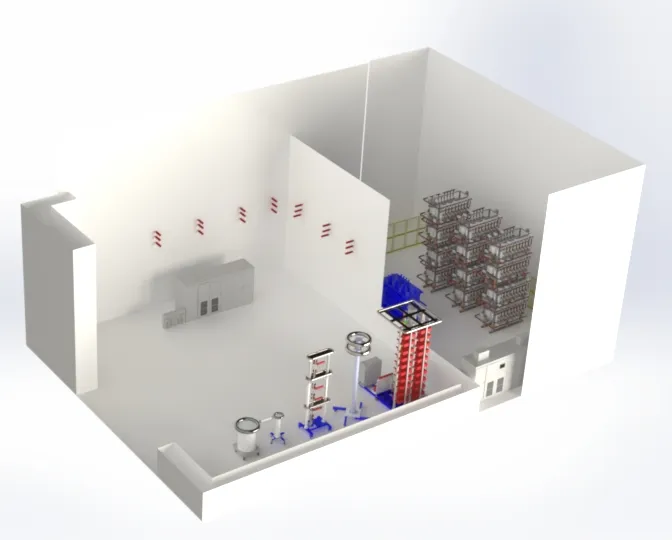

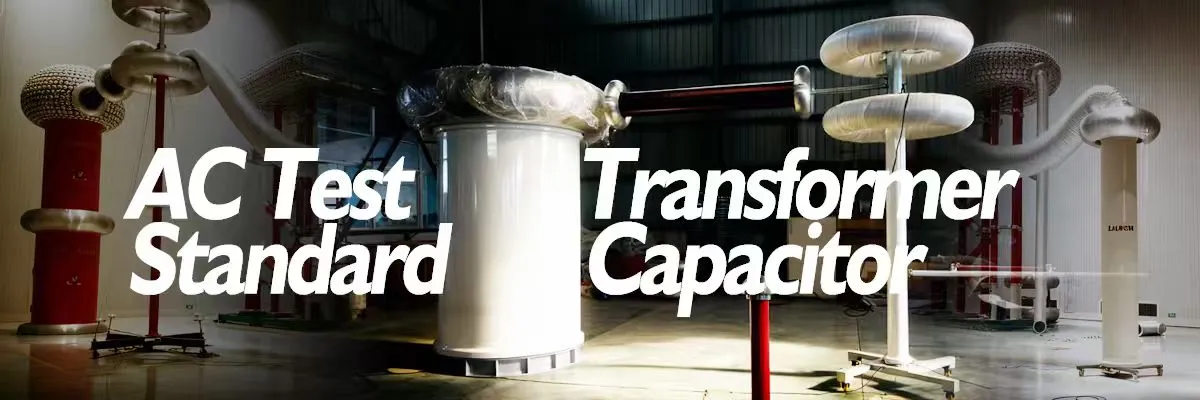

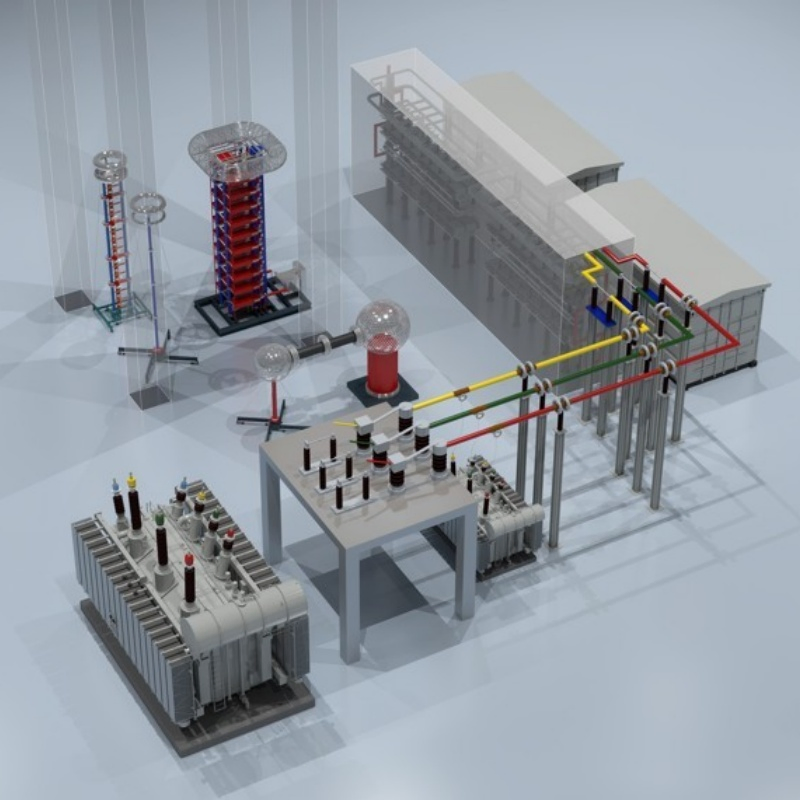

System Setup Diagram

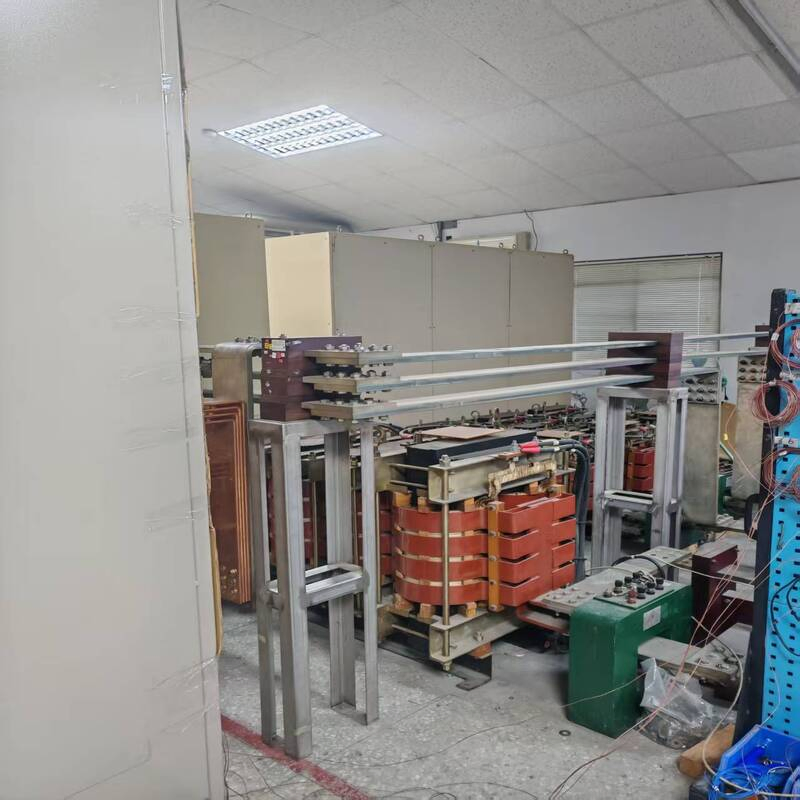

Application 1

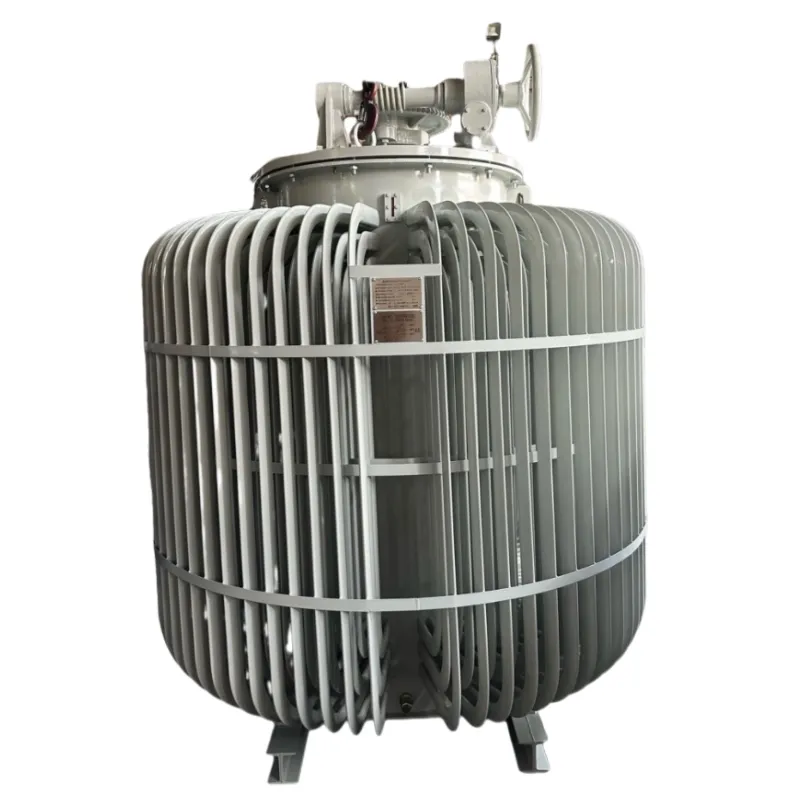

Application 2
🛡 Skilled Professionals
OEM-trained technicians deliver precise diagnostics, swift repairs, and dependable system recovery.
🔧 Complete Tooling
Equipped with precision tools like SF6 handling kits, vacuum pumps, detectors, and safety-certified PPE.
✅ Comprehensive Services
Trained professionals handle all aspects of installation, testing, commissioning, and retrofits.
Service 1

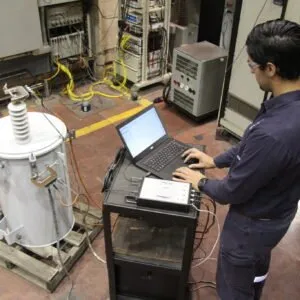

Service 2
Service 3
Frequently Asked Questions
1. Are you the manufacturer of the PTTS?
Yes, we are a manufacturer. This allows us to guarantee preferential pricing, high quality, and direct technical support.
2. How quickly can I receive a price quotation?
We usually provide a quotation within 6 hours of receiving your inquiry. For urgent requests, please contact us directly for priority handling.
3. What are your standard terms of delivery?
We support various terms including EXW, FOB, CFR, and CIF. You can select the most convenient and cost-effective option for your location.
4. What support is available if we encounter operational difficulties?
We provide comprehensive operation manuals and videos. We also offer training via remote video calls. If necessary, our engineers can provide on-site service.
5. What is the typical lead time for production?
Lead time depends on order quantity and specific configuration. Standard items are usually processed within 3-5 working days, with logistics taking an additional 5-7 days.
6. How is the equipment packaged for international transport?
We use standard export packaging, including containerized or export wooden packing, to ensure the equipment remains undamaged during transit.

Related Products

8-Channel Analog Input Data Acquisition System ±10V Range for Industrial Vibration Testing

8-Channel Analog Input Data Acquisition System ±10V Range for Industrial Vibration Testing
Advanced X-ray Systems for Aluminium and Magnesium Wheel Inspection

Advanced X-ray Systems for Aluminium and Magnesium Wheel Inspection
High Speed Image Data Acquisition Circuit Used in X-ray Array Image Detection and Imaging System of Large Vehicle

High Speed Image Data Acquisition Circuit Used in X-ray Array Image Detection and Imaging System of Large Vehicle

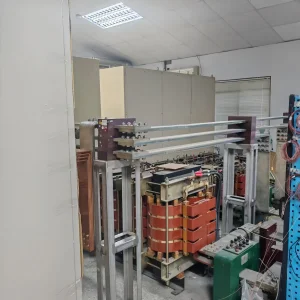

Ruggedized Power Transformer Test System Withstands Harsh Industrial Environments for Durability

Ruggedized Power Transformer Test System Withstands Harsh Industrial Environments for Durability
High Speed Image Data Acquisition Circuit of X-ray Array Image Detection Imaging System 0.80 M / S for Large Vehicle Inspection X-ray Security Inspection System

High Speed Image Data Acquisition Circuit of X-ray Array Image Detection Imaging System 0.80 M / S for Large Vehicle Inspection X-ray Security Inspection System

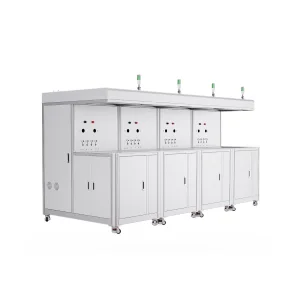

Multi Channel High Temperature Fuel Cell Test System for Industrial Use
