Product Description

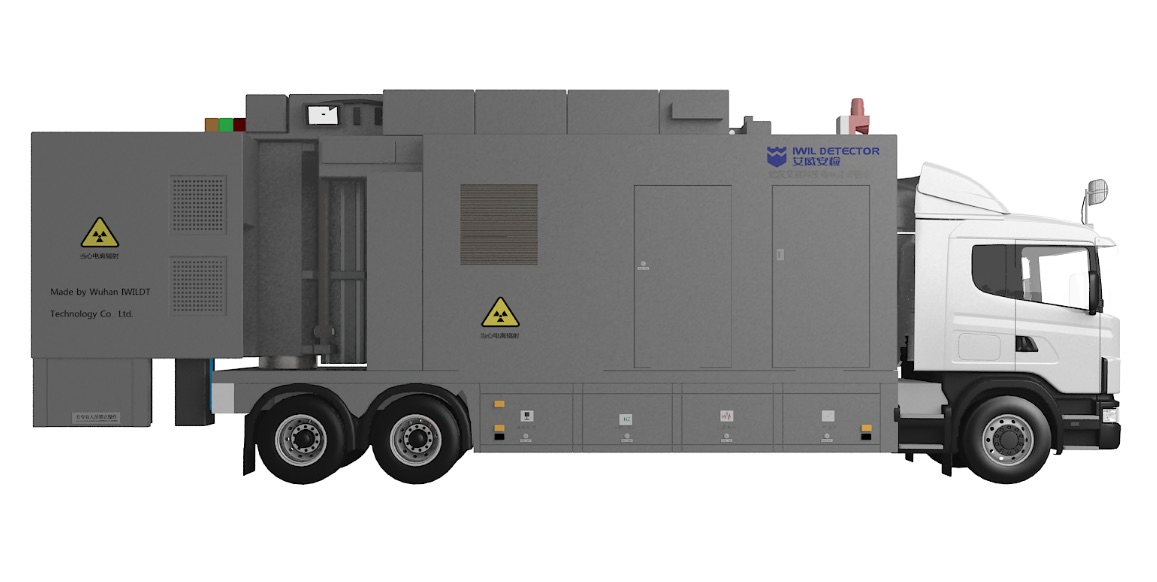

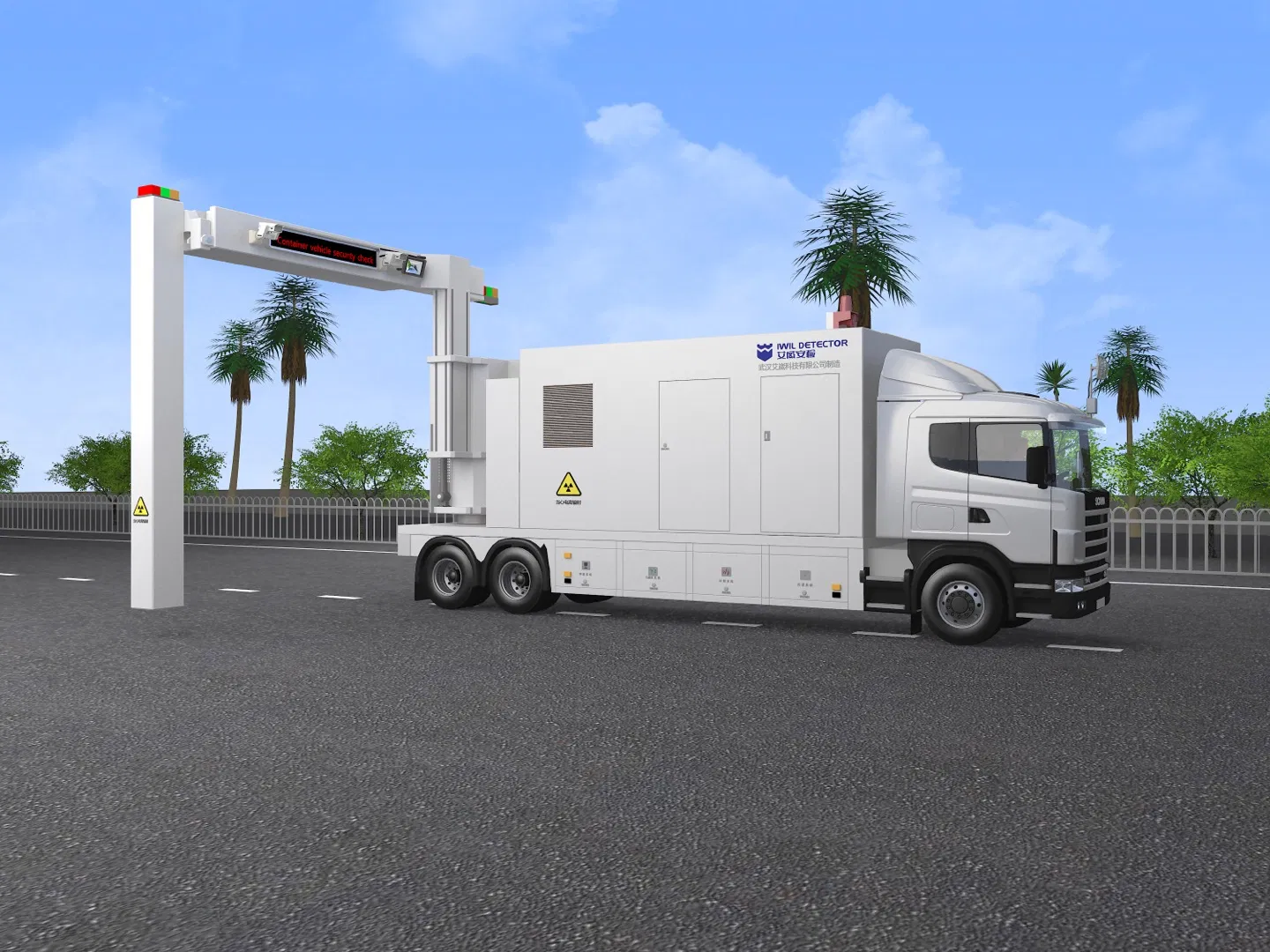

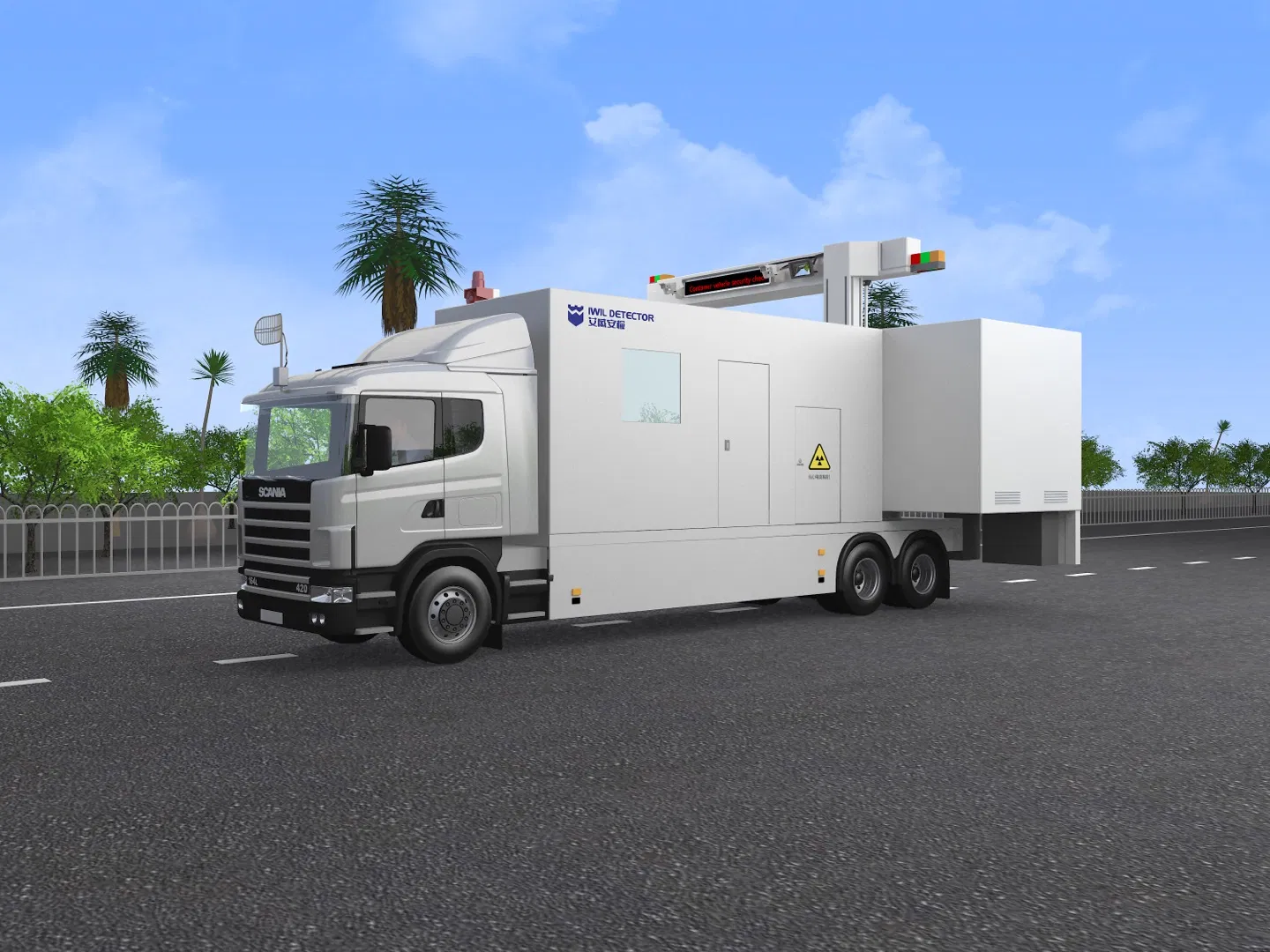

The AN-48002800HMS X-ray Security Inspection System is a vehicle-mounted mobile scanning solution specially designed for customs, ports, and border security. It significantly reduces the manual labor required for truck and container inspections. Through high-energy X-ray fluoroscopy, it generates detailed images of cargo materials, volume, and quantity, allowing operators to verify consistency with manifests and detect threats such as weapons, dangerous chemicals, or contraband.
Key Performance Features
- High Energy: Equipped with an adjustable electron accelerator from 4MeV to 7.5MeV.
- Deep Penetration: Penetrates up to 350mm of steel plate.
- High Throughput: Scans up to 30 vehicles/hour in mobile mode and 100 vehicles/hour in through mode.
- Precise Detection: Uses CdWO4 detection crystals and CMOS photoelectric conversion with 2048 pixels.
Frequently Asked Questions
Q1: What is the maximum thickness of steel the system can penetrate?
The system features high-energy X-ray source capable of penetrating up to 350mm of thick steel plate in active scanning mode.
Q2: How many containers can be inspected per hour?

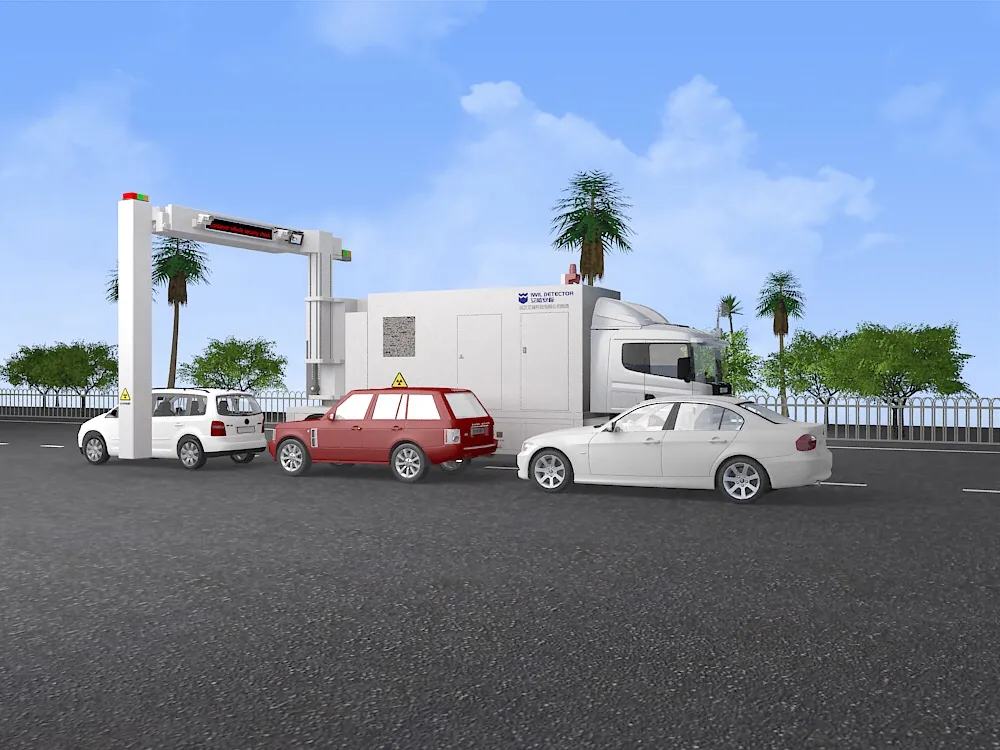

In active mobile scanning mode, it can inspect up to 30 vehicles per hour. In the drive-through scan mode, the throughput increases to 100 vehicles per hour.
Q3: Is the system safe for operators regarding radiation?
Yes, the system adheres to strict international standards (WHO, ICRP). It includes 200mm lead shielding and the annual effective dose for operators is ≤ 2msv/year.
Q4: Can the system differentiate between organic and inorganic materials?
Yes, the imaging software uses pseudo-color gray levels to classify and identify organic and inorganic substances based on density and atomic number.
Q5: What are the environmental operating limits?
The equipment is designed for rugged use, operating in temperatures from -40°C to +50°C and humidity up to 99%, with an IP45 waterproof rating.
Q6: What type of chassis is used for the mobile unit?

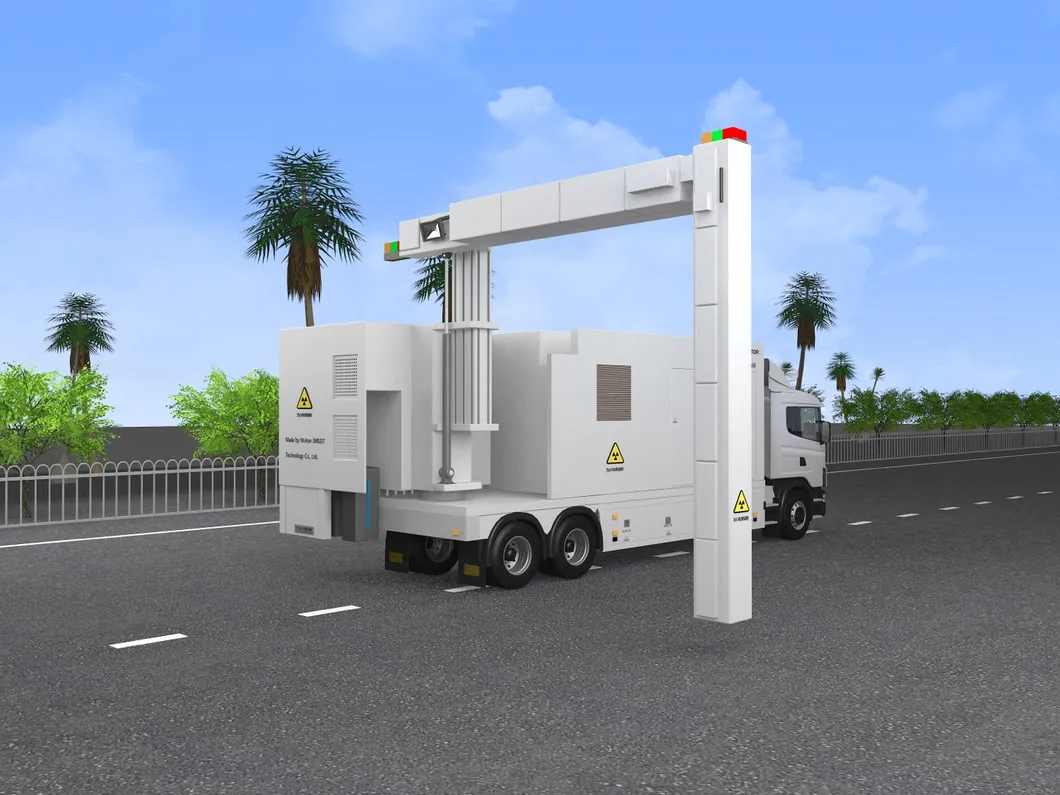

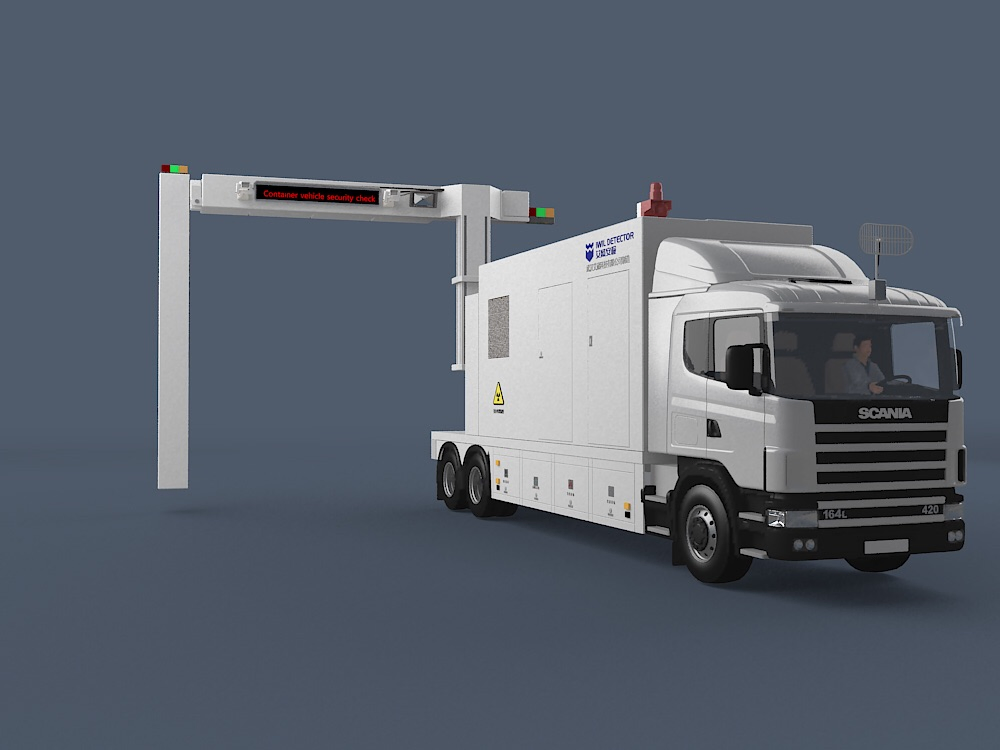

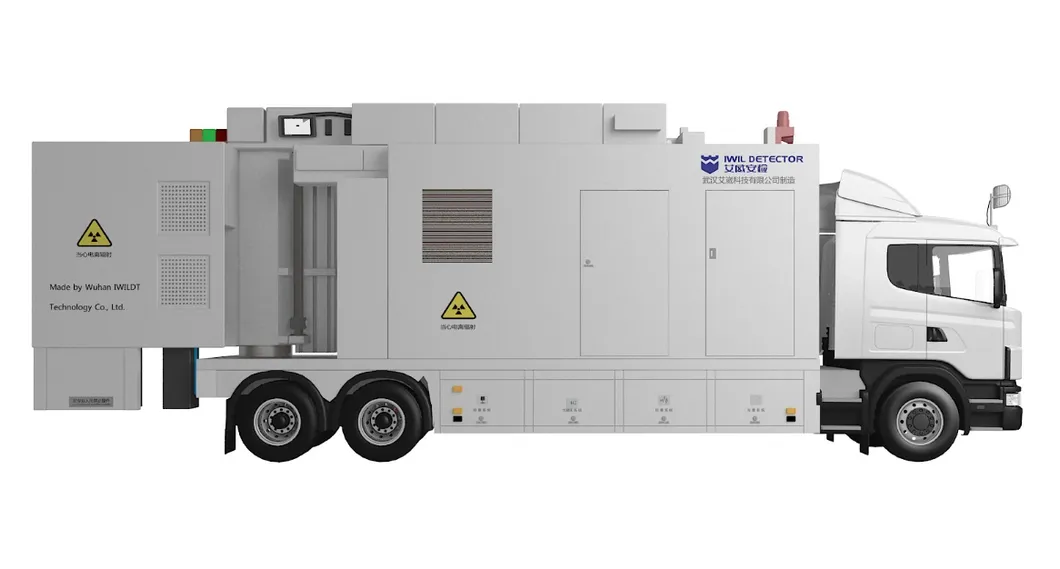

The system is built on a high-performance three-axis chassis with a hydraulic rotating support folding arm structure for flexible deployment.
