Vibration Data Acquisition System
Vibration Data Acquisition System
1 / 2
Vibration Data Acquisition System
Vibration Data Acquisition System

Vibration Data Acquisition System

Customization: Available
Type: Sensor
Usage: Rotating Machinery in The Industrial Field
Send Inquiry

Product Description

i

Basic Information

Model NO.
TW 2300
Installation Mode
Rail Mounting or Panel Mounting
Certification
CE
Application
Industry
Input Voltage Range
±25V
Sampling Frequency
Synchronous Acquisition, 6.4kHz Per Channel
Displacement Input
2 Channels, Grating & Pot Line
Power Supply
DC24V ≤6W
Origin
China
Specification
123.4mm*140mm
Vibration Data Acquisition System
★

Product Description

TW 2300 Vibration Monitor is designed specifically for rotating machinery in the industrial sector, providing precise, continuous vibration monitoring and protection at critical locations. This monitor is suitable for a variety of industries, including petrochemicals, oil and gas, power generation, water treatment, pulp and paper, machining, mining, and cement.

It can be used on large rotating machinery, including large feedwater pumps, chemical process pumps, large cooling tower fans, tunnel ventilators, blowers, induced draft fans, coal mills, centrifuges, mixers, large agitators, turbo-compressors, reciprocating compressors, drive motors, generators, and turbines, ensuring continuous and stable operation, improving production efficiency, and reducing maintenance costs.

⚙

Technical Specifications

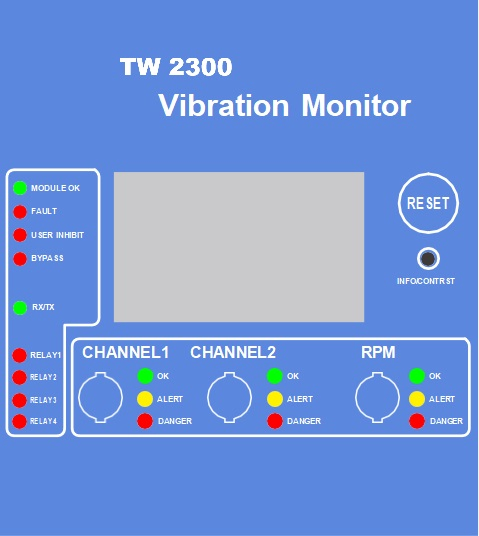

Indicator Functional Definition
CHANNEL 1-2Vibration 1-2 channel raw signal
MODULE OKIndicates that the monitor is working properly
FAULTProtection fault, system operation hindrance
USER INHIBITIntentionally setting the relay to prohibit operation
BYPASSBypass mode
RX/TXEthernet status and communication with software
RELAYIndicates relay activation status
RPMOriginal signal of speed channel
DANGER / ALERTDanger and Alarm status indicators
Instrument Power16VDC~30VDC (≤6W) or 95VAC~285VAC (15W)
Sensor Power-24VDC, +24VDC, constant current source 4mA
Signal Input2-channel vibration (ICP, Speed, Eddy Current), 1-channel speed sensor
Frequency ResponseConfigurable through software
Signal ConditioningResolution: displacement 1μm, speed 0.01mm/s; Accuracy: 0.5%
Current Output4-20mADC output, proportional to vibration range
Relay Output4 sets of programmable relays (SPDT); 220VAC/5A, 125VDC/2A
CommunicationEthernet and RS485
EnvironmentOperating: -35℃ to +70℃; Humidity: 95% non-condensing
Dimensions123.4mm * 140mm; Weight: < 1.4kg

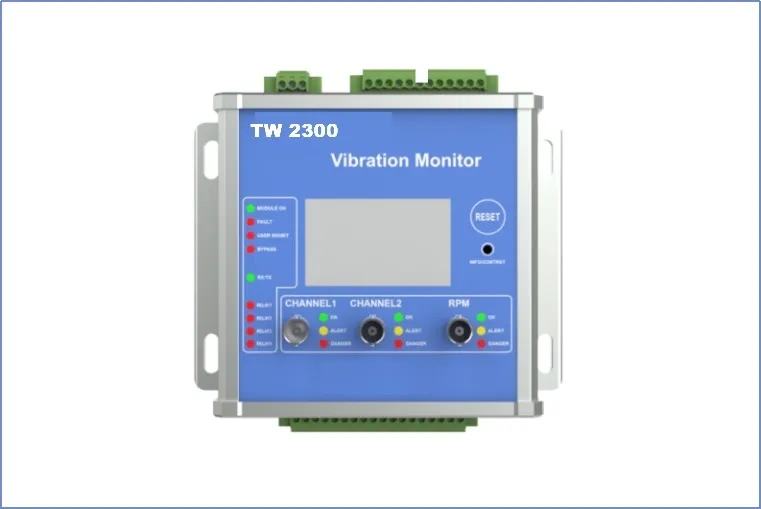

TW 2300 Side View

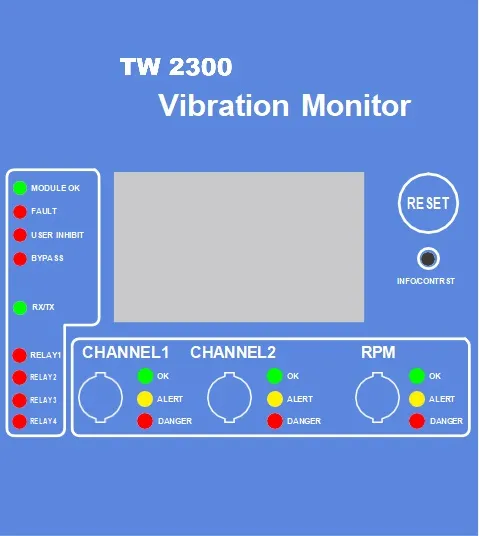

TW 2300 Interface View
?

Frequently Asked Questions

What types of machinery can the TW 2300 monitor?
The TW 2300 is ideal for large rotating machinery such as feedwater pumps, cooling tower fans, blowers, compressors, centrifuges, and turbines across various industrial sectors.
What sensors are compatible with this system?
The system supports 2-channel vibration input for acceleration (ICP), speed, and eddy current sensors, plus 1-channel for Hall-type or magnetoelectric speed sensors.
What are the installation options for the TW 2300?
It supports versatile installation including 35mm DIN rail mounting or standard panel mounting to fit different industrial cabinet requirements.
Does the monitor support remote communication?
Yes, it features both Ethernet and RS485 interfaces for seamless communication between the monitor and remote software.
What is the sampling frequency per channel?
The TW 2300 provides high-speed synchronous acquisition at a frequency of 6.4kHz per channel for precise data analysis.
Is the device suitable for extreme temperature environments?
Yes, the operating temperature range is -35℃ to +70℃, with an all-aluminum chassis designed for durable industrial use.
