Customization: Available
Warranty: One Year Free Warranty
Certification: CE, ISO
Send Inquiry

Product Description

Basic Specifications
Model NO.
IWILDT AN-48002800HMD
Form
Flatbed
Application
Security Check
Ray Energy
4-7.5 Mev
Penetration
Max 350mm Steel Plate
Tunnel Size
5m (W) X 4.8m (H)
Throughput
30-100 Vehicles/Hour
Scanning Mode
Active / Passive Scanning
Product Introduction

The multi-functional scanning vehicle security inspection system is specially designed for security inspection of container vehicles at customs, ports, military bases, and border ports. It reduces the manual time-consuming and laborious safety inspection of trucks, containers, and vehicles. Through X-ray fluoroscopy, it scans whether the material, volume, and quantity of goods are consistent with the checklist and checks for threats such as contraband and dangerous chemicals.

Core Capability: It adopts an adjustable electron accelerator from 4MeV to 7.5MeV, enabling penetration through steel plates up to 350mm. The high-speed image data acquisition circuit operates at 0.8m per second.
Technical Parameters
Electron Induction Accelerator:
  • Ray energy: 4 ~ 7.5MeV
  • Irradiation direction: Side illumination
  • Radiation protection: 200mm thick lead tank
  • Scattering angle: 80 degrees
  • Collimator: Electric "shutter" device, ultra-narrow slit beam output
Detection & Imaging System:

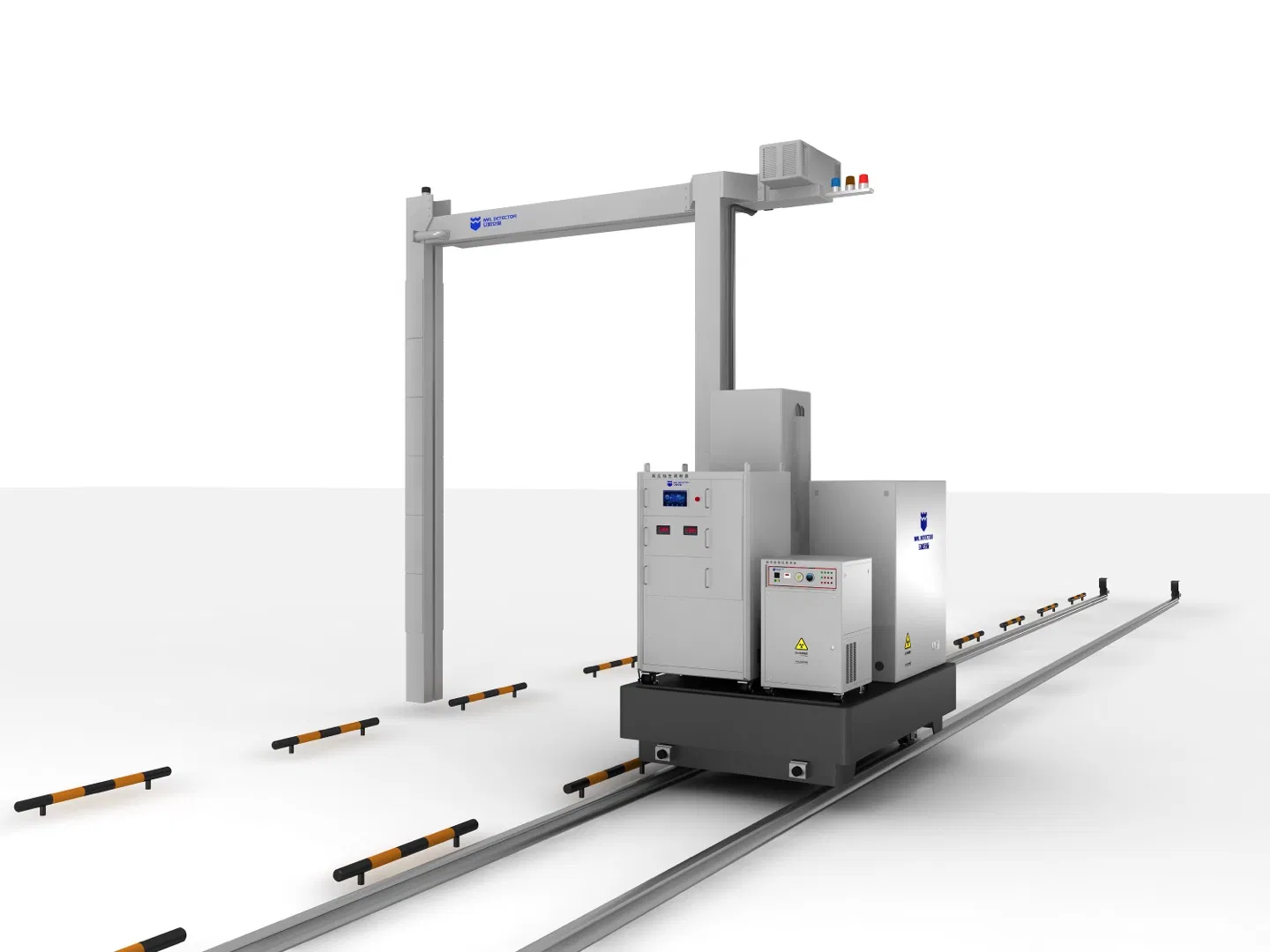

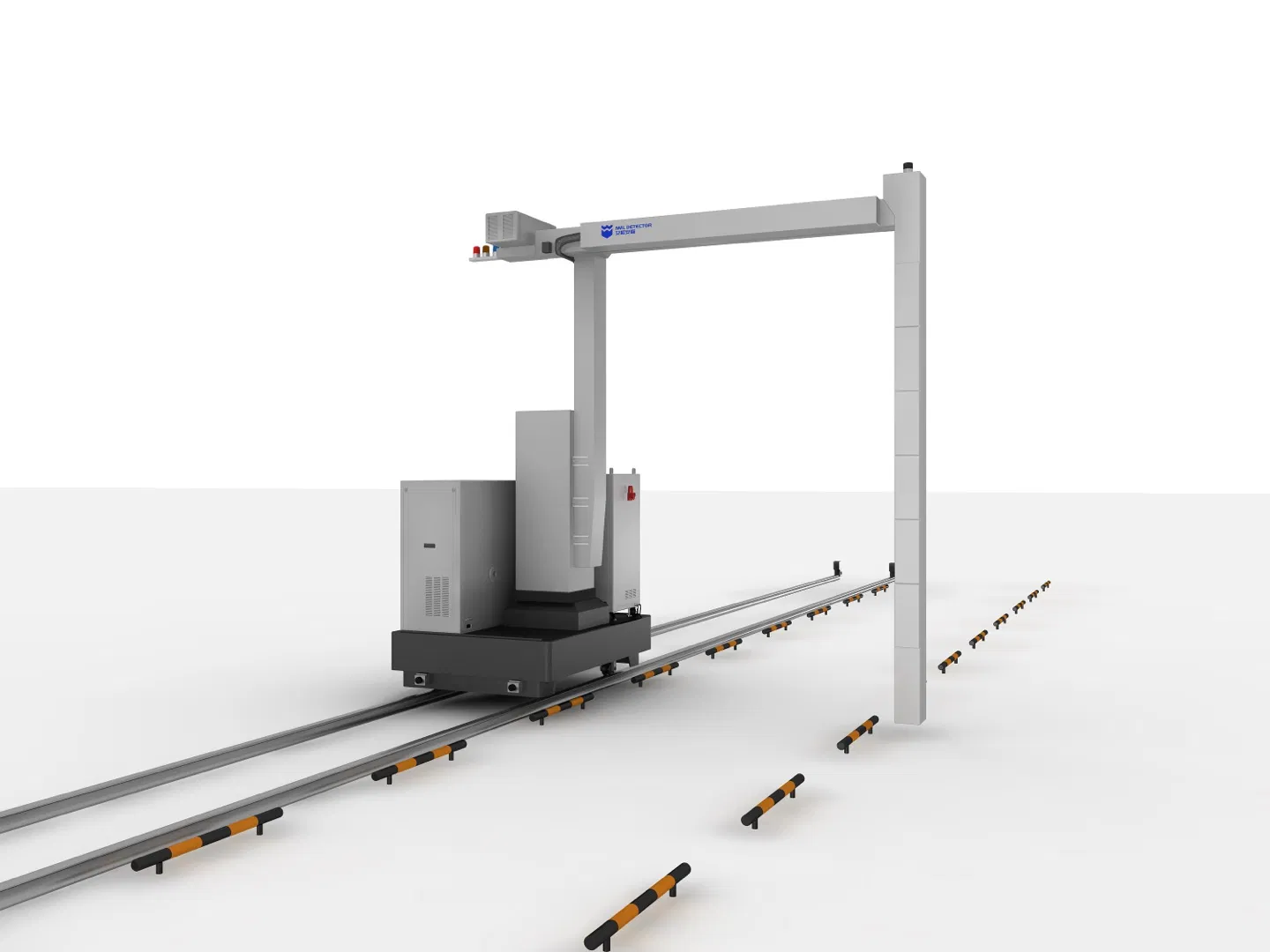

  • Structural design: Rail mobile gantry structure
  • Track length: 30m
  • Detection crystal: BGO
  • Photoelectric conversion: SIPM photon counter
  • Number of pixels: 2048
Image Processing:
  • Software functions: Edge enhancement, image inversion, histogram equalization, organic/inorganic matter removal, real-time video
  • Networking function: 1920x1080 real-time image H.264 coding
  • Dual energy scanning: Asynchronous collection of high and low energy data
  • Storage: 500,000 images as standard
Performance & Operation
Active Pass Rate
30 vehicles / hour
Passive Pass Rate
100 vehicles / hour
Scanning Speed
0.8m/s (Active) / 10km/h (Fast)
Operating Temp
-40°C to +50°C
Waterproof Grade
IP45
Radiation Index
≤ 2msv / year
System Visuals
Vehicle Security Inspection System
X-ray Array Detection
Imaging System Data Acquisition
Security Scanning Control
Frequently Asked Questions
What are the different scanning modes available?

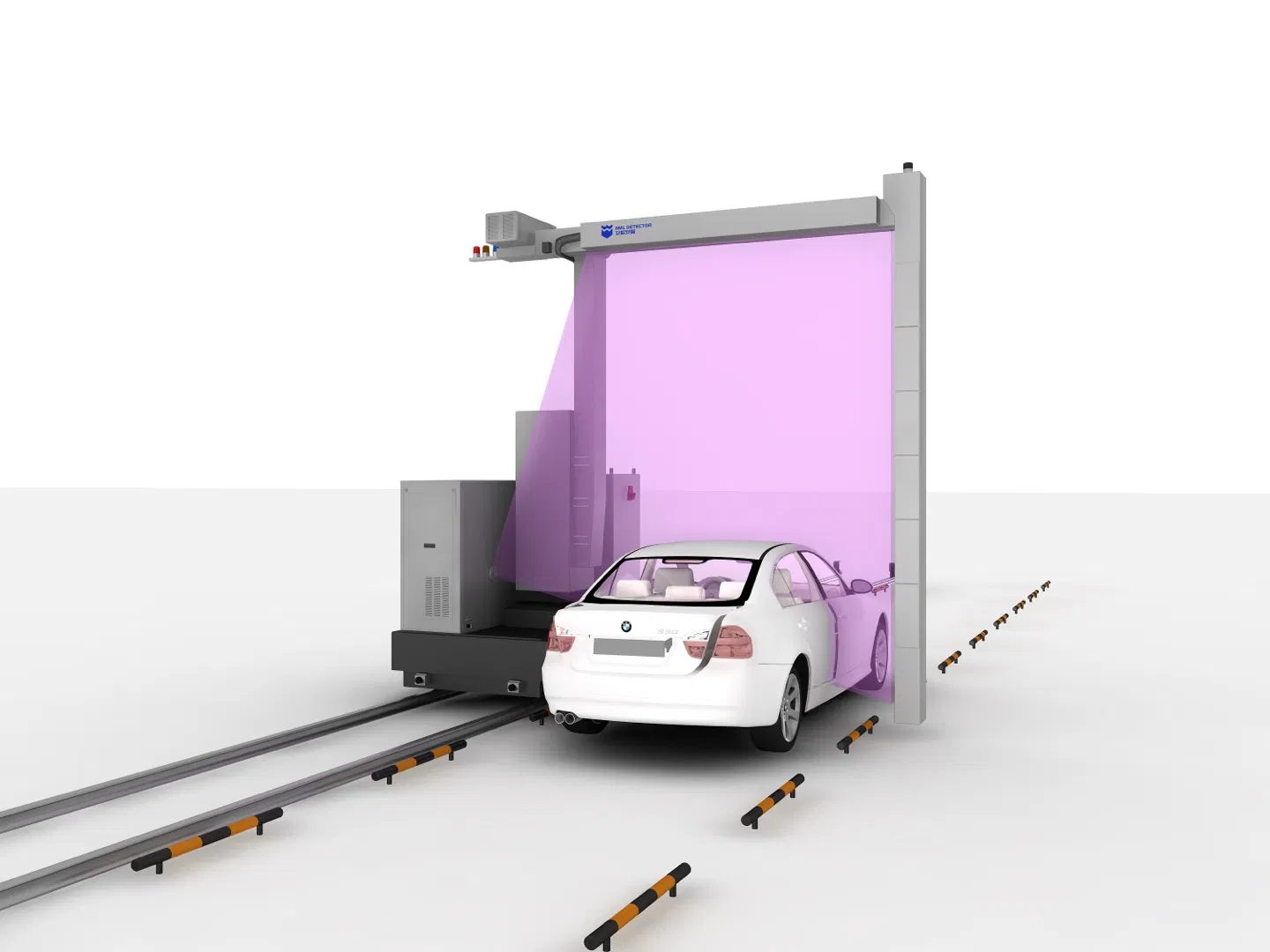

The system supports two modes: Active Scanning, where the gantry moves along a 30m track to scan stationary vehicles, and Passive Scanning, where the driver drives the vehicle through the gantry.
What is the maximum penetration capability?
The system uses an adjustable electron accelerator (4-7.5MeV) capable of penetrating up to 350mm thick steel plates in active scanning mode.
Is the radiation level safe for operators and drivers?
Yes, the system complies with international standards (ICRP 103-2007). It features automatic avoidance control for driver cabs and the annual effective radiation dose for operators is ≤ 2msv/year.
Can the system operate in extreme weather conditions?
The equipment is designed for outdoor use with an IP45 waterproof grade and an operating temperature range of -40°C to +50°C, suitable for moderate rain and snow.
What types of materials can the imaging system identify?
The dual-energy scanning system can classify and identify organic and inorganic substances based on different pseudo-color gray levels.
What kind of after-sales support is provided?
Support includes on-site installation, debugging, and training for personnel, along with a free warranty period and technical consulting services.
