Product Description

Product Overview
Model No.
AC-500
Transfer Rate
10/100/1000Mbps
Ports
6
Application
Enterprise
CPU
Intel@ Baytrail J1800 2.4GHz
Max Users
1000 Users
AP Management
500PCS Wireless AP
VPN
L2tp, Pptp, Openvpn, Ipsec
Network
DHCP/Static IP/Pppoe
QoS
Supported
Architecture
Single Bus CPU
Origin
China
Product Description

AC Controller AP group settings, RF planning, Network topology auto generating; firmware auto upgrading support L2TP, PPTP, IPSec/OpenVPN

The KS-AC500 is a large-sized enterprise gateway based on the MQTT protocol, specifically designed for robust network management and high-density access.

  • High-Speed Connectivity: Equipped with 7 Gigabit RJ45 ports, supporting multiple WAN ports, load balancing, Ethernet backup, and strategic routing.
  • Advanced Security & Control: Supports smart QoS, Internet behavior management, network firewall, VPN, SD-LAN, IPv6, and VLAN.
  • Massive User Capacity: Supports up to 1000 end users, protecting against network storms and ensuring stable operation.
  • Centralized AP Management: Can centrally configure and monitor up to 500 wireless APs simultaneously, significantly reducing maintenance costs.
  • Versatile Authentication: Supports SMS, Radius billing, portal, and account authentication for advertising and promotional needs.
  • Broad Compatibility: Works seamlessly with indoor and outdoor wireless APs for hotels, schools, hospitals, and shopping malls.
Main Features:
1. Industrial Gateway: Supports PPPoE/DHCP/Static IP and multiple Gigabit WAN load balancing.
2. VPN Support: Comprehensive protocol support including L2TP/PPTP/IPSec/OpenVPN for site-to-site and client-to-site connections.
3. Cloud & SD-LAN: Centralized cloud-based management for adaptability, flexibility, and cost-effectiveness.
4. Intelligent Channel Analyzer: Detects Wi-Fi interference to select the cleanest channels for stable coverage.
5. Auto-Topology: Automatically generates network maps based on real-time connection status.
Detailed Photos

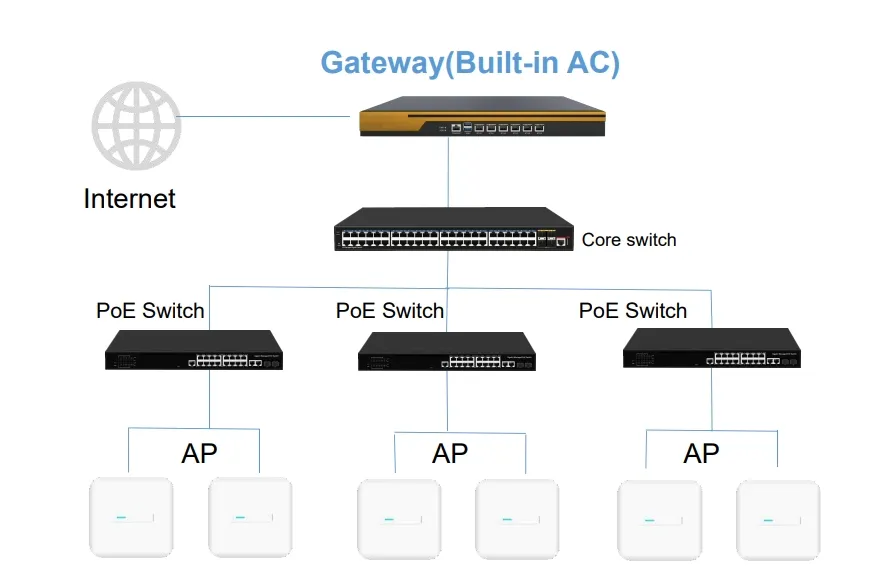

Detailed View 1

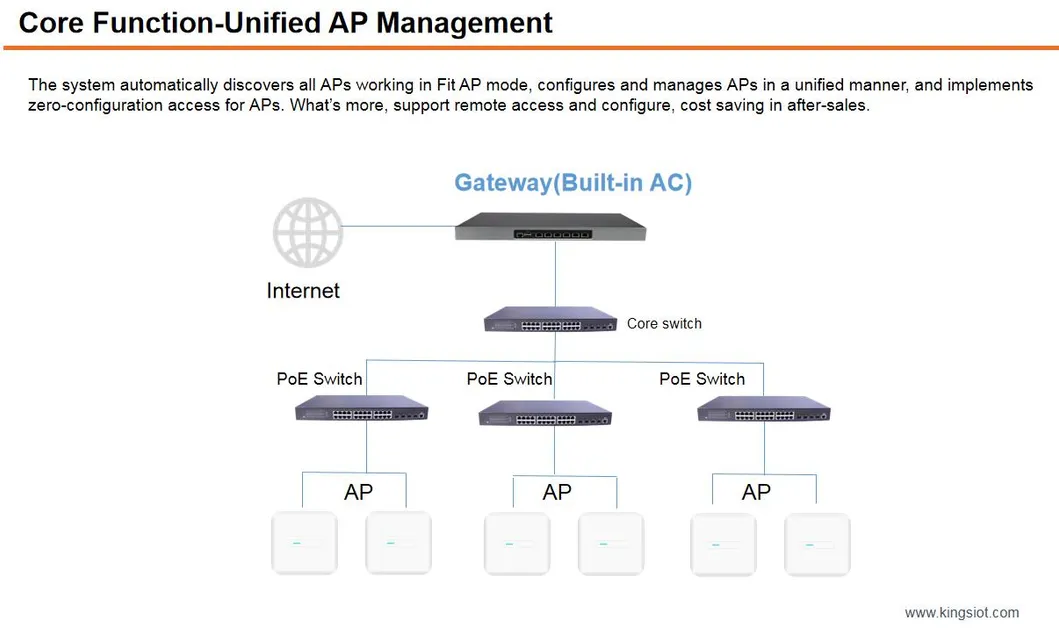

Detailed View 2

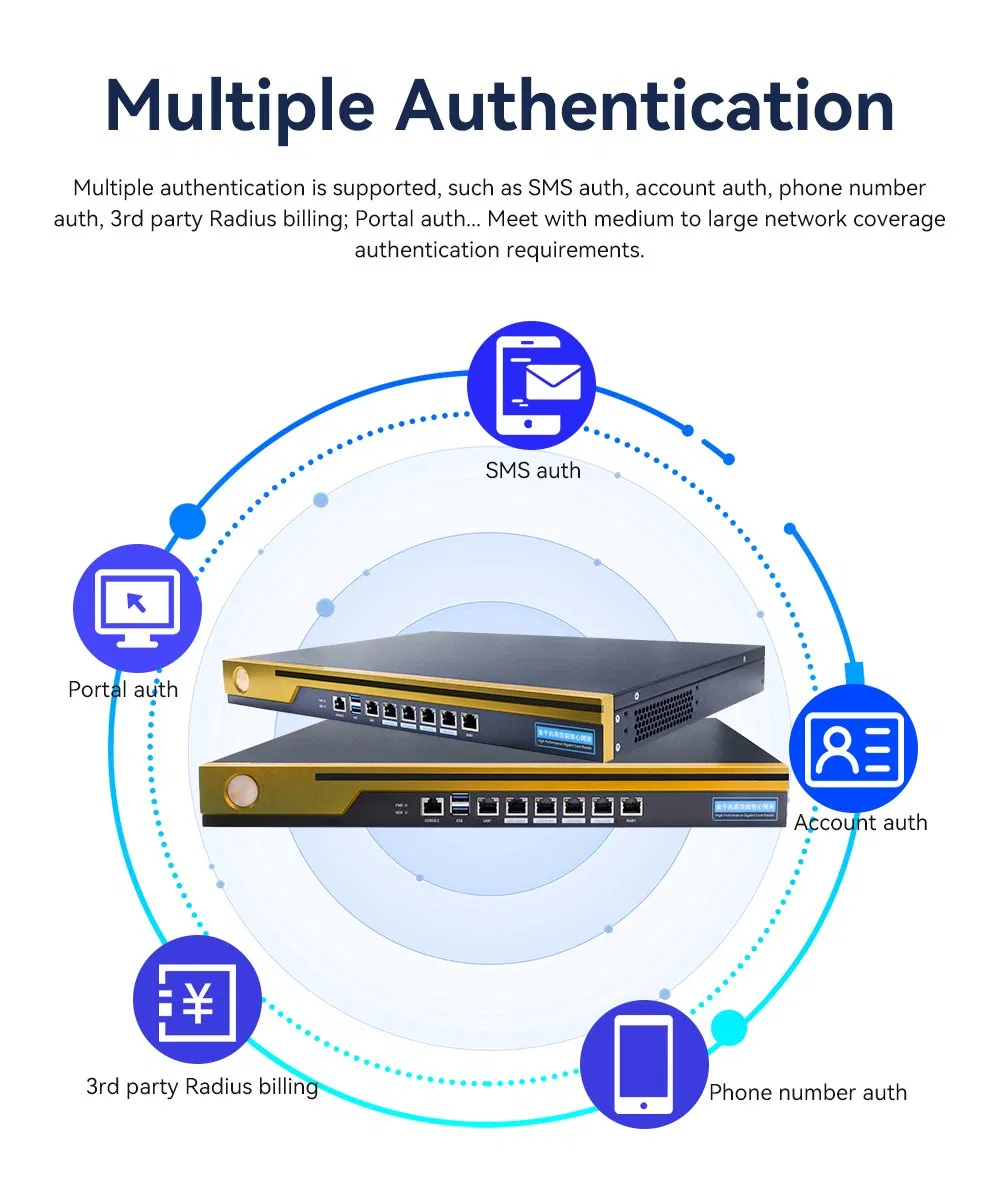

Detailed View 3

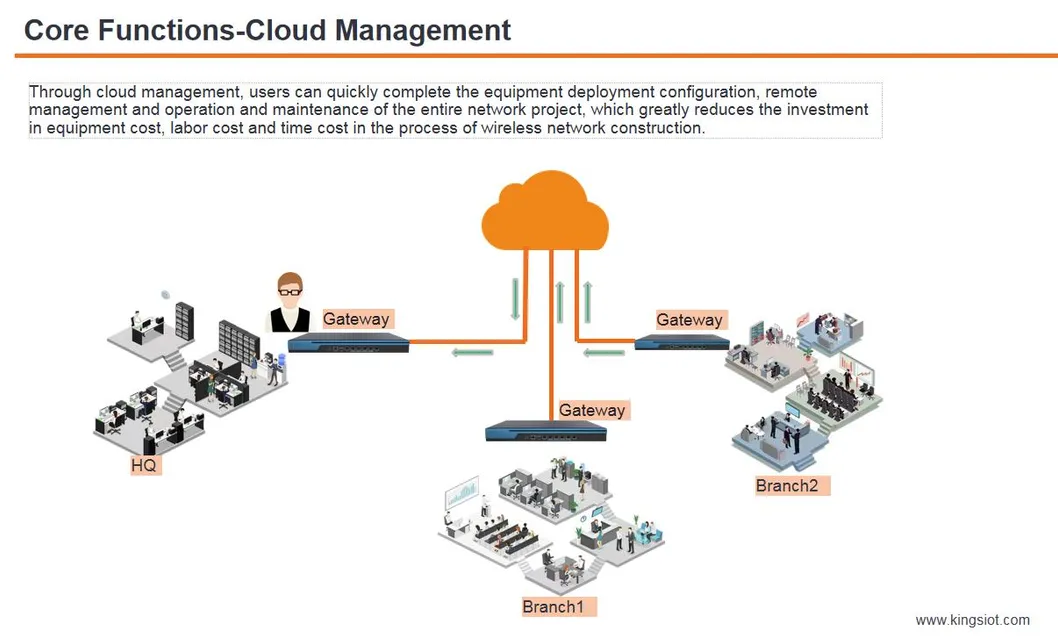

Detailed View 4

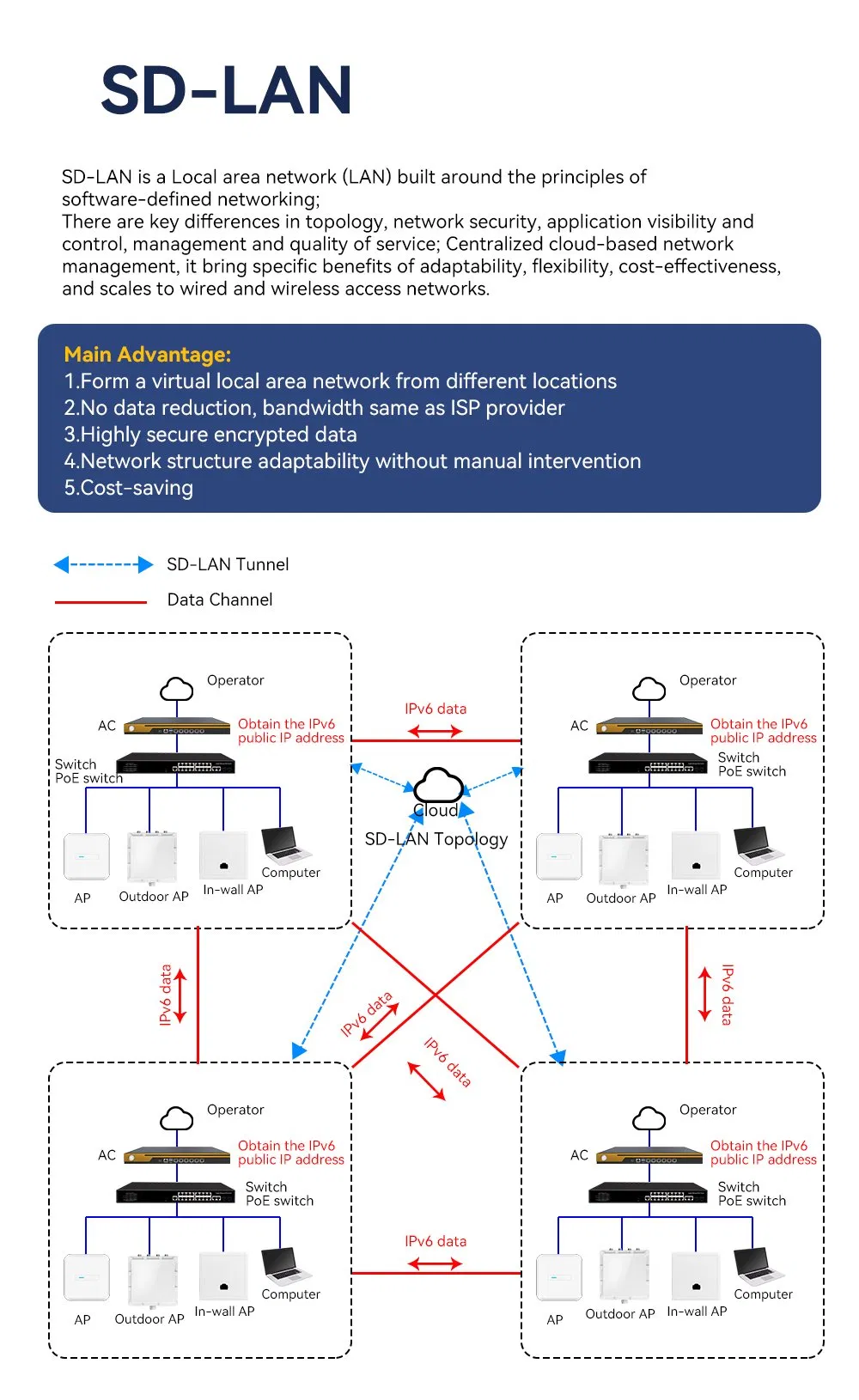

Detailed View 5

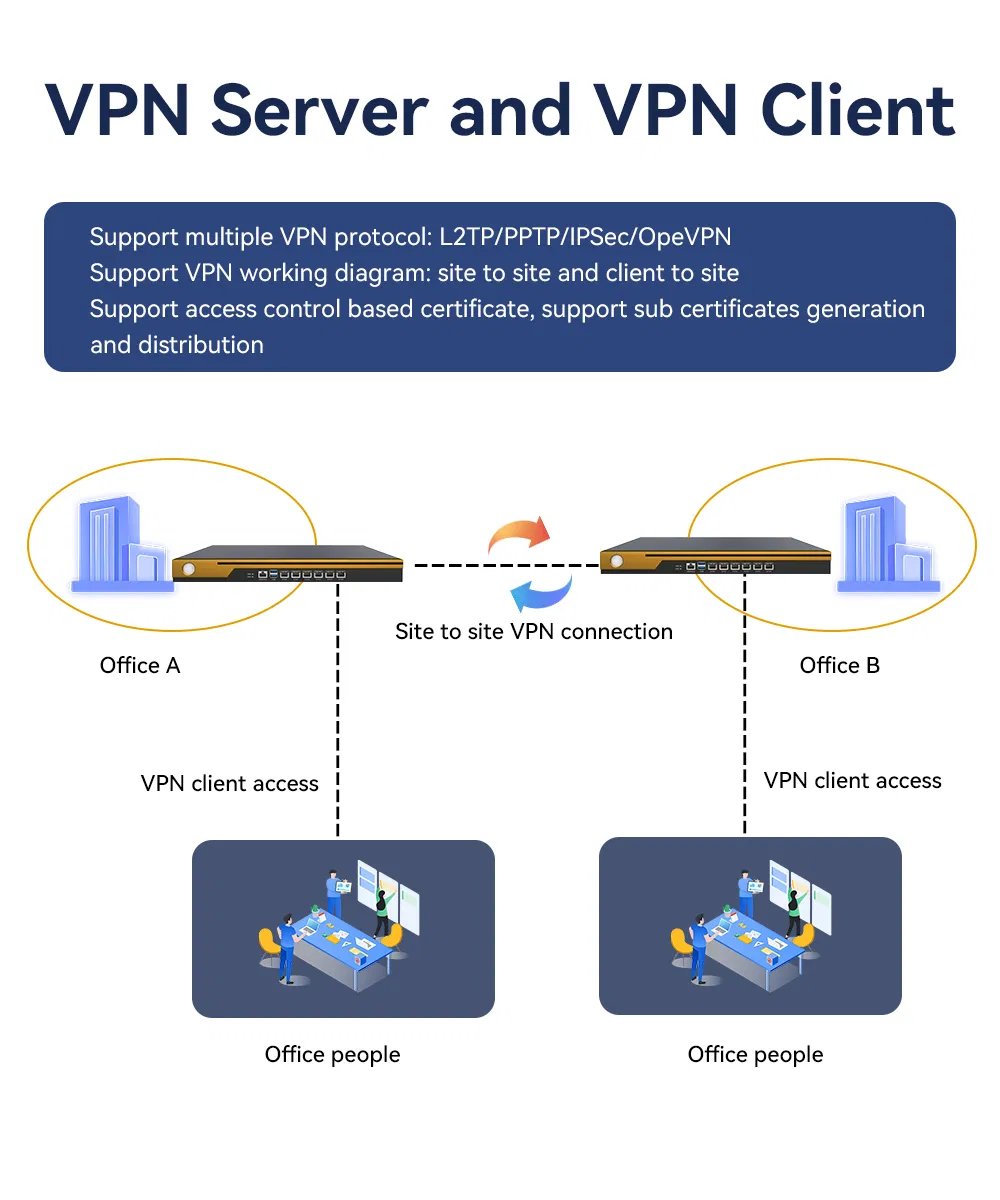

Detailed View 6
Product Parameters
Platform & Hardware
Size1U Frame / 430 (L)×300(W)×44(H)mm
CPUIntel® Baytrail J1800 2.4GHz / 1MB Cache
Memory (Flash)DDR3 1333/1600 (Default 2GB, Optional up to 8GB)
Network Interface6 x Intel® I211AT GbE RJ45 Ports
Storage1 x M-SATA SSD (Default 8GB), 1 x SATA III 2.5" Slot, CF Card Type II
Interfaces & I/O
Serial Port1 x RJ45 Serial (Cisco Compatible), 115200bps
USB Ports2 x USB 2.0
Display1 x VGA Port (Optional)
IndicatorsPower (Green), Status (Orange), Bypass (Yellow)
Environment & Power
Power SupplyInternal AC 90V-264V @ 47-63Hz, 75W Consumption
TemperatureWork: 0ºC-50ºC; Storage: -40ºC~70ºC
Humidity5~95% RH, Non-condensing
Certification3C, ROHS
Packaging & Shipping
Carton Details: 51.5 * 42.5 * 30cm
Quantity: 5 PCS per CTN
Weight: 15.2 KGS per CTN
After Sales Service
Warranty: 2 Years Full Warranty
Frequently Asked Questions
How many wireless Access Points (APs) can this controller manage?
The AC-500 can centrally manage and configure up to 500 pieces of wireless APs simultaneously.
What is the maximum number of concurrent users supported?
It is designed to handle access for a maximum of 1000 end users, ensuring high-speed network stability.
Does the device support multiple VPN protocols?
Yes, it supports L2TP, PPTP, IPSec, and OpenVPN protocols for both site-to-site and client-to-site connections.
What authentication methods are available for public Wi-Fi?
The gateway supports SMS authentication, Radius billing, Portal authentication, and Account authentication.
Can I use this as a primary router?
Yes, it can function as the main enterprise router or be used as a bypass AC controller within an existing network.
What is the warranty period for this hardware?
This product comes with a standard 2-year warranty for after-sales service.
