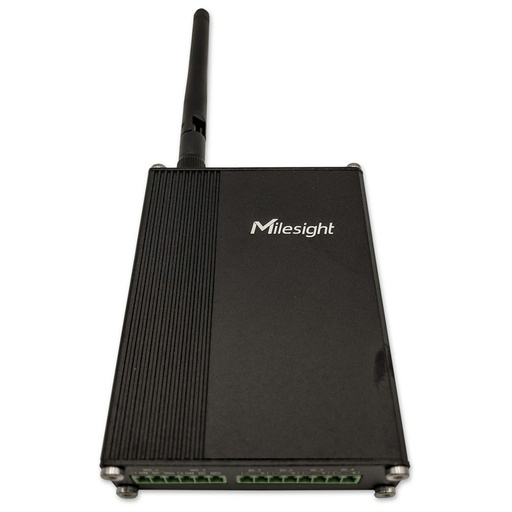

UC300 IoT Controller: Redefining IoT Monitoring and Control
Introduction:

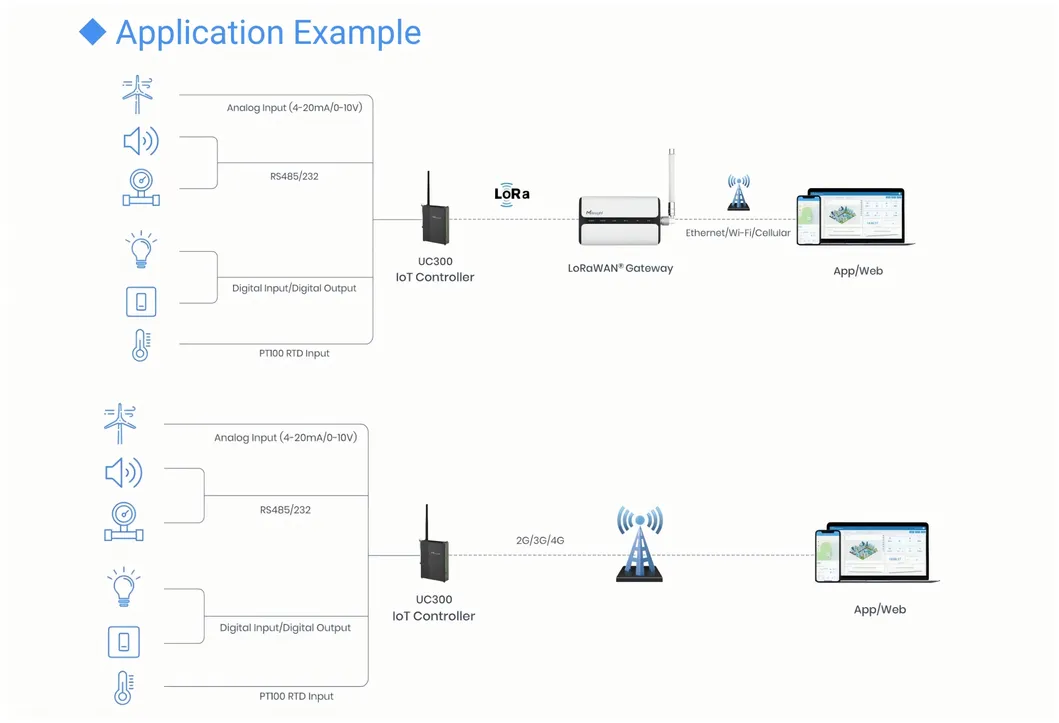

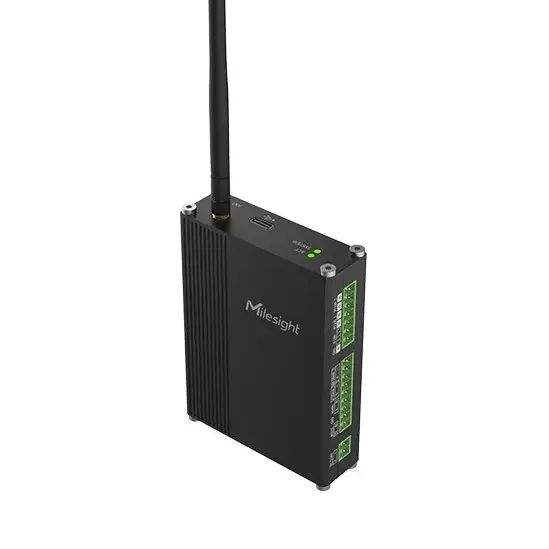

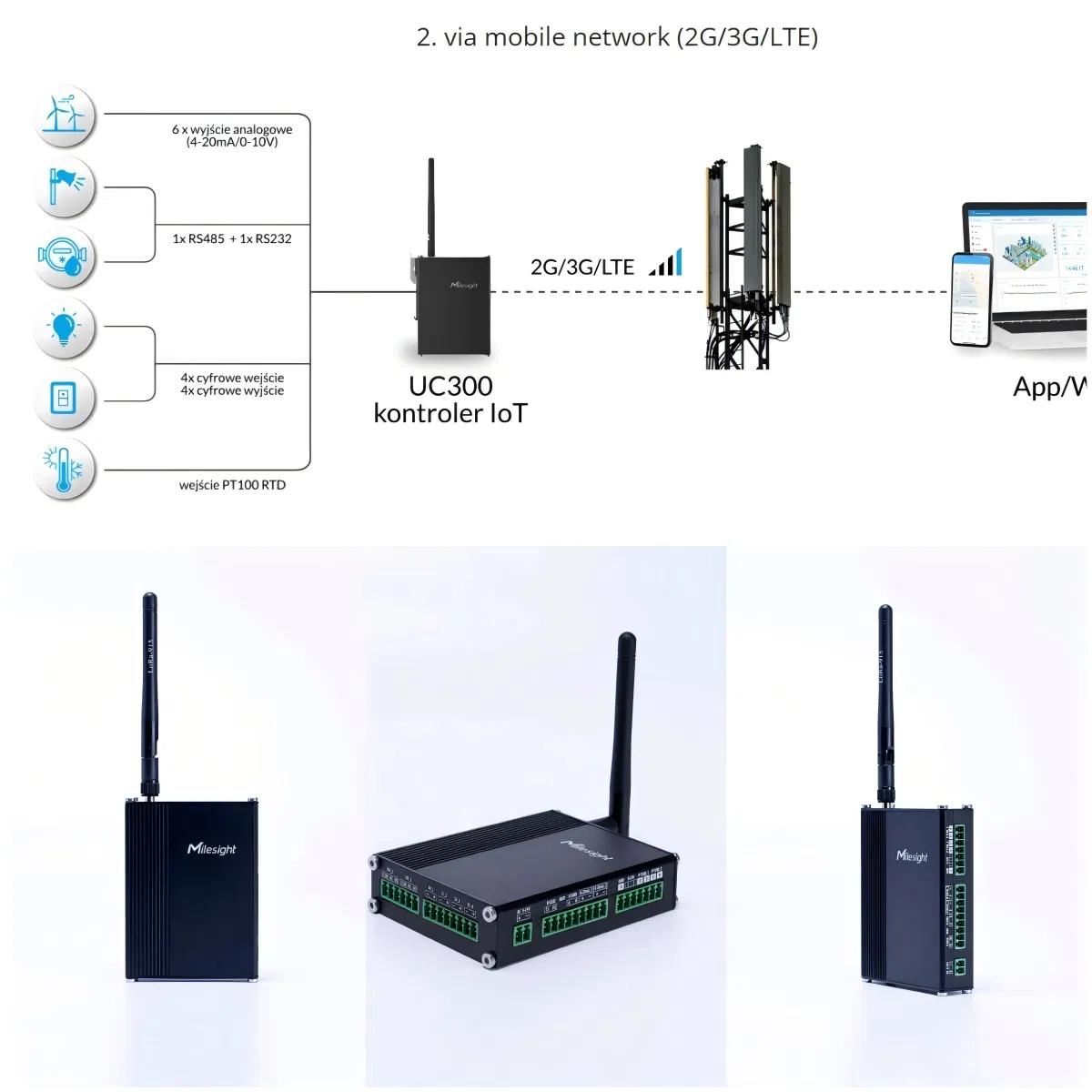

UC300 series is an IoT controller used for remote control and data acquisition from diverse devices. It contains multiple I/O interfaces including analog input, digital input, relay output, serial port, PT100 RTD input, which support remote device data transmission via LoRaWAN® or 3/4G networks. Besides, UC300 series supports multiple trigger conditions and actions which can work autonomously even when the network dropped. Combining with IoT Cloud solution, it can monitor and control remote devices via web server or mobile App easily. Adopting industrial design and IP30 metal case, UC300 is widely used in indoor applications like smart factory, building automation, etc.
| Specifications UC300 | |||
|---|---|---|---|
| Data Interfaces | |||
| Interface Type | 3.5mm Terminal Block | ||
| Digital I/O | |||
| Ports | 4 × DI + 2 × DO | ||
| Digital Input | Opto-isolated Digital Inputs, 3-24VDC; Mode: DI, Pulse Counter (≤ 4000 Hz) | ||
| Digital Output | SPDT Relay Contact Rating: Max 3A@DC 30 V or AC 250 V | ||
| Serial Port | |||
| Ports | 1 × RS232 + 1 × RS485 | ||

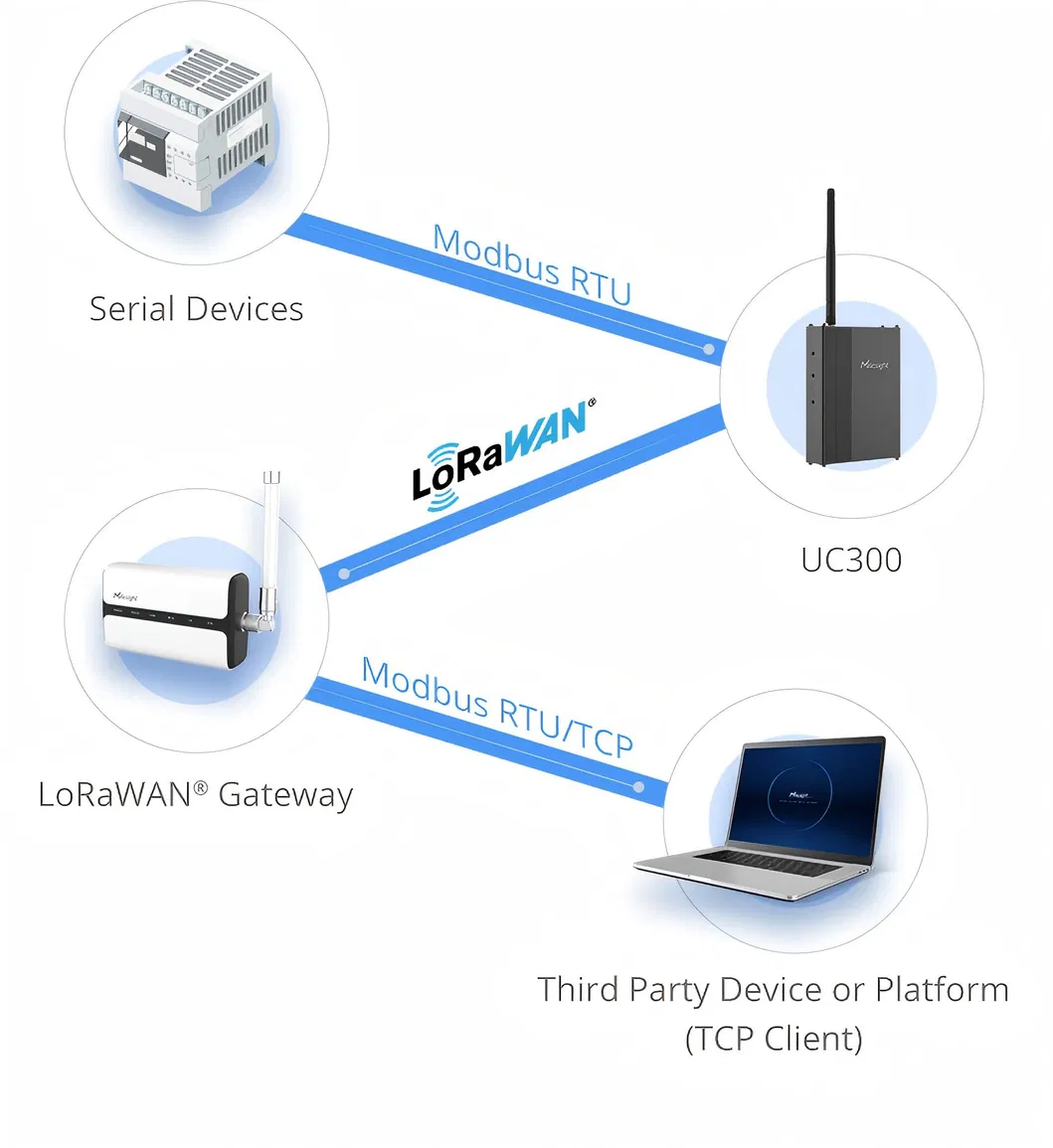

| Protocol | RS232: Transparent; RS485: Transparent, Modbus RTU | ||
| Analog Input | |||
| Ports | 2 × 4~20 mA + 2 × 0~10 V | ||
| Analog Input (RTD) | |||
| Ports | 2 × PT100 RTD Input (2, 3-wire) | ||
| Range | -200°C ~ 800°C | ||
| Wireless Transmission | |||

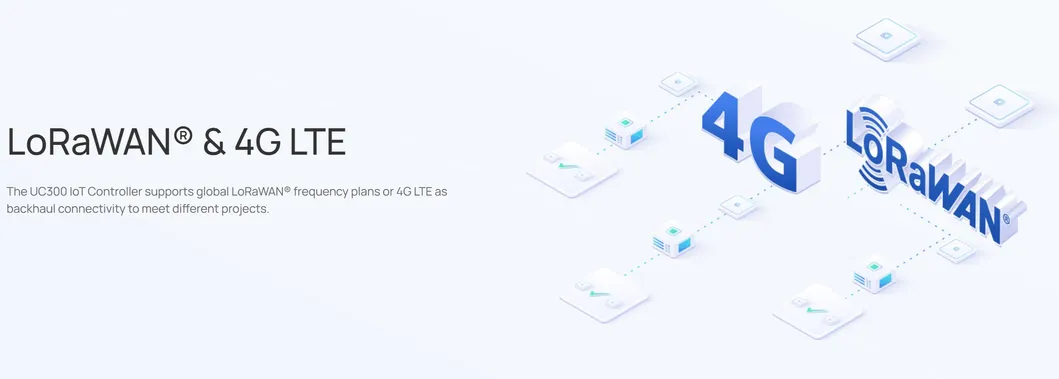

| LoRaWAN® | OTAA/ABP Class C, CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923 | ||
| Cellular | 4G LTE (CAT 1)/WCDMA/GSM | ||
| Physical Characteristics | |||
| Power Supply | 5-24VDC by Terminal Block or 5V by Type-C USB | ||

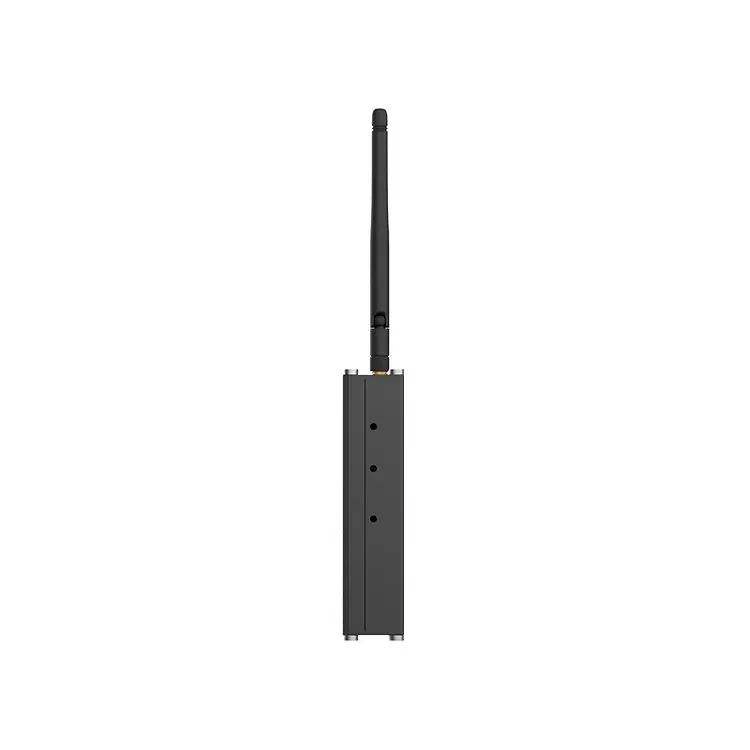

| Dimension | 93 × 70 × 22 mm (Antenna Connector Excluded) | ||
