Efficient Embedded Controllers for Industrial IoT Applications

Customization:	Available
After-sales Service:	Yes
Warranty:	Two Years

Send Inquiry

Product Description

Basic Info.

Model NO.

SMC300

Logo Printing

Provide OEM and ODM

Size

Middle

Customized

Type

Motion Control

Material

Metal

Certification

Input Power

24V+-10%, 3A

Protection Degree

IP20

Program Capacity

10MB

Product Description

Efficient Embedded Controllers for Industrial IoT Applications

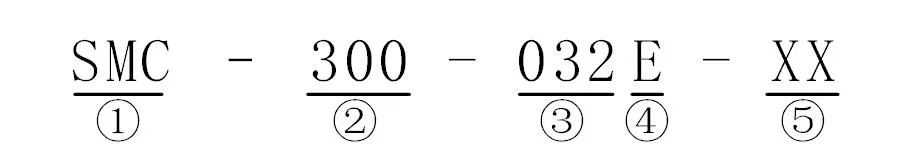

Product Category	Series	Axes Quantity	Command Type
SMC: Motion Controller	300 Series	032: 32 Axes	E: EtherCAT

Product Parameters

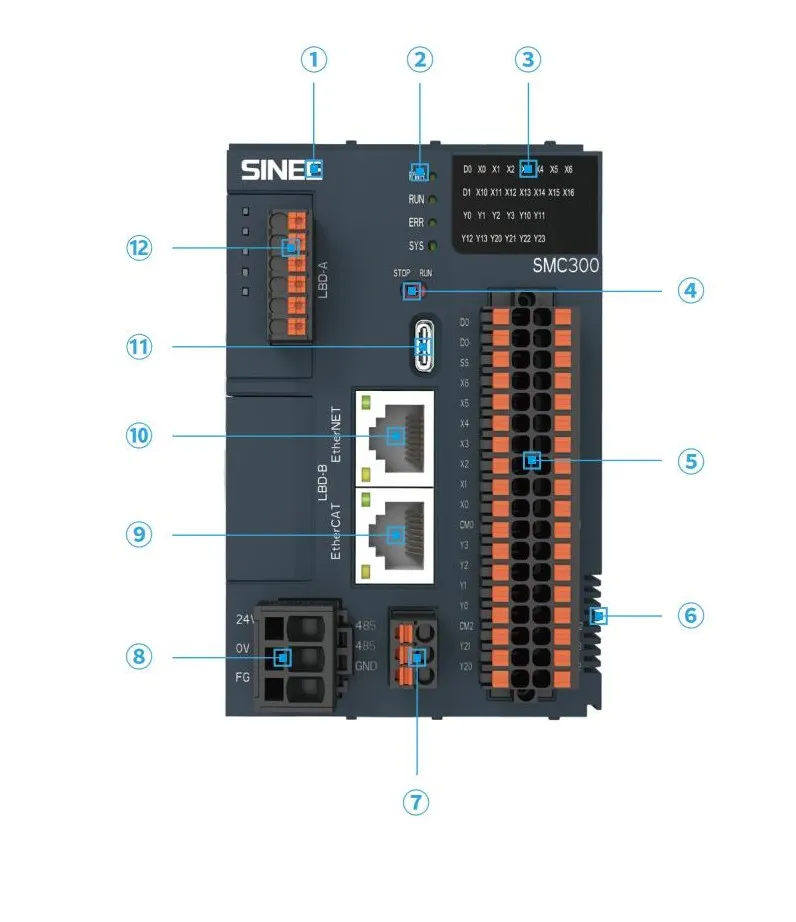

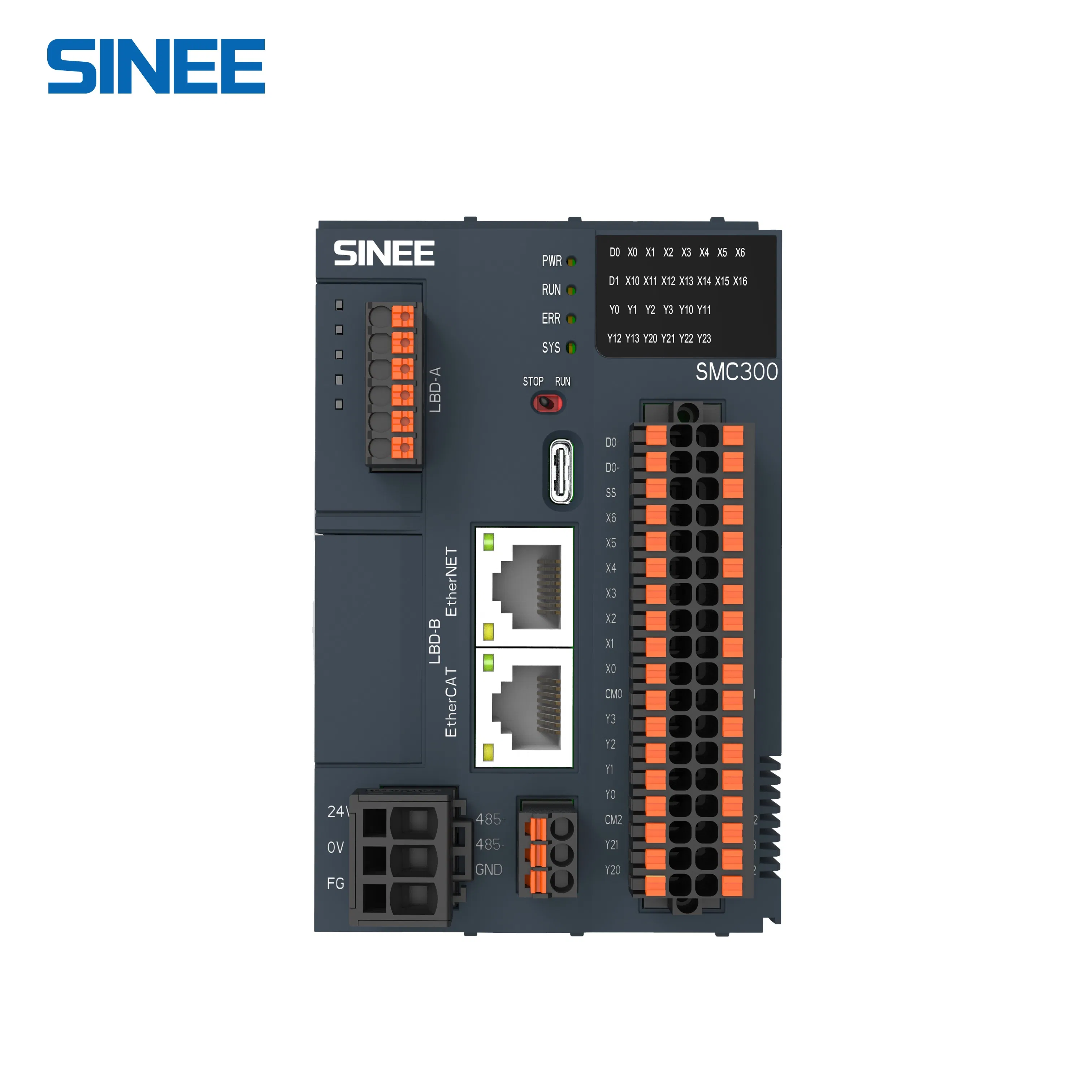

Serial	Type	Interface ID	Definition	Illustrate
1	Silk screen	/	Logo	/
2	Indicator light	PWR/RUN/ERR/SYS	Status indication	System and Network errors
3	LED indication	/	16 Input / 12 Output	Status LEDs
4	DIP switch	RUN/STOP	Control operation	Start/Stop system
7	RS485	485+/485-/GND	Communication	Serial communication
9	Ethernet 2	EtherCAT	Motion Control	EtherCAT Communication
10	Ethernet 1	EtherNET	Network	Fixed IP: 192.168.1.8

Items	Specification Description
Input Power	24V ± 10%, 3A
Operating Temp	-10 ~ +55ºC
Relative Humidity	5%~95% (no condensation)
Altitude	2000m
Protection	IP20
EtherCAT Sync	Synchronization cycle 4ms/32 axes
Programming	IEC 61131-3 (LD, FBD, IL, ST, SFC, CFC)

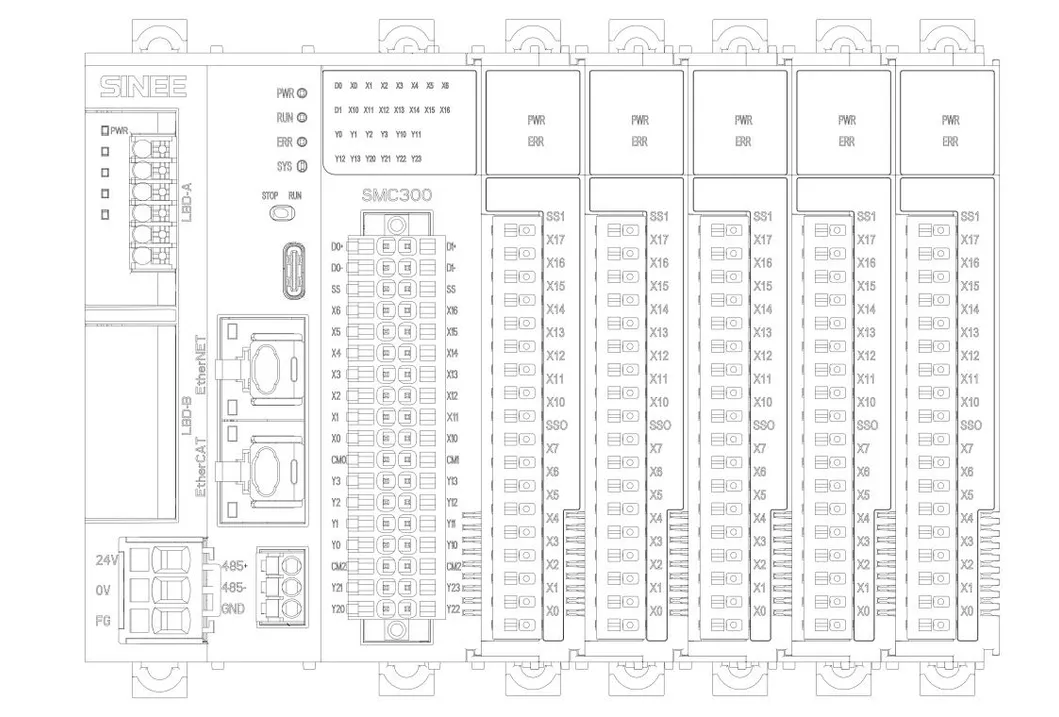

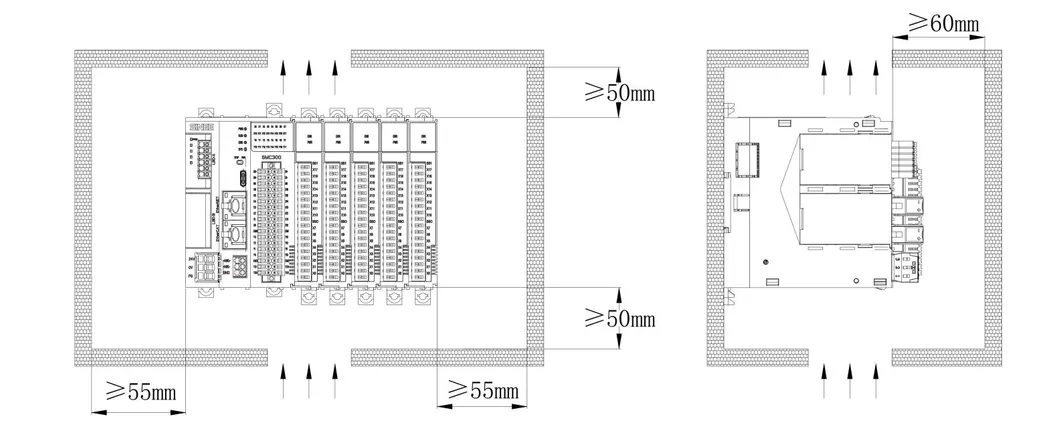

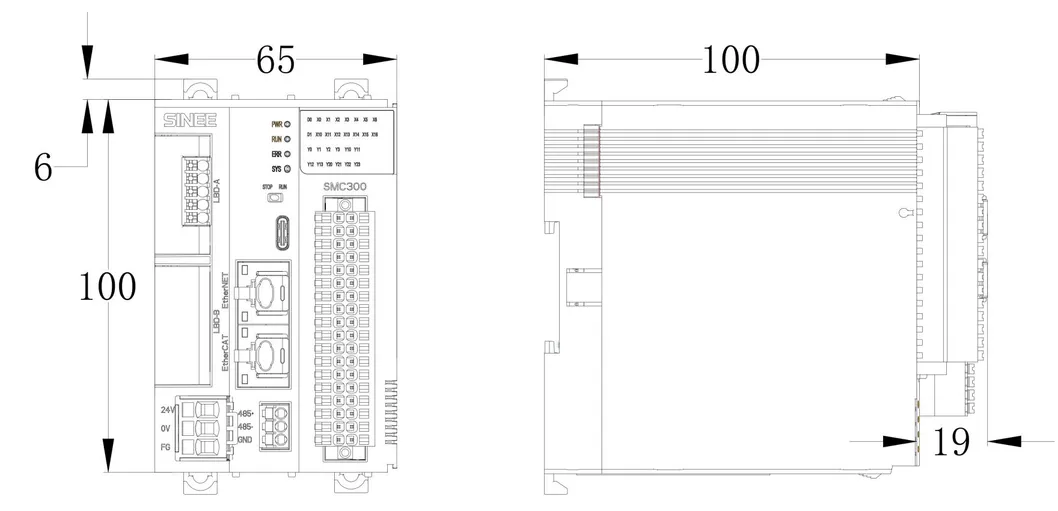

Installation Instructions

Industry Solutions

Frequently Asked Questions

How many axes can the SMC300 controller manage?

The SMC300 supports up to 32 axes through its dedicated EtherCAT interface with a synchronization cycle of 4ms.

What programming languages are supported?

It fully supports the IEC 61131-3 standard programming languages, including Ladder Diagram (LD), Function Block Diagram (FBD), Instruction List (IL), Structured Text (ST), and Sequential Function Chart (SFC).

What are the power supply requirements for this controller?

The device requires a DC 24V input (±10%) with a current rating of 3A. It includes under-voltage protection at 18V.

Is the SMC300 suitable for harsh industrial environments?

Yes, it is designed for industrial use with an IP20 protection rating, an operating temperature range of -10 to +55ºC, and natural cooling.

What communication interfaces are available?

The controller is equipped with dual Ethernet ports (one for standard Ethernet/Modbus TCP and one for EtherCAT), an RS485 serial port, and a USB Type-C port for firmware upgrades.

Can the I/O capacity be expanded?

Yes, the SMC300 supports both left and right local expansion modules to increase its I/O and functional capabilities as needed.
