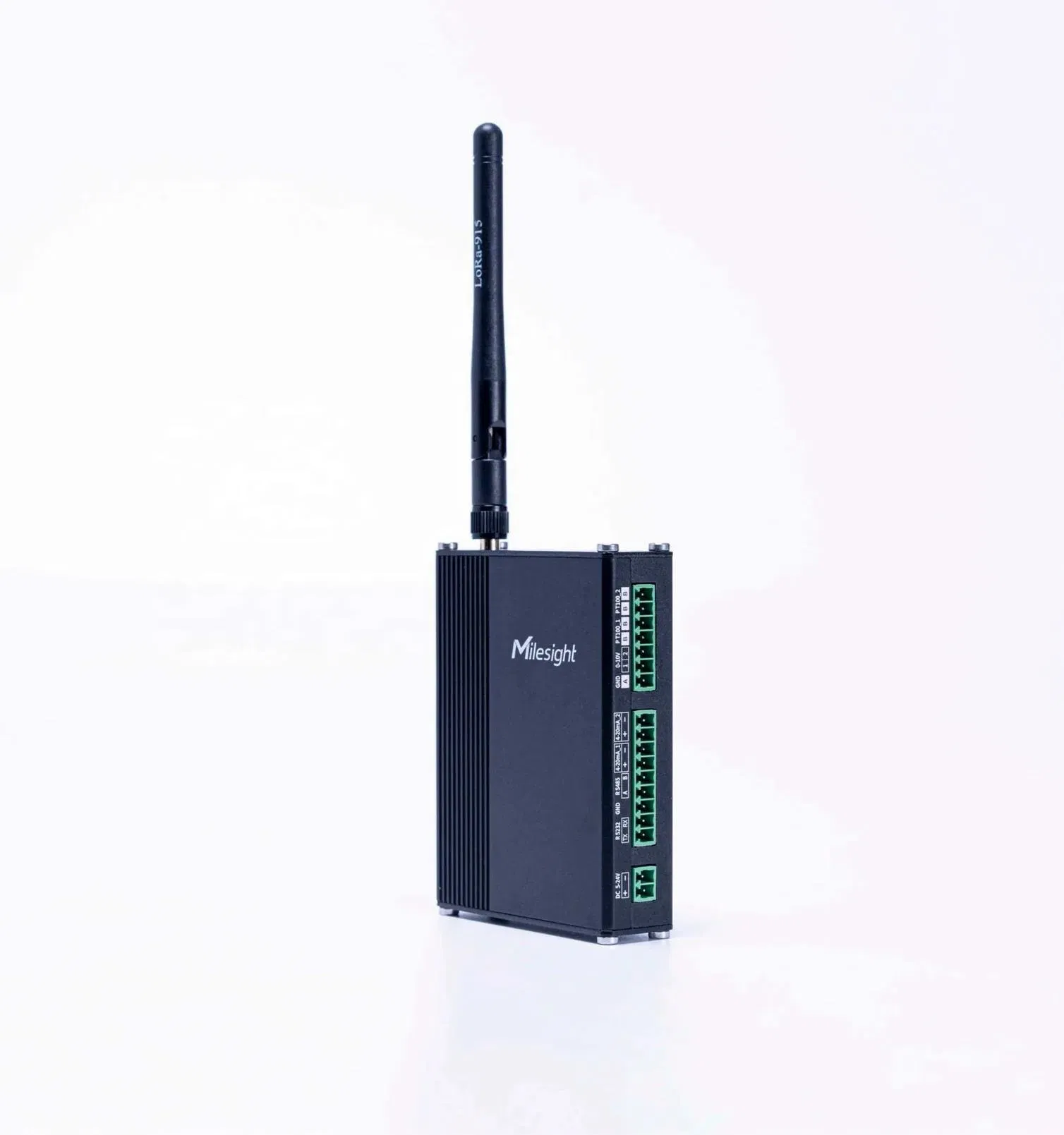

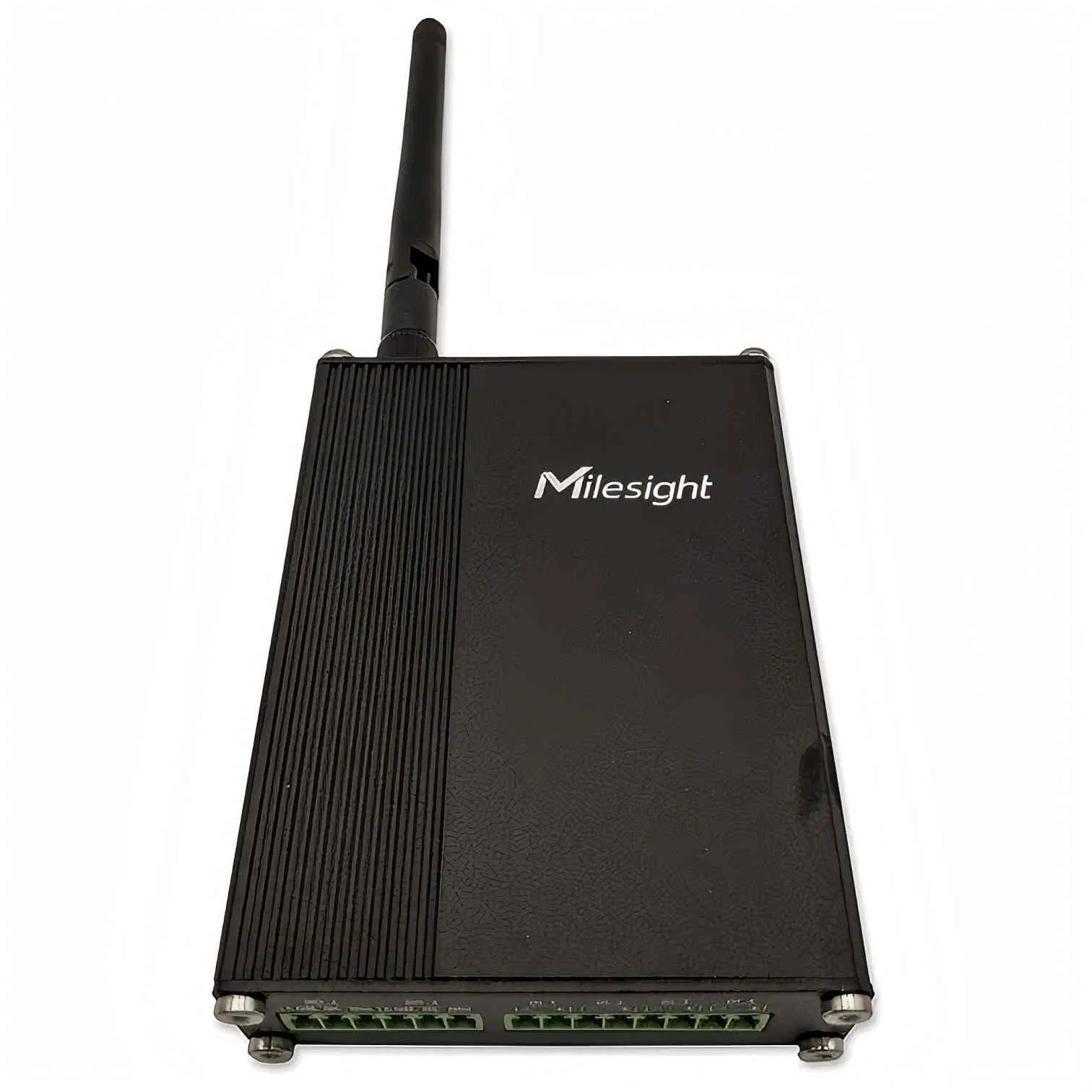

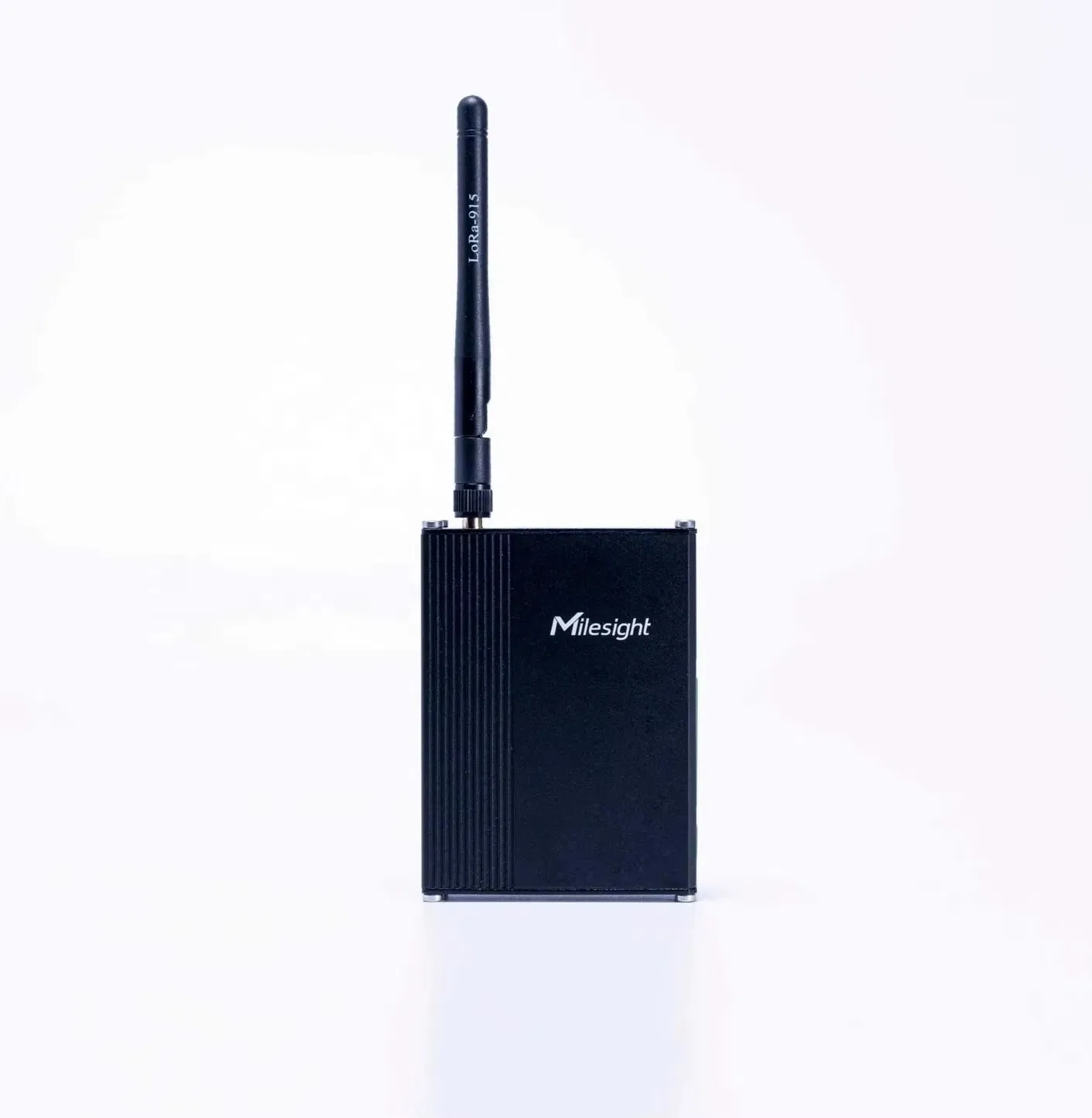

UC300 IoT Controller - Redefining Monitoring and Control

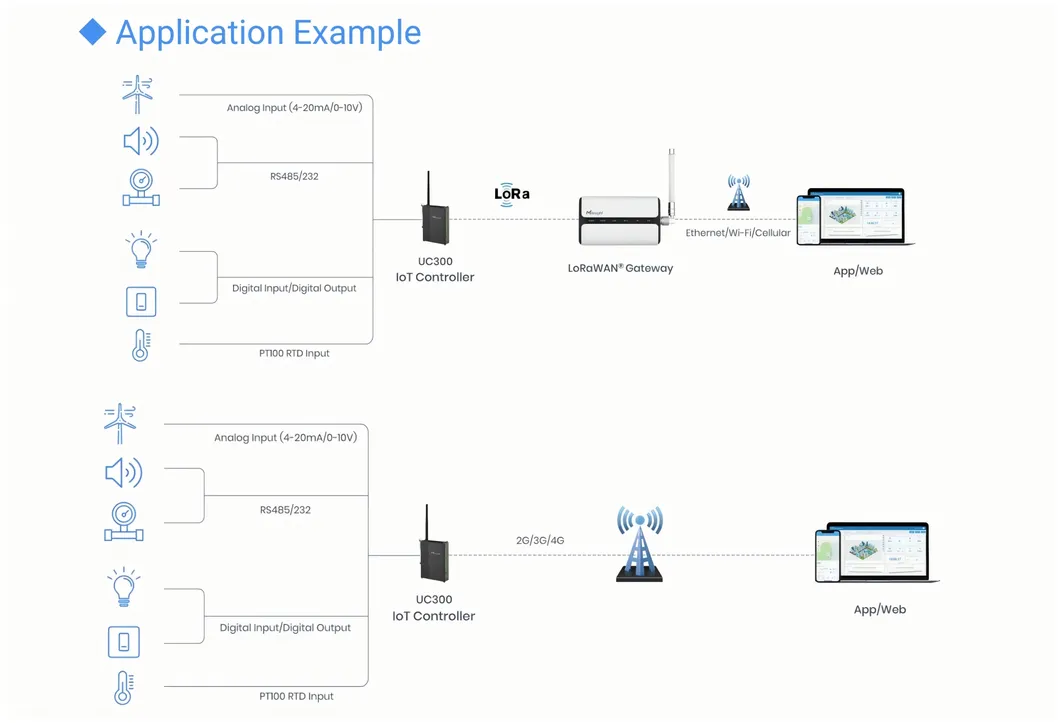

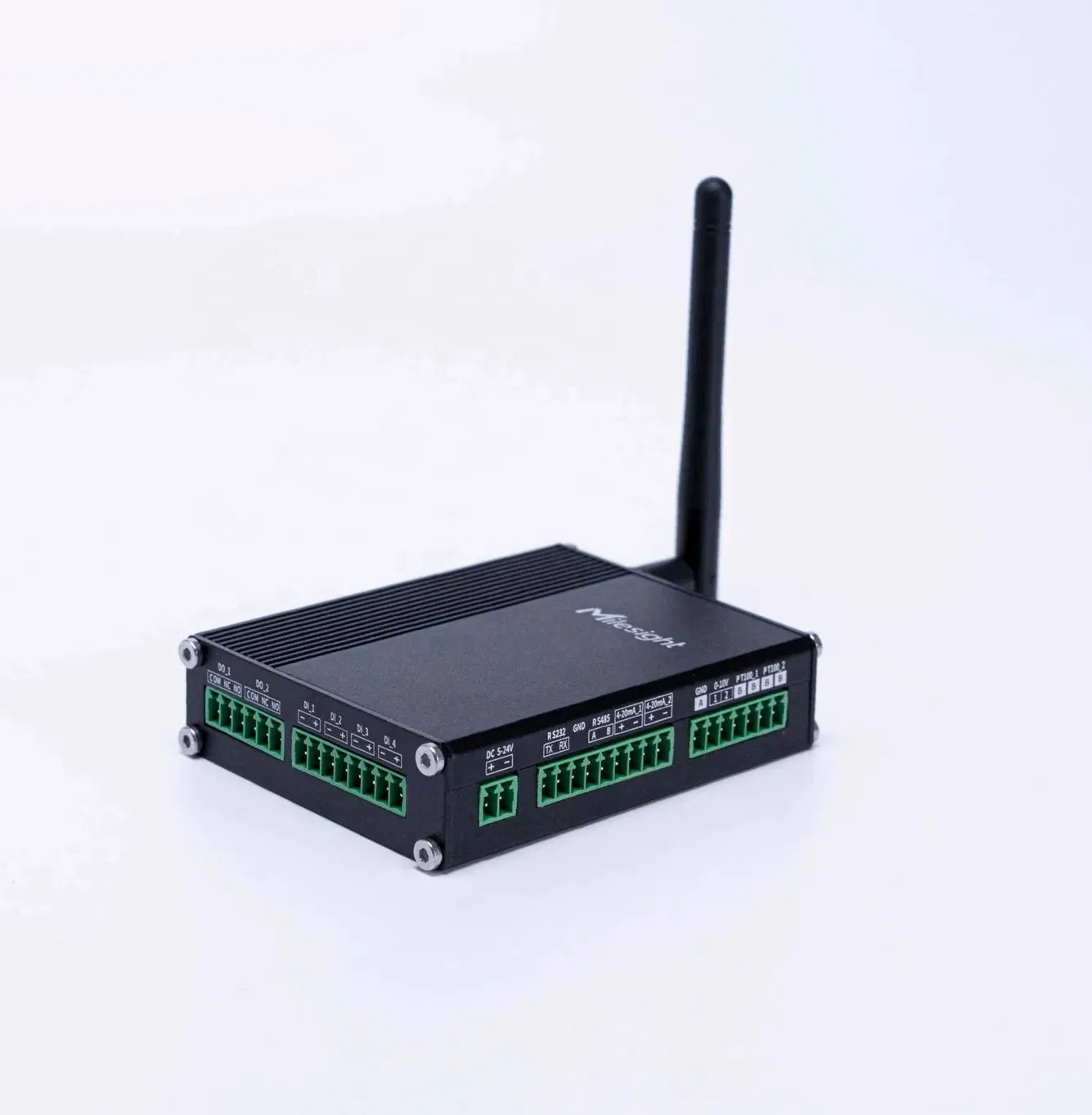

The UC300 series is a versatile IoT controller designed for remote control and data acquisition from various devices. It features multiple I/O interfaces, including analog input, digital input, relay output, serial ports, and PT100 RTD input. These interfaces support seamless data transmission via LoRaWAN® or 3/4G networks.

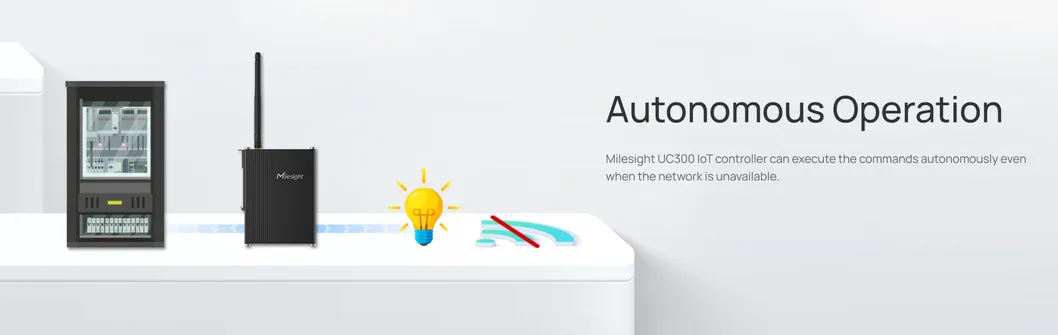

Engineered for autonomy, the UC300 supports multiple trigger conditions and actions that function even when the network connection is lost. With its industrial-grade IP30 metal case, it is an ideal solution for smart factories, building automation, and other indoor industrial applications.
| Category | Specifications |
|---|---|
| Digital I/O | 4 × DI + 2 × DO (Opto-isolated, 3-24VDC) |

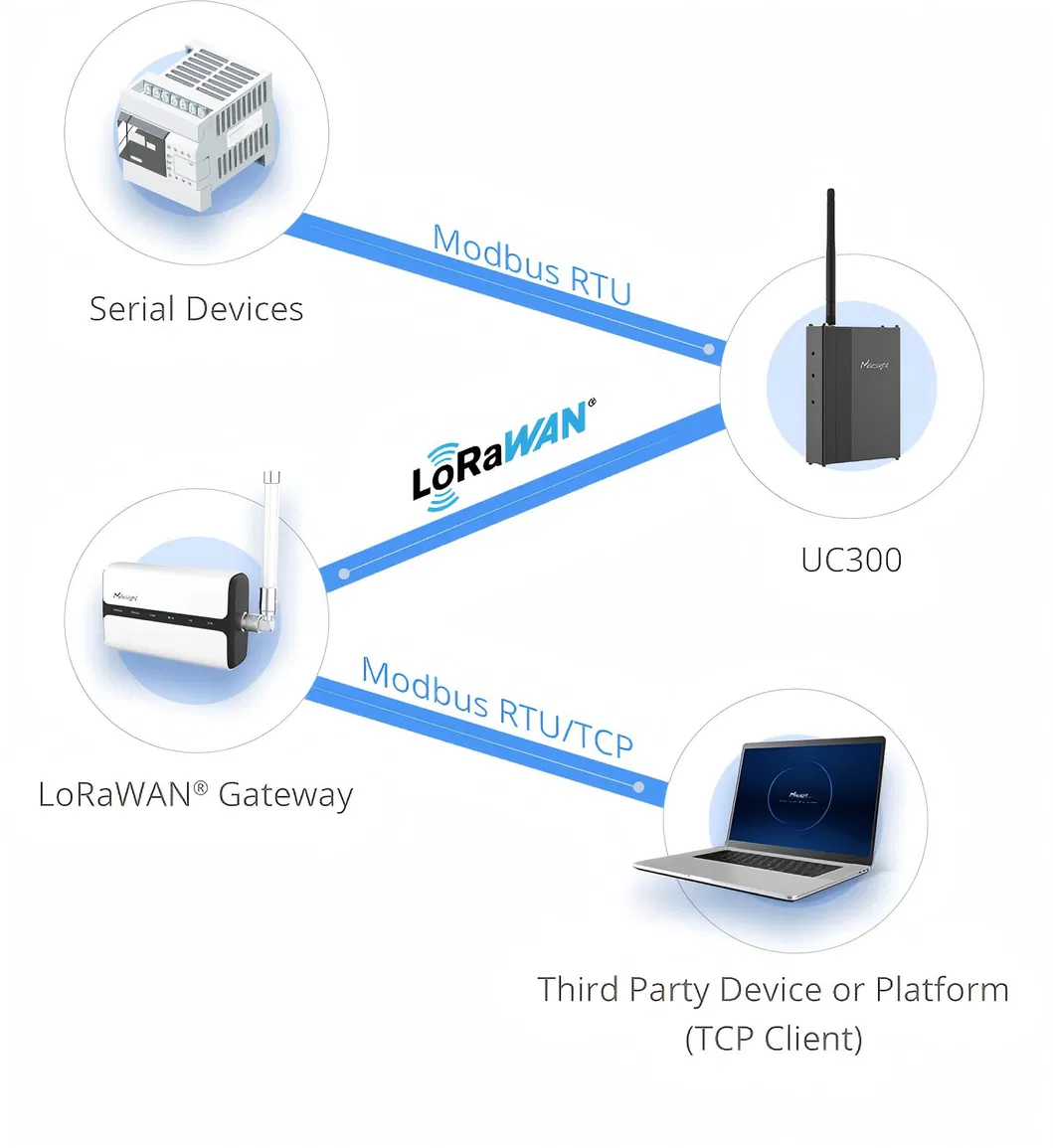

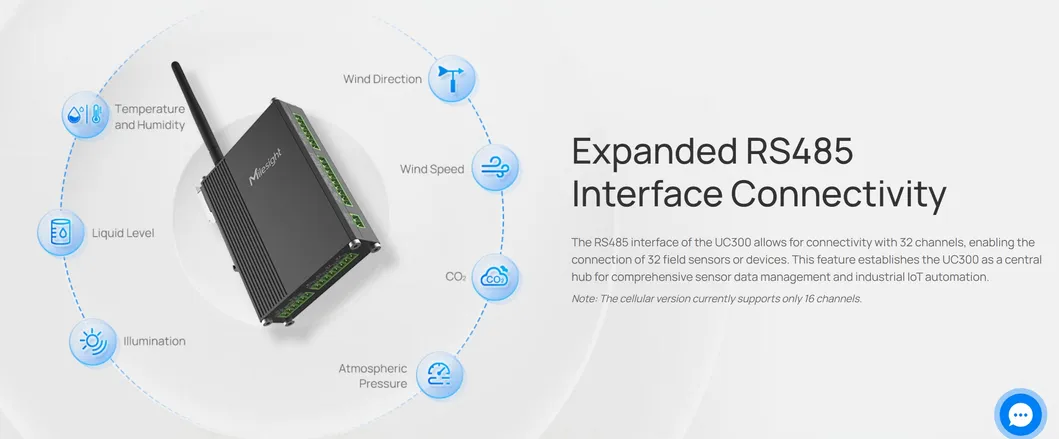

| Serial Port | 1 × RS232 + 1 × RS485 (Modbus RTU support) |
| Analog Input | 2 × 4~20 mA + 2 × 0~10 V (12-bit Resolution) |

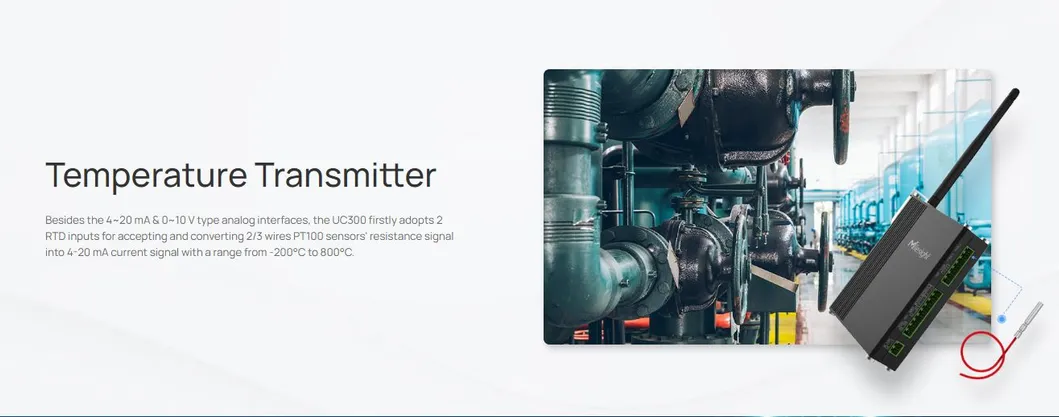

| RTD Input | 2 × PT100 RTD (2, 3-wire, Range: -200°C ~ 800°C) |
| Wireless | LoRaWAN® (Class C), 4G LTE (CAT 1), WCDMA/GSM |
| Configuration | USB Type-C for Power & Console |
| Advanced Features | Threshold Alarm, Data Storage, IF-THEN Command |
| Dimensions | 93 × 70 × 22 mm |

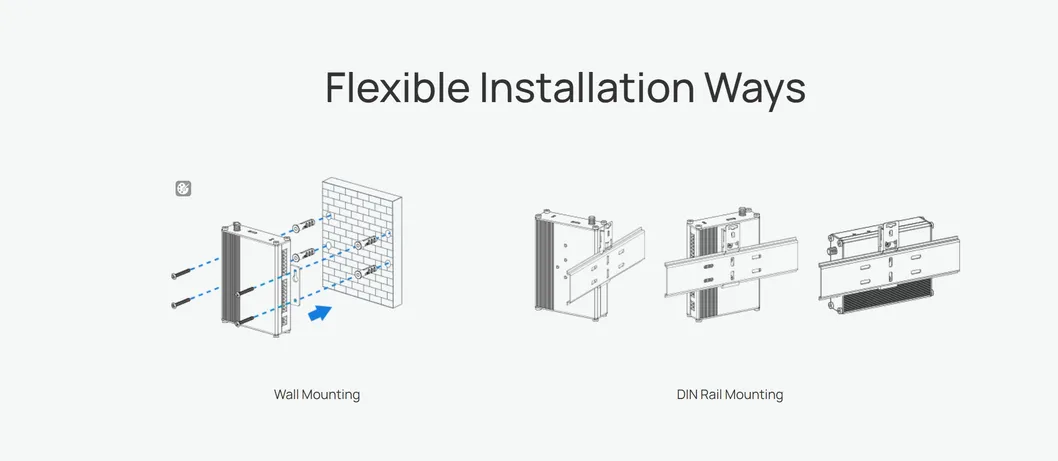

| Installation | Desktop, Wall Mounting, DIN Rail Mounting |
