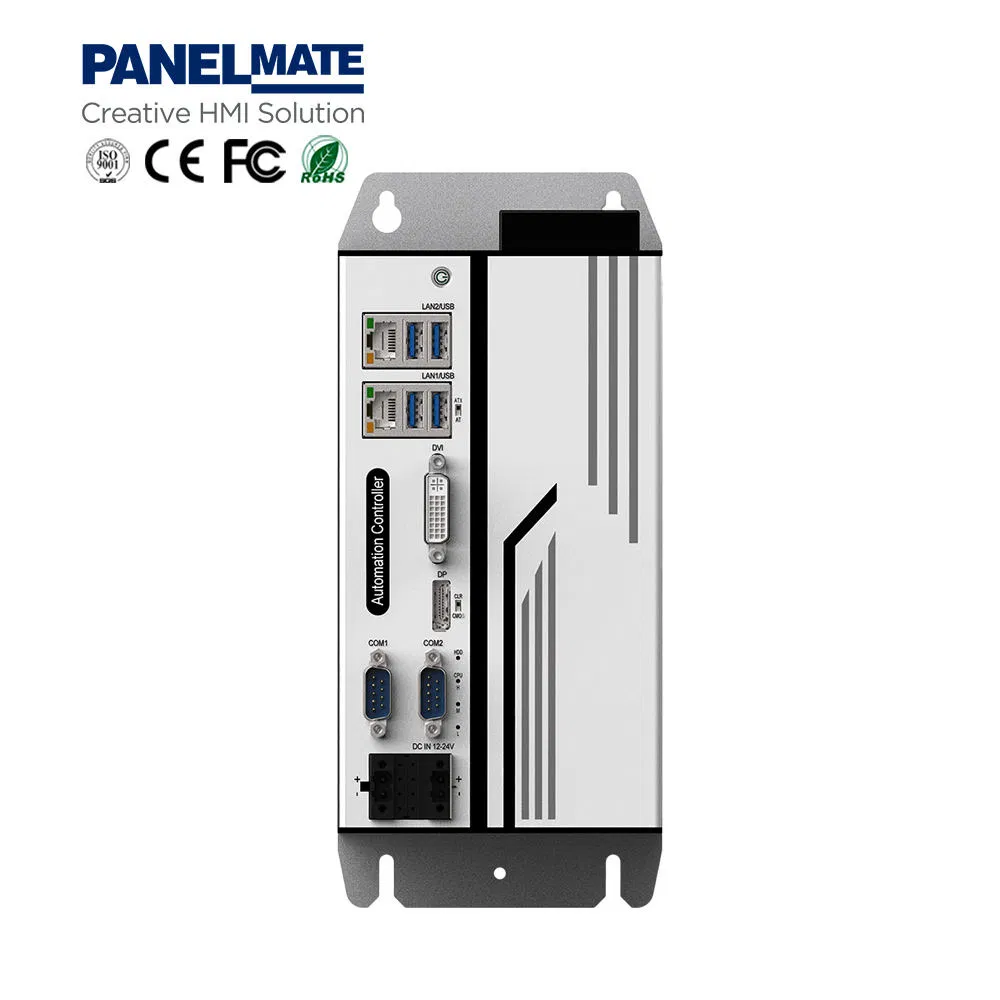

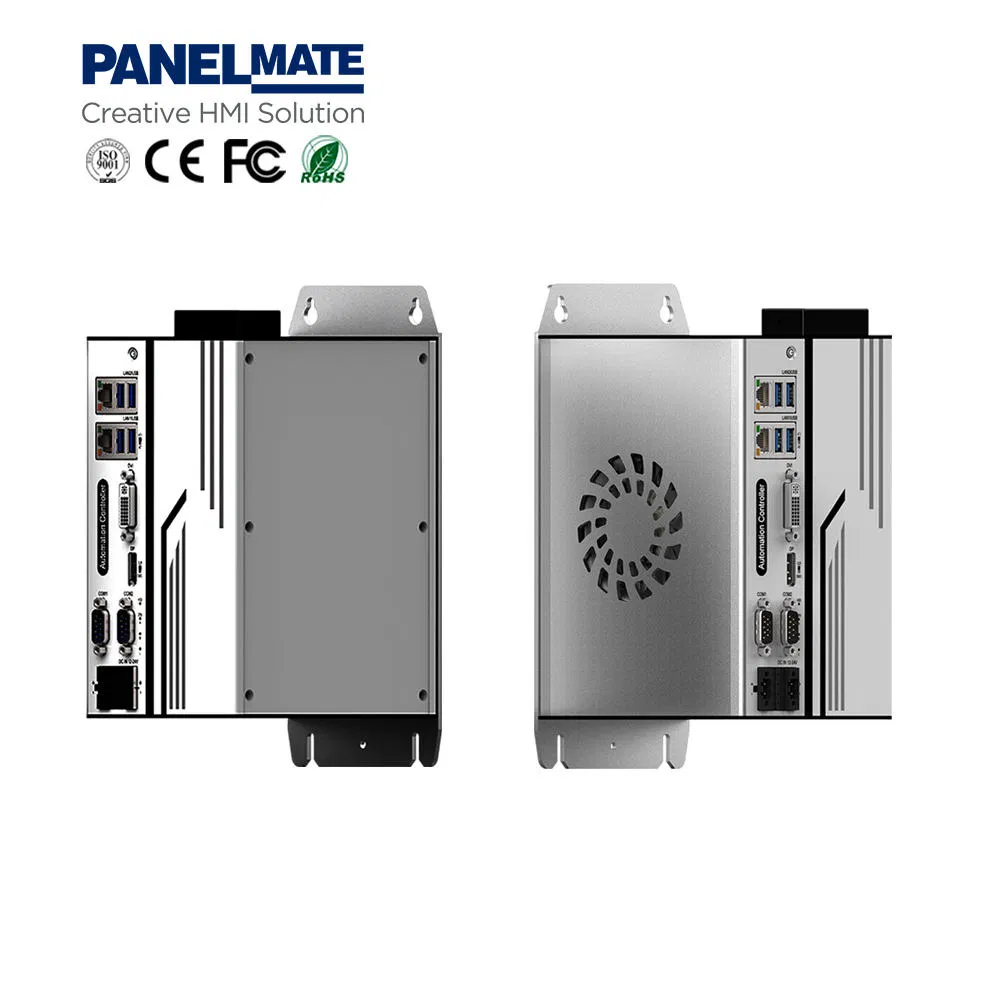

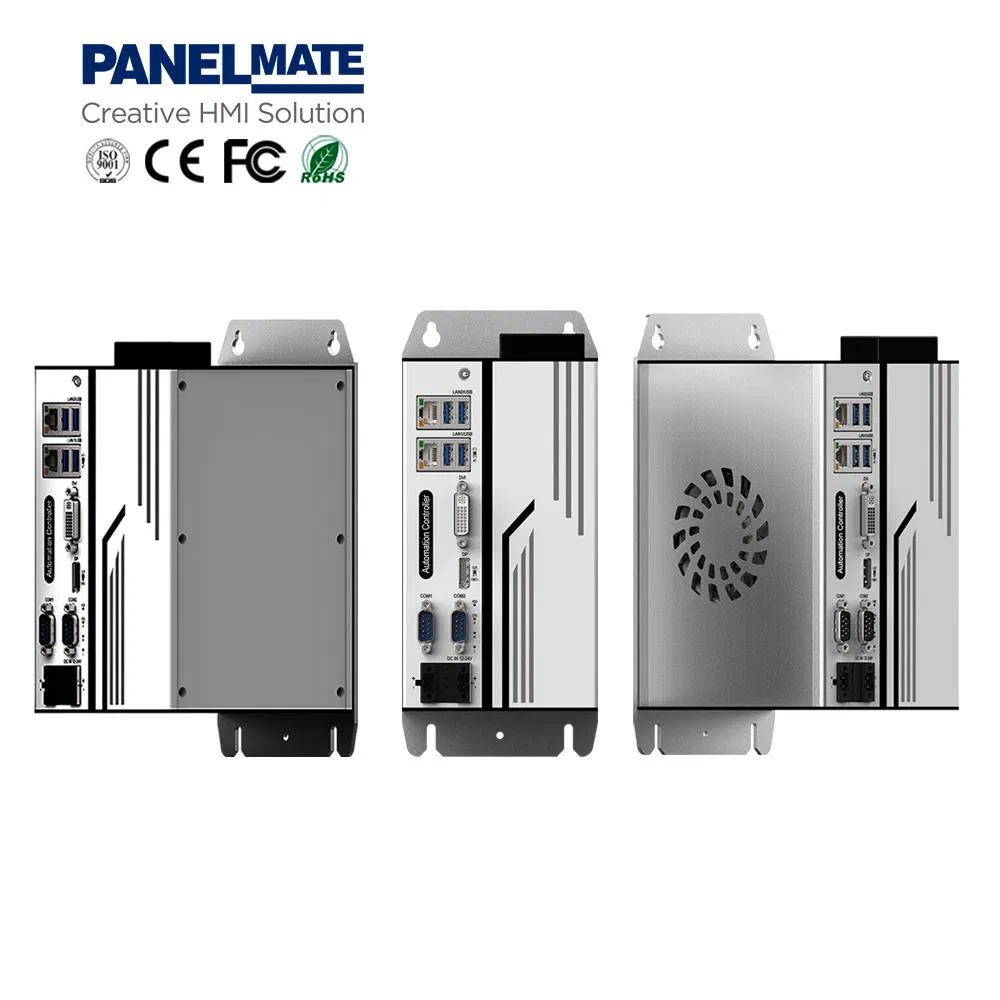

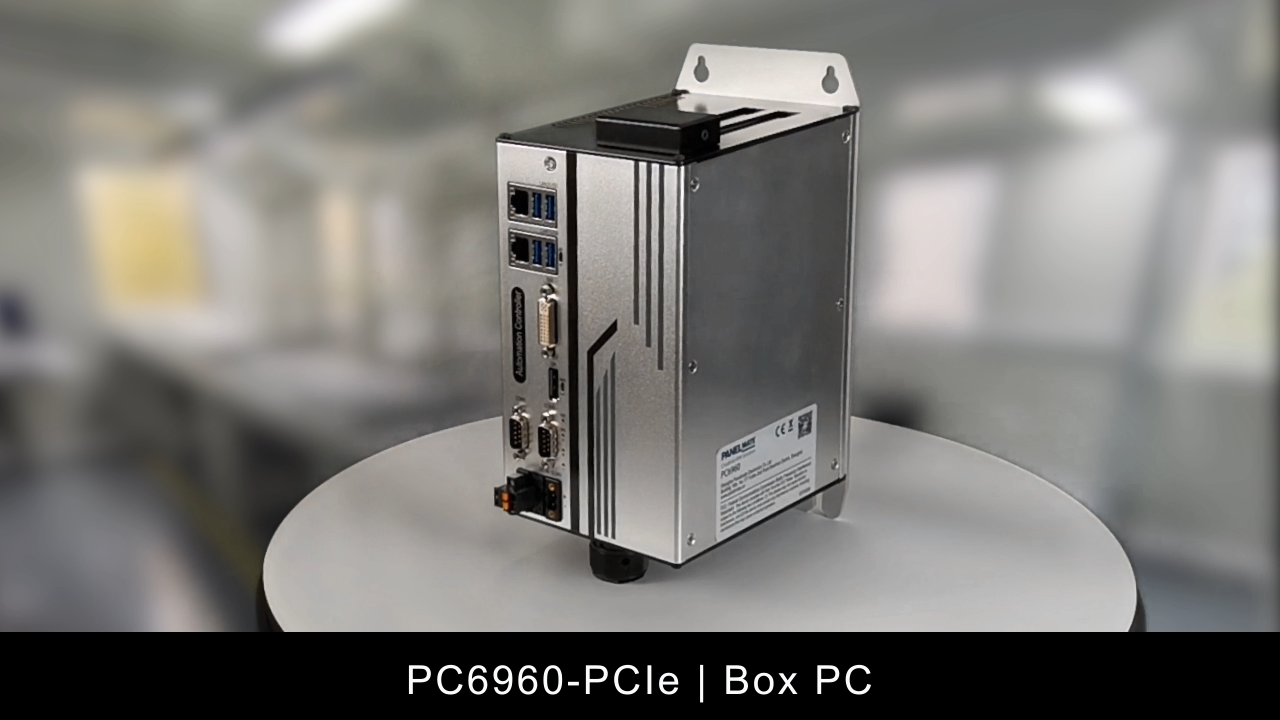

Industrial Mini PC CPU G4400 RAM 4G SSD 128g Book PC Iot Gateway Cabinet Controller Codesys Rte with Softmotion

1 / 5

Industrial Mini PC CPU G4400 RAM 4G SSD 128g Book PC Iot Gateway Cabinet Controller Codesys Rte with Softmotion

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.PC6960-PCIe-4G-128G

CPU TypeCore I7 6th/7th/8th Generation

Hard Disk Rack TypeMsata

System Expansion Slot1*Mini-Pcie(Pcie+USB), with SIM Card Slot

TypeIPC

Storage128g

COM2X RS232 / 422/485

Network(LAN)2X Intel I210, RJ45 Ethercat Interface

Memory4GB, Max Support:16GB

Input VoltageDC 12~24V, 2*2 Pin Terminal Block

Operation SystemWin7, Win10, Linux, CE-Win, Rtos:Intime

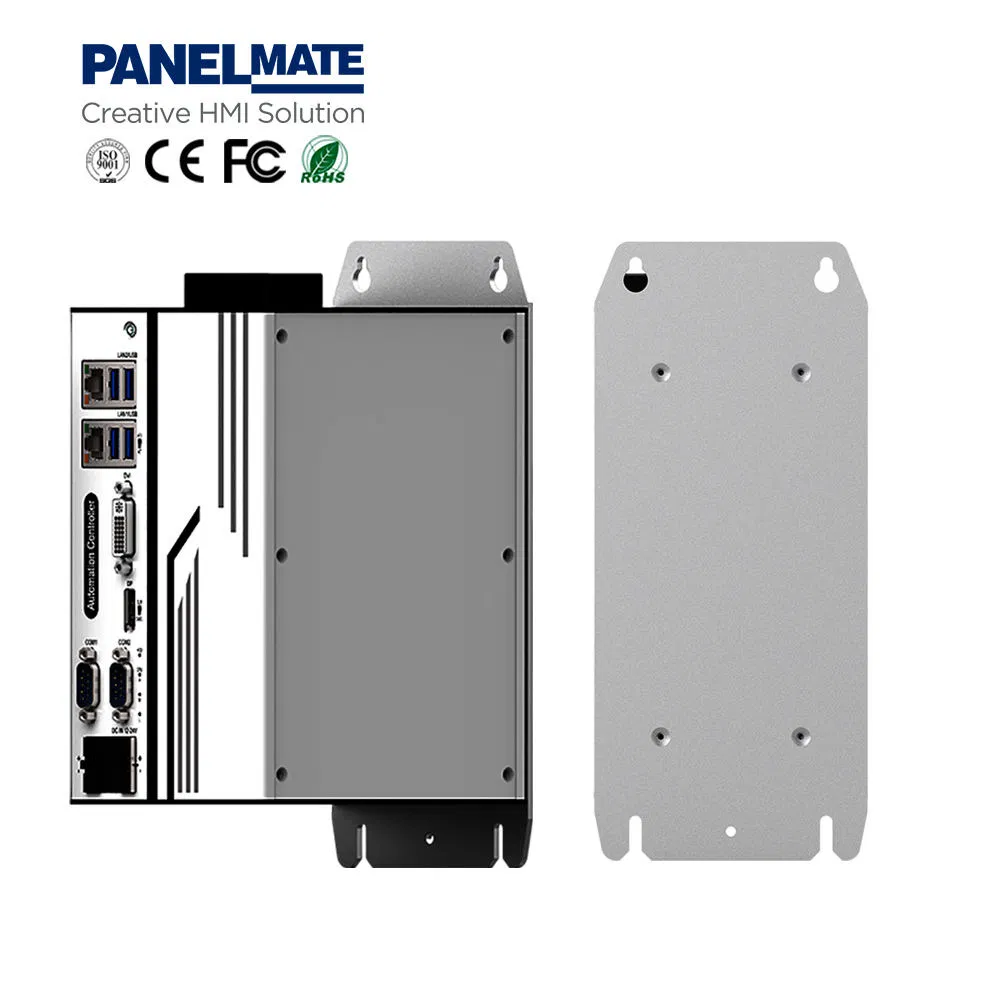

InstallationWall-Mounted

Power Supply TypeATX

Rack UnitBox PC

Specification204 x 152 x 156.8mm

Packaging & Delivery

Package Size20.50cm * 31.00cm * 17.00cm

Package Gross Weight4.000kg

Transport PackageCarton Box

Product Description

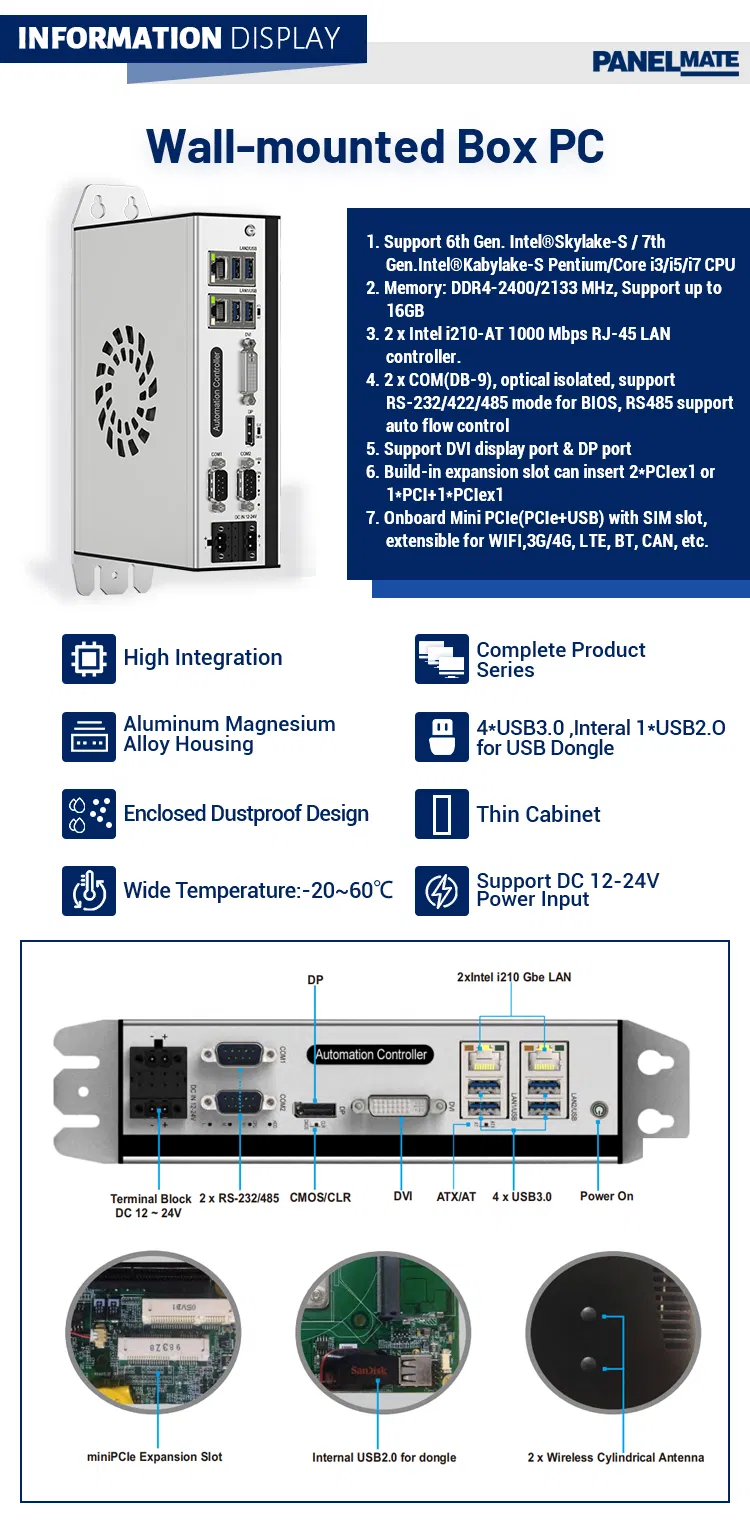

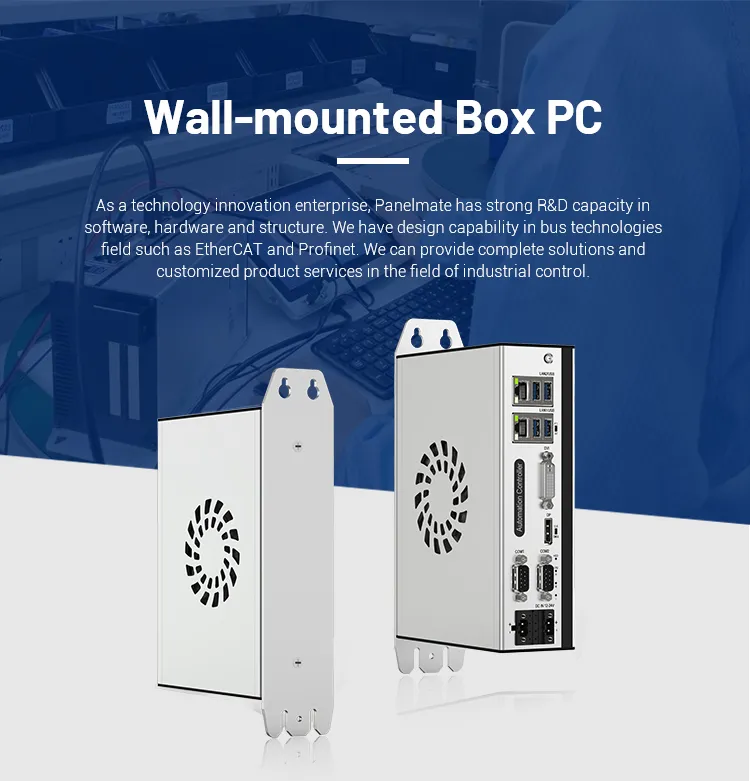

Automation Controller (Integrated PCI)
Memory: DDR4-2400/2133 MHz, Support up to 16GB
2 x Intel i210-AT 10/100/1000 Mbps LAN controller
4 x USB3.0, Internal 1xUSB2.0 for USB dongle
2 x COM(DB9), Support RS-232/422/485 mode for BIOS, RS485 auto flow control
Support DVI and DP display port
1*full size mini-PCIe with SIM slot, support 4G/LTE/Wifi/BT modules
Support DC 12~24V power supply, with overcurrent protection, CPU temperature LED display
Fully enclosed structure, no cable design and sturdy aluminum profile chassis with fan embedded
Wide temperature operation: -20-60ºC

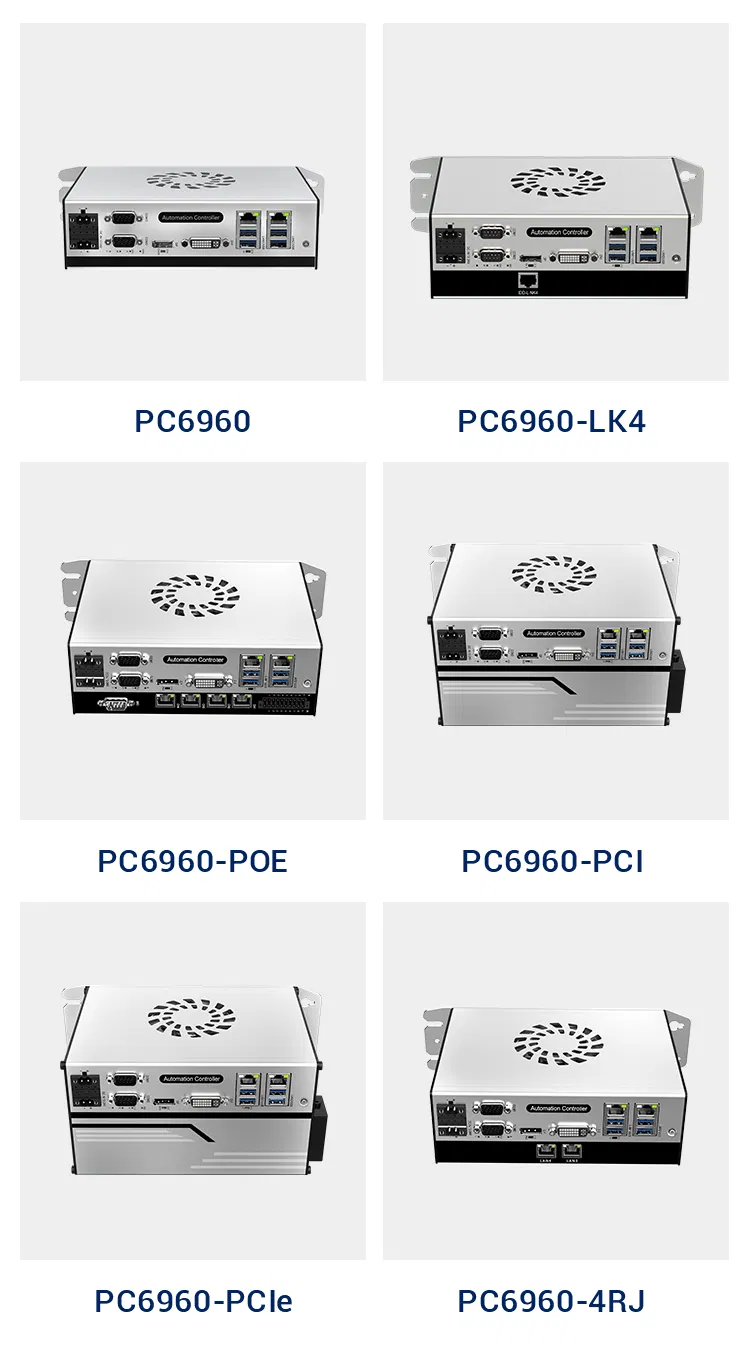

Model	PC6960	PC6960-4RJ	PC6960-POE	PC6960-PCI	PC6960-PCle
CPU	Pentium / Core 6th,7th	Pentium / Core 6th,7th	Pentium / Core 6th,7th	Pentium / Core 6th,7th	Pentium / Core 6th,7th
Memory (Max)	16G	16G	16G	16G	16G
Storage	1×mSATA+1×SATA	1×mSATA+1×SATA	1×mSATA+1×SATA	1×mSATA+1×SATA	1×mSATA+1×SATA
Network	2×Intel i210	4xIntel i210	6×Intel i210	2xIntel i210	2xIntel i210
Interface	2×RS232 (or RS485)	2×RS232 (or RS485)	2×RS232 (or RS485)	2×RS232 (or RS485)	2×RS232 (or RS485)
USB	4x USB3.0 / 1x USB2.0	4x USB3.0 / 1x USB2.0	4x USB3.0 / 1x USB2.0	4x USB3.0 / 1x USB2.0	4x USB3.0 / 1x USB2.0
Expansion	MiniPCIE	MiniPCIE	MiniPCIE	MiniPCIE	MiniPCIE
Input Voltage	DC12~24v	DC12~24v	DC12~24v	DC12~24v	DC12~24v
Protection	IP20	IP20	IP20	IP20	IP20

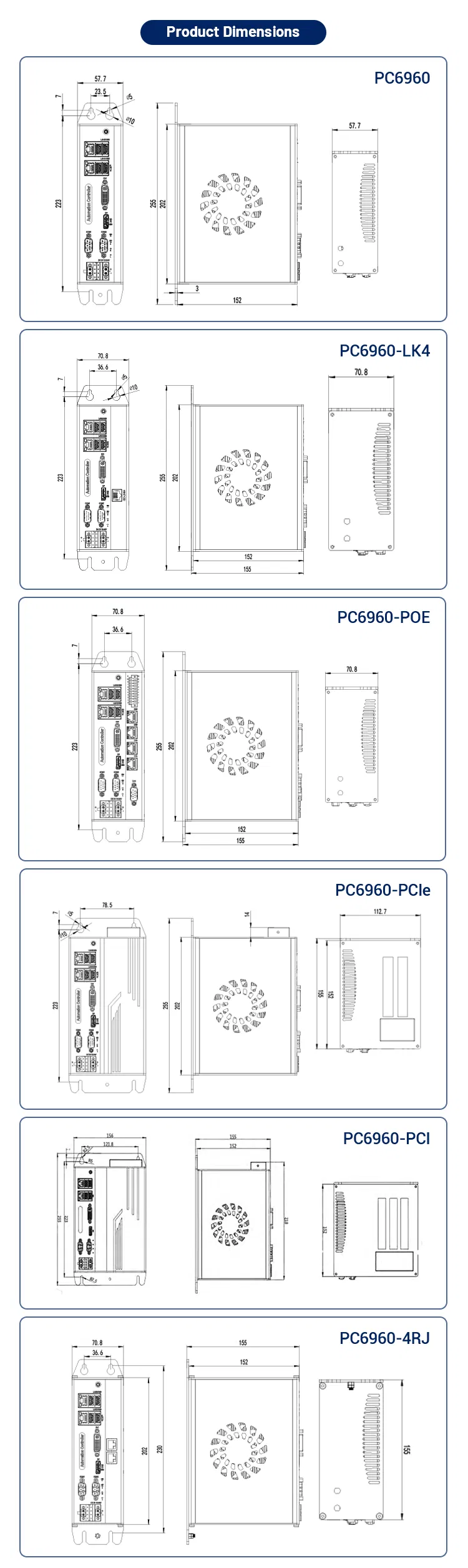

Size (mm)	204x152x57.5	204x152x70.8	204x152x70.8	204x152x156.8	204x152x156.8

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a professional manufacturer engaged in R&D and production of HMI and industrial computing products for over 13 years, ensuring excellent quality and competitive pricing.

Q: Can I order samples for testing?

A: Yes, we can provide samples based on your specific requirements. Please note that sample fees and shipping costs apply.

Q: How do I cooperate to develop customized industrial PC products?

A: You can define the performance requirements, RAM, storage size, display interface, and operating system (Windows/Linux). We offer complete configurations based on your specifications.

Q: What is the typical lead time for orders?

A: For standard products, the lead time is usually 5-7 working days. Customized product orders typically take 20-30 days, or as negotiated.

Q: What are your terms of payment?

A: For sample orders, 100% T/T in advance is required. For bulk orders, we accept a 30% deposit in advance with the 70% balance due before shipment, or L/C at sight.

Q: What warranty do you provide on your products?

A: Our industrial products come with a comprehensive 2-year product warranty.
