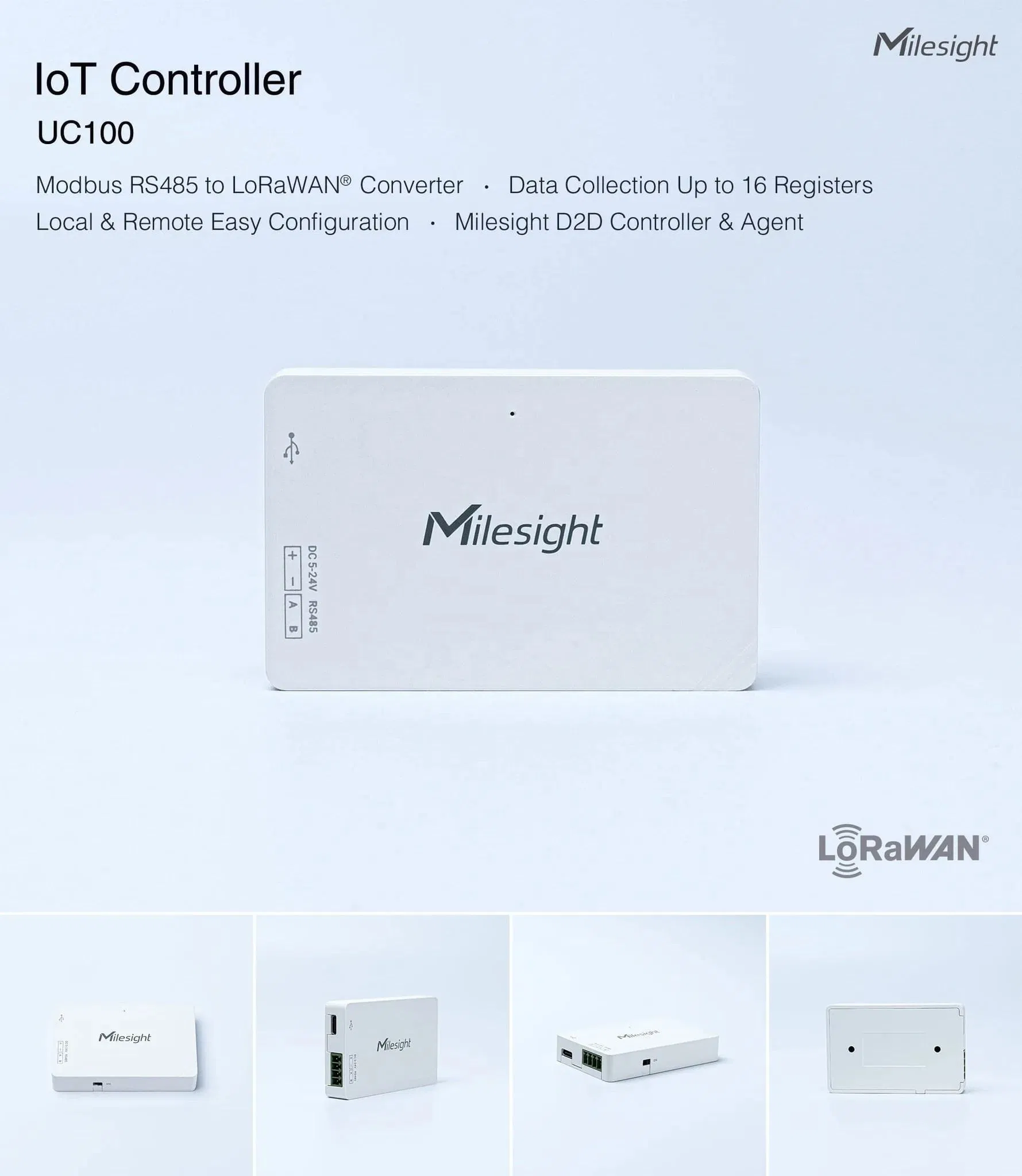

Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
1 / 5
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter
Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter

Milesight UC100 Industrial IoT Controller Modbus RS485 to Lorawan Converter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Info

Model NO.
UC100
Mathematical Model
Lorawan®, D2d
Signal
Internal Antenna
Function
Automatic Control, Data Acquisition
Certification
RoHS, CCC, ISO: 9001, CE
Condition
New
Material
PC+ABS
Connector
2-Pin 3.5 mm Terminal Block
Baud Rate
1200~115200 BPS
Protocol
Modbus RTU, Passthrough
USB
1 × Type-C for Power Supply
Power Supply
DC 5-24 V
Ingress Protection
IP30
Operating Temperature
-20°c ~ 60°c

Product Description

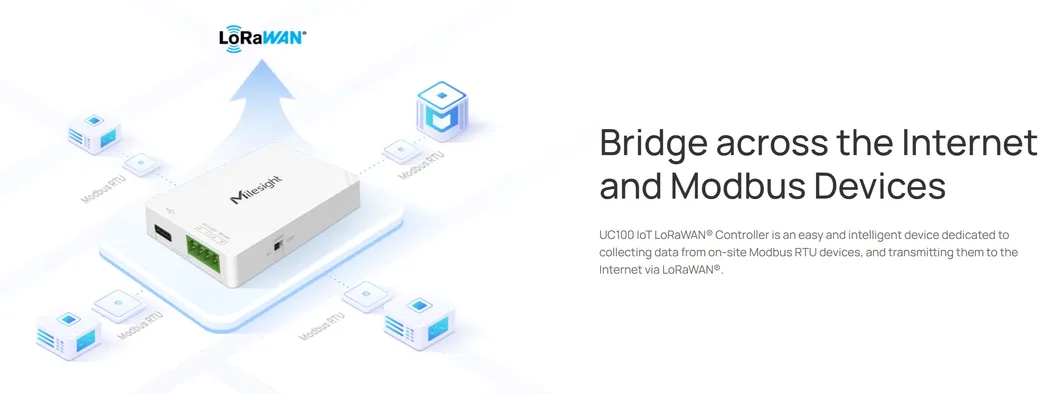

Introduction: UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN® networks. It can read up to 32 Modbus RTU devices and support Modbus transparent transmission.

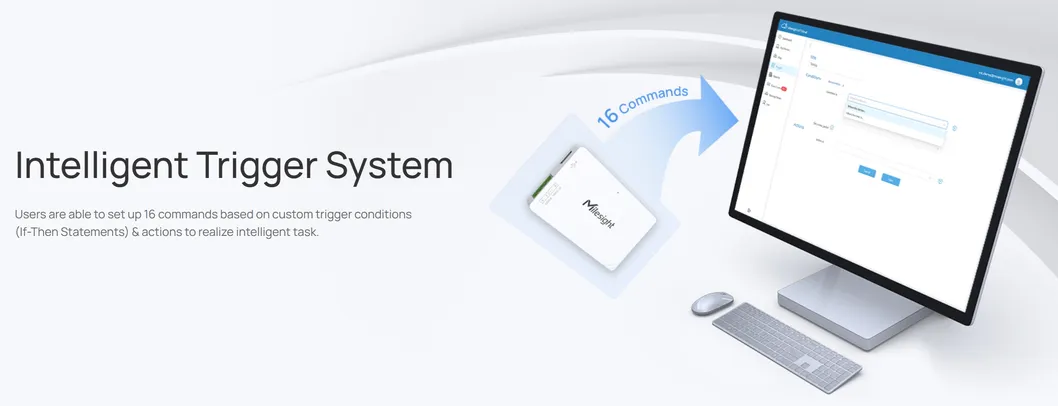

Combining with advanced development platform solutions, UC100 can monitor and control remote assets via web server easily. It supports multiple trigger conditions and actions which can work autonomously even when the network dropped. It is widely used in indoor applications like smart metering, smart cities, and building automation.

Technical Specifications

Model UC100 UC100 (EA)
Technology LoRaWAN®, Milesight D2D
Antenna Internal Antenna 1 × 50 Ω SMA Connector
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Data Interface 1 × RS485 (2-pin 3.5 mm Terminal Block)
Baud Rate 1200~115200 bps
USB 1 × Type-C for Power & Configuration
Advanced Features Threshold Alarm, Data Storage (1000 entries), D2D Controller Threshold Alarm, Data Storage (800 entries), FUOTA
Dimensions 70 × 45 × 13 mm

Detailed Photos

Industrial IoT Controller

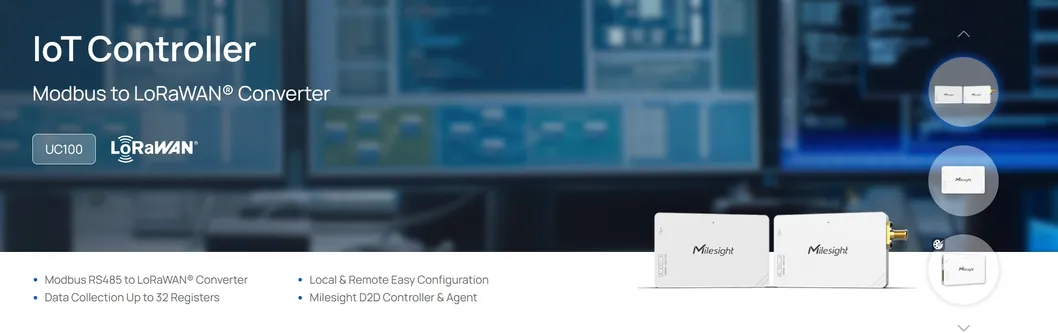

Modbus to Lorawan Converter

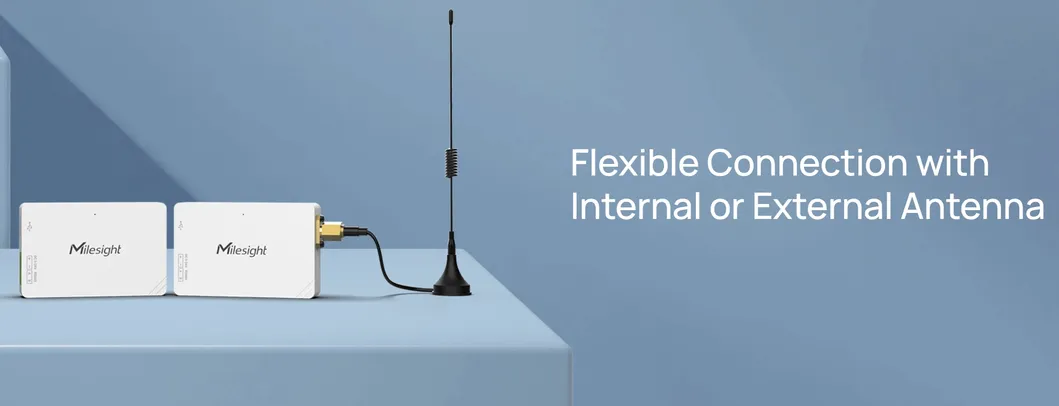

RS485 interface

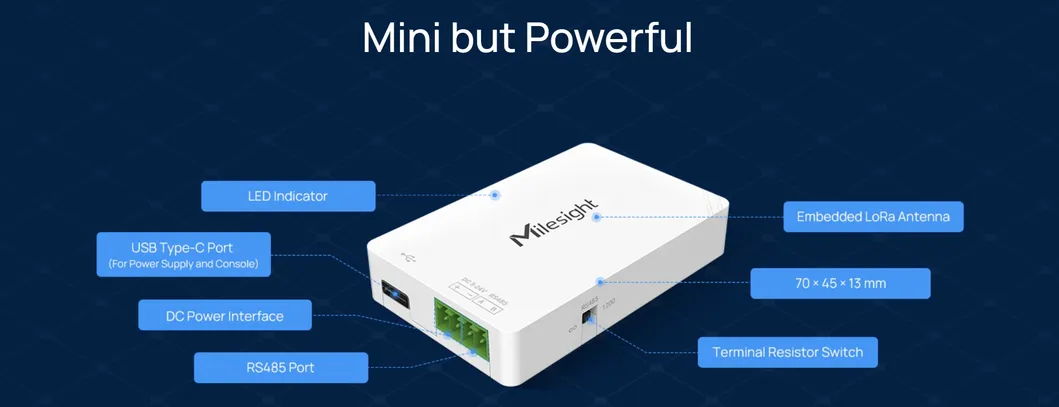

IoT Device Display

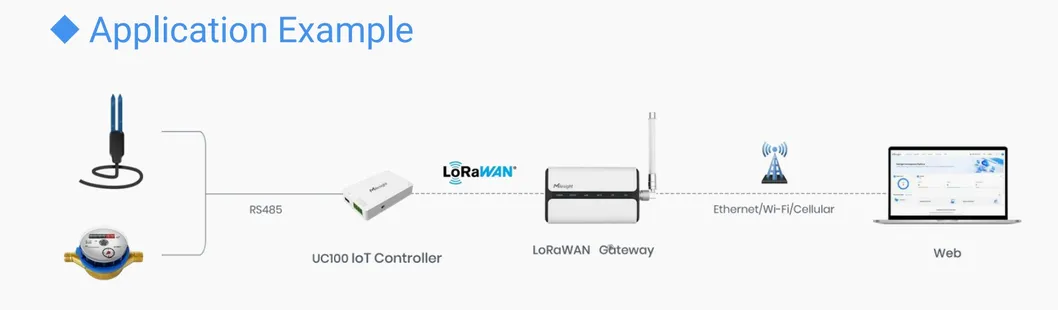

Application Scenario

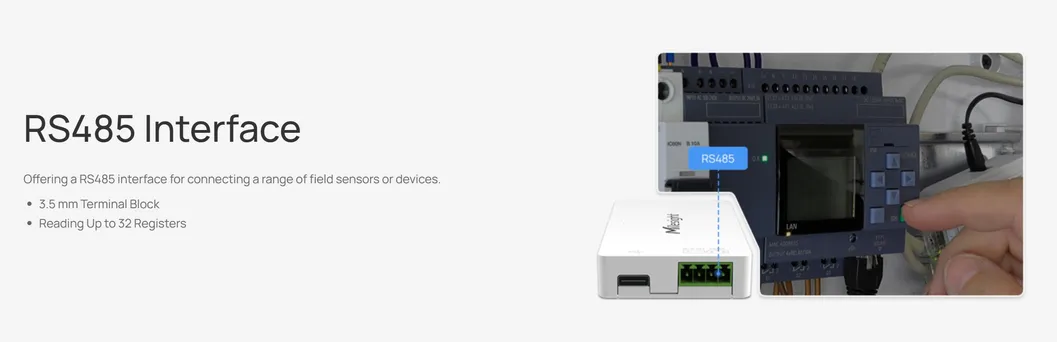

Hardware Details

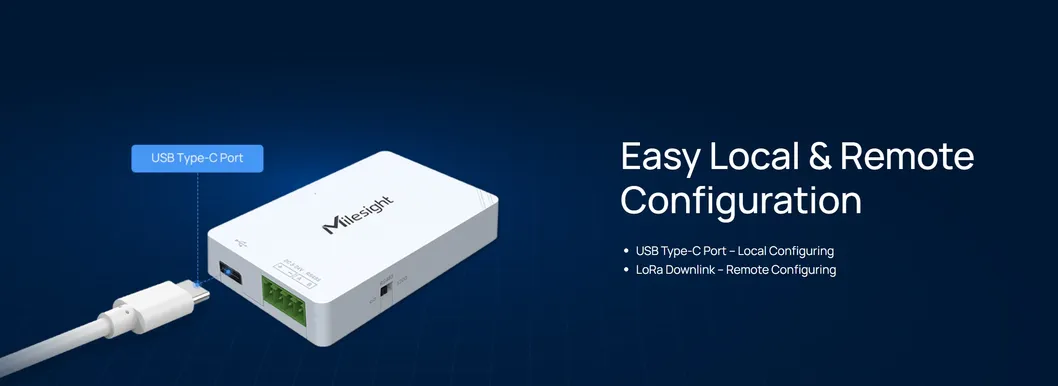

Mounting View
Connection Port
Size comparison

Installation Instructions

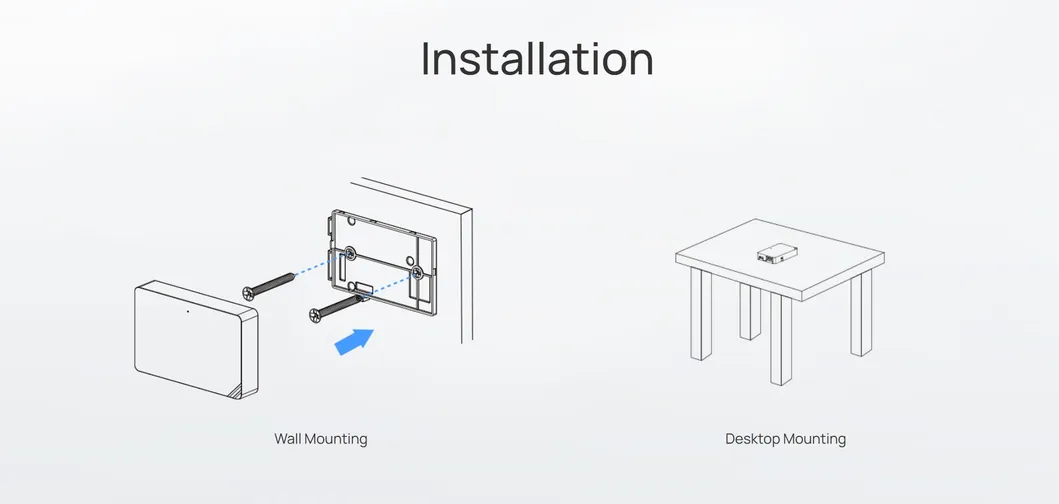

Installation Guide

Frequently Asked Questions

How many Modbus devices can the UC100 read?
The UC100 can read data from up to 32 Modbus RTU devices, acting as a powerful Modbus to LoRaWAN® converter.
Does the UC100 support autonomous operation?
Yes, it supports multiple trigger conditions and actions that allow it to work autonomously even if the LoRaWAN network connection is dropped.
What are the power options for this controller?
UC100 can be powered either by the DC 5-24V power connector or via the 5V/1A USB Type-C port.
Can I configure the device wirelessly?
Configuration can be done through the USB Type-C port or via LoRaWAN downlink commands.
What is the difference between UC100 and UC100 (EA)?
The UC100 features an internal antenna, while the UC100 (EA) includes an external SMA connector for a specialized antenna.
Is this device suitable for outdoor use?
The device has an IP30 rating and an operating temperature range of -20°C to 60°C, making it primarily suitable for indoor industrial applications.
