Product Description

Basic Information Overview
Model NO.
KS-AC500
Transfer Rate
10/100/1000Mbps
Ports
6
CPU
Intel@ Baytrail J1800 2.4GHz
Users
Max to 1000 Users
AP Management
Up to 500 Wireless APs
VPN
L2TP, PPTP, OpenVPN, IPsec
Network
DHCP/Static IP/PPPoE
Product Description
AP Controller Industrial Gateway

Supports smart QoS, Internet behavior management, network firewall, VPN, SD-LAN, IPv6, VLAN, and remote access control.

KS-AC500 is a large-sized enterprise gateway based on the MQTT protocol, featuring:

  • Equipped with 7 Gigabit RJ45 ports, supporting multiple WAN ports, WAN port load balancing, and strategic routing.
  • Advanced Internet behavior management and network security with built-in firewall.
  • Capacity for up to 1000 end users with network storm protection.
  • Centralized configuration for up to 500 APs simultaneously, supporting remote monitoring and maintenance.
  • Multiple authentication methods: SMS, Radius billing, Portal, and Account authentication.
  • Compatible with indoor and outdoor wireless APs for Enterprises, Hotels, Schools, and more.
Main Features
1
Industrial Gateway

Supports PPPoE/DHCP/Static IP access with multiple Gigabit WAN ports for load balancing and Ethernet backup.

2
VPN Client and Server

Supports L2TP/PPTP/IPSec/OpenVPN with site-to-site and client-to-site topology and certificate-based access control.

3

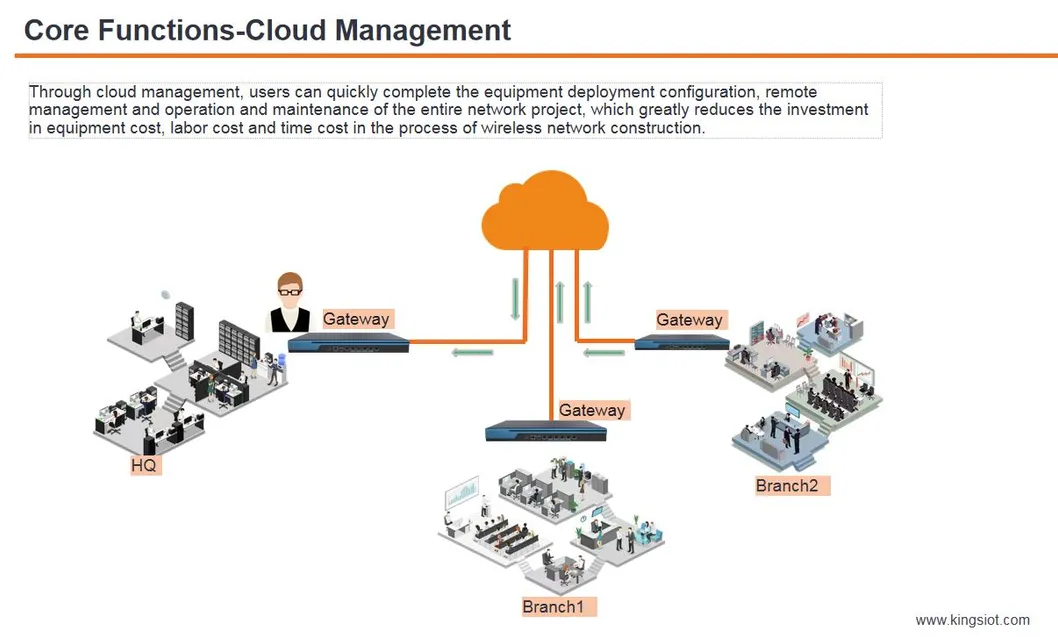

Cloud Management & SD-LAN

Centralized cloud-based management providing adaptability, flexibility, and scalability for wired and wireless networks.

Detailed Photos

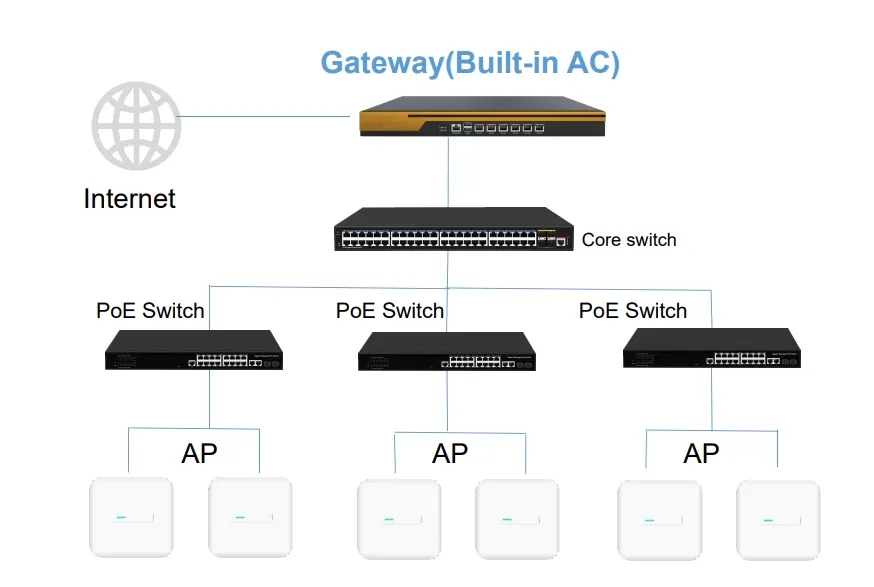

Industrial Gateway View 1

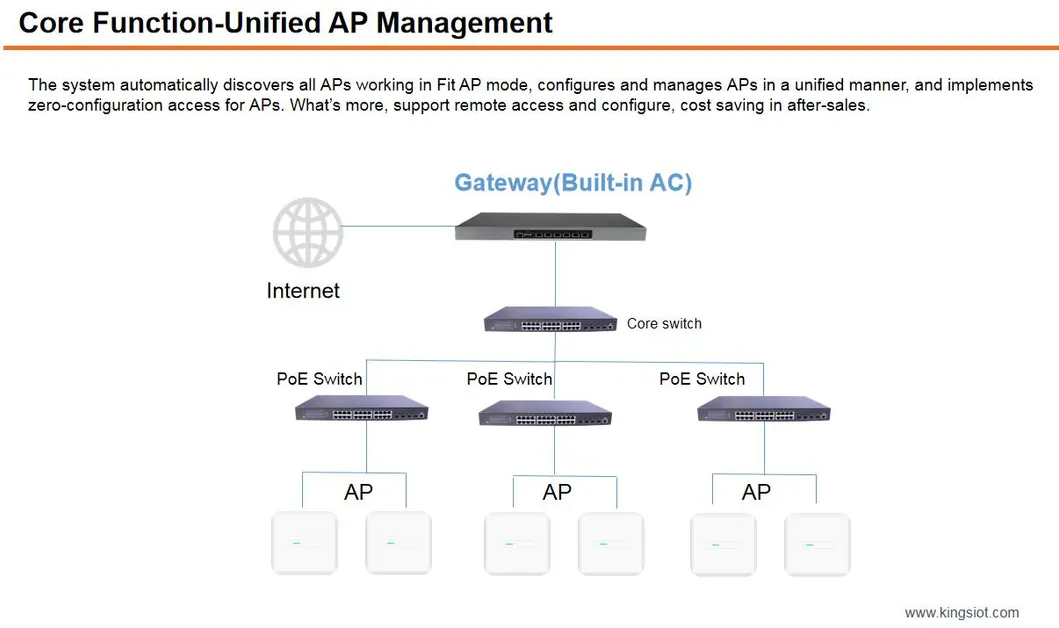

Industrial Gateway View 2

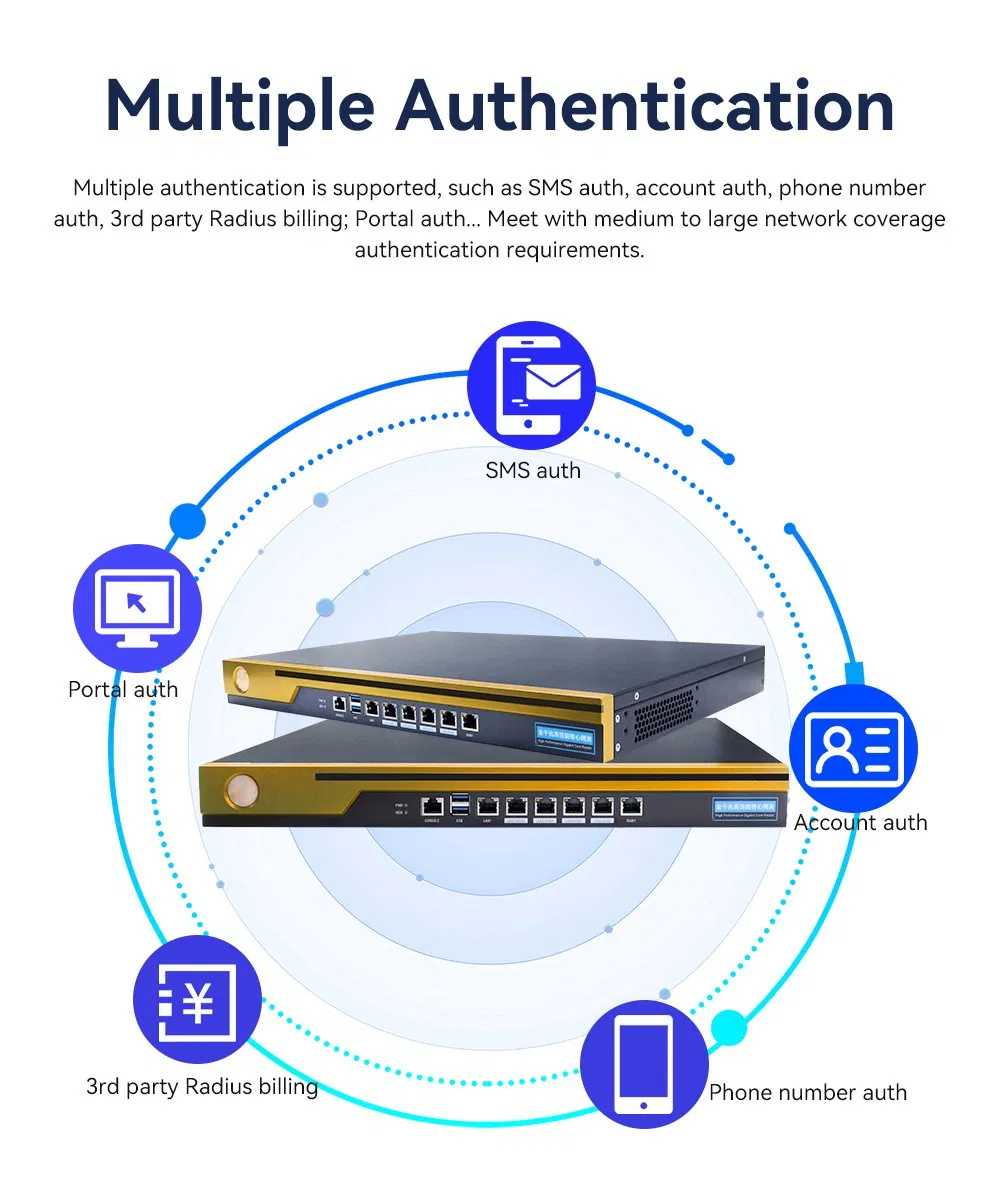

Industrial Gateway View 3
Industrial Gateway View 4

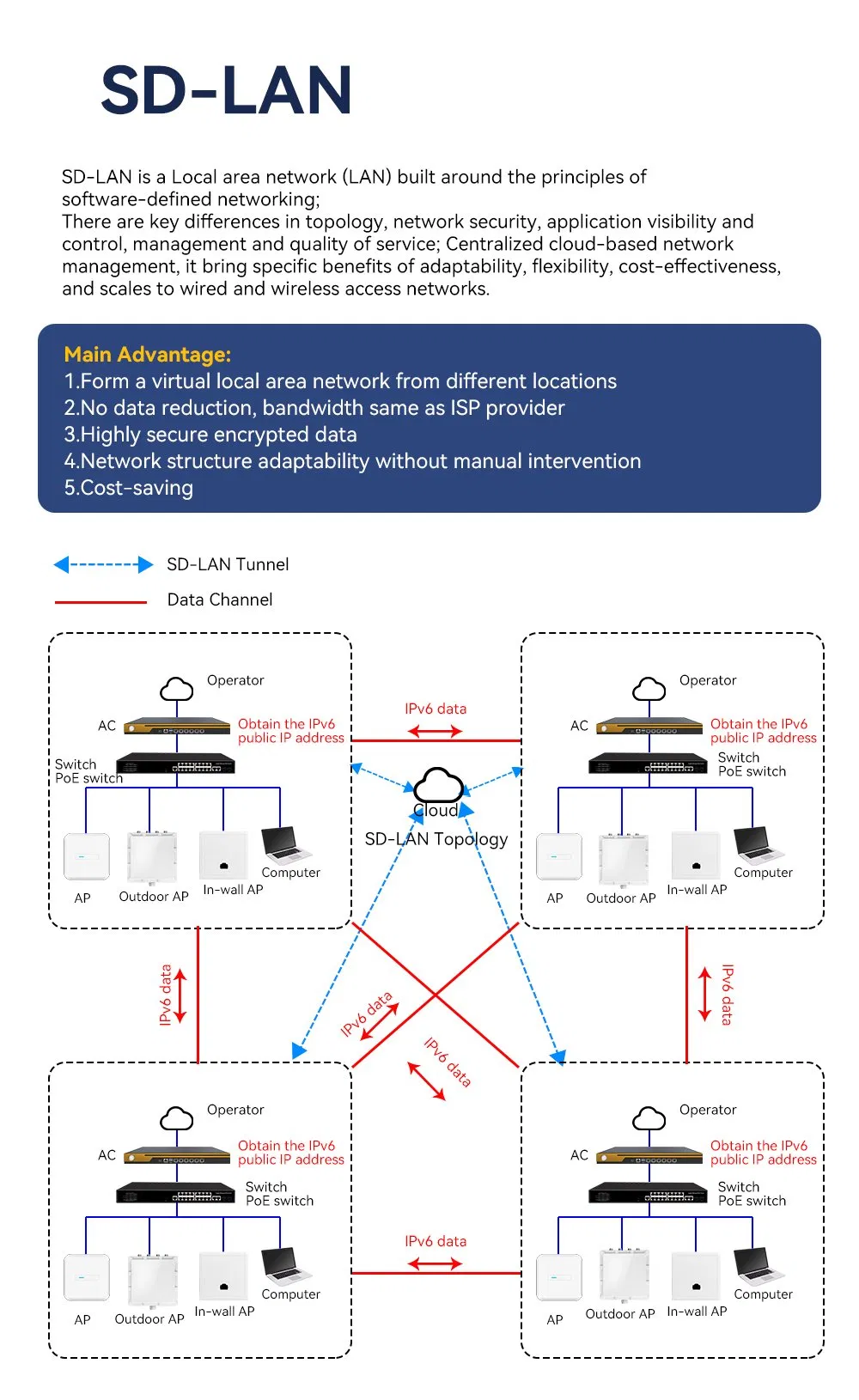

Industrial Gateway View 5

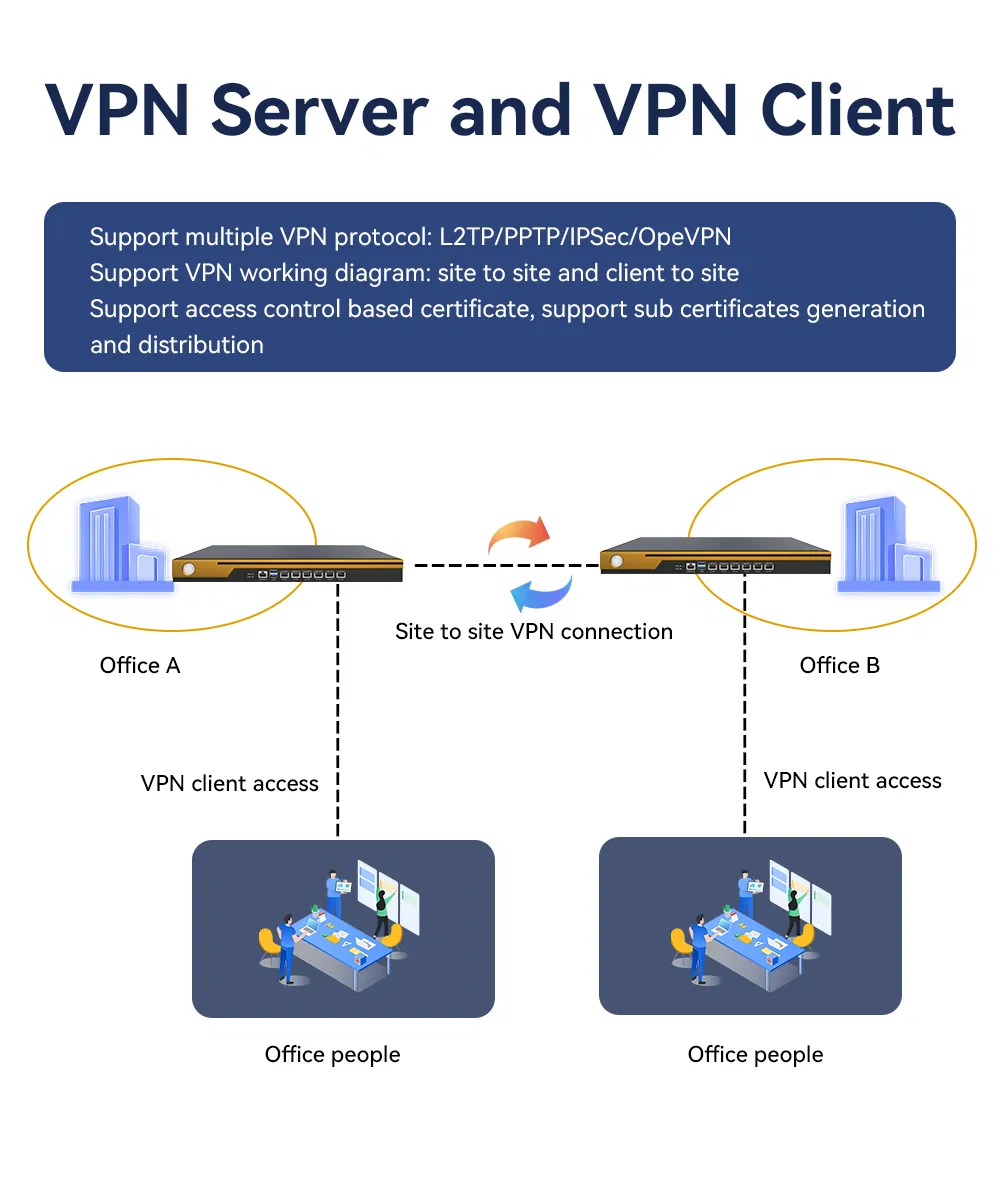

Industrial Gateway View 6
Product Parameters
Platform & Hardware
Size1U Frame
CPUIntel® Baytrail J1800 2.4GHz/1MB
BIOSSPI AMI EFI BIOS
Network & I/O
Interface6 x GbE RJ45 Ports
Network Chipset6 x Intel®I211AT
USB Port2 x USB2.0 Port
Serial Port1 x RJ45 Serial port (Cisco compatible)
Storage
Storage OptionsSSD, CF Card, DOM, General HDD
M-SATA SSDDefault: 8GB
Power & Environment
Power InputAC 90V-264V @47-63Hz
Power Consumption75W
Dimensions430 (L) × 300 (W) × 44 (H) mm
Working Temp0ºC - 50ºC
Packaging & After Sales

Packaging Information:

  • Carton box: 51.5*42.5*30cm
  • Quantity: 5PCS/CTN
  • Weight: 15.2KGS/CTN

Service:

Warranty: 2 years warranty

Frequently Asked Questions
How many APs and users can the KS-AC500 manage?
The KS-AC500 industrial gateway can manage up to 500 wireless Access Points (APs) and support up to 1000 end users simultaneously.
What VPN protocols does this gateway support?
It supports multiple VPN protocols including L2TP, PPTP, IPSec, and OpenVPN for secure site-to-site and client-to-site connections.
Does the device support load balancing?
Yes, the KS-AC500 supports multiple Gigabit WAN ports with load balancing, strategic routing, and Ethernet backup for stable network operation.
What is SD-LAN and how does it benefit my network?
SD-LAN is a software-defined local area network that provides centralized cloud management, offering flexibility, cost-effectiveness, and easier scalability for wired and wireless access.
What authentication methods are available for users?
The gateway supports various authentication methods such as SMS authentication, Radius billing, Portal authentication, and Account authentication.
What hardware platform is the KS-AC500 built on?
It is built on the Intel® Baytrail J1800 2.4GHz platform with 6 Intel® I211AT Gigabit RJ45 ports for high-performance line-rate routing.
