Product Description

📋 Overview
Model NO.Future X
Rated VoltageAC85-305V, 50/60Hz
Rated Power<40W
Display15.6 Inch Touch Screen
Display Accuracy0.1°C
OriginChina
HS Code8436910000
Production Capacity10000 Pieces Per Year
Environmental Controller
🚀 Product Description

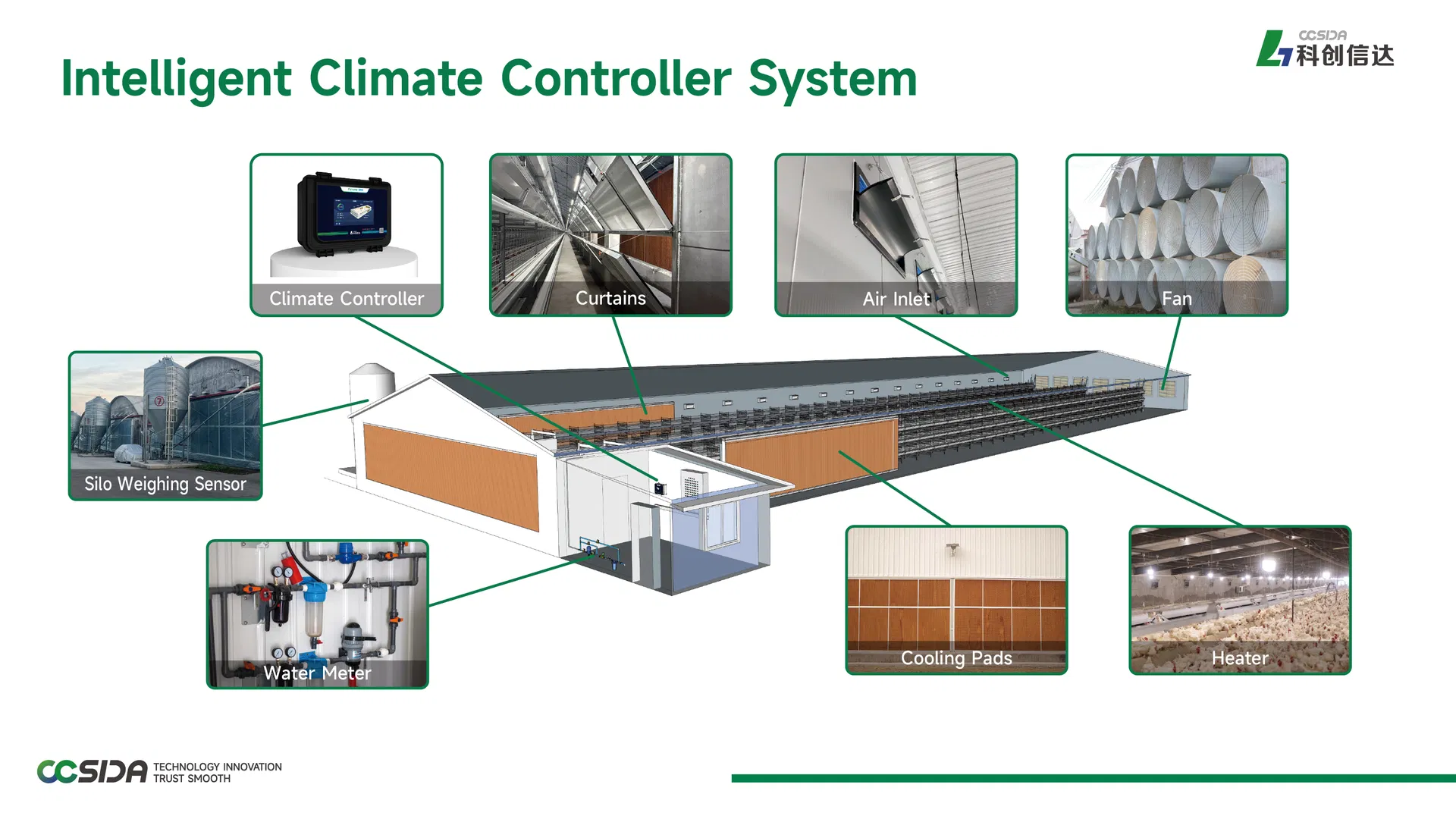

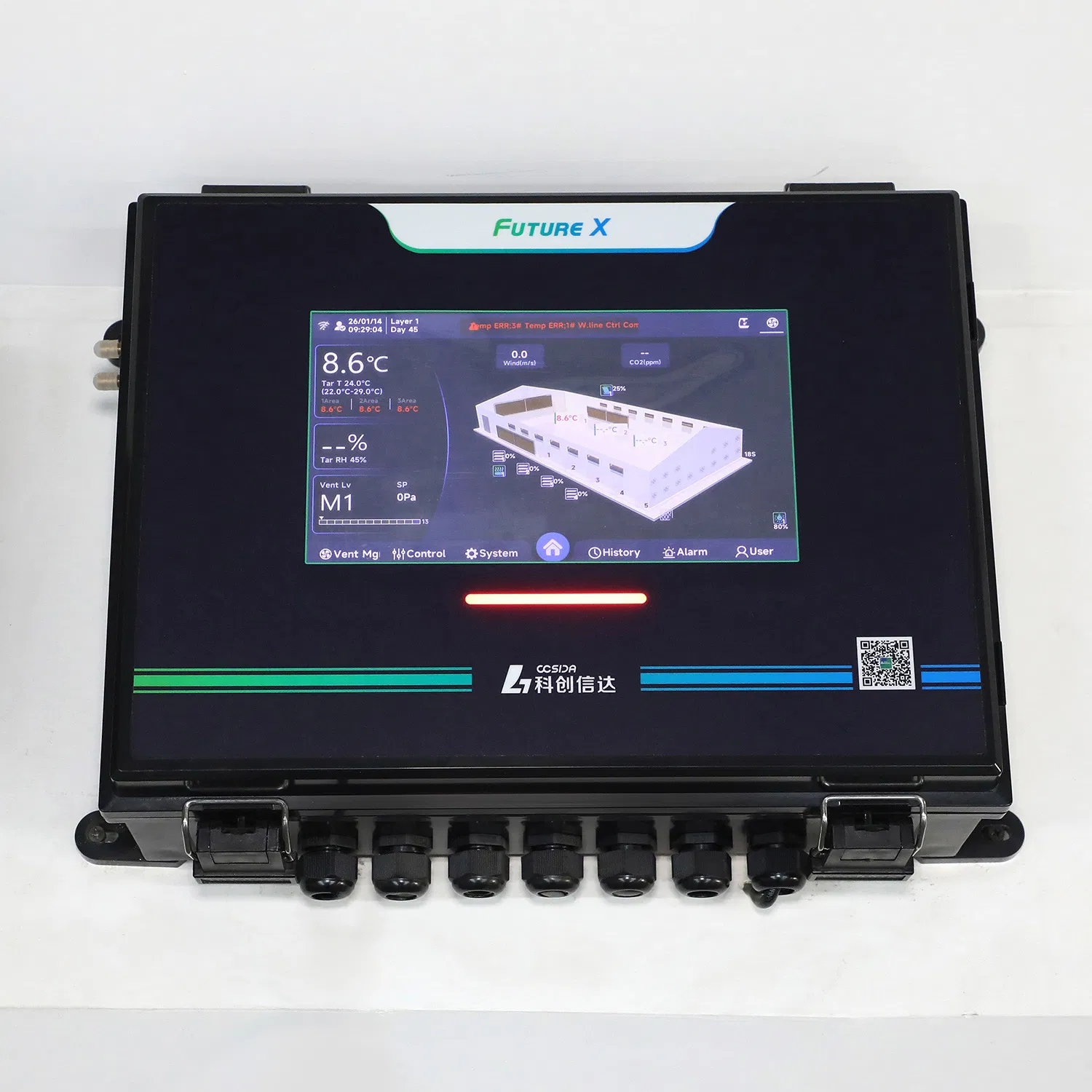

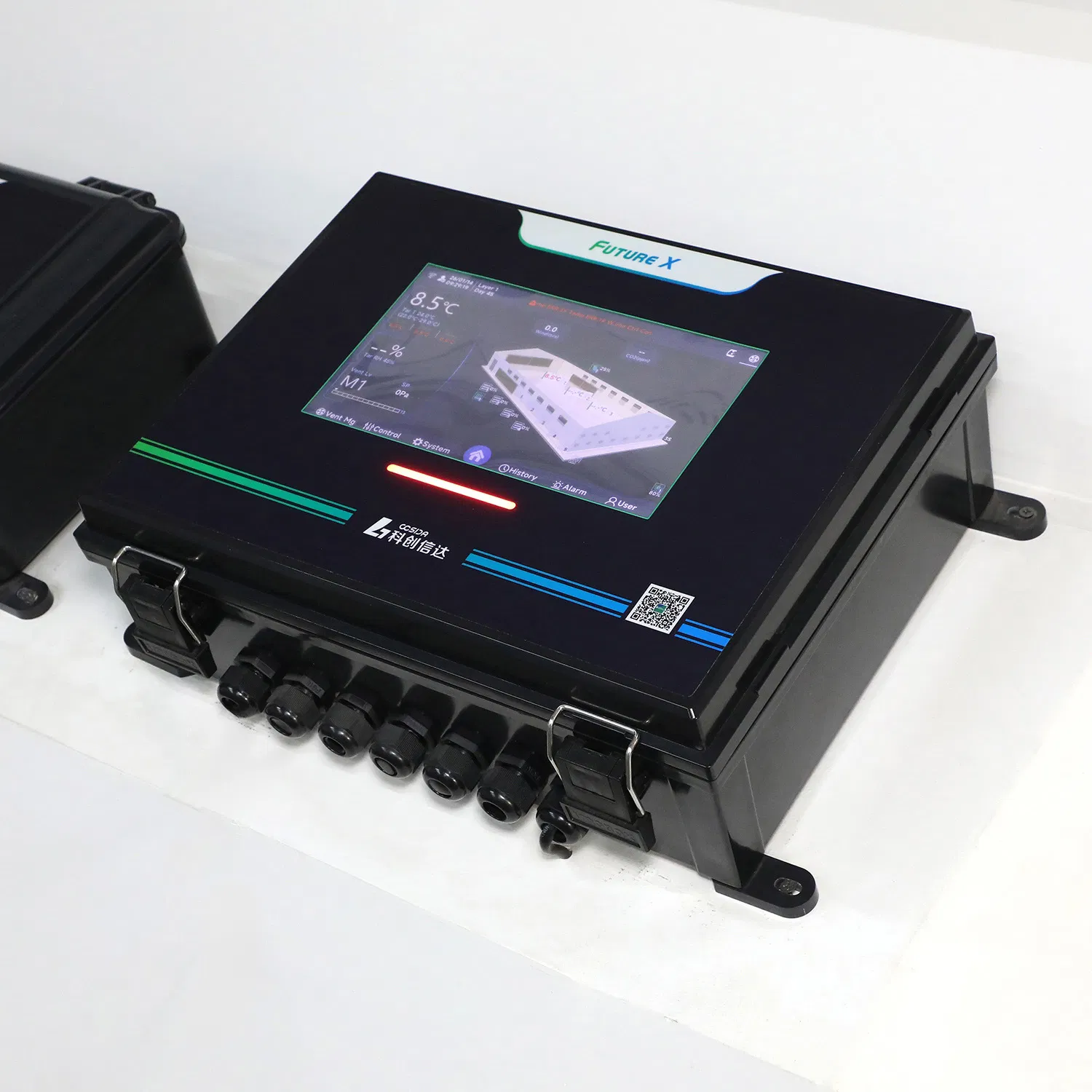

The Future X Pro intelligent environment controller adopts a modular design and AI intelligent algorithm. It collects real-time environmental data such as temperature, humidity, CO2, NH3, H2S, static pressure, and wind speed through multi-channel sensors, and automatically regulates frequency conversion fans, wet curtains, heaters, lighting, feeding, drinking water and other equipment. It supports local/remote management, data traceability, and abnormal alarms, and is suitable for various large-scale poultry and livestock breeding farms, realizing precise, efficient and stable control of environmental parameters.

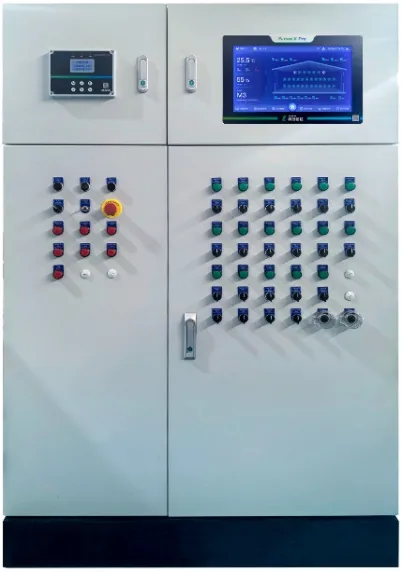

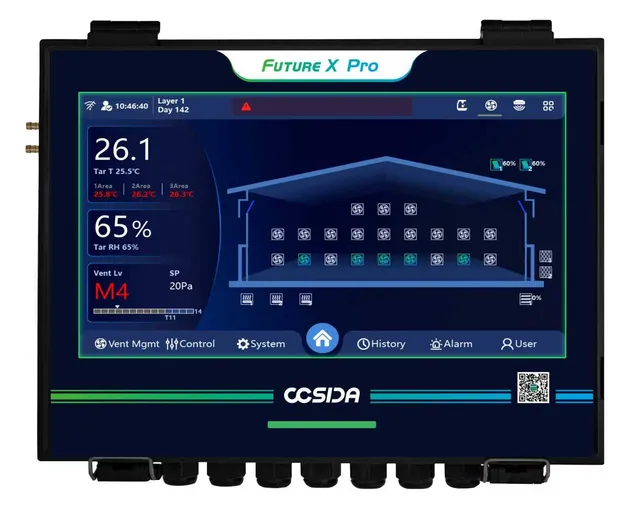

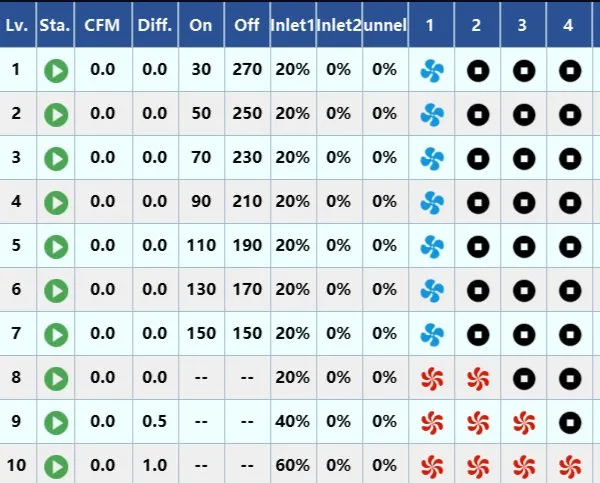

Controller Detail 1 Controller Detail 2 Controller Detail 3
⚙️ Specification
Category Detailed Parameters
Display Screen15.6-inch color capacitive touch screen, accuracy 0.1℃
Protection LevelIP65 (ABS sealed housing)

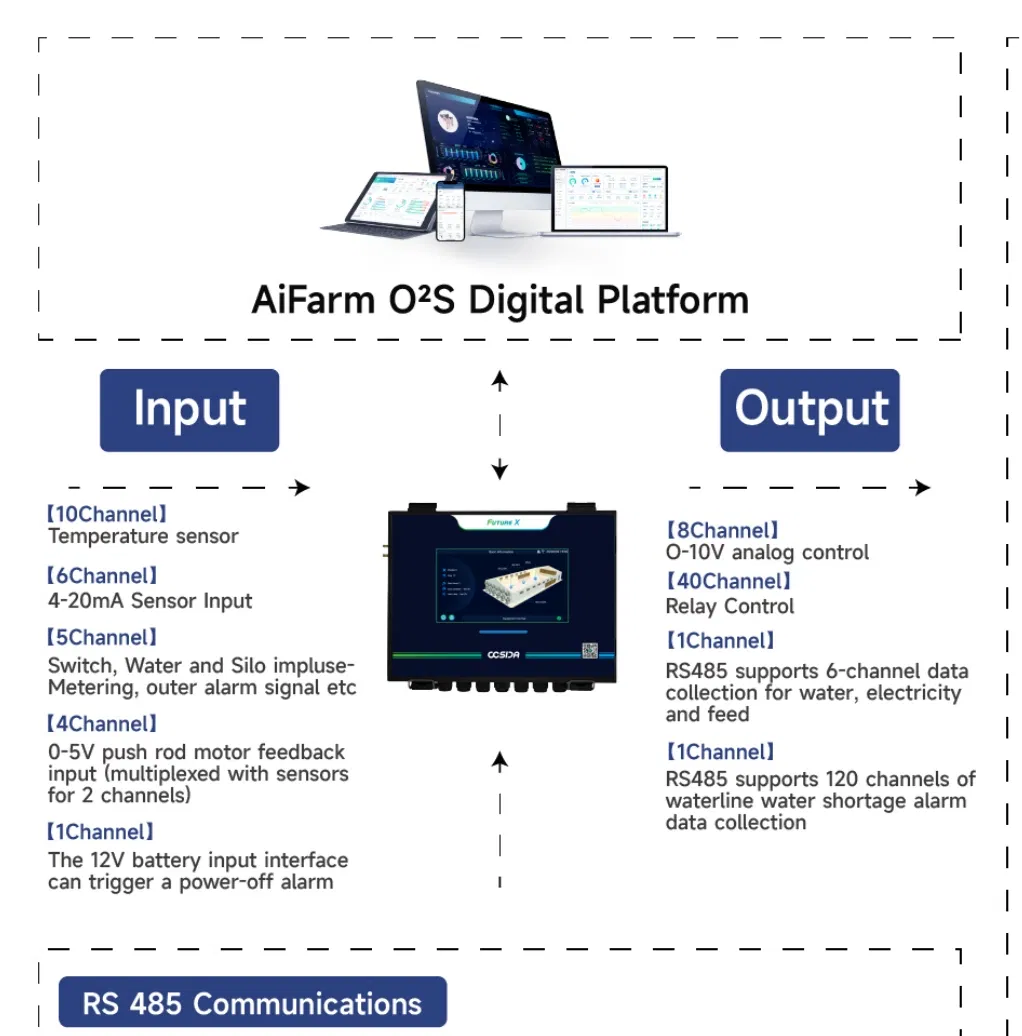

Sensor Channels10-channel temperature + 6-channel 4-20mA + 2-channel 0-5V + 5-channel pulse input
Output Channels8-channel 0-10V analog quantity + 40-channel relays
Communication Interfaces3-channel RS485 (supports IoT/smart meters)
Data StorageSupports historical data export (USB)
OperationMulti-language switching (Chinese/English/Russian)
🛠️ After Sales Service
  • Warranty Service: 12-month free warranty for the whole machine (based on the barcode on the body), 7*12 hours online support by a professional technical team.

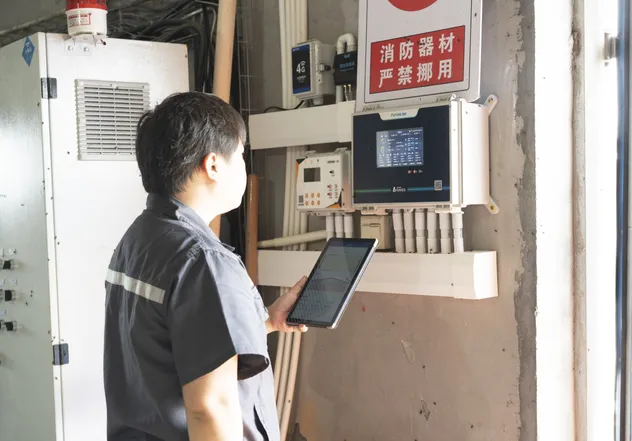

  • Technical Support: Provides electronic manuals, wiring diagrams and video tutorials, and on-site installation guidance.
  • Upgrade Service: Supports free system firmware updates, providing lifelong technical consultation and breeding scheme optimization.
Service 1 Service 2 Service 3
📦 Packing & Delivery

Standard Package Includes:

  • 1 Main Unit + Installation Accessory Kit (expansion tubes, self-tapping screws, fixing buckles)
  • Sensor Set (Temperature, Humidity, CO2, Ammonia sensors)
  • Wiring Terminal Diagram + Product Certificate + Electronic Manual
  • 1 USB Data Cable

Note: Product parameters may be slightly adjusted due to upgrades. Customized function configuration is available based on breeding scale.

Packing 1 Packing 2 Packing 3
🏭 Enterprise Strength Display
Factory 1 Factory 2 Production Line
Frequently Asked Questions
How many sensors can the Future X Pro support?
The system supports up to 10 temperature channels, 6-channel 4-20mA inputs, 2-channel 0-5V inputs, and 5-channel pulse inputs for comprehensive monitoring.
Is the controller suitable for harsh farm environments?
Yes, it features an IP65 rated ABS sealed housing, providing excellent protection against dust and moisture common in livestock environments.
Does the system support remote management?
Yes, the controller supports AI algorithms for local and remote management, allowing users to track data and receive abnormal alarms remotely.
What languages are available on the interface?
The 15.6-inch touch screen supports multi-language switching, including English, Chinese, and Russian.
Can I export historical data?
Yes, the system includes a USB interface that allows for the easy export of historical environmental data for traceability and analysis.
What is the warranty period for this unit?
We offer a 12-month free warranty for the entire machine, backed by 7*12 hours of professional online technical support.
