Product Description

📋 Basic Info.
Model NO.
KS-AC500
Transfer Rate
10/100/1000Mbps
Firewall
Support
Ports
6
Application
Enterprise
CPU
Intel@ Baytrail J1800 2.4GHz
Users
Max to 1000 Users
AP Management
Max to 500PCS Wireless AP
VPN
L2TP, PPTP, OpenVPN, IPsec
Origin
China
🚀 Product Description

Industrial Gateway AC Controller

The industrial gateway AC Controller is designed to work seamlessly with indoor and outdoor wireless APs, making it ideal for Enterprises, Villages, Hotels, Shopping Malls, Schools, and Hospitals.

Key Capabilities:

  • Equipped with 7 Gigabit RJ45 ports supporting multiple WAN load balancing and strategic routing.
  • Support for smart QoS, network firewall, VPN, SD-LAN, IPv6, and VLAN.
  • Handles up to 1000 concurrent end users with network storm protection.

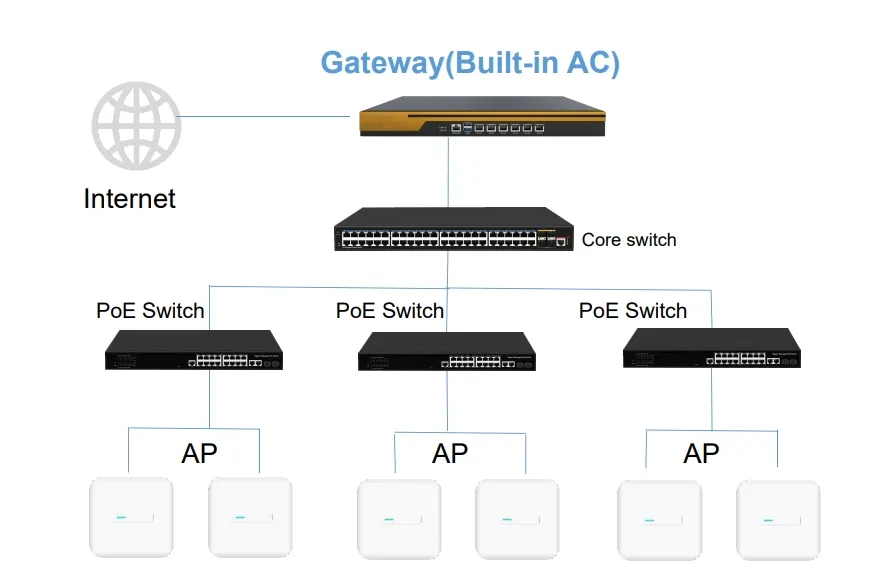

  • Centrally configure and monitor up to 500 wireless APs remotely.

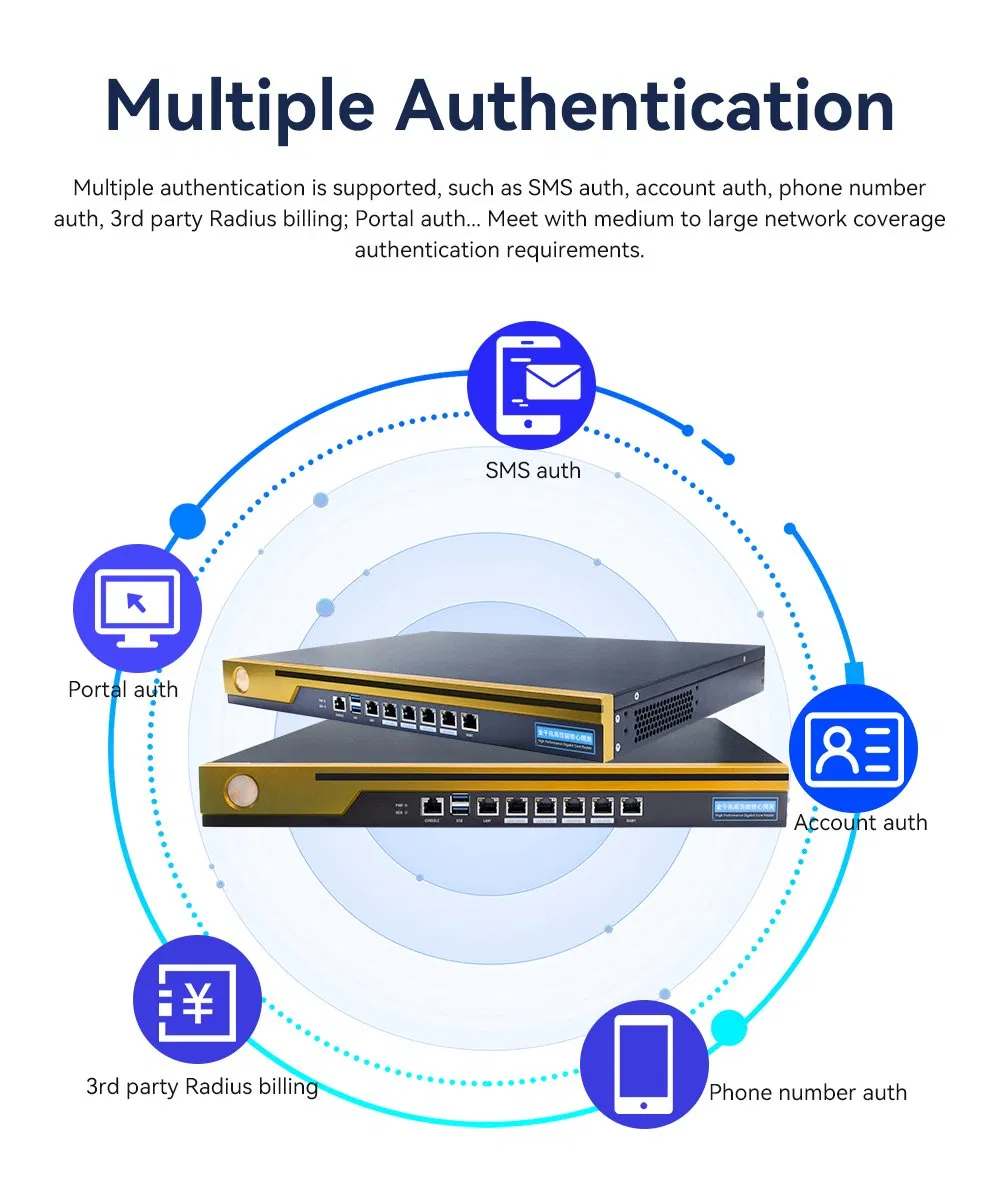

  • Multiple authentication support: SMS, Radius billing, Portal, and Account authentication.
⭐ Main Features
1 Industrial Grade Gateway: Supports PPPoE/DHCP/Static IP with strategic routing based on IP, MAC, or Domain.

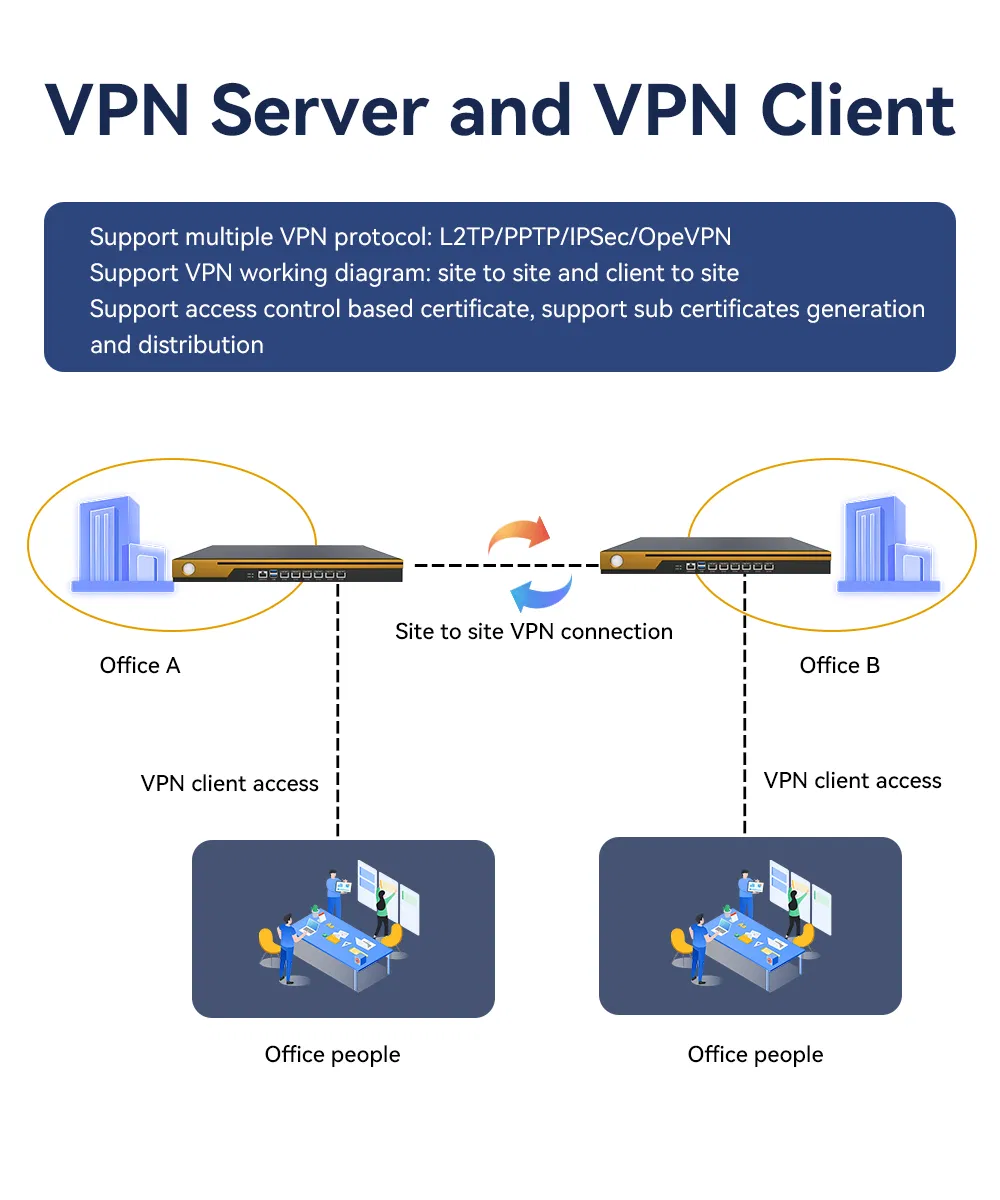

2 VPN Client & Server: Supports L2TP/PPTP/IPSec/OpenVPN with certificate-based access control.

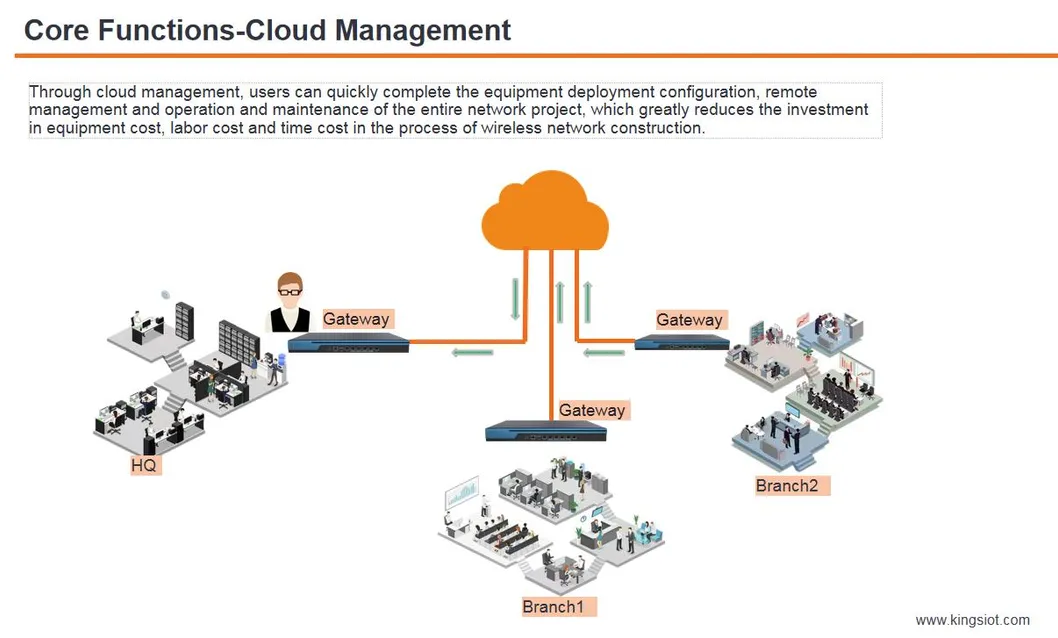

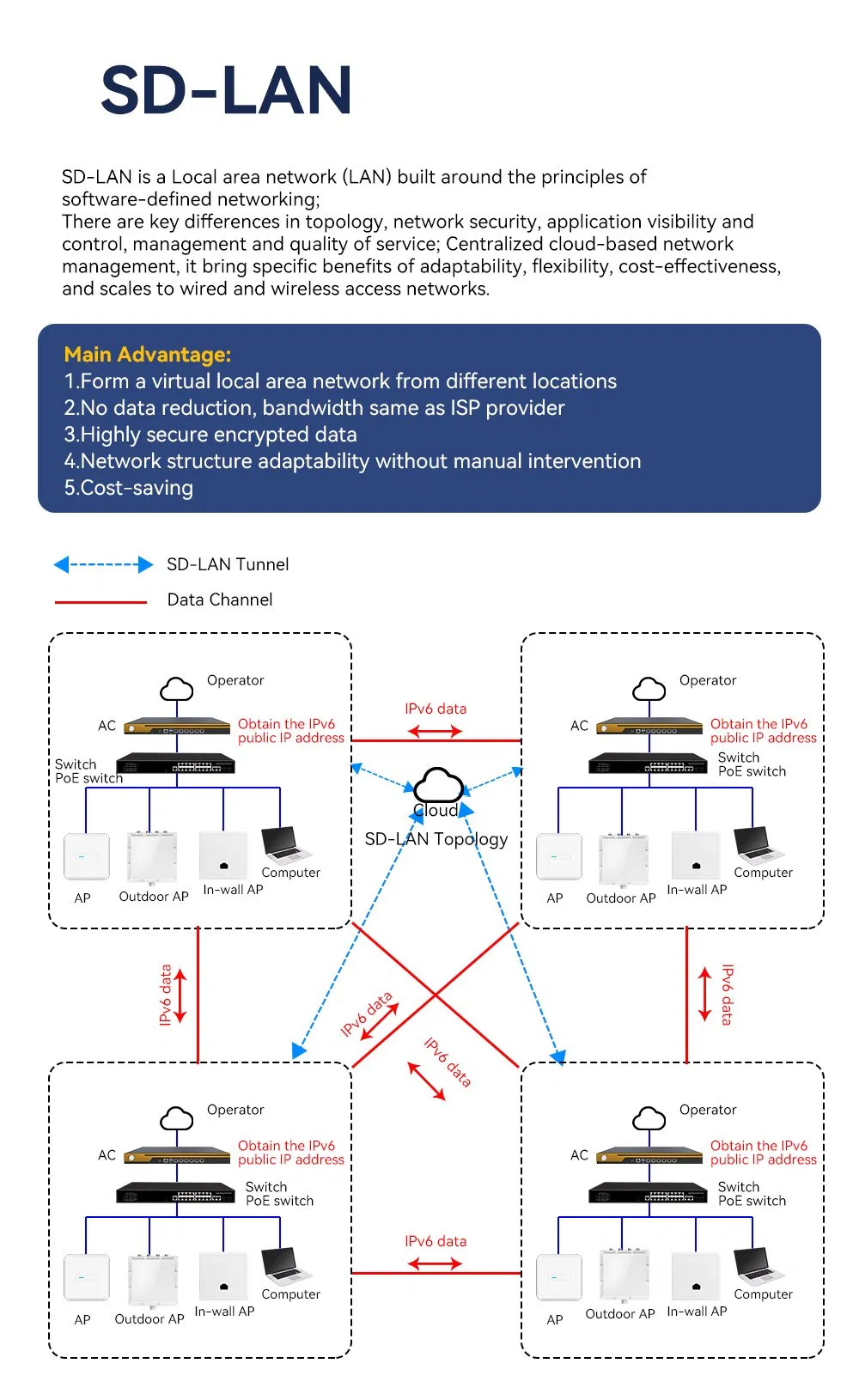

3 Cloud Management & SD-LAN: Centralized cloud-based management providing adaptability and cost-effectiveness.

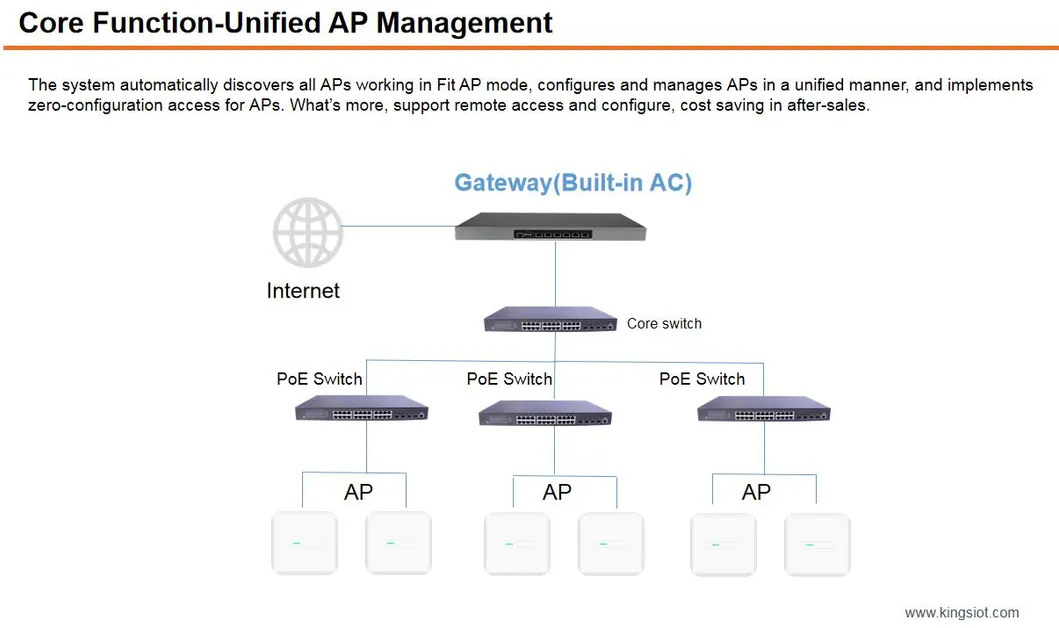

4 Intelligent AP Management: Zero-configuration grouping and intelligent channel analysis for stable coverage.
5 Auto-Topology: Real-time network topology maps generated automatically via the WEB interface.
🖼️ Detailed Photos

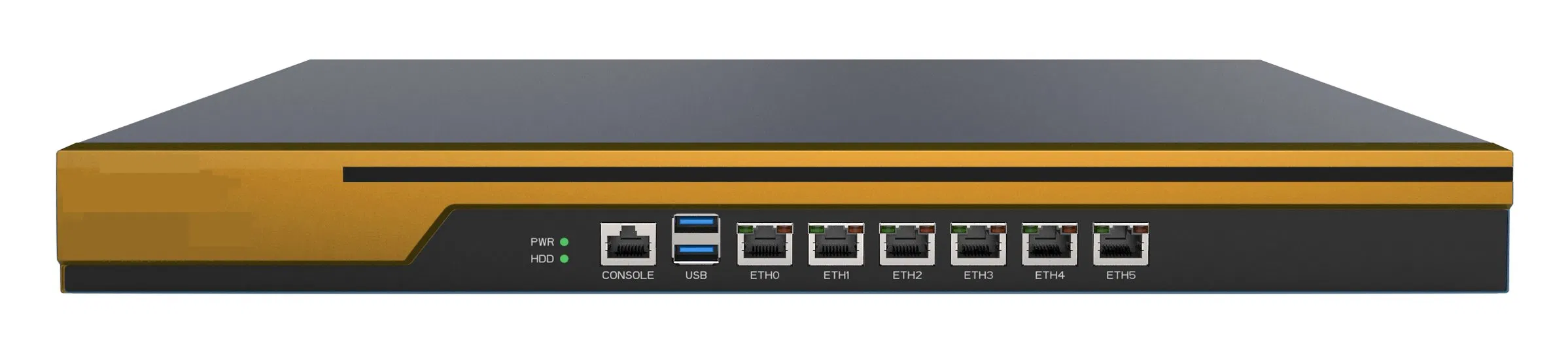

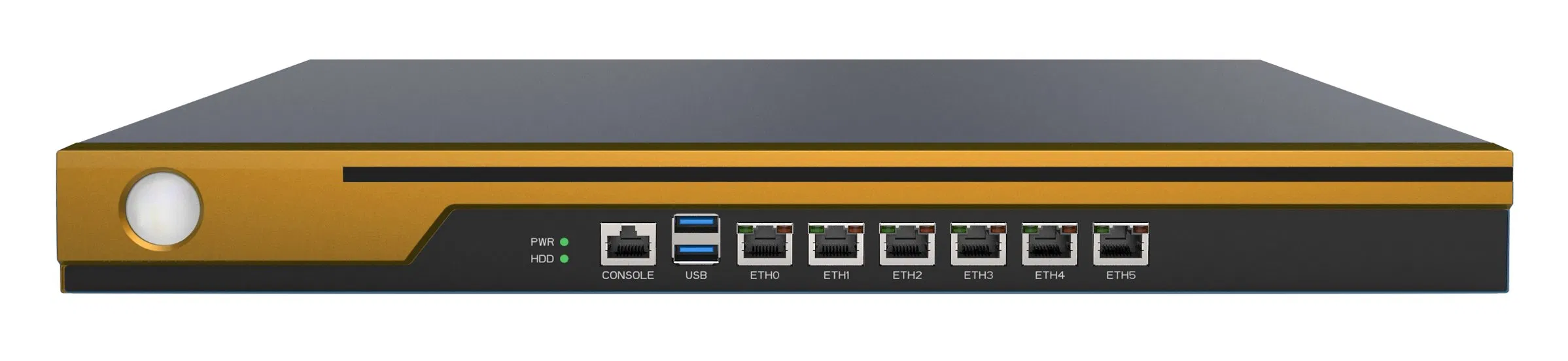

Gateway Overview
Interface Details
System Interface
Industrial Design
Feature Chart
Application Scenario
📊 Product Parameters
Platform
Size1U Frame
CPUIntel® Baytrail J1800 2.4GHz/1MB
ChipsetSOC
Network Interface
Interface6 x GbE RJ45 Ports
Chipset6 x Intel® I211AT
Storage
TypeSSD, CF Card, DOM, General HDD
SSD1 x M-SATA SSD (Default: 8GB)
Power & Environment
Power InputAC 90V-264V @47-63Hz
Consumption75W
Working Temp0ºC - 50ºC
Dimensions430 (L) × 300 (W) × 44 (H) mm
📦 Packaging & Shipping

Carton Dimensions: 51.5 * 42.5 * 30 cm

Quantity: 5 PCS / CTN

Weight: 15.2 KGS / CTN

🛠️ After Sales Service

Warranty Period: 2 Years Quality Warranty

❓ Frequently Asked Questions
How many Access Points can the KS-AC500 manage?
The KS-AC500 is capable of centrally configuring and managing up to 500 wireless APs simultaneously.
What is the maximum user capacity for this gateway?
The gateway supports access for a maximum of 1000 end users, ensuring stable performance even under high traffic.
Which VPN protocols are supported?
It supports a wide range of VPN protocols including L2TP, PPTP, IPsec, and OpenVPN for secure remote connections.
Does the device support automatic network topology?
Yes, a network topology map is automatically generated based on the actual connection status within the AC controller's web interface.
Can it perform load balancing across multiple WAN ports?
Yes, it supports multiple Gigabit WAN ports with load balancing, Ethernet backup, and network overlay for a faster, more stable connection.
What kind of authentication methods are available for users?
The KS-AC500 supports various authentication methods such as SMS, Radius billing, Portal, Account, and Phone Number authentication.
