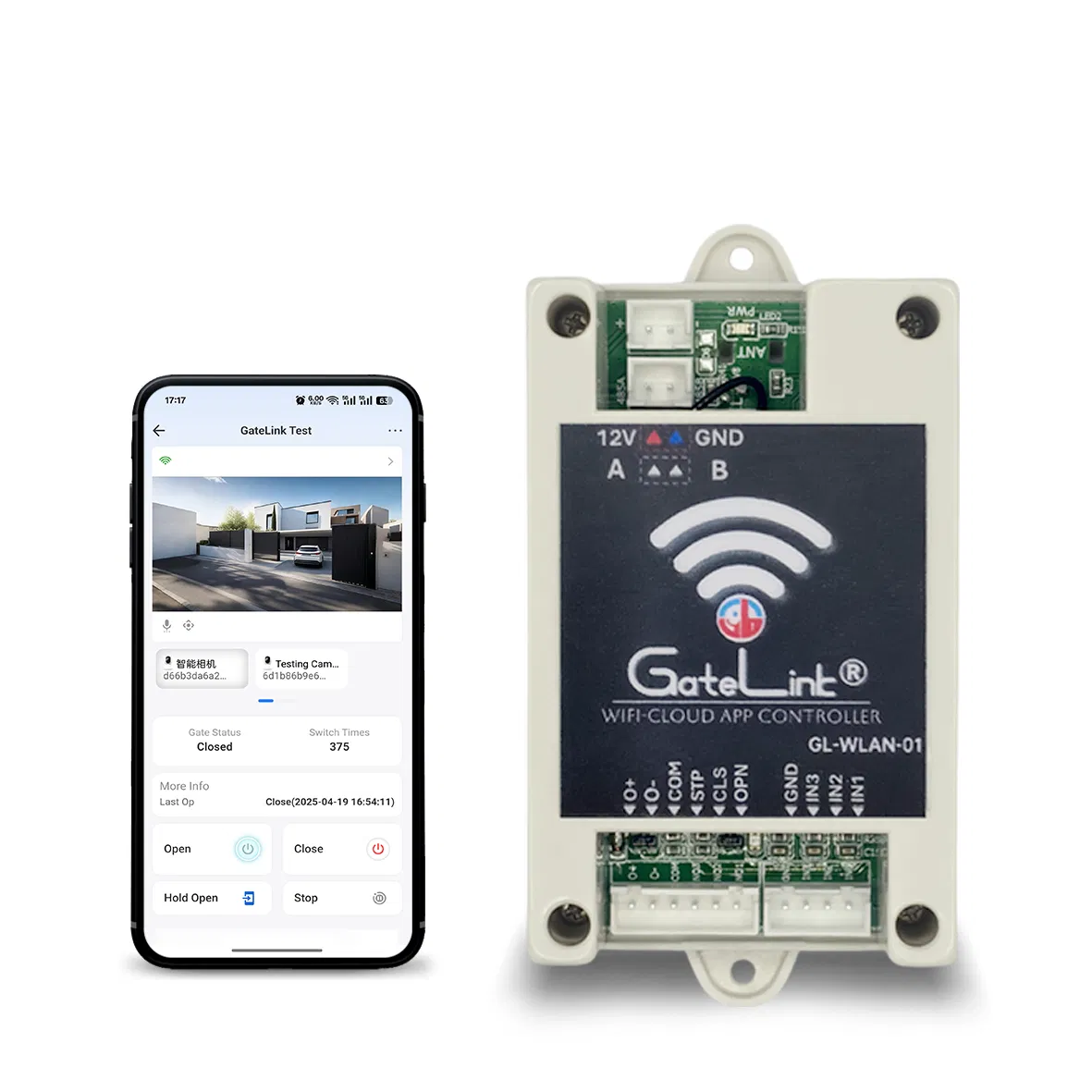

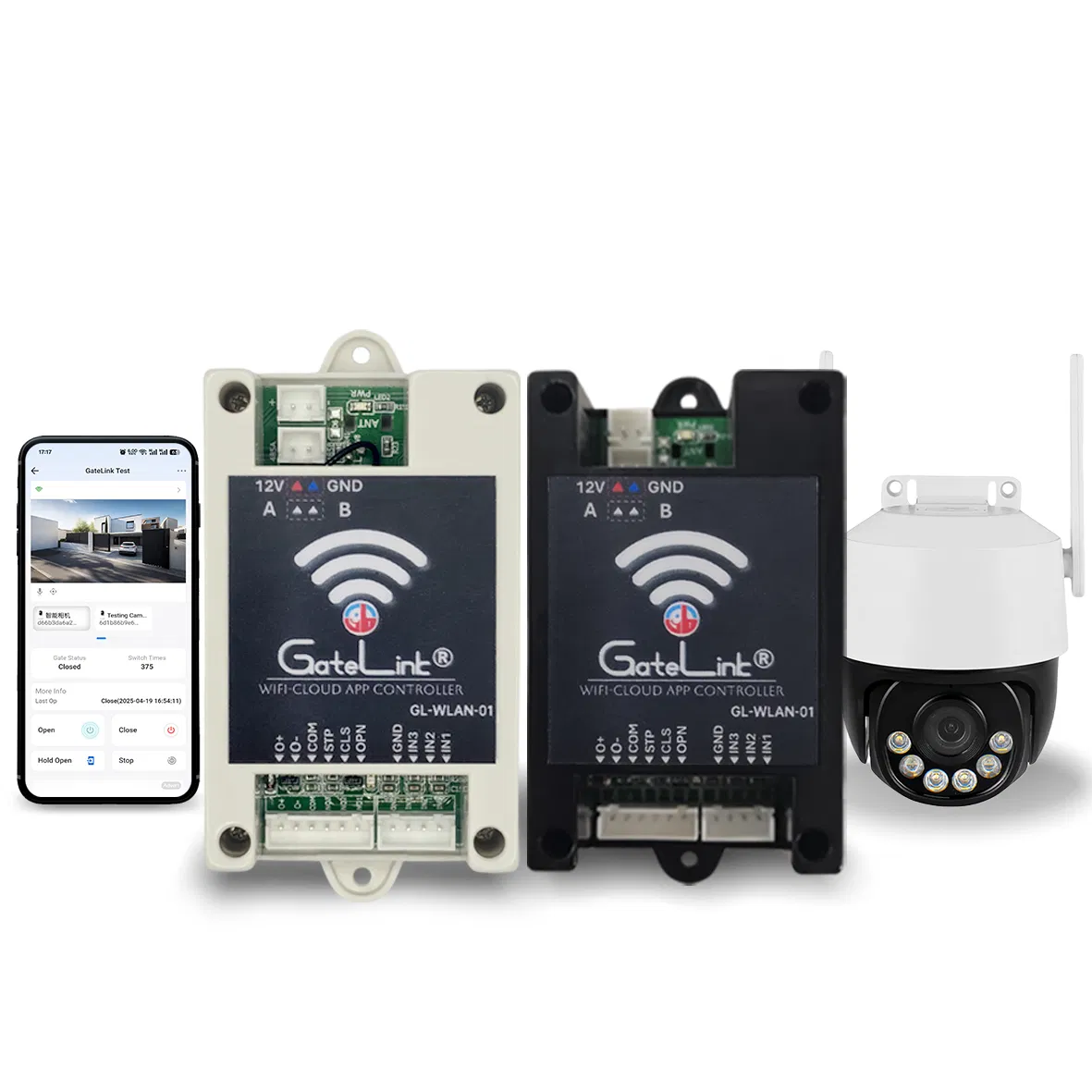

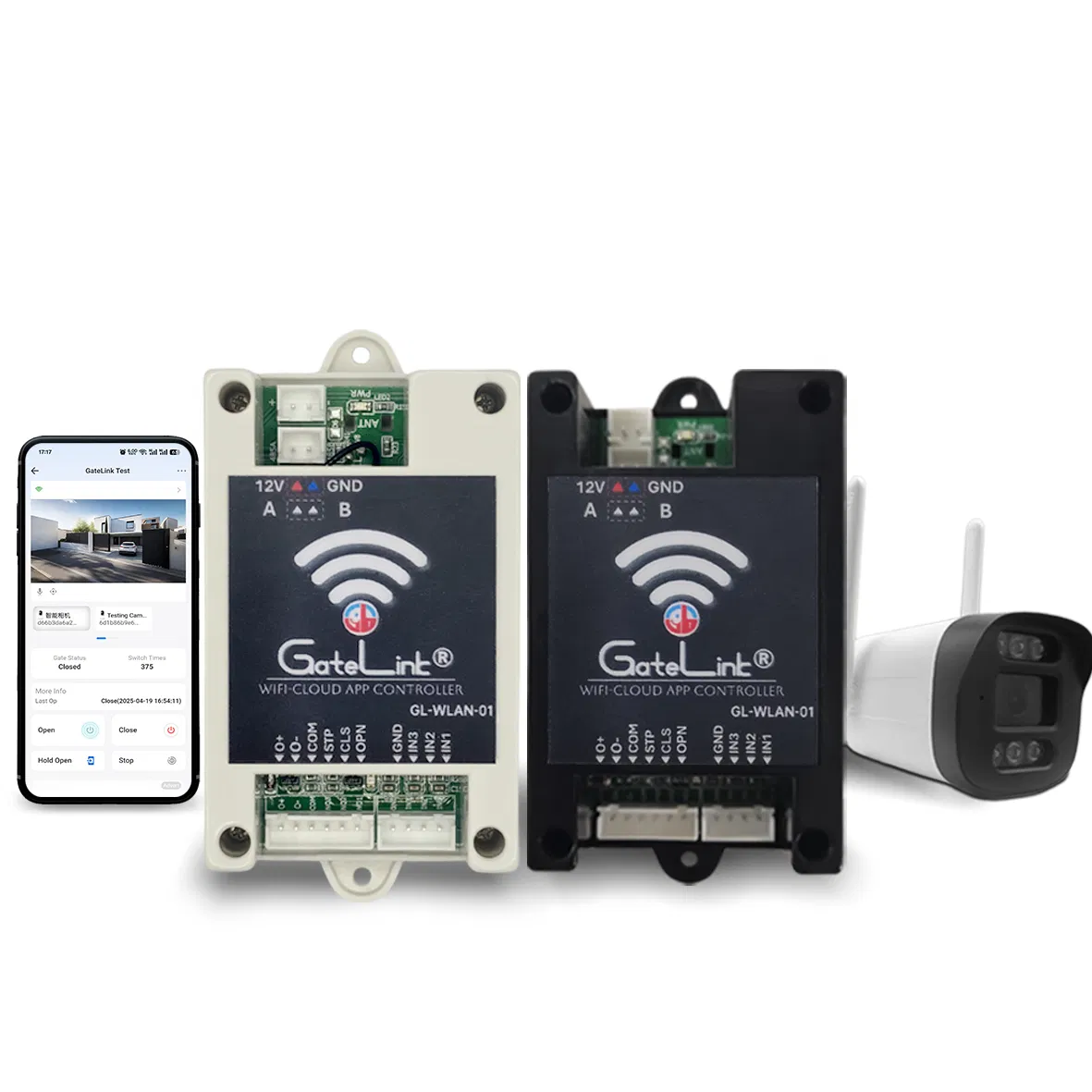

IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
1 / 5
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate
IoT WiFi Door Controller Output Input RS485 for Barrier Gate

IoT WiFi Door Controller Output Input RS485 for Barrier Gate

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
IS-30R
Technology
WiFi & Bluetooth
Way of Control
APP
Communication
RS485
Type
4 Way
Operating Voltage
DC12V 1A
Load Capacity
DC30V/1A, AC125V/1A
Network Type
WiFi + BLE
Protocol
Mqtt, Supports OTA Update
Digital Input
Non-Isolated X3
Relay Output
4 Channels
Specification
96.5x50x31.4mm

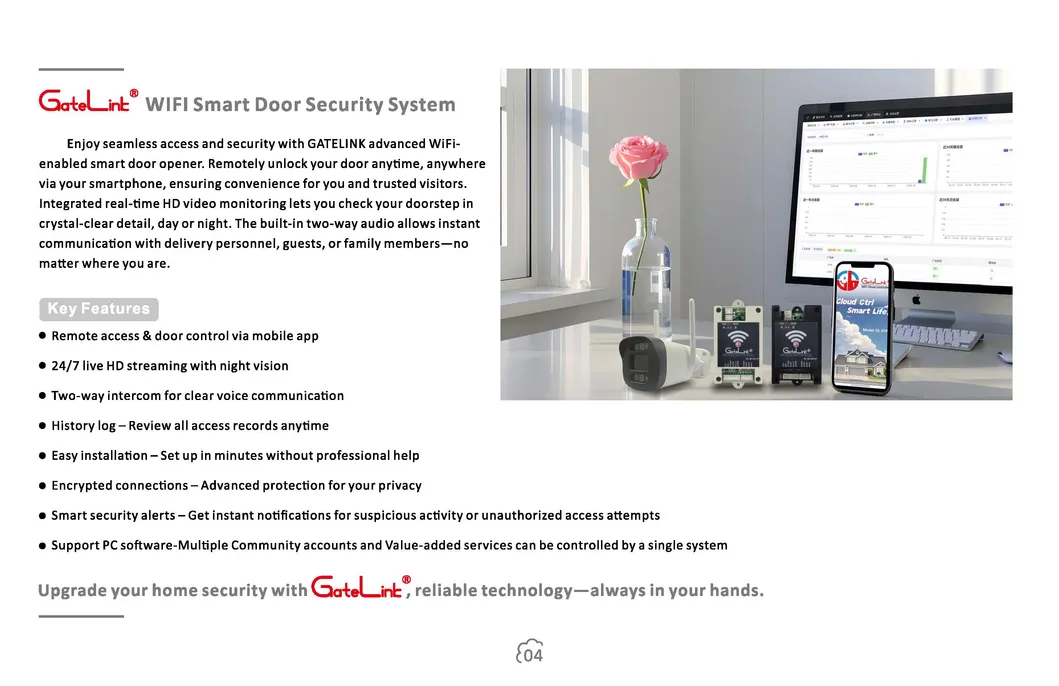

Product Overview
The GateLink WIFI Smart Door Security System redefines access control with seamless WiFi connectivity, enabling remote management, real-time surveillance, and secure communication. This solution integrates a smart door opener, HD cameras, and a cloud-based management platform to enhance security for residences, commercial buildings, and communities.
IoT WiFi Door Controller
WiFi Door Control Interface

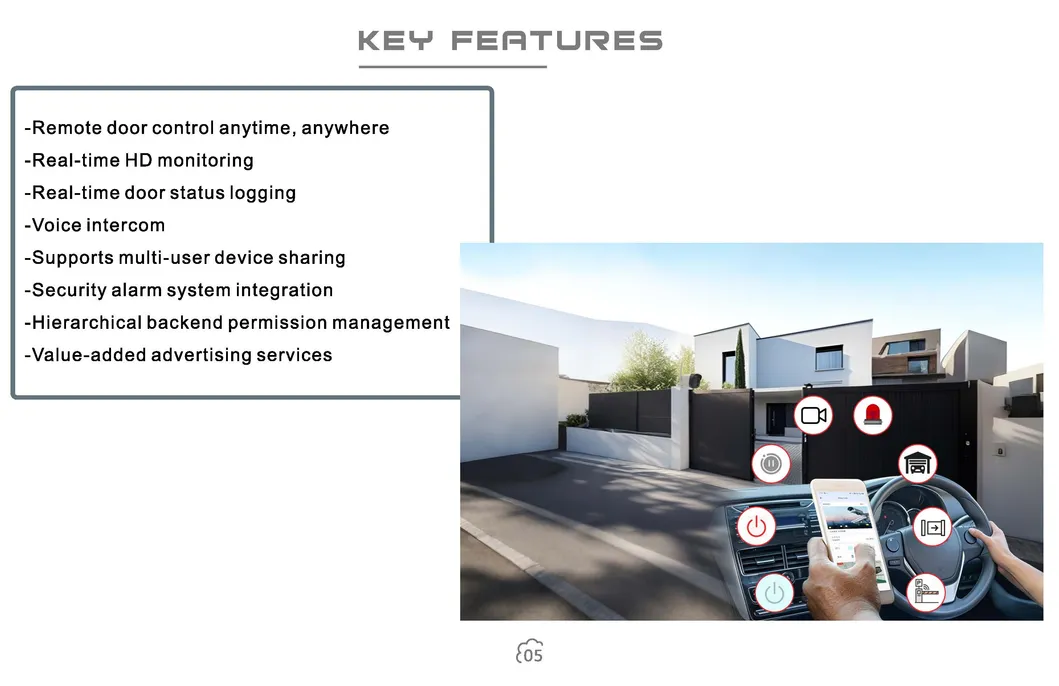

Key Features
📌 Remote Access Control Unlock doors via the mobile app from anywhere, supporting WiFi, BLE, and 4G connectivity. Real-time status updates ensure instant feedback on door openings.
📌 24/7 HD Video Surveillance Supports 2MP/3MP cameras with IR-CUT night vision, up to 1296P resolution, and IP67 protection for reliable outdoor monitoring.
📌 Two-Way Audio Communication Built-in intercom allows real-time dialogue with visitors or family members with clear voice transmission.
📌 Intelligent Security Alerts Motion detection and unauthorized access attempts trigger instant notifications via the mobile application.
📌 Comprehensive Access Logs Historical records of all door operations including unlocks and alarms are stored for review and auditing.
📌 Secure Data & Multi-User Management Encrypted MQTT protocol and OTA updates ensure reliability. Supports shared device access and hierarchical permission settings.

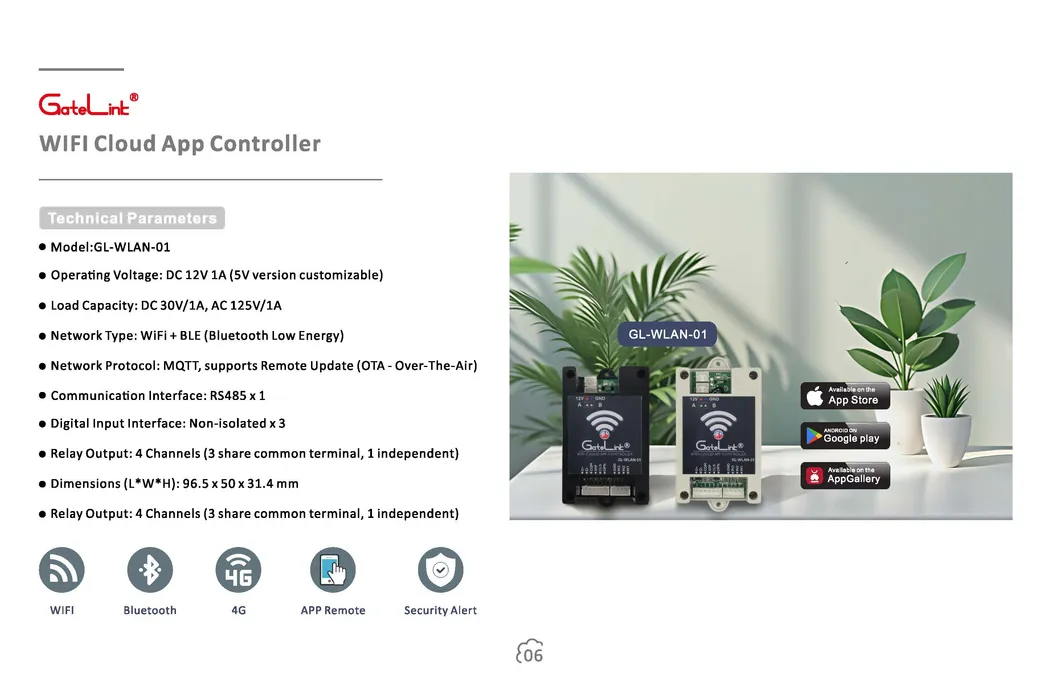

Technical Specifications

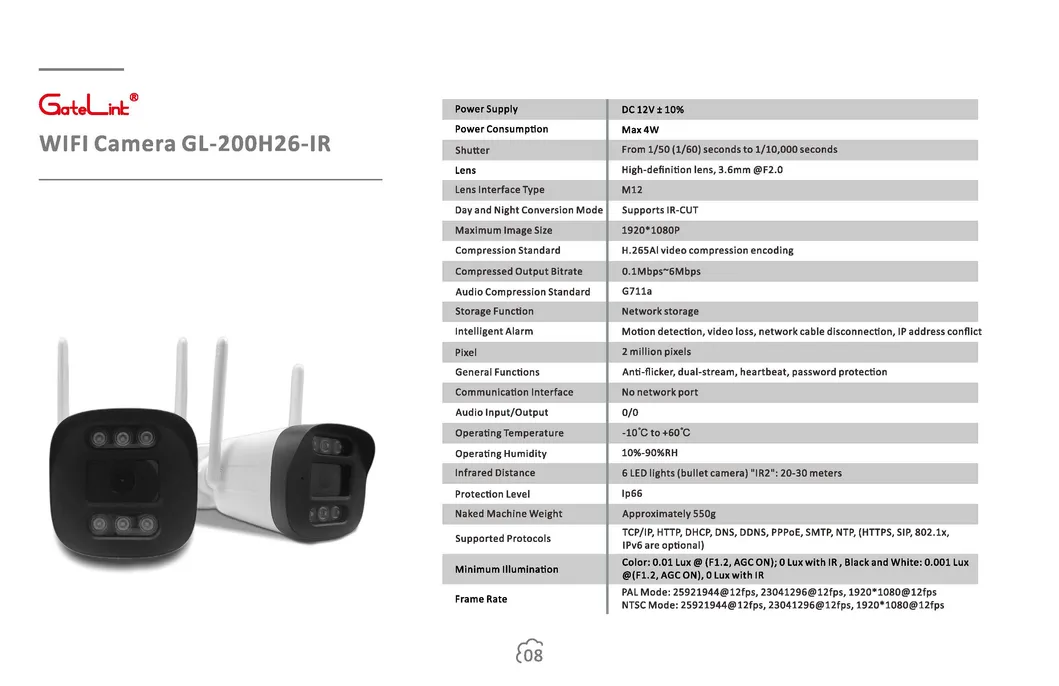

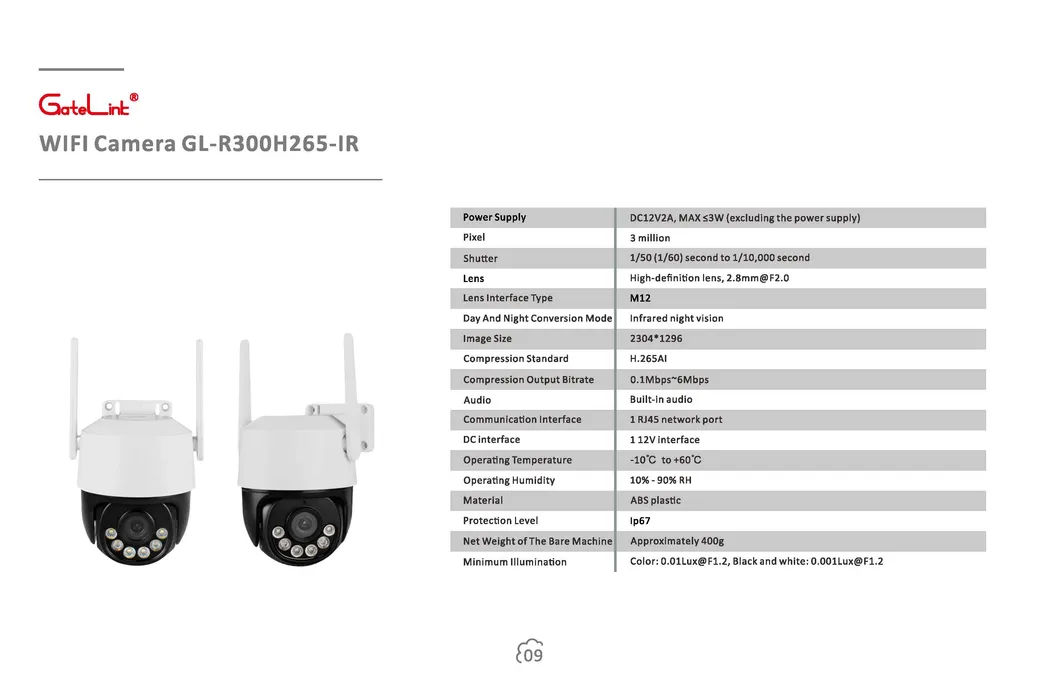

Component WIFI Cloud Controller (GL-WLAN-01) WIFI Camera GL-200H26-IR WIFI Camera GL-R300H265-IR
Power Supply DC12V 1A DC12V±10%, Max 4W DC12V 2A, ≤3W
Connectivity WiFi + BLE Via Controller 1 RJ45 port
Video Spec - 2MP, 1920×1080P 3MP, 2304×1296
Night Vision - IR-CUT Infrared Night Vision
Protection - IP66 IP67
Interface RS485, 3x Input, 4x Relay - 1x 12V DC Interface
Dimensions 96.5×50×31.4mm ~550g ~400g
Target Scenarios

Residential apartments, commercial buildings, community complexes, industrial zones.

Application Scenarios

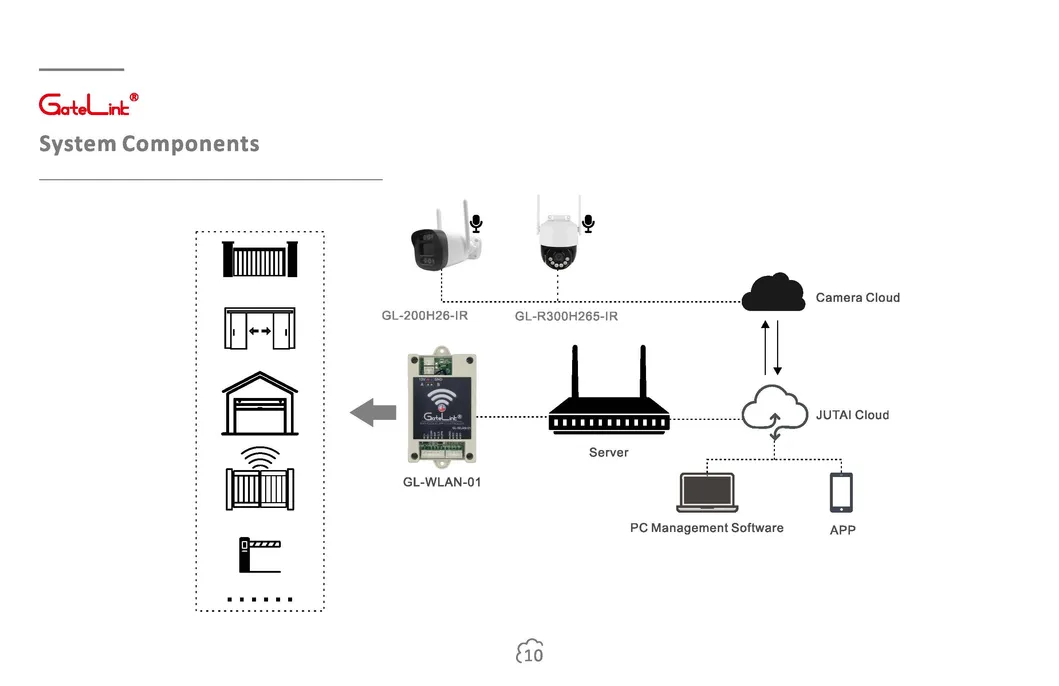

Installation Diagram

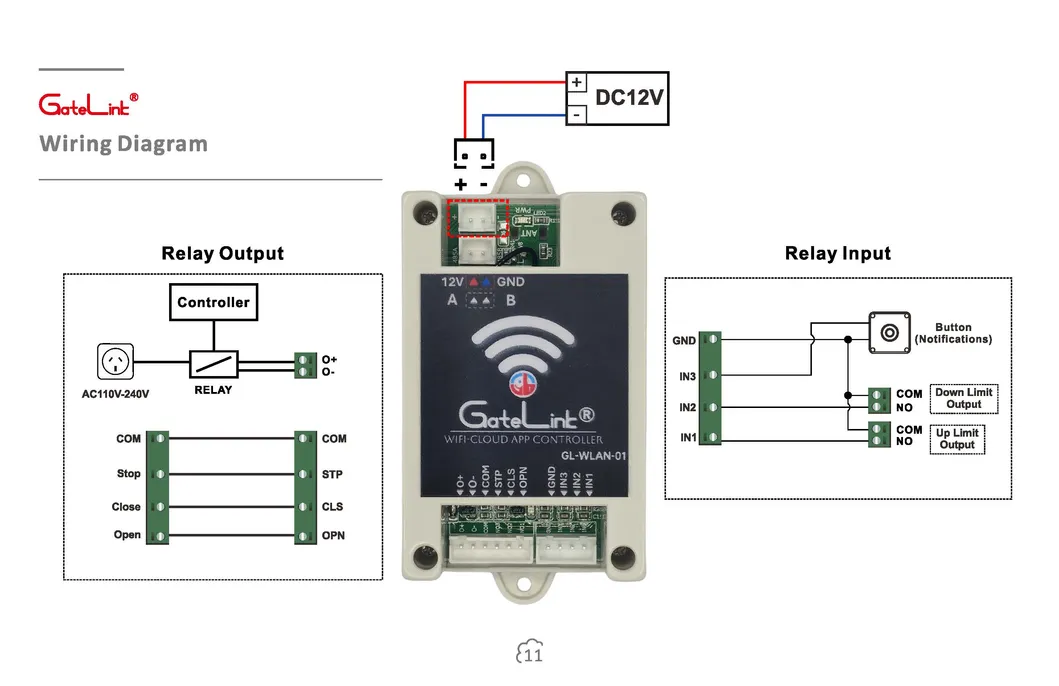

System Wiring

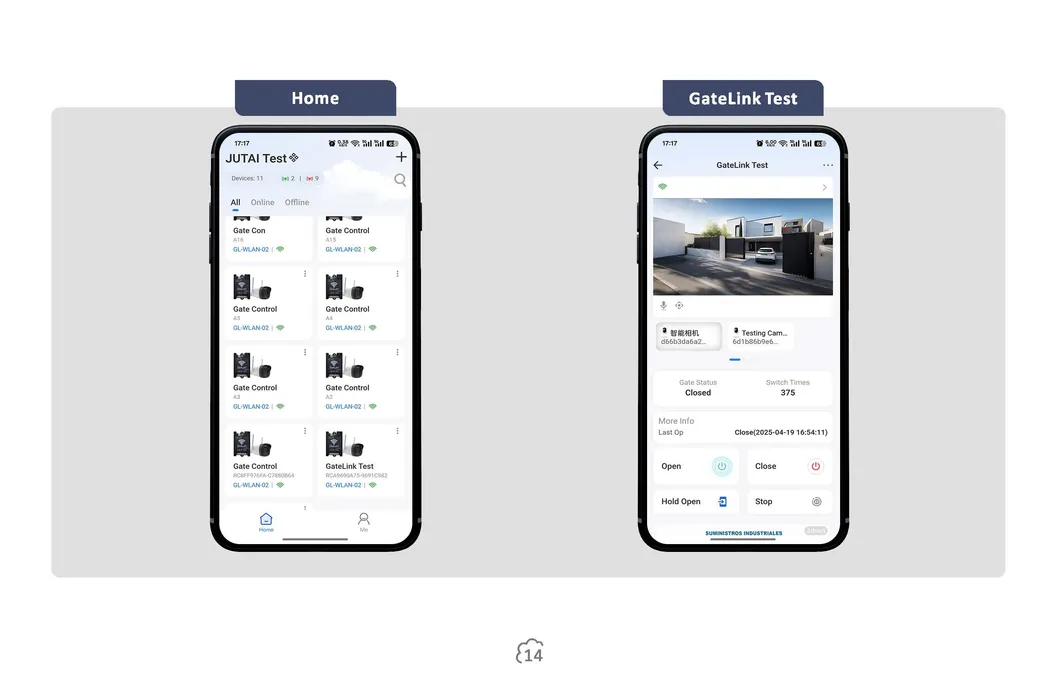

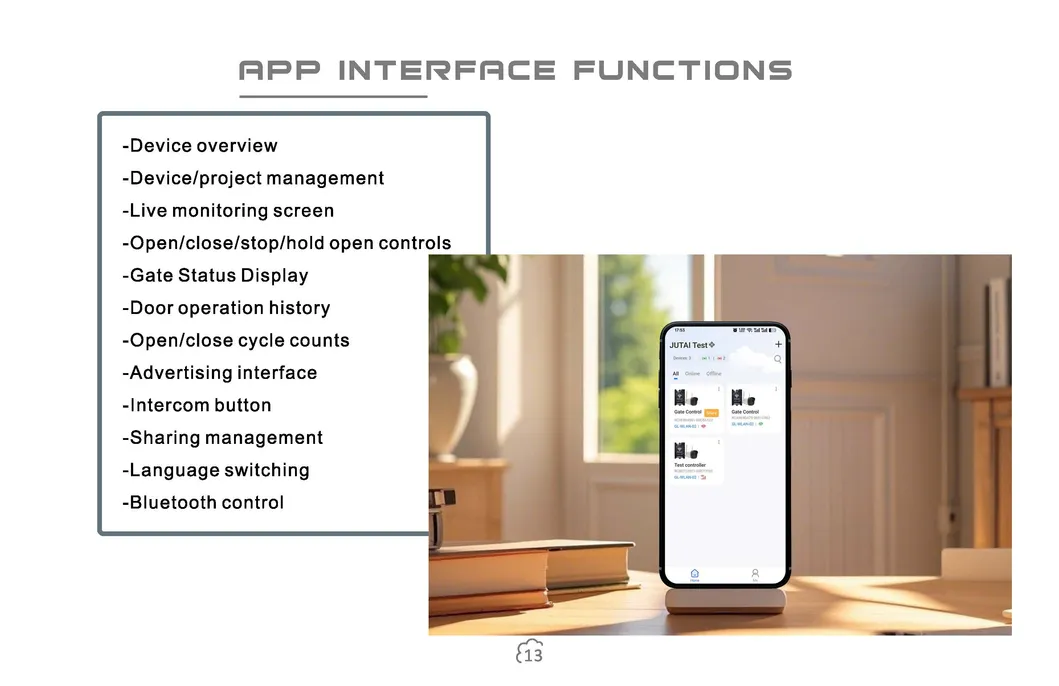

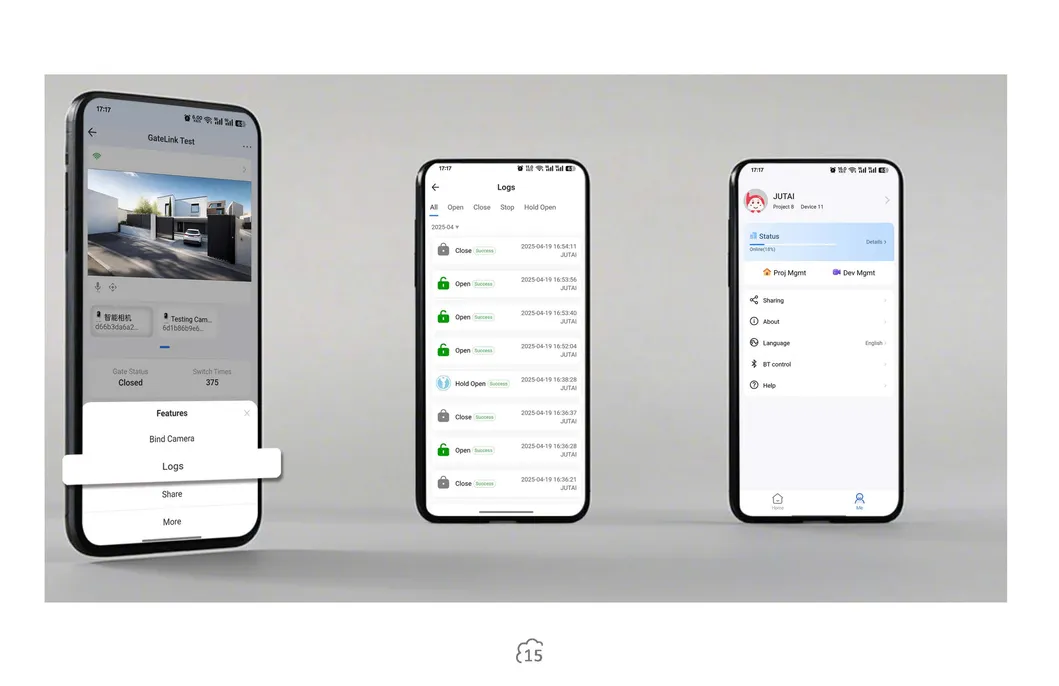

App Interface

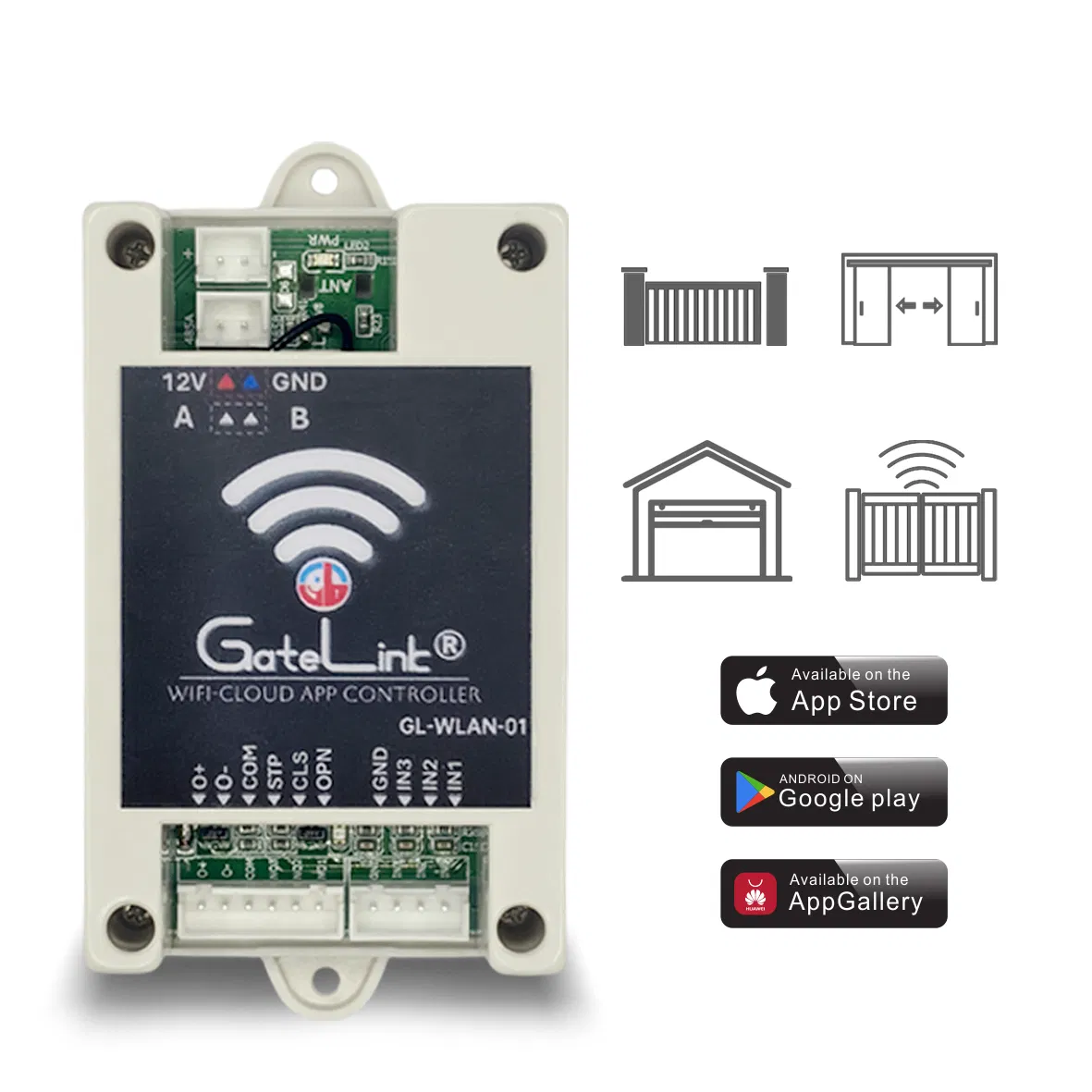

Controller Details
Security Features
Device Dimensions
Network Connection

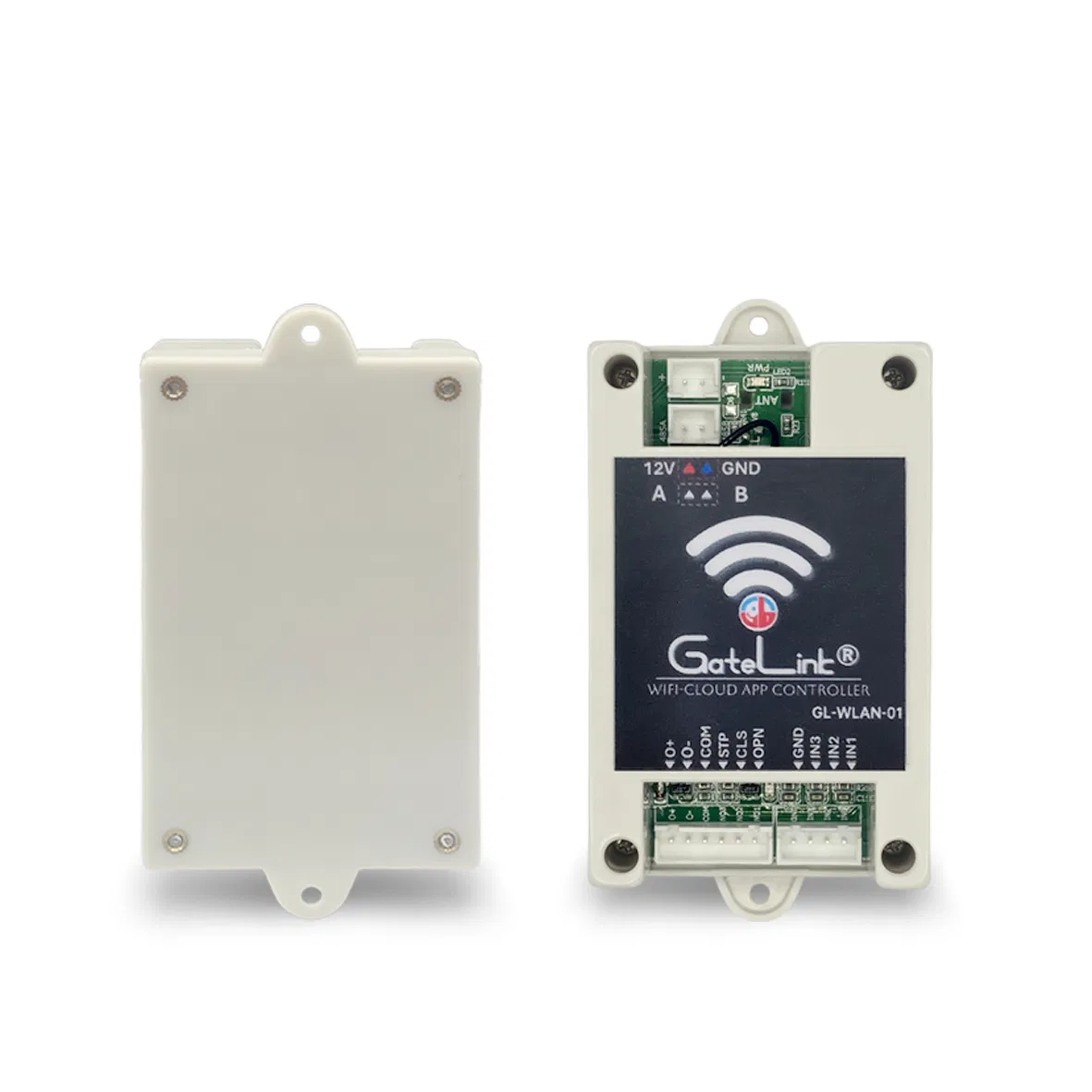

Hardware View
Final Setup
Frequently Asked Questions (FAQ)
1. How do I control the IS-30R door security system?
The system is primarily controlled via a mobile application (iOS/Android) through WiFi or Bluetooth Low Energy (BLE) connectivity.
2. Can the system firmware be updated remotely?
Yes, the system supports OTA (Over-The-Air) updates, allowing you to receive the latest features and security patches remotely.
3. What happens if the video signal is lost?
The intelligent security system includes a video loss alarm that triggers instant notifications to your mobile app.
4. Is the camera suitable for outdoor installation?
Yes, the cameras are designed for durability with IP66 or IP67 protection ratings, making them resistant to dust and water.
5. Does the system support multiple users?
Yes, the management platform supports multi-user sharing and hierarchical permission settings for community or commercial use.
6. What protocols are used for data transmission?
The system uses the encrypted MQTT protocol to ensure secure and reliable communication between devices and the cloud platform.
