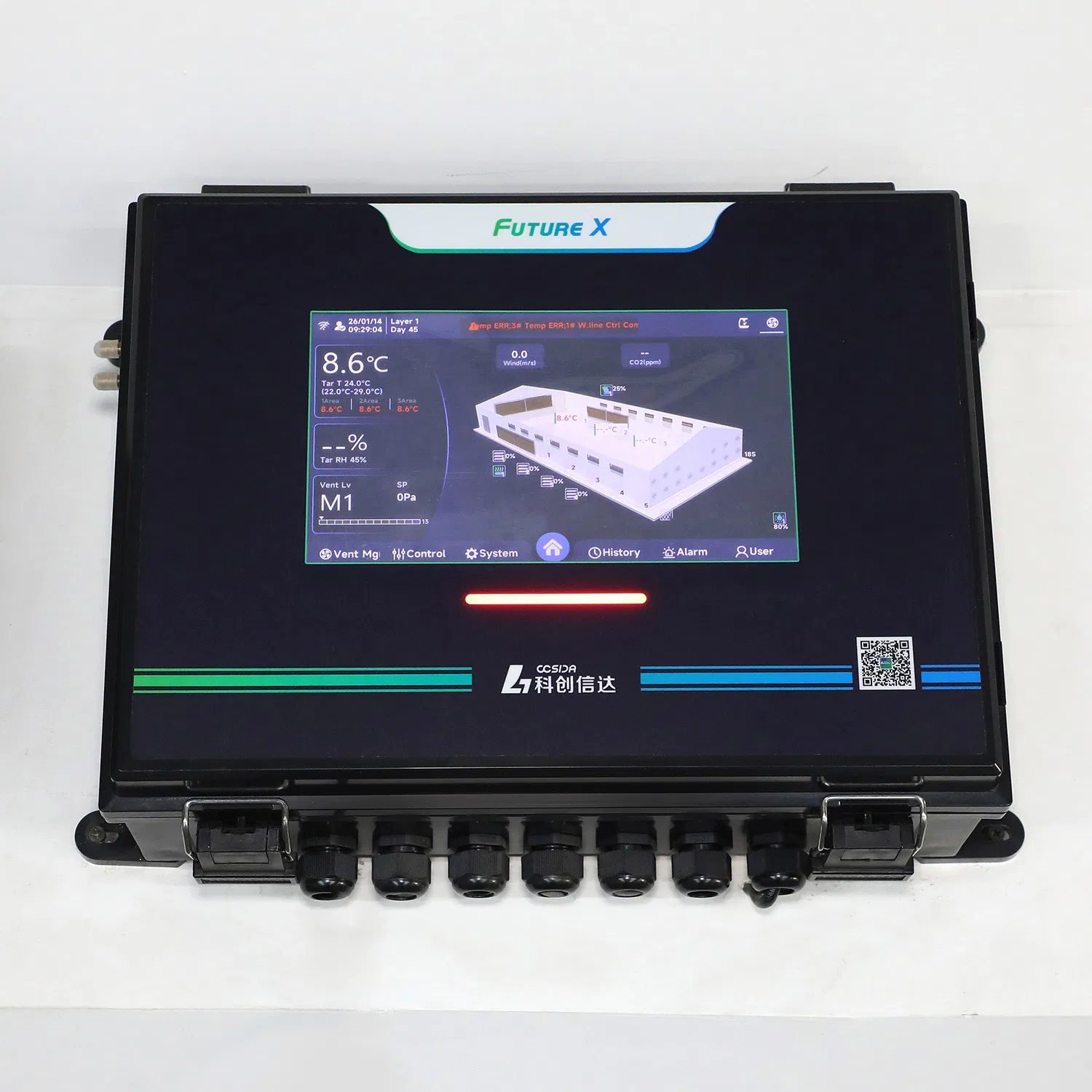

Smart Breeding Env Master Controller - All-in-One Livestock Poultry Farm Control

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Information
Model NO.
Future X
Rated Voltage
AC85-305V, 50/60Hz
Rated Power
<40W
Display
15.6 Inch Touch Screen
Display Accuracy
0.1°C
Package Size
100.00cm * 100.00cm * 50.00cm
Gross Weight
5.000kg
Origin
China
HS Code
8436910000

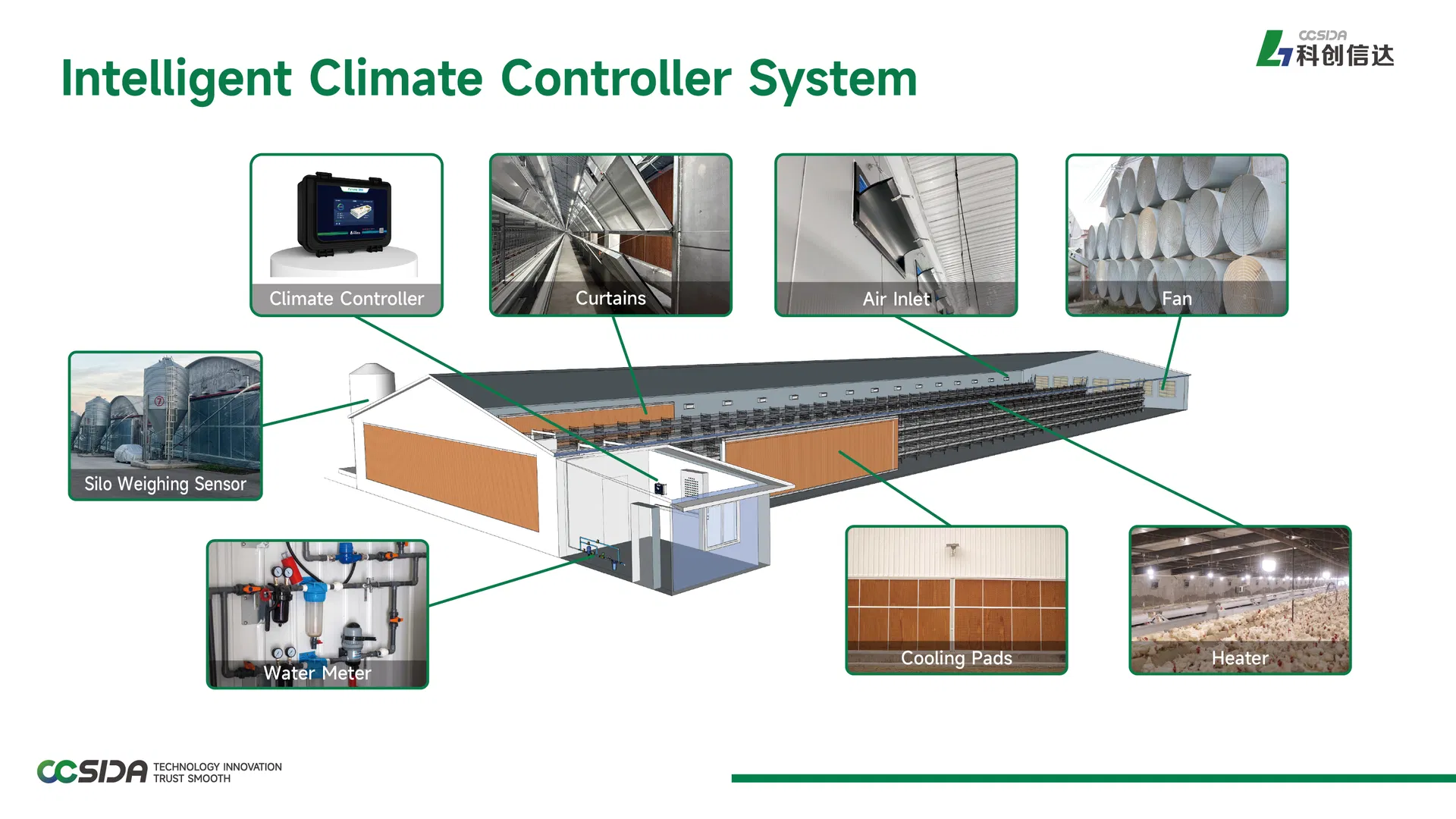

Smart Breeding Env Master Controller
💡 Product Description

The Future X Pro intelligent environment controller adopts a modular design and AI intelligent algorithm. It collects real-time environmental data such as temperature, humidity, CO2, NH3, H2S, static pressure, and wind speed through multi-channel sensors, and automatically regulates frequency conversion fans, wet curtains, heaters, lighting, feeding, drinking water and other equipment. It supports local/remote management, data traceability, and abnormal alarms, and is suitable for various large-scale poultry and livestock breeding farms, realizing precise, efficient and stable control of environmental parameters.

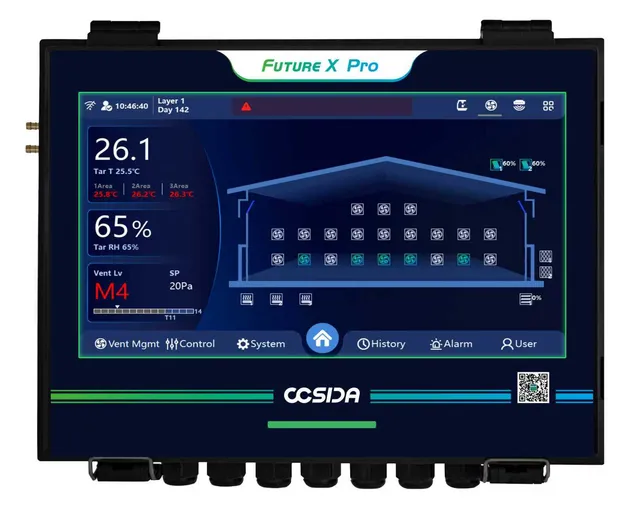

Controller Detail 1

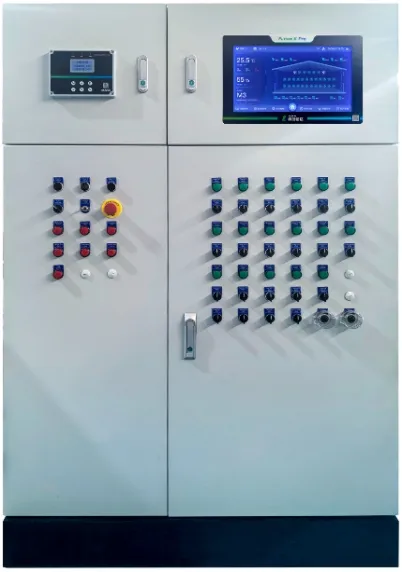

Controller Detail 2

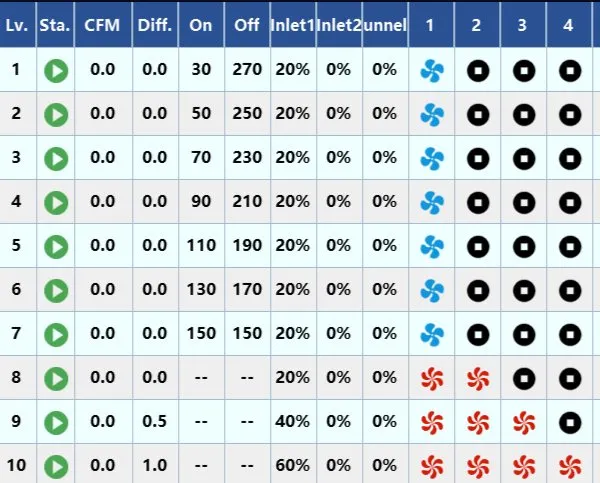

Controller Detail 3
⚙️ Technical Specification
Category Detailed Parameters
Display Screen15.6-inch color capacitive touch screen, accuracy 0.1℃
Protection LevelIP65 (ABS sealed housing)
Sensor Channels10-channel temperature + 6-channel 4-20mA + 2-channel 0-5V + 5-channel pulse input
Output Channels8-channel 0-10V analog quantity + 40-channel relays
Communication Interfaces3-channel RS485 (supports IoT/smart meters)
Data StorageSupports historical data export (USB)
Display & Operation10-inch color capacitive touch screen, multi-language switching (Chinese/English/Russian)
🏢 Enterprise Display
Facility 1
Facility 2
Facility 3
🛠️ After Sales Service
  • Warranty Service: 12-month free warranty for the whole machine (based on the barcode on the body), 7*12 hours online support by a professional technical team.
  • Technical Support: Provides electronic manuals, wiring diagrams and video tutorials, and on-site installation guidance (to be negotiated separately).
  • Upgrade Service: Supports free system firmware updates, providing lifelong technical consultation and breeding scheme optimization.
Support 1

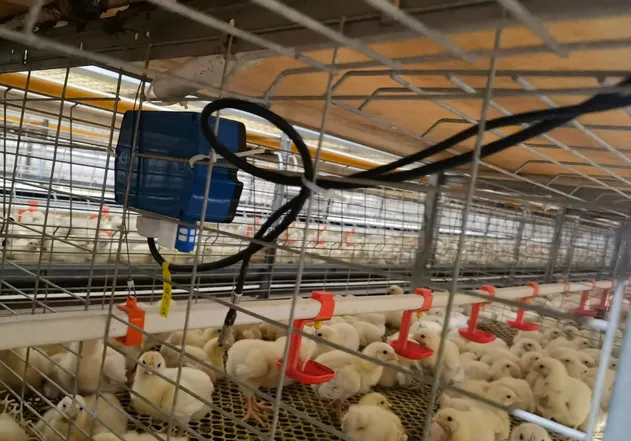

Support 2
Support 3
📦 Packing & Delivery

Package Includes:

  • 1 Main Unit + Installation Accessory Kit (expansion tubes, self-tapping screws, fixing buckles);
  • Sensor Set (1 temperature sensor, 1 humidity sensor, 1 carbon dioxide sensor, 1 ammonia sensor);
  • Wiring Terminal Diagram + Product Certificate + Electronic Manual (including Warranty Card);
  • 1 USB Data Cable;

Note: Product parameters may be slightly adjusted due to upgrades. Customized function configuration according to breeding scale is available.

Packing Display
Frequently Asked Questions
1. What environmental parameters can the Future X Pro monitor?
The controller collects real-time data including temperature, humidity, CO2, NH3, H2S, static pressure, and wind speed through high-precision multi-channel sensors.
2. Does the system support remote management?
Yes, it supports both local and remote management, allowing for data traceability and abnormal alarm notifications for precise farming control.
3. What languages are available on the touch screen interface?
The 15.6-inch capacitive touch screen supports multi-language switching, including Chinese, English, and Russian.
4. How is the data stored and can it be exported?
The system supports internal data recording, and historical data can be easily exported via a USB interface for further analysis.
5. Is the controller durable enough for farm environments?
Yes, it features an IP65 protection level with an ABS sealed housing, making it dust-proof and protected against low-pressure water jets, ideal for livestock environments.
6. What kind of warranty and technical support is provided?
We offer a 12-month free warranty and 7*12 hours of online technical support. Firmware updates are provided free for the lifetime of the product.
