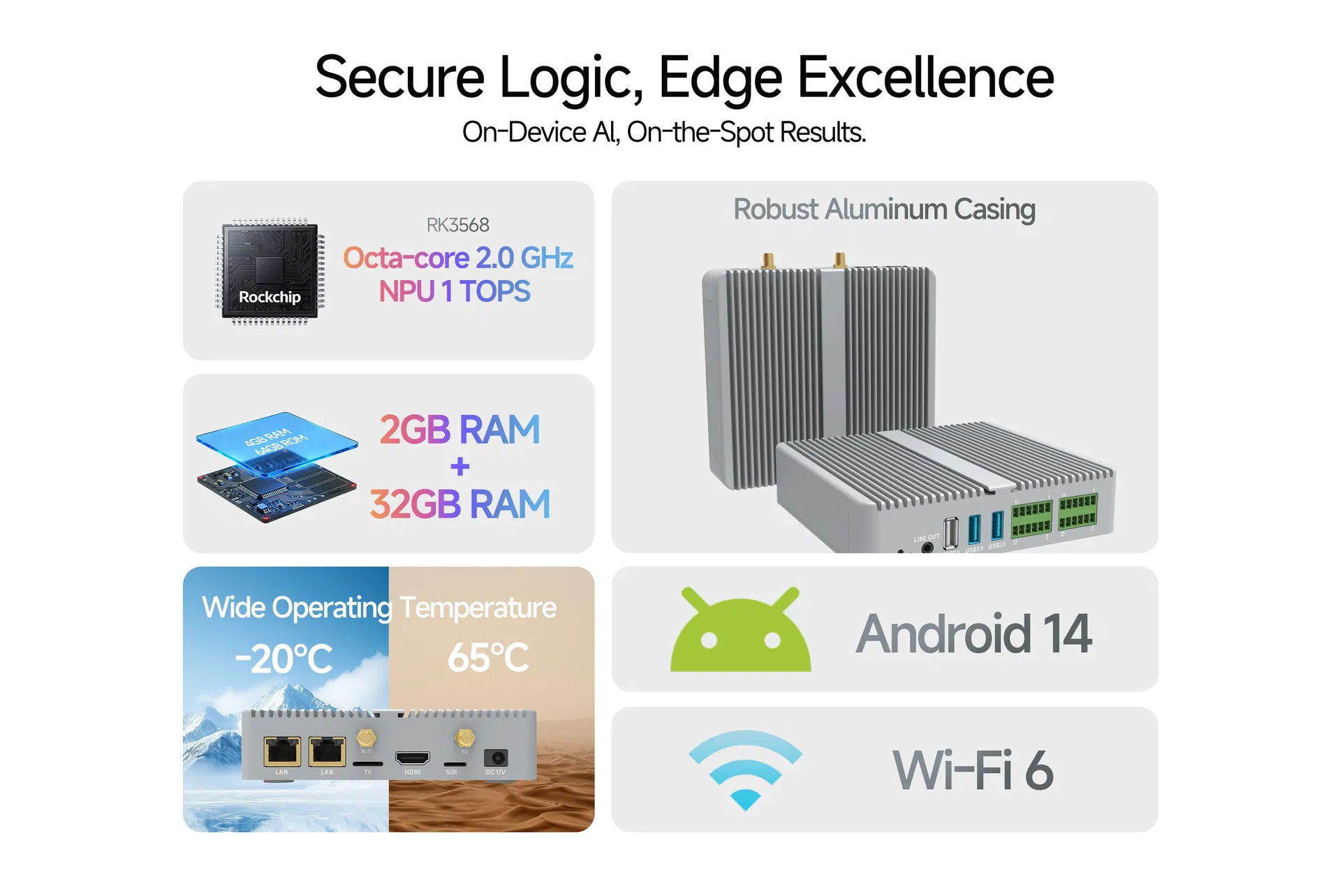

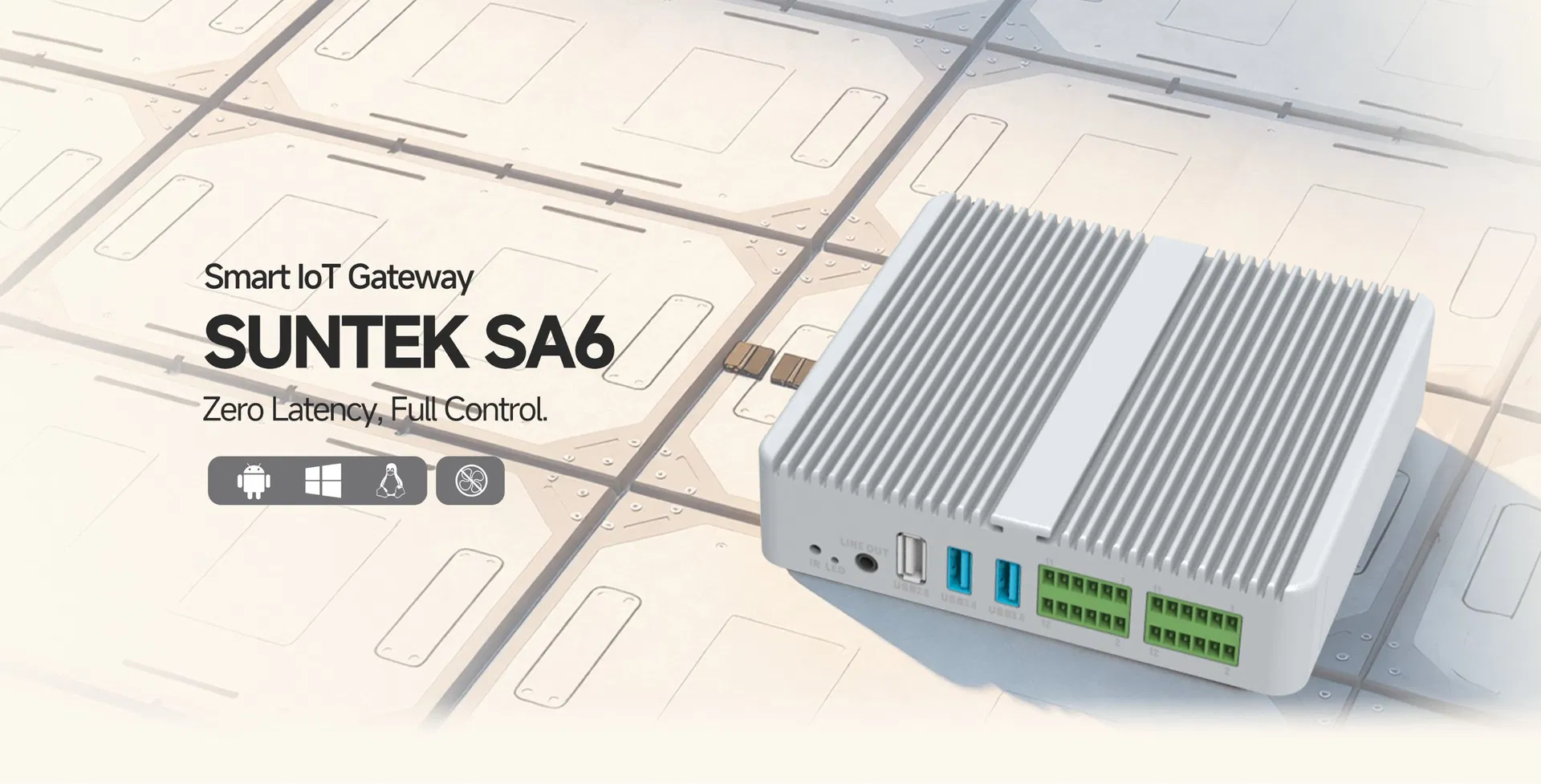

The SA6 Edge AI Box is a high-performance computing device powered by the Rockchip RK3568 processor. Designed for real-time data processing at the "Edge," it minimizes cloud latency and storage costs while ensuring enhanced privacy for industrial and smart city applications.
| Model | SA6 |
| Product Type | Edge AI Computing Gateway |
| Operating System | Android 14.0 |
| Processor | RK3568, Octa-Core 2.0 GHz |
| NPU | Support 1 TOPS |

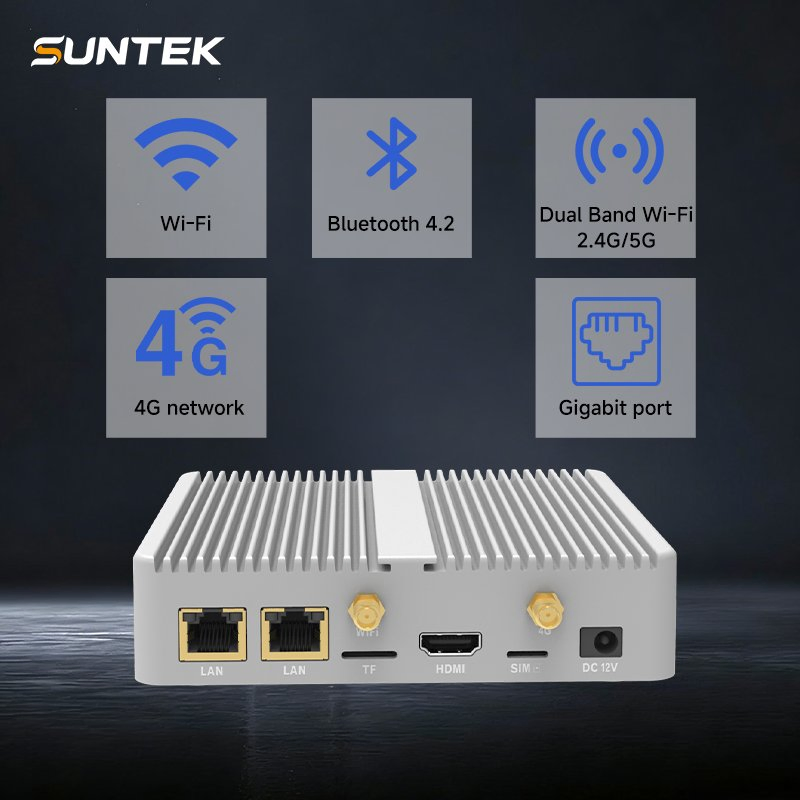

| Network Support | Wi-Fi (2.4G/5G), Ethernet (1000M), Bluetooth 4.2, 4G LTE (Optional) |

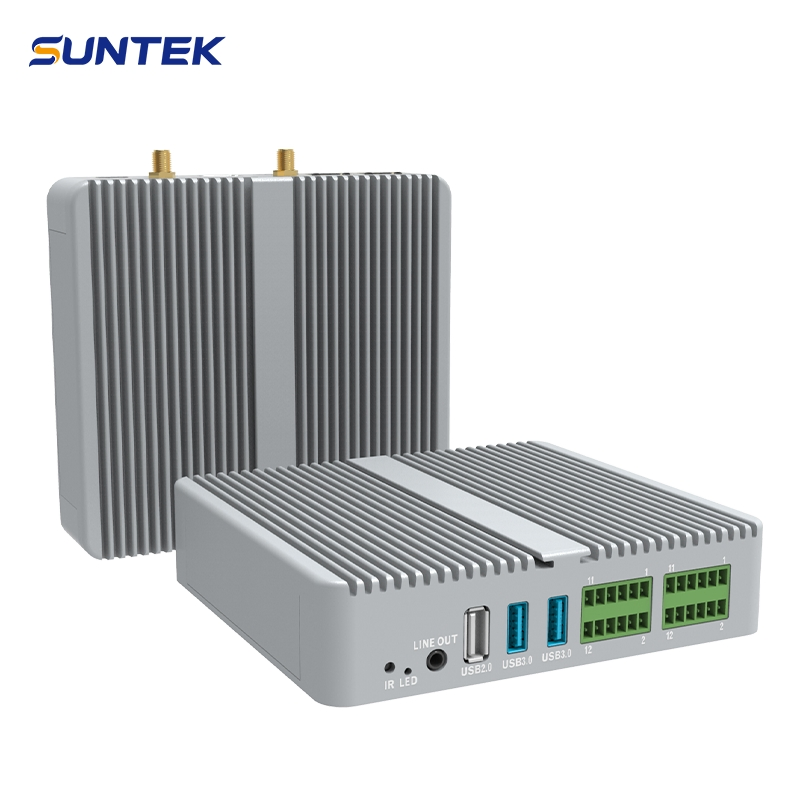

| Material | Fanless Metal Case |
| GPU | Quad-core Mali-G52 2EE; Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory & Storage | 2GB RAM + 32GB ROM (Supports USB expansion) |
| Multimedia | 4K@60fps H.265/H.264/VP9 decoding; 1080P@60fps encoding; Supports HDR |
| Display Output | 1x HDMI Type-A (Max 4K@60Hz) |

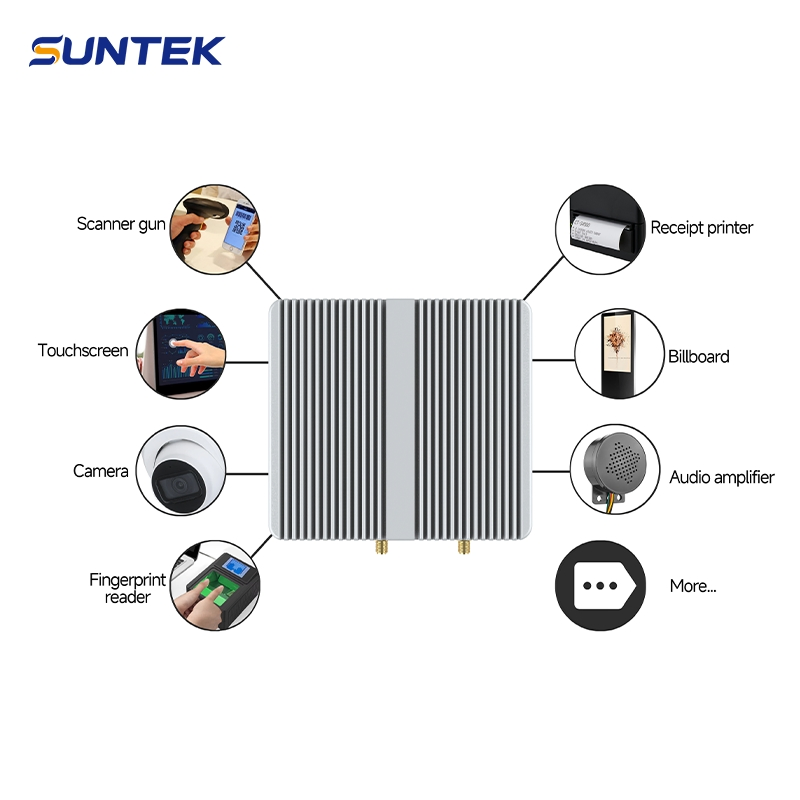

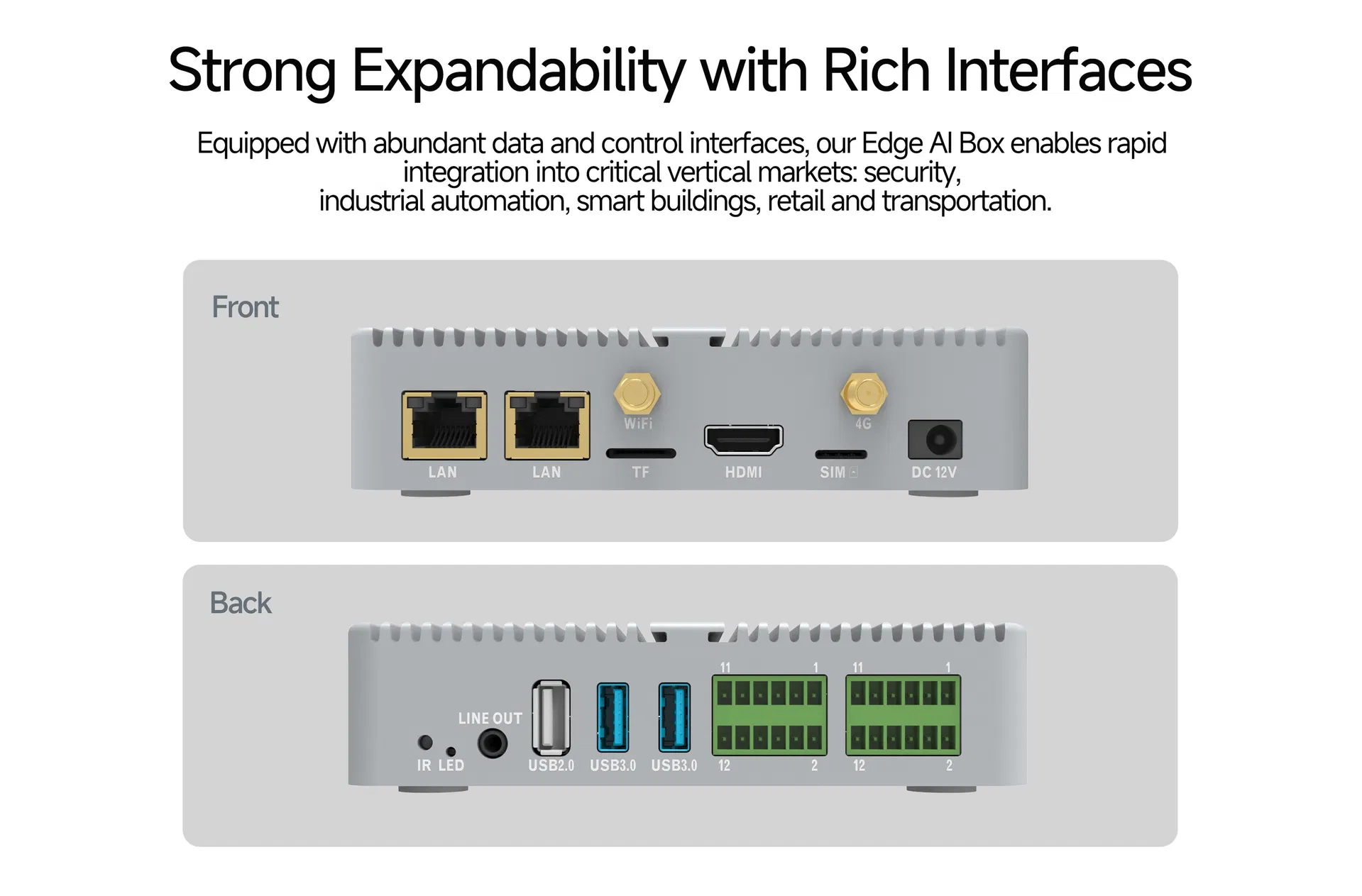

| Peripheral Ports | 2x USB 3.0, 1x USB 2.0, 1x M.2 (Key M), 2x RS485, 2x RS232, 2x CAN, 6x GPIO |
| Audio/SIM | Line Out, 3.5mm Headphone, Nano-SIM Card Slot, TF Card Slot |
| Environment | Working: 0°C to 40°C; Storage: 0°C to 70°C; Humidity 30%-80% |
| Dimensions | 136(L) × 124.4(W) × 32(H) mm |
Product Customization Life Cycle:
